BMW MOTORRAD K 1200 R 2007 Rider's Manual (in English)

General views
General views
General view, left side................ 11
General view, right side . . ............ 13
Underneath the seat ................. 15
Handlebar fitting, left ................. 16
Handlebar fitting, right . . . ............ 17
Instrument cluster ................... 18
Headlight ............................ 19
29zGeneral views

210zGeneral views

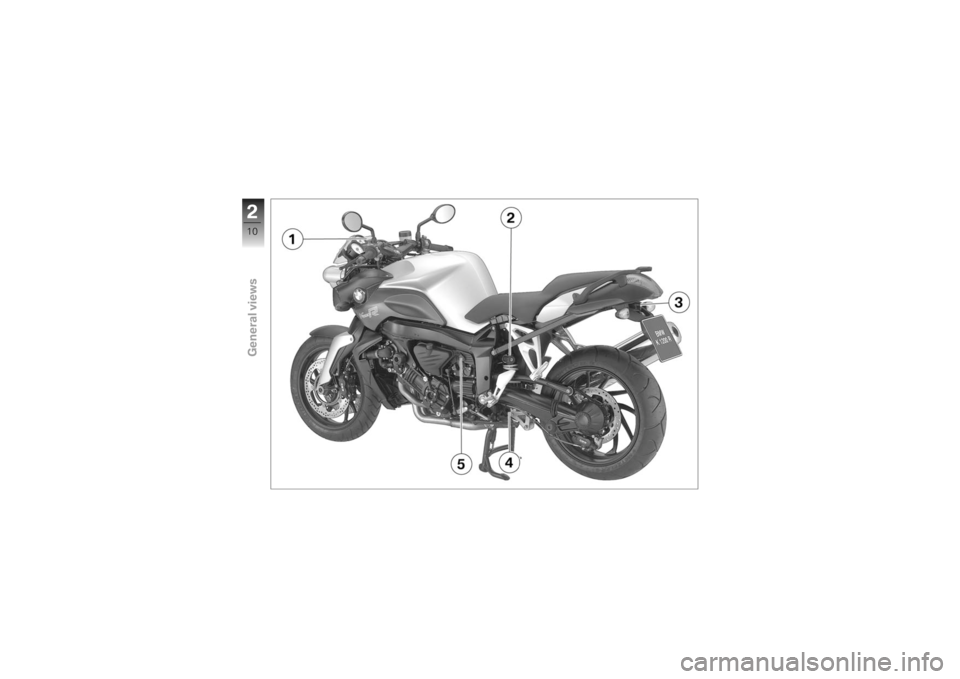

General view, left side1Clutch-fluid reservoir
( 105)
2 Adjuster for spring preload,
rear ( 61)
3 Seat lock (underneath rear
light) ( 66)
4 Adjuster for damping char-
acteristic, rear suspension
( 62)
5 Power socket ( 90)
211zGeneral views

212zGeneral views

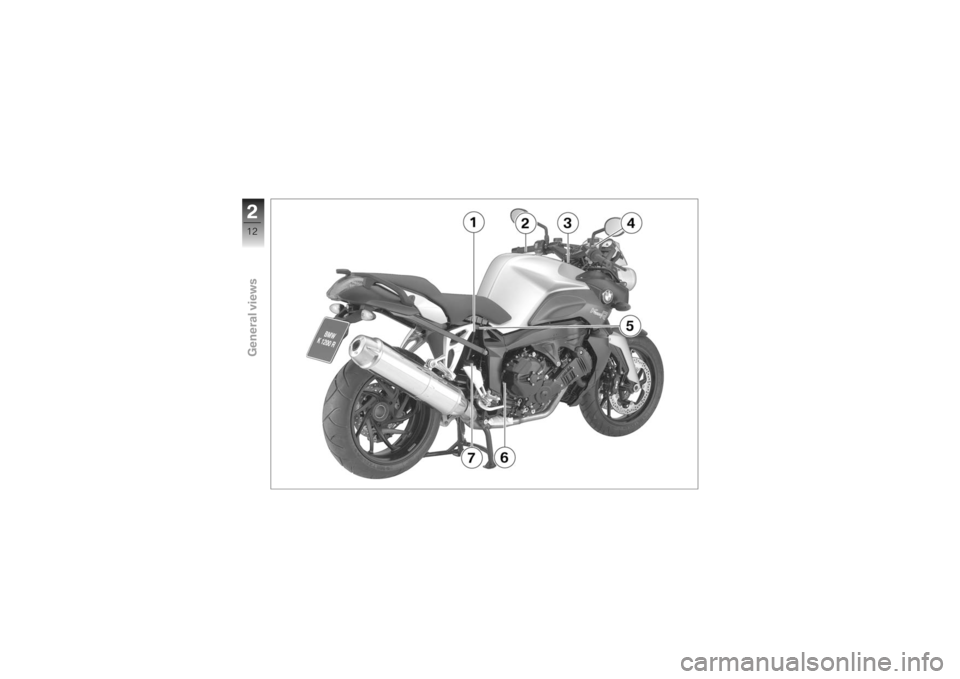

General view, right side1Engine oil level indicator
( 99)
2 Fuel filler neck ( 79)
3 Battery compartment
( 129)
4 Brake-fluid reservoir, front
( 102)
5 Type plate (on rear cross-
tube)
6 Vehicle identification num-
ber (on side panel, front
right)
7 Brake-fluid reservoir, rear
( 104)
213zGeneral views

214zGeneral views

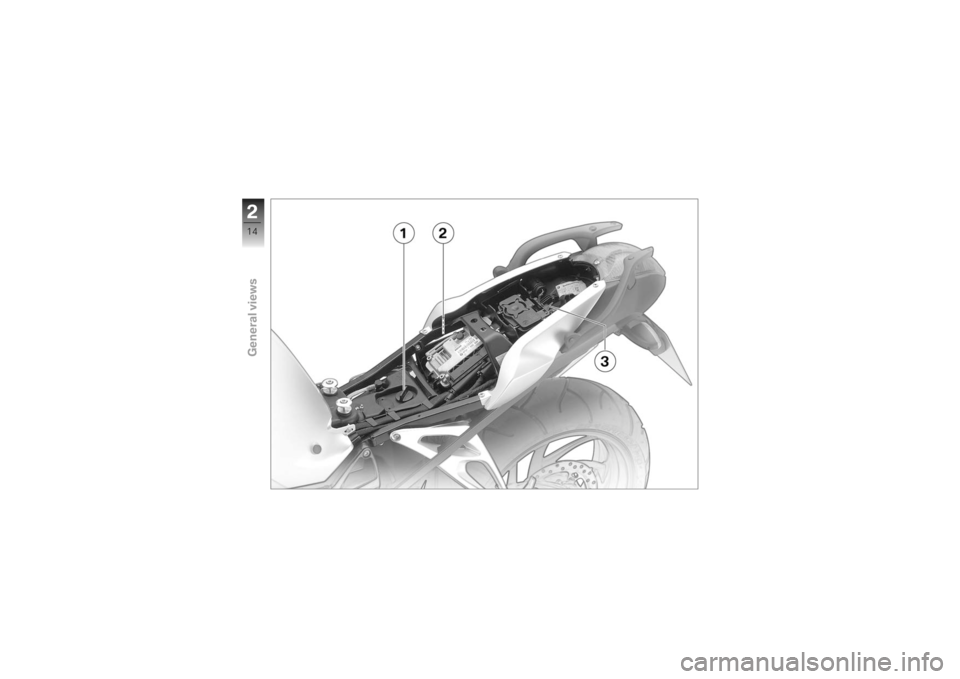

Underneath the seat1Engine-oil filler neck
( 100)
2 Toolkit ( 98)
3 Helmet holder ( 67)
215zGeneral views

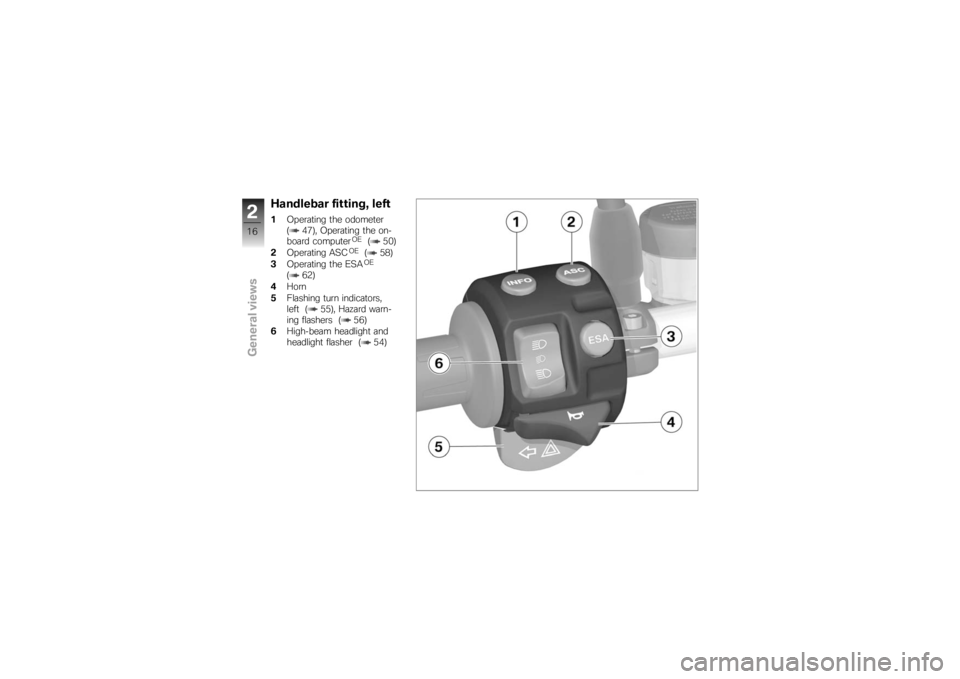

Handlebar fitting, left1Operating the odometer
( 47), Operating the on-
board computer
OE
( 50)
2 Operating ASC
OE
( 58)
3 Operating the ESAOE
( 62)
4 Horn
5 Flashing turn indicators,
left ( 55), Hazard warn-
ing flashers ( 56)
6 High-beam headlight and
headlight flasher ( 54)
216zGeneral views

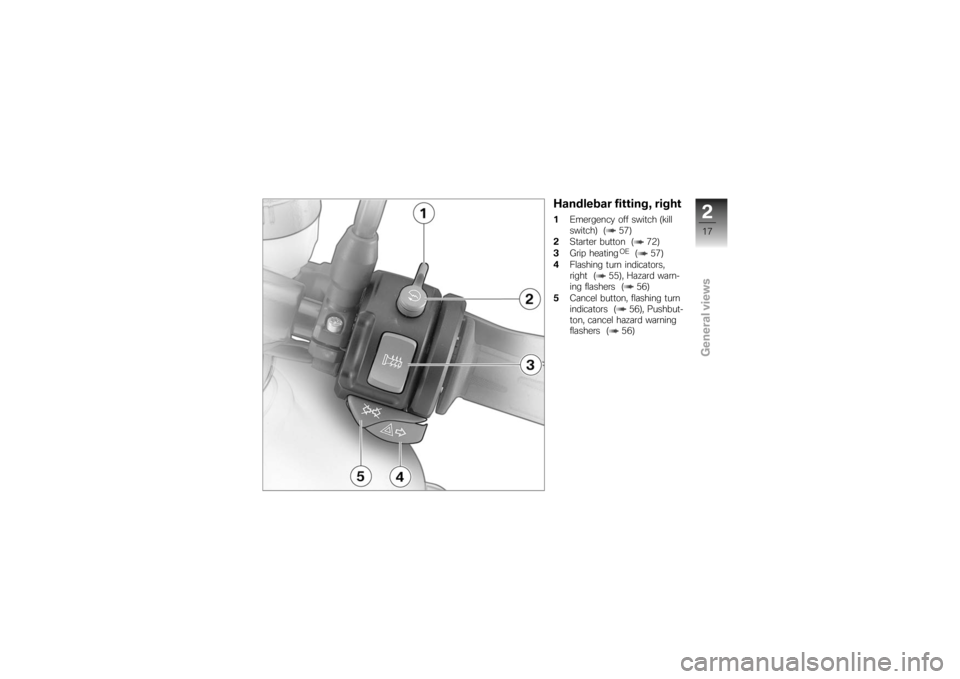

Handlebar fitting, right1Emergency off switch (kill
switch) ( 57)
2 Starter button ( 72)
3 Grip heating
OE
( 57)
4 Flashing turn indicators,
right ( 55), Hazard warn-
ing flashers ( 56)
5 Cancel button, flashing turn
indicators ( 56), Pushbut-
ton, cancel hazard warning
flashers ( 56)
217zGeneral views

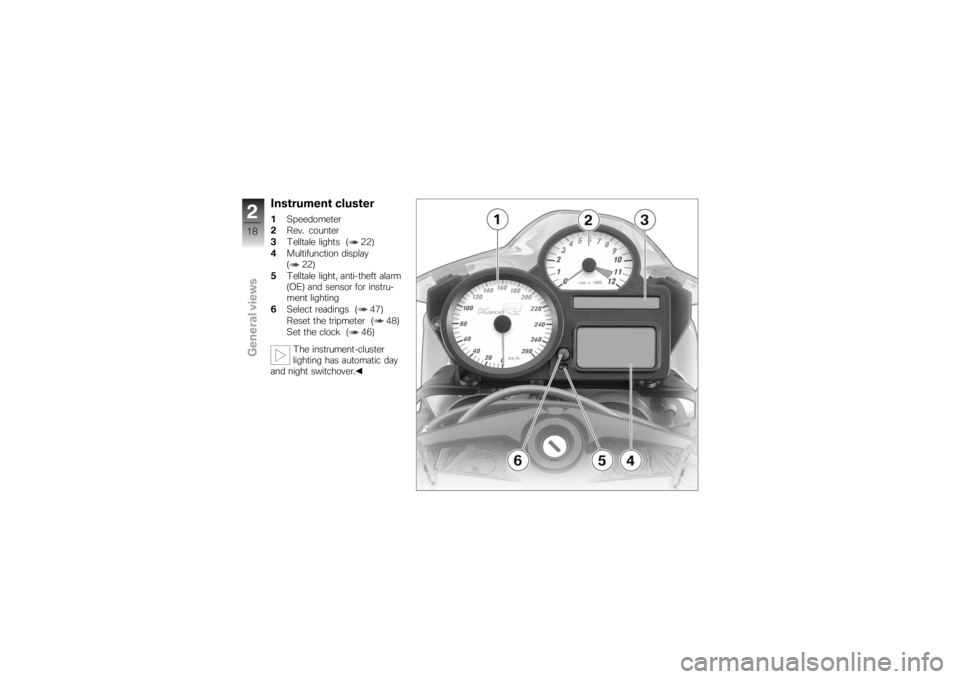

Instrument cluster1Speedometer
2 Rev. counter
3 Telltale lights ( 22)
4 Multifunction display
( 22)
5 Telltale light, anti-theft alarm
(OE) and sensor for instru-
ment lighting
6 Select readings ( 47)
Reset the tripmeter ( 48)
Set the clock ( 46)
The instrument-cluster
lighting has automatic day
and night switchover.
218zGeneral views
