Page 171 of 212

BMW X3 2013 F25 Owners Manual Engine compartmentVehicle equipmentAll standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equip‐ment is also described tha

Page 172 of 212

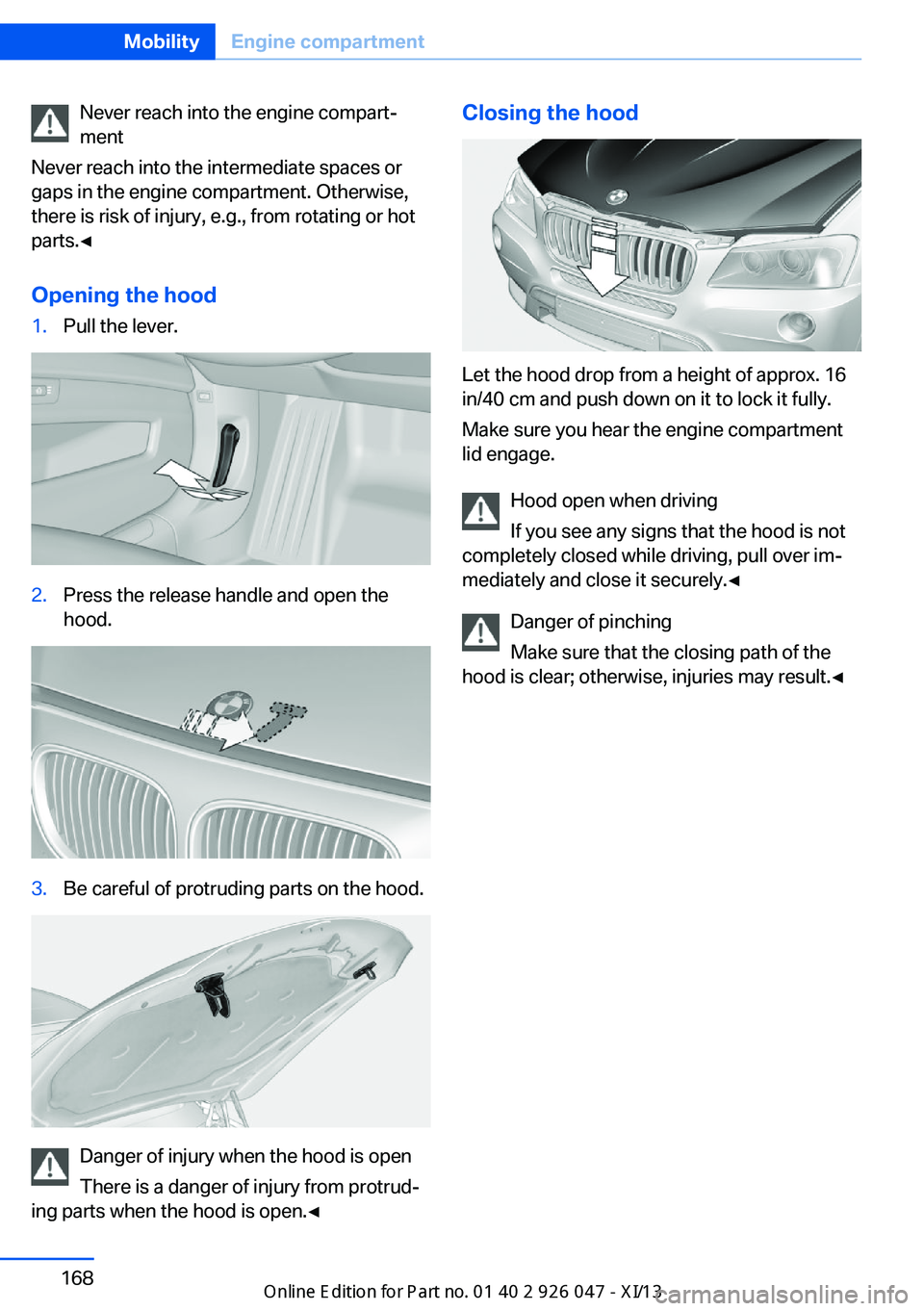

BMW X3 2013 F25 Owners Manual Never reach into the engine compart‐
ment
Never reach into the intermediate spaces or
gaps in the engine compartment. Otherwise,
there is risk of injury, e.g., from rotating or hot
parts.◀
Opening

Page 173 of 212

BMW X3 2013 F25 Owners Manual Engine oilVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equip‐
ment is also described that is n

Page 174 of 212

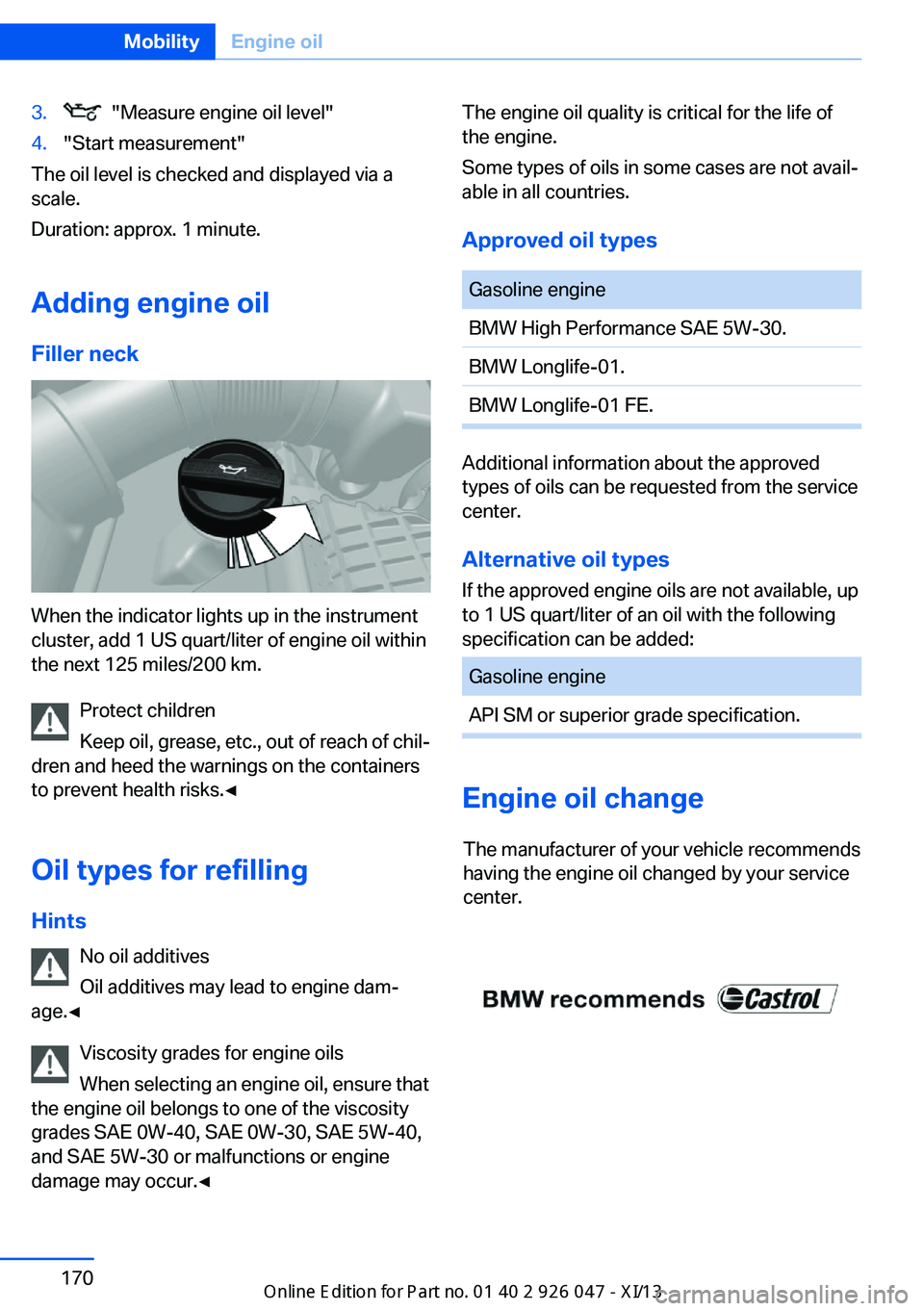

BMW X3 2013 F25 Owners Manual 3.  "Measure engine oil level"4."Start measurement"
The oil level is checked and displayed via a
scale.
Duration: approx. 1 minute.
Adding engine oil
Filler neck
When the indicator lig

Page 175 of 212

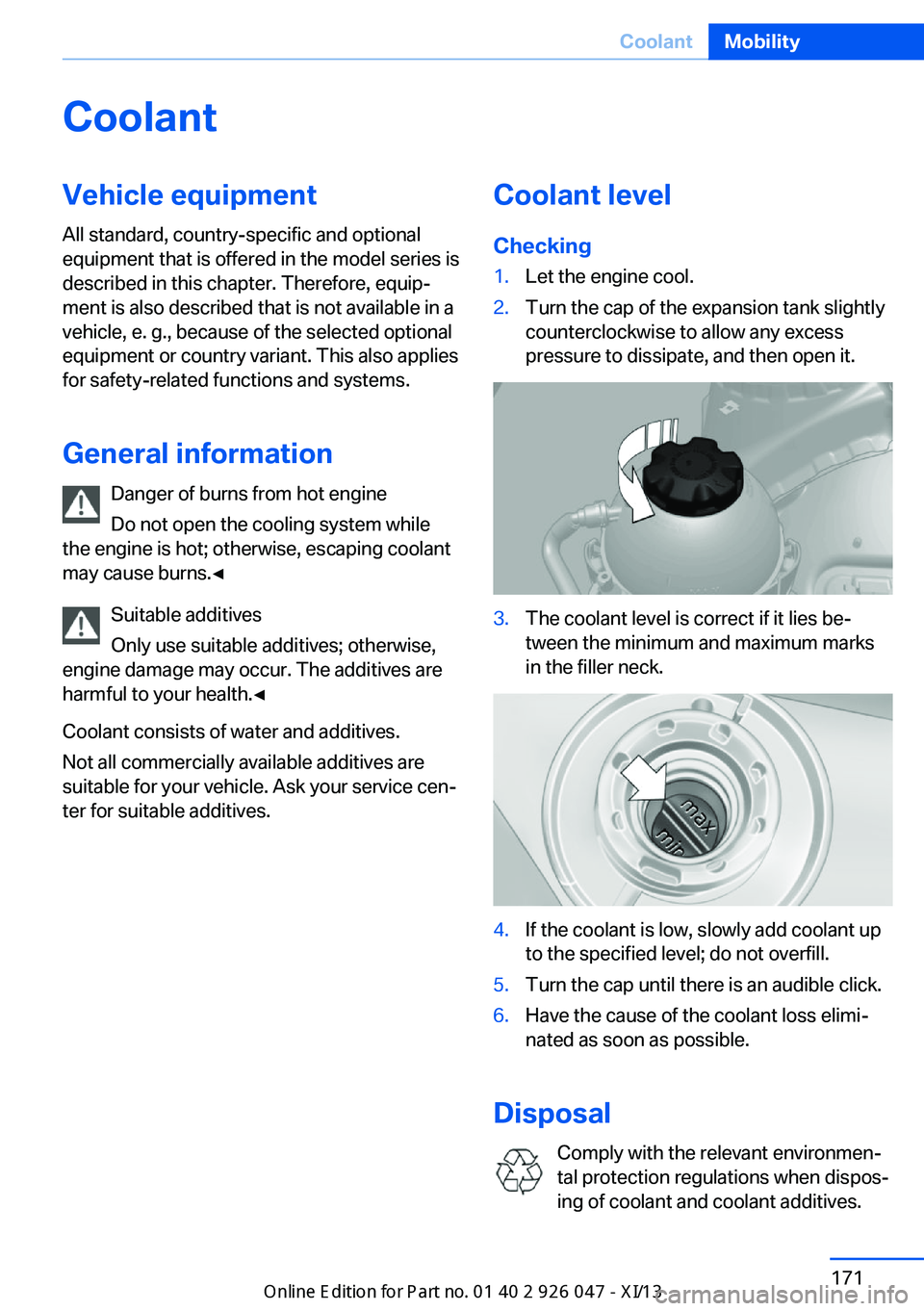

BMW X3 2013 F25 Owners Manual CoolantVehicle equipmentAll standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equip‐
ment is also described that is not a

Page 176 of 212

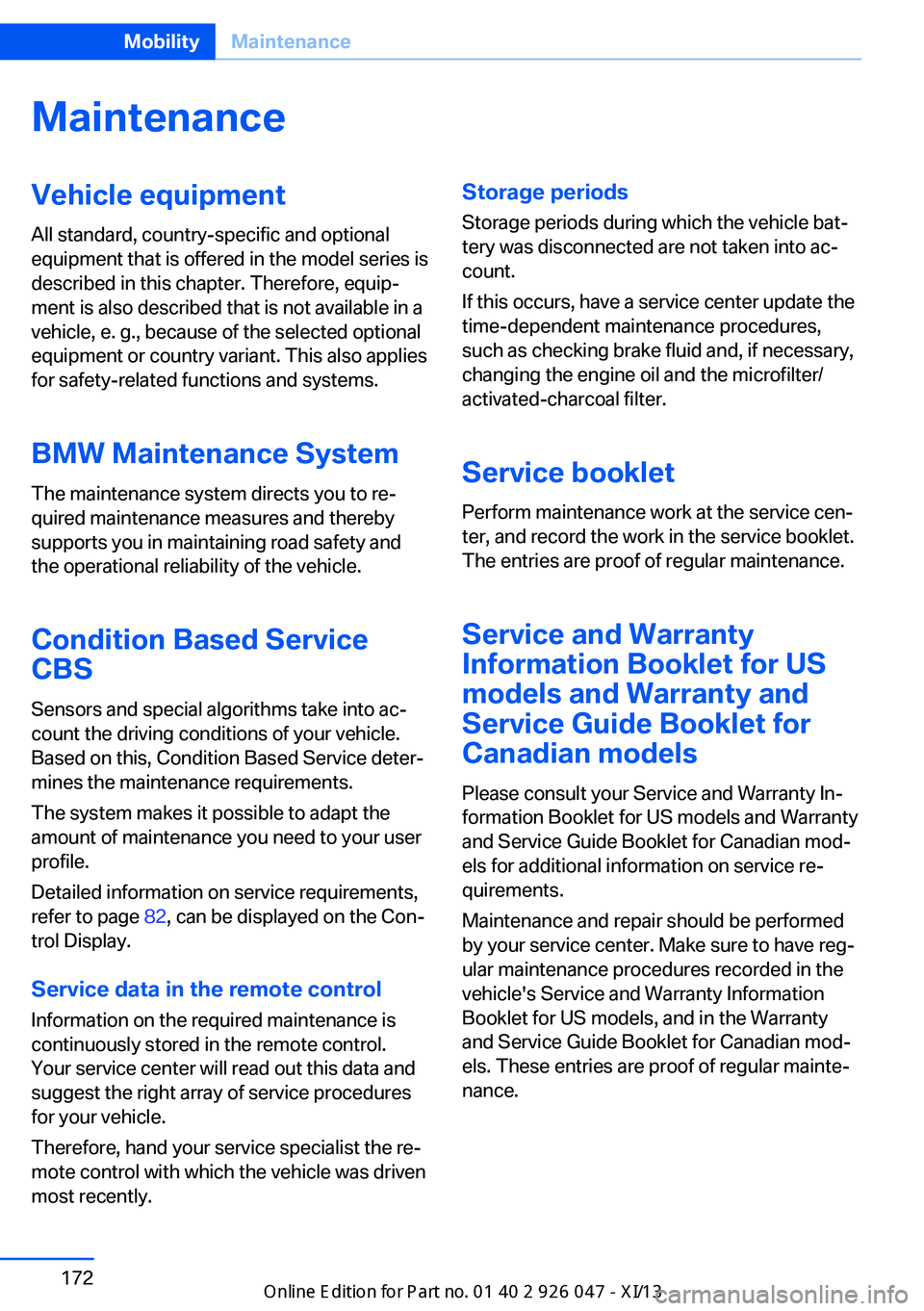

BMW X3 2013 F25 Owners Manual MaintenanceVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equip‐
ment is also described that is

Page 177 of 212

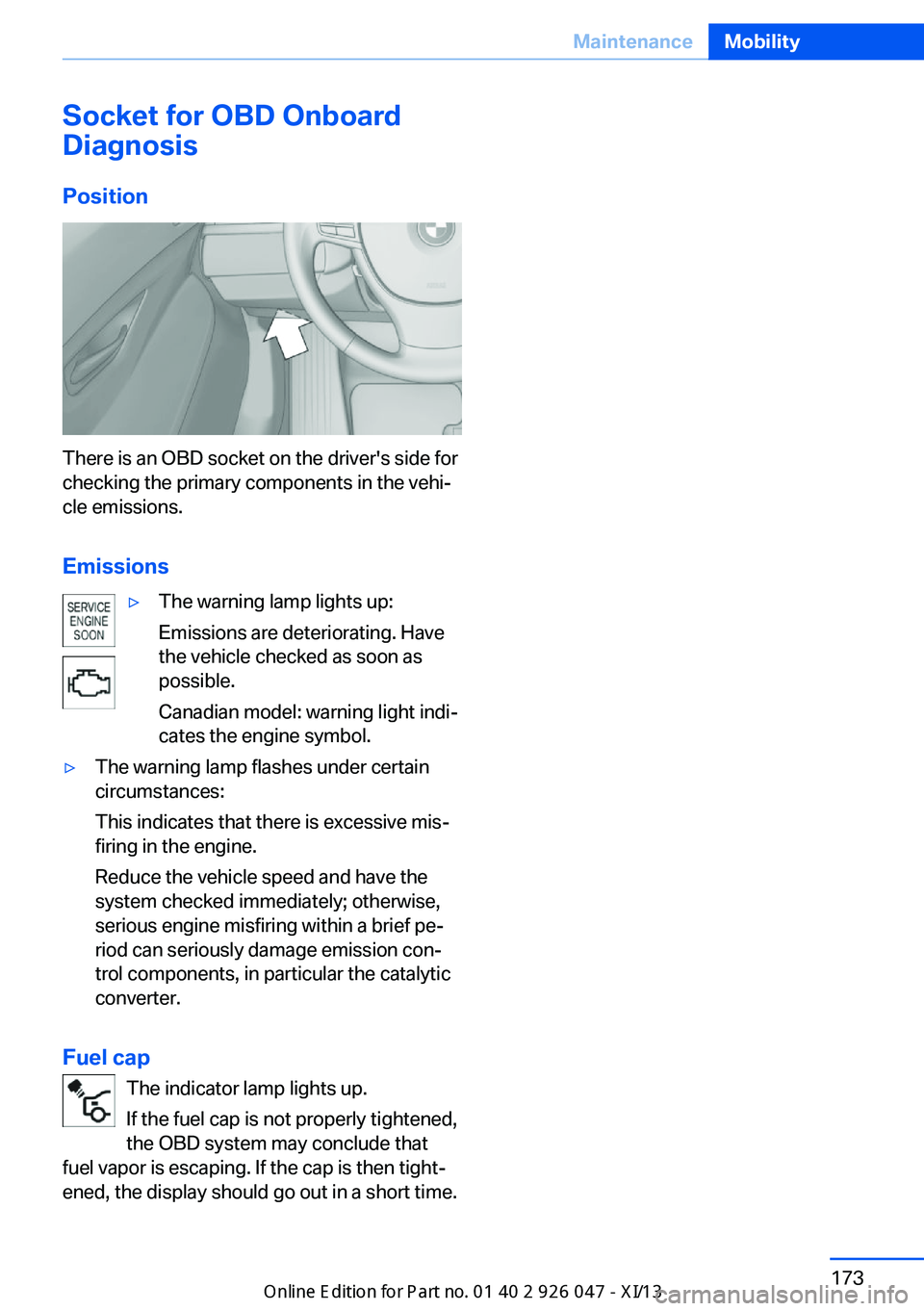

BMW X3 2013 F25 Owners Manual Socket for OBD Onboard
Diagnosis
Position
There is an OBD socket on the driver's side for
checking the primary components in the vehi‐
cle emissions.
Emissions
▷The warning lamp lights up:
Emi

Page 178 of 212

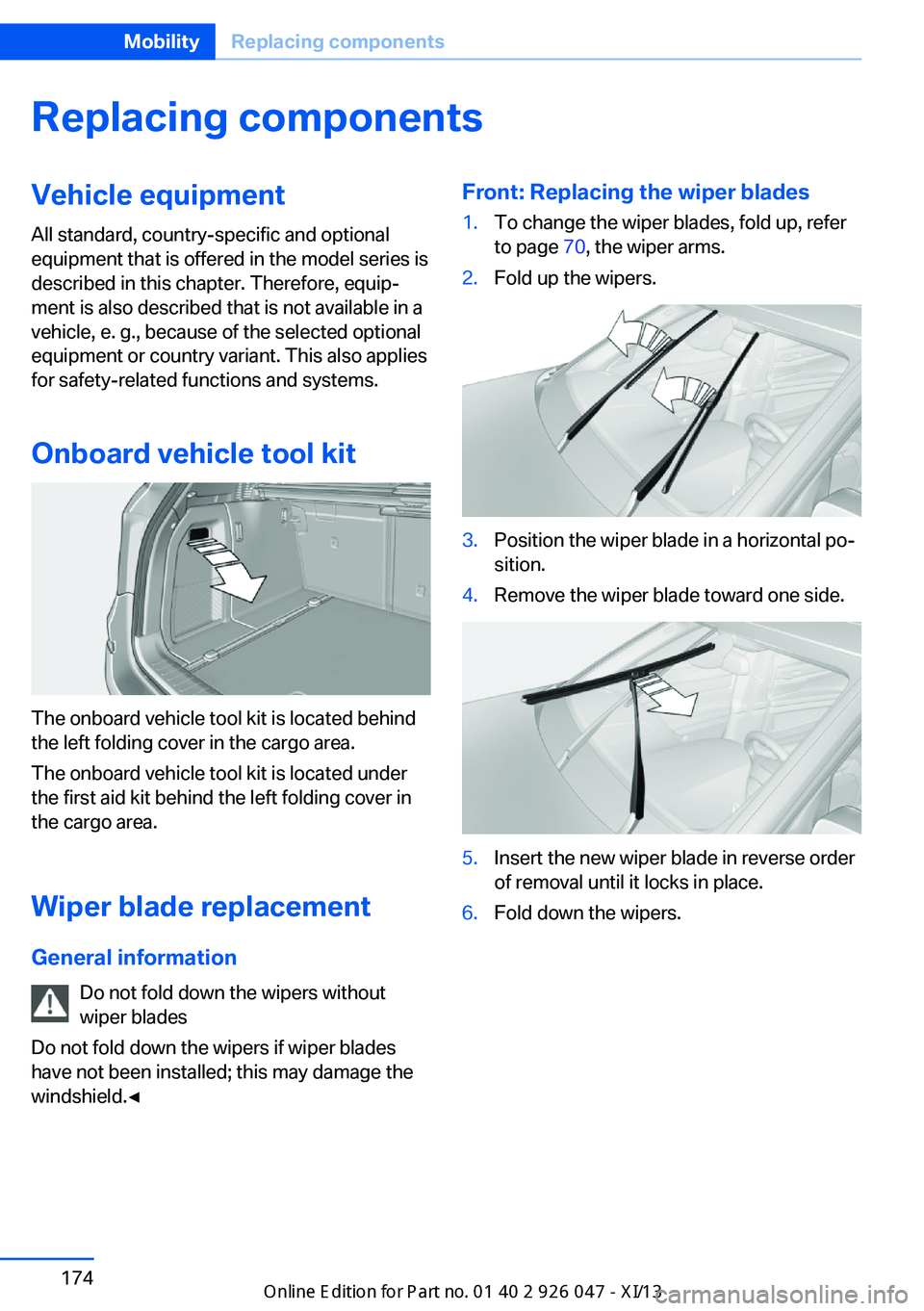

BMW X3 2013 F25 Owners Manual Replacing componentsVehicle equipmentAll standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equip‐
ment is also described

Page 179 of 212

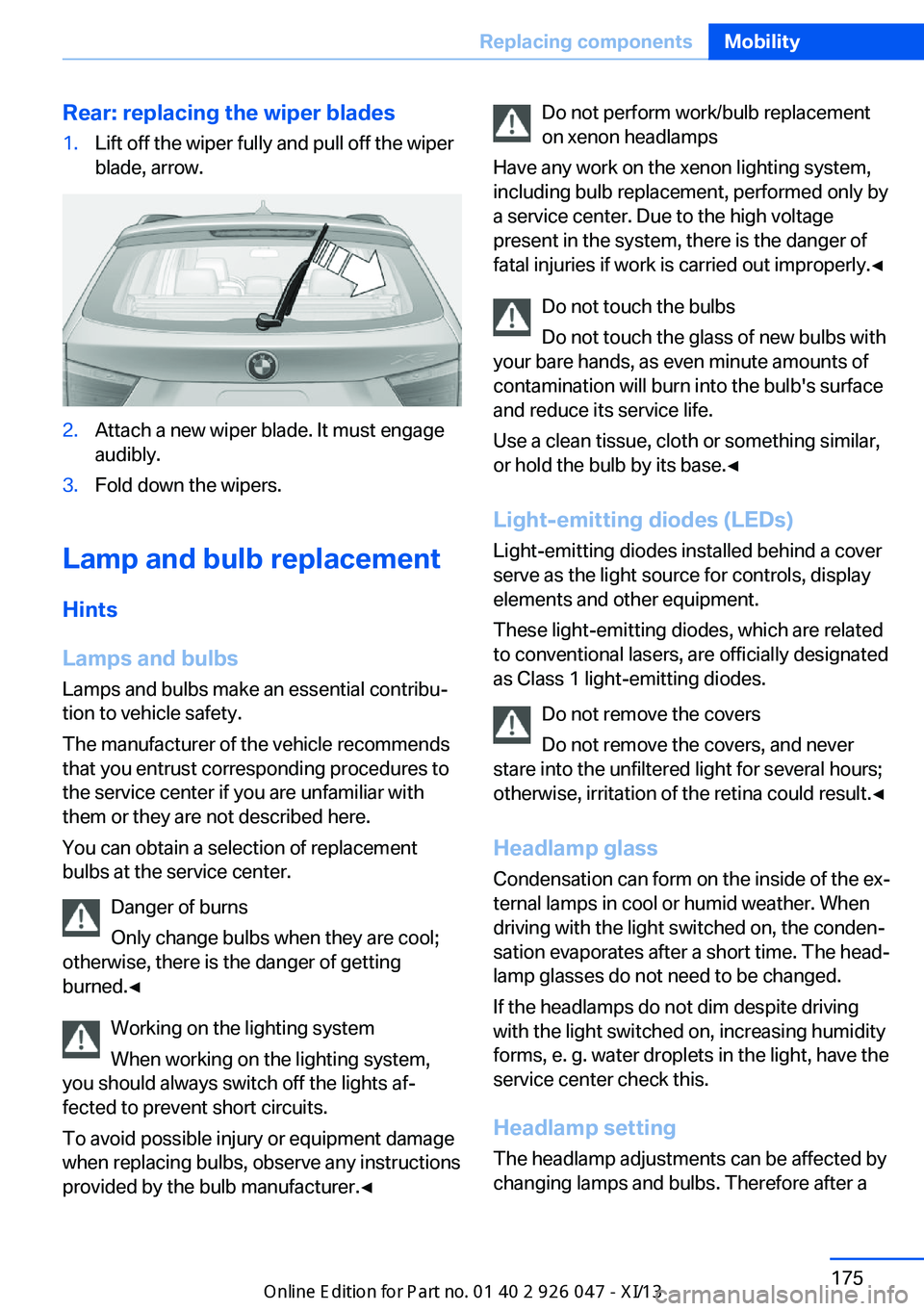

BMW X3 2013 F25 Owners Manual Rear: replacing the wiper blades1.Lift off the wiper fully and pull off the wiper
blade, arrow.2.Attach a new wiper blade. It must engage
audibly.3.Fold down the wipers.
Lamp and bulb replacement
Hint

Page 180 of 212

BMW X3 2013 F25 Owners Manual change, have the headlamp setting checked
and corrected by Service.
Front lamps, bulb replacement
At a glance Halogen headlamps1High beams/headlamp flasher2Parking lamps3Low beams4Turn signal/side mar
