Cockpit
10
Cockpit
Controls
1Parking lamps/low beams53
2>Turn signals38
>Roadside parking lamps54
>High beams54
>Headlamp flasher38
>Computer
*44
3Fog lamps
*54
4Horn
5Washer/wiper system/rain sensor
*38
6Hazard warning flashers7Central locking system16
8Unlocking the hood88
Page 12 of 126
At a glance
Controls
Driving tips
Mobility Reference
11
Instrument cluster
1Speedometer
2Indicator and warning lamps11
3Tachometer42
Indicator and warning lamps11
4Coolant temperature gage42
5Fuel gage42
6Button for
>Displaying the time43
>Service Interval Display43
7Selector lever and program display for
automatic transmission36
8Button for
>Resetting trip odometer42
>Setting the time43
9Display for
>Trip odometer/odometer42
>Time43
>Service Interval43
>Computer44 Indicator and warning lamps
Technology that monitors itself
The indicator and warning lamps identified by
the Χ are subjected to an operation check each
time you switch on the engine. They each light
up once for different periods of time.
When a malfunction occurs in a monitored sys-
tem, the corresponding lamp will either fail to go
o u t w h e n t h e e n g i n e i s s t a r t e d , o r i t w i l l c o m e o n
again during normal driving. Detailed informa-
tion is provided on the specified pages.
Please fasten safety belt +27
Airbags
+51
Brake system
+
With handbrake released49, 92
With handbrake engaged 35
With other warning lamps49
Page 13 of 126
Cockpit
12
Colors
The indicator and warning lamps can light up in
different colors and combinations.
The following section explains the significance
of the individual colors as well as how you
should respond when they appear.
>red:
Stop the vehicle immediately
or
an important reminder
>yellow:
Have the system inspected as soon as
possible
or
For your information
>green:
For your information
>blue:
For your information
Buttons on steering wheel*
The buttons integrated into the steering wheel
are provided so that you can operate a number
of accessories quickly and without being dis-
tracted from traffic conditions. You may oper-
ate:
>Selected audio source functions
>Recirculated-air mode/steering wheel
heater Brake warning lamp for Canadian
models
Driving stability control systems/
ABS Antilock Brake System
+49
ABS Antilock Brake System/chassis
control system for Canadian models
Brake pads
+92
DSC Dynamic Stability Control/
xDrive
+ 47, 49
Flat Tire Monitor
+49
Automatic transmission
+36
Engine oil
+90
Service Engine Soon
+94
Service Engine Soon warning lamp for
Canadian models
Check Gas Cap
* +80
Engine electronics
+34
Battery charge current
+101
Topping off coolant91
Topping off washer fluid90
Lamp defective53
Turn signals38
Front fog lamps54
Headlamp flasher38
High beams54
Cruise control40
Indicates from ignition key in posi-
tion 2 when a door or the tailgate is
opened.
Page 14 of 126
At a glance
Controls
Driving tips
Mobility Reference
13

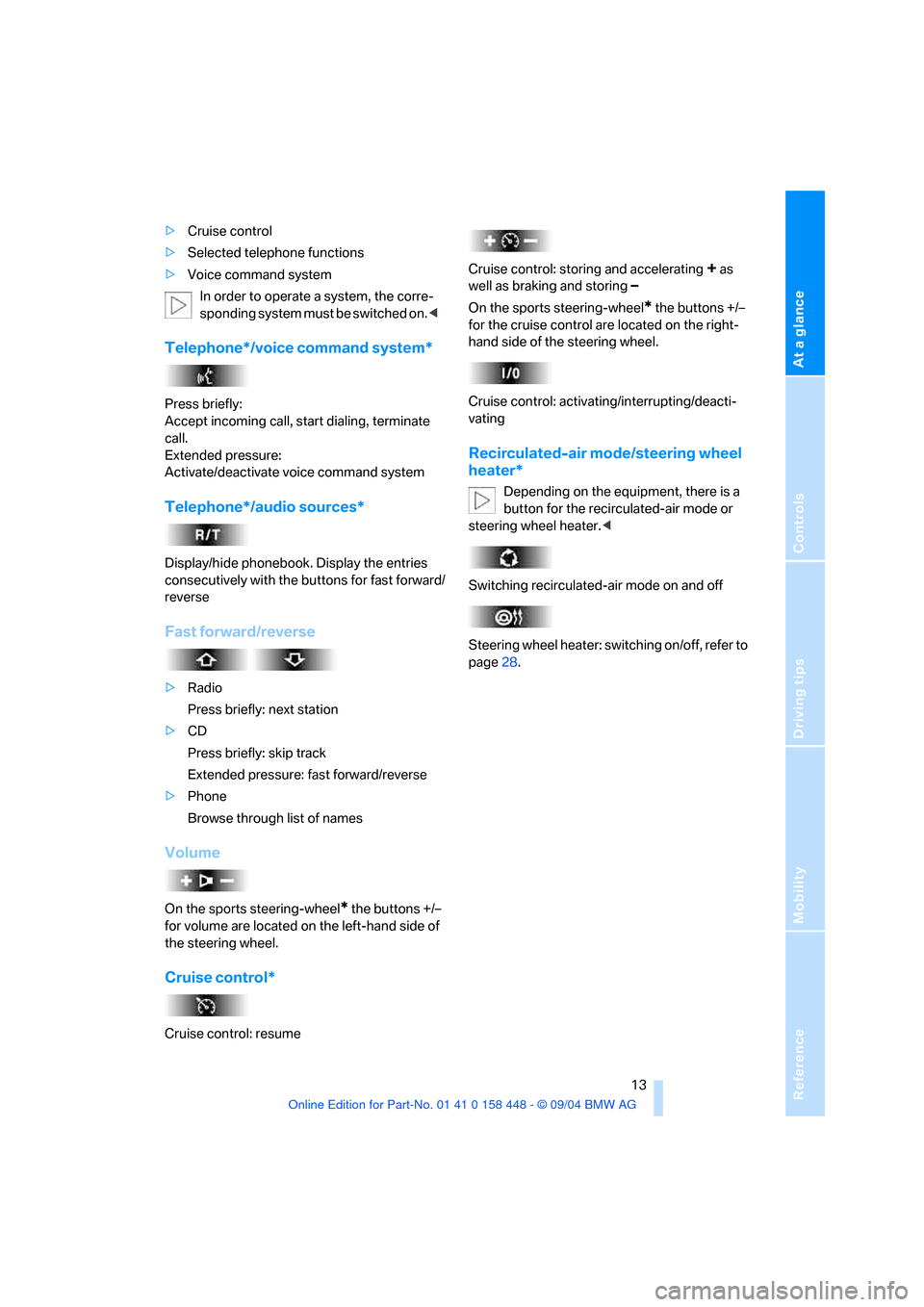

>Cruise control
>Selected telephone functions
>Voice command system
In order to operate a system, the corre-
sponding system must be switched on.<
Telephone*/voice command system*
Press briefly:
Accept incoming call, start dialing, terminate
call.
Extended pressure:
Activate/deactivate voice command system
Telephone*/audio sources*
Display/hide phonebook. Display the entries
consecutively with the buttons for fast forward/
reverse
Fast forward/reverse
>Radio
Press briefly: next station
>CD
Press briefly: skip track
Extended pressure: fast forward/reverse
>Phone
Browse through list of names
Volume
On the sports steering-wheel* the buttons +/–
for volume are located on the left-hand side of
the steering wheel.
Cruise control*
Cruise control: resumeCruise control: storing and accelerating
+ as
well as braking and storing
–
On the sports steering-wheel* the buttons +/–
for the cruise control are located on the right-
hand side of the steering wheel.
Cruise control: activating/interrupting/deacti-
vating
Recirculated-air mode/steering wheel
heater*
Depending on the equipment, there is a
button for the recirculated-air mode or
steering wheel heater.<
Switching recirculated-air mode on and off
Steering wheel heater: switching on/off, refer to
page28.
Page 15 of 126
Page 16 of 126

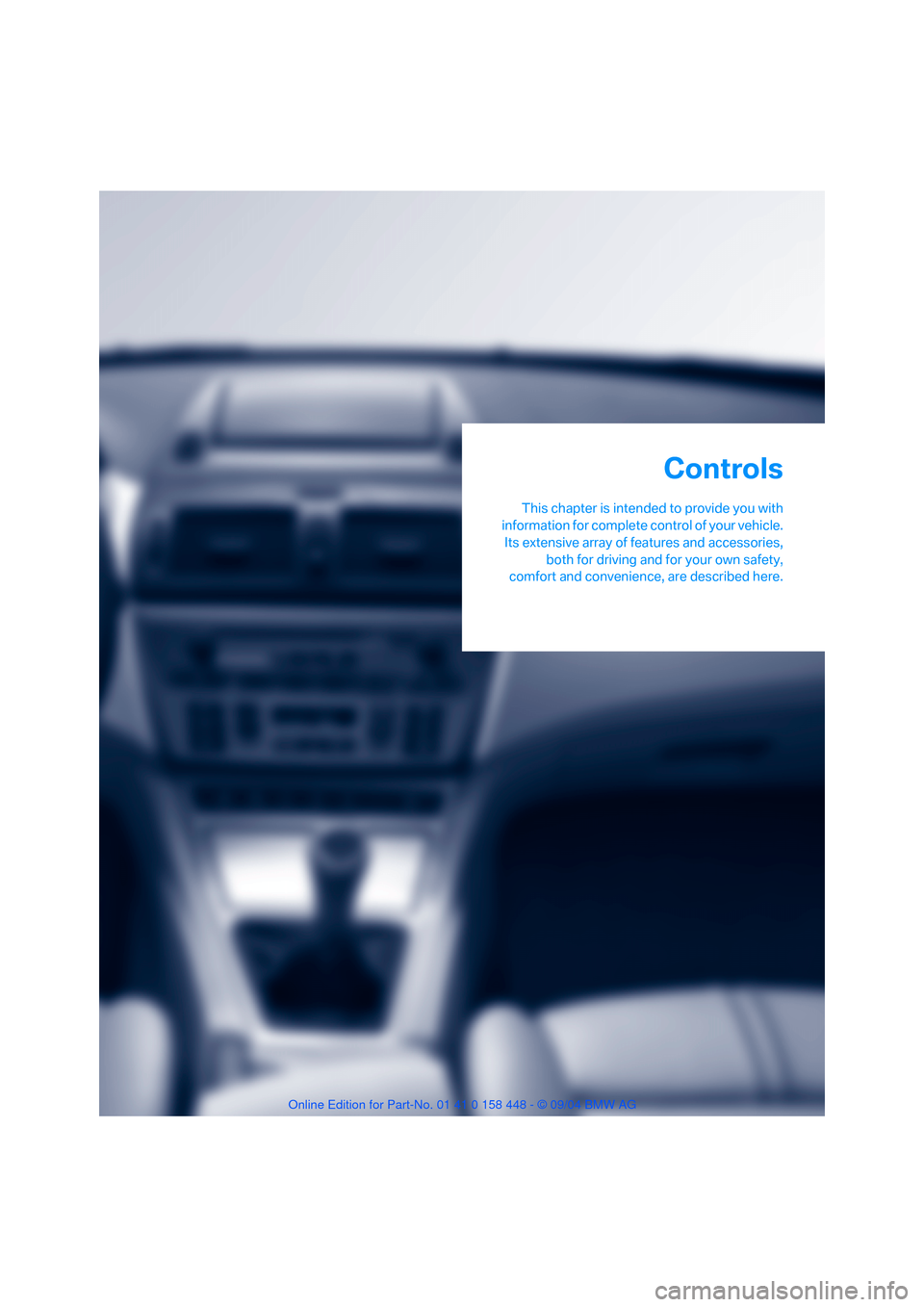

Controls
This chapter is intended to provide you with
information for complete control of your vehicle.
Its extensive array of features and accessories,
both for driving and for your own safety,
comfort and convenience, are described here.
Controls
Page 17 of 126

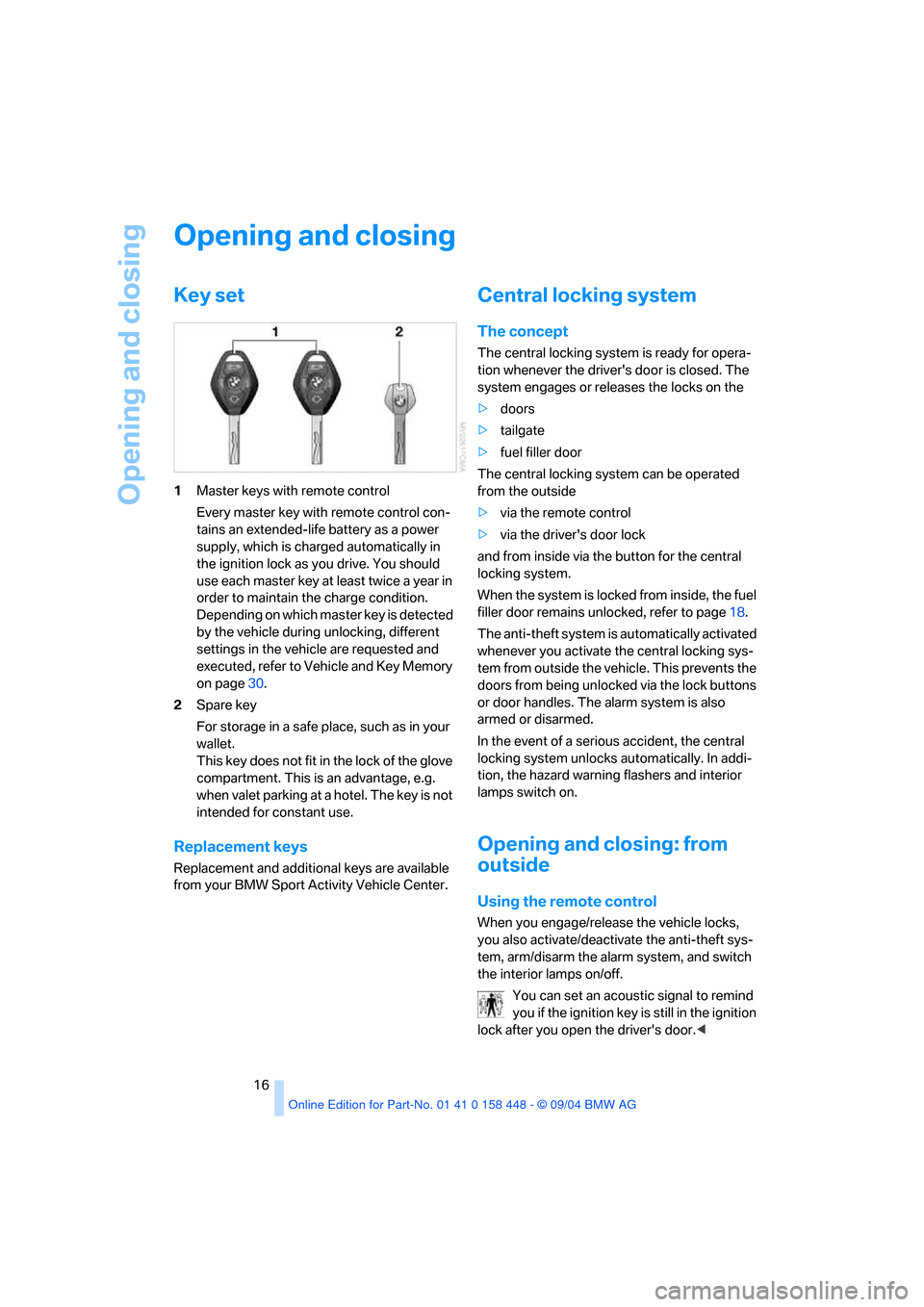

Opening and closing
16
Opening and closing
Key set
1Master keys with remote control
Every master key with remote control con-
tains an extended-life battery as a power
supply, which is charged automatically in
the ignition lock as you drive. You should
use each master key at least twice a year in
order to maintain the charge condition.
Depending on which master key is detected
by the vehicle during unlocking, different
settings in the vehicle are requested and
executed, refer to Vehicle and Key Memory
on page30.
2Spare key
For storage in a safe place, such as in your
wallet.
This key does not fit in the lock of the glove
compartment. This is an advantage, e.g.
when valet parking at a hotel. The key is not
intended for constant use.
Replacement keys
Replacement and additional keys are available
from your BMW Sport Activity Vehicle Center.
Central locking system
The concept
The central locking system is ready for opera-
tion whenever the driver's door is closed. The
system engages or releases the locks on the
>doors
>tailgate
>fuel filler door
The central locking system can be operated
from the outside
>via the remote control
>via the driver's door lock
and from inside via the button for the central
locking system.
When the system is locked from inside, the fuel
filler door remains unlocked, refer to page18.
The anti-theft system is automatically activated
whenever you activate the central locking sys-
tem from outside the vehicle. This prevents the
doors from being unlocked via the lock buttons
or door handles. The alarm system is also
armed or disarmed.
In the event of a serious accident, the central
locking system unlocks automatically. In addi-
tion, the hazard warning flashers and interior
lamps switch on.
Opening and closing: from
outside
Using the remote control
When you engage/release the vehicle locks,
you also activate/deactivate the anti-theft sys-
tem, arm/disarm
the alarm system, and switch
the interior lamps on/off.
You can set an acoustic signal to remind
you if the ignition key is still in the ignition
lock after you open the driver's door.<
Page 18 of 126
Reference
At a glance
Controls
Driving tips
Mobility
17
Protect the remote control against unau-
thorized use by handing over only the
spare key, for example when using hotel valet
parking.<
For additional details on the alarm system, refer
to page22.
Because any persons or animals left unat-
tended in a parked vehicle could lock the
doors from the inside, you should always keep
the remote control with you; this precaution
ensures that you will remain able to unlock the
vehicle from the outside at all times.<
Unlocking
Press the button.
Press the button once to unlock the driver's
door only; press a second time to unlock all
remaining doors as well as the tailgate and the
fuel filler door.
Convenience opening mode
Press and hold the button. The windows and
the panorama glass sunroof open.
If you desire, you can have this special
feature activated/deactivated on a vehi-
cle-specific basis.<
Locking and securing
Press the button.
If you desire, the vehicle locks automati-
cally if no door or lid is opened after
unlocking. You may have this function set on a
vehicle-specific basis if you wish.<
As confirmation for the fact that the vehicle is
properly locked, the hazard warning flashers
light up.
If you wish, you can have this special fea-
ture deactivated on vehicles without an
alarm system.<
Switching off tilt alarm sensor* and
interior motion sensor
*
Press the button again directly after
locking.
For details, refer to page23.
Switching on interior lamps
Press the button if the vehicle is locked.
You can also use this function to locate your
vehicle in parking garages etc.
Panic mode*
By pressing and holding the button for more
than approx. two seconds, you can trigger the
alarm system
* in response to any impending
danger.
To switch off the alarm: press any of the but-
tons.
Unlocking tailgate
Press the button.
The tailgate will open slightly, regardless of
whether it was previously locked or unlocked.
Before and after a trip, ensure that the
tailgate has not been opened uninten-
tionally.
A previously locked tailgate is also locked again
after closing.<
If you desire, the tailgate can only be
opened using the remote control if the
vehicle is unlocked. This can be adjusted.<
Malfunctions
The remote control may malfunction due to
local radio waves.
Should the remote control fail to operate owing
to interference of this kind, unlock and lock the
vehicle via the door lock using the master key.
If it is no longer possible to lock the vehicle via
the remote control, the battery is discharged.
Use this remote control during an extended
drive; this will recharge the battery, refer to
page16.
For US owners only
The transmitter and receiver units comply with
part 15 of the FCC/Federal Communications
Commission regulations. Operation is gov-
erned by the following:
FCC ID: LX8EWS
LX8FZVS
Page 19 of 126
Opening and closing
18 LX8FZVE

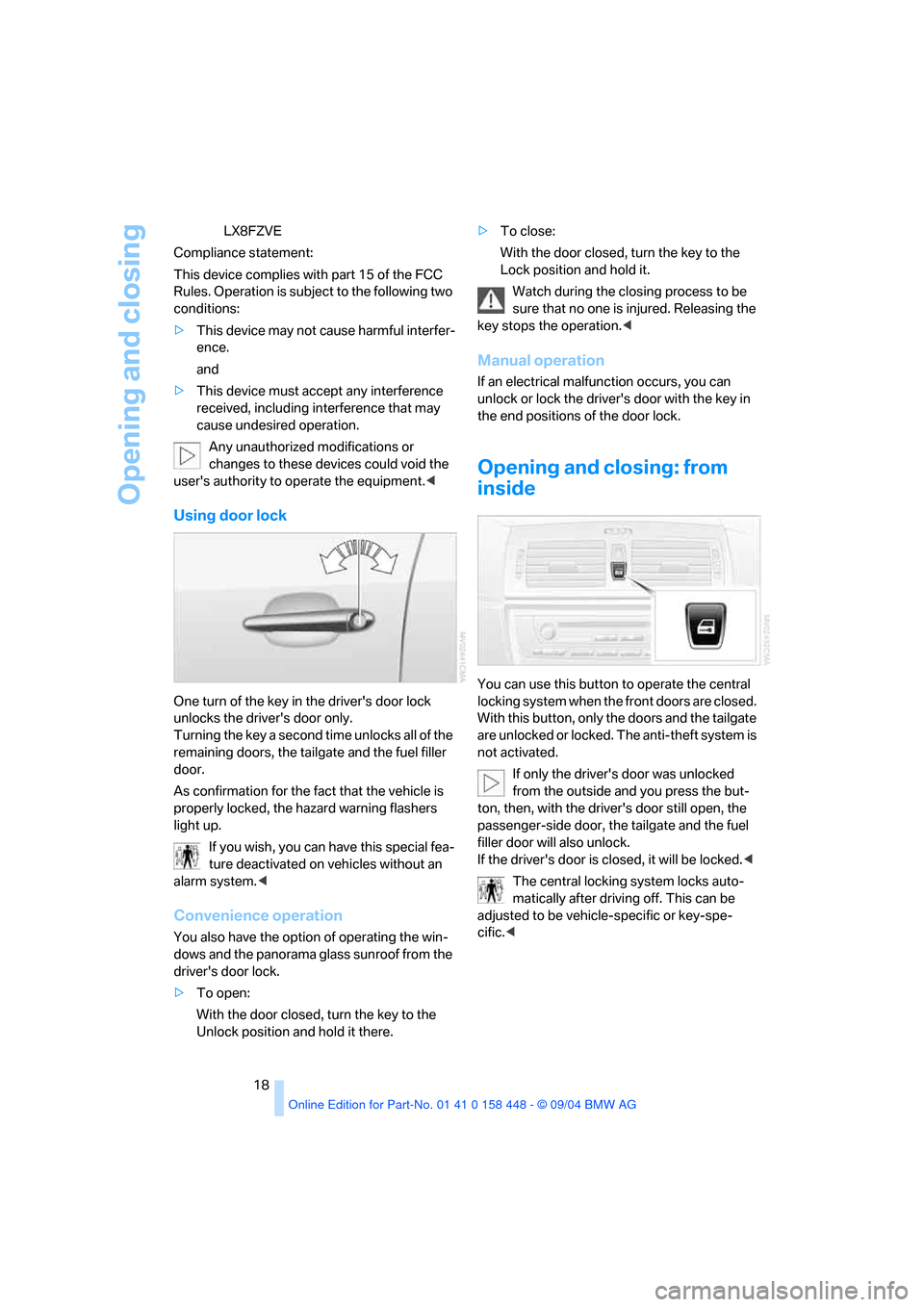

Compliance statement:
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
>This device may not cause harmful interfer-
ence.
and
>This device must accept any interference
received, including interference that may
cause undesired operation.
Any unauthorized modifications or
changes to these devices could void the
user's authority to operate the equipment.<
Using door lock
One turn of the key in the driver's door lock
unlocks the driver's door only.
Turning the key a second time unlocks all of the
remaining doors, the tailgate and the fuel filler
door.
As confirmation for the fact that the vehicle is
properly locked, the hazard warning flashers
light up.
If you wish, you can have this special fea-
ture deactivated on vehicles without an
alarm system.<
Convenience operation
You also have the option of operating the win-
dows and the panorama glass sunroof from the
driver's door lock.
>To open:
With the door closed, turn the key to the
Unlock position and hold it there. >To close:
With the door closed, turn the key to the
Lock position and hold it.
Watch during the closing process to be
sure that no one is injured. Releasing the
key stops the operation.<
Manual operation
If an electrical malfunction occurs, you can
unlock or lock the driver's door with the key in
the end positions of the door lock.
Opening and closing: from
inside
You can use this button to operate the central
locking system when the front doors are closed.
With this button, only the doors and the tailgate
are unlocked or locked. The anti-theft system is
not activated.
If only the driver's door was unlocked
from the outside and you press the but-
ton, then, with the driver's door still open, the
passenger-side door, the tailgate and the fuel
filler door will also unlock.
If the driver's door is closed, it will be locked.<
The central locking system locks auto-
matically after driving off. This can be
adjusted to be vehicle-specific or key-spe-
cific.<
Page 20 of 126
Reference
At a glance
Controls
Driving tips
Mobility
19

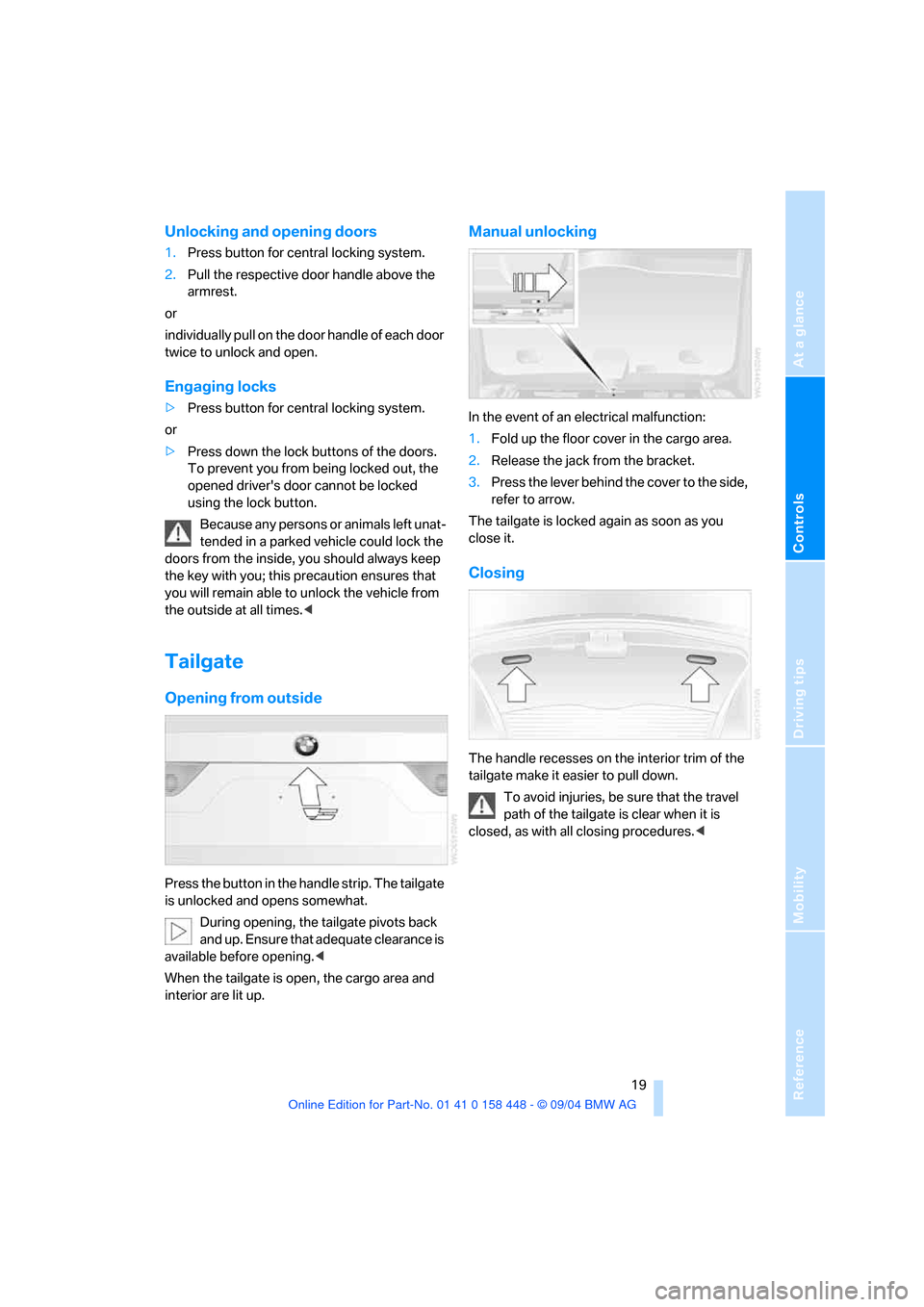

Unlocking and opening doors
1.Press button for central locking system.
2.Pull the respective door handle above the
armrest.
or
individually pull on the door handle of each door
twice to unlock and open.
Engaging locks
>Press button for central locking system.
or
>Press down the lock buttons of the doors.
To prevent you from being locked out, the
opened driver's door cannot be locked
using the lock button.
Because any persons or animals left unat-
tended in a parked vehicle could lock the
doors from the inside, you should always keep
the key with you; this precaution ensures that
you will remain able to unlock the vehicle from
the outside at all times.<
Tailgate
Opening from outside
Press the button in the handle strip. The tailgate
is unlocked and opens somewhat.
During opening, the tailgate pivots back
and up. Ensure that adequate clearance is
available before opening.<
When the tailgate is open, the cargo area and
interior are lit up.
Manual unlocking
In the event of an electrical malfunction:
1.Fold up the floor cover in the cargo area.
2.Release the jack from the bracket.
3.Press the lever behind the cover to the side,
refer to arrow.
The tailgate is locked again as soon as you
close it.
Closing
The handle recesses on the interior trim of the
tailgate make it easier to pull down.
To avoid injuries, be sure that the travel
path of the tailgate is clear when it is
closed, as with all closing procedures.<
