BMW X3 3.0I 2005 E83 Owner's Guide
Manufacturer: BMW, Model Year: 2005, Model line: X3 3.0I, Model: BMW X3 3.0I 2005 E83Pages: 126, PDF Size: 4.65 MB
Page 31 of 126
Adjustments
30
Vehicle Memory, Key Memory
How the system functions
You have probably frequently wished that you
could configure individual functions of your
vehicle to reflect your own personal require-
ments. In developing your vehicle, BMW has
incorporated a number of options for personal
adjustment. You can have these programmed
at your BMW Sports Activity Vehicle Center.
There are vehicle-related and person-related
adjustments: Vehicle Memory and Key Mem-
ory. You can configure up to four different basic
adjustments for four different persons. The only
requirement is that each person uses his or her
own master key with remote control.
When your vehicle is unlocked with the remote
control, the vehicle recognizes the individual
user by means of a data exchange with the key,
and makes adjustments accordingly.
In order for you to distinguish between the mas-
ter keys with remote control, color-coded
decals are supplied together with the keys.
What the system can do
Your BMW Sports Activity Vehicle Center can
provide you with details on the capabilities of
the Vehicle Memory and Key Memory systems.
You will see this symbol throughout the
Owner's Manual. It is to remind you at
appropriate places of the settings that are avail-
able to you.<
Following configuration of memory func-
tions, vehicle operation may differ from
the description in the Owner's Manual. Should
you want to sell your BMW some day, please
remember to have the memory functions reset
to the factory default settings.<
Examples of Vehicle Memory functions
>Different acknowledgment signals to con-
firm locking/unlocking of the vehicle, refer
to page16.
>Activating/deactivating function for path-
way lighting, refer to page53.
>Activating/deactivating daytime driving
lamps, refer to page53.
>Setting measurement units for displays in
the instrument cluster for time, outside
temperature, distance driven and fuel con-
sumption, refer to page44.
>Active PDC Park Distance Control is indi-
cated by an acoustic sound signal when
reverse gear or selector lever position R is
engaged, refer to page46.
>The rear window defroster switches on
automatically, refer to page57.
>Different acknowledgment signals to con-
firm arming/disarming the alarm system,
refer to page22.
>After an ice warning has been issued, the
computer display returns to the previous
adjustment, refer to page44.
>Acoustic warning if the ignition key remains
in the ignition lock after the driver's door has
been opened, refer to page19.
Examples of Key Memory functions
>When unlocking, first unlock the driver's
door, then the entire vehicle, refer to
page17.
>Locking the vehicle after moving off, refer to
page18.
>Automatic adjustment of the driver's seat
and exterior mirror position for each person
when unlocking the vehicle, refer to
page27.
>Angle of downward tilt of mirror on passen-
ger side, refer to page29.

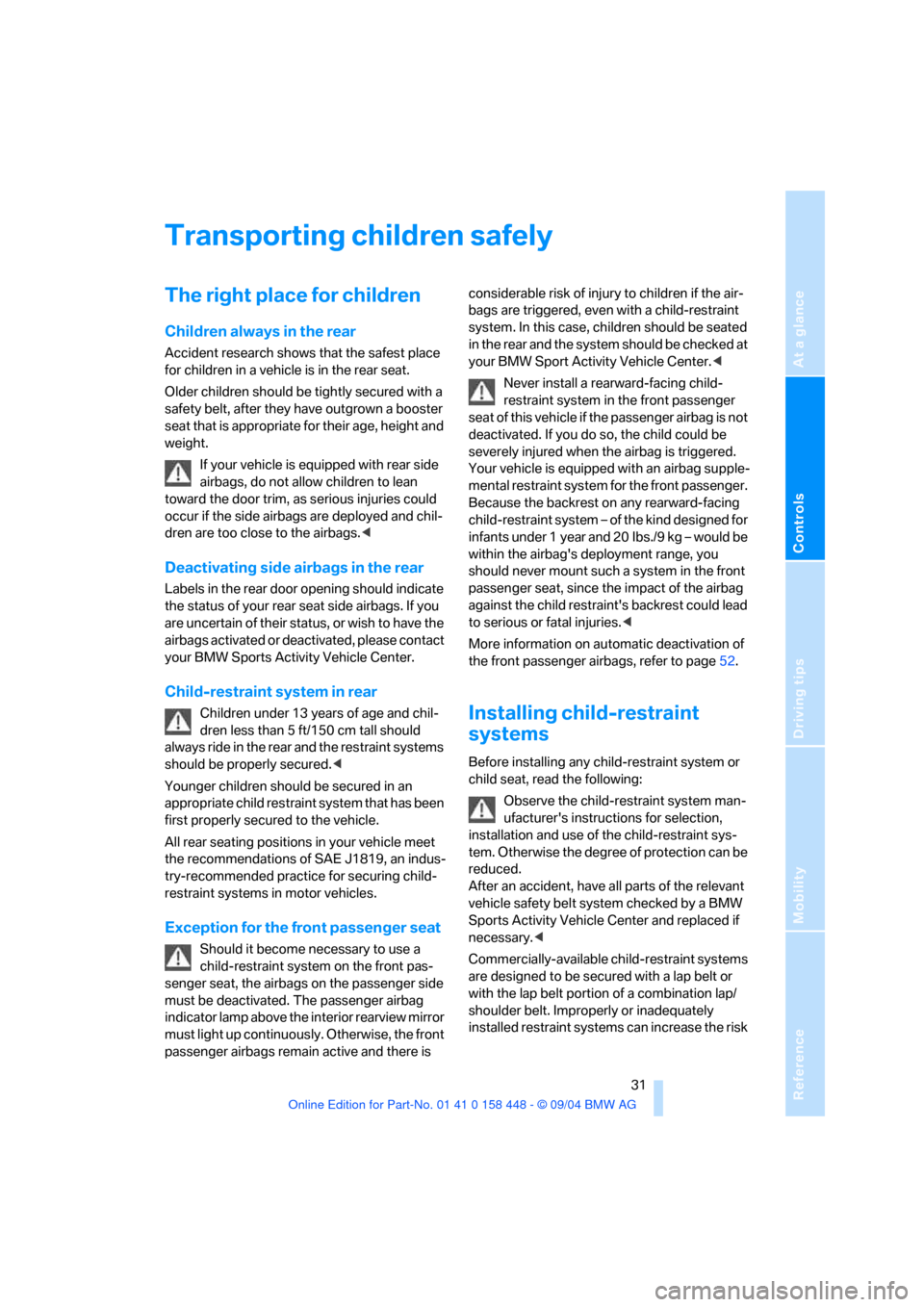

Page 32 of 126
Reference
At a glance
Controls
Driving tips
Mobility
31
Transporting children safely
The right place for children
Children always in the rear
Accident research shows that the safest place
for children in a vehicle is in the rear seat.
Older children should be tightly secured with a
safety belt, after they have outgrown a booster
seat that is appropriate for their age, height and
weight.
If your vehicle is equipped with rear side
airbags, do not allow children to lean
toward the door trim, as serious injuries could
occur if the side airbags are deployed and chil-
dren are too close to the airbags.<
Deactivating side airbags in the rear
Labels in the rear door opening should indicate
the status of your rear seat side airbags. If you
are uncertain of their status, or wish to have the
airbags activated or deactivated, please contact
your BMW Sports Activity Vehicle Center.
Child-restraint system in rear
Children under 13 years of age and chil-
dren less than 5 ft/150 cm tall should
always ride in the rear and the restraint systems
should be properly secured.<
Younger children should be secured in an
appropriate child restraint system that has been
first properly secured to the vehicle.
All rear seating positions in your vehicle meet
the recommendations of SAE J1819, an indus-
try-recommended practice for securing child-
restraint systems in motor vehicles.
Exception for the front passenger seat
Should it become necessary to use a
child-restraint system on the front pas-
senger seat, the airbags on the passenger side
must be deactivated. The passenger airbag
indicator lamp above the interior rearview mirror
must light up continuously. Otherwise, the front
passenger airbags remain active and there is considerable risk of injury to children if the air-
bags are triggered, even with a child-restraint
system. In this case, children should be seated
in the rear and the system should be checked at
your BMW Sport Activity Vehicle Center.<
Never install a rearward-facing child-
restraint system in the front passenger
seat of this vehicle if the passenger airbag is not
deactivated. If you do so, the child could be
severely injured when the airbag is triggered.
Your vehicle is equipped with an airbag supple-
mental restraint system for the front passenger.
Because the backrest on any rearward-facing
child-restraint system – of the kind designed for
infants under 1 year and 20 Ibs./9 kg – would be
within the airbag's deployment range, you
should never mount such a system in the front
passenger seat, since the impact of the airbag
against the child restraint's backrest could lead
to serious or fatal injuries.<
More information on automatic deactivation of
the front passenger airbags, refer to page52.
Installing child-restraint
systems
Before installing any child-restraint system or
child seat, read the following:
Observe the child-restraint system man-
ufacturer's instructions for selection,
installation and use of the child-restraint sys-
tem. Otherwise the degree of protection can be
reduced.
After an accident, have all parts of the relevant
vehicle safety belt system checked by a BMW
Sports Activity Vehicle Center and replaced if
necessary.<
Commercially-available child-restraint systems
are designed to be secured with a lap belt or
with the lap belt portion of a combination lap/
shoulder belt. Improperly or inadequately
installed restraint systems can increase the risk

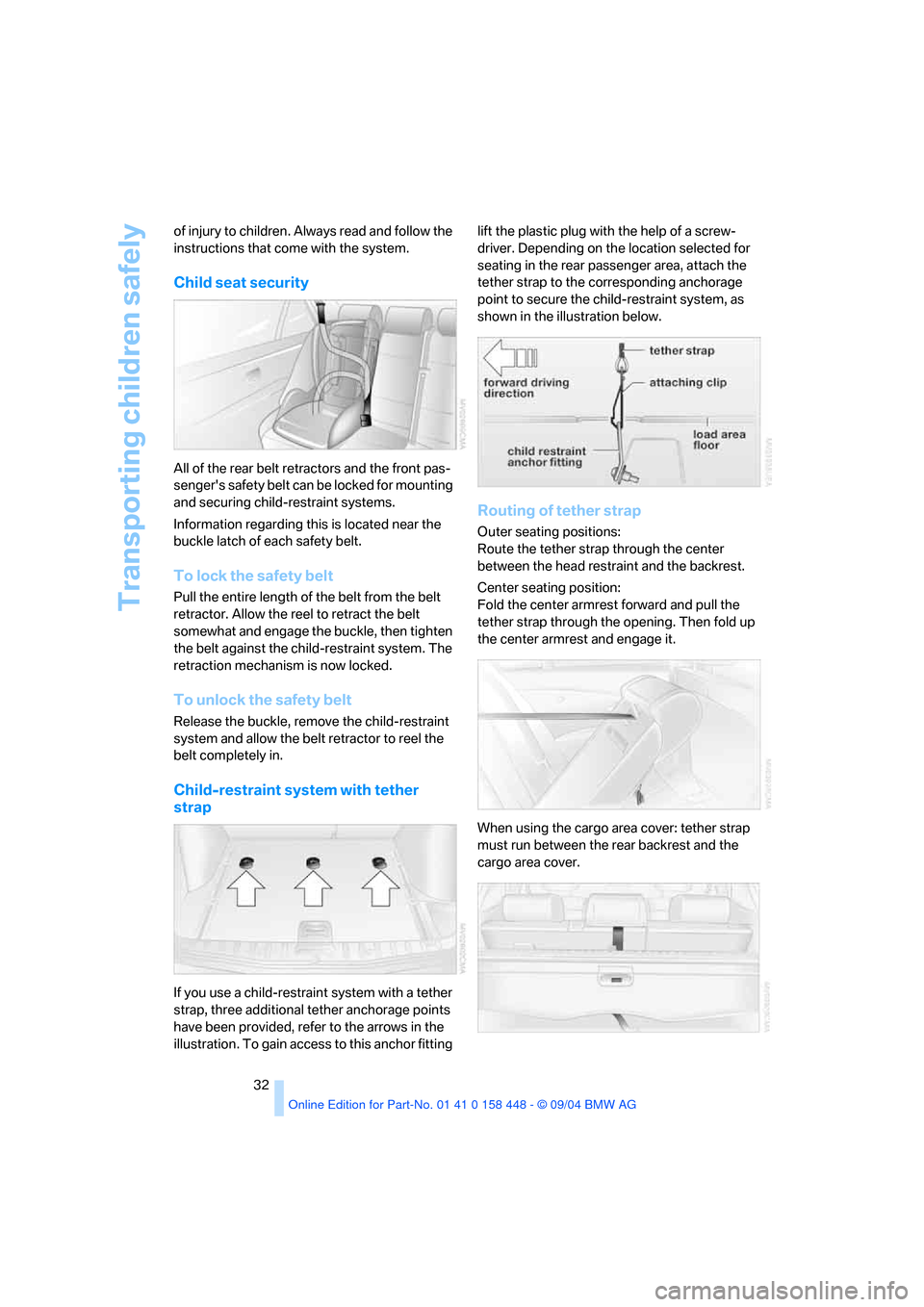

Page 33 of 126
Transporting children safely
32 of injury to children. Always read and follow the
instructions that come with the system.
Child seat security
All of the rear belt retractors and the front pas-
senger's safety belt can be locked for mounting
and securing child-restraint systems.
Information regarding this is located near the
buckle latch of each safety belt.
To lock the safety belt
Pull the entire length of the belt from the belt
retractor. Allow the reel to retract the belt
somewhat and engage the buckle, then tighten
the belt against the child-restraint system. The
retraction mechanism is now locked.
To unlock the safety belt
Release the buckle, remove the child-restraint
system and allow the belt retractor to reel the
belt completely in.
Child-restraint system with tether
strap
If you use a child-restraint system with a tether
strap, three additional tether anchorage points
have been provided, refer to the arrows in the
illustration. To gain access to this anchor fitting lift the plastic plug with the help of a screw-
driver. Depending on the location selected for
seating in the rear passenger area, attach the
tether strap to the corresponding anchorage
point to secure the child-restraint system, as
shown in the illustration below.
Routing of tether strap
Outer seating positions:
Route the tether strap through the center
between the head restraint and the backrest.
Center seating position:
Fold the center armrest forward and pull the
tether strap through the opening. Then fold up
the center armrest and engage it.
When using the cargo area cover: tether strap
must run between the rear backrest and the
cargo area cover.

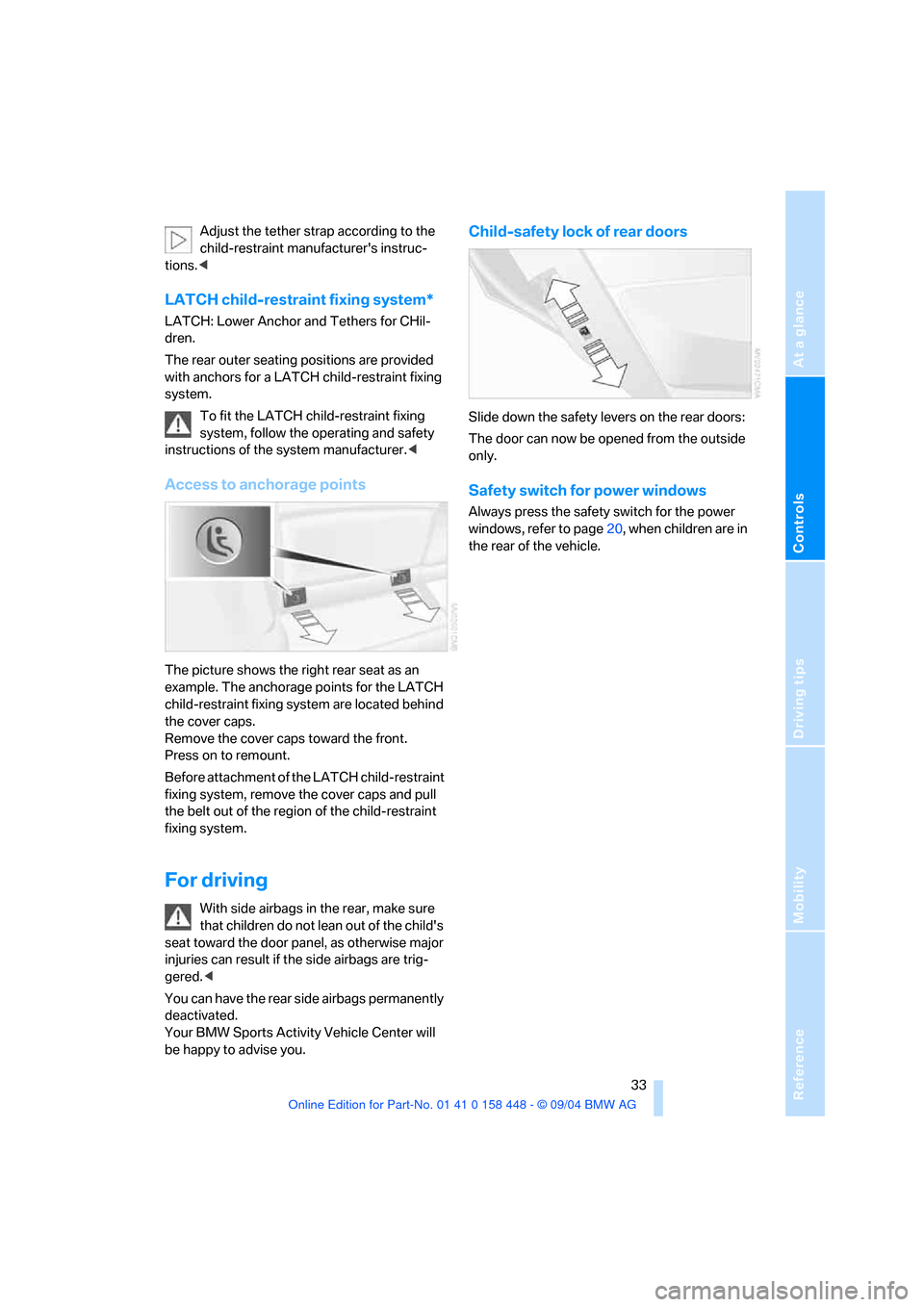

Page 34 of 126
Reference
At a glance
Controls
Driving tips
Mobility
33
Adjust the tether strap according to the
child-restraint manufacturer's instruc-
tions.<
LATCH child-restraint fixing system*
LATCH: Lower Anchor and Tethers for CHil-
dren.
The rear outer seating positions are provided
with anchors for a LATCH child-restraint fixing
system.
To fit the LATCH child-restraint fixing
system, follow the operating and safety
instructions of the system manufacturer.<
Access to anchorage points
The picture shows the right rear seat as an
example. The anchorage points for the LATCH
child-restraint fixing system are located behind
the cover caps.
Remove the cover caps toward the front.
Press on to remount.
Before attachment of the LATCH child-restraint
fixing system, remove the cover caps and pull
the belt out of the region of the child-restraint
fixing system.
For driving
With side airbags in the rear, make sure
that children do not lean out of the child's
seat toward the door panel, as otherwise major
injuries can result if the side airbags are trig-
gered.<
You can have the rear side airbags permanently
deactivated.
Your BMW Sports Activity Vehicle Center will
be happy to advise you.
Child-safety lock of rear doors
Slide down the safety levers on the rear doors:
The door can now be opened from the outside
only.
Safety switch for power windows
Always press the safety switch for the power
windows, refer to page20, when children are in
the rear of the vehicle.
Page 35 of 126
Driving
34
Driving
Ignition lock
0 Steering locked
T h e k e y c a n b e in s e r t e d o r r e m o v e d in t h i s p o s i-
tion only.
After removing the key, turn the steering wheel
slightly to the left or right until you hear the lock
engage.
Interlock
Vehicles with automatic transmission:
To turn the key back to position 0 or to remove
it, first place the selector lever in position P.
1 Steering unlocked
A slight steering wheel movement often makes
it easier to turn the key from 0 to 1.
Some power accessories are ready for opera-
tion.
2 Ignition switched on
All vehicle systems are ready for operation.
3 Starting engine
Engine
Do not allow the engine to warm up while idling.
Begin driving immediately at moderate engine
speed.
The engine idle speed is controlled by the
engine computer system. Increased idle
speeds at startup are normal and should decrease as the engine warms up. If engine
speed does not decrease, service is required.
To prevent the battery from discharging, always
switch off electrical devices which are not in use
and the ignition when the vehicle is not being
driven.
Do not run the engine in closed rooms, as
otherwise inhaling toxic exhaust gases
can cause unconsciousness and death. The
exhaust gases contain carbon monoxide, an
odorless and colorless, but highly toxic gas.
Do not leave the vehicle unattended with the
engine running, since an unattended vehicle
with a running engine represents a safety haz-
ard.
When driving, standing at idle and while parking
take care to avoid possible contact between a
hot exhaust system and any highly flammable
materials such as hay, leaves, grass etc. Such
contact could lead to a fire, resulting in serious
personal injury and property damage.<
Indicator lamps
If the Service Engine Soon indicator
lamp comes on either continuously or
intermittently, this indicates a malfunc-
tion in the emissions-related electronic sys-
tems. Although the vehicle remains operational,
you should have the systems checked by your
BMW Sports Activity Vehicle Center at the ear-
liest possible opportunity.
The illuminated indicator informs you of the
need for service, not that you need to stop the
vehicle. However, the systems should be
checked by your BMW Sports Activity Vehicle
Center at the next opportunity.
If the indicator blinks or flashes, this indicates
a high level of engine misfire. Reduce speed
and contact the nearest BMW Sports Activity
Vehicle Center immediately. Severe engine
misfiring over even a short period of time can
seriously damage emission control system
components, especially the catalytic converter.
Page 36 of 126
Reference
At a glance
Controls
Driving tips
Mobility
35
Display of the previously described
malfunction on Canadian models.
The warning lamp lights up. Malfunc-
tion in the engine electronics. You can
continue to drive with reduced engine
output or speed. Have the system checked
immediately.
Starting engine
When starting the engine, do not press the
accelerator pedal.
Vehicles with manual transmission:
Step on the clutch when starting the vehicle.
A locking mechanism prevents the engine from
starting if the clutch is not depressed.
Do not end the starting procedure too early, but
do not prolong it for more than 20 seconds.
Release the ignition key immediately as soon as
the engine starts.
If the engine fails to start on the first attempt, for
instance, if it is very hot or cold:
Press the accelerator pedal halfway down while
engaging the starter.
During a cold start at very low temperatures,
below approx. +57/–156, at high altitudes
over 3,300 ft/1,000 m:
>Engage the starter for approx. 10 seconds
the first time.
>Press the accelerator pedal halfway down
while engaging the starter.
Avoid frequent starting in quick succes-
sion or repeated start attempts in which
the engine does not start. Otherwise, the fuel is
not burned or inadequately burned and there is
a danger of overheating and damaging the cat-
alytic converter.<
Manual transmission
1.Apply the handbrake.
2.Shift into neutral.
3.Press the clutch pedal.
If the clutch pedal is not pressed, the engine
cannot be started.
4.Start the engine.Before leaving the vehicle with the engine
running, place the gearshift lever in neu-
tral position and engage the handbrake.
Never leave an unattended vehicle with the
engine running, as such a vehicle represents a
potential safety hazard.<
Automatic transmission
1.Press the brake pedal.
2.Engage selector-lever position P or N.
3.Start the engine.
To prevent the vehicle from rolling,
always select position P and engage the
handbrake before leaving the vehicle with the
engine running. Never leave an unattended
vehicle with the engine running, as such a vehi-
cle represents a potential safety hazard.<
Switching off engine
Do not remove the ignition key when the
vehicle is moving, as otherwise the steer-
ing could lock.
When leaving the vehicle, always remove the
ignition key and lock the steering.
When parking on downward inclines, engage
the handbrake.<
Manual transmission
Turn the ignition key to position 1 or 0.
Automatic transmission
Engage selector-lever position P, turn ignition
key to position 1 or 0.
Handbrake
The handbrake is primarily intended to prevent
the vehicle from rolling while parked; it brakes
the rear wheels.
Indicator lamp
The indicator lamp lights up red. An
acoustic signal also sounds when you
begin to drive. The handbrake is
engaged.
Page 37 of 126
Driving
36 Indicator lamp for Canadian models.
Engaging
The lever engages automatically and the indica-
tor lamp in the instrument cluster lights up from
ignition key position 1.
Releasing
Pull up slightly on the lever, press the button
and lower the lever.
If exceptional circumstances should
make it necessary to engage the hand-
brake while the vehicle is in motion, do not pull it
too strongly. In doing so, continuously press the
button of the handbrake lever. Strong applica-
tion of the handbrake can lead to overbraking of
the rear axle and to associated 'fishtailing' of the
vehicle rear end.
The brake lamps do not light up when the hand-
brake is applied.<
To prevent corrosion and one-sided brak-
ing action, occasionally engage the hand-
brake lightly when the vehicle is slowly coming
to a stop at a traffic light if the traffic conditions
are suitable.<
Manual transmission
When shifting into 5th or 6th gear, make
sure that you press the gearshift lever to
the right to prevent inadvertently shifting into
3rd or 4th.
Do not hold the vehicle in place on slopes by
slipping or riding the clutch. Otherwise greater
clutch wear will result.<
Reverse
Select only when the vehicle is stationary. Press
the gearshift lever to the left to overcome the
resistance.
As you do this, the backup lamps will turn on
automatically when the ignition key is in posi-
tion 2.
Automatic transmission with
Steptronic
In addition to fully automatic operation, you can
also manually shift with the Steptronic, refer to
page37.
Selector-lever positions
P R N D M/S + –
Starting engine
The engine can only be started in selector lever
positions P: Park or N: Neutral.
Page 38 of 126
Reference
At a glance
Controls
Driving tips
Mobility
37

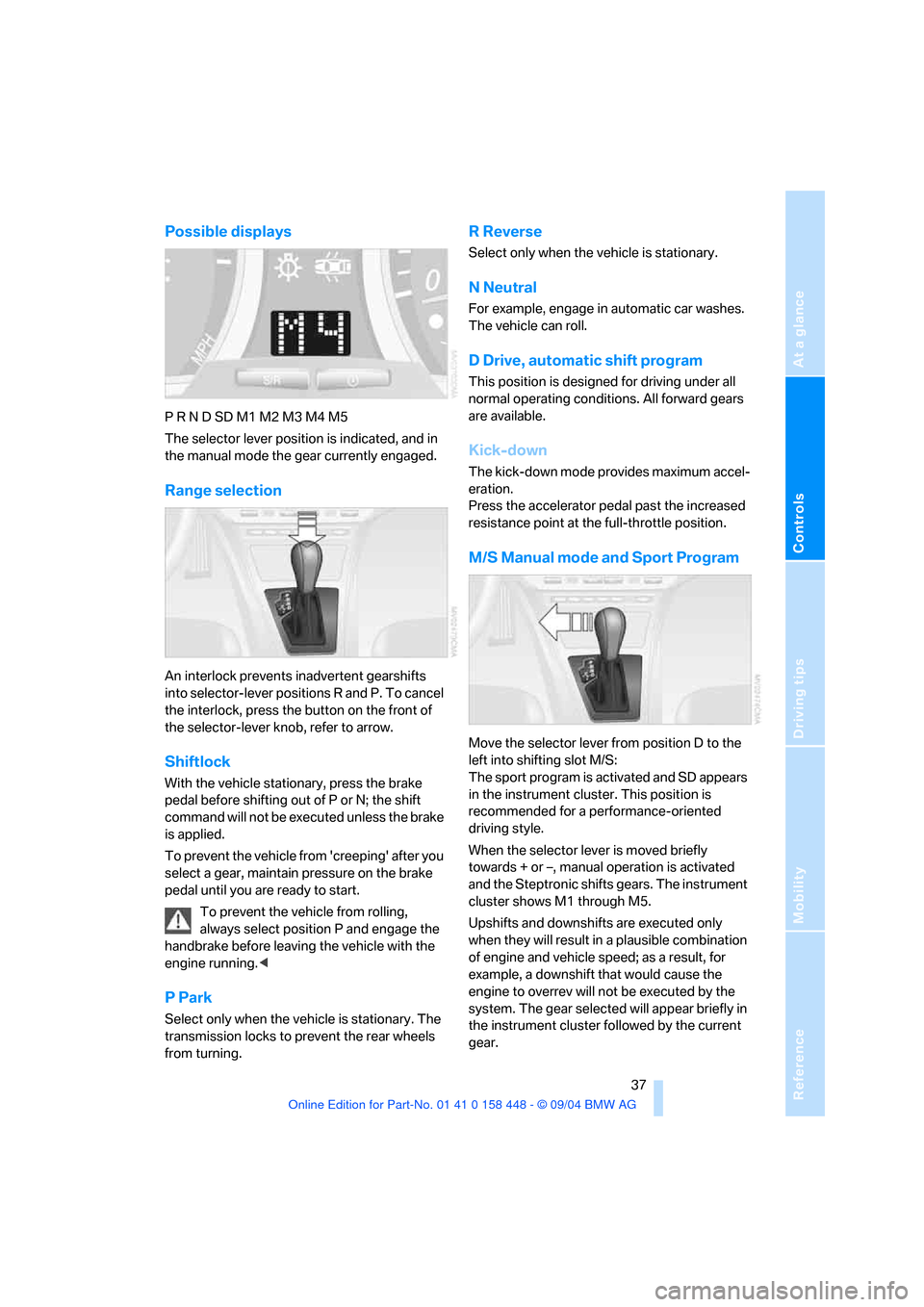

Possible displays
P R N D SD M1 M2 M3 M4 M5
The selector lever position is indicated, and in
the manual mode the gear currently engaged.
Range selection
An interlock prevents inadvertent gearshifts
into selector-lever positions R and P. To cancel
the interlock, press the button on the front of
the selector-lever knob, refer to arrow.
Shiftlock
With the vehicle stationary, press the brake
pedal before shifting out of P or N; the shift
command will not be executed unless the brake
is applied.
To prevent the vehicle from 'creeping' after you
select a gear, maintain pressure on the brake
pedal until you are ready to start.
To prevent the vehicle from rolling,
always select position P and engage the
handbrake before leaving the vehicle with the
engine running.<
P Park
Select only when the vehicle is stationary. The
transmission locks to prevent the rear wheels
from turning.
R Reverse
Select only when the vehicle is stationary.
N Neutral
For example, engage in automatic car washes.
The vehicle can roll.
D Drive, automatic shift program
This position is designed for driving under all
normal operating conditions. All forward gears
are available.
Kick-down
The kick-down mode provides maximum accel-
eration.
Press the accelerator pedal past the increased
resistance point at the full-throttle position.
M/S Manual mode and Sport Program
Move the selector lever from position D to the
left into shifting slot M/S:
The sport program is activated and SD appears
in the instrument cluster. This position is
recommended for a performance-oriented
driving style.
When the selector lever is moved briefly
towards + or –, manual operation is activated
and the Steptronic shifts gears. The instrument
cluster shows M1 through M5.
Upshifts and downshifts are executed only
when they will result in a plausible combination
of engine and vehicle speed; as a result, for
example, a downshift that would cause the
engine to overrev will not be executed by the
system. The gear selected will appear briefly in
the instrument cluster followed by the current
gear.
Page 39 of 126
Driving
38 To use the automatic function again, move the
selector lever to the right into position D.
Malfunction
The warning lamp lights up. A malfunc-
tion has occurred in the transmission
system. Avoid heavy loads.
While it will still remain possible to move the
selector lever to any desired position, the trans-
mission will revert to its default mode with only
a limited number of forward gears.
Have the system checked as soon as possible.
Information on towing and jump starting, refer
to page105.
Turn signals/headlamp
flasher
1High beams
2Headlamp flasher
3Turn signals
Atypically rapid flashing of the indicator
lamp indicates that a turn signal bulb has
gone out. After the ignition is switched off,
make sure that the roadside parking lamps have
not been left on.<
Signaling briefly
Press lever to resistance point and hold for as
long as you wish to signal.
Washer/wiper system/
rain sensor*
0Wipers retracted
1Intermittent or rain sensor operation
2Normal wiper speed
3Fast wipe
4Brief wipe
5Select interval time or set sensitivity of rain
sensor
Fold-out position
The right wiper is partially concealed by the
hood.
To move the wipers into a vertical position:
1.Switch on wipers in lever position 1.
2.When the wipers are approximately vertical,
move the ignition key to position 0.
For changing the wiper blades, refer to page95.
Fold the wipers back down onto the wind-
shield before you turn the ignition key to
p o s i t i o n 1 o r 2 a g a i n . I f y o u d o n o t , t h e y c o u l d b e
damaged.<
Intermittent mode
Not on vehicles with rain sensor.
You can set the wipe interval to four stages with
the serrated dial 5.
In addition, the wipe interval is varied automati-
cally depending on road speed.
Page 40 of 126
Reference
At a glance
Controls
Driving tips
Mobility
39
Rain sensor*
The rain sensor automatically controls wiper
operation as a function of the rain intensity. It is
positioned on the windshield, directly in front of
the inside rearview mirror.
Deactivate the rain sensor when passing
through an automatic car wash. Failure to
do so could result in damage caused by undes-
ired wiper activation.<
Activating
As of ignition key position 1 move the lever to
position1. The wipers travel once across the
windshield, regardless of the weather condi-
tions.
You can leave the lever permanently in posi-
tion 1 and then only need to activate the rain
sensor as of ignition key position 1. To do so:
>Briefly turn the serrated dial 5 or
>clean the windshield 1, refer to next section
Adjusting sensitivity
Turn the serrated dial 5.
Deactivating
Switch lever to position 0.
Normal wiper speed
The system switches automatically to intermit-
tent mode when the vehicle is not moving, not
on vehicles with rain sensor.
Fast wipe
The wipers operate at normal speed when the
vehicle is not moving, not on vehicles with rain
sensor.
Cleaning windshield, rear window and
headlamps*
0Wipers retracted
1Cleaning windshield and headlamps
2Rear window wiper intermittent mode
3Cleaning rear window
Do not use the washers if there is any
danger that the fluid will freeze on the
windshield. If you do so, your vision could be
obscured. To avoid freezing, use a washer fluid
antifreeze, refer to page90. Do not use the
washers when the reservoir is empty. This
could cause damage to the washer pump.<
Cleaning windshield
The system sprays washer fluid against the
windshield and activates the wipers for a brief
period.
The windshield washer nozzles are automati-
cally heated as of ignition key position 2.
Cleaning headlamps*
When the vehicle lighting system is switched
on, the headlamps are cleaned at regular and
appropriate intervals.
Rear window wiper
Rear window wiper in intermittent mode. When
reverse gear is engaged, the wiper operates
continuously.
You can also program the interval:
1.Briefly move the wiper lever from position 0
to position 2.
2.Wait for desired interval; maximum of
30 seconds.
