Page 158 of 275

BMW X5 2016 F15 Owners Manual Pathway lines
Pathway lines can be superimposed on the im‐
age of the rearview camera.
Pathway lines help you to estimate the space
required when parking and maneuvering on
level roads.
Pathway line

Page 159 of 275

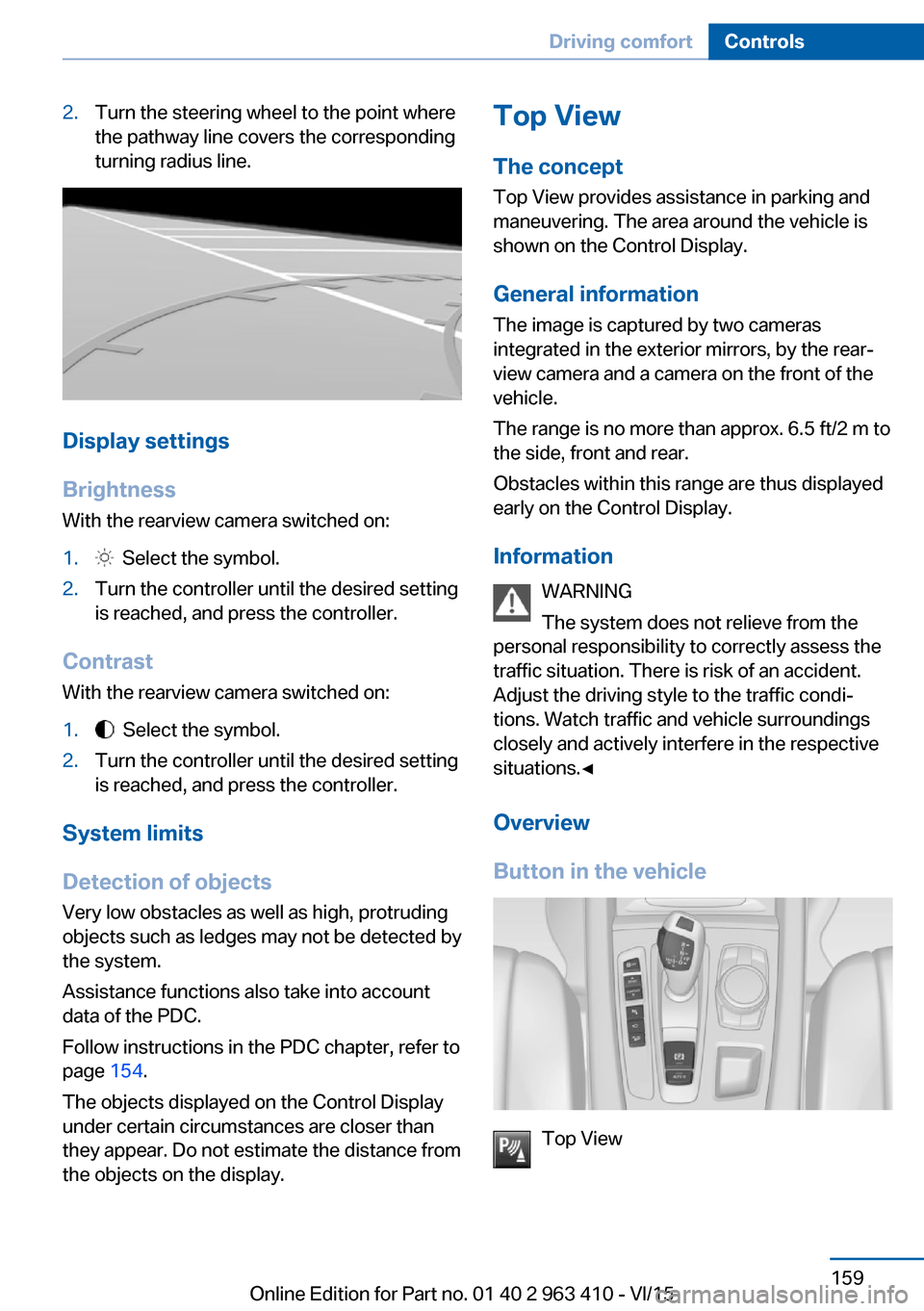

BMW X5 2016 F15 Owners Manual 2.Turn the steering wheel to the point where
the pathway line covers the corresponding
turning radius line.
Display settings
Brightness
With the rearview camera switched on:
1.  Select the symbol.2.Tu

Page 160 of 275

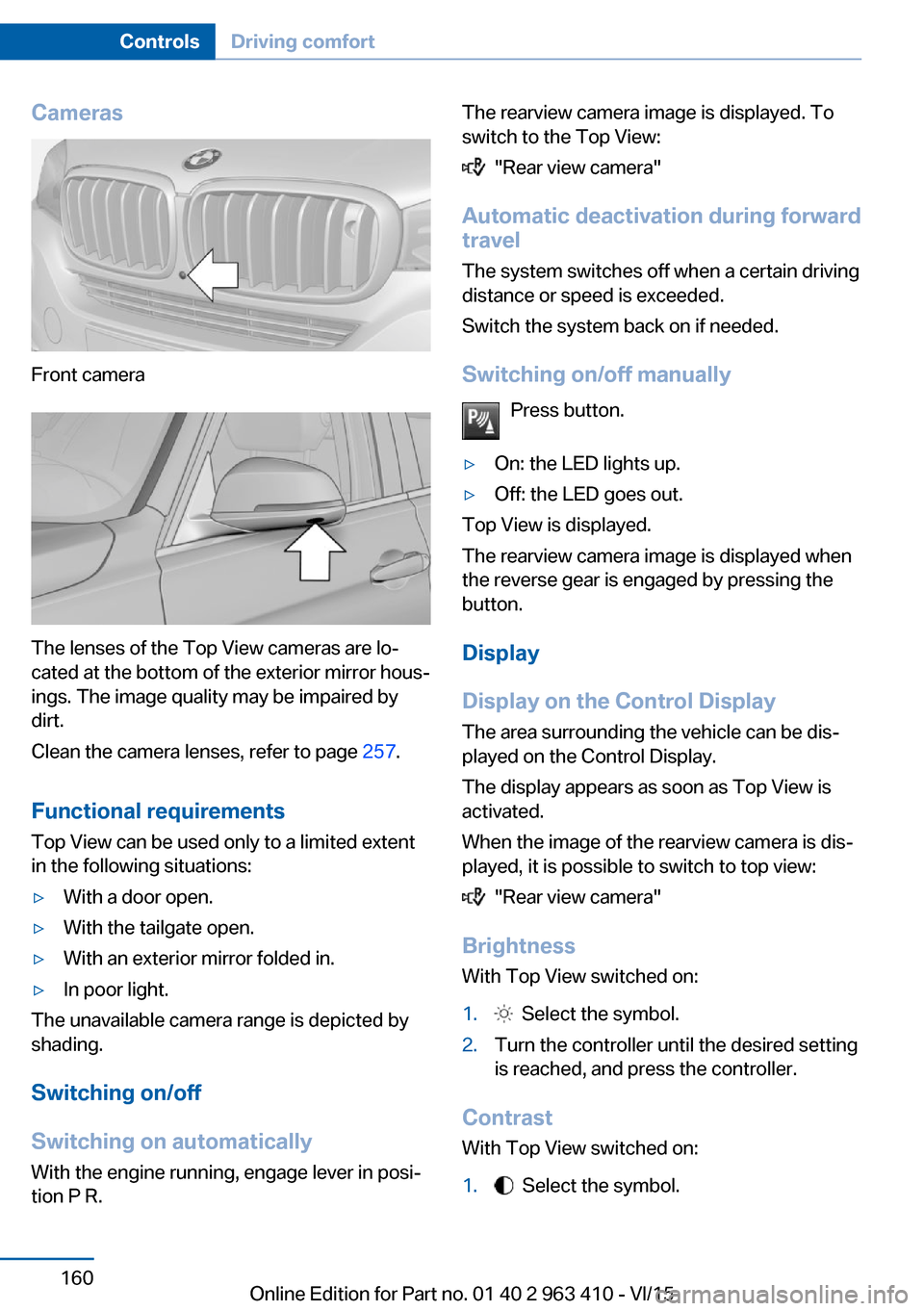

BMW X5 2016 F15 Owners Manual Cameras
Front camera
The lenses of the Top View cameras are lo‐
cated at the bottom of the exterior mirror hous‐
ings. The image quality may be impaired by
dirt.
Clean the camera lenses, refer to

Page 161 of 275

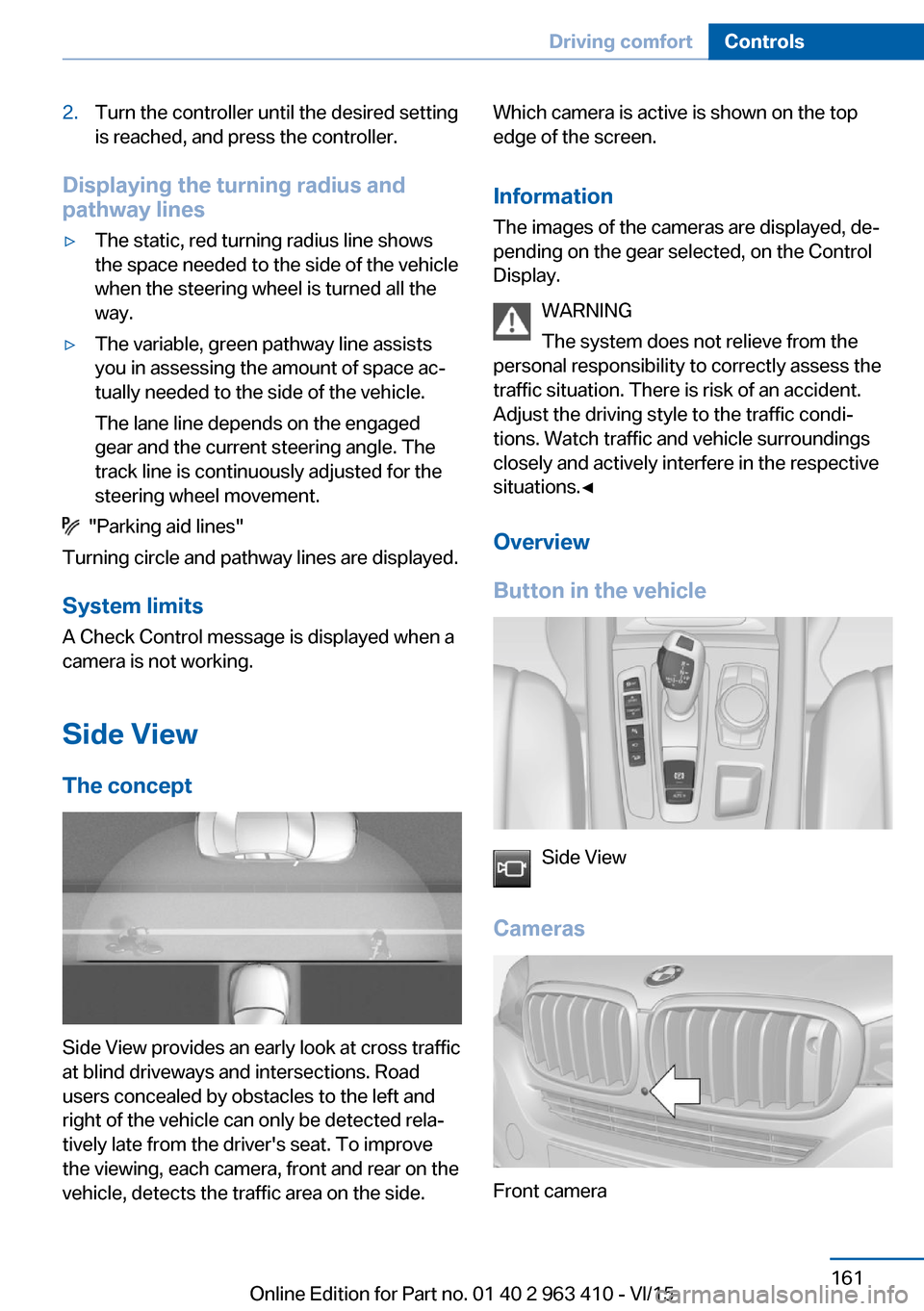

BMW X5 2016 F15 Owners Manual 2.Turn the controller until the desired setting
is reached, and press the controller.
Displaying the turning radius and
pathway lines
▷The static, red turning radius line shows
the space needed to t

Page 162 of 275

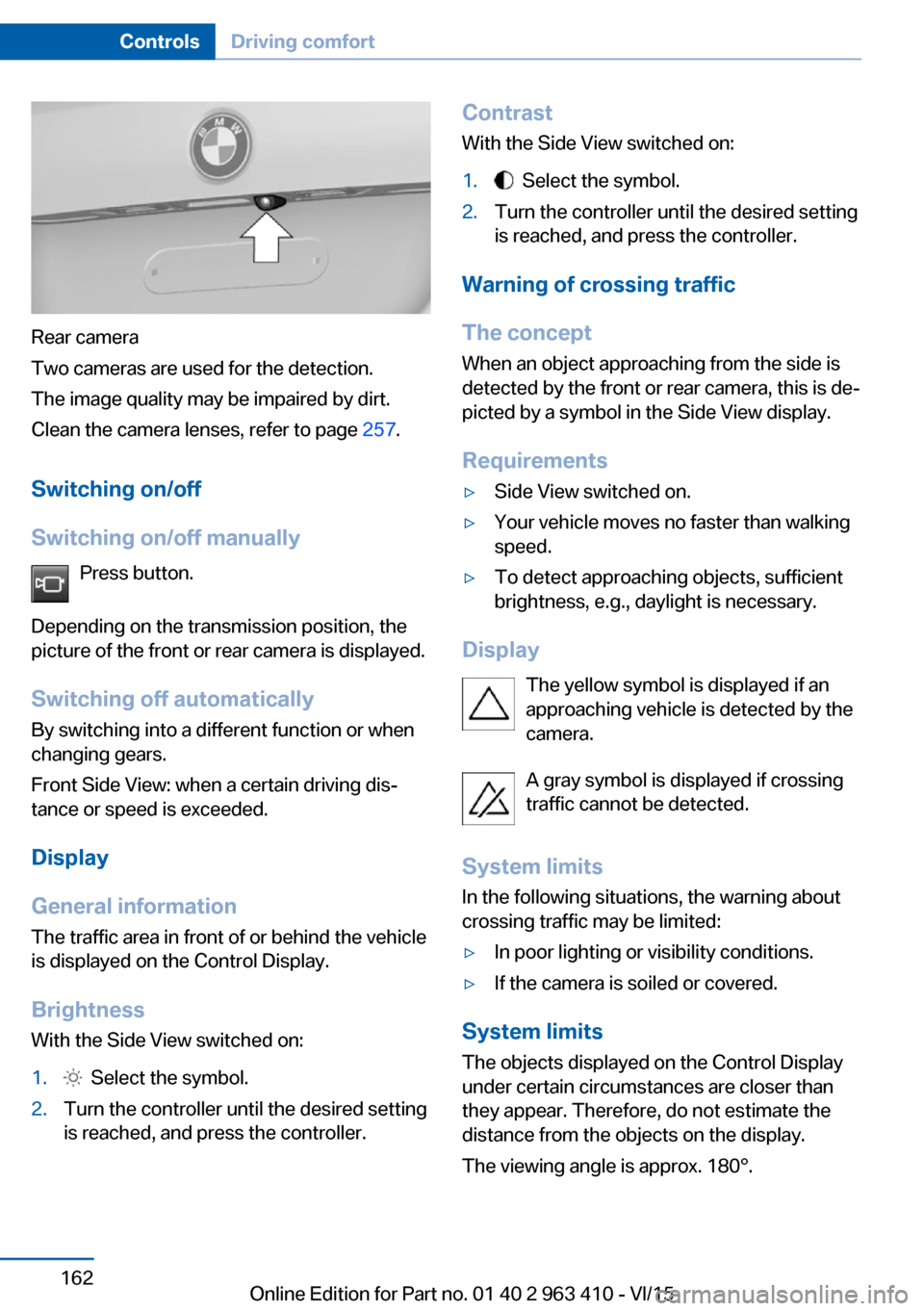

BMW X5 2016 F15 Owners Manual Rear camera
Two cameras are used for the detection.
The image quality may be impaired by dirt.
Clean the camera lenses, refer to page  257.
Switching on/off
Switching on/off manually Press button.
Dep

Page 164 of 275

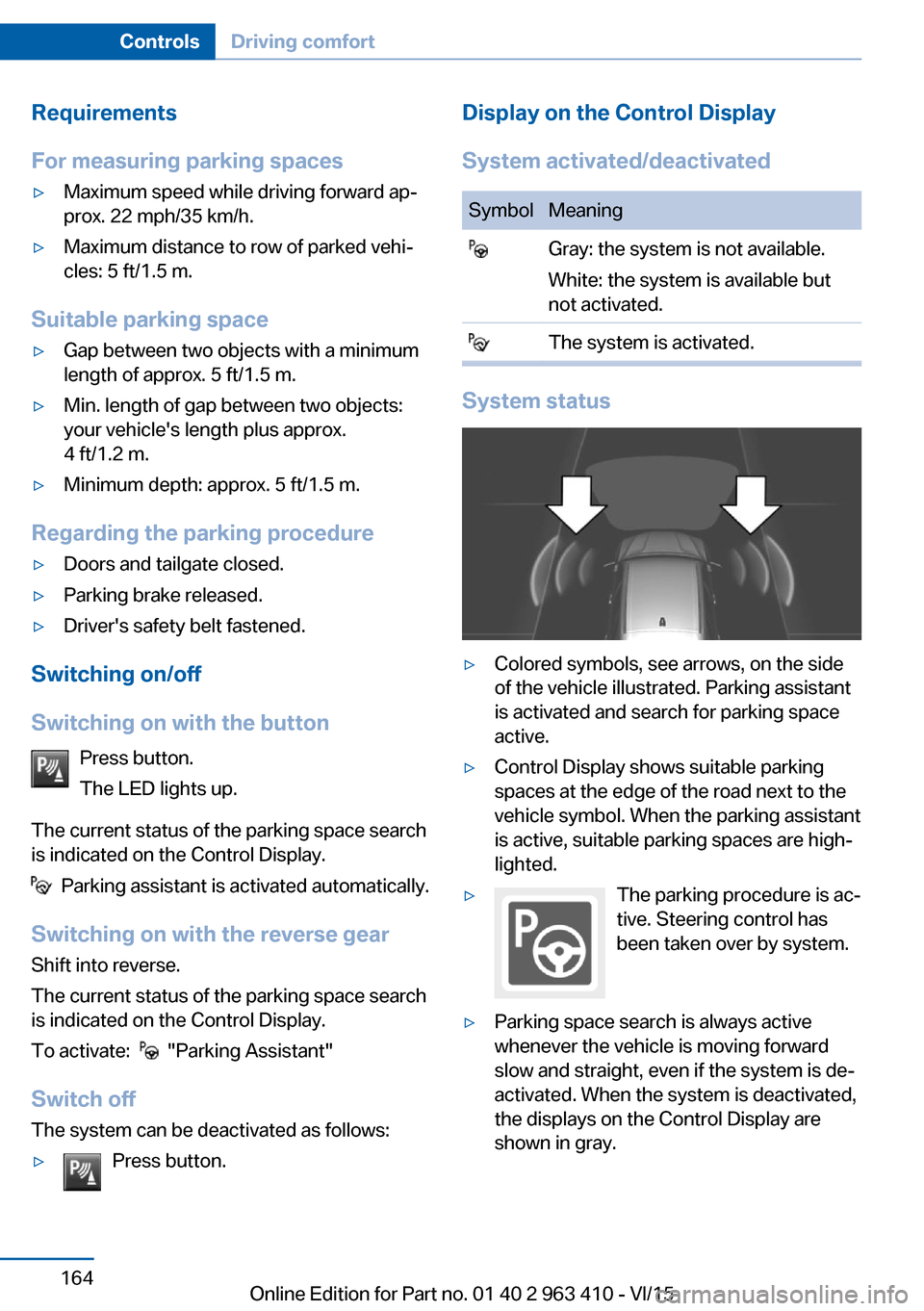

BMW X5 2016 F15 Owners Manual Requirements
For measuring parking spaces▷Maximum speed while driving forward ap‐
prox. 22 mph/35 km/h.▷Maximum distance to row of parked vehi‐
cles: 5 ft/1.5 m.
Suitable parking space
▷Gap

Page 165 of 275

BMW X5 2016 F15 Owners Manual Parking using the parking assistantWARNING
The system does not relieve from the
personal responsibility to correctly assess the
traffic situation. There is risk of an accident.
Adjust the driving styl

Page 166 of 275

BMW X5 2016 F15 Owners Manual ▷For persons with certain clothing, e.g.
coats.▷With external interference of the ultra‐
sound, e.g. from passing vehicles or loud
machines.▷When sensors are dirty, iced over, dam‐
aged or o

Page 167 of 275

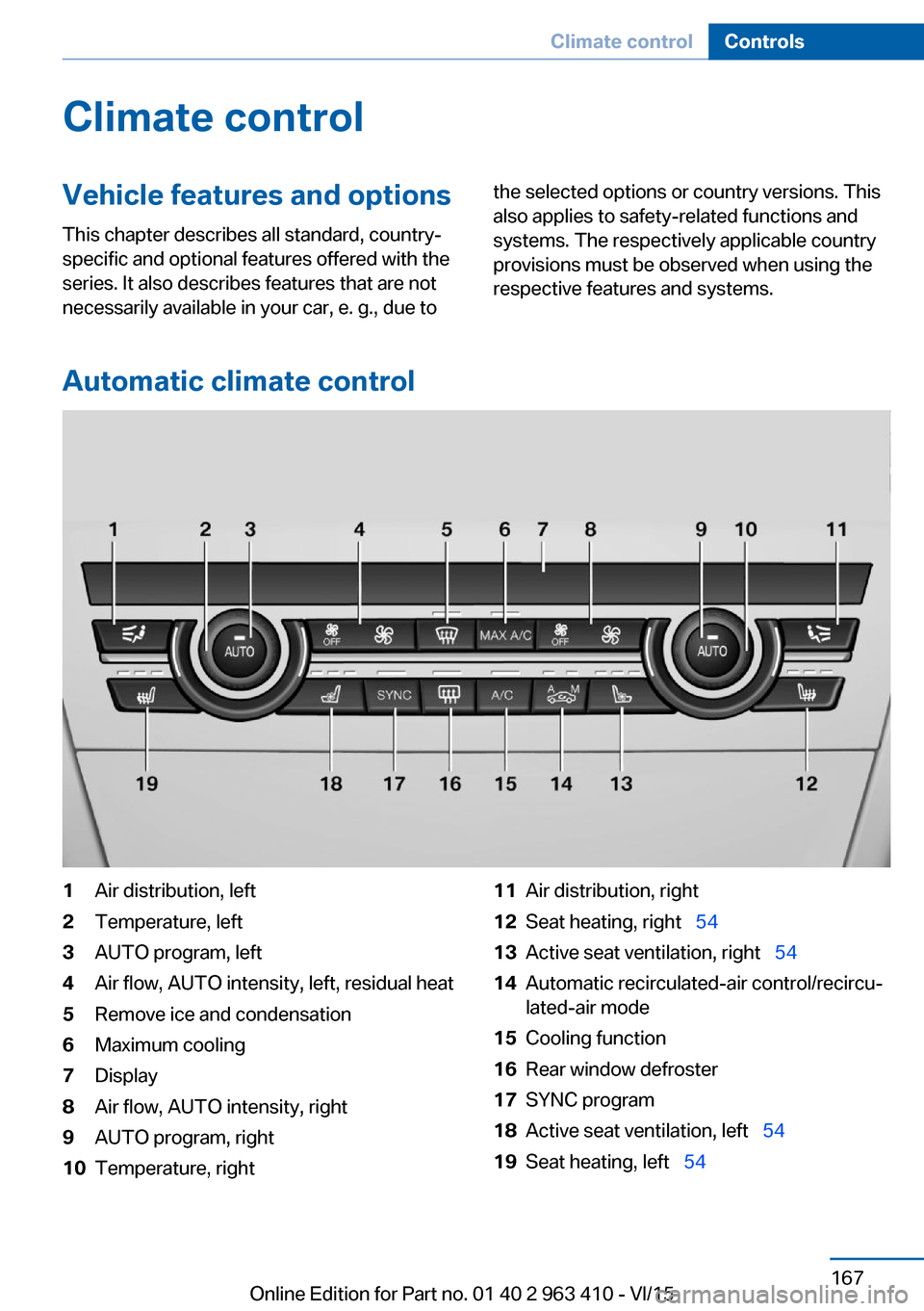

BMW X5 2016 F15 Owners Manual Climate controlVehicle features and options
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily av

Page 169 of 275

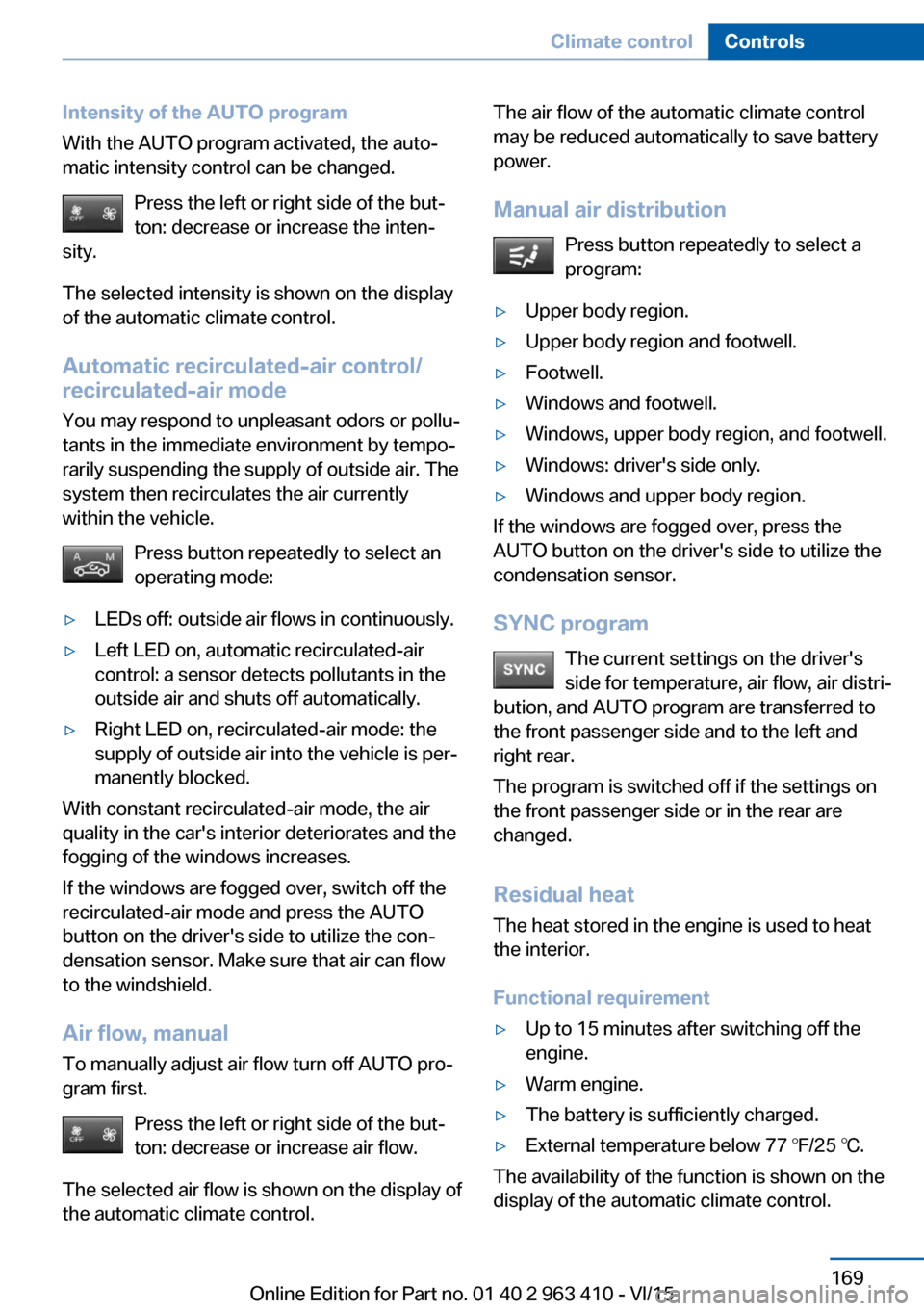

BMW X5 2016 F15 Owners Manual Intensity of the AUTO program
With the AUTO program activated, the auto‐
matic intensity control can be changed.
Press the left or right side of the but‐
ton: decrease or increase the inten‐
sit
