indicator BMW X5 3.0I 2006 E53 User Guide

39n
OverviewControlsMaintenanceRepairsDataIndex

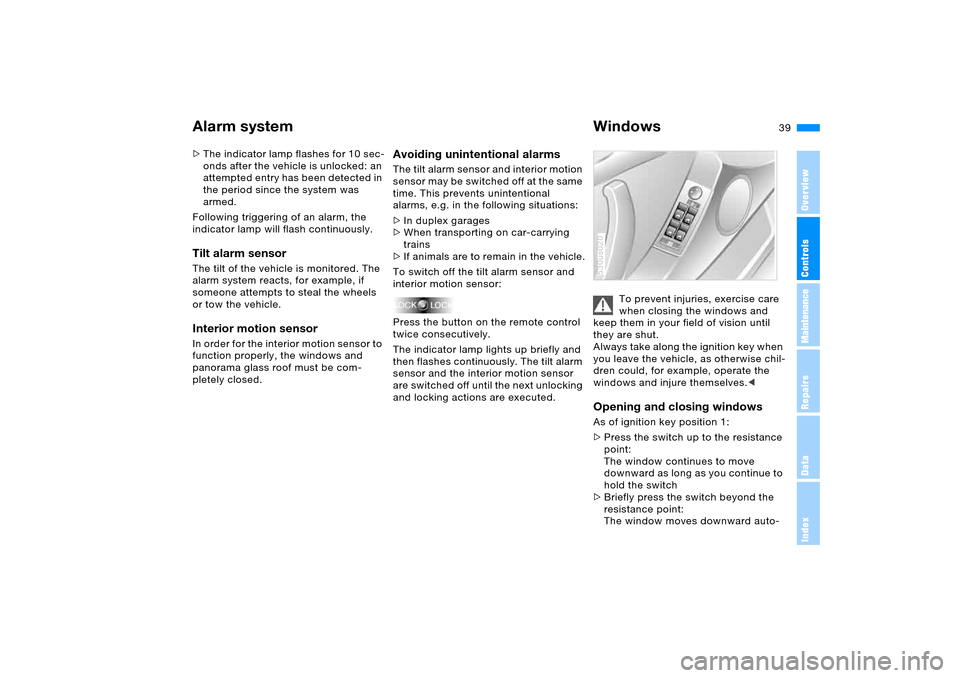

Alarm system Windows>The indicator lamp flashes for 10 sec-
onds after the vehicle is unlocked: an
attempted entry has been detected in
the period since the system was
armed.
Following triggering of an alarm, the
indicator lamp will flash continuously.Tilt alarm sensorThe tilt of the vehicle is monitored. The
alarm system reacts, for example, if
someone attempts to steal the wheels
or tow the vehicle.Interior motion sensorIn order for the interior motion sensor to
function properly, the windows and
panorama glass roof must be com-
pletely closed.
Avoiding unintentional alarms The tilt alarm sensor and interior motion
s en sor m ay be swi tch e d off a t t h e sam e
time. This prevents unintentional
alarms, e.g. in the following situations:
>In duplex garages
>When transporting on car-carrying
trains
>If animals are to remain in the vehicle.
To switch off the tilt alarm sensor and
interior motion sensor:
Press the button on the remote control
twice consecutively.
The indicator lamp lights up briefly and
then flashes continuously. The tilt alarm
sensor and the interior motion sensor
are switched off until the next unlocking
and locking actions are executed.
To prevent injuries, exercise care
when closing the windows and
keep them in your field of vision until
they are shut.
Always take along the ignition key when
you leave the vehicle, as otherwise chil-
dren could, for example, operate the
windows and injure themselves.<
Opening and closing windows As of ignition key position 1:
>Press the switch up to the resistance
point:
The window continues to move
downward as long as you continue to
hold the switch
>Briefly press the switch beyond the
resistance point:
The window moves downward auto-530us020

49n
OverviewControlsMaintenanceRepairsDataIndex

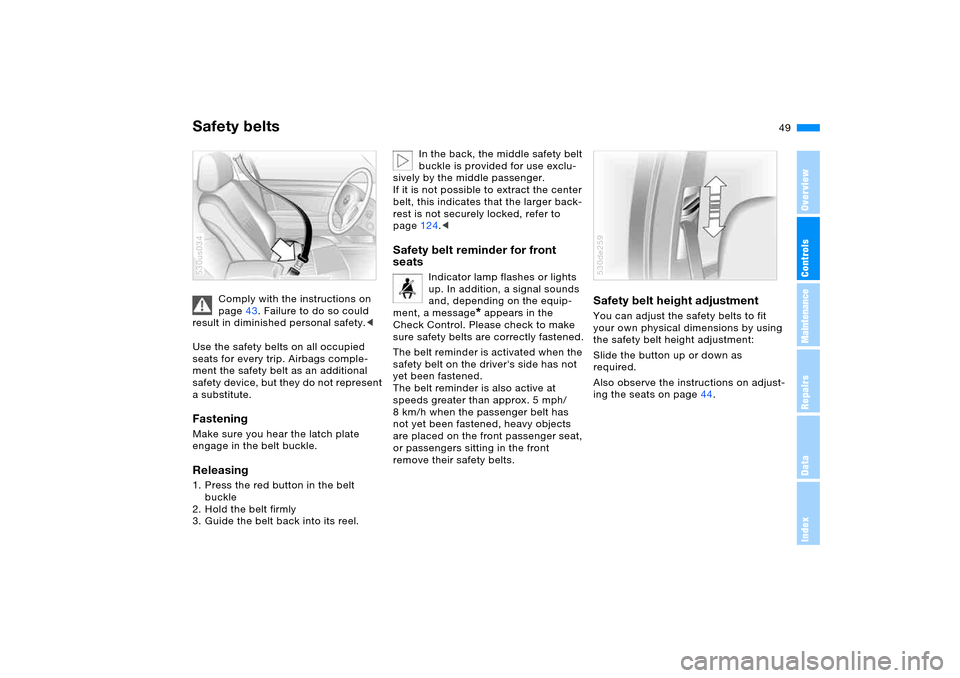

Safety belts
Comply with the instructions on
page43. Failure to do so could
result in diminished personal safety.<
Use the safety belts on all occupied
seats for every trip. Airbags comple-
ment the safety belt as an additional
safety device, but they do not represent
a substitute.
Fastening Make sure you hear the latch plate
engage in the belt buckle.Releasing1. Press the red button in the belt
buckle
2. Hold the belt firmly
3. Guide the belt back into its reel.530us034
In the back, the middle safety belt
buckle is provided for use exclu-
sively by the middle passenger.
If it is not possible to extract the center
belt, this indicates that the larger back-
rest is not securely locked, refer to
page124.<
Safety belt reminder for front
seats
Indicator lamp flashes or lights
up. In addition, a signal sounds
and, depending on the equip-
ment, a message
* appears in the
Check Control. Please check to make
sure safety belts are correctly fastened.
The belt reminder is activated when the
safety belt on the driver's side has not
yet been fastened.
The belt reminder is also active at
speeds greater than approx. 5 mph/
8 km/h when the passenger belt has
not yet been fastened, heavy objects
are placed on the front passenger seat,
or passengers sitting in the front
remove their safety belts.
Safety belt height adjustment You can adjust the safety belts to fit
your own physical dimensions by using
the safety belt height adjustment:
Slide the button up or down as
required.
Also observe the instructions on adjust-
ing the seats on page44.530de259

56n

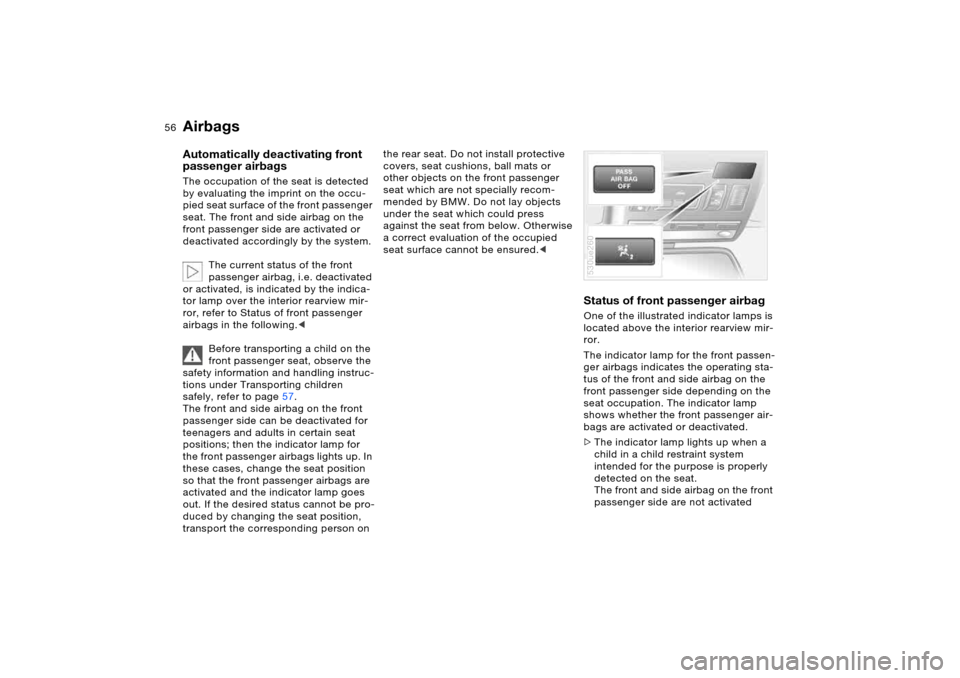

AirbagsAutomatically deactivating front
passenger airbagsThe occupation of the seat is detected
by evaluating the imprint on the occu-
pied seat surface of the front passenger
seat. The front and side airbag on the
front passenger side are activated or
deactivated accordingly by the system.
The current status of the front
passenger airbag, i.e. deactivated
or activated, is indicated by the indica-
tor lamp over the interior rearview mir-
ror, refer to Status of front passenger
airbags in the following.<
Before transporting a child on the
front passenger seat, observe the
safety information and handling instruc-
tions under Transporting children
safely, refer to page57.
The front and side airbag on the front
passenger side can be deactivated for
teenagers and adults in certain seat
positions; then the indicator lamp for
the front passenger airbags lights up. In
these cases, change the seat position
so that the front passenger airbags are
activated and the indicator lamp goes
out. If the desired status cannot be pro-
duced by changing the seat position,
transport the corresponding person on
the rear seat. Do not install protective
covers, seat cushions, ball mats or
other objects on the front passenger
seat which are not specially recom-
mended by BMW. Do not lay objects
under the seat which could press
against the seat from below. Otherwise
a correct evaluation of the occupied
seat surface cannot be ensured.<
Status of front passenger airbagOne of the illustrated indicator lamps is
located above the interior rearview mir-
ror.
The indicator lamp for the front passen-
ger airbags indicates the operating sta-
tus of the front and side airbag on the
front passenger side depending on the
seat occupation. The indicator lamp
shows whether the front passenger air-
bags are activated or deactivated.
>The indicator lamp lights up when a
child in a child restraint system
intended for the purpose is properly
detected on the seat.
The front and side airbag on the front
passenger side are not activated530ue260

57n
OverviewControlsMaintenanceRepairsDataIndex

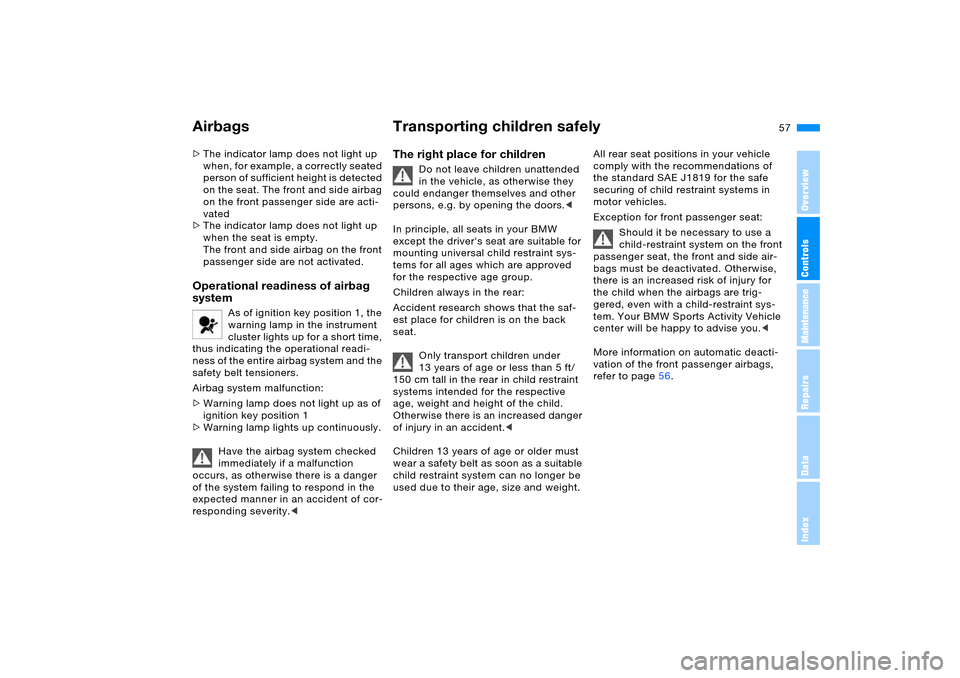

Airbags Transporting children safely >The indicator lamp does not light up
when, for example, a correctly seated
person of sufficient height is detected
on the seat. The front and side airbag
on the front passenger side are acti-
vated
>The indicator lamp does not light up
when the seat is empty.
The front and side airbag on the front
passenger side are not activated.Operational readiness of airbag
system
As of ignition key position 1, the
warning lamp in the instrument
cluster lights up for a short time,
thus indicating the operational readi-
ness of the entire airbag system and the
safety belt tensioners.
Airbag system malfunction:
>Warning lamp does not light up as of
ignition key position 1
>Warning lamp lights up continuously.
Have the airbag system checked
immediately if a malfunction
occurs, as otherwise there is a danger
of the system failing to respond in the
expected manner in an accident of cor-
responding severity.<
The right place for children
Do not leave children unattended
in the vehicle, as otherwise they
could endanger themselves and other
persons, e.g. by opening the doors.<
In principle, all seats in your BMW
except the driver's seat are suitable for
mounting universal child restraint sys-
tems for all ages which are approved
for the respective age group.
Children always in the rear:
Accident research shows that the saf-
est place for children is on the back
seat.
Only transport children under
13 years of age or less than 5 ft/
150 cm tall in the rear in child restraint
systems intended for the respective
age, weight and height of the child.
Otherwise there is an increased danger
of injury in an accident.<
Children 13 years of age or older must
wear a safety belt as soon as a suitable
child restraint system can no longer be
used due to their age, size and weight.
All rear seat positions in your vehicle
comply with the recommendations of
the standard SAE J1819 for the safe
securing of child restraint systems in
motor vehicles.
Exception for front passenger seat:
Should it be necessary to use a
child-restraint system on the front
passenger seat, the front and side air-
bags must be deactivated. Otherwise,
there is an increased risk of injury for
the child when the airbags are trig-
gered, even with a child-restraint sys-
tem. Your BMW Sports Activity Vehicle
center will be happy to advise you.<
More information on automatic deacti-
vation of the front passenger airbags,
refer to page56.

64n

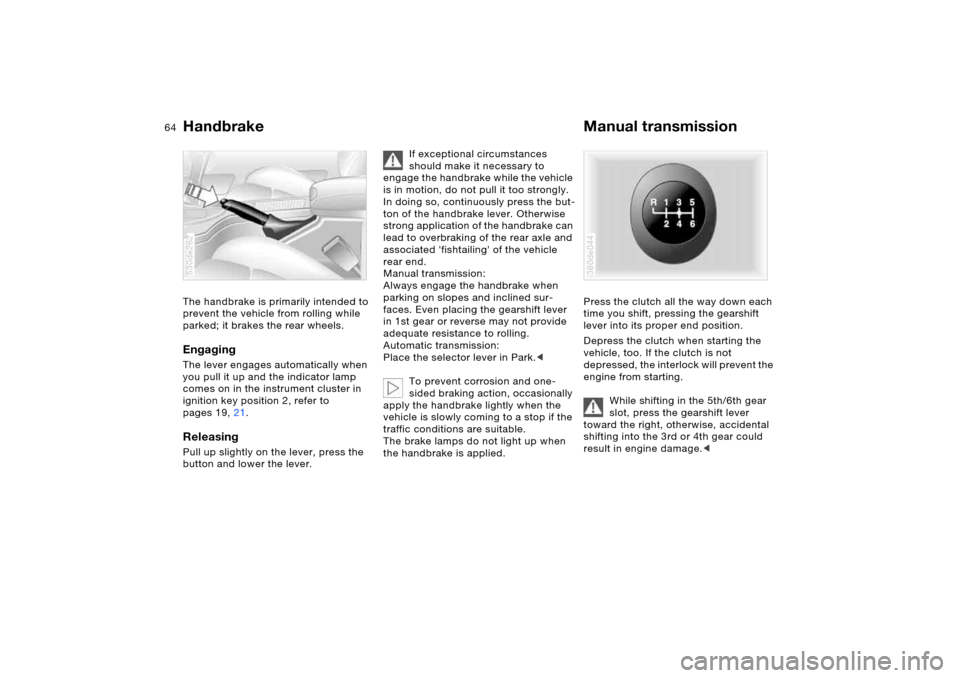

Handbrake Manual transmissionThe handbrake is primarily intended to
prevent the vehicle from rolling while
parked; it brakes the rear wheels.EngagingThe lever engages automatically when
you pull it up and the indicator lamp
comes on in the instrument cluster in
ignition key position 2, refer to
pages 19, 21.Releasing Pull up slightly on the lever, press the
button and lower the lever. 530de262
If exceptional circumstances
should make it necessary to
engage the handbrake while the vehicle
is in motion, do not pull it too strongly.
In doing so, continuously press the but-
ton of the handbrake lever. Otherwise
strong application of the handbrake can
lead to overbraking of the rear axle and
associated 'fishtailing' of the vehicle
rear end.
Manual transmission:
Always engage the handbrake when
parking on slopes and inclined sur-
faces. Even placing the gearshift lever
in 1st gear or reverse may not provide
adequate resistance to rolling.
Automatic transmission:
Place the selector lever in Park.<
To prevent corrosion and one-
sided braking action, occasionally
apply the handbrake lightly when the
vehicle is slowly coming to a stop if the
traffic conditions are suitable.
The brake lamps do not light up when
the handbrake is applied.
Press the clutch all the way down each
time you shift, pressing the gearshift
lever into its proper end position.
Depress the clutch when starting the
vehicle, too. If the clutch is not
depressed, the interlock will prevent the
engine from starting.
While shifting in the 5th/6th gear
slot, press the gearshift lever
toward the right, otherwise, accidental
shifting into the 3rd or 4th gear could
result in engine damage.< 380de044

OverviewControlsMaintenanceRepairsDataIndex
67n

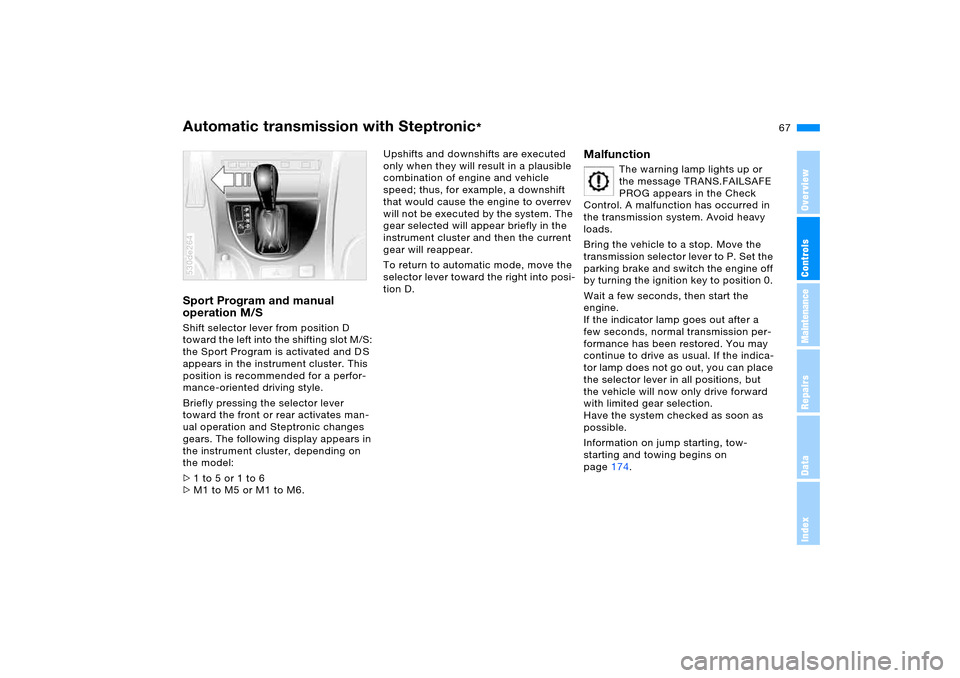

Automatic transmission with Steptronic
*
Sport Program and manual
operation M/S Shift selector lever from position D
toward the left into the shifting slot M/S:
the Sport Program is activated and D S
appears in the instrument cluster. This
position is recommended for a perfor-
mance-oriented driving style.
Briefly pressing the selector lever
toward the front or rear activates man-
ual operation and Steptronic changes
gears. The following display appears in
the instrument cluster, depending on
the model:
>1 to 5 or 1 to 6
>M1 to M5 or M1 to M6. 530de264
Upshifts and downshifts are executed
only when they will result in a plausible
combination of engine and vehicle
speed; thus, for example, a downshift
that would cause the engine to overrev
will not be executed by the system. The
gear selected will appear briefly in the
instrument cluster and then the current
gear will reappear.
To return to automatic mode, move the
selector lever toward the right into posi-
tion D.
Malfunction
The warning lamp lights up or
the message TRANS.FAILSAFE
PROG appears in the Check
Control. A malfunction has occurred in
the transmission system. Avoid heavy
loads.
Bring the vehicle to a stop. Move the
transmission selector lever to P. Set the
parking brake and switch the engine off
by turning the ignition key to position 0.
Wait a few seconds, then start the
engine.
If the indicator lamp goes out after a
few seconds, normal transmission per-
formance has been restored. You may
continue to drive as usual. If the indica-
tor lamp does not go out, you can place
the selector lever in all positions, but
the vehicle will now only drive forward
with limited gear selection.
Have the system checked as soon as
possible.
Information on jump starting, tow-
starting and towing begins on
page174.

72n

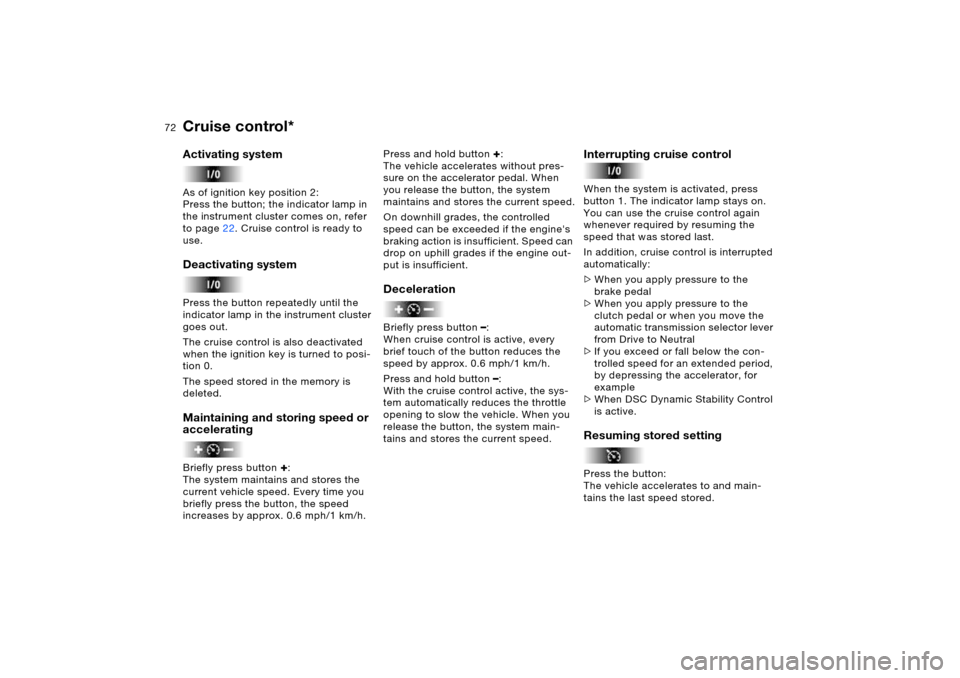

Cruise control* Activating system As of ignition key position 2:
Press the button; the indicator lamp in
the instrument cluster comes on, refer
to page22. Cruise control is ready to
use.Deactivating systemPress the button repeatedly until the
indicator lamp in the instrument cluster
goes out.
The cruise control is also deactivated
when the ignition key is turned to posi-
tion 0.
The speed stored in the memory is
deleted.Maintaining and storing speed or
accelerating Briefly press button
+:
The system maintains and stores the
current vehicle speed. Every time you
briefly press the button, the speed
increases by approx. 0.6 mph/1 km/h.
Press and hold button
+:
The vehicle accelerates without pres-
sure on the accelerator pedal. When
you release the button, the system
maintains and stores the current speed.
On downhill grades, the controlled
speed can be exceeded if the engine's
braking action is insufficient. Speed can
drop on uphill grades if the engine out-
put is insufficient.
DecelerationBriefly press button
–:
When cruise control is active, every
brief touch of the button reduces the
speed by approx. 0.6 mph/1 km/h.
Press and hold button –:
With the cruise control active, the sys-
tem automatically reduces the throttle
opening to slow the vehicle. When you
release the button, the system main-
tains and stores the current speed.
Interrupting cruise control When the system is activated, press
button 1. The indicator lamp stays on.
You can use the cruise control again
whenever required by resuming the
speed that was stored last.
In addition, cruise control is interrupted
automatically:
>When you apply pressure to the
brake pedal
>When you apply pressure to the
clutch pedal or when you move the
automatic transmission selector lever
from Drive to Neutral
>If you exceed or fall below the con-
trolled speed for an extended period,
by depressing the accelerator, for
example
>When DSC Dynamic Stability Control
is active.Resuming stored setting Press the button:
The vehicle accelerates to and main-
tains the last speed stored.

75n
OverviewControlsMaintenanceRepairsDataIndex

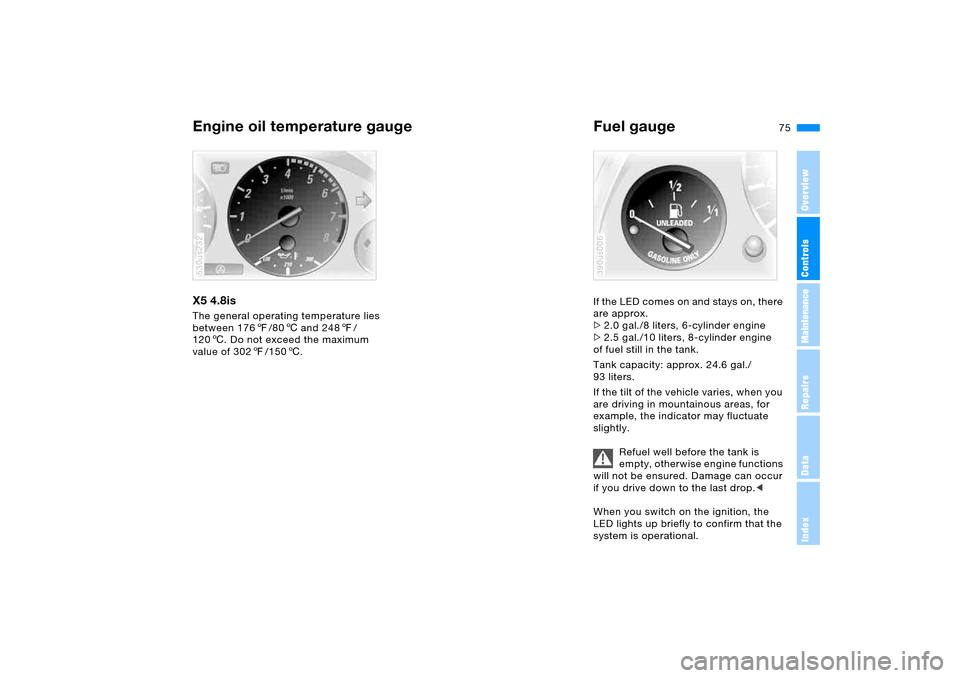

Engine oil temperature gauge Fuel gauge X5 4.8is The general operating temperature lies
between 1767/806 and 2487/
1206. Do not exceed the maximum
value of 3027/1506.530us232
If the LED comes on and stays on, there
are approx.
>2.0 gal./8 liters, 6-cylinder engine
>2.5 gal./10 liters, 8-cylinder engine
of fuel still in the tank.
Tank capacity: approx. 24.6 gal./
93 liters.
If the tilt of the vehicle varies, when you
are driving in mountainous areas, for
example, the indicator may fluctuate
slightly.
Refuel well before the tank is
empty, otherwise engine functions
will not be ensured. Damage can occur
if you drive down to the last drop.<
When you switch on the ignition, the
LED lights up briefly to confirm that the
system is operational.390us006

77n
OverviewControlsMaintenanceRepairsDataIndex

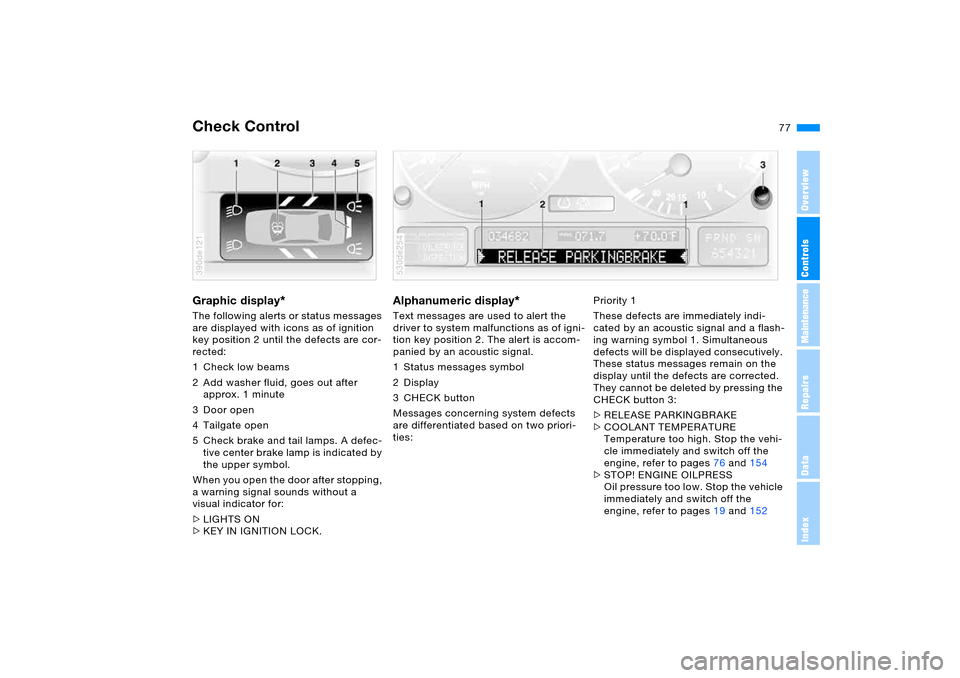

Check Control Graphic display
*
The following alerts or status messages
are displayed with icons as of ignition
key position 2 until the defects are cor-
rected:
1 Check low beams
2 Add washer fluid, goes out after
approx. 1 minute
3Door open
4 Tailgate open
5 Check brake and tail lamps. A defec-
tive center brake lamp is indicated by
the upper symbol.
When you open the door after stopping,
a warning signal sounds without a
visual indicator for:
>LIGHTS ON
>KEY IN IGNITION LOCK. 390de121
Alphanumeric display
*
Text messages are used to alert the
driver to system malfunctions as of igni-
tion key position 2. The alert is accom-
panied by an acoustic signal.
1 Status messages symbol
2Display
3CHECK button
Messages concerning system defects
are differentiated based on two priori-
ties: 530de254
Priority 1
These defects are immediately indi-
cated by an acoustic signal and a flash-
ing warning symbol 1. Simultaneous
defects will be displayed consecutively.
These status messages remain on the
display until the defects are corrected.
They cannot be deleted by pressing the
CHECK button 3:
>RELEASE PARKINGBRAKE
>COOLANT TEMPERATURE
Temperature too high. Stop the vehi-
cle immediately and switch off the
engine, refer to pages76 and154
>STOP! ENGINE OILPRESS
Oil pressure too low. Stop the vehicle
immediately and switch off the
engine, refer to pages19 and152

78n

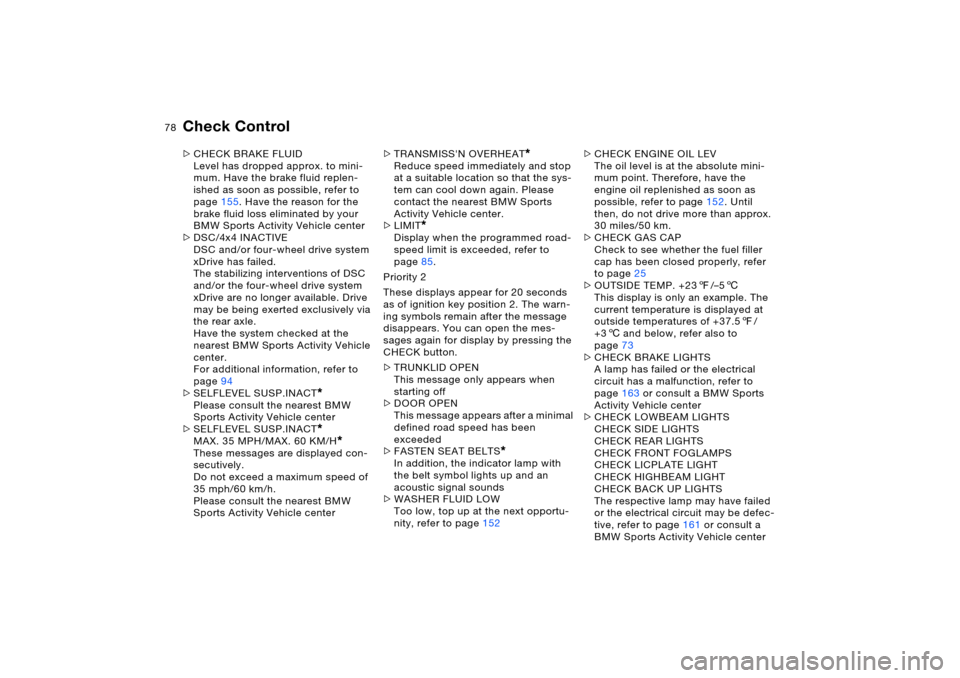

Check Control >CHECK BRAKE FLUID
Level has dropped approx. to mini-
mum. Have the brake fluid replen-
ished as soon as possible, refer to
page155. Have the reason for the
brake fluid loss eliminated by your
BMW Sports Activity Vehicle center
>DSC/4x4 INACTIVE
DSC and/or four-wheel drive system
xDrive has failed.
The stabilizing interventions of DSC
and/or the four-wheel drive system
xDrive are no longer available. Drive
may be being exerted exclusively via
the rear axle.
Have the system checked at the
nearest BMW Sports Activity Vehicle
center.
For additional information, refer to
page94
>SELFLEVEL SUSP.INACT
*
Please consult the nearest BMW
Sports Activity Vehicle center
>SELFLEVEL SUSP.INACT*
MAX. 35 MPH/MAX. 60 KM/H
*
These messages are displayed con-
secutively.
Do not exceed a maximum speed of
35 mph/60 km/h.
Please consult the nearest BMW
Sports Activity Vehicle center>TRANSMISS'N OVERHEAT
*
Reduce speed immediately and stop
at a suitable location so that the sys-
tem can cool down again. Please
contact the nearest BMW Sports
Activity Vehicle center.
>LIMIT
*
Display when the programmed road-
speed limit is exceeded, refer to
page85.
Priority 2
These displays appear for 20 seconds
as of ignition key position 2. The warn-
ing symbols remain after the message
disappears. You can open the mes-
sages again for display by pressing the
CHECK button.
>TRUNKLID OPEN
This message only appears when
starting off
>DOOR OPEN
This message appears after a minimal
defined road speed has been
exceeded
>FASTEN SEAT BELTS
*
In addition, the indicator lamp with
the belt symbol lights up and an
acoustic signal sounds
>WASHER FLUID LOW
Too low, top up at the next opportu-
nity, refer to page152>CHECK ENGINE OIL LEV
The oil level is at the absolute mini-
mum point. Therefore, have the
engine oil replenished as soon as
possible, refer to page152. Until
then, do not drive more than approx.
30 miles/50 km.
>CHECK GAS CAP
Check to see whether the fuel filler
cap has been closed properly, refer
to page25
>OUTSIDE TEMP. +237/–56
This display is only an example. The
current temperature is displayed at
outside temperatures of +37.57/
+36 and below, refer also to
page73
>CHECK BRAKE LIGHTS
A lamp has failed or the electrical
circuit has a malfunction, refer to
page163 or consult a BMW Sports
Activity Vehicle center
>CHECK LOWBEAM LIGHTS
CHECK SIDE LIGHTS
CHECK REAR LIGHTS
CHECK FRONT FOGLAMPS
CHECK LICPLATE LIGHT
CHECK HIGHBEAM LIGHT
CHECK BACK UP LIGHTS
The respective lamp may have failed
or the electrical circuit may be defec-
tive, refer to page161 or consult a
BMW Sports Activity Vehicle center
