BMW Z3 2002 User Guide

11n

Controls and features
Operation, maintenance

Cabin convenience:

Glove compartment90
Storage compartments90
Storage boxes90
Beverage holder91
Ashtray91
Cigarette lighter92

Loading and transporting:

coupe:
Roll-up cover93
Partition net93
Cargo loading94
Roof-mounted luggage
rack95

Special operating instructions:

Break-in procedure98
Driving notes99
Catalytic converter100
Antilock Brake System
(ABS)101
Disc brakes103
Brake system104
Winter operation105
Power steering106
Cellular phone107
Car radio reception107
Hardtop Ð roadster108

Wheels and tires:

Notes on inflation pressures110
Tire condition110
Tire replacement111
Tire rotation113
Wheel and tire
combinations114
Special features of winter
tires115
Snow chains115
Approved wheel and tire
specifications116

In the engine compartment:

Hood118
Engine compartment120
Fluids for the washer
systems122
Washer nozzles122
Engine oil123
Coolant125
Brake fluid126
Vehicle Identification127

Care and maintenance:

The BMW Maintenance
System128
Airbags130
Storing your vehicle130

Laws and regulations:

Technical modifications132
California Proposition
65 Warning132
OBD interface socket133

Contents

Owner service procedures
Advanced technology
Technical data

Replacement procedures:

Onboard tool kit136
Windshield wiper blades136
Lamps and bulbs137
Master key with battery
lamp143
Remote control144
Wheel change146
Battery153
Fuses156

In case of electrical
malfunction:

Power convertible top157
Fuel filler door157

Assistance, giving and
receiving:

Jump-starting158
Towing the vehicle159Adaptive Transmission Control
(ATC)164
Airbags164
Automatic Stability Control plus
Traction (ASC+T)/Dynamic
Stability Control (DSC)165
Car radio reception166
Safety belt tensioner166Engine specifications170
Dimensions171
Weights172
Capacities173
Electrical system174
Drive belts174

13n

Index

Everything from A to Z178

14n

Overview
Controls and features
Operation, maintenance
Owner service procedures
Technical data
Index Advanced technology

15n

IndexDataTechnologyRepairsMaintenanceControlsOverview
Cockpit16
Instrument cluster18
Indicator and warning lamps20
Hazard warning flashers24
Warning triangle24
First-aid kit24
Refueling25
Fuel specifications26
Tire inflation pressures26
Overview

16n
367us722

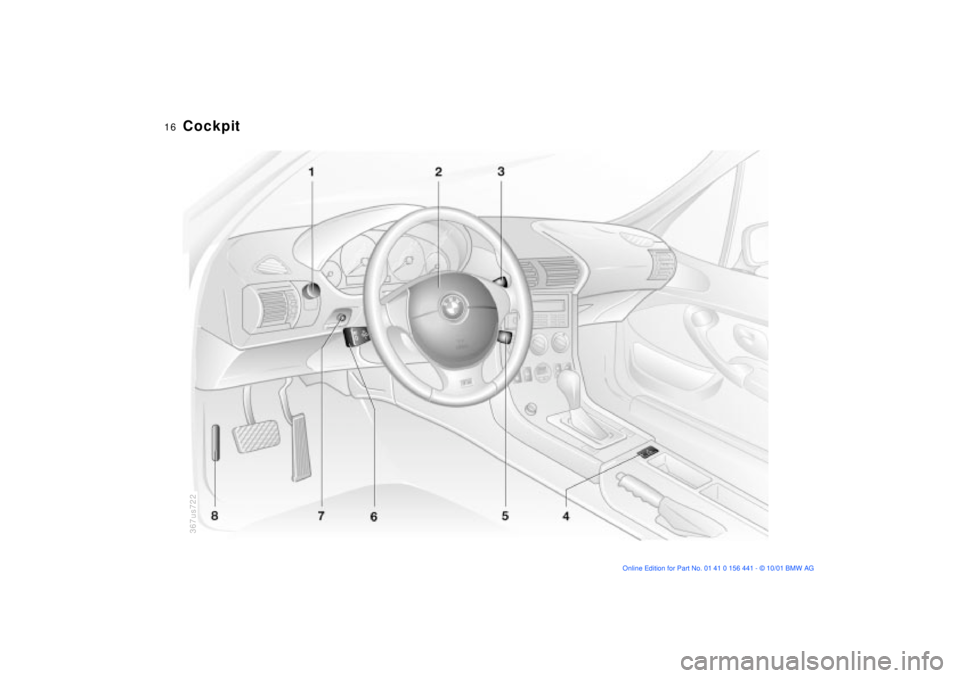

Cockpit

17n

IndexDataTechnologyRepairsMaintenanceControlsOverview

1 Parking lamps/Low beams76
2 Horn
3 Washer/Wiper system65
4 Hazard warning flashers24
5 Cruise control

*
67
6

>

Turn signals64

>

High beams64

>

Headlamp flasher64

>

Computer

*
70
7 Fog lamps76
8 Hood release118

Cockpit

18n

Instrument cluster
367us705

19n

IndexDataTechnologyRepairsMaintenanceControlsOverview

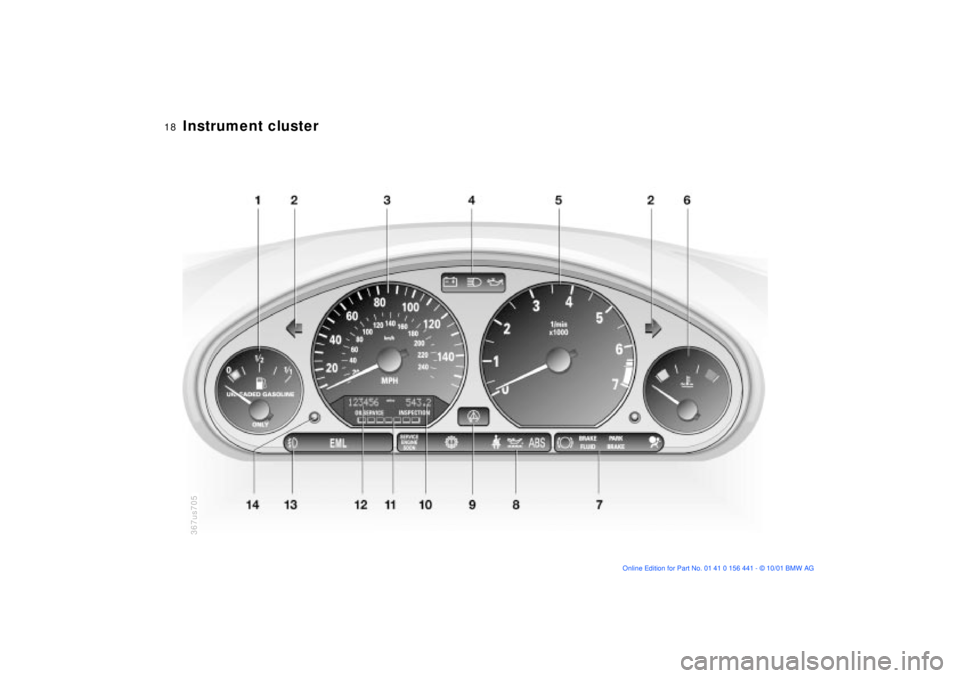

Instrument cluster

1 Fuel gauge with indicator lamp
for reserve range68
2 Indicator lamp for turn signals23
3 Speedometer
4 Indicator and warning lamps for:

>

Battery charge current20

>

High beams23

>

Engine oil pressure20
5 Tachometer68
6 Coolant temperature gauge69
7 Indicator and warning lamps for:

>

Brake pad wear22

>

Brake hydraulic
system20, 21, 22

>

Parking brake21

>

Airbags21
8 Indicator and warning lamps for:

>

Service Engine Soon22

>

Automatic transmission

*
22

>

Safety belts21

>

Engine oil level21

>

Antilock Brake System (ABS)21
9 Indicator lamp for Automatic
Stability Control plus Traction
(ASC+T)/Dynamic Stability Control
(DSC

*
)22
10 Trip odometer/Gear indicator for
automatic transmission with
Steptronic

*
6811 Service Interval Display69, 128
12 Odometer68
13 Indicator and warning lamps for:

>

Front fog lamps

*
23

>

Engine electronics22
14 Trip odometer reset button68
The illustration shows the instrument
cluster in the US version. In the Cana-
dian models, some of the indicator and
warning lamps have a different appear-
ance, refer to pages 20 to 23.

20n

Indicator and warning lamps

Technology that monitors itself

Indicator and warning lamps that are
identified by "

l

" are tested for proper
functioning whenever the ignition key is
turned. They each light up once for
different periods of time.
If a fault should occur in one of these
systems, the corresponding lamp does
not go out after the engine is started or
it lights up while the vehicle is moving.
You will see how to react to this in the
following section.

Red: stop immediately

Battery charge current

l

The battery is no longer being
charged. The alternator drive
belt is defective or there is a malfunc-
tion in the charging circuit of the alter-
nator. Please contact the nearest BMW
center.
If the drive belt is defective, stop
and switch off the engine immedi-
ately to prevent overheating and
serious engine damage. If the drive belt
is defective, increased steering effort is
also required.

<


Engine oil pressure

l

Stop the vehicle immediately
and switch off the engine.
Check the engine oil level and top off as
required. If the oil level is correct,
please contact the nearest BMW
center.
Do not continue driving, as the
engine could sustain serious
damage from inadequate lubrication.

<



Brake hydraulic system

l

The brake fluid level is too low.
Before driving further, be sure to
read the notes on pages 104 and 126.
Brake hydraulic system warning
lamp for Canadian models.
