BMW Z3M ROADSTER 1998 E36 Electrical Troubleshooting Manual
Manufacturer: BMW, Model Year: 1998, Model line: Z3M ROADSTER, Model: BMW Z3M ROADSTER 1998 E36Pages: 347, PDF Size: 7.03 MB
Page 251 of 347
ANTI–THEFT SYSTEM (ALPINE) !""
#""$
P90
FRONT POWER
DISTRIBUTION BOX
N12w
ANTI–THEFT
CONTROL MODULE
(ALPINE) FUSE DETAILS
0670.3
F435A
2
311
1 X711
X465
.75 BR/WS
X10010
GROUND
DISTRIBUTION
0670.4
.5 BR/WS
.75 BR/WS
1 2LICENSE PLATE/
LUGGAGE
COMPARTMENT
LIGHTS
6320.0
26
H1w
ANTI–THEFT HORN
(ALPINE) 2 X372
1 X372
X9633
GROUND
DISTRIBUTION
0670.4
1 SW/BL
1 2X443
S14
DRIVER’S DOOR
JAMB SWITCH
1) DOOR OPEN
2) DOOR CLOSED 2 X352
.75 BR/GR/GE
X13006
GROUND
DISTRIBUTION
0670.4 1 X352
1 2S13
PASSENGER’S
DOOR JAMB
SWITCH
1) DOOR OPEN
2) DOOR CLOSED 2 X351
.75 BR/BL/GE
1 X351
X13004
X445
GROUND
DISTRIBUTION
0670.4
7 X13025
A2w
INSTRUMENT
CLUSTER
23 X17
.5 BR/GR/GE
A104
BODY
ELECTRONICS
CONTROL MODULE
(ZKE IV)
2 X132543
45
.75 BR/GR/GE .75 BR/BL/GE .5 BR/GR/GEFUSE DETAILS
0670.3
F315A
1 X13025
2 X10018
.5 BR/BL/GE
S826
LUGGAGE
COMPARTMENT
LIGHT SWITCH
1) REAR LID
CLOSED
2) REAR LID
OPEN
2 X711
X13006
GROUND
DISTRIBUTION
0670.4
Page 252 of 347
6–CYLINDER9
6581.3 BOARD COMPUTER (BC – LOW) !""
#""$
B21
ON–BOARD
COMPUTER
TEMPERATURE
SENSOR
31
30
31
3131
.35 BR/GR
P90
FRONT POWER
DISTRIBUTION BOX
232 X10018
FUSE DETAILS
0670.3
510
911
LIGHT SWITCH
DETAILS
6300.0
X10245
86 X10245
X10010
1 X770
2 X770
GROUND
DISTRIBUTION
0670.4
X10010GROUND
DISTRIBUTION
0670.4
F315AF4615A
58g
FUSE DETAILS
0670.3
.5 WS/VI2.35 WS/GE3.5 BR/GE7
15
.5 SW/WS2
X188
INSTRUMENT
CLUSTER
6211.0
X11291
B6y
FUEL SENSOR 3 X6500
6 X6500
15
31
3 X271
.5 BR/SW
.5 BR/GE
1 X271
15
.35 BR/RT1
10 X32
1 X32
X18170
GROUND
DISTRIBUTION
0670.4
A2w
INSTRUMENT
CLUSTER
2) VEHICLE
SPEED
OUTPUT 2
X17
.35 SW/WS
.5 GR/RT
A35y
BOARD
COMPUTER
(BC – LOW)
S7
COMBINATION
SWITCH
10) PROGRAM
MODUS 10TXD RXD
DATA LINK
0670.5
.5 BR/GE
A2w
INSTRUMENT
CLUSTER
.5 BR/SW.5 BR/SW
X805
INSTRUMENT
CLUSTER
6211.0
31415
83A6000
ENGINE CONTROL
MODULE (DME)
X6000
24X20.5 WS/SW
.35 WS/SW
.35 BR/RT
.5 BR
Page 253 of 347
7000.0 COMPONENT LOCATION CHART
!""#""$
COMP. DESCRIPTION LOCATION7100.0 8500.0
A2w . . INSTRUMENT CLUSTER . . . . . . . . . . . . . . . LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-2
A7 . . . .
SLIP CONTROL MODULE (ABS) . . . . . . . .
behind glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
00-1
A8 . . . .
CRUISE CONTROL MODULE
(TEMPOMAT) . . . . . . . . . . . . . . . . . . . . . . .
behind glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
00-2
A12 . . SUPPLEMENTAL RESTRAINT SYSTEM
CONTROL MODULE . . . . . . . . . . . . . . . . . below center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22-2
A18 . .
HIFI AMPLIFIER . . . . . . . . . . . . . . . . . . . . . . .
in RH side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27-3
A35y . BOARD COMPUTER (BC – LOW) . . . . . . . center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01-3
A51 . . WIPER/WASHER MODULE . . . . . . . . . . . . . behind glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 00-2
A52 . . SLIP CONTROL MODULE (ABS/ASC) . . . . behind glove box (4–cylinder) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 00-1
A52 . .
SLIP CONTROL MODULE (ABS/ASC) . . . .
behind glove box (6–cylinder) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
00-3
A64 . . WIPER/WASHER MODULE (LOW II) . . . . . behind glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 00-2
A104 .
BODY ELECTRONICS CONTROL
MODULE (ZKE IV) . . . . . . . . . . . . . . . . . . .
behind glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
00-2
A110 . . DIGITAL CLOCK . . . . . . . . . . . . . . . . . . . . . . . center console
A113 . . SEAT OCCUPANCY DETECTOR . . . . . . . . under RH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-1
A113 . . SEAT OCCUPANCY DETECTOR . . . . . . . . under RH front seat (WITH SPORT SEAT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41-2
A605 .
FUSE HOLDER . . . . . . . . . . . . . . . . . . . . . . . .
center console (radio and console removed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
38-1
A835 . TRANSMITTER MODULE (EWS II) . . . . . . near steering column . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01-2
A836 .
ELECTRONIC IMMOBILIZER CONTROL
MODULE (EWS II) . . . . . . . . . . . . . . . . . . .
behind glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
00-1
A6000 ENGINE CONTROL MODULE (DME) . . . . . rear RH side of engine compartment in E–Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01-1
A8500
TRANSMISSION CONTROL MODULE
(EGS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
rear RH side of engine compartment in E–Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
01-1
Page 254 of 347
COMPONENT LOCATION CHART
!""#""$
COMP.8500.0 7100.0LOCATION DESCRIPTION
B1 . . . . RIGHT FRONT SPEED SENSOR – ABS . . on RH front wheel, above brake caliper
B2 . . . .
LEFT FRONT SPEED SENSOR – ABS . . .
on LH front wheel, above brake caliper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12-3
B3 . . . . RIGHT REAR SPEED SENSOR – ABS . . . on RH rear wheel, above brake caliper
B4 . . . . LEFT REAR SPEED SENSOR – ABS . . . . on LH rear wheel, above brake caliper
B6y . . . FUEL SENSOR . . . . . . . . . . . . . . . . . . . . . . . . in fuel tank
B8y . . . PRESSURE SWITCH . . . . . . . . . . . . . . . . . . . front RH side of engine compartment
B9 . . . .
INTERMEDIATE PRESSURE SWITCH . . .
front RH side of engine compartment
B10 . . VEHICLE SPEED SENSOR . . . . . . . . . . . . . on differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-2
B14 . . EVAPORATOR TEMPERATURE SENSOR RH side of LH footwell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-2
B16 . . LEFT FRONT BRAKE PAD SENSOR . . . . . on LH front wheel, above brake caliper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-3
B17 . . RIGHT REAR BRAKE PAD SENSOR . . . . . behind RH rear wheel
B18 . .
BRAKE FLUID LEVEL SWITCH . . . . . . . . . .
rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
09-1
B21 . .
ON–BOARD COMPUTER TEMPERATURE
SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . .
on front LH wheel well (4–cylinder) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12-1
B21 . .
ON–BOARD COMPUTER TEMPERATURE
SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . .
in RH front bumper (6–cylinder) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
35-2
B59 . . OIL TEMPERATURE GAUGE . . . . . . . . . . . center console
B65 . . FUEL TANK PRESSURE SENSOR . . . . . . . top of fuel tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40-2
B78 . . DRIVER’S SIDE IMPACT SENSOR . . . . . . under LH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39-3
B79 . .
PASSENGER’S SIDE IMPACT SENSOR . .
under RH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
39-1
B900 .
JUMPER PLUG . . . . . . . . . . . . . . . . . . . . . . . .
LH footwell
B6203 CRANKSHAFT POSITION/RPM SENSOR rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32-3
Page 255 of 347
COMPONENT LOCATION CHART
!""#""$
COMP.8500.0 7100.0LOCATION DESCRIPTION
B6204
CAMSHAFT POSITION SENSOR
(CYLINDER IDENTIFICATION) . . . . . . . .
front of engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31-3
B6205 INTAKE AIR TEMPERATURE SENSOR . . front LH side of engine compartment (4–cylinder) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-2
B6205
INTAKE AIR TEMPERATURE SENSOR . .
front LH side of engine compartment (6–cylinder) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
34-1
B6207
HOT FILM AIR MASS METER . . . . . . . . . . .
LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
33-3
B6209 HALL EFFECT CAMSHAFT SENSOR . . . . front of engine
B6210y
OXYGEN SENSOR (IN FRONT OF
CATALYTIC CONVERTER) . . . . . . . . . . . .
under center of car . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
35-1
B6217 HOT FILM AIR MASS METER . . . . . . . . . . . front LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-3
B6220y
OXYGEN SENSOR (BEHIND CATALYTIC
CONVERTER) . . . . . . . . . . . . . . . . . . . . . . .
under center of car . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
35-1
B6231 OIL PRESSURE SWITCH . . . . . . . . . . . . . . . lower LH side of engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32-2
B6232
ENGINE COOLANT TEMPERATURE
SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . .
front of engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10-2
B6238 OIL TEMPERATURE SENSOR . . . . . . . . . . RH side of oil filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32-2
B6240
KNOCK SENSOR . . . . . . . . . . . . . . . . . . . . . .
top front of engine (4–cylinder) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10-2
B6240 KNOCK SENSOR . . . . . . . . . . . . . . . . . . . . . . top front of engine (6–cylinder) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33-2
B6247 CHARCOAL FILTER SHUT–OFF VALVE . . under LH rear of car . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36-1
B6256
DUAL TEMPERATURE SENSOR
(COOLANT TEMPERATURE) . . . . . . . . .
rear of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32-1
B9508 PRESSURE SWITCH . . . . . . . . . . . . . . . . . . . front RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-2
B62001
OXYGEN SENSOR (IN FRONT OF
CATALYTIC CONVERTER) . . . . . . . . . . . .
under center of car . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14-3
Page 256 of 347
COMPONENT LOCATION CHART
!""#""$
COMP.8500.0 7100.0LOCATION DESCRIPTION
B62002
OXYGEN SENSOR (BEHIND CATALYTIC
CONVERTER) . . . . . . . . . . . . . . . . . . . . . . .
under center of car
B62101
OXYGEN SENSOR I (IN FRONT OF
CATALYTIC CONVERTER) . . . . . . . . . . . .
on catalytic converter
B62102
OXYGEN SENSOR I (BEHIND CATALYTIC
CONVERTER) . . . . . . . . . . . . . . . . . . . . . . .
on catalytic converter
B62201
OXYGEN SENSOR II (IN FRONT OF
CATALYTIC CONVERTER) . . . . . . . . . . . .
on catalytic converter
B62202
OXYGEN SENSOR II (BEHIND CATALYTIC
CONVERTER) . . . . . . . . . . . . . . . . . . . . . . .
on catalytic converter
C101 . CONTACT RING . . . . . . . . . . . . . . . . . . . . . . . top of steering column . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38-3
D100 . DATA LINK CONNECTOR . . . . . . . . . . . . . . . rear RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31-1
D110 .
OBD II CONNECTOR . . . . . . . . . . . . . . . . . . .
center console right . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28-3
E7 . . . . LEFT HEADLIGHT . . . . . . . . . . . . . . . . . . . . . front LH side of engine compartment
E8 . . . . RIGHT HEADLIGHT . . . . . . . . . . . . . . . . . . . . front RH side of engine compartment
E9 . . . . REAR DEFOGGER I . . . . . . . . . . . . . . . . . . . hard top
E11 . . . LEFT HIGH BEAM LIGHT . . . . . . . . . . . . . . . near front LH headlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29-1
E12 . .
RIGHT HIGH BEAM LIGHT . . . . . . . . . . . . .
near front RH headlight
E13 . . LEFT LOW BEAM LIGHT . . . . . . . . . . . . . . . near front LH headlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29-1
E14 . . RIGHT LOW BEAM LIGHT . . . . . . . . . . . . . . near front RH headlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29-3
E15 . . LEFT PARK LIGHT . . . . . . . . . . . . . . . . . . . . . near front LH headlight
E16 . .
LEFT REAR LIGHT ASSEMBLY . . . . . . . . .
LH side of body rear end
E17 . . RIGHT REAR LIGHT ASSEMBLY . . . . . . . . RH side of body rear end . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 03-1
E19 . . RIGHT PARK LIGHT . . . . . . . . . . . . . . . . . . . near front RH headlight
Page 257 of 347
COMPONENT LOCATION CHART
!""#""$
COMP.8500.0 7100.0LOCATION DESCRIPTION
E21 . . LEFT FRONT MARKER LIGHT . . . . . . . . . . front of vehicle
E22 . .
RIGHT FRONT MARKER LIGHT . . . . . . . . .
front of vehicle
E25 . . FRONT ASHTRAY LIGHT . . . . . . . . . . . . . . . center console
E26 . . LEFT FOG LIGHT . . . . . . . . . . . . . . . . . . . . . . under LH front bumper
E27 . . RIGHT FOG LIGHT . . . . . . . . . . . . . . . . . . . . under RH front bumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-2
E28 . . FRONT CIGAR LIGHTER . . . . . . . . . . . . . . . center console
E28a .
CIGAR LIGHTER CONNECTION . . . . . . . .
TIRE INFLATION SYSTEM
E29 . . FRONT CIGAR LIGHTER LIGHT . . . . . . . . center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22-3
E32 . . LUGGAGE COMPARTMENT LIGHT . . . . . . in luggage compartment
E43 . . LEFT LICENSE PLATE LIGHT . . . . . . . . . . . underside of luggage compartment lid, near license plate
E44 . . RIGHT LICENSE PLATE LIGHT . . . . . . . . . underside of luggage compartment lid, near license plate
E51 . .
LEFT WASHER JET HEATER . . . . . . . . . . .
on underside of engine hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16-2
E52 . . RIGHT WASHER JET HEATER . . . . . . . . . . on underside of engine hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-2
E56 . . DRIVER’S SEATBACK HEATER . . . . . . . . . in top of LH backrest
E57 . . DRIVER’S SEAT HEATER . . . . . . . . . . . . . . . under LH front seat
E58 . .
PASSENGER’S SEAT HEATER . . . . . . . . . .
underside of RH front seat
E59 . . PASSENGER’S SEATBACK HEATER . . . . in top of RH backrest
E82 . .
TRANSMISSION POSITION INDICATOR
LIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22-1
E96 . . GEAR SHIFT LEVER INDICATOR . . . . . . . center console
E99 . . HARD TOP CONNECTOR 1 . . . . . . . . . . . . . near LH rear wheel well
Page 258 of 347
COMPONENT LOCATION CHART
!""#""$
COMP.8500.0 7100.0LOCATION DESCRIPTION
E105 .
HEAT/A/C CONTROL PANEL
ILLUMINATION . . . . . . . . . . . . . . . . . . . . . .
center of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21-3
E106 .
HEAT/A/C CONTROL PANEL
ILLUMINATION . . . . . . . . . . . . . . . . . . . . . .
center of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21-3
E800 . FRONT LEFT INTERIOR LIGHT . . . . . . . . . near interior rear view mirror
F97 . . . FUSIBLE LINK . . . . . . . . . . . . . . . . . . . . . . . . . in RH side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 03-1
G1 . . .
BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
in RH side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
03-1
G5 . . . DRIVER’S AIR BAG GAS GENERATOR . . behind steering wheel
G6 . . .
PASSENGER’S AIR BAG GAS
GENERATOR . . . . . . . . . . . . . . . . . . . . . . .
behind glove box above
G12 . .
DRIVER’S SIDE PYROTECHNICAL BELT
TENSIONER . . . . . . . . . . . . . . . . . . . . . . . .
in LH front seat belt buckle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
38-2
G13 . .
PASSENGER’S SIDE PYROTECHNICAL
BELT TENSIONER . . . . . . . . . . . . . . . . . . .
in RH front seat belt buckle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
38-2
G14 . . LEFT SIDE AIR BAG GAS GENERATOR . LH front door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41-3
G15 . . RIGHT SIDE AIR BAG GAS GENERATOR RH front door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39-2
G6430 B+ JUMP START JUNCTION POINT . . . . . rear RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 03-2
G6509
GENERATOR . . . . . . . . . . . . . . . . . . . . . . . . . .
front LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
02-3
H1w . . ANTI–THEFT HORN (ALPINE) . . . . . . . . . . rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 09-1
H2 . . . LEFT HORN . . . . . . . . . . . . . . . . . . . . . . . . . . . under LH front bumper
H3 . . . RIGHT HORN . . . . . . . . . . . . . . . . . . . . . . . . . RH front of wheel well . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-2
H4 . . .
RIGHT FRONT TURN LIGHT . . . . . . . . . . . .
front of vehicle
H7 . . . LEFT FRONT TURN LIGHT . . . . . . . . . . . . . front of vehicle
H8 . . . RIGHT FRONT AUXILIARY TURN LIGHT . front of vehicle
Page 259 of 347

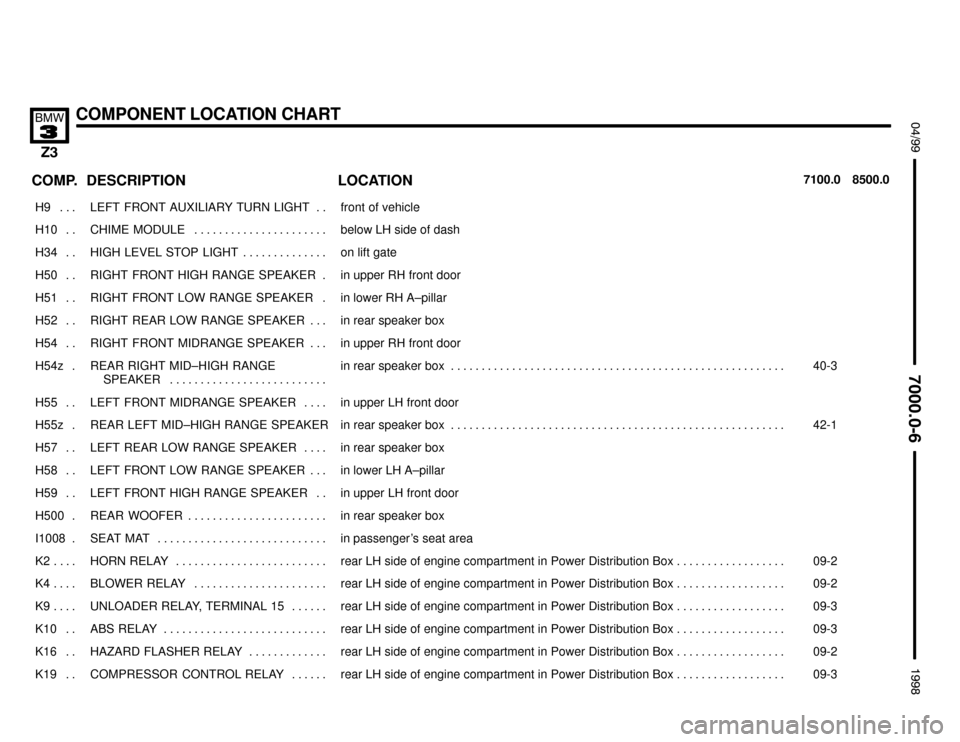

COMPONENT LOCATION CHART
!""#""$
COMP.8500.0 7100.0LOCATION DESCRIPTION
H9 . . . LEFT FRONT AUXILIARY TURN LIGHT . . front of vehicle
H10 . .
CHIME MODULE . . . . . . . . . . . . . . . . . . . . . .
below LH side of dash
H34 . . HIGH LEVEL STOP LIGHT . . . . . . . . . . . . . . on lift gate
H50 . . RIGHT FRONT HIGH RANGE SPEAKER . in upper RH front door
H51 . . RIGHT FRONT LOW RANGE SPEAKER . in lower RH A–pillar
H52 . . RIGHT REAR LOW RANGE SPEAKER . . . in rear speaker box
H54 . .
RIGHT FRONT MIDRANGE SPEAKER . . .
in upper RH front door
H54z .
REAR RIGHT MID–HIGH RANGE
SPEAKER . . . . . . . . . . . . . . . . . . . . . . . . . .
in rear speaker box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
40-3
H55 . . LEFT FRONT MIDRANGE SPEAKER . . . . in upper LH front door
H55z . REAR LEFT MID–HIGH RANGE SPEAKER in rear speaker box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42-1
H57 . . LEFT REAR LOW RANGE SPEAKER . . . . in rear speaker box
H58 . . LEFT FRONT LOW RANGE SPEAKER . . . in lower LH A–pillar
H59 . .
LEFT FRONT HIGH RANGE SPEAKER . .
in upper LH front door
H500 . REAR WOOFER . . . . . . . . . . . . . . . . . . . . . . . in rear speaker box
I1008 . SEAT MAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . in passenger’s seat area
K2 . . . . HORN RELAY . . . . . . . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 09-2
K4 . . . .
BLOWER RELAY . . . . . . . . . . . . . . . . . . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . .
09-2
K9 . . . . UNLOADER RELAY, TERMINAL 15 . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 09-3
K10 . . ABS RELAY . . . . . . . . . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 09-3
K16 . . HAZARD FLASHER RELAY . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 09-2
K19 . . COMPRESSOR CONTROL RELAY . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 09-3
Page 260 of 347

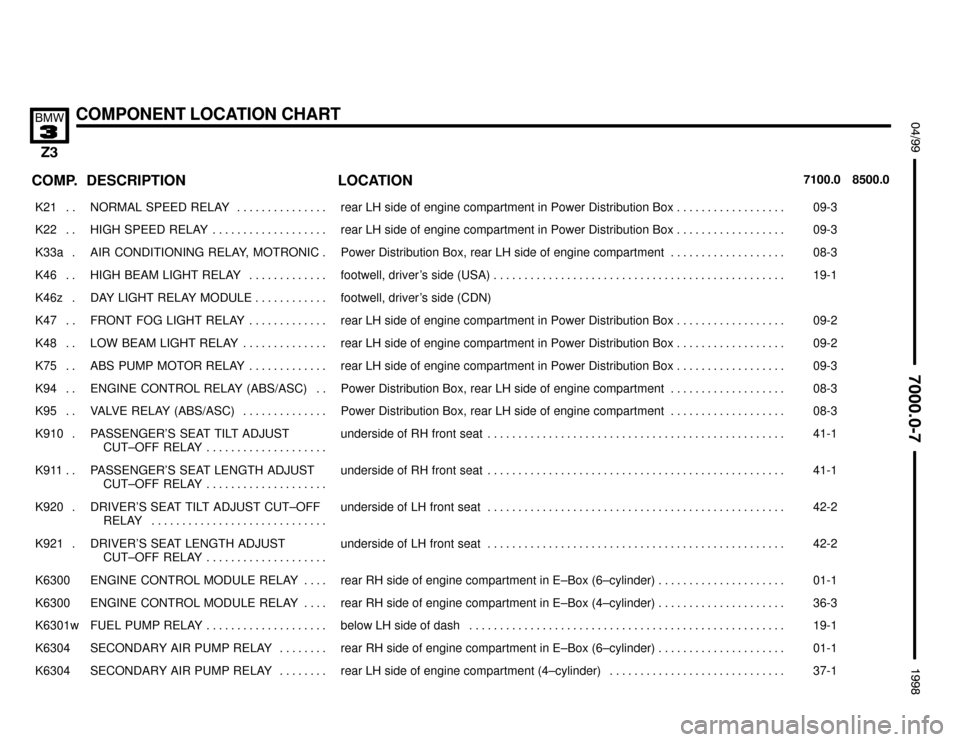

COMPONENT LOCATION CHART
!""#""$
COMP.8500.0 7100.0LOCATION DESCRIPTION
K21 . . NORMAL SPEED RELAY . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 09-3
K22 . .
HIGH SPEED RELAY . . . . . . . . . . . . . . . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . .
09-3
K33a . AIR CONDITIONING RELAY, MOTRONIC . Power Distribution Box, rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . 08-3
K46 . . HIGH BEAM LIGHT RELAY . . . . . . . . . . . . . footwell, driver’s side (USA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-1
K46z . DAY LIGHT RELAY MODULE . . . . . . . . . . . . footwell, driver’s side (CDN)
K47 . . FRONT FOG LIGHT RELAY . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 09-2
K48 . .
LOW BEAM LIGHT RELAY . . . . . . . . . . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . .
09-2
K75 . . ABS PUMP MOTOR RELAY . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 09-3
K94 . . ENGINE CONTROL RELAY (ABS/ASC) . . Power Distribution Box, rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . 08-3
K95 . . VALVE RELAY (ABS/ASC) . . . . . . . . . . . . . . Power Distribution Box, rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . 08-3
K910 .
PASSENGER’S SEAT TILT ADJUST
CUT–OFF RELAY . . . . . . . . . . . . . . . . . . . .
underside of RH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
41-1
K911 . .
PASSENGER’S SEAT LENGTH ADJUST
CUT–OFF RELAY . . . . . . . . . . . . . . . . . . . .
underside of RH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
41-1
K920 .
DRIVER’S SEAT TILT ADJUST CUT–OFF
RELAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
underside of LH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
42-2
K921 .
DRIVER’S SEAT LENGTH ADJUST
CUT–OFF RELAY . . . . . . . . . . . . . . . . . . . .
underside of LH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
42-2
K6300 ENGINE CONTROL MODULE RELAY . . . . rear RH side of engine compartment in E–Box (6–cylinder) . . . . . . . . . . . . . . . . . . . . . 01-1
K6300
ENGINE CONTROL MODULE RELAY . . . .
rear RH side of engine compartment in E–Box (4–cylinder) . . . . . . . . . . . . . . . . . . . . .
36-3
K6301w FUEL PUMP RELAY . . . . . . . . . . . . . . . . . . . . below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-1
K6304 SECONDARY AIR PUMP RELAY . . . . . . . . rear RH side of engine compartment in E–Box (6–cylinder) . . . . . . . . . . . . . . . . . . . . . 01-1
K6304 SECONDARY AIR PUMP RELAY . . . . . . . . rear LH side of engine compartment (4–cylinder) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37-1
