At a glance
Controls
Driving tips
Mobility Reference
13
Colors
The indicator and warning lamps can light up in
various colors and combinations.
>Red:
Stop the vehicle immediately
or
an important reminder
>Red and yellow:
Continue driving cautiously
>Yellow:
Have the system checked soon
or
for your information
>Green or blue:
For your information Antilock Brake System ABS/Driving
stability control systems for Canadian
models
Brake system
+
Parking brake released95
Parking brake applied41
With other warning lamps52
Brake warning lamp for Canadian mod-
els
Brake pads
+76
Fog lamps60
Electric Power Steering
+56
Flat Tire Monitor
* +53
Tire Pressure Monitor
* +54
Airbags
+56
'Fasten safety belts' reminder33
Defective bulb59
Doors or luggage compartment lid/tail-
gate open
Automatic transmission
+43
Engine electronics
+
Malfunction in the engine electronics.
You can continue to drive with reduced
engine output. Please have the system
inspected by your BMW center.
Service engine soon
+97
Service engine soon indicator lamp for
Canadian models
Dynamic Stability Control
DSC
+51
Dynamic Traction Control
DTC
+51
Add coolant94
Add washer fluid46
Check gas cap
+82

Reference
At a glance
Controls
Driving tips
Mobility
45

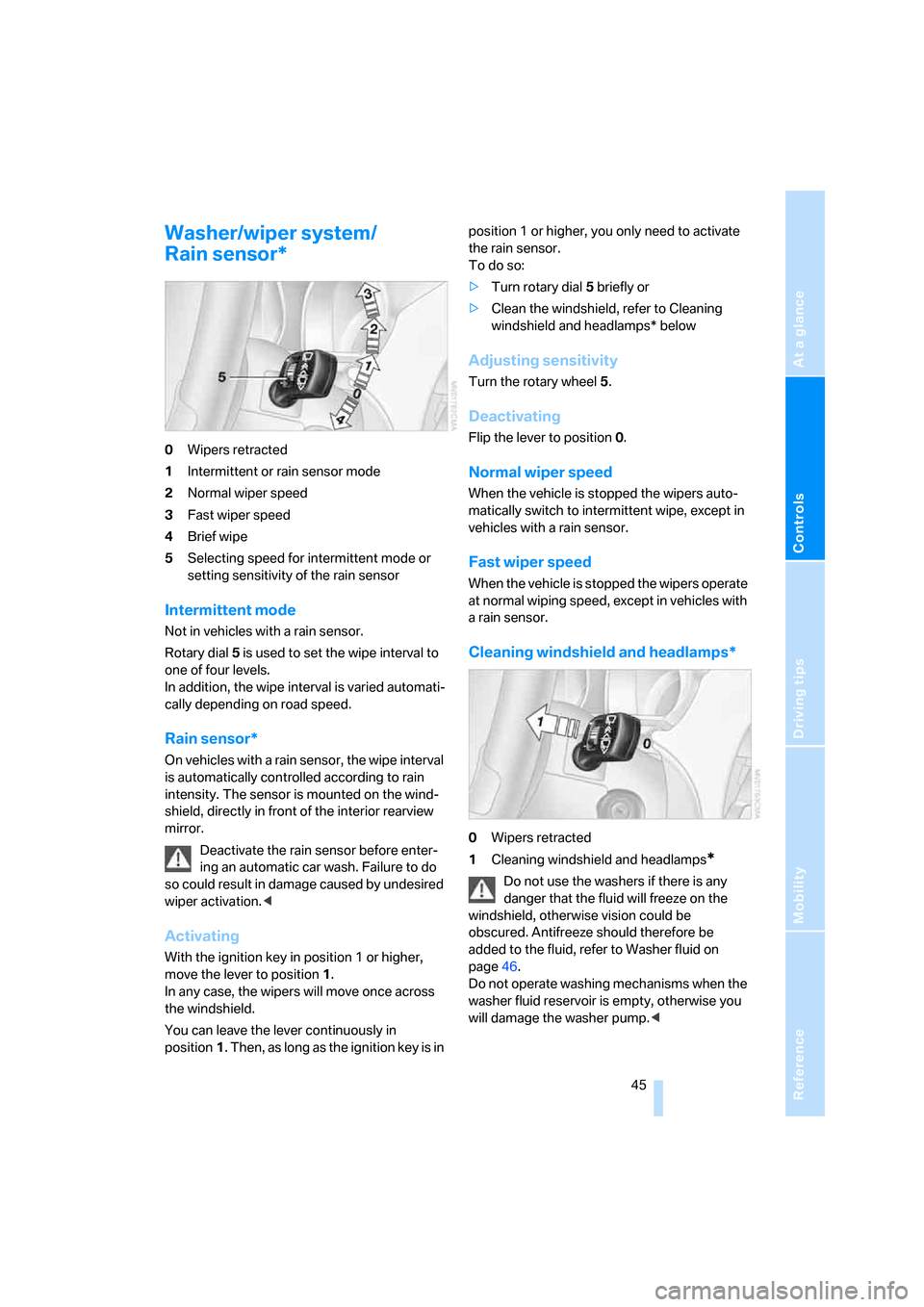

Washer/wiper system/
Rain sensor*
0Wipers retracted
1Intermittent or rain sensor mode
2Normal wiper speed
3Fast wiper speed
4Brief wipe
5Selecting speed for intermittent mode or
setting sensitivity of the rain sensor
Intermittent mode
Not in vehicles with a rain sensor.
Rotary dial 5 is used to set the wipe interval to
one of four levels.
In addition, the wipe interval is varied automati-
cally depending on road speed.
Rain sensor*
On vehicles with a rain sensor, the wipe interval
is automatically controlled according to rain
intensity. The sensor is mounted on the wind-
shield, directly in front of the interior rearview
mirror.
Deactivate the rain sensor before enter-
ing an automatic car wash. Failure to do
so could result in damage caused by undesired
wiper activation.<
Activating
With the ignition key in position 1 or higher,
move the lever to position 1.
In any case, the wipers will move once across
the windshield.
You can leave the lever continuously in
position1. Then, as long as the ignition key is in position 1 or higher, you only need to activate
the rain sensor.
To do so:
>Turn rotary dial 5 briefly or
>Clean the windshield, refer to Cleaning
windshield and headlamps* below
Adjusting sensitivity
Turn the rotary wheel 5.
Deactivating
Flip the lever to position 0.
Normal wiper speed
When the vehicle is stopped the wipers auto-
matically switch to intermittent wipe, except in
vehicles with a rain sensor.
Fast wiper speed
When the vehicle is stopped the wipers operate
at normal wiping speed, except in vehicles with
a rain sensor.
Cleaning windshield and headlamps*
0Wipers retracted
1Cleaning windshield and headlamps
*
Do not use the washers if there is any
danger that the fluid will freeze on the
windshield, otherwise vision could be
obscured. Antifreeze should therefore be
added to the fluid, refer to Washer fluid on
page46.
Do not operate washing mechanisms when the
washer fluid reservoir is empty, otherwise you
will damage the washer pump.<

Driving
46
Cleaning windshield
The system sprays washer fluid against the
windshield and activates the wipers for a brief
period.
The windshield washer nozzles are automati-
cally heated
* when the engine is running or the
ignition is on.
Cleaning headlamps*
When the vehicle lighting system is switched
on, the headlamps are cleaned at regular and
appropriate intervals.
Washer fluid
Washer fluid antifreeze is flammable. For
this reason, keep it away from sources of
flame and store it only in its original container.
Store it so that it is inaccessible to children.
Comply with the instructions on the con-
tainer.<
Washer fluid reservoir
Fill with water and, if required, with antifreeze
according to its manufacturer's recommenda-
tions.
Mix the water and antifreeze before filling
the washer fluid reservoir to make sure
the correct concentration is maintained.<
Capacity
Approx. 5.3 US quarts/5 liters.
Cruise control*
The concept
Cruise control is available at speeds of at least
approx. 20 mph/30 km/h. The car stores and
maintains the speed that you specify with the
lever on the steering column.
Do not use cruise control if conditions are
unfavorable for driving at a constant
speed, e.g. due to winding roads, dense traffic,
or poor road conditions such as snow, rain, ice,
loose surface, etc. Otherwise, you could lose
control of the vehicle and cause an accident.<
One lever for all functions
1Storing and maintaining speed or accelerat-
ing
2Storing and maintaining speed or deceler-
ating
3To recall the stored speed
4Deactivating cruise control
To maintain current speed
Tap the lever, arrow 1, or pull it briefly, arrow 2.
The car's current speed is stored and main-
tained. If, on downhill grades, the engine brak-
ing effect is not sufficient, the controlled speed
can be exceeded. Speed can drop on uphill
grades if the engine output is insufficient.
To increase speed
Tap the lever repeatedly, arrow 1, until the
desired speed is reached.
Every time you tap the lever, the speed
increases by approx. 1 mph/1 km/h.

Under the hood
92
Important parts in the engine compartment
1Washer fluid reservoir for headlamp clean-
ing system and window washer system,
refer to page46
2Filler neck for engine oil, refer to Adding
engine oil3Jump-starting connection, refer to
page104
4Reservoir for brake fluid, refer to page95
5Body ground, negative terminal, refer to
page105
6Expansion tank for coolant, refer to page94
Engine oil
Oil consumption is directly influenced by your
driving style and vehicle operating conditions.
Warning lamp
Engine oil pressure
The warning lamp lights up in red:
The engine oil pressure is too low.
Stop the vehicle immediately and
switch off the engine. Check the engine oil level
and top up if necessary. If the oil level is correct,
please contact your nearest BMW center or a
workshop that works according to BMW repair
procedures with correspondingly trained per-
sonnel.Do not continue driving, otherwise the
engine could sustain serious damage
from inadequate lubrication.<
Engine oil level
The warning lamp lights up in yellow
while you are driving. In addition, a sig-
nal sounds and "+1.0" appears in the
instrument cluster, refer to page93.
The oil level is at the absolute minimum; refill as
soon as possible. Do not drive more than
125 miles/200 km before refilling.
The warning lamp comes on in yellow
after the engine is switched off. A signal
also sounds.

Everything from A to Z
116
Everything from A to Z
Index
A
ABS Antilock Brake
System51
– indicator lamp12
Accident, refer to Emergency
call103
Acknowledgment signal for
locking/unlocking vehicle19
Activated-charcoal filter for
automatic climate control67
Additives
– coolant94
– engine oil94
Adjusting
– seats30
Adjusting the thigh support32
Airbags56
– deactivating37
– indicator/warning lamp13
– passenger airbags indicator
lamp37
– reactivation37
– safe seating position30
Airbag switch, refer to Key
switch for passenger
airbags36
Air conditioning62
Air-conditioning operation,
refer to Cooling
function63,66
Air distribution
– air conditioning63
– automatic66
– automatic climate control66
– individual63,66
– manual66
Air flow rate
– air conditioning63
– automatic climate control66
Airing out, refer to
Ventilation63,67Air outlets, refer to
Ventilation63,67
Air pressure, refer to Tire
inflation pressure84
Air recirculation, refer to
Recirculated-air
mode63,67
AKI, refer to Fuel
specifications83
Alarm system23
– avoiding unintentional
alarms24
– interior motion sensor24
– switching off an alarm24
– tilt alarm sensor24
All-season tires, refer to
Winter tires87,89
Ambient air, refer to
Recirculated-air
mode63,67
Ambient temperature
display48
Antenna, refer to the Caring
for your vehicle brochure
Antifreeze46,94
– coolant94
– washer fluids46
Antilock Brake System
ABS51
– indicator/warning lamp12
– indicator lamp13
Anti-theft alarm system, refer
to Alarm system23
Anti-theft protection19,23
Approved engine oils94
Artificial leather, refer to the
Caring for your vehicle
brochure
Ashtray69
Assistance systems, refer to
Driving stability control
systems51AUC Automatic recirculated-
air control67
Audio device, external68
Automatic
– air distribution66
– air flow rate66
– cruise control46
– headlamp control59
– luggage compartment lid
operation22
– recirculated-air control
AUC67
– tailgate operation21
Automatic car wash, refer to
the Caring for your vehicle
brochure
Automatic climate control65
Automatic convertible top27
Automatic lamps59
Automatic transmission with
Steptronic42
– indicator lamp13
– interlock40,42
– selector lever43
– selector lever lock42
– shiftlock42
– shift paddles on steering
wheel43
– towing the vehicle106
– tow-starting106
AUTO program for automatic
climate control66
AUX-In jack68
Average fuel consumption50
– setting unit of measure50
Average speed50
– setting unit of measure50
Avoiding unintentional
alarms24
Axle loads, refer to
Weights113

Everything from A to Z
118 Central locking
– from inside21
Central locking system19
Changes, technical, refer to
For your own safety5
Changing a wheel101
– Run-Flat Tires101
Charge indicator lamp12,102
Check gas cap, indicator
lamp13
Child-restraint mounting
system, LATCH38
Child-restraint systems37
Child seat, refer to Installing
child-restraint systems37
Chrome parts, refer to the
Caring for your vehicle
brochure
Cigarette lighter69
Cleaning the rear window,
refer to the Caring for your
vehicle brochure
Cleaning the vehicle, refer to
the Caring for your vehicle
brochure
Cleaning the windows
– automatically, refer to Rain
sensor45
– reservoir capacity114
– spray nozzles46
– washer/wiper system45
– washer fluid46
– washer fluid reservoir46
Clock49
– 12h/24h mode50
– onboard computer50
– setting50
– setting, refer also to Owner's
Manual for Radio/Onboard
Computer
Clothes hooks70
Cockpit10
Cold start, refer to Starting the
engine40
Combination, wheel/tire88
Comfort area, refer to Around
the center console14Compact disc operation, refer
to Owner's Manual for
Radio/Onboard Computer
Computer50
– button BC50
– clock, 12h/24h mode50
– refer to Owner's Manual for
Onboard Computer
Computer, refer to the
separate Owner's Manual
Condensation, refer to When
the vehicle is parked76
Condensation, removing from
windows
– air conditioning63
– automatic climate control66
Configuring settings, refer to
Vehicle Memory, Key
Memory18
Connecting vacuum cleaner,
refer to Connecting
electrical appliances71
Consumption, refer to
Average fuel
consumption50
Consumption display, refer to
Fuel gauge48
Controls, refer to Cockpit10
Convenience operation
– convertible top20
– from outside20
– windows20
Convertible top25,27
– care, refer to the Caring for
your vehicle brochure
– convenience operation20
– electrical fault28
– emergency closing28
– fully automatic27
– malfunction28
– manual25
– mechanical25
Convertible top compartment
panel23
Coolant94
– checking level94
– indicator lamp13
– thermometer49
Coolant temperature49Coolant water, refer to
Coolant94
Cooling
– maximum66
– refer to Switching cooling
function on/off63,66
Cooling fluid, refer to
Coolant94
Cooling function
– air conditioning63
– automatic climate control66
Cooling system, refer to
Capacities114
Cooling system, refer to
Coolant94
Copyright2
Correct tires89
Cruise control46
Cruising range50
Cup holders, refer to
Beverage holders69
Curb weight, refer to
Weights113
Cylinders, refer to Engine
data110
D
Dashboard, refer to
Cockpit10
Dashboard lighting, refer to
Instrument lighting60
Data, technical
– capacities114
– dimensions111,112
– engine110
– measurements111,112
– weights113
Daytime running lamps59
DBC Dynamic Brake
Control51
– indicator/warning lamp13
Deadlocking, refer to
Locking19
Defective bulb59
Defrosting, windows63,66
Defrosting the windshield,
refer to Defrosting
windows63,66

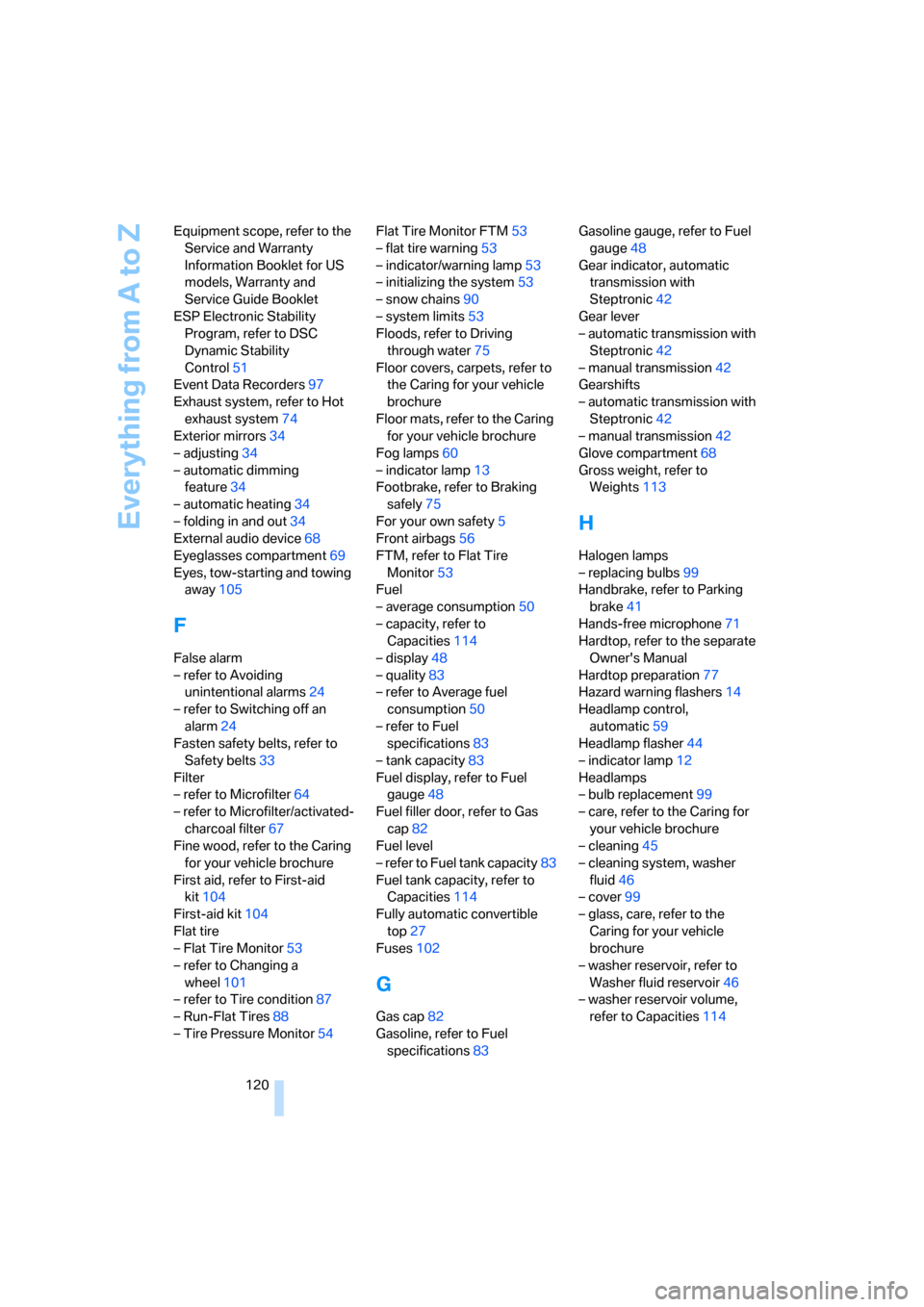

Everything from A to Z
120 Equipment scope, refer to the
Service and Warranty
Information Booklet for US
models, Warranty and
Service Guide Booklet
ESP Electronic Stability
Program, refer to DSC
Dynamic Stability
Control51
Event Data Recorders97
Exhaust system, refer to Hot
exhaust system74
Exterior mirrors34
– adjusting34
– automatic dimming
feature34
– automatic heating34
– folding in and out34
External audio device68
Eyeglasses compartment69
Eyes, tow-starting and towing
away105
F
False alarm
– refer to Avoiding
unintentional alarms24
– refer to Switching off an
alarm24
Fasten safety belts, refer to
Safety belts33
Filter
– refer to Microfilter64
– refer to Microfilter/activated-
charcoal filter67
Fine wood, refer to the Caring
for your vehicle brochure
First aid, refer to First-aid
kit104
First-aid kit104
Flat tire
– Flat Tire Monitor53
– refer to Changing a
wheel101
– refer to Tire condition87
– Run-Flat Tires88
– Tire Pressure Monitor54Flat Tire Monitor FTM53
– flat tire warning53
– indicator/warning lamp53
– initializing the system53
– snow chains90
– system limits53
Floods, refer to Driving
through water75
Floor covers, carpets, refer to
the Caring for your vehicle
brochure
Floor mats, refer to the Caring
for your vehicle brochure
Fog lamps60
– indicator lamp13
Footbrake, refer to Braking
safely75
For your own safety5
Front airbags56
FTM, refer to Flat Tire
Monitor53
Fuel
– average consumption50
– capacity, refer to
Capacities114
– display48
– quality83
– refer to Average fuel
consumption50
– refer to Fuel
specifications83
– tank capacity83
Fuel display, refer to Fuel
gauge48
Fuel filler door, refer to Gas
cap82
Fuel level
– refer to Fuel tank capacity83
Fuel tank capacity, refer to
Capacities114
Fully automatic convertible
top
27
Fuses102
G
Gas cap82
Gasoline, refer to Fuel
specifications83Gasoline gauge, refer to Fuel
gauge48
Gear indicator, automatic
transmission with
Steptronic42
Gear lever
– automatic transmission with
Steptronic42
– manual transmission42
Gearshifts
– automatic transmission with
Steptronic42
– manual transmission42
Glove compartment68
Gross weight, refer to
Weights113
H
Halogen lamps
– replacing bulbs99
Handbrake, refer to Parking
brake41
Hands-free microphone71
Hardtop, refer to the separate
Owner's Manual
Hardtop preparation77
Hazard warning flashers14
Headlamp control,
automatic59
Headlamp flasher44
– indicator lamp12
Headlamps
– bulb replacement99
– care, refer to the Caring for
your vehicle brochure
– cleaning45
– cleaning system, washer
fluid46
– cover99
– glass, care, refer to the
Caring for your vehicle
brochure
– washer reservoir, refer to
Washer fluid reservoir46
– washer reservoir volume,
refer to Capacities114

Reference
At a glance
Controls
Driving tips
Mobility
125
Status of this Owner's Manual
at time of printing5
Steering wheel10
– adjusting35
– buttons on steering
wheel11
– lock40
Steptronic, refer to Sport
program and Manual
operation43
Storage compartments68
– eyeglasses compartment69
– glove compartment68
Storage nets69
Storage space
– refer to Cargo bay23
– refer to
Storage compartments68
Storing seat position, refer to
Seat memory32
Stowage, refer to Storage
compartments68
Summer tires, refer to Wheels
and tires84
Supply reservoir, refer to
Washer fluid reservoir46
Switches, refer to Cockpit10
Switch for passenger
airbags36
Switching cooling function on/
off manually63,66
Symbols4
T
Table of contents3
Tachometer48
Tailgate21
– emergency operation22
– indicator lamp13
– opening from inside the
vehicle21
– opening from the outside21
– opening manually22
– remote control19
– roller-blind cover70
Tail lamps, refer to Rear
lamps101Tail lights, refer to Rear
lamps101
Tank contents
– refer to Capacities114
Tank indicator, refer to Fuel
gauge48
Technical data110
Technical modifications, refer
to For your own safety5
Telephone, refer to the
separate Owner's Manual
Telephone preparation
package71
Temperature
– air conditioning63
– automatic climate control66
– coolant, refer to Coolant
thermometer49
– engine49
Temperature display
– outside temperature48
– outside temperature
warning48
– setting unit of measure50
Tempomat, refer to Cruise
control46
Third brake lamp, refer to
Center high-mount brake
lamp101
Three-point safety belt, refer
to Safety belts33
Tilt alarm sensor24
Tilt function, passenger-side
mirror34
Tire, flat53,55
– Flat Tire Monitor53
– indicator/warning lamp13
– Run-Flat Tires88
– Tire Pressure Monitor54
Tire inflation pressure84
– checking84
– loss53,54
– restoring84
Tire pressure monitoring,
refer to
– Flat Tire Monitor53
– Tire Pressure Monitor
54Tire Pressure Monitor
TPM54
– indicator/warning lamp55
– resetting the system54
– system limits54
Tire Quality Grading86
Tire renewal88
Tires
– age86,88
– break-in procedures74
– changing88
– coding86
– condition87
– damage88
– DOT quality grades86
– flat53,55
– inflation pressure84
– pressure monitoring, refer to
Flat Tire Monitor53
– replacement88
– size84
– storage89
– temperature87
– traction87
– tread87
– tread wear87
– Uniform Tire Quality
Grading86
– wear indicators, refer to
Minimum tread depth87
– wheel and tire
replacement88
– winter tires89
– with emergency features,
refer to Run-Flat Tires88
Tire storage89
Tool kit, refer to Onboard tool
kit98
Torque, refer to Engine
data110
Tow bar106
Tow fitting
– screw thread106
Towing eyelet105
Towing the vehicle105
– methods106
– with automatic
transmission106
Tow rope106

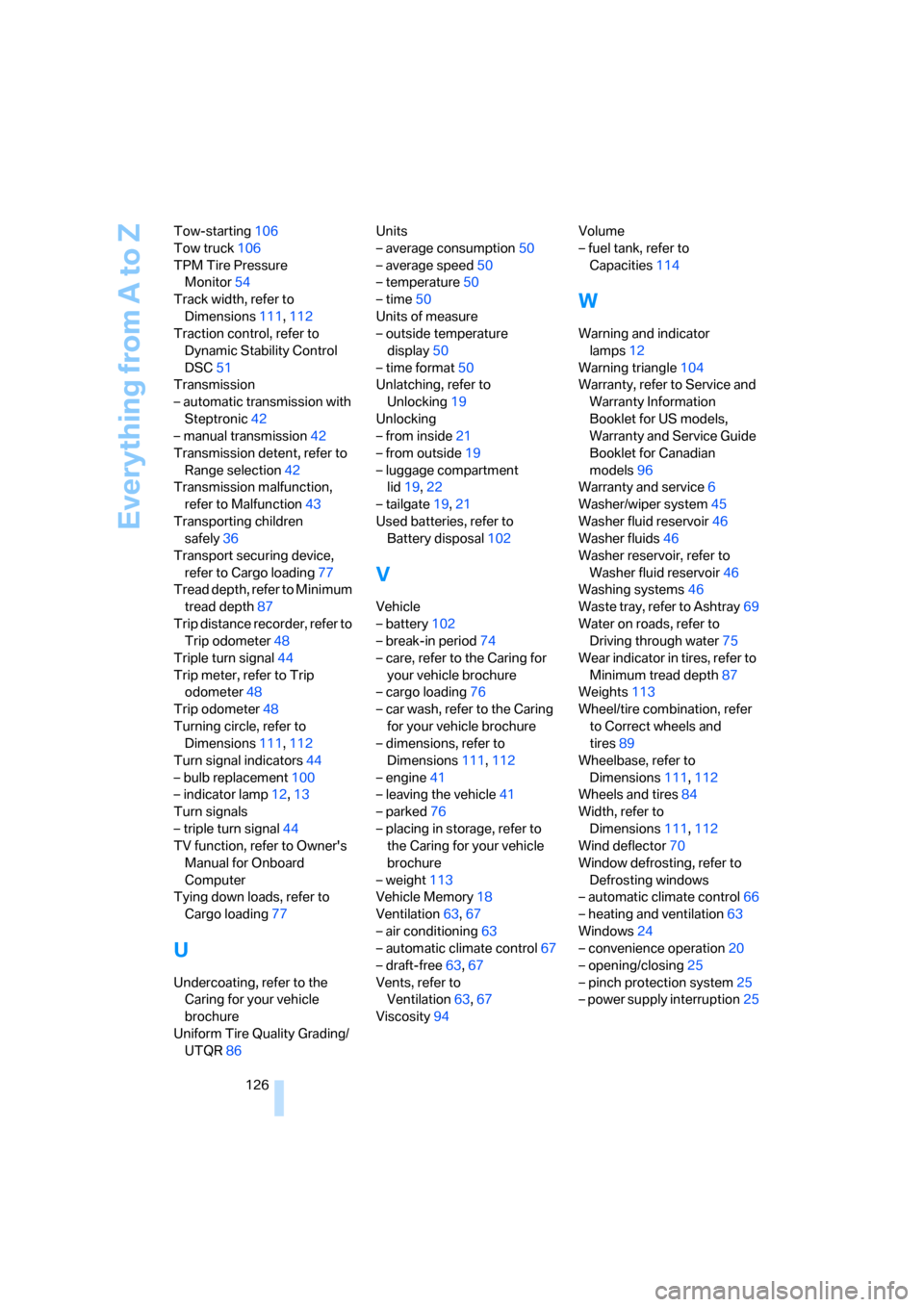

Everything from A to Z
126 Tow-starting106
Tow truck106
TPM Tire Pressure
Monitor54
Track width, refer to
Dimensions111,112
Traction control, refer to
Dynamic Stability Control
DSC51
Transmission
– automatic transmission with
Steptronic42
– manual transmission42
Transmission detent, refer to
Range selection42
Transmission malfunction,
refer to Malfunction43
Transporting children
safely36
Transport securing device,
refer to Cargo loading77
Tread depth, refer to Minimum
tread depth87
Trip distance recorder, refer to
Trip odometer48
Triple turn signal44
Trip meter, refer to Trip
odometer48
Trip odometer48
Turning circle, refer to
Dimensions111,112
Turn signal indicators44
– bulb replacement100
– indicator lamp12,13
Turn signals
– triple turn signal44
TV function, refer to Owner's
Manual for Onboard
Computer
Tying down loads, refer to
Cargo loading77
U
Undercoating, refer to the
Caring for your vehicle
brochure
Uniform Tire Quality Grading/
UTQR86Units
– average consumption50
– average speed50
– temperature50
– time50
Units of measure
– outside temperature
display50
– time format50
Unlatching, refer to
Unlocking19
Unlocking
– from inside21
– from outside19
– luggage compartment
lid19,22
– tailgate19,21
Used batteries, refer to
Battery disposal102
V
Vehicle
– battery102
– break-in period74
– care, refer to the Caring for
your vehicle brochure
– cargo loading76
– car wash, refer to the Caring
for your vehicle brochure
– dimensions, refer to
Dimensions111,112
– engine41
– leaving the vehicle41
– parked76
– placing in storage, refer to
the Caring for your vehicle
brochure
– weight113
Vehicle Memory18
Ventilation63,67
– air conditioning63
– automatic climate control67
– draft-free63,67
Vents, refer to
Ventilation63,67
Viscosity94Volume
– fuel tank, refer to
Capacities114
W
Warning and indicator
lamps12
Warning triangle104
Warranty, refer to Service and
Warranty Information
Booklet for US models,
Warranty and Service Guide
Booklet for Canadian
models96
Warranty and service6
Washer/wiper system45
Washer fluid reservoir46
Washer fluids46
Washer reservoir, refer to
Washer fluid reservoir46
Washing systems46
Waste tray, refer to Ashtray69
Water on roads, refer to
Driving through water75
Wear indicator in tires, refer to
Minimum tread depth87
Weights113
Wheel/tire combination, refer
to Correct wheels and
tires89
Wheelbase, refer to
Dimensions111,112
Wheels and tires84
Width, refer to
Dimensions111,112
Wind deflector70
Window defrosting, refer to
Defrosting windows
– automatic climate control66
– heating and ventilation63
Windows24
– convenience operation20
– opening/closing25
– pinch protection system25
– power supply interruption25
