39

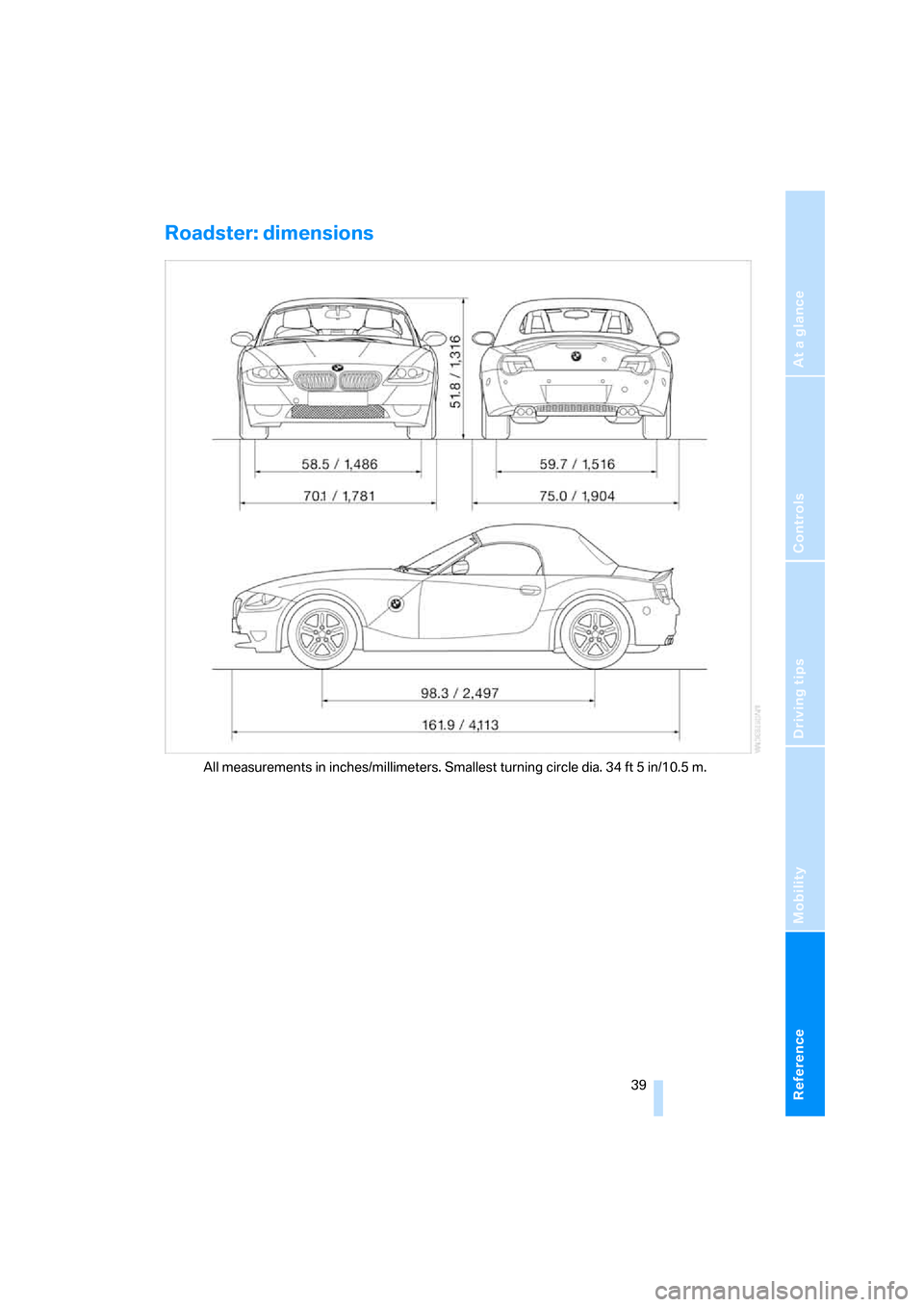

Roadster: dimensions
All measurements in inches/millimeters. Smallest turning circle dia. 34 ft 5 in/10.5 m.

Technical data
40
Coupe: dimensions
All measurements in inches/millimeters. Smallest turning circle dia. 34 ft 5 in/10.5 m.

Reference
At a glance
Controls
Driving tips
Mobility
41

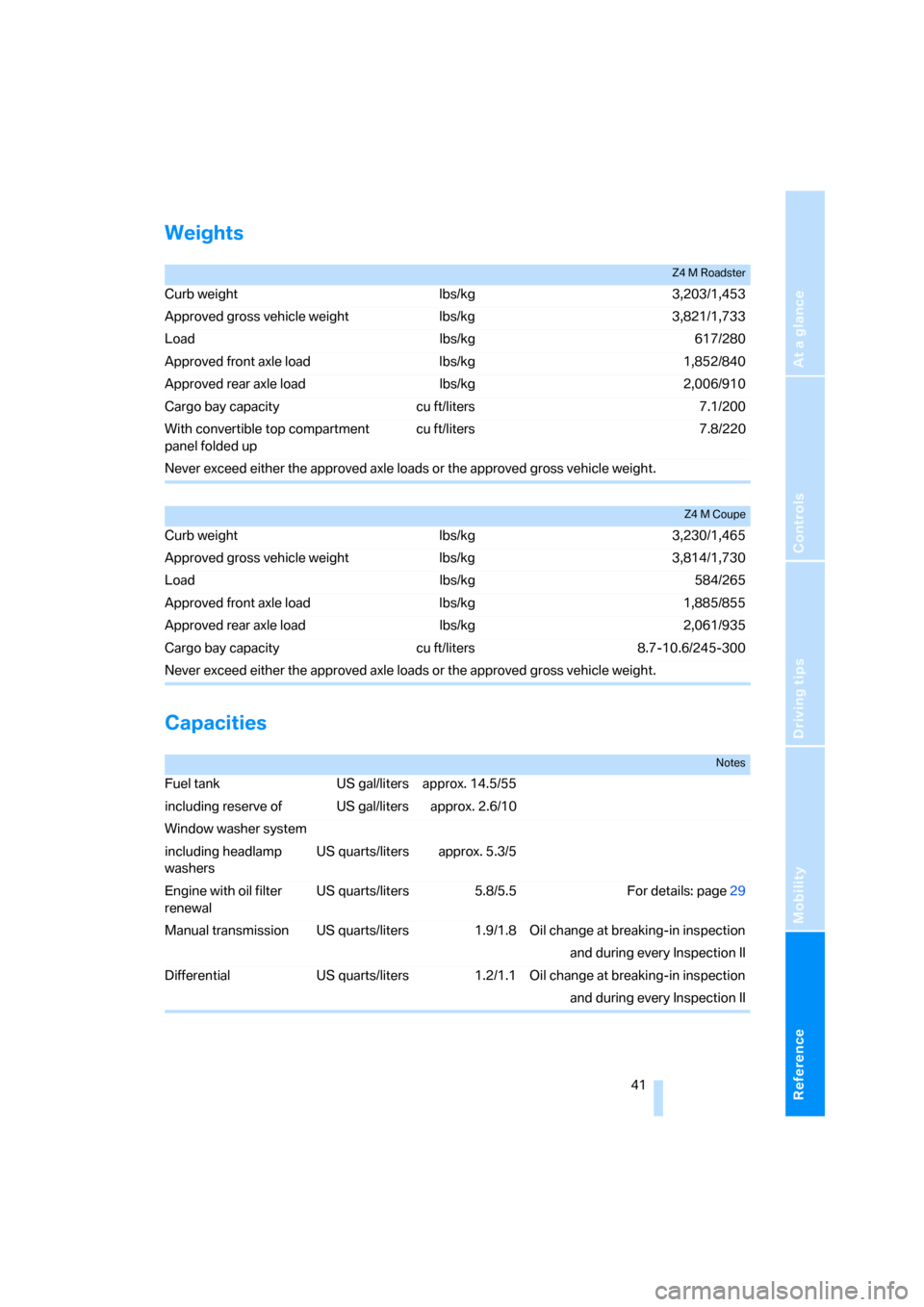

Weights
Capacities
Z4 M Roadster
Curb weight lbs/kg 3,203/1,453
Approved gross vehicle weight lbs/kg 3,821/1,733
Load lbs/kg 617/280
Approved front axle load lbs/kg 1,852/840
Approved rear axle load lbs/kg 2,006/910
Cargo bay capacity cu ft/liters 7.1/200
With convertible top compartment
panel folded upcu ft/liters 7.8/220
Never exceed either the approved axle loads or the approved gross vehicle weight.
Z4 M Coupe
Curb weight lbs/kg 3,230/1,465
Approved gross vehicle weight lbs/kg 3,814/1,730
Load lbs/kg 584/265
Approved front axle load lbs/kg 1,885/855
Approved rear axle load lbs/kg 2,061/935
Cargo bay capacity cu ft/liters 8.7-10.6/245-300
Never exceed either the approved axle loads or the approved gross vehicle weight.
Notes
Fuel tank US gal/liters approx. 14.5/55
including reserve of US gal/liters approx. 2.6/10
Window washer system
including headlamp
washersUS quarts/liters approx. 5.3/5
Engine with oil filter
renewalUS quarts/liters 5.8/5.5 For details: page29
Manual transmission US quarts/liters 1.9/1.8 Oil change at breaking-in inspection
and during every Inspection II
Differential US quarts/liters 1.2/1.1 Oil change at breaking-in inspection
and during every Inspection II

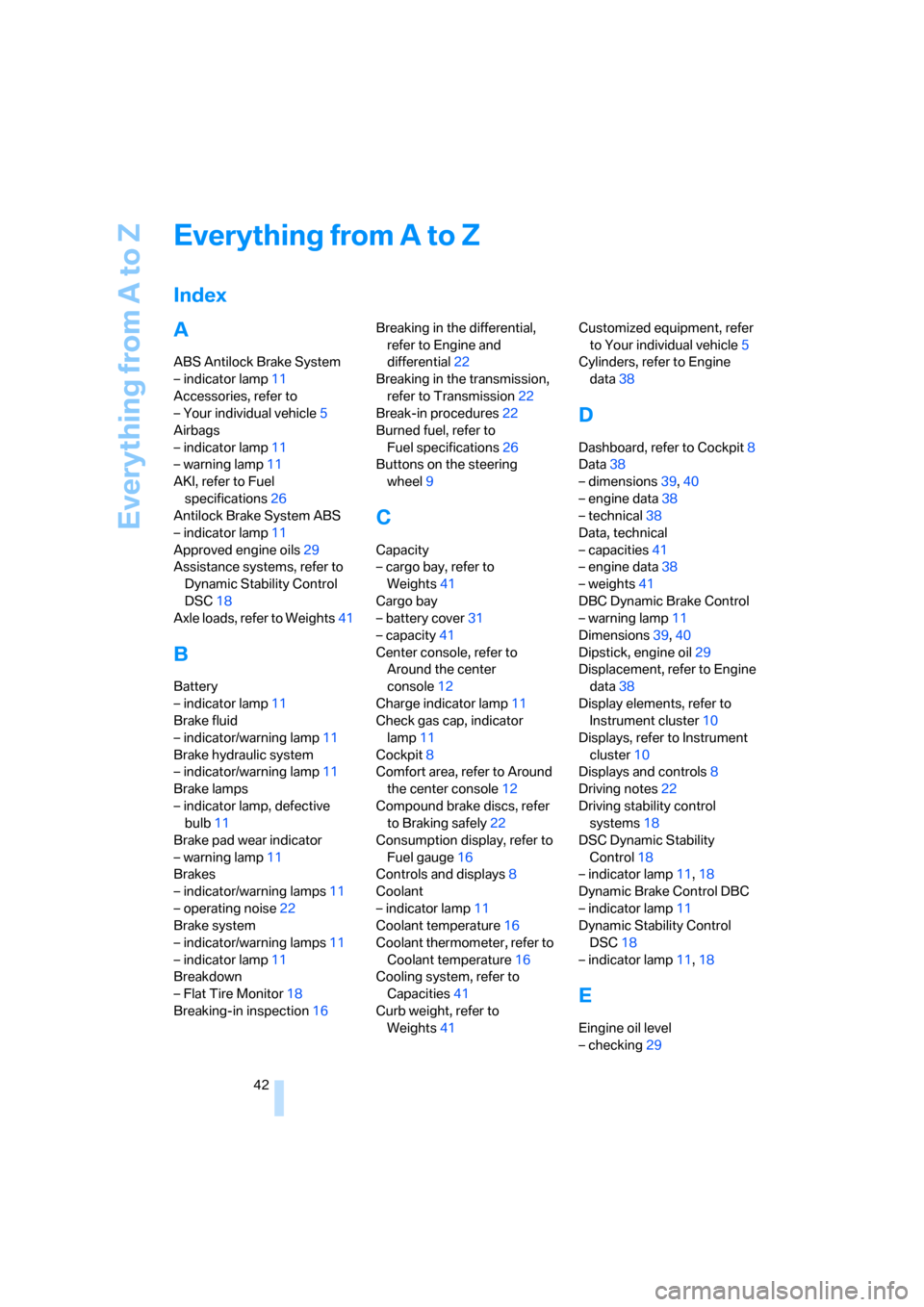

Everything from A to Z
42
Everything from A to Z
Index
A
ABS Antilock Brake System
– indicator lamp11
Accessories, refer to
– Your individual vehicle5
Airbags
– indicator lamp11
– warning lamp11
AKI, refer to Fuel
specifications26
Antilock Brake System ABS
– indicator lamp11
Approved engine oils29
Assistance systems, refer to
Dynamic Stability Control
DSC18
Axle loads, refer to Weights41
B
Battery
– indicator lamp11
Brake fluid
– indicator/warning lamp11
Brake hydraulic system
– indicator/warning lamp11
Brake lamps
– indicator lamp, defective
bulb11
Brake pad wear indicator
– warning lamp11
Brakes
– indicator/warning lamps11
– operating noise22
Brake system
– indicator/warning lamps11
– indicator lamp11
Breakdown
– Flat Tire Monitor18
Breaking-in inspection16Breaking in the differential,
refer to Engine and
differential22
Breaking in the transmission,
refer to Transmission22
Break-in procedures22
Burned fuel, refer to
Fuel specifications26
Buttons on the steering
wheel9
C
Capacity
– cargo bay, refer to
Weights41
Cargo bay
– battery cover31
– capacity41
Center console, refer to
Around the center
console12
Charge indicator lamp11
Check gas cap, indicator
lamp11
Cockpit8
Comfort area, refer to Around
the center console12
Compound brake discs, refer
to Braking safely22
Consumption display, refer to
Fuel gauge16
Controls and displays8
Coolant
– indicator lamp11
Coolant temperature16
Coolant thermometer, refer to
Coolant temperature16
Cooling system, refer to
Capacities41
Curb weight, refer to
Weights41Customized equipment, refer
to Your individual vehicle5
Cylinders, refer to Engine
data38
D
Dashboard, refer to Cockpit8
Data38
– dimensions39,40
– engine data38
– technical38
Data, technical
– capacities41
– engine data38
– weights41
DBC Dynamic Brake Control
– warning lamp11
Dimensions39,40
Dipstick, engine oil29
Displacement, refer to Engine
data38
Display elements, refer to
Instrument cluster10
Displays, refer to Instrument
cluster10
Displays and controls8
Driving notes22
Driving stability control
systems18
DSC Dynamic Stability
Control18
– indicator lamp11,18
Dynamic Brake Control DBC
– indicator lamp11
Dynamic Stability Control
DSC18
– indicator lamp11,18
E
Eingine oil level
– checking29

Reference
At a glance
Controls
Driving tips
Mobility
43

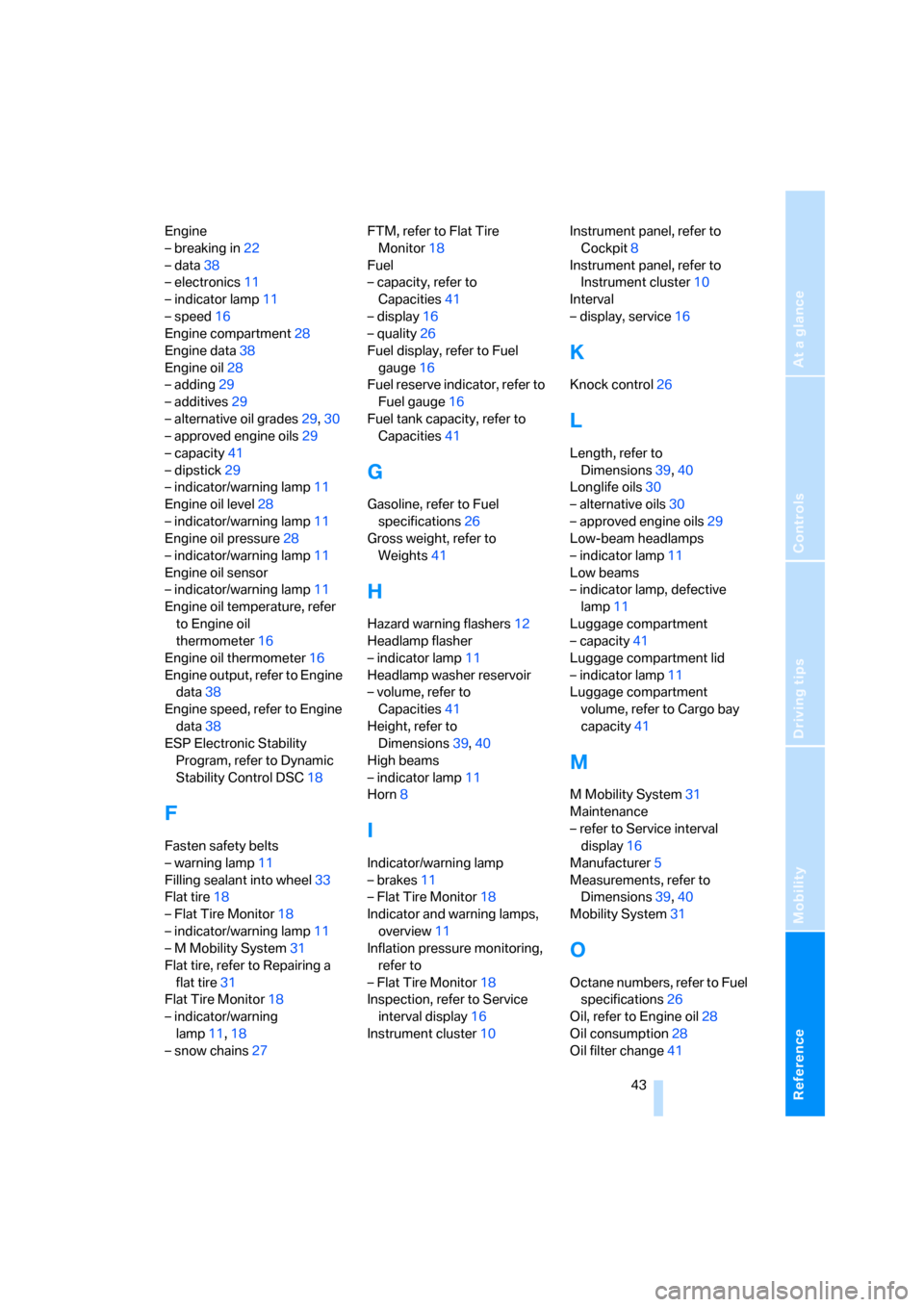

Engine
– breaking in22
– data38
– electronics11
– indicator lamp11
– speed16
Engine compartment28
Engine data38
Engine oil28
– adding29
– additives29
– alternative oil grades29,30
– approved engine oils29
– capacity41
– dipstick29
– indicator/warning lamp11
Engine oil level28
– indicator/warning lamp11
Engine oil pressure28
– indicator/warning lamp11
Engine oil sensor
– indicator/warning lamp11
Engine oil temperature, refer
to Engine oil
thermometer16
Engine oil thermometer16
Engine output, refer to Engine
data38
Engine speed, refer to Engine
data38
ESP Electronic Stability
Program, refer to Dynamic
Stability Control DSC18
F
Fasten safety belts
– warning lamp11
Filling sealant into wheel33
Flat tire18
– Flat Tire Monitor18
– indicator/warning lamp11
– M Mobility System31
Flat tire, refer to Repairing a
flat tire31
Flat Tire Monitor18
– indicator/warning
lamp11,18
– snow chains27FTM, refer to Flat Tire
Monitor18
Fuel
– capacity, refer to
Capacities41
– display16
– quality26
Fuel display, refer to Fuel
gauge16
Fuel reserve indicator, refer to
Fuel gauge16
Fuel tank capacity, refer to
Capacities41
G
Gasoline, refer to Fuel
specifications26
Gross weight, refer to
Weights41
H
Hazard warning flashers12
Headlamp flasher
– indicator lamp11
Headlamp washer reservoir
– volume, refer to
Capacities41
Height, refer to
Dimensions39,40
High beams
– indicator lamp11
Horn8
I
Indicator/warning lamp
– brakes11
– Flat Tire Monitor18
Indicator and warning lamps,
overview11
Inflation pressure monitoring,
refer to
– Flat Tire Monitor18
Inspection, refer to Service
interval display16
Instrument cluster10Instrument panel, refer to
Cockpit8
Instrument panel, refer to
Instrument cluster10
Interval
– display, service16
K
Knock control26
L
Length, refer to
Dimensions39,40
Longlife oils30
– alternative oils30
– approved engine oils29
Low-beam headlamps
– indicator lamp11
Low beams
– indicator lamp, defective
lamp11
Luggage compartment
– capacity41
Luggage compartment lid
– indicator lamp11
Luggage compartment
volume, refer to Cargo bay
capacity41
M
M Mobility System31
Maintenance
– refer to Service interval
display16
Manufacturer5
Measurements, refer to
Dimensions39,40
Mobility System31
O
Octane numbers, refer to Fuel
specifications26
Oil, refer to Engine oil28
Oil consumption28
Oil filter change41

Everything from A to Z

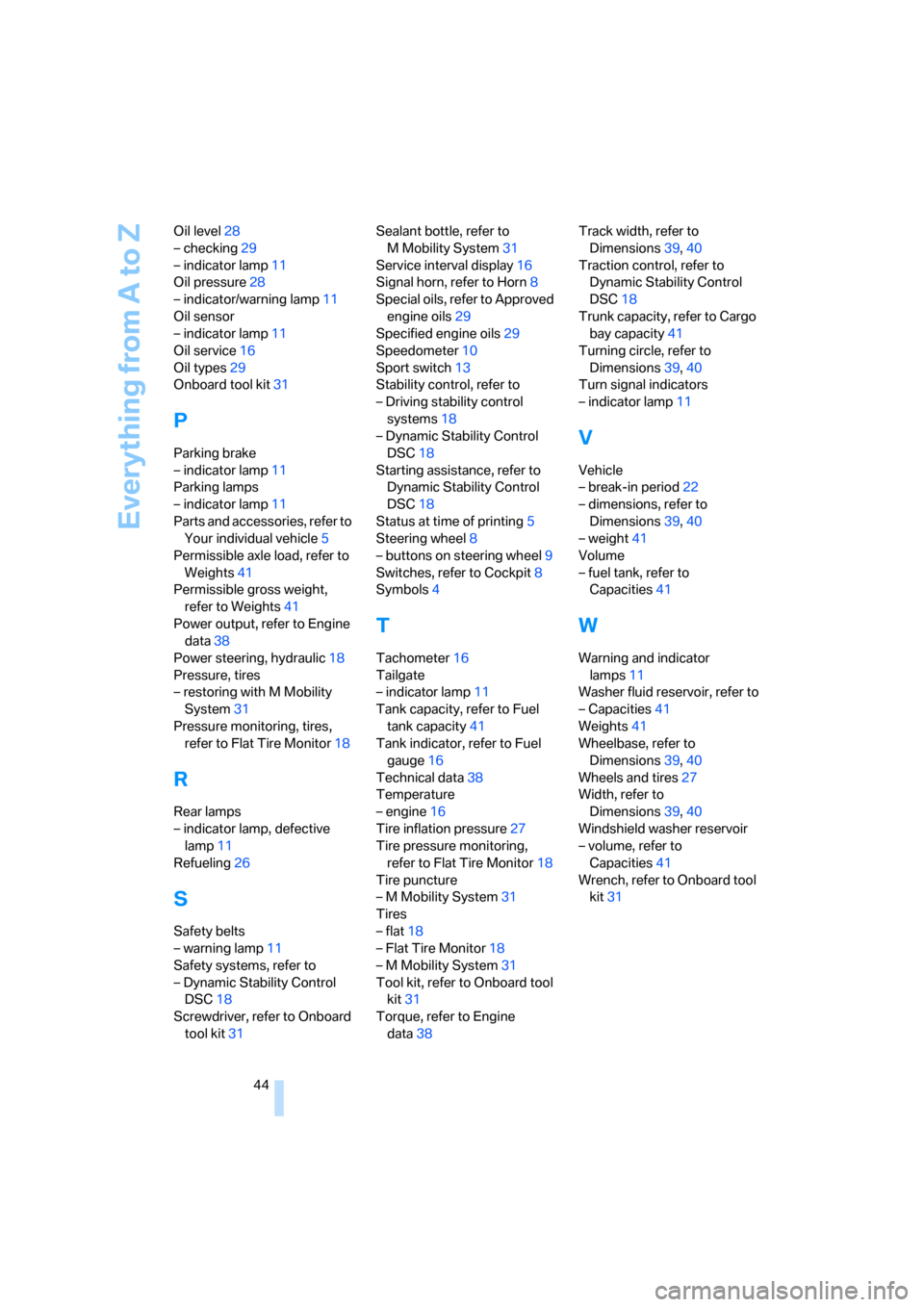

44 Oil level28
– checking29
– indicator lamp11
Oil pressure28
– indicator/warning lamp11
Oil sensor
– indicator lamp11
Oil service16
Oil types29
Onboard tool kit31
P
Parking brake
– indicator lamp11
Parking lamps
– indicator lamp11
Parts and accessories, refer to
Your individual vehicle5
Permissible axle load, refer to
Weights41
Permissible gross weight,
refer to Weights41
Power output, refer to Engine
data38
Power steering, hydraulic18
Pressure, tires
– restoring with M Mobility
System31
Pressure monitoring, tires,
refer to Flat Tire Monitor18
R
Rear lamps
– indicator lamp, defective
lamp11
Refueling26
S
Safety belts
– warning lamp11
Safety systems, refer to
– Dynamic Stability Control
DSC18
Screwdriver, refer to Onboard
tool kit31Sealant bottle, refer to
M Mobility System31
Service interval display16
Signal horn, refer to Horn8
Special oils, refer to Approved
engine oils29
Specified engine oils29
Speedometer10
Sport switch13
Stability control, refer to
– Driving stability control
systems18
– Dynamic Stability Control
DSC18
Starting assistance, refer to
Dynamic Stability Control
DSC18
Status at time of printing5
Steering wheel8
– buttons on steering wheel9
Switches, refer to Cockpit8
Symbols4
T
Tachometer16
Tailgate
– indicator lamp11
Tank capacity, refer to Fuel
tank capacity41
Tank indicator, refer to Fuel
gauge16
Technical data38
Temperature
– engine16
Tire inflation pressure27
Tire pressure monitoring,
refer to Flat Tire Monitor18
Tire puncture
– M Mobility System31
Tires
– flat18
– Flat Tire Monitor18
– M Mobility System31
Tool kit, refer to Onboard tool
kit31
Torque, refer to Engine
data38Track width, refer to
Dimensions39,40
Traction control, refer to
Dynamic Stability Control
DSC18
Trunk capacity, refer to Cargo
bay capacity41
Turning circle, refer to
Dimensions39,40
Turn signal indicators
– indicator lamp11
V
Vehicle
– break-in period22
– dimensions, refer to
Dimensions39,40
– weight41
Volume
– fuel tank, refer to
Capacities41
W
Warning and indicator
lamps11
Washer fluid reservoir, refer to
– Capacities41
Weights41
Wheelbase, refer to
Dimensions39,40
Wheels and tires27
Width, refer to
Dimensions39,40
Windshield washer reservoir
– volume, refer to
Capacities41
Wrench, refer to Onboard tool
kit31

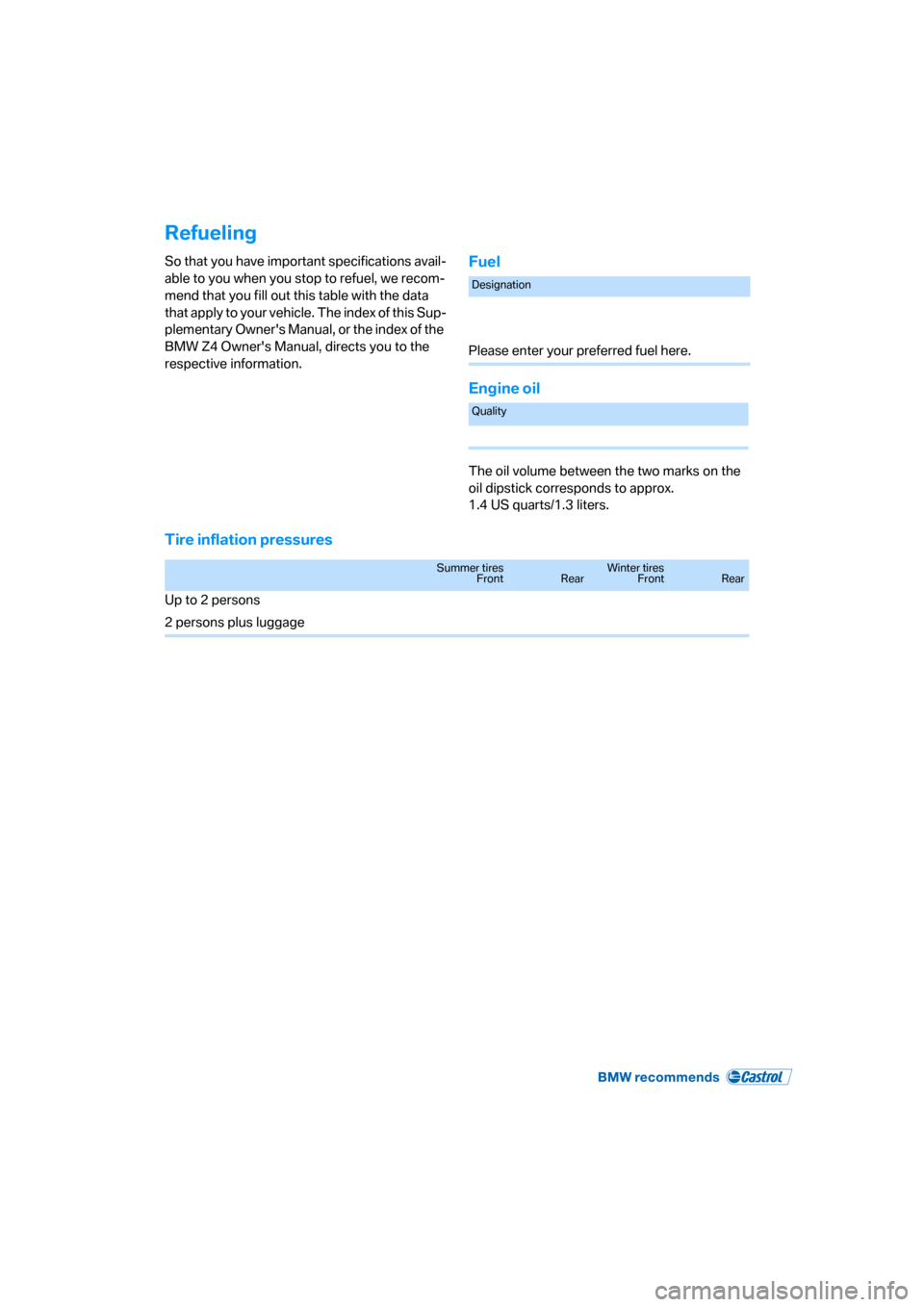

Refueling
So that you have important specifications avail-
able to you when you stop to refuel, we recom-
mend that you fill out this table with the data
that apply to your vehicle. The index of this Sup-
plementary Owner's Manual, or the index of the
BMW Z4 Owner's Manual, directs you to the
respective information.Fuel
Engine oil
The oil volume between the two marks on the
oil dipstick corresponds to approx.
1.4 US quarts/1.3 liters.
Tire inflation pressures
Designation
Please enter your preferred fuel here.
Quality
Summer tires
FrontRearWinter tires
FrontRear
Up to 2 persons
2 persons plus luggage

01 41 0 012 046 ue
*BL0012046009*
