BUICK CASCADA 2019 Owner's Manual
Manufacturer: BUICK, Model Year: 2019, Model line: CASCADA, Model: BUICK CASCADA 2019Pages: 307, PDF Size: 5.12 MB
Page 1 of 307
buick.com84247273 A
Cascada Owner’s Manual
2019 Cascada
C
M
Y
CM
MY
CY
CMY
K
19_BUI_Cascada_COV_en_US_84247273A_2018APR03.ai 1 3/26/2018 8:30:2\
2 AM 19_BUI_Cascada_COV_en_US_84247273A_2018APR03.ai 1 3/26/2018 8:30:2\
2 AM
Page 2 of 307
Buick Cascada Owner Manual (GMNA-Localizing-U.S.-12461774) - 2019 -
CRC - 3/26/18
ContentsIntroduction . . . . . . . . . . . . . . . . . . . . . . 2
In Brief . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Keys, Doors, and Windows . . . . . 21
Seats and Restraints . . . . . . . . . . . 46
Storage . . . . . . . . . . . . . . . . . . . . . . . . . 92
Instruments and Controls . . . . . . . 95
Lighting . . . . . . . . . . . . . . . . . . . . . . . 121
Infotainment System . . . . . . . . . . 129
Climate Controls . . . . . . . . . . . . . . 130
Driving and Operating . . . . . . . . . 135
Vehicle Care . . . . . . . . . . . . . . . . . . 175
Service and Maintenance . . . . . 253
Technical Data . . . . . . . . . . . . . . . . 266
Customer Information . . . . . . . . . 269
Reporting Safety Defects . . . . . . 279
OnStar . . . . . . . . . . . . . . . . . . . . . . . . 283
Connected Services . . . . . . . . . . . 291
Index . . . . . . . . . . . . . . . . . . . . 295
Page 3 of 307
Buick Cascada Owner Manual (GMNA-Localizing-U.S.-12461774) - 2019 -
CRC - 3/26/18
2 Introduction
Introduction
The names, logos, emblems,
slogans, vehicle model names, and
vehicle body designs appearing in
this manual including, but not limited
to, GM, the GM logo, BUICK, the
BUICK Emblem, and CASCADA are
trademarks and/or service marks of
General Motors LLC, its
subsidiaries, affiliates, or licensors.
For vehicles first sold in Canada,
substitute the name“General
Motors of Canada Company” for
Buick Motor Division wherever it
appears in this manual. This manual describes features that
may or may not be on the vehicle
because of optional equipment that
was not purchased on the vehicle,
model variants, country
specifications, features/applications
that may not be available in your
region, or changes subsequent to
the printing of this owner
’s manual.
Refer to the purchase
documentation relating to your
specific vehicle to confirm the
features.
Keep this manual in the vehicle for
quick reference.
Canadian Vehicle Owners
A French language manual can be
obtained from your dealer, at
www.helminc.com, or from:
Propriétaires Canadiens
On peut obtenir un exemplaire de
ce guide en français auprès du
concessionnaire ou à l'adresse
suivante: Helm, Incorporated
Attention: Customer Service
47911 Halyard Drive
Plymouth, MI 48170
USA
Using this Manual
To quickly locate information about
the vehicle, use the Index in the
back of the manual. It is an
alphabetical list of what is in the
manual and the page number where
it can be found.
Danger, Warning, and
Caution
Warning messages found on vehicle
labels and in this manual describe
hazards and what to do to avoid or
reduce them.
Litho in U.S.A.
Part No. 84247273 A First Printing©2018 General Motors LLC. All Rights Reserved.
Page 4 of 307
Buick Cascada Owner Manual (GMNA-Localizing-U.S.-12461774) - 2019 -
CRC - 3/26/18
Introduction 3
{Danger
Danger indicates a hazard with a
high level of risk which will result
in serious injury or death.
{Warning
Warning indicates a hazard that
could result in injury or death.
Caution
Caution indicates a hazard that
could result in property or vehicle
damage.
A circle with a slash through it is a
safety symbol which means“Do
Not,” “Do not do this,” or“Do not let
this happen.”
Symbols
The vehicle has components and
labels that use symbols instead of
text. Symbols are shown along with
the text describing the operation or
information relating to a specific
component, control, message,
gauge, or indicator.
M: Shown when the owner ’s
manual has additional instructions
or information.
*: Shown when the service
manual has additional instructions
or information.
0: Shown when there is more
information on another page —
“see page.” Vehicle Symbol Chart
Here are some additional symbols
that may be found on the vehicle
and what they mean. See the
features in this manual for
information.
u:
Air Conditioning System
G:Air Conditioning Refrigerant Oil
9:Airbag Readiness Light
!:Antilock Brake System (ABS)
$:Brake System Warning Light
9:Dispose of Used Components
Properly
B: Engine Coolant Temperature
_: Flame/Fire Prohibited
H:Flammable
[:Forward Collision Alert
+: Fuses
j:ISOFIX/LATCH System Child
Restraints
|: Lane Change Alert
@:Lane Departure Warning
A:Lane Keep Assist
Page 5 of 307
Buick Cascada Owner Manual (GMNA-Localizing-U.S.-12461774) - 2019 -
CRC - 3/26/18
4 Introduction

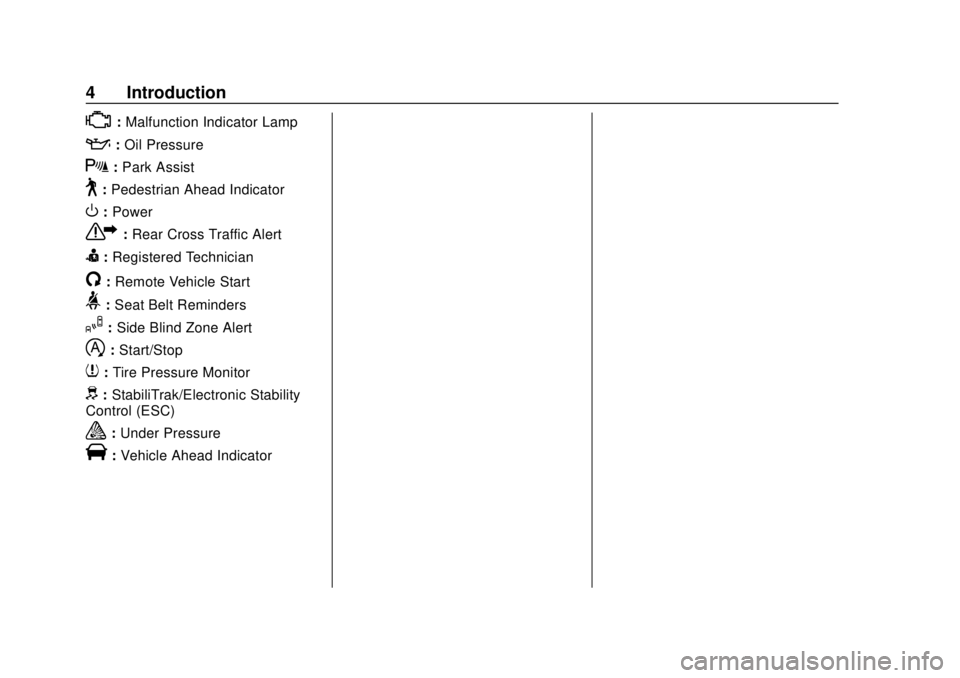

*:Malfunction Indicator Lamp
::Oil Pressure
X:Park Assist
~:Pedestrian Ahead Indicator
O:Power
7: Rear Cross Traffic Alert
I:Registered Technician
/:Remote Vehicle Start
>: Seat Belt Reminders
I:Side Blind Zone Alert
h:Start/Stop
7: Tire Pressure Monitor
d:StabiliTrak/Electronic Stability
Control (ESC)
a: Under Pressure
V:Vehicle Ahead Indicator
Page 6 of 307
Buick Cascada Owner Manual (GMNA-Localizing-U.S.-12461774) - 2019 -
CRC - 3/26/18
In Brief 5
In Brief
Instrument Panel
Instrument Panel Overview . . . . . . 6
Initial Drive Information
Initial Drive Information . . . . . . . . . . 8
Remote Keyless Entry (RKE)System . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote Vehicle Start . . . . . . . . . . . 8
Door Locks . . . . . . . . . . . . . . . . . . . . . 9
Trunk Release . . . . . . . . . . . . . . . . . . 9
Windows . . . . . . . . . . . . . . . . . . . . . . . 10
Seat Adjustment . . . . . . . . . . . . . . . 10
Heated Seats . . . . . . . . . . . . . . . . . . 11
Head Restraint Adjustment . . . . 11
Seat Belts . . . . . . . . . . . . . . . . . . . . . 12
Passenger Sensing System . . . 12
Mirror Adjustment . . . . . . . . . . . . . . 12
Steering Wheel Adjustment . . . . 13
Interior Lighting . . . . . . . . . . . . . . . . 13
Exterior Lighting . . . . . . . . . . . . . . . 14
Windshield Wiper/Washer . . . . . . 14
Climate Controls . . . . . . . . . . . . . . . 15
Transmission . . . . . . . . . . . . . . . . . . 15
Vehicle Features
Infotainment System . . . . . . . . . . . 16
Steering Wheel Controls . . . . . . . 16 Cruise Control . . . . . . . . . . . . . . . . . 16
Driver Information
Center (DIC) . . . . . . . . . . . . . . . . . 16
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . . . . . . . 17
Lane Departure Warning (LDW) . . . . . . . . . . . . . . . 17
Rear Vision Camera (RVC) . . . . 17
Park Assist . . . . . . . . . . . . . . . . . . . . 17
Power Outlets . . . . . . . . . . . . . . . . . 18
Convertible . . . . . . . . . . . . . . . . . . . . 18
Performance and Maintenance
Traction Control/Electronic Stability Control . . . . . . . . . . . . . . 18
Tire Pressure Monitor . . . . . . . . . . 18
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
E85 or FlexFuel . . . . . . . . . . . . . . . . 19
Engine Oil Life System . . . . . . . . 19
Driving for Better Fuel Economy . . . . . . . . . . . . . . . . . . . . . 20
Roadside Assistance Program . . . . . . . . . . . . . . . . . . . . . . 20
Page 7 of 307
Buick Cascada Owner Manual (GMNA-Localizing-U.S.-12461774) - 2019 -
CRC - 3/26/18
6 In Brief

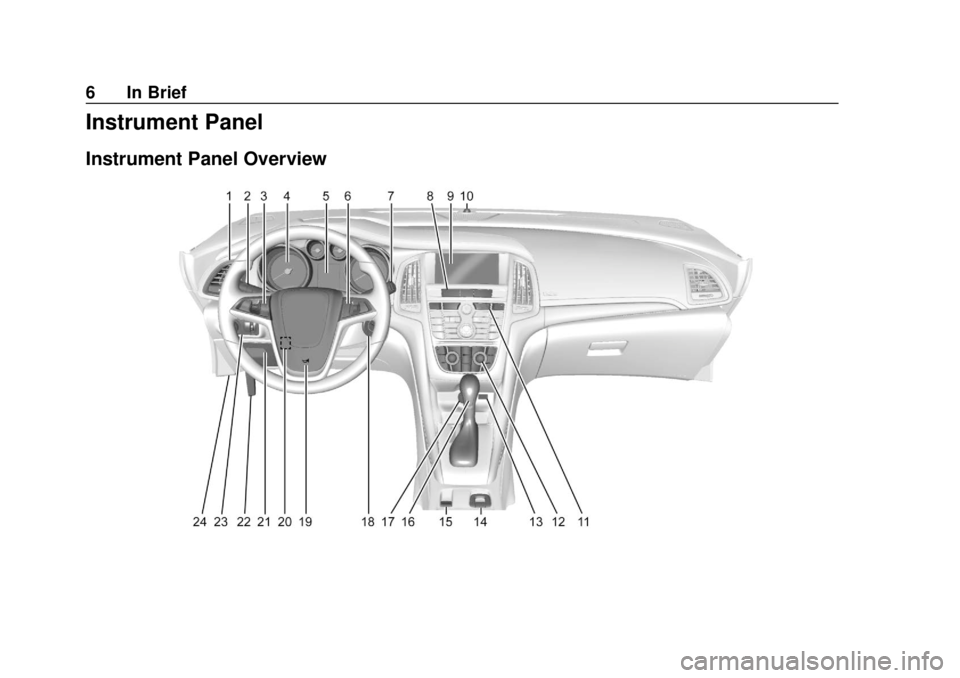

Instrument Panel
Instrument Panel Overview
Page 8 of 307
Buick Cascada Owner Manual (GMNA-Localizing-U.S.-12461774) - 2019 -
CRC - 3/26/18
In Brief 7
1.Air Vents 0133.
2. Headlamp High/Low-Beam
Changer 0122.
Turn Signal Lever. See Turn
and Lane-Change Signals
0 124.
Driver Information Center (DIC)
Buttons. See Driver Information
Center (DIC) 0112.
3. Cruise Control 0160.
Forward Collision Alert (FCA)
System 0167 (If Equipped).
4. Instrument Cluster 0100.
5. Driver Information Center (DIC)
0112.
6. Steering Wheel Controls 096.
7. Windshield Wiper/Washer 096.
8. Central Locking Switch. See Power Door Locks 028.
Hazard Warning Flashers
0 124.
Passenger Airbag Status
Indicator 0103. 9. AM-FM Radio. See the
infotainment manual.
10. Anti-Theft Alarm System Indicator Light. See Vehicle
Alarm System 031.
11. Traction Control/Electronic
Stability Control 0158.
Lane Departure Warning
(LDW) 0168.
Assistance Systems for
Parking or Backing 0164.
12. Dual Automatic Climate Control
System 0130.
Heated Front Seats 051 (If
Equipped).
Heated Steering Wheel 096 (If
Equipped).
13. USB Port. See the infotainment manual.
Input Jack. See the
infotainment manual.
14. Convertible Top 037.
All Window Switch. See Power
Windows 035.
15. Electric Parking Brake 0156. 16. Shift Lever. See
Automatic
Transmission 0152.
17. Power Outlets 098.
18. Ignition Switch. See Ignition
Positions 0146.
19. Horn 096.
20. Steering Wheel Adjustment
096 (Out of View).
21. Instrument Panel Storage 092.
Instrument Panel Fuse Block
0 207.
22. Hood Release. See Hood
0 178.
23. Exterior Lamp Controls 0121.
Fog Lamps 0125 (If
Equipped).
Instrument Panel Illumination
Control 0125.
24. Data Link Connector (DLC) (Out of View). See Malfunction
Indicator Lamp (Check Engine
Light) 0104.
Page 9 of 307
Buick Cascada Owner Manual (GMNA-Localizing-U.S.-12461774) - 2019 -
CRC - 3/26/18
8 In Brief
Initial Drive
Information
This section provides a brief
overview about some of the
important features that may or may
not be on your specific vehicle.
For more detailed information, refer
to each of the features which can be
found later in this owner’s manual.
Remote Keyless Entry
(RKE) System
The Remote Keyless Entry (RKE)
transmitter may work up to 60 m
(197 ft) away from the vehicle.
Press the button on the RKE
transmitter to extend the key. The
key can be used for the driver side
lock and the ignition.
K:Press to unlock both doors, the
trunk, and the fuel door. Press and
hold
Kto open all windows.
Q: Press to lock both doors, the
trunk, and the fuel door.
Lock and unlock feedback can be
personalized. See Vehicle
Personalization 0116.
V:Press and hold to release the
trunk.
7: Press and release to initiate
vehicle locator. Press and hold for at
least three seconds to sound the
panic alarm. Press again to cancel
the panic alarm.
See Keys 021 and Remote Keyless
Entry (RKE) System Operation 023.
Remote Vehicle Start
The engine can be started from
outside of the vehicle.
Starting the Vehicle
1. Press and releaseQon the
RKE transmitter.
2. Immediately press and hold
/
for at least four seconds or until
the turn signal lamps flash.
Start the vehicle normally after
entering.
When the vehicle starts, the parking
lamps will turn on.
Remote start can be extended.
Page 10 of 307
Buick Cascada Owner Manual (GMNA-Localizing-U.S.-12461774) - 2019 -
CRC - 3/26/18
In Brief 9
Canceling a Remote Start
To cancel a remote start, do one of
the following:
.Press and hold
/until the
parking lamps turn off.
. Turn on the hazard warning
flashers.
. Turn the vehicle on and then off.
See Remote Vehicle Start 026.
Door Locks
To lock or unlock the doors from
outside the vehicle:
.
Press
QorKon the Remote
Keyless Entry (RKE) transmitter.
. Use the key in the driver door.
To lock or unlock the doors from
inside the vehicle:
. Press
QorKon the power door
lock switch.
. Pulling an interior door handle
will unlock the door. Pulling the
door handle again unlatches it.
Power Door Locks
K:Press to unlock.
Q: Press to lock.
See Power Door Locks 028.
Trunk Release
Press the lower half of the emblem
to open the trunk. See Trunk029.
