power steering BUICK CENTURY 1999 Owner's Manual

2-
yellowblue
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Keys
2
-4 Door Locks
2
-7 Remote Keyless Entry
2
-14 Trunk
2
-14 Theft
2
-15 PASS-Key
II
2
-16 New Vehicle ªBreak-Inº
2
-17 Ignition Positions
2
-18 Starting Your V6 Engine
2
-19 Engine Coolant Heater (If Equipped)
2
-20 Automatic Transaxle Operation
2
-25 Parking Brake
2
-26 Shifting Into PARK (P)
2
-28 Shifting Out of PARK (P)
2
-29 Parking Over Things That Burn
2
-30 Engine Exhaust
2
-30 Running Your Engine While You're Parked2
-31 Windows
2
-32 Horn
2
-32 TILT-WHEEL Adjustable Steering Column
2
-33 Turn Signal/Multifunction Lever
2
-38 Exterior Lamps
2
-40 Interior Lamps
2
-42 Mirrors
2
-44 Storage Compartments
2
-46 Sun Visors
2
-46 Auxiliary Power Connection (Power Drop)
2
-46 Astroroof (If Equipped)
2
-47 OnStar
(Option)
2
-48 The Instrument Panel -- Your
Information System
2
-49 Instrument Panel Cluster
2
-50 Warning Lights, Gages and Indicators

yellowblue
2-17
Ignition Positions
CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. A child or
others could be injured or even killed. They could
operate power windows or other controls or even
make the vehicle move. Don't leave the keys in
the vehicle with children.
With the ignition key in the ignition, you can turn the
switch to five positions:
ACCESSORY (A): The accessory position lets you use
the radio and windshield wipers when the engine is off.
To use ACC, push in the key and turn it toward you.
Your steering wheel will stay locked.
LOCK (B): Before you put the key into the ignition
switch, the switch is in LOCK. It's also the only position
from which you can remove your key. This position
locks your ignition, steering wheel and transaxle. It's a
theft
-deterrent feature.
OFF (C): This position lets you turn off the engine but
still turn the steering wheel. It doesn't lock the steering
wheel. Use OFF if you must have your vehicle pushed
or towed.
RUN (D): This position is where the key returns after
you start your vehicle. With the engine off, you can
use RUN to display some of your warning and
indicator lights.
START (E): This position starts your engine.
A warning chime will sound if you open the driver's
door when the ignition is in OFF, LOCK or
ACCESSORY and the key is in the ignition.

yellowblue
4-10
When the system is on, this
warning light will come on
to let you know if there's
a problem.
See ªEnhanced Traction System Warning Lightº in the
Index. When this warning light is on, the system will not
limit wheel spin. Adjust your driving accordingly.
To limit wheel spin, especially in slippery road
conditions, you should always leave the Enhanced
Traction System on. But you can turn the system off if
you ever need to. (You should turn the system off if your
vehicle ever gets stuck in sand, mud, ice or snow. See
ªRocking Your Vehicleº in the Index.)
To turn the system off, your gear shift lever must be in
FIRST (1) or SECOND (2) gear. See ªRocking Your
Vehicleº in the Index. When you turn the system off, the
Enhanced Traction System warning light will come on
and stay on. If the Enhanced Traction System is limiting
wheel spin when you turn the system off, the warning
light will come on
-- but the system won't turn off right
away. It will wait until there's no longer a current need
to limit wheel spin. Also, if you set the parking brake,
the system will turn off.You can turn the system back on at any time by shifting
to OVERDRIVE (
) or THIRD (3). The Enhanced
Traction System warning light should go off.
Braking in Emergencies
With anti-lock, you can steer and brake at the same
time. In many emergencies, steering can help you more
than even the very best braking.
Steering
Power Steering
If you lose power steering assist because the engine
stops or the system is not functioning, you can steer but
it will take much more effort.
Magnetic Variable Effort Steering

(If Equipped)
This steering system provides lighter steering effort for
parking and when driving at low speeds. Steering effort
will increase at higher speeds for improved road feel.
Steering Tips
Driving on Curves
It's important to take curves at a reasonable speed.

6-
yellowblue
6-1
Section 6 Service and Appearance Care
Here you will find information about the care of your vehicle. This section begins with service and fuel information,
and then it shows how to check important fluid and lubricant levels. There is also technical information about your
vehicle, and a part devoted to its appearance care.
6
-2 Service
6
-3 Fuel
6
-5 Fuels in Foreign Countries
6
-5 Filling Your Tank
6
-8 Checking Things Under the Hood
6
-11 Engine Oil
6
-16 Engine Air Cleaner/Filter
6
-17 Passenger Compartment Air Filter
6
-18 Automatic Transaxle Fluid
6
-21 Engine Coolant
6
-24 Power Steering Fluid
6
-26 Windshield Washer Fluid
6
-27 Brakes
6
-30 Battery
6
-31 Bulb Replacement
6
-40 Tires6
-50 Appearance Care
6
-50 Cleaning the Inside of Your Vehicle
6
-53 Cleaning Glass Surfaces
6
-53 Cleaning the Outside of the Windshield and
Wiper Blades
6
-53 Cleaning the Outside of Your Vehicle
6
-55 Cleaning Aluminum Wheels (If Equipped)
6
-55 Cleaning Tires
6
-57 GM Vehicle Care/Appearance Materials
6
-58 Vehicle Identification Number (VIN)
6
-58 Electrical System
6
-64 Replacement Bulbs
6
-64 Capacities and Specifications
6
-65 Air Conditioning Refrigerants
6
-65 Normal Maintenance Replacement Parts
6
-65 Vehicle Dimensions

yellowblue
6-10

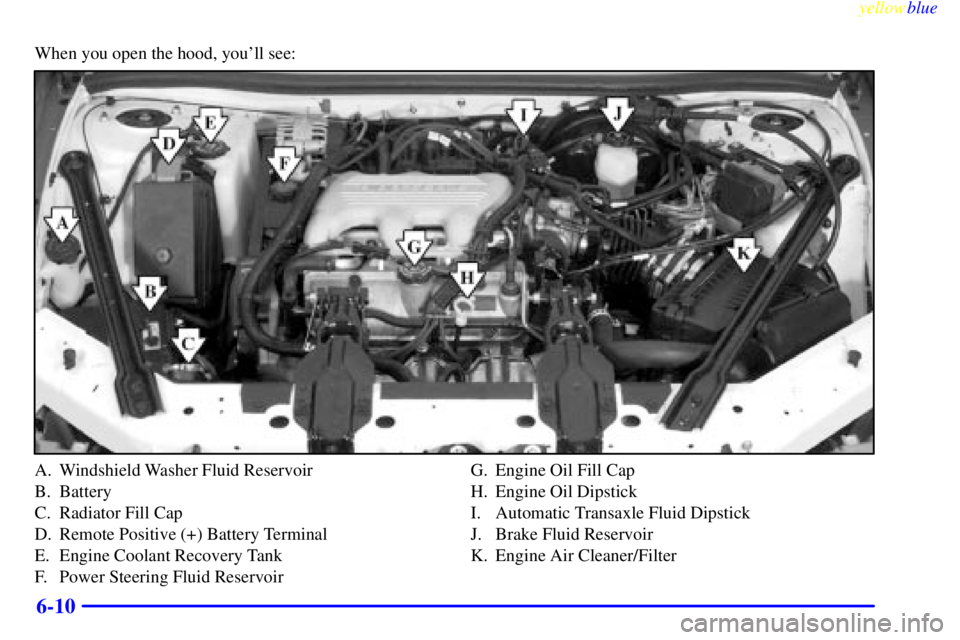

When you open the hood, you'll see:
A. Windshield Washer Fluid Reservoir
B. Battery
C. Radiator Fill Cap
D. Remote Positive (+) Battery Terminal
E. Engine Coolant Recovery Tank
F. Power Steering Fluid ReservoirG. Engine Oil Fill Cap
H. Engine Oil Dipstick
I. Automatic Transaxle Fluid Dipstick
J. Brake Fluid Reservoir
K. Engine Air Cleaner/Filter

yellowblue
6-24
Adding Coolant
If you need more coolant, add the proper DEX
-COOL

coolant mixture at the coolant recovery tank, but be
careful not to spill it.
If the coolant recovery tank is completely empty, add
coolant to the radiator. (See ªEngine Overheatingº in
the Index.)
CAUTION:
Turning the radiator pressure cap when the
engine and radiator are hot can allow steam
and scalding liquids to blow out and burn you
badly. With the coolant recovery tank, you will
almost never have to add coolant at the radiator.
Never turn the radiator pressure cap
-- even a
little
-- when the engine and radiator are hot.
CAUTION:
You can be burned if you spill coolant on hot
engine parts. Coolant contains ethylene glycol,
and it will burn if the engine parts are hot
enough. Don't spill coolant on a hot engine.
Power Steering Fluid

yellowblue
6-25 When to Check Power Steering Fluid
It is not necessary to regularly check power steering
fluid unless you suspect there is a leak in the system or
you hear an unusual noise. A fluid loss in this system
could indicate a problem. Have the system inspected
and repaired.
How to Check Power Steering Fluid
When the engine compartment is cool, wipe the cap and
the top of the reservoir clean, then unscrew the cap and
wipe the dipstick with a clean rag. Replace the cap and
completely tighten it. Then remove the cap again and
look at the fluid level on the dipstick.
When the engine
compartment is hot, the
level should be at the
H mark. When it's cold,
the level should be at the
C mark. If the fluid is at
the ADD mark, you should
add fluid.
What to Use
To determine what kind of fluid to use, see
ªRecommended Fluids and Lubricantsº in the Index.
Always use the proper fluid. Failure to use the proper
fluid can cause leaks and damage hoses and seals.

yellowblue
6-61
Fuse Description
24 Stoplamps
26 Parking Lamps
27 Auxiliary Power Connection
(Power Drop)
-- Hot in ACC and Run
28 Crank Signal
-- Body Control Module,
Cluster, Powertrain Control Modules
29 Ignition Signal
-- HVAC Control Head
30 Brake Transmission Shift Interlock (BTSI)
31 Air Bag
32 Body Control Module
33 Hazard Flashers
34 Not UsedFuse Description
36 Ignition Signal
-- Hot in ACC and
Run
-- Body Control Module
38 Low Blower
39 Anti
-Lock Brakes
40 Turn Signals
41 Radio, HVAC Head, Remote Keyless
Entry, Cluster
42 High Blower
43 Not Used
44 Audio Steering Wheel Controls
45 Wipers

yellowblue
6-62
Underhood Electrical Center -- Passenger's Side
Some fuses and relays are located in the underhood
electrical center on the passenger's side of the
engine compartment.Fuse Description
1 ABS
2 Starter Solenoid
3 Power Seats, Rear Defog
4 High Blower, Hazard Flasher,
Stoplamps, Power Mirror, Door Locks
5 Ignition Switch, BTSI, Stoplamps,
ABS, Turn Signals, Cluster, Air Bag,
DRL Module
6 Cooling Fan
7 Interior Lamps, Retained Accessory
Power, Keyless Entry, Data Link, HVAC
Head, Cluster, Radio, AUX Power
(Power Drop), Cigarette Lighter
8 Ignition Switch, Wipers, Radio, Steering
Wheel Controls, Body Control Module,
AUX Power (Power Drop), Power
Windows, Sunroof, HVAC Controls,
DRL, Rear Defog Relay

yellowblue
7-18
Part C: Periodic Maintenance
Inspections
Listed in this part are inspections and services which
should be performed at least twice a year (for instance,
each spring and fall). You should let your dealer's
service department or other qualified service center do
these jobs. Make sure any necessary repairs are
completed at once.
Proper procedures to perform these services may be
found in a service manual. See ªService and Owner
Publicationsº in the Index.
Steering, Suspension and Front Drive Axle
Boot and Seal Inspection
Inspect the front and rear suspension and steering
system for damaged, loose or missing parts, signs of
wear or lack of lubrication. Inspect the power steering
lines and hoses for proper hook
-up, binding, leaks,
cracks, chafing, etc. Clean and then inspect the drive
axle boot seals for damage, tears or leakage. Replace
seals if necessary.
Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body
near the exhaust system. Look for broken, damaged,
missing or out
-of-position parts as well as open seams,
holes, loose connections or other conditions which could
cause a heat build
-up in the floor pan or could let
exhaust fumes into the vehicle. See ªEngine Exhaustº in
the Index.
Engine Cooling System Inspection
Inspect the hoses and have them replaced if they are
cracked, swollen or deteriorated. Inspect all pipes,
fittings and clamps; replace as needed. Clean the outside
of the radiator and air conditioning condenser. To help
ensure proper operation, a pressure test of the cooling
system and pressure cap is recommended at least once
a year.
