door lock BUICK CENTURY 2004 Owner's Manual

Seats and Restraint Systems........................... 1-1
Front Seats
............................................... 1-2
Rear Seats
............................................... 1-5
Safety Belts
.............................................. 1-6
Child Restraints
.......................................1-28
Air Bag Systems
......................................1-49
Restraint System Check
............................1-58
Features and Controls..................................... 2-1
Keys
........................................................ 2-2
Doors and Locks
......................................2-10
Windows
.................................................2-15
Theft-Deterrent Systems
............................2-17
Starting and Operating Your Vehicle
...........2-18
Mirrors
....................................................2-31
OnStar
®System
......................................2-33
Storage Areas
.........................................2-34
Sunroof
..................................................2-36
Instrument Panel............................................. 3-1
Instrument Panel Overview
.......................... 3-2
Climate Controls
......................................3-18
Warning Lights, Gages and Indicators
.........3-27
Audio System(s)
.......................................3-44Driving Your Vehicle....................................... 4-1
Your Driving, the Road, and Your Vehicle
..... 4-2
Towing
...................................................4-31
Service and Appearance Care.......................... 5-1
Service
..................................................... 5-3
Fuel
......................................................... 5-4
Checking Things Under the Hood
...............5-10
Headlamp Aiming
.....................................5-49
Bulb Replacement
....................................5-51
Windshield Wiper Blade Replacement
.........5-56
Tires
......................................................5-57
Appearance Care
.....................................5-88
Vehicle Identication
.................................5-96
Electrical System
......................................5-97
Capacities and Specications
...................5-103
Maintenance Schedule..................................... 6-1
Maintenance Schedule
................................ 6-2
Customer Assistance and Information.............. 7-1
Customer Assistance and Information
........... 7-2
Reporting Safety Defects
...........................7-10
Index................................................................ 1
2004 Buick Century Owner ManualM

Driver Position
This part describes the driver’s restraint system.
Lap-Shoulder Belt
The driver has a lap-shoulder belt. Here’s how to wear it
properly.
1. Close and lock the door.
2. Adjust the seat so you can sit up straight. To see
how, see “Seats” in the Index.3. Pick up the latch plate and pull the belt across you.
Don’t let it get twisted.
The shoulder belt may lock if you pull the belt
across you very quickly. If this happens, let the belt
go back slightly to unlock it. Then pull the belt
across you more slowly.
4. Push the latch plate into the buckle until it clicks.
Pull up on the latch plate to make sure it is secure.
If the belt isn’t long enough, seeSafety Belt
Extender on page 1-27.
Make sure the release button on the buckle is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
1-12

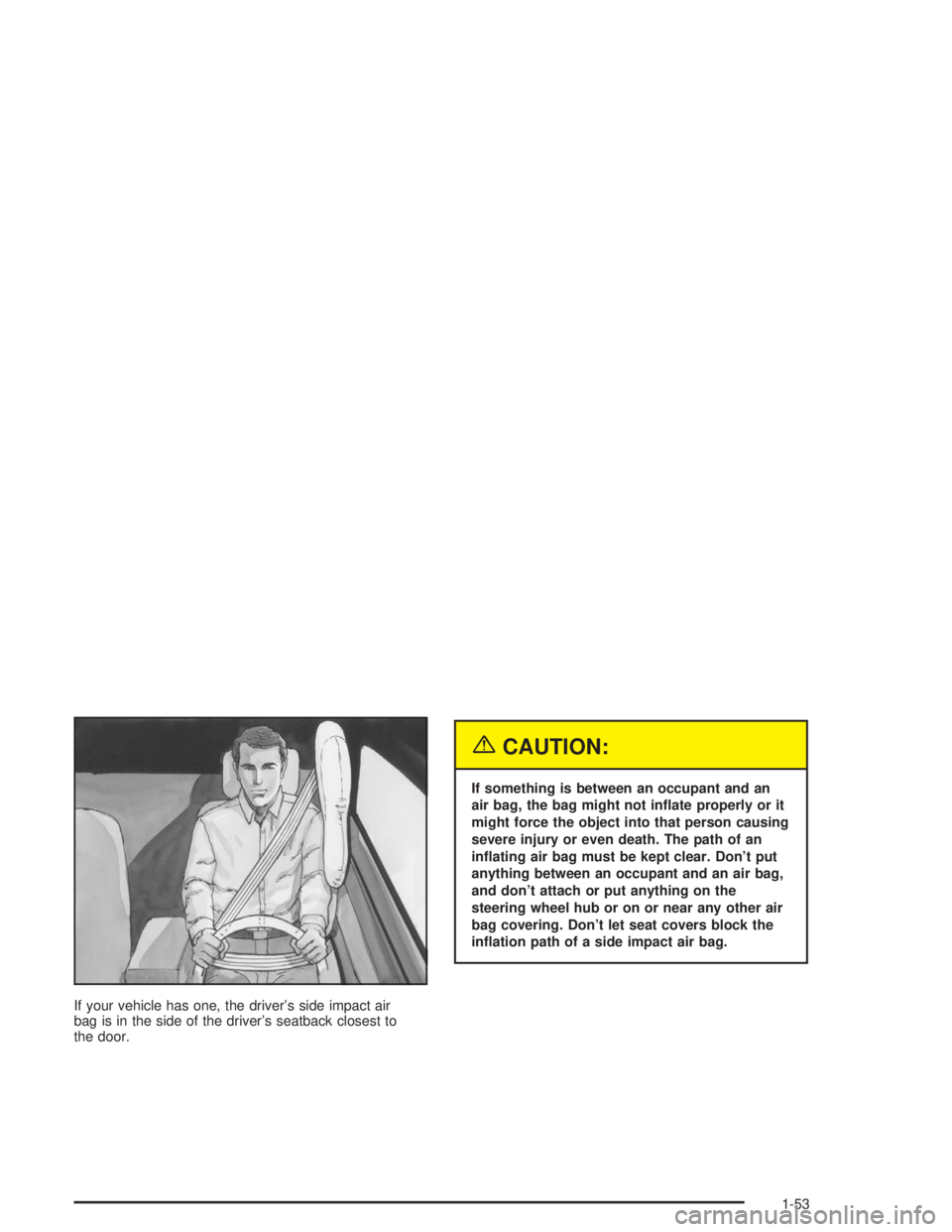

If your vehicle has one, the driver’s side impact air
bag is in the side of the driver’s seatback closest to
the door.
{CAUTION:
If something is between an occupant and an
air bag, the bag might not inate properly or it
might force the object into that person causing
severe injury or even death. The path of an
inating air bag must be kept clear. Don’t put
anything between an occupant and an air bag,
and don’t attach or put anything on the
steering wheel hub or on or near any other air
bag covering. Don’t let seat covers block the
ination path of a side impact air bag.
1-53

Keys...............................................................2-2
Remote Keyless Entry System.........................2-4
Remote Keyless Entry System Operation...........2-5
Doors and Locks............................................2-10
Door Locks..................................................2-10
Power Door Locks........................................2-11
Programmable Automatic Door Locks..............2-11
Lockout Protection........................................2-12
Leaving Your Vehicle....................................2-12
Trunk..........................................................2-13
Windows........................................................2-15
Power Windows............................................2-16
Sun Visors...................................................2-17
Theft-Deterrent Systems..................................2-17
PASS-Key
®II ...............................................2-17
Starting and Operating Your Vehicle................2-18
New Vehicle Break-In....................................2-18
Ignition Positions..........................................2-19
Starting Your Engine.....................................2-20
Engine Coolant Heater..................................2-21Automatic Transaxle Operation.......................2-22
Parking Brake..............................................2-25
Shifting Into Park (P).....................................2-26
Shifting Out of Park (P).................................2-28
Parking Over Things That Burn.......................2-29
Engine Exhaust............................................2-29
Running Your Engine While You Are
Parked.....................................................2-30
Mirrors...........................................................2-31
Manual Rearview Mirror.................................2-31
Manual Rearview Mirror with OnStar
®..............2-31
Outside Power Mirrors...................................2-32
Outside Convex Mirror...................................2-32
OnStar
®System.............................................2-33
Storage Areas................................................2-34
Glove Box...................................................2-34
Front Storage Area.......................................2-34
Center Console Storage Area.........................2-35
Convenience Net..........................................2-35
Sunroof.........................................................2-36
Section 2 Features and Controls
2-1

The ignition key is for
the ignition only.
The door key is for
the driver door and
all other locks.The keys have unique codes embedded in them to
help prevent theft. SeePASS-Key®II on page 2-17
for more information.
Your dealer or Buick Roadside Assistance can provide
the correct codes for the keys. Contact your dealer
or seeRoadside Assistance Program on page 7-5for
more information.
Notice:If you ever lock your keys in your vehicle,
you may have to damage the vehicle to get in.
Be sure you have spare keys.
If the vehicle has the OnStar
®system with an active
subscription, and the keys were locked inside, a
command could be sent by the OnStar
®system to
unlock the vehicle. SeeOnStar®System on page 2-33
for more information.
2-3

Remote Keyless Entry System
Operation
The remote keyless entry transmitter lets you lock and
unlock the vehicle’s doors or release its trunk lid
from about 3 feet (1 m) and up to 30 feet (9 m) away.
LOCK:Press the LOCK
button to lock all the doors.UNLOCK:Press the UNLOCK button to unlock the
driver door and turn on the interior lamps. See
“Illumination on Remote Activation” later in this section
for more details. Press UNLOCK again to unlock
the passenger doors.
F(Trunk Release):To release the trunk lid, press
this button. The trunk will only unlock if the transaxle
is in PARK (P).
L(Remote Alarm):Press this button to activate an
alarm. The ignition must be in OFF or ACCESSORY for
the remote alarm to work. When the remote alarm
button is pressed, the headlamps will ash, the horn will
sound repeatedly, and the interior lamps will turn on.
The alarms will turn off when one of the following occurs:
The remote alarm button on the remote keyless
entry transmitter is pressed a second time.
The ignition is moved to RUN.
The alarms have been on for about two minutes.
2-5

Security Feedback
The remote keyless entry transmitter can be
programmed so that when the LOCK or UNLOCK
button is pressed, the vehicle gives visual or audible
feedback conrmation. Each lock or unlock command
verication must be programmed individually. The
ignition must be OFF for this feature to work.
Programming the LOCK Command
One of four modes can be selected to conrm a
LOCK command.
Mode 1 (One Chime):No Verication
Mode 2 (Two Chimes):Horn Chirp
Mode 3 (Three Chimes):Headlamps Flash
Mode 4 (Four Chimes):Horn Chirp and
Headlamps Flash
The vehicle was originally programmed to Mode 3.
The mode may have been changed since then.
To determine the current lock mode mode, or to change
the lock mode, do the following:
1. Close all doors and turn the ignition key to RUN.
2. Press and hold the power door lock switch in
the LOCK position.3. While holding the power door lock switch in the
LOCK position, press and release the remote
keyless entry transmitter LOCK button.
A series of one to four chimes will sound,
corresponding to the current lock mode.
4. Press the remote keyless entry transmitter LOCK
button to advance to the next lock mode.
If cycled beyond Mode 4, the vehicle will
enter Mode 1.
5. To set a mode, release the power door LOCK
switch after the chime sequence of the desired
mode is heard.
Disconnecting the vehicle’s battery for up to a year will
not affect the programmed mode.
Programming the UNLOCK Command
One of four modes can be selected to conrm an
UNLOCK command.
Mode 1 (One Chime):No Verication
Mode 2 (Two Chimes):Horn Chirp
Mode 3 (Three Chimes):Headlamps Flash
Mode 4 (Four Chimes):Horn Chirp and
Headlamps Flash
2-6

The vehicle was originally programmed to Mode 3.
The mode may have been changed since then.
To determine the current unlock mode mode, or to
change the unlock mode, do the following:
1. Close all doors and turn the ignition key to RUN.
2. Press and hold the power door lock switch in
the unlock position.
3. While holding the power door lock switch in the
unlock position, press and release the remote
keyless entry transmitter UNLOCK button.
A series of one to four chimes will sound,
corresponding to the current unlock mode.
4. Press the remote keyless entry transmitter UNLOCK
button to advance to the next unlock mode.
If cycled beyond Mode 4, the vehicle will
enter Mode 1.
5. To set a mode, release the power door unlock
switch after the chime sequence of the desired
mode is heard.
Disconnecting the vehicle’s battery for up to a year will
not affect the programmed mode.Delayed Locking
This feature can be turned on or off. It delays the
locking of the doors for ve seconds after the power
door LOCK position or the LOCK button on the remote
keyless entry transmitter is pressed and the last
door is closed.
If a door is opened before ve seconds, the delayed
lock is cancelled. When all doors are closed again,
delayed locking begins again.
Three chimes will sound to indicate that this feature is
on. The chime will sound only when the key is not in the
ignition and a door is open.
To cancel delay locking, do any of the following:
Press the unlock portion of the power door
lock switch.
Press the UNLOCK button on the remote keyless
entry transmitter.
Press the LOCK portion of the power door lock
switch a second time.
Press the LOCK button on the remote keyless entry
transmitter a second time or.
Insert the ignition key into the ignition.
2-7

Programming Delayed Locking
Delayed locking has two modes.
Mode One (One Chime):Delayed locking is turned off.
Mode Two (Two Chimes):Delayed locking is
turned on.
1. Close the doors.
2. Move the ignition key to the RUN position.
3. Apply the egular brakes.
4. Press and hold the power door unlock switch. While
holding the power door unlock switch, move the
shift lever out of and back into PARK (P).
One or two chimes will sound indicating what mode
the delayed locking is in.
5. Release the power door unlock switch,
after one of the chime mode sequences,
to set the desired mode
Disconnecting the vehicle’s battery for up to one year
will not affect the programmed mode.
Illumination on Remote Activation
This feature provides interior lighting when a remote
keyless entry door unlock command is received by the
vehicle. The ignition must be off for this feature to
work. The interior lamps will stay on until either the
ignition is turned to RUN or until 40 seconds has
elapsed. If a door is opened during this time, the timed
lighting will be canceled, and the interior lamps will
remain on. Also see “Entry Lighting” underInterior
Lamps on page 3-15for more information.
Matching Transmitter(s) to Your
Vehicle
Each remote keyless entry transmitter is uniquely coded
to prevent another transmitter from unlocking your
vehicle. If a transmitter is lost or stolen, a replacement
can be purchased through your dealer. Remember
to bring any additional transmitters with you so they also
can be re-coded to match the new transmitter. Once
your dealer has coded the new transmitter, the lost
transmitter cannot unlock the vehicle. The vehicle can
have a maximum of four transmitters coded to it.
2-8

Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers — especially children — can
easily open the doors and fall out of a
moving vehicle. When a door is locked, the
handle will not open it. You increase the
chance of being thrown out of the vehicle
in a crash if the doors are not locked. So,
wear safety belts properly and lock the
doors whenever you drive.
Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.
Outsiders can easily enter through an
unlocked door when you slow down or
stop your vehicle. Locking your doors can
help prevent this from happening.There are several ways to lock and unlock the vehicle.
From the outside, use the door key or remote keyless
entry transmitter. From the inside use the manual
or power door locks.
To manually lock or unlock the driver’s door from the
outside, insert the key and turn it clockwise or
counterclockwise.
To lock or unlock the doors from the inside, push the
manual lock lever forward or rearward.
2-10
