BUICK ENCLAVE 2009 User Guide

To return the seatback to an upright
position:
1. Lift the lever without applying
pressure to the seatback and
the seatback will return to
the upright position.
2. Push and pull on the seatback to
make sure it is locked.
Power Reclining Seatbacks
On vehicles with seats that
have power reclining seatbacks, the
control used to recline them is
located on the outboard side of the
seat behind the power seat
control. See “Reclining Seatbacks”
underPower Seats on page 1-3
for more information.
To recline the seatback, tilt the
top of the control (B) rearward.
To bring the seatback forward, tilt
the top of the control forward.
{CAUTION
Sitting in a reclined position when
the vehicle is in motion can be
dangerous. Even if when buckled
up, the safety belts cannot do
their job when reclined like this.
The shoulder belt cannot do its
job because it will not be against
your body. Instead, it will be in
front of you. In a crash, you could
go into it, receiving neck or other
injuries.
The lap belt cannot do its job
either. In a crash, the belt could
go up over your abdomen. The
belt forces would be there, not at
your pelvic bones. This could
cause serious internal injuries.
For proper protection when the
vehicle is in motion, have the
seatback upright. Then sit well
back in the seat and wear the
safety belt properly.Do not have a seatback reclined if
the vehicle is moving.
Seats and Restraint System 1-7

Rear Seats
Rear Seat Operation
A. Seat Adjustment Handle
B. Reclining Seatback Strap
C. Sliding Seat Lever
Entering and Exiting the
Third Row
{CAUTION
Using the third row seating
position while the second row is
folded, or folded and tumbled,
could cause injury in a sudden stop
or crash. Be sure to return the seat
to the passenger seating position.
Push and pull on the seat to make
sure it is locked into place.
Notice:Folding a rear seat with
the safety belts still fastened may
cause damage to the seat or the
safety belts. Always unbuckle the
safety belts and return them to
their normal stowed position
before folding a rear seat.To access the third row:
1. Remove objects on the oor in
front of or on the second row
seat, or in the seat tracks on
the oor.
2. Move the front center console
armrest completely forward.
SeeCenter Console Storage
on page 2-49.
3. Place folding armrests in the
upright position.
4. Ensure that the safety belt are
unfastened and in the stowed
position.
1-8 Seats and Restraint System

5. Pull the sliding seat lever (C)
forward and move the seatback
forward. The seat cushion
will fold, and the entire seat will
slide forward.
Returning the Seat to the
Seating Position
To return the second row seat to its
normal seating position:
1. Remove objects on the oor
behind the second row seat
or in the seat tracks on the oor.
2. Pull the seatback rearward until it
is locked in place.
3. Slide the seat rearward by
pushing on the seatback until it is
locked into place.
4. Push down on the rear of the
seat cushion until it is locked
in place.
5. Push and pull on the seatback
and seat cushion to make sure
they are locked in place.
6. Check that the safety belt is not
under the seat cushion.
Reclining the Seatbacks
To recline the seatback:
1. Leaning forward in the seat, pull
the reclining seatback strap (B).
2. Move the seatback to the desired
position, then release the strap
to lock the seatback in place.
3. Push and pull on the seatback to
make sure it is locked.
Folding the Rear Seat
To fold the second row seats:
1. Remove anything on or under
the seat.
2. Place the armrest in the upright
position, and unfasten the
safety belt.
3. Pull forward on the reclining
seatback strap (B) and push
down on the seatback.
If the headrest hits the front seat,
slide the second row seat
rearward.To return the seatback to the
seating position, lift the upper corner
of the seatback and push it
rearward until it locks into place.
Push and pull on the seatback
to make sure it is locked.
Adjusting the Seats
To adjust the second row seats, pull
outward on the seat adjustment
handle (A). Slide the seat forward or
rearward to the desired position.
Release the handle and push
and pull on the seat to make sure it
is locked.
Seats and Restraint System 1-9

Third Row Seats
{CAUTION
Using the third row seating
position while the second row is
folded, or pushed forward in the
entry position, could cause injury
in a sudden stop or crash. Be
sure to return the seat to the
passenger seating position. Push
and pull on the seat to make sure
it is locked into place.
The third row seats can be folded
forward or removed.
Notice:Folding a rear seat with
the safety belts still fastened may
cause damage to the seat or the
safety belts. Always unbuckle the
safety belts and return them to
their normal stowed position
before folding a rear seat.To fold the seatback:
1. Remove anything on or under
the seat.
2. Disconnect the rear safety belt
mini-latch, using a key in the
slot on the mini-buckle, let
the belt retract into the headliner.
Stow the mini-latch in the
holder located in the headliner.3. Pull up on the release lever
located on the back of the
seat. The headrest moves
forward automatically.
4. Push the seatback forward to
lay at.
1-10 Seats and Restraint System

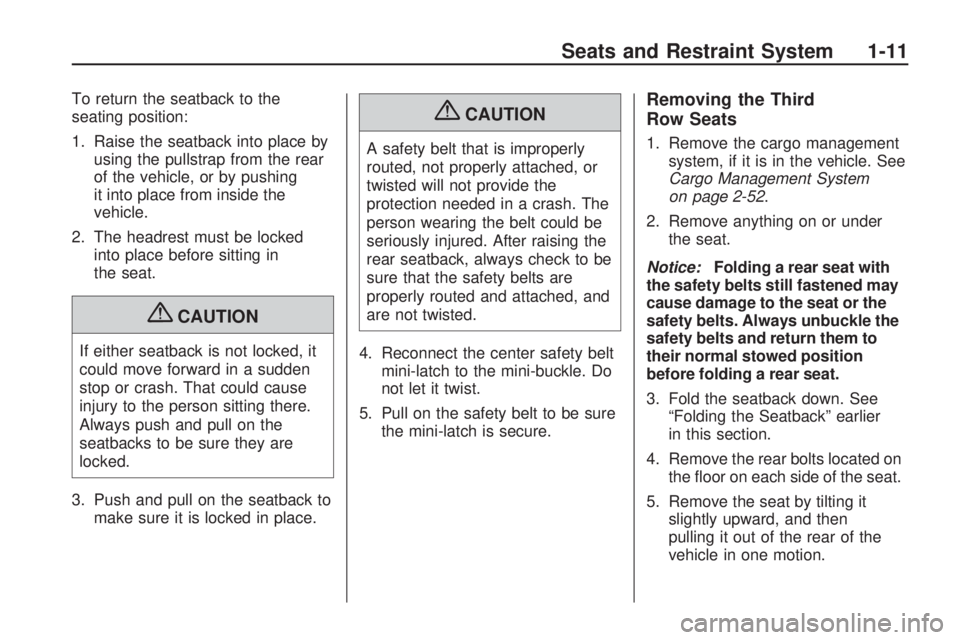

To return the seatback to the
seating position:
1. Raise the seatback into place by
using the pullstrap from the rear
of the vehicle, or by pushing
it into place from inside the
vehicle.
2. The headrest must be locked
into place before sitting in
the seat.
{CAUTION
If either seatback is not locked, it
could move forward in a sudden
stop or crash. That could cause
injury to the person sitting there.
Always push and pull on the
seatbacks to be sure they are
locked.
3. Push and pull on the seatback to
make sure it is locked in place.
{CAUTION
A safety belt that is improperly
routed, not properly attached, or
twisted will not provide the
protection needed in a crash. The
person wearing the belt could be
seriously injured. After raising the
rear seatback, always check to be
sure that the safety belts are
properly routed and attached, and
are not twisted.
4. Reconnect the center safety belt
mini-latch to the mini-buckle. Do
not let it twist.
5. Pull on the safety belt to be sure
the mini-latch is secure.
Removing the Third
Row Seats
1. Remove the cargo management
system, if it is in the vehicle. See
Cargo Management System
on page 2-52.
2. Remove anything on or under
the seat.
Notice:Folding a rear seat with
the safety belts still fastened may
cause damage to the seat or the
safety belts. Always unbuckle the
safety belts and return them to
their normal stowed position
before folding a rear seat.
3. Fold the seatback down. See
“Folding the Seatback” earlier
in this section.
4. Remove the rear bolts located on
the oor on each side of the seat.
5. Remove the seat by tilting it
slightly upward, and then
pulling it out of the rear of the
vehicle in one motion.
Seats and Restraint System 1-11

6. Put the bolts back into the holes
on the oor so they do not get
misplaced.
Installing the Third Row Seats
1. Before installing the seat the
seatback must be folded
forward. See “Folding the
Seatback” earlier in this section.
The seats must be placed in
the proper locations for the legs
to attach correctly. The wider
seat must be installed on
the driver side and the narrower
seat on the passenger side.
Remove the bolts from the holes
in the oor before installing
the seats.
2. Place the seat on the vehicle
oor so that the front seat
hooks are on the vehicle bars.3. Reinstall the bolts, and torque to
55Y(41 lb ft). Pull up on the
seat to make sure it is locked
in place.
4. Raise the seatback to its upright
position. Push and pull on the
seatback to make sure it is
locked into place.
5. Push the headrest up into
position. Push and pull on
the headrest to make sure it is
locked into place.
6. Reconnect the center safety belt
mini-latch to the mini-buckle. Do
not let it twist.
Safety Belts
Safety Belts: They Are
for Everyone
This section of the manual describes
how to use safety belts properly.
It also describes some things not to
do with safety belts.
{CAUTION
Do not let anyone ride where a
safety belt cannot be worn
properly. In a crash, if you or your
passenger(s) are not wearing
safety belts, the injuries can be
much worse. You can hit things
inside the vehicle harder or be
ejected from the vehicle. You and
your passenger(s) can be
seriously injured or killed. In the
same crash, you might not be, if
you are buckled up. Always fasten
your safety belt, and check that
your passenger(s) are restrained
properly too.
1-12 Seats and Restraint System

{CAUTION
It is extremely dangerous to ride
in a cargo area, inside or outside
of a vehicle. In a collision, people
riding in these areas are more
likely to be seriously injured or
killed. Do not allow people to ride
in any area of your vehicle that is
not equipped with seats and
safety belts. Be sure everyone in
your vehicle is in a seat and using
a safety belt properly.
This vehicle has indicators as a
reminder to buckle the safety belts.
SeeSafety Belt Reminders on
page 3-30for additional information.In most states and in all Canadian
provinces, the law requires
wearing safety belts. Here is why:
You never know if you will be
in a crash. If you do have a crash,
you do not know if it will be a
serious one.
A few crashes are mild, and some
crashes can be so serious that even
buckled up, a person would not
survive. But most crashes are
in between. In many of them, people
who buckle up can survive and
sometimes walk away. Without
safety belts they could have been
badly hurt or killed.
After more than 40 years of safety
belts in vehicles, the facts are clear.
In most crashes buckling up does
matter... a lot!
Why Safety Belts Work
When you ride in or on anything,
you go as fast as it goes.
Take the simplest vehicle. Suppose
it is just a seat on wheels.
Seats and Restraint System 1-13

Put someone on it. Get it up to speed. Then stop the
vehicle. The rider does not stop.The person keeps going until
stopped by something. In a real
vehicle, it could be the windshield...
1-14 Seats and Restraint System

or the instrument panel...
or the safety belts!With safety belts, you slow down as
the vehicle does. You get more
time to stop. You stop over more
distance, and your strongest bones
take the forces. That is why
safety belts make such good sense.
Questions and Answers
About Safety Belts
Q:
Will I be trapped in the vehicle
after a crash if I am wearing a
safety belt?
A:Youcouldbe — whether you are
wearing a safety belt or not. But
your chance of being conscious
during and after an accident,
so youcanunbuckle and get out,
ismuchgreater if you are
belted. And you can unbuckle a
safety belt, even if you are
upside down.
Q:If my vehicle has airbags, why
should I have to wear safety
belts?
A:Airbags are supplemental
systems only; so they workwith
safety belts — not instead of
them. Whether or not an airbag
is provided, all occupants
still have to buckle up to get the
most protection. That is true
not only in frontal collisions, but
especially in side and other
collisions.
Seats and Restraint System 1-15

Q:If I am a good driver, and I
never drive far from home,
why should I wear safety
belts?
A:You may be an excellent driver,
but if you are in a crash — even
one that is not your fault — you
and your passenger(s) can be
hurt. Being a good driver does not
protect you from things beyond
your control, such as bad drivers.
Most accidents occur within
25 miles (40 km) of home. And
the greatest number of serious
injuries and deaths occur at
speeds of less than 40 mph
(65 km/h).
Safety belts are for everyone.
How to Wear Safety Belts
Properly
This section is only for people of
adult size.
Be aware that there are special
things to know about safety
belts and children. And there are
different rules for smaller children
and infants. If a child will be riding in
the vehicle, seeOlder Children on
page 1-26orInfants and Young
Children on page 1-28. Follow those
rules for everyone’s protection.
It is very important for all occupants
to buckle up. Statistics show that
unbelted people are hurt more often
in crashes than those who are
wearing safety belts.
Occupants who are not buckled up
can be thrown out of the vehicle
in a crash. And they can strike
others in the vehicle who are
wearing safety belts.First, before you or your
passenger(s) wear a safety belt,
there is important information
you should know.
Sit up straight and always keep your
feet on the oor in front of you.
The lap part of the belt should be
worn low and snug on the hips, just
touching the thighs. In a crash,
this applies force to the strong pelvic
bones and you would be less
likely to slide under the lap belt. If
you slid under it, the belt would
apply force on your abdomen. This
could cause serious or even
1-16 Seats and Restraint System
