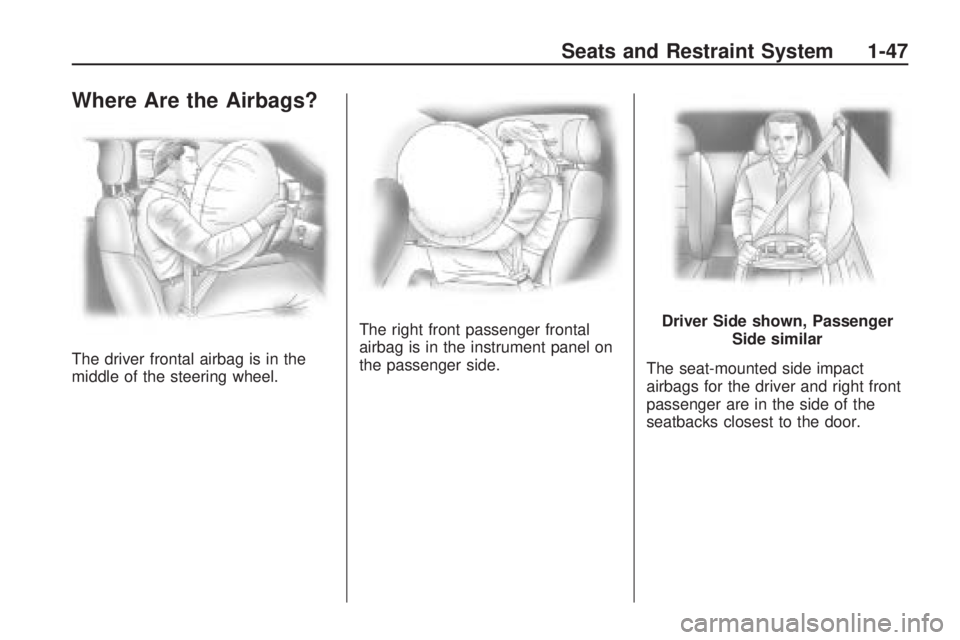

Where Are the Airbags?
The driver frontal airbag is in the
middle of the steering wheel.The right front passenger frontal
airbag is in the instrument panel on
the passenger side.
The seat-mounted side impact
airbags for the driver and right front
passenger are in the side of the
seatbacks closest to the door.
Driver Side shown, Passenger
Side similar
Seats and Restraint System 1-47
Page 52 of 412

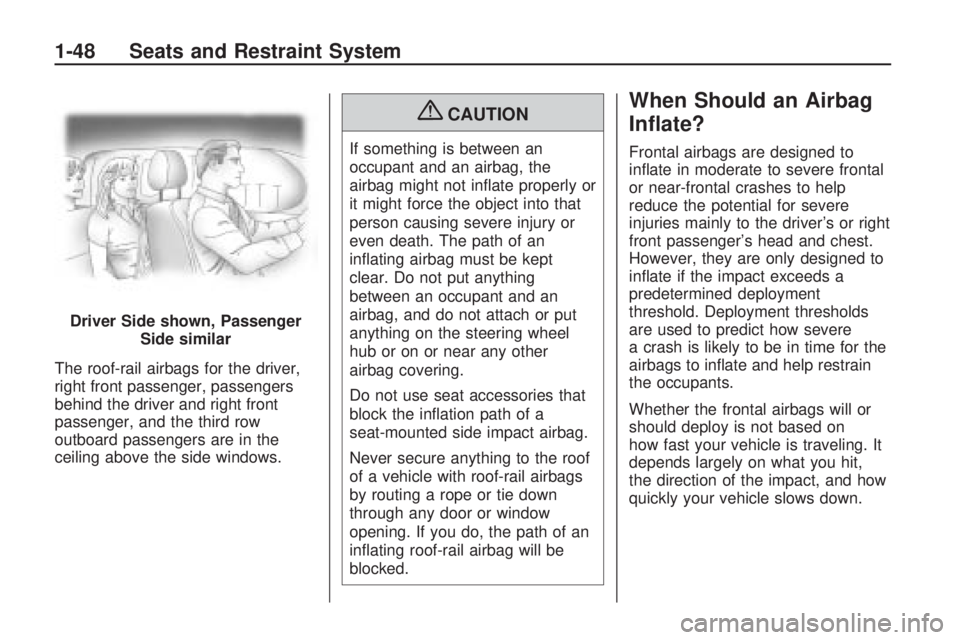

The roof-rail airbags for the driver,
right front passenger, passengers
behind the driver and right front
passenger, and the third row
outboard passengers are in the
ceiling above the side windows.
{CAUTION
If something is between an
occupant and an airbag, the
airbag might not in ate properly or
it might force the object into that
person causing severe injury or
even death. The path of an
in ating airbag must be kept
clear. Do not put anything
between an occupant and an
airbag, and do not attach or put
anything on the steering wheel
hub or on or near any other
airbag covering.
Do not use seat accessories that
block the in ation path of a
seat-mounted side impact airbag.
Never secure anything to the roof
of a vehicle with roof-rail airbags
by routing a rope or tie down
through any door or window
opening. If you do, the path of an
in ating roof-rail airbag will be
blocked.
When Should an Airbag
In ate?
Frontal airbags are designed to
in ate in moderate to severe frontal
or near-frontal crashes to help
reduce the potential for severe
injuries mainly to the driver’s or right
front passenger’s head and chest.
However, they are only designed to
in ate if the impact exceeds a
predetermined deployment
threshold. Deployment thresholds
are used to predict how severe
a crash is likely to be in time for the
airbags to in ate and help restrain
the occupants.
Whether the frontal airbags will or
should deploy is not based on
how fast your vehicle is traveling. It
depends largely on what you hit,
the direction of the impact, and how
quickly your vehicle slows down. Driver Side shown, Passenger
Side similar
1-48 Seats and Restraint System
Page 53 of 412
Frontal airbags may in ate at
different crash speeds. For example:
If the vehicle hits a stationary
object, the airbags could
in ate at a different crash
speed than if the vehicle hits a
moving object.
If the vehicle hits an object that
deforms, the airbags could
in ate at a different crash speed
than if the vehicle hits an
object that does not deform.
If the vehicle hits a narrow object
(like a pole), the airbags could
in ate at a different crash speed
than if the vehicle hits a wide
object (like a wall).
If the vehicle goes into an object
at an angle, the airbags could
in ate at a different crash speed
than if the vehicle goes straight
into the object.
Thresholds can also vary with
speci c vehicle design.Frontal airbags are not intended to
in ate during vehicle rollovers, rear
impacts, or in many side impacts.
In addition, the vehicle has
dual-stage frontal airbags.
Dual-stage airbags adjust the
restraint according to crash severity.
The vehicle has electronic frontal
sensors, which help the sensing
system distinguish between a
moderate frontal impact and a more
severe frontal impact. For moderate
frontal impacts, dual-stage airbags
in ate at a level less than full
deployment. For more severe frontal
impacts, full deployment occurs.
The vehicle has seat-mounted side
impact and roof-rail airbags. See
Airbag System on page 1-45.
Seat-mounted side impact and
roof-rail airbags are intended
to in ate in moderate to severe side
crashes. In addition, these roof-rail
airbags are intended to in ate during
a rollover or in a severe frontal
impact. Seat-mounted side impact
and roof-rail airbags will in ate if the
crash severity is above thesystem’s designed threshold level.
The threshold level can vary
with speci c vehicle design.
Seat-mounted side impact airbags
are not intended to in ate in
frontal impacts, near-frontal impacts,
rollovers, or rear impacts. Roof-rail
airbags are not intended to in ate in
rear impacts. A seat-mounted
side impact airbag is intended to
deploy on the side of the vehicle that
is struck. Both roof-rail airbags
will deploy when either side of the
vehicle is struck, or if the sensing
system predicts that the vehicle
is about to roll over, or in a severe
frontal impact.
In any particular crash, no one can
say whether an airbag should
have in ated simply because of the
damage to a vehicle or because
of what the repair costs were.
For frontal airbags, in ation is
determined by what the vehicle hits,
the angle of the impact, and how
quickly the vehicle slows down. For
seat-mounted side impact and
roof-rail airbags, deployment
Seats and Restraint System 1-49
Page 54 of 412
is determined by the location and
severity of the side impact. In
a rollover event, roof-rail airbag
deployment is determined by
the direction of the roll.
What Makes an Airbag
In ate?
In a deployment event, the sensing
system sends an electrical signal
triggering a release of gas from the
in ator. Gas from the in ator lls
the airbag causing the bag to break
out of the cover and deploy. The
in ator, the airbag, and related
hardware are all part of the airbag
module.
Frontal airbag modules are located
inside the steering wheel and
instrument panel. For vehicles with
seat-mounted side impact airbags,
there are airbag modules in the side
of the front seatbacks closest to
the door. For vehicles with roof-rail
airbags, there are airbag modulesin the ceiling of the vehicle, near the
side windows that have occupant
seating positions.
How Does an Airbag
Restrain?
In moderate to severe frontal or
near frontal collisions, even belted
occupants can contact the steering
wheel or the instrument panel.
In moderate to severe side
collisions, even belted occupants
can contact the inside of the vehicle.
Airbags supplement the protection
provided by safety belts.
Frontal airbags distribute the force
of the impact more evenly over
the occupant’s upper body, stopping
the occupant more gradually.
Seat-mounted side impact and
roof-rail airbags distribute the force
of the impact more evenly over
the occupant’s upper body.Rollover capable roof-rail airbags
are designed to help contain
the head and chest of occupants in
the outboard seating positions in
the rst, second, and third rows. The
rollover capable roof-rail airbags
are designed to help reduce the risk
of full or partial ejection in rollover
events, although no system can
prevent all such ejections.
But airbags would not help in many
types of collisions, primarily
because the occupant’s motion is
not toward those airbags. SeeWhen
Should an Airbag Inflate? on
page 1-48for more information.
Airbags should never be regarded
as anything more than a supplement
to safety belts.
1-50 Seats and Restraint System
Page 55 of 412
What Will You See After
an Airbag In ates?
After the frontal airbags and
seat-mounted side impact airbags
in ate, they quickly de ate, so
quickly that some people may not
even realize an airbag in ated.
Roof-rail airbags may still be at least
partially in ated for some time
after they deploy. Some components
of the airbag module may be hot
for several minutes. For location of
the airbag modules, seeWhat
Makes an Airbag Inflate? on
page 1-50.
The parts of the airbag that come
into contact with you may be warm,
but not too hot to touch. There
may be some smoke and dust
coming from the vents in the
de ated airbags. Airbag in ation
does not prevent the driver
from seeing out of the windshield or
being able to steer the vehicle,
nor does it prevent people from
leaving the vehicle.
{CAUTION
When an airbag in ates, there
may be dust in the air. This dust
could cause breathing problems
for people with a history of
asthma or other breathing trouble.
To avoid this, everyone in the
vehicle should get out as soon as
it is safe to do so. If you have
breathing problems but cannot get
out of the vehicle after an airbag
in ates, then get fresh air by
opening a window or a door. If
you experience breathing
problems following an airbag
deployment, you should seek
medical attention.
The vehicle has a feature that may
automatically unlock the doors,
turn the interior lamps on, and turn
the hazard warning ashers on
when the airbags in ate. You can
lock the doors, turn the interiorlamps off, and turn the hazard
warning ashers off by using the
controls for those features.
In many crashes severe enough to
in ate the airbag, windshields
are broken by vehicle deformation.
Additional windshield breakage
may also occur from the right front
passenger airbag.
Airbags are designed to in ate
only once. After an airbag
in ates, you will need some new
parts for the airbag system. If
you do not get them, the airbag
system will not be there to
help protect you in another crash.
A new system will include
airbag modules and possibly
other parts. The service manual
for your vehicle covers the
need to replace other parts.
The vehicle has a crash sensing
and diagnostic module which
records information after a crash.
SeeVehicle Data Recording and
Privacy on page 7-14andEvent
Data Recorders on page 7-15.
Seats and Restraint System 1-51
Page 56 of 412
Let only quali ed technicians work
on the airbag systems. Improper
service can mean that an airbag
system will not work properly. See
your dealer/retailer for service.
Passenger Sensing
System
The vehicle has a passenger
sensing system for the right front
passenger position. The passenger
airbag status indicator will be
visible on the instrument panel when
the vehicle is started.The words ON and OFF, or the
symbol for on and off, are visible
during the system check. If you are
using remote start, if equipped,
to start the vehicle from a distance,
you may not see the system
check. When the system check is
complete, either the word ON
or OFF, or the symbol for on or off,
will be visible. SeePassenger
Airbag Status Indicator on
page 3-31.
The passenger sensing system
turns off the right front passenger
frontal airbag under certain
conditions. The driver airbag,
seat-mounted side impact airbagsand the roof-rail airbags are not
affected by the passenger sensing
system.
The passenger sensing system
works with sensors that are part of
the right front passenger seat.
The sensors are designed to detect
the presence of a properly-seated
occupant and determine if the
right front passenger frontal airbag
should be enabled (may in ate)
or not.
According to accident statistics,
children are safer when properly
secured in a rear seat in the correct
child restraint for their weight
and size.
We recommend that children be
secured in a rear seat, including: an
infant or a child riding in a
rear-facing child restraint; a child
riding in a forward-facing child seat;
an older child riding in a booster
seat; and children, who are
large enough, using safety belts. United States
Canada
1-52 Seats and Restraint System
Page 57 of 412
A label on the sun visor says,
“Never put a rear-facing child seat
in the front.” This is because the risk
to the rear-facing child is so great,
if the airbag deploys.
{CAUTION
A child in a rear-facing child
restraint can be seriously injured
or killed if the right front
passenger airbag in ates. This is
because the back of the
rear-facing child restraint would
be very close to the in ating
airbag. A child in a forward-facing
child restraint can be seriously
injured or killed if the right front
passenger airbag in ates and the
passenger seat is in a forward
position.
(Continued)
CAUTION (Continued)
Even if the passenger sensing
system has turned off the right
front passenger frontal airbag, no
system is fail-safe. No one can
guarantee that an airbag will not
deploy under some unusual
circumstance, even though the
airbag is turned off.
Secure rear-facing child restraints
in a rear seat, even if the airbag is
off. If you secure a forward-facing
child restraint in the right front seat,
always move the front passenger
seat as far back as it will go. It is
better to secure the child restraint
in a rear seat.The passenger sensing system is
designed to turn off the right
front passenger frontal airbag if:The right front passenger seat is
unoccupied.
The system determines that an
infant is present in a child
restraint.
A right front passenger takes
his/her weight off of the seat
for a period of time.
Or, if there is a critical problem
with the airbag system or the
passenger sensing system.
When the passenger sensing
system has turned off the right front
passenger frontal airbag, the off
indicator will light and stay lit
to remind you that the airbag is off.
SeePassenger Airbag Status
Indicator on page 3-31.
Seats and Restraint System 1-53
Page 58 of 412
The passenger sensing system is
designed to turn on (may in ate) the
right front passenger frontal airbag
anytime the system senses that a
person of adult size is sitting properly
in the right front passenger seat.
When the passenger sensing
system has allowed the airbag to be
enabled, the on indicator will light
and stay lit to remind you that
the airbag is active.
For some children, including children
in child restraints, and for very small
adults, the passenger sensing
system may or may not turn off the
right front passenger frontal airbag,
depending upon the person’s seating
posture and body build. Everyone in
the vehicle who has outgrown child
restraints should wear a safety belt
properly — whether or not there is an
airbag for that person.{CAUTION
If the airbag readiness light ever
comes on and stays on, it means
that something may be wrong with
the airbag system. To help avoid
injury to yourself or others, have
the vehicle serviced right away.
SeeAirbag Readiness Light on
page 3-31for more information,
including important safety
information.
If the On Indicator is Lit for a
Child Restraint
If a child restraint has been installed
and the on indicator is lit:
1. Turn the vehicle off.
2. Remove the child restraint from
the vehicle.
3. Remove any additional items
from the seat such as blankets,
cushions, seat covers, seat
heaters, or seat massagers.4. Reinstall the child restraint
following the directions provided
by the child restraint manufacturer
and refer toSecuring a Child
Restraint in the Right Front Seat
Position on page 1-42.
5. If, after reinstalling the child
restraint and restarting the
vehicle, the on indicator is still lit,
turn the vehicle off. Then
slightly recline the vehicle
seatback and adjust the seat
cushion, if adjustable, to
make sure that the vehicle
seatback is not pushing the child
restraint into the seat cushion.
Also make sure the child restraint
is not trapped under the vehicle
head restraint. If this happens,
adjust the head restraint. See
Head Restraints on page 1-2.
1-54 Seats and Restraint System
Page 59 of 412
6. Restart the vehicle.
The passenger sensing system
may or may not turn off the
airbag for a child in a child
restraint depending upon the
child’s seating posture and body
build. It is better to secure the
child restraint in a rear seat.
If the Off Indicator is Lit for an
Adult-Size Occupant
If a person of adult-size is sitting in
the right front passenger seat,
but the off indicator is lit, it could be
because that person is not sittingproperly in the seat. If this happens,
use the following steps to allow
the system to detect that person and
enable the right front passenger
frontal airbag:
1. Turn the vehicle off.
2. Remove any additional material
from the seat, such as blankets,
cushions, seat covers, seat
heaters, or seat massagers.
3. Place the seatback in the fully
upright position.
4. Have the person sit upright in the
seat, centered on the seat
cushion, with legs comfortably
extended.
5. Restart the vehicle and have the
person remain in this position for
two to three minutes after the
on indicator is lit.
Additional Factors Affecting
System Operation
Safety belts help keep the
passenger in position on the seat
during vehicle maneuvers and
braking, which helps the passenger
sensing system maintain the
passenger airbag status. See
“Safety Belts” and “Child Restraints”
in the Index for additional
information about the importance of
proper restraint use.
A thick layer of additional material,
such as a blanket or cushion, or
aftermarket equipment such as seat
covers, seat heaters, and seat
massagers can affect how well the
passenger sensing system
operates. We recommend that you
not use seat covers or other
aftermarket equipment except when
approved by GM for your speci c
vehicle. SeeAdding Equipment
to Your Airbag-Equipped Vehicle on
page 1-57for more information
about modi cations that can affect
how the system operates.
Seats and Restraint System 1-55
Page 60 of 412
A wet seat can affect the
performance of the passenger
sensing system. Here is how:
The passenger sensing system
may turn off the passenger airbag
when liquid is soaked into the
seat. If this happens, the off
indicator will be lit, and the airbag
readiness light on the instrument
panel will also be lit.
Liquid pooled on the seat that has
not soaked in may make it more
likely that the passenger sensing
system will enable (turn on) the
passenger airbag while a child
restraint or child occupant is on
the seat. If the passenger airbag
is turned on, the on indicator will
be lit.
If the passenger seat gets wet, dry
the seat immediately. If the
airbag readiness light is lit, do not
install a child restraint or allow
anyone to occupy the seat. See
Airbag Readiness Light on
page 3-31for important safety
information.
{CAUTION
Stowing of articles under the
passenger seat or between the
passenger seat cushion and
seatback may interfere with the
proper operation of the passenger
sensing system.
Servicing Your
Airbag-Equipped Vehicle
Airbags affect how the vehicle
should be serviced. There are parts
of the airbag system in several
places around the vehicle. Your
dealer/retailer and the service
manual have information about
servicing the vehicle and the airbag
system. To purchase a service
manual, seeService Publications
Ordering Information on page 7-13.
{CAUTION
For up to 10 seconds after the
ignition is turned off and the
battery is disconnected, an airbag
can still in ate during improper
service. You can be injured if you
are close to an airbag when it
in ates. Avoid yellow connectors.
They are probably part of the
airbag system. Be sure to follow
proper service procedures, and
make sure the person performing
work for you is quali ed to do so.
1-56 Seats and Restraint System
