270 Vehicle Care Warning (Continued)Visually inspect the gas struts for
signs of wear, cracks, or other
damage periodically. Check to
make sure the hood/trunk/liftgate
is held open with enough force.
If struts are failing to hold the
hood/trunk/liftgate, do not
operate. Have the vehicle
serviced.
CautionDo not apply tape or hang any
objects from gas struts. Also do
not push down or pull on gas
struts. This may cause damage to
the vehicle.
See Maintenance Schedule 0 328 . Hood
Trunk Liftgate

Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13527524) - 2020 - CRC - 4/10/19
Vehicle Care 271
Headlamp Aiming Headlamp aim has been preset and
should need no further adjustment.
If the vehicle is damaged in a crash,
the headlamp aim may be affected.
If adjustment to the headlamps is
necessary, see your dealer.
Bulb Replacement For the proper type of replacement
bulbs, or any bulb changing
procedure not listed in this section,
contact your dealer.
CautionDo not replace incandescent
bulbs with aftermarket LED
replacement bulbs. This can
cause damage to the vehicle
electrical system.
LED Lighting This vehicle has several LED lamps.
For replacement of any LED lighting
assembly, contact your dealer.
License Plate Lamp This section is for vehicles without a
Rear Camera Mirror (RCM).
Vehicles with a RCM have an LED
license plate lamp. Lamp Assembly
Bulb Assembly

Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13527524) - 2020 - CRC - 4/10/19
272 Vehicle Care To replace one of these bulbs:
1. Push the left end of the lamp
assembly toward the right.
2. Turn the lamp assembly down
to remove it.
3. Turn the bulb socket (1)
counterclockwise to remove it
from the lamp assembly (3).
4. Pull the bulb (2) straight out of
the bulb socket (1).
5. Push the replacement bulb
straight into the bulb socket
and turn the bulb socket
clockwise to install it into the
lamp assembly.
6. Turn the lamp assembly into
the lamp assembly opening
engaging the clip side first.
7. Push on the lamp side opposite
the clip until the lamp assembly

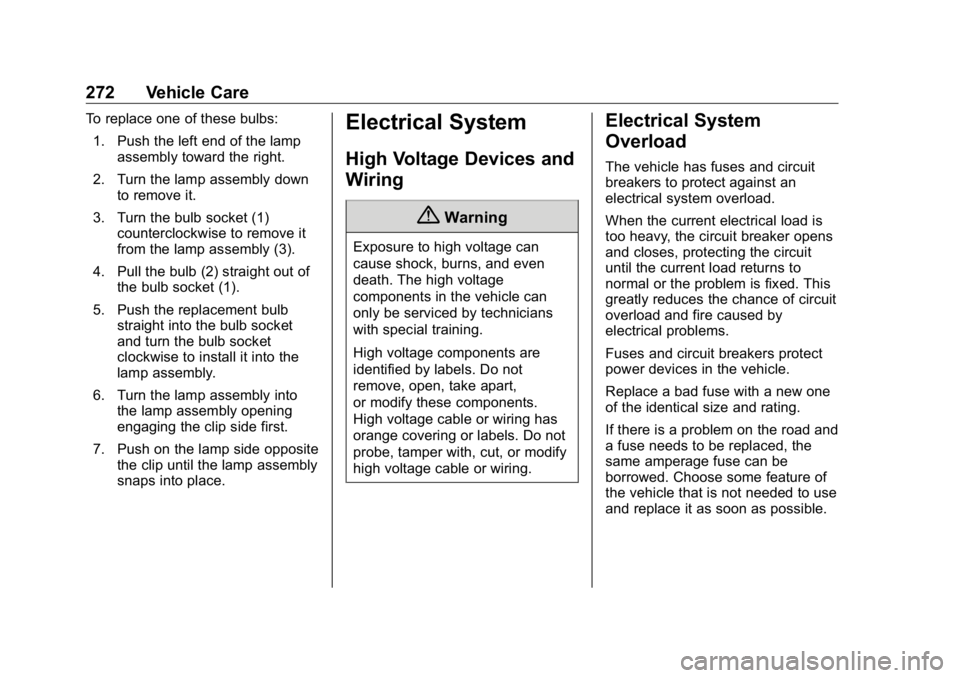

snaps into place. Electrical System High Voltage Devices and
Wiring
{ WarningExposure to high voltage can
cause shock, burns, and even
death. The high voltage
components in the vehicle can
only be serviced by technicians
with special training.
High voltage components are
identified by labels. Do not
remove, open, take apart,
or modify these components.
High voltage cable or wiring has
orange covering or labels. Do not
probe, tamper with, cut, or modify
high voltage cable or wiring. Electrical System
Overload The vehicle has fuses and circuit
breakers to protect against an
electrical system overload.
When the current electrical load is
too heavy, the circuit breaker opens
and closes, protecting the circuit
until the current load returns to
normal or the problem is fixed. This
greatly reduces the chance of circuit
overload and fire caused by
electrical problems.
Fuses and circuit breakers protect
power devices in the vehicle.
Replace a bad fuse with a new one
of the identical size and rating.
If there is a problem on the road and
a fuse needs to be replaced, the
same amperage fuse can be
borrowed. Choose some feature of
the vehicle that is not needed to use
and replace it as soon as possible.

Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13527524) - 2020 - CRC - 4/10/19
Vehicle Care 273Headlamp Wiring An electrical overload may cause
the lamps to go on and off, or in
some cases to remain off. Have the
headlamp wiring checked right away
if the lamps go on and off or
remain off.
Windshield Wipers If the wiper motor overheats due to
heavy snow or ice, the windshield
wipers will stop until the motor cools
and will then restart.
Although the circuit is protected
from electrical overload, overload
due to heavy snow or ice may
cause wiper linkage damage.
Always clear ice and heavy snow
from the windshield before using the
windshield wipers.
If the overload is caused by an
electrical problem and not snow or
ice, be sure to get it fixed. Fuses and Circuit
Breakers The wiring circuits in the vehicle are
protected from short circuits by a
combination of fuses and circuit
breakers. This greatly reduces the
chance of damage caused by
electrical problems.
{ DangerFuses and circuit breakers are
marked with their ampere rating.
Do not exceed the
specified amperage rating when
replacing fuses and circuit
breakers. Use of an oversized
fuse or circuit breaker can result
in a vehicle fire. You and others
could be seriously injured or
killed.
To check a fuse, look at the
silver-colored band inside the fuse.
If the band is broken or melted,
replace the fuse. Be sure to replace
a bad fuse with a new one of the
identical size and rating. Fuses of the same amperage can
be temporarily borrowed from
another fuse location, if a fuse goes
out. Replace the fuse as soon as
possible.
Engine Compartment
Fuse Block
Caution
Do not pull the engine
compartment fuse block lever,
since it is intended only for
service purposes. If pulled,
vehicle malfunction may occur.

Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13527524) - 2020 - CRC - 4/10/19
274 Vehicle Care To remove the fuse block cover,
press the clips on the cover and lift
it straight up.
CautionSpilling liquid on any electrical
component on the vehicle may
damage it. Always keep the
covers on any electrical
component.
To remove fuses, use the fuse puller
and pull straight out.
The vehicle may not be equipped
with all of the fuses, relays, and
features shown. Fuses Usage
F1 Antilock brake
system pump

Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13527524) - 2020 - CRC - 4/10/19
Vehicle Care 275Fuses Usage
F2 Starter 1
F3 DC DC
transformer 1
F4 –
F5 DC DC
transformer 2
F6 –
F7 –
F8 –
F9 Vacuum pump
F10 Front wiper
F11 –
F12 –
F13 Starter 2
F14 –
F15 Rear wiper
F16 –
F17 –
F18 –
F19 – Fuses Usage
F20 –
F21 –
F22 Electronic brake
control module
F23 Parking/Trailer
lamps
F24 Right trailer
stoplamp/Turnlamp
F25 Steering
column lock
F26 –
F27 Left trailer
stoplamp/Turnlamp
F28 –
F29 –
F30 Washer pump
F31 –
F32 Left low-beam
headlamp
F33 Front fog lamps
F34 Horn
F35 – Fuses Usage
F36 –
F37 Right low-beam
headlamp
F38 Automatic
headlamp leveling
motor
F39 Transmission
control module
F40 Left rear bus
electrical center/
Ignition
F41 Instrument cluster
F42 Heating,
ventilation, and air
conditioning
F43 Head-up display
F44 Communication
gateway module/
Run/Crank
F45 –
F46 –
F47 –
F48 –

Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13527524) - 2020 - CRC - 4/10/19
276 Vehicle Care Fuses Usage
F49 Interior rearview
mirror
F50 Fuel system control
module
F51 Heated steering
wheel
F52 Folding seats
switch
F53 –
F54 Coolant pump
F55 Air conditioning
clutch
F56 Integrated chassis
control module
F57 Engine control
module/Ignition
F58 Transmission
control module/
Ignition
F59 Engine control
module battery
F60 Engine control
module – even Fuses Usage
F61 O2 sensor 1/
Air flow
F62 –
F63 O2 sensor 2/
Canister/Engine oil/
Turbo
F64 Aeroshutter
F65 Engine control
module
powertrain 1
F66 Engine control
module
powertrain 2
F67 Engine control
module – odd
F68 –
F69 –
F70 –
F71 –
F72 –
F73 –
F74 – Fuses Usage
F75 –
F76 –
F77 –
Relays Usage
K1 Starter 1
K2 Run/Crank
K3 Vacuum pump
K4 –
K5 Air conditioning
K6 Coolant pump
K7 Engine control
module
K8 Folding seats
K9 –
K10 Starter 2

Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13527524) - 2020 - CRC - 4/10/19
Vehicle Care 277
Instrument Panel Fuse
Block
The instrument panel fuse block is
inside the center console on the
passenger side of the vehicle.
Remove the fuse access door by
pulling the door at the opening.
To remove a fuse, use the fuse
puller in the engine compartment
fuse block.
The vehicle may not be equipped
with all of the fuses, relays, and
features shown. Fuses Usage
F1 Body control module 6
F2 Diagnostic link
F3 Electric steering
column lock
F4 Rear USB port
F5 –
F6 Heating, ventilation,
and air conditioning
F7 Body control module 3
F8 –
F9 Right front
heated seat
F10 Airbag
F11 Electronic precision
shift
F12 Amplifier
F13 Body control module 7
F14 Left front heated seat
F15 –
F16 Sunroof

Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13527524) - 2020 - CRC - 4/10/19
278 Vehicle Care Fuses Usage
F17 Communication
gateway module
F18 Instrument cluster
F19 Body control module 1
F20 Wireless charger
module
F21 Body control module 4
F22 Infotainment
F23 Body control module 2
F24 –
F25 Park assist
F26 Communications
integration module
F27 Video
F28 Radio/Heating,
ventilation, and air
conditioning display
F29 Radio
F30 Steering wheel
controls
F31 Front blower
F32 DC AC inverter Fuses Usage
F33 Driver power seat
F34 Passenger power seat
F35 Feed/Body control
module 4
F36 Electric power
steering
F37 Power outlet/Wireless
charger/Accessory
F38 Body control module 8
F39 Steering wheel
controls backlighting
Circuit
Breakers Usage
F40 –
F41 –
F42 Auxiliary power
outlet/Lighter Rear Compartment Fuse
Block
The rear compartment fuse block is
behind a trim panel on the driver
side of the rear storage
compartment.

Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13527524) - 2020 - CRC - 4/10/19
Vehicle Care 279The trim panel is removed by prying
along the top edge of the trim panel
at two notched locations. Remove
the trim panel to access the fuse
block.
To remove a fuse, use the fuse
puller in the engine compartment
fuse block.
The fuse block label is on the back
of the access door in the driver side
rear trim panel.
Fuses Usage
F1 –
F2 Trailer Fuses Usage
F3 Folding seats
