BUICK LACROSSE 2011 Owner's Manual

Black plate (9,1)Buick LaCrosse Owner Manual - 2011
Service and Maintenance 11-9
Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter 55560894 A3128C
Engine Oil Filter
2.4L L4 Engine 12605566 PF457G
3.6L V6 Engine 89017525 PF63
Passenger Compartment Air Filter Element 13271191 CF176
Spark Plugs
2.4L L4 Engine 12620540 41–108
3.6L V6 Engine 12622561 41–109
Wiper Blades
Driver Side –65 cm (25.6 in) 25892079 —
Passenger Side –45 cm (17.7 in) 25882578 —

Black plate (10,1)Buick LaCrosse Owner Manual - 2011
11-10 Service and Maintenance

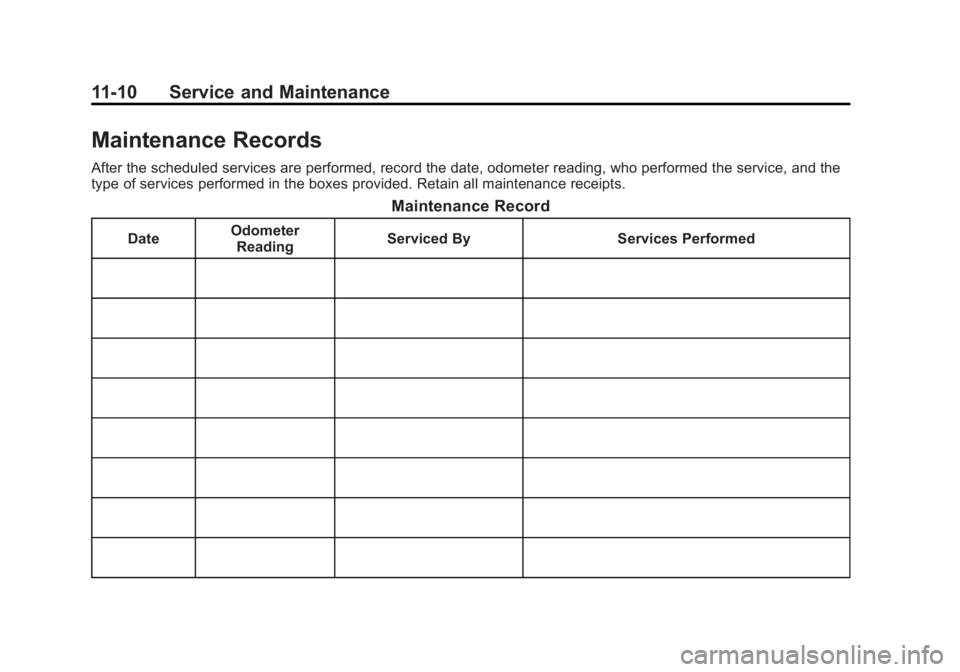

Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. Retain all maintenance receipts.
Maintenance Record
DateOdometer
Reading Serviced By Services Performed

Black plate (11,1)Buick LaCrosse Owner Manual - 2011
Service and Maintenance 11-11

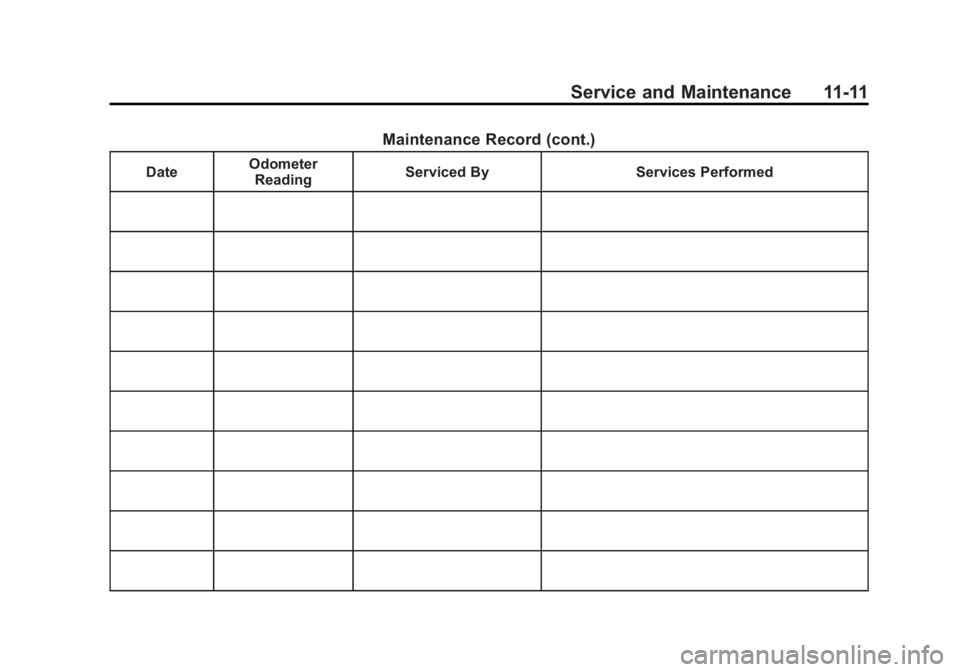

Maintenance Record (cont.)
DateOdometer
Reading Serviced By Services Performed

Black plate (12,1)Buick LaCrosse Owner Manual - 2011
11-12 Service and Maintenance

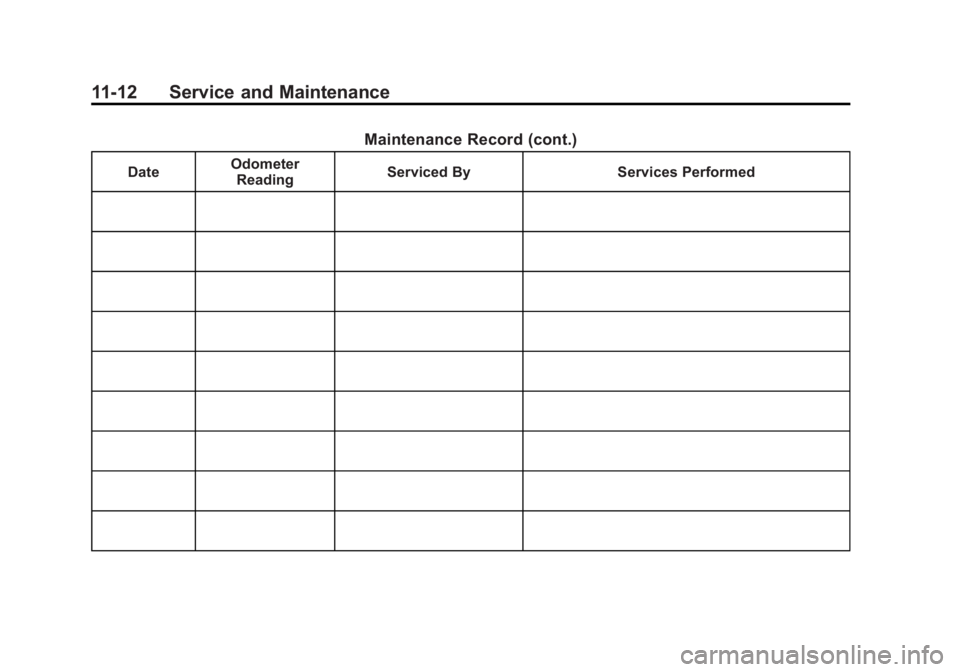

Maintenance Record (cont.)
DateOdometer
Reading Serviced By Services Performed

Black plate (1,1)Buick LaCrosse Owner Manual - 2011
Technical Data 12-1
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . 12-1
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . 12-1
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . 12-2
Engine Drive Belt Routing . . . 12-4
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the left side of the vehicle. It can be
seen through the windshield from
outside. The VIN also appears on
the Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN
is the engine code. This code
identifies the vehicle's engine,
specifications, and replacement
parts. See “Engine Specifications”
under Capacities and Specifications
on page 12‑2 for the vehicle's
engine code.
Service Parts
Identification Label
This label, in the trunk, has the
following information:
.Vehicle Identification
Number (VIN).
.Model designation.
.Paint information.
.Production options and special
equipment.
Do not remove this label from the
vehicle.

Black plate (2,1)Buick LaCrosse Owner Manual - 2011
12-2 Technical Data
Vehicle Data
Capacities and Specifications
ApplicationCapacities
Metric English
Air Conditioning Refrigerant R134a For the air conditioning system refrigerant charge
amount, see the refrigerant label located under the hood. See your dealer for more information.
Engine Cooling System 2.4L L4 Engine 7.1 L 7.5 qt
3.6L V6 Engine 9.4 L 9.9 qt
Engine Oil with Filter
2.4L L4 Engine 4.7 L 5.0 qt
3.6L V6 Engine 5.2 L 5.5 qt
Fuel Tank
AWD 74.0 L 19.5 gal
FWD 70.5 L 18.6 gal

Black plate (3,1)Buick LaCrosse Owner Manual - 2011
Technical Data 12-3
ApplicationCapacities
Metric English
Transmission Fluid* (Drain and Refill)
2.4L L4 Engine, 6–Speed Automatic 8.0 L 8.5 qt
3.6L V6 Engine, 6–Speed Automatic 9.0 L 9.5 qt
Wheel Nut Torque 150 Y110 lb ft
*See Automatic Transmission Fluid on page 10‑15 for information on checking fluid level.
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.
Engine Specifications
Engine VIN CodeTransmission Spark Plug Gap
2.4L L4 Engine CAutomatic 0.9 mm (0.035 in)
3.6L V6 Engine DAutomatic 1.10 mm (0.043 in)

Black plate (4,1)Buick LaCrosse Owner Manual - 2011
12-4 Technical Data
Engine Drive Belt Routing
2.4L L4 Engine
(Electric Power Steering)
2.4L L4 Engine
(Hydraulic Power Steering)3.6L V6 Engines

Black plate (1,1)Buick LaCrosse Owner Manual - 2011

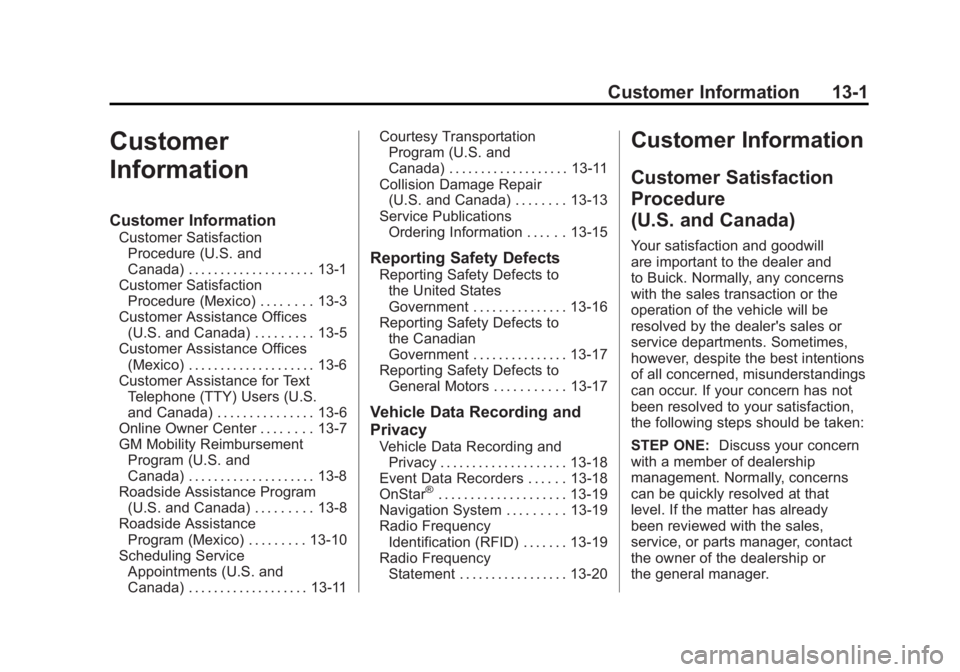

Customer Information 13-1
Customer
Information
Customer Information
Customer SatisfactionProcedure (U.S. and
Canada) . . . . . . . . . . . . . . . . . . . . 13-1
Customer Satisfaction Procedure (Mexico) . . . . . . . . 13-3
Customer Assistance Offices (U.S. and Canada) . . . . . . . . . 13-5
Customer Assistance Offices (Mexico) . . . . . . . . . . . . . . . . . . . . 13-6
Customer Assistance for Text Telephone (TTY) Users (U.S.
and Canada) . . . . . . . . . . . . . . . 13-6
Online Owner Center . . . . . . . . 13-7
GM Mobility Reimbursement Program (U.S. and
Canada) . . . . . . . . . . . . . . . . . . . . 13-8
Roadside Assistance Program (U.S. and Canada) . . . . . . . . . 13-8
Roadside Assistance Program (Mexico) . . . . . . . . . 13-10
Scheduling Service Appointments (U.S. and
Canada) . . . . . . . . . . . . . . . . . . . 13-11 Courtesy Transportation
Program (U.S. and
Canada) . . . . . . . . . . . . . . . . . . . 13-11
Collision Damage Repair (U.S. and Canada) . . . . . . . . 13-13
Service Publications Ordering Information . . . . . . 13-15
Reporting Safety Defects
Reporting Safety Defects tothe United States
Government . . . . . . . . . . . . . . . 13-16
Reporting Safety Defects to the Canadian
Government . . . . . . . . . . . . . . . 13-17
Reporting Safety Defects to General Motors . . . . . . . . . . . 13-17
Vehicle Data Recording and
Privacy
Vehicle Data Recording and
Privacy . . . . . . . . . . . . . . . . . . . . 13-18
Event Data Recorders . . . . . . 13-18
OnStar
®. . . . . . . . . . . . . . . . . . . . 13-19
Navigation System . . . . . . . . . 13-19
Radio Frequency Identification (RFID) . . . . . . . 13-19
Radio Frequency Statement . . . . . . . . . . . . . . . . . 13-20
Customer Information
Customer Satisfaction
Procedure
(U.S. and Canada)
Your satisfaction and goodwill
are important to the dealer and
to Buick. Normally, any concerns
with the sales transaction or the
operation of the vehicle will be
resolved by the dealer's sales or
service departments. Sometimes,
however, despite the best intentions
of all concerned, misunderstandings
can occur. If your concern has not
been resolved to your satisfaction,
the following steps should be taken:
STEP ONE: Discuss your concern
with a member of dealership
management. Normally, concerns
can be quickly resolved at that
level. If the matter has already
been reviewed with the sales,
service, or parts manager, contact
the owner of the dealership or
the general manager.

Black plate (2,1)Buick LaCrosse Owner Manual - 2011
13-2 Customer Information
STEP TWO:If after contacting a
member of dealership management,
it appears your concern cannot
be resolved by the dealership
without further help, in the U.S.,
call 1-800-521-7300. In Canada,
contact General Motors of Canada
Customer Communication Centre
at 1‐800-263-3777 (English) or
1-800-263-7854 (French).
We encourage you to call the
toll-free number in order to give
the inquiry prompt attention. Have
the following information available
to give the Customer Assistance
representative:
.Vehicle Identification
Number (VIN). This is available
from the vehicle registration or
title, or the plate at the top left
of the instrument panel and
visible through the windshield.
.Dealership name and location.
.Vehicle delivery date and
present mileage. When contacting Buick, remember
that your concern will likely be
resolved at a dealer's facility.
That is why we suggest following
Step One first.
STEP THREE
—U.S. Owners:
Both General Motors and the
dealer are committed to making
sure you are completely satisfied
with the new vehicle. However,
if you continue to remain unsatisfied
after following the procedure
outlined in Steps One and Two,
you can file with the Better Business
Bureau (BBB) Auto Line
®Program
to enforce your rights.
The BBB Auto Line Program is an
out-of-court program administered
by the Council of Better Business
Bureaus to settle automotive
disputes regarding vehicle repairs or
the interpretation of the New Vehicle
Limited Warranty. Although you may
be required to resort to this informal
dispute resolution program prior
to filing a court action, use of the
program is free of charge and your case will generally be heard within
40 days. If you do not agree with
the decision given in your case,
you may reject it and proceed with
any other venue for relief available
to you.
You may contact the BBB Auto
Line Program using the toll-free
telephone number or write them
at the following address:
BBB Auto Line Program
Council of Better Business
Bureaus, Inc.
4200 Wilson Boulevard
Suite 800
Arlington, VA 22203-1838
Telephone: 1-800-955-5100
www.dr.bbb.org/goauto
This program is available in
all 50 states and the District of
Columbia. Eligibility is limited by
vehicle age, mileage, and other
factors. General Motors reserves
the right to change eligibility
limitations and/or discontinue
its participation in this program.
