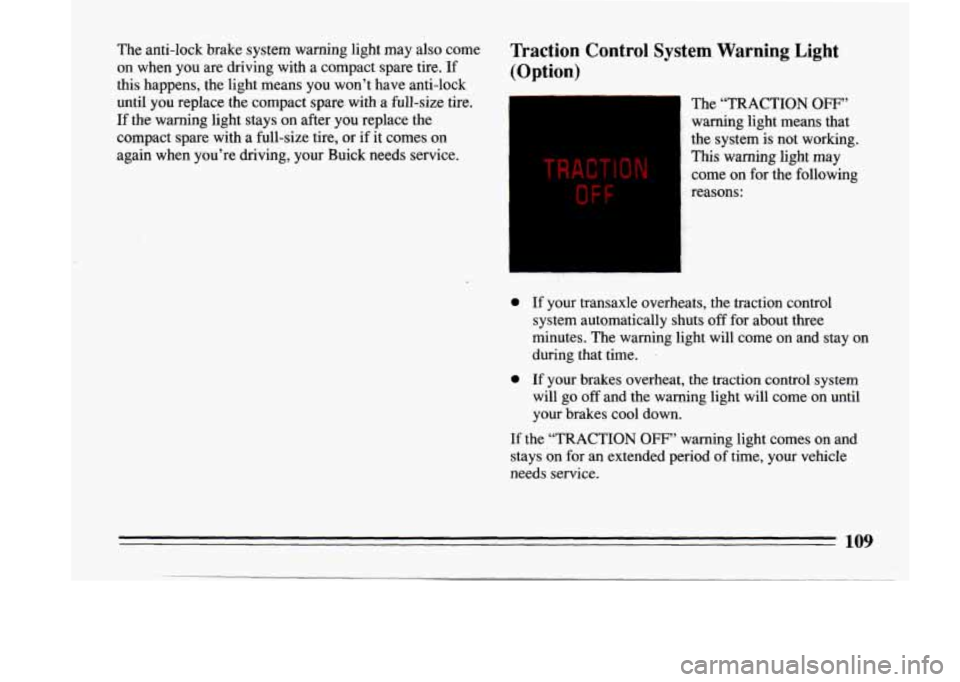

The anti-lock brake system warning light may also come Traction Control System Warning Light
on when you are driving with a compact spare tire. If (Option)
this happens, the light means you won’t have anti-lock
until you replace the compact spare with a full-size tire.
If the warning light stays on after you replace the
compact spare with a full-size tire, or
if it comes on
again when you’re driving, your Buick needs service.
TRACTION
OFF
The “TRACTION OFF”
warning light means that
the system is not working.
This warning light may
come on for the following
reasons:
0 If your transaxle overheats, the traction control
system automatically shuts
off for about three
minutes. The warning light will come on and stay on
during that time.
.
0 If your brakes overheat, the traction control system
will
go off and the warning light will come on until
your brakes cool down.
If the “TRACTION
OFF” warning light comes on and
stays on for an extended period
of time, your vehicle
needs service.
109

/I CAUTION:
If you let your tires spin at high speed when the
“TRACTION OFF“ warning light is on, they can
explode and you or others could be injured. And,
spinning your tires with the “TRACTION OFF”
warning light on can cause the transaxle to
overheat
or can cause other problems. That
could
cause an engine fire or other damage.
When you’re stuck,
spin the wheels as little as
possible. Don’t spin the wheels above 35 mph
(55 km/hl as shown on the speedometer.
I
:’NOTICE:
Spinning your wheels whel. ..?e “Tl .A (ION
OFF” warning light is on can destroy parts 01
your vehicle as well as the tires. If you spin your
wheels too fast while shifting your transaxle
back and forth, you can destroy your transaxle.
rheel!
s little B
I
When yor-’-e stud
possible. bin

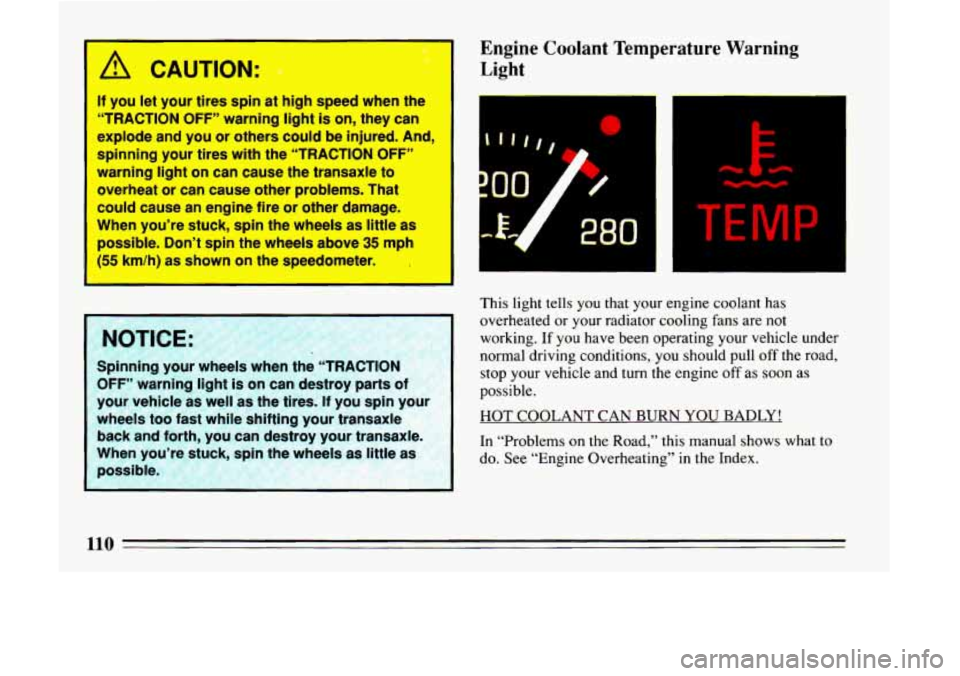

Engine Coolant
Temperature Warning
Light
TEMP
This light tells you that your engine coolant has
overheated or your radiator cooling fans are
not
working. If you have been operating your vehicle under
normal driving conditions, you should
pull off the road,
stop your vehicle and turn the engine
off as soon as
possible.
HOT COOLANT CAN BURN YOU BADLY!
In “Problems on the Road,” this manual shows what to
do. See “Engine Overheating”
in the Index.

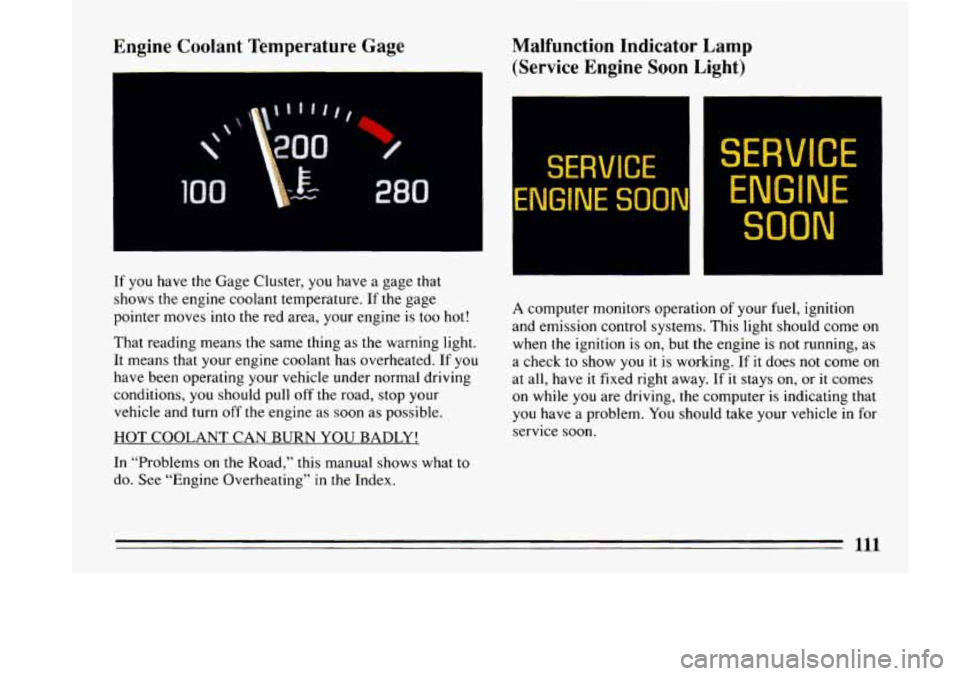

Engine Coolant Temperature Gage
If you have the Gage Cluster, you have a gage that
shows the engine coolant temperature. If the gage
pointer moves into the red area, your engine
is too hot!
That reading means the same thing as the warning light.
It means that
your engine coolant has overheated. If you
have been operating your vehicle under normal driving
conditions, you should pull off the road, stop your
vehicle and turn off
the engine as soon as possible.
HOT COOLANT CAN BURN YOU BADLY!
In “Problems on the Road,” this manual shows what to
do. See “Engine Overheating”
in the Index.
Malfunction Indicator Lamp
(Service Engine Soon Light)
SERVICE
,ENGINE SOON
SERVICE
ENGINE
SOON
A computer monitors operation of your fuel, ignition
and emission control systems. This light should come
on
when the ignition is on, but the engine is not running, as
a check to show
you it is working. If it does not come on
at all, have
it fixed right away. If it stays on, or it comes
on while you are driving, the computer
is indicating that
you have a problem. You should take your vehicIe in for
service soon.
111

I NOTICE:
If you keep driving your vehicle wlrn rnis llgr In,
after a while the emission controls won’t worK as
well, your fuel economy won’t be as good and
your engine may not run
as smoothly. This could

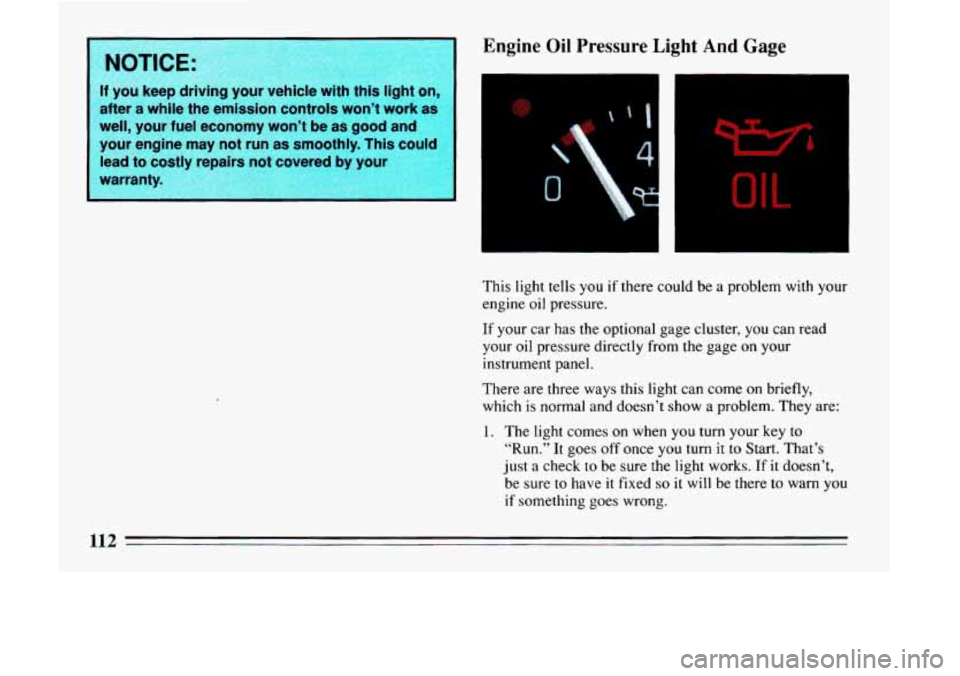

Engine Oil Pressure Light And Gage
i
This light tells you if there could be a problem with your
engine oil pressure.
If your car has the optional gage cluster, you can read
your oil pressure directly from the gage on your
instrument panel.
There are three ways this light can come
on briefly,
which is normal and doesn’t show a problem. They are:
1. The light comes on when you turn your key to
“Run.”
It goes off once you turn it to Start. That’s
just a check to be sure
the light works. If it doesn’t,
be sure to have
it fixed so it will be there to warn you
if something goes wrong.
112

2. If you’re “idling” at a stop sign, the light may blink
3. If you make a hard stop, the light may come on for a
on and then off.
moment.
But, when this light comes
on and stays on, it means
oil isn’t going through your engine properly.
You could
be low on oil, or you might have some other oil
problem.
I
A CAUTION:
Don’t keep driving if the 001 pressure is low. If
you do, your engine can become so hot that it
catches fire. You or others could be burned.
Check your oil
as soon as possible and have
your vehicle serviced.
I
I
problems can ed
your warranty. I

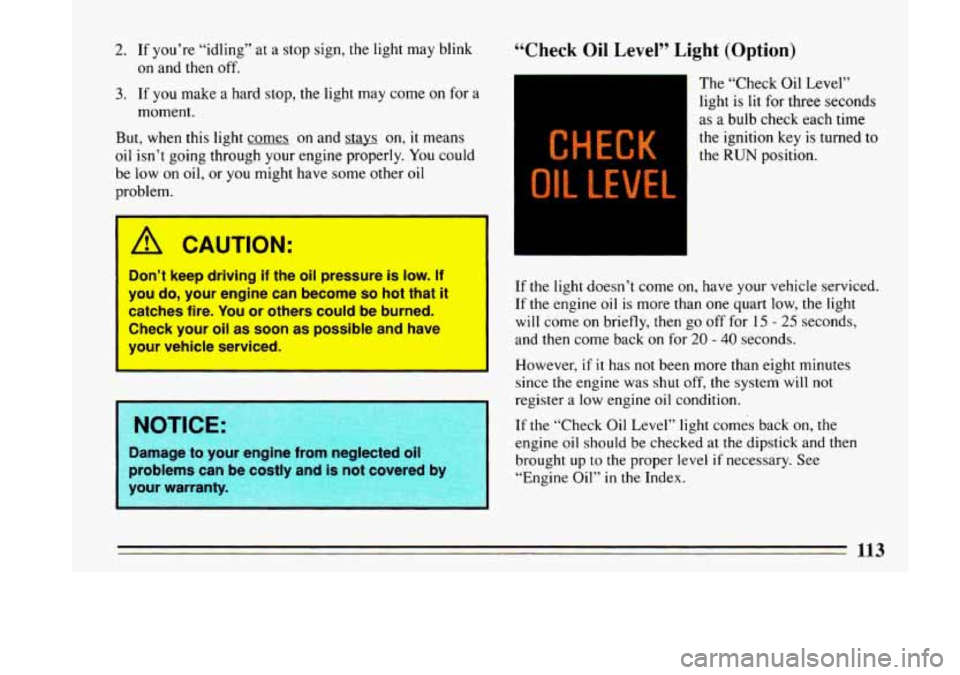

‘‘Check Oil Level” Light (Option)
CHECK
OIL LEVEL.,
The “Check Oil Level”
light is lit for three seconds
as a bulb check each time
the ignition key is turned to
the RUN position.
If
the light doesn’t come on, have your vehicle serviced.
If the engine
oil is more than one quart low, the light
will come
on briefly, then go off for 15 - 25 seconds,
and then come back
on for 20 - 40 seconds.
However,
if it has not been more than eight minutes
since the engine was
shut off, the system will not
register a low engine oil condition.
If the “Check Oil Level” light comes back on, the
engine oil should be checked at the dipstick and then
brought up
to the proper level if necessary. See
“Engine Oil”
in the Index.

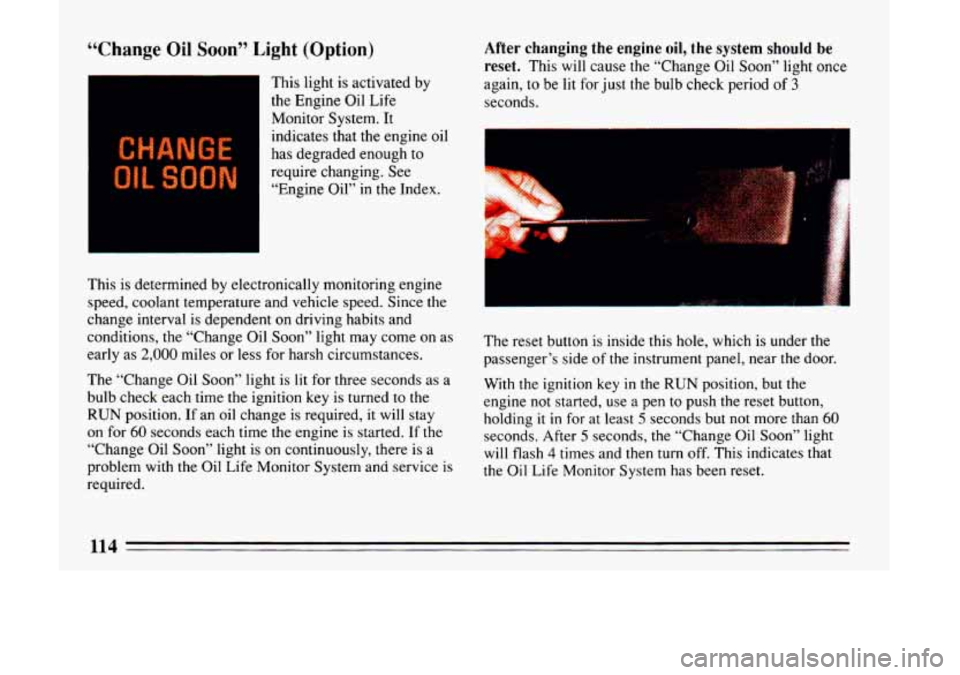

“Change Oil Soon’’ Light (Option)
This light is activated by
the Engine Oil Life
Monitor System. It
indicates that the engine oil
has degraded enough to
require changing. See
“Engine Oil”
in the Index.
After changing the engine oil, the system should be
reset.
This will cause the “Change Oil Soon” light once
again, to be lit for just
the bulb check period of 3
seconds.
This
is determined by electronically monitoring engine
speed, coolant temperature and vehicle speed. Since the
change interval is dependent on driving habits and
conditions, the “Change Oil Soon” light may come on as
early as
2,000 miles or less for harsh circumstances.
The “Change Oil Soon” light is lit for three seconds as a
bulb check each time the ignition key is turned to
the
RUN position. If an oil change is required, it will stay
on for 60 seconds each time the engine is started. If the
“Change Oil Soon” light is on continuously, there is a
problem with the Oil Life Monitor System and service
is
required. The reset button
is inside this hole, which is under the
passenger’s side of the instrument panel, near the door.
With the ignition key in
the RUN position, but the
engine not started, use a pen
to push the reset button,
holding
it in for at least 5 seconds but not more than 60
seconds. After 5 seconds, the “Change Oil Soon” light
will flash
4 times and then turn off. This indicates that
the Oil Life Monitor System has been reset.
1lA
I

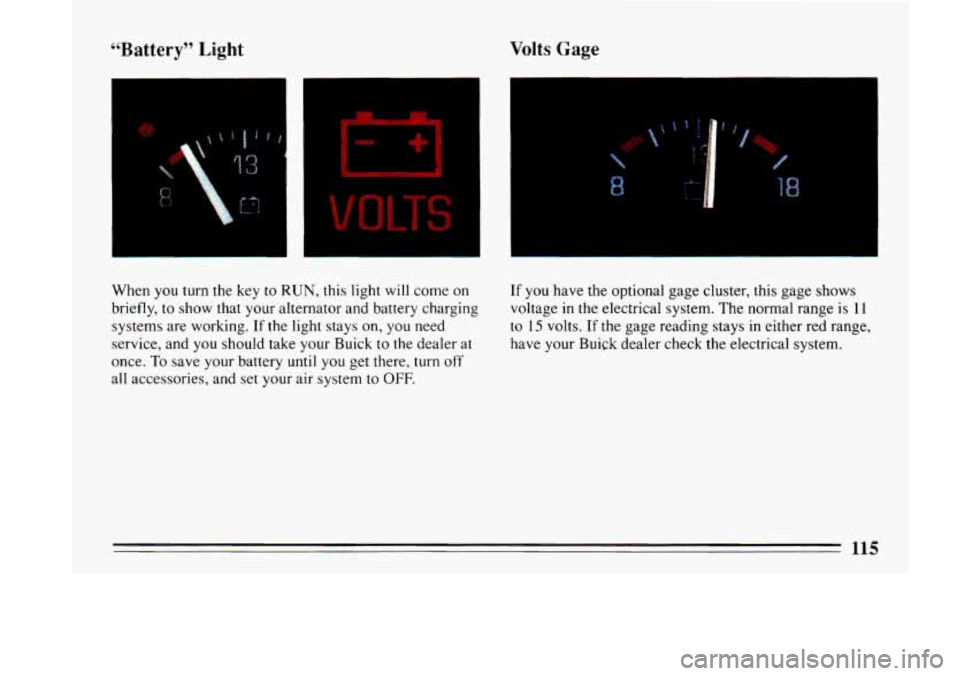

Volts Gage
OLTS
When you turn the key to RUN, this light will come on If you have the optional gage cluster, this gage shows
briefly,
to show that your alternator and battery charging voltage in the electrical system. The normal range is 11
systems are working. If the light stays on, you need to 15 volts. If the gage reading stays in either red range,
service, and you should take your Buick
to the dealer at have your Buick dealer check the electrical system.
once.
To save your battery until you get there, turn off
all accessories, and set your air system to OFF.
115

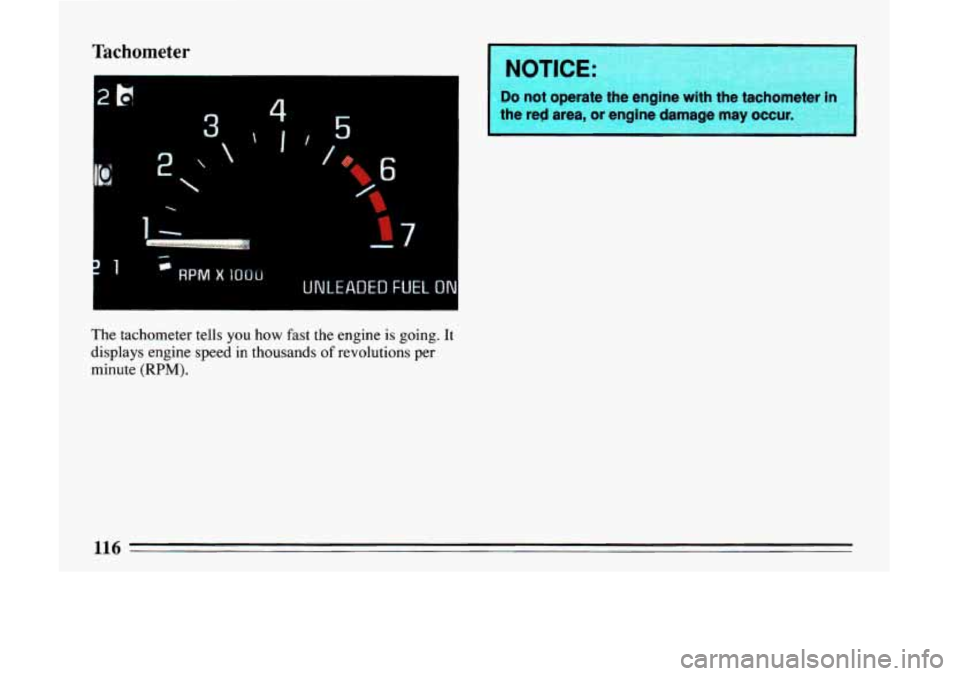

Tachometer
2B
2'


I 1

4
I I
1-
5
c
z RPM X 1OOU
UNLEADED FUEL ON
The tachometer tells you how fast the engine is going. It
displays engine speed in thousands of revolutions per
minute
(RPM).
I NOTICE: I
I
Do not operate the engine with the tachorn
the red area, or engine damage
may occur. I

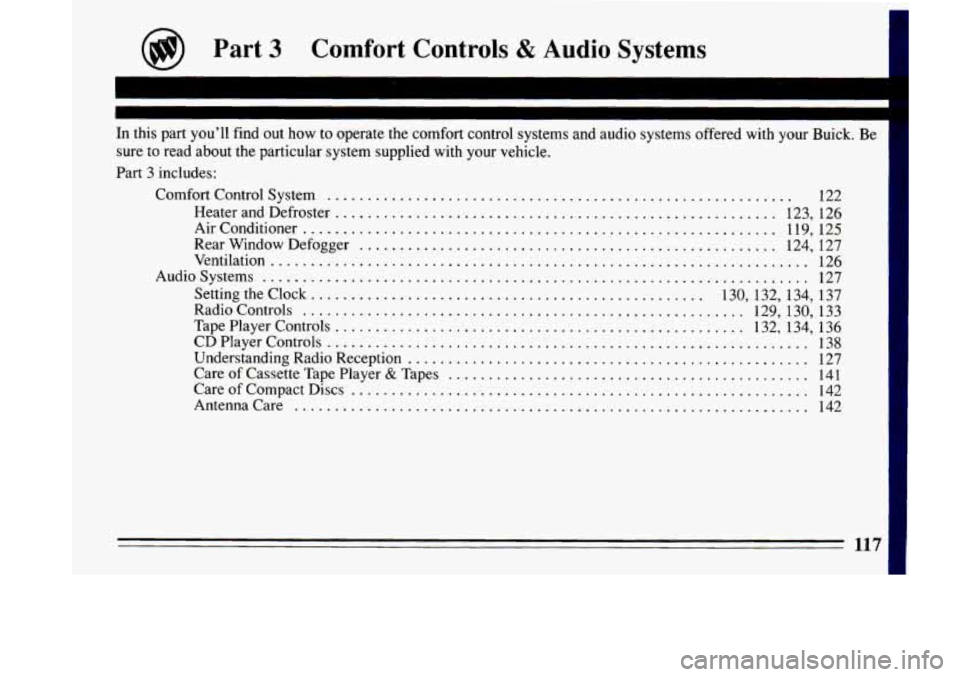

@ Part 3 Comfort Controls & Audio Systems
In this part you’ll find out how to operate the comfort control systems and audio systems offered with your Buick . Be
sure to read about the particular system supplied with your vehicle
.
Part 3 includes:
Comfort Control System
........................................................ 122
Heater and Defroster
....................................................... 123. 126
Airconditioner
........................................................... 119. 125
Rear Window Defogger
.................................................... 124. 127
Ventilation
................................................................... 126
Audiosystems
.................................................................... 127
Settingtheclock
................................................. 130. 132. 134. 137
RadioControls
....................................................... 129. 130. 133
TapePlayerControls
................................................... 132. 134. 136
CDPlayerControls
............................................................ 138
Understanding Radio Reception .................................................. 127
CareofCompactDiscs
......................................................... 142
Antennacare
................................................................ 142
Care
of Cassette
Tape Player & Tapes ............................................. 141
117
-

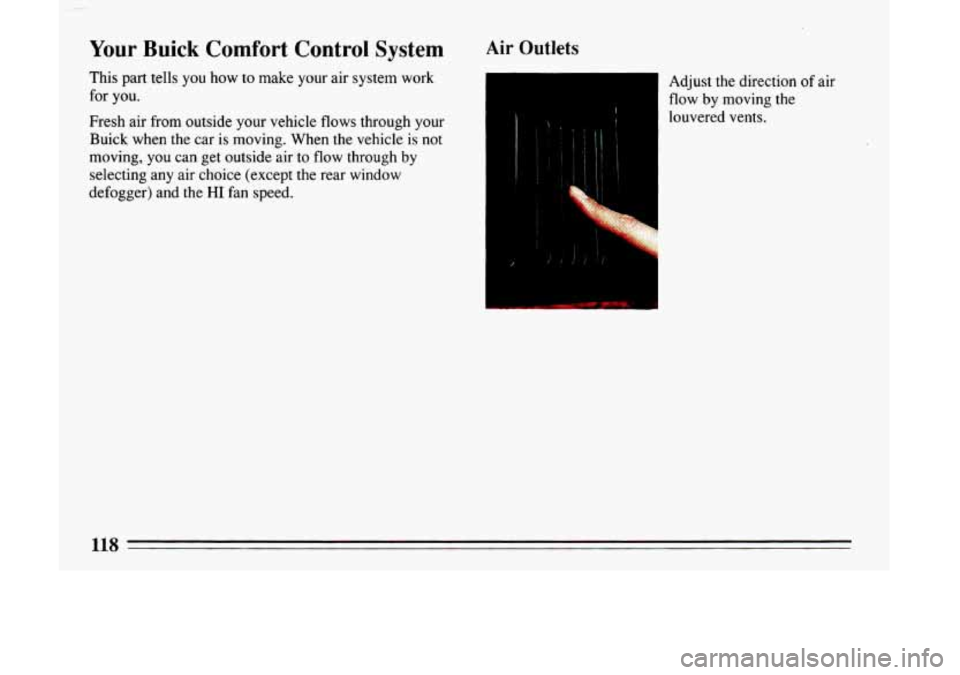

Your Buick Comfort Control System
This part tells you how to make your air system work
for you.
Fresh air from outside your vehicle flows through your
Buick when the car
is moving. When the vehicle is not
moving, you can get outside air to flow through
by
selecting any air choice (except the rear window
defogger) and the
HI fan speed.
Air Outlets
1
Adjust the direction of air
flow by moving the
I
louvered vents.
