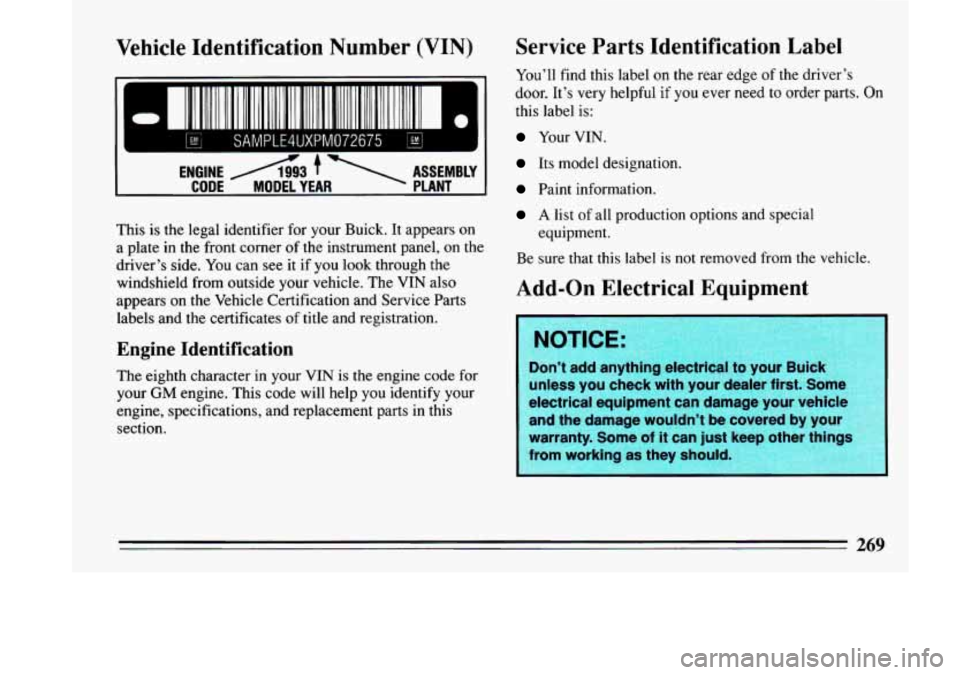

Vehicle Identification Number (VIN)
ENGINE A3 f ASSEMBLY
~ CODE MODEL YEAR PLANT
This is the legal identifier for your Buick. It appears on
a plate in the front corner
of the instrument panel, on the
driver’s side. You can see it if you look through the
windshield from outside your vehicle.
The VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates
of title and registration.
Engine Identification
The eighth character in your VIN is the engine code for
your
GM engine. This code will help you identify your
engine, specifications, and replacement parts in this
section.
Service Parts Identification Label
You’ll find this label on the rear edge of the driver’s
door.
It’s very helpful if you ever need to order parts. On
this label is:
Your VIN.
Its model designation.
Paint information.
A list of all production options and special
Be sure that this label is
not removed from the vehicle.
equipment.
Add-on
Electrical Equipment
unless you check with your dealer first. Some
electrical equipment can damage your vehicle
and the damage wouldn’t be covered by your
warranty. Some
of it can just kee
from working as they should.

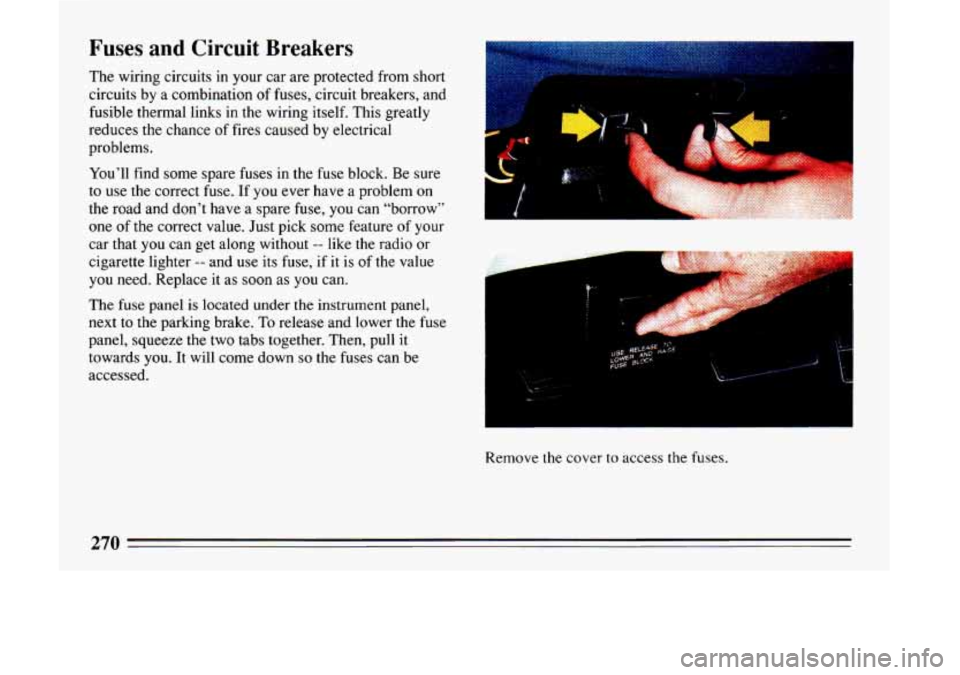

Fuses and Circuit Breakers
The wiring circuits in your car are protected from short
circuits by a combination
of fuses, circuit breakers, and
fusible thermal links
in the wiring itself. This greatly
reduces the chance
of fires caused by electrical
problems.
You’ll find some spare
fuses in the fuse block. Be sure
to use the correct fuse.
If you ever have a problem on
the road and don’t have a spare fuse,
you can “borrow”
one
of the correct value. Just pick some feature of your
car that
you can get along without -- like the radio or
cigarette lighter
-- and use its fuse, if it is of the value
you need. Replace it as soon as you can.
The fuse panel
is located under the instrument panel,
next to the parking brake.
To release and lower the fuse
panel, squeeze the two tabs together. Then, pull it
towards you.
It will come down so the fuses can be
accessed.
c m
k
Remove the cover to access the fuses.
270

To put the fuse panel back to its original position,
squeeze the two tabs together and push the panel up.
r
E
6
P-
..
-

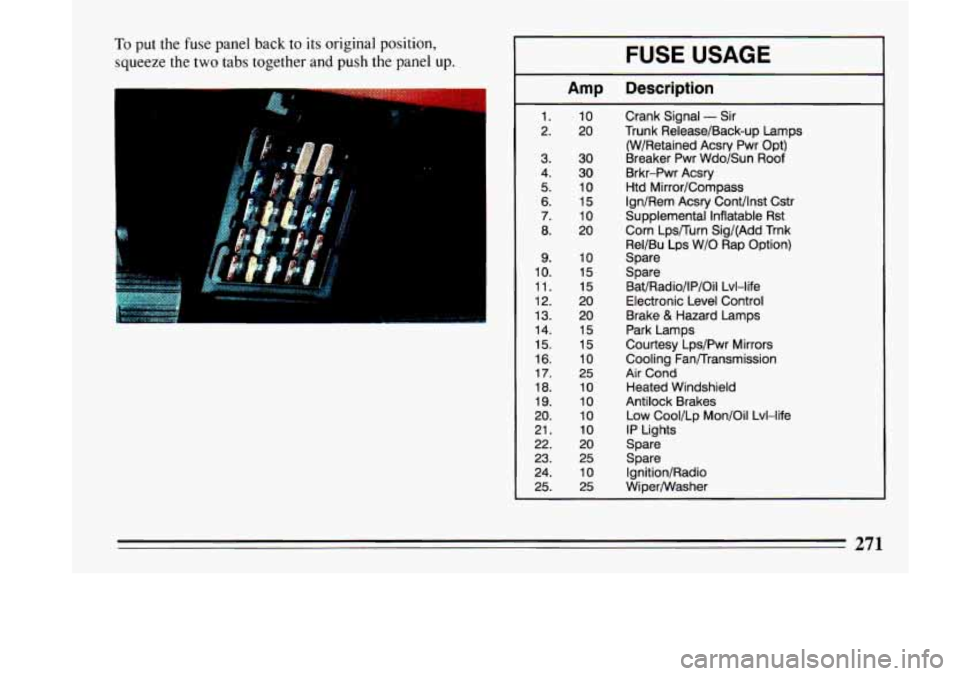

FUSE USAGE
--- ~
Amp Description
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25. 10
20
30
30
10
15
10
20
10
15
15
20
20
15 15
10
25
10
10 10
10
20
25
10
25
Crank Signal - Sir
Trunk Release/Back-up Lamps (W/Retained Acsrv Pwr Opt)
Breaker Pwr Wdo/Sun Roof
Brkr-Pwr Acsry
Htd Mirror/Compass
Ign/Rem Acsry Cont/lnst Cstr
Supplemental Inflatable
Rst
Corn Lpsflurn Sig/(Add Trnk
Rel/Bu Lps W/O Rap Option)
Spare
Spare
Bat/Radio/lP/Oil Lvl-life
Electronic Level Control
Brake
& Hazard Lamps
Park Lamps
Courtesy Lps/Pwr Mirrors
Cooling Fanflransmission
Air Cond
Heated Windshield
Antilock Brakes Low Cool/Lp Mon/Oil Lvl-life
IP Lights
Spare
Spare Ignition/Radio
WiperWasher
271

-..
I 7
GOOD FUSE
f7-7 6
FUSE
GM PART NO. RATING COLOR
IIU
12004003 ................... 3 AMP VIOLET
12004005
................... 5 AMP TAN
12004006
................... 7.5 AMP BROWN
12004007
................... 10 AMP RED
12004008
................... 15 AMP LIGHT BLUE
12004009
................... 20 AMP YELLOW
12004010
................... 25 AMP WHITE
12004011
................... 30 AMP LIGHT GREEN

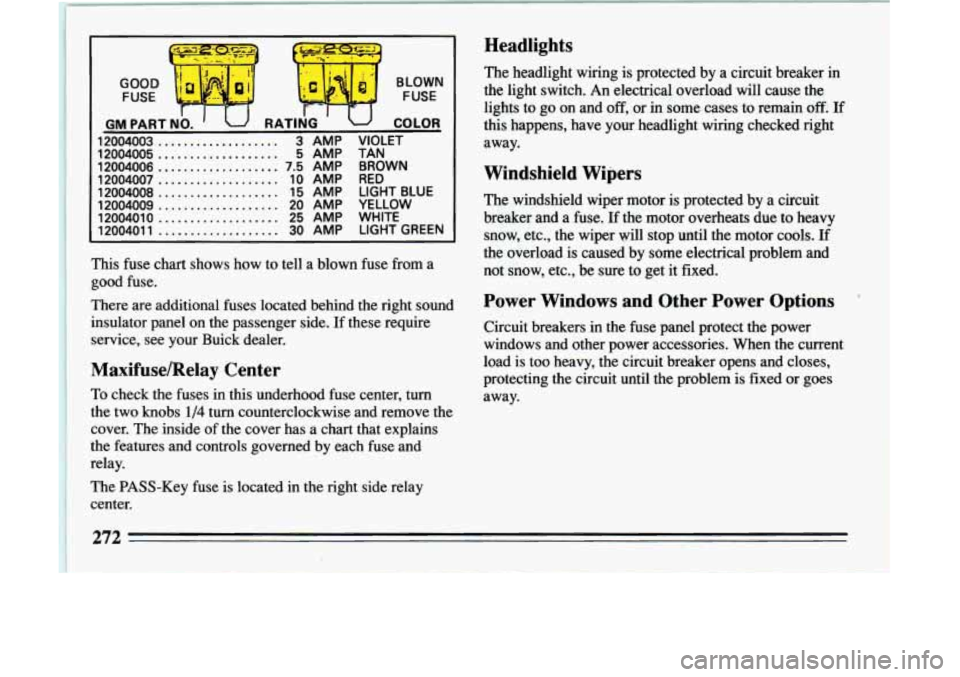

This fuse chart shows how to tell a blown fuse from a
good fuse.
There are additional fuses located behind the right sound
insulator panel on the passenger side. If these require service, see your Buick dealer.
Maxifuse/Relay Center
To check the fuses in this underhood fuse center, turn
the two knobs 1/4 turn counterclockwise and remove the
cover. The inside
of the cover has a chart that explains
the features and controls governed by each fuse and
relay.
The PASS-Key fuse is located in the right side relay center.
Headlights
The headlight wiring is protected by a circuit breaker in
the light switch. An electrical overload will cause the
lights to go on and
off, or in some cases to remain off. If
this happens, have your headlight wiring checked right
away.
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and
a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools. If
the overload is caused by
some electrical problem and
not snow, etc., be sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the.current
load is too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is fixed or goes
away.
272

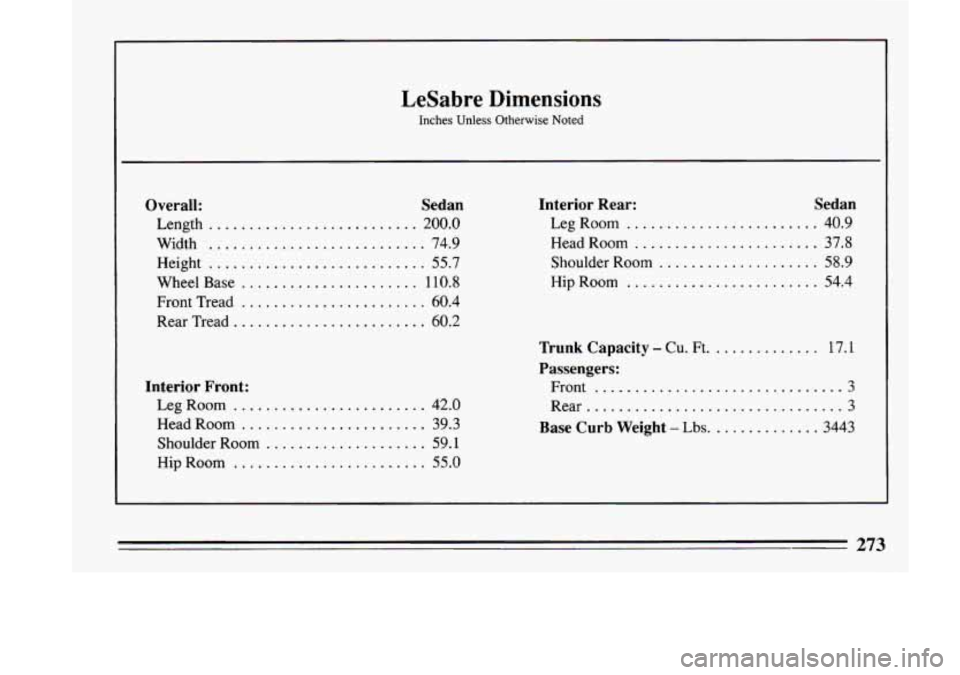

LeSabre Dimensions
Inches Unless Otherwise Noted
Overall: Sedan
Length .......................... 200.0
Width ........................... 74.9
Height
........................... 55.7
Wheel Base ...................... 110.8
Front Tread
....................... 60.4
Rear Tread ........................ 60.2
Interior Front:
Leg Room ........................ 42.0
Head Room
....................... 39.3
Shoulder Room
.................... 59.1
Hip Room ........................ 55.0
Interior Rear: Sedan
Leg Room ........................ 40.9
Head
Room ....................... 37.8
Shoulder
Room .................... 58.9
Hip Room ........................ 54.4
Trunk Capacity . Cu . Ft .............. 17.1
Passengers:
Front ............................... 3
Rear ................................ 3
Base Curb Weight - Lbs .............. 3443

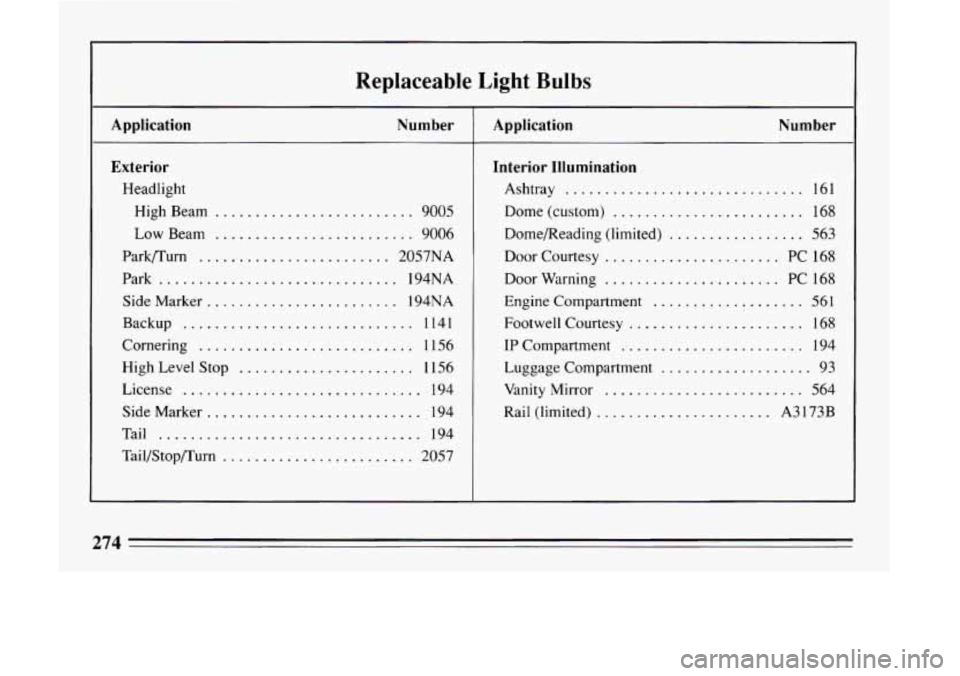

Replaceable Light Bulbs
Application Number
Exterior
Headlight High Beam
......................... 9005
Low Beam
......................... 9006
Parknurn
........................ 2057NA
Park
.............................. 194NA
Side Marker
........................ 194NA
Backup
............................. 1141
Cornering
........................... 1156
High Level Stop
...................... 1156
License
.............................. 194
Side Marker
........................... 194
Tail ................................. 194
Tail/Stop/Turn
........................ 2057
Application Number
Interior Illumination
Ashtray .............................. 161
Dome (custom)
........................ 168
Domemeading (limited)
................. 563
Door Courtesy ...................... PC 168
Door Warning
...................... PC 168
Engine Compartment
................... 561
Footwell Courtesy ...................... 168
IP Compartment ....................... 194
Luggage Compartment
................... 93
Vanity Mirror
......................... 564
Rail (limited) ...................... A3173B
274

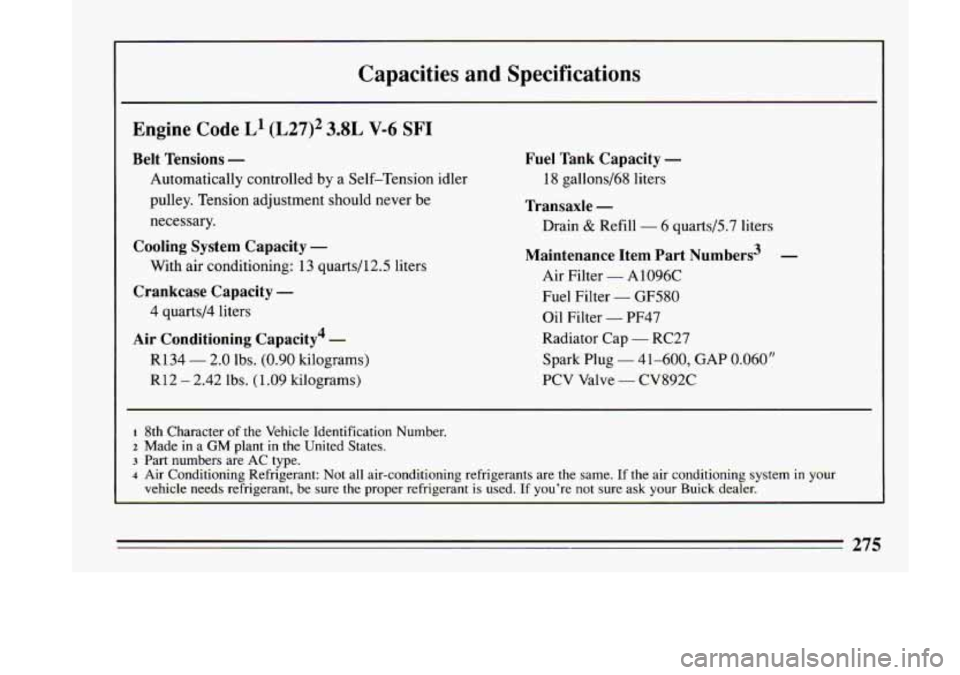

Capacities and Specifications
Engine Code L1 (L27)2 3.8L V-6 SF1
Belt Tensions -
Automatically controlled by a Self-Tension idler
pulley. Tension adjustment should never
be
necessary.
Cooling System Capacity -
Crankcase Capacity -
Air Conditioning Capacity4 -
With air conditioning: 13 quarts/l2.5 liters
4 quarts/4 liters
R134
- 2.0 lbs. (0.90 kilograms)
R12 - 2.42 lbs. ( 1.09 kilograms)
Fuel Tank Capacity -
18 gallons/68 liters
Transaxle -
Drain & Refill - 6 quarts/5.7 liters
Maintenance Item Part Numbers3 -
Air Filter - A1096C
Fuel Filter
- GF580
Oil Filter
- PF47
Radiator Cap - RC27
Spark Plug
- 41-600, GAP 0.060”
PCV Valve
- CV892C
1 8th Character of the Vehicle Identification Number.
2 Made in a GM plant in the United States.
3 Part numbers are AC type.
4 Air Conditioning Refrigerant: Not all air-conditioning refrigerants are the same. If the air conditioning system in your
vehicle needs refrigerant, be sure the proper refrigerant
is used. If you’re not sure ask your Buick dealer.

. ...
I931 Buick Model 90
276

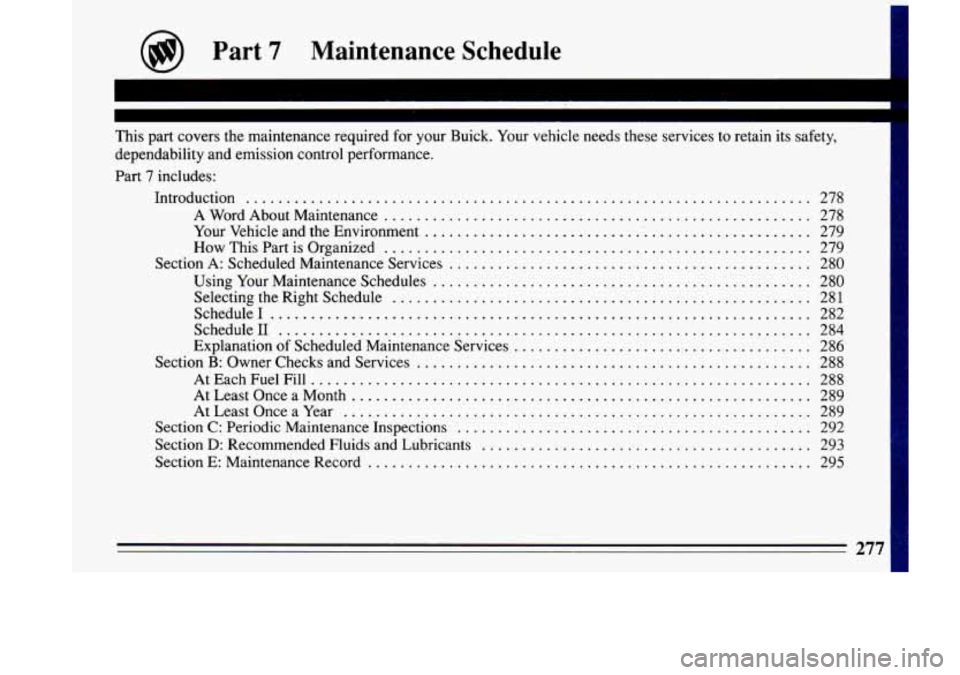

This part covers the maintenance required for your Buick . Your vehicle needs these services to retain its safety.
dependability and emission control performance
.
Part 7 includes:
Introduction
...................................................................... 278
A Word About Maintenance
..................................................... 278
Your Vehicle and the Environment
................................................. 279
Section A: Scheduled Maintenance Services
............................................. 280
Using Your Maintenance Schedules
............................................... 280
Selecting the Right Schedule
.................................................... 281
Schedule1
................................................................... 282
Schedule11
.................................................................. 284
Explanation of Scheduled Maintenance Services ..................................... 286
Section
B: Owner Checks and Services ................................................. 288
AtEachFuelFill
.............................................................. 288
AtLeastOnceaMonth
......................................................... 289
AtLeastOnceaYear
.......................................................... 289
Section
C: Periodic Maintenance Inspections ............................................ 292
Section
D: Recommended Fluids and Lubricants ......................................... 293
Section
E: Maintenance Record ....................................................... 295
How
This Part is Organized
..................................................... 279
277

I IMPORTANT:
KEEP ENGINE OIL AT THE PROPER
LEVELANDCHANGEAS RECOMMENDED
1
Protection I
Plan I
Have you purchased the GM Protection Plan? The
Plan supplements your new vehicle warranties. See
your Buick dealer for details.

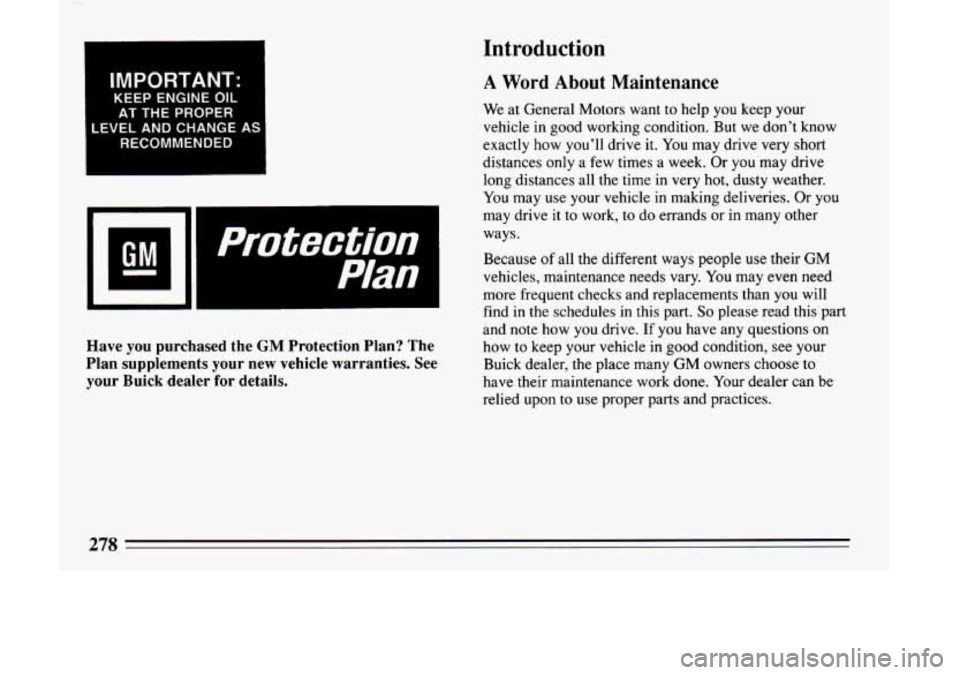

Introduction
A Word About Maintenance
We at General Motors want to help you keep your
vehicle in good working condition. But we don’t know
exactly
how you’ll drive it. You may drive very short
distances
only a few times a week. Or you may drive
long distances all the time in very hot, dusty weather.
You may use your vehicle in making deliveries. Or you
may drive it to work, to do errands or in many other
ways.
Because of all the different ways people
use their GM
vehicles, maintenance needs vary. You may even need
more frequent checks and replacements than you will
find in the schedules in this part.
So please read this part
and note how
you drive. If you have any questions on
how to keep your vehicle in good condition,
see your
Buick dealer, the place many GM owners choose to
have their maintenance work done. Your dealer can be
relied upon to
use proper parts and practices.
278
