key BUICK LESABRE 1993 Owners Manual

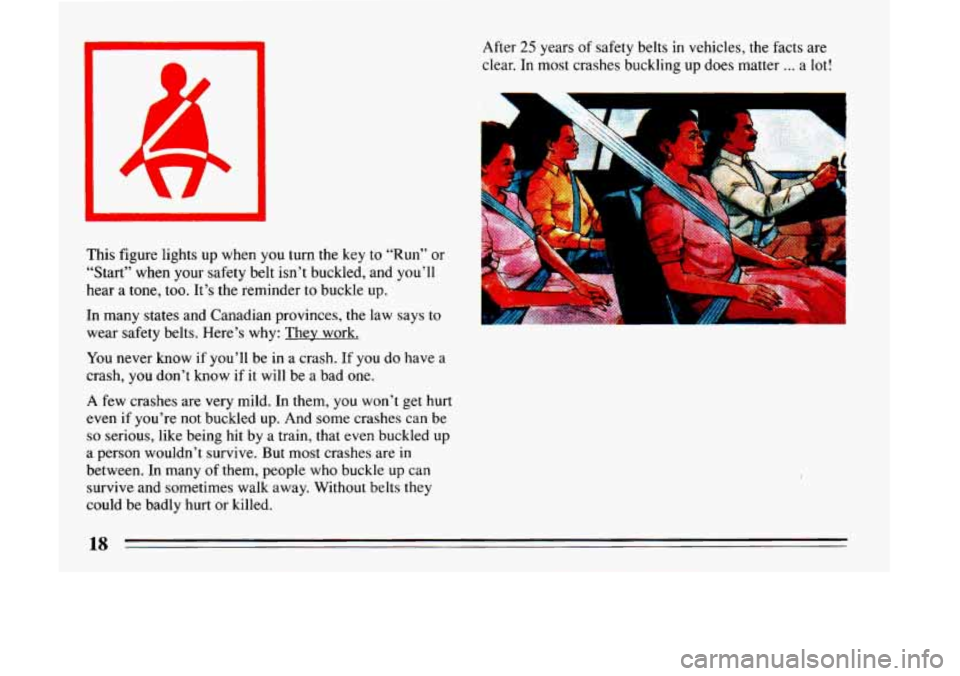

This figure lights up when you turn the key to “Run” or
“Start” when your safety belt isn’t buckled, and you’ll
hear a tone, too. It’s the reminder to buckle up.
In many states and Canadian provinces, the law says to
wear safety belts. Here’s why: They work.
You never know if you’ll be in a crash. If you do have a
crash, you don’t know if it will be a bad one.
A few crashes are very mild. In them, you won’t get hurt
even if you’re not buckled up. And some crashes can be
so serious, like being hit by a train, that even buckled up
a person wouldn’t survive. But most crashes are
in
between. In many of them, people who buckle up can
survive and sometimes walk away. Without belts they
could be badly hurt
or killed. After
25 years of safety belts in vehicles, the
facts are
clear.
In most crashes buckling up does matter ... a lot!
18

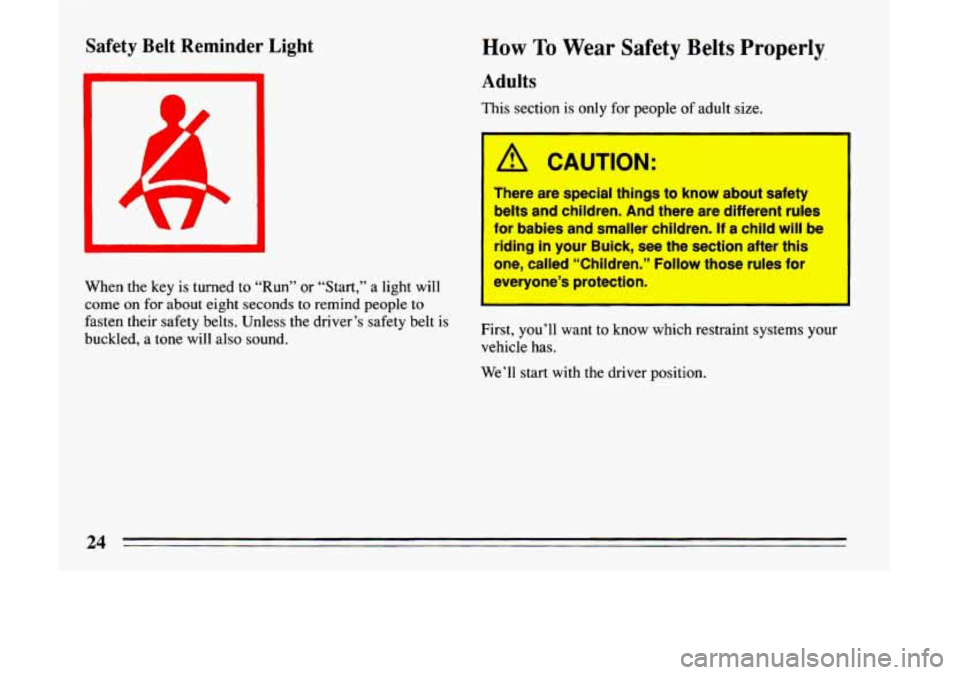

Safety Belt Reminder Light
When the key is turned to “Run” or “Start,” a light will
come
on for about eight seconds to remind people to
fasten their safety belts. Unless the driver’s safety belt is
buckled,
a tone will also sound.
How To Wear Safety Belts Properly,
Adults
This section is only for people of adult size.
’ /d CAUTION:
There are special things to know about safety
belts and children. And there are different rules
far babies and smaller children. If a child will be
I dng in your Buick, see the section after this
nne, called “Children.” Follow those rules for
ev.?ryone’s protection.
I
First, you’ll want to know which restraint systems your
vehicle has.
We’ll start with the driver position.
24

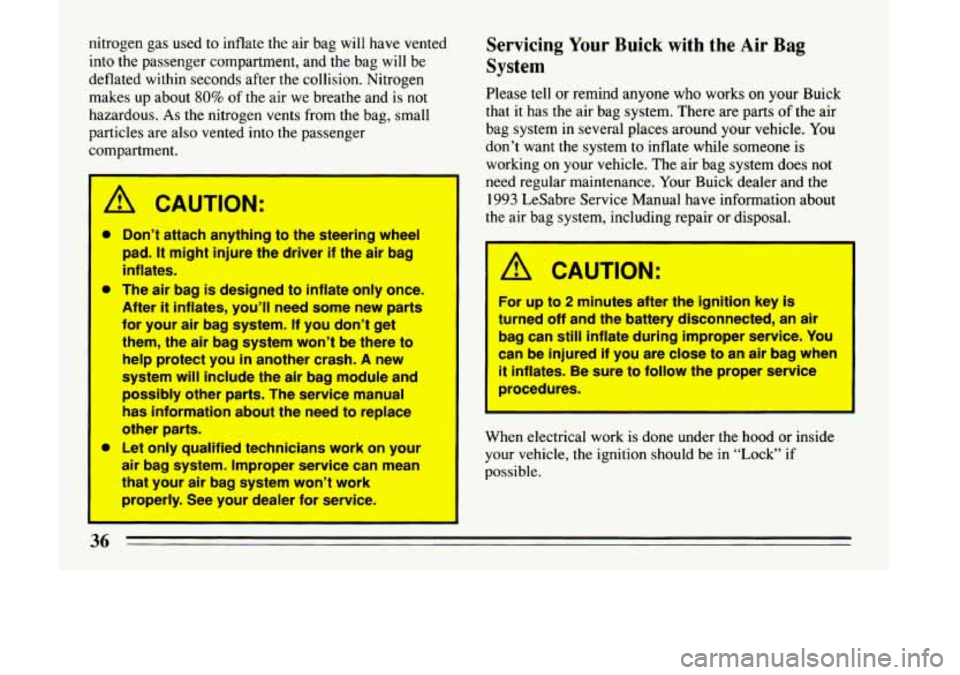

nitrogen gas used to inflate the air bag will have vented
into the passenger compartment, and the bag will be
deflated within seconds after
the collision. Nitrogen
makes up about
80% of the air we breathe and is not
hazardous.
As the nitrogen vents from the bag, small
particles are also vented into the passenger
compartment.
A CAUTION:
’
0
I’
Don’t attach anything to the steering wheel
pad.
It might injure the driver if the air bag
inflates.
The air bag
is designed to inflate only once.
After
it inflates, you’ll need some new parts
for your air bag system. If you don’t get
them, the air bag system won’t
be there to
help protect you
in another crash. A new
system will include the air bag module and
possibly other parts. The service manual
has information about the need to replace
other
parts.
Let only qualified technicians work on your
air-bag system. Improper service can mean
I
.‘that your air bag system won’t work
properly.
See your dealer fgr service.
Servicing Your Buick with the Air Bag
System
Please tell or remind anyone who works on your Buick
that
it has the air bag system. There are parts of the air
bag system
in several places around your vehicle. You
don’t want the system to inflate while someone is
working on your vehicle. The air bag system does not
need regular maintenance, Your Buick dealer and the
1993 LeSabre Service Manual have information about
the air bag system, including repair or disposal.
A CAUTION:
For up t0.2 minutes after the ignitlon key is
turned off and the battery disconnected, an air
bag can
still inflate during improper service. You
can be injured if you are close to an air bag when
it inflates. Be sure
to follow the proper service
procedures.
When electrical work is done under the hood or inside
your vehicle, the ignition should be
in “Lock” if
possible.
36

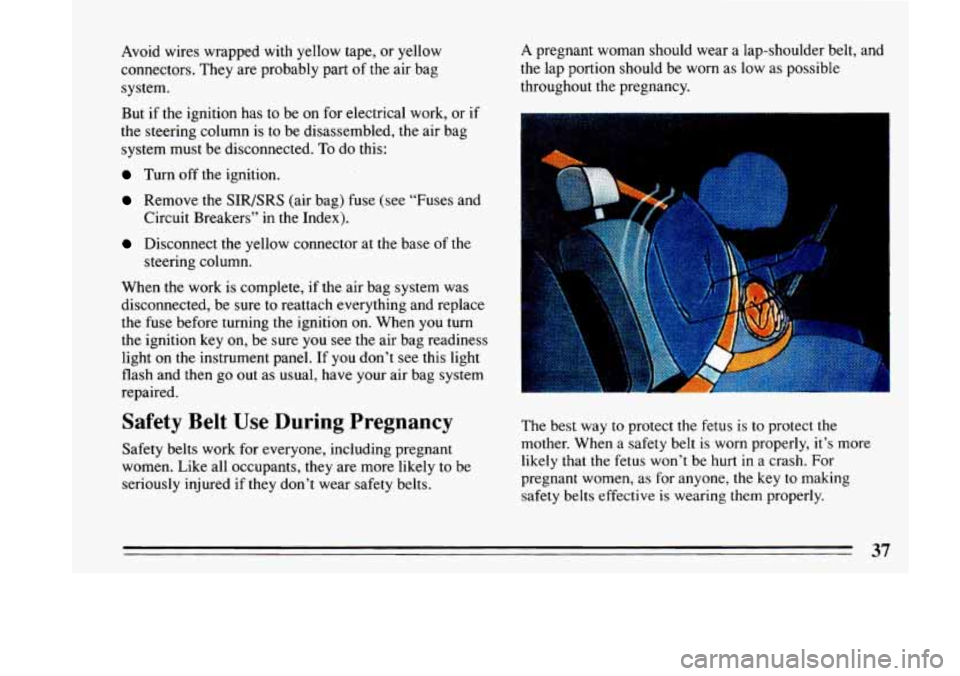

Avoid wires wrapped with yellow tape, or yellow
connectors. They are probably part of the air bag
system.
But if the ignition has to be on for electrical work, or if
the steering column is to be disassembled, the air bag
system must be disconnected.
To do this:
Turn off the ignition.
Remove the SIR/SRS (air bag) fuse (see “Fuses and
Circuit Breakers” in the Index).
Disconnect the yellow connector at the base of the
When the work is complete, if the air bag system was
disconnected, be sure to reattach everything and replace
the fuse before turning the ignition on. When you
turn
the ignition key on, be sure you see the air bag readiness
light on the instrument panel. If
you don’t see this light
flash and then go out as usual, have your air bag system
repaired. steering
column.
Safety Belt Use During Pregnancy
Safety belts work for everyone, including pregnant
women. Like all occupants, they are more likely to be
seriously injured if they don’t wear safety belts. A
pregnant woman should wear a lap-shoulder belt, and
the lap portion should be worn
as low as possible
throughout the pregnancy.
7
The best way to protect the fetus is to protect the
mother. When
a safety belt is worn properly, it’s more
likely that the fetus won’t be
hurt in a crash. For
pregnant women, as for anyone, the key to making
safety belts effective is wearing them properly.
37

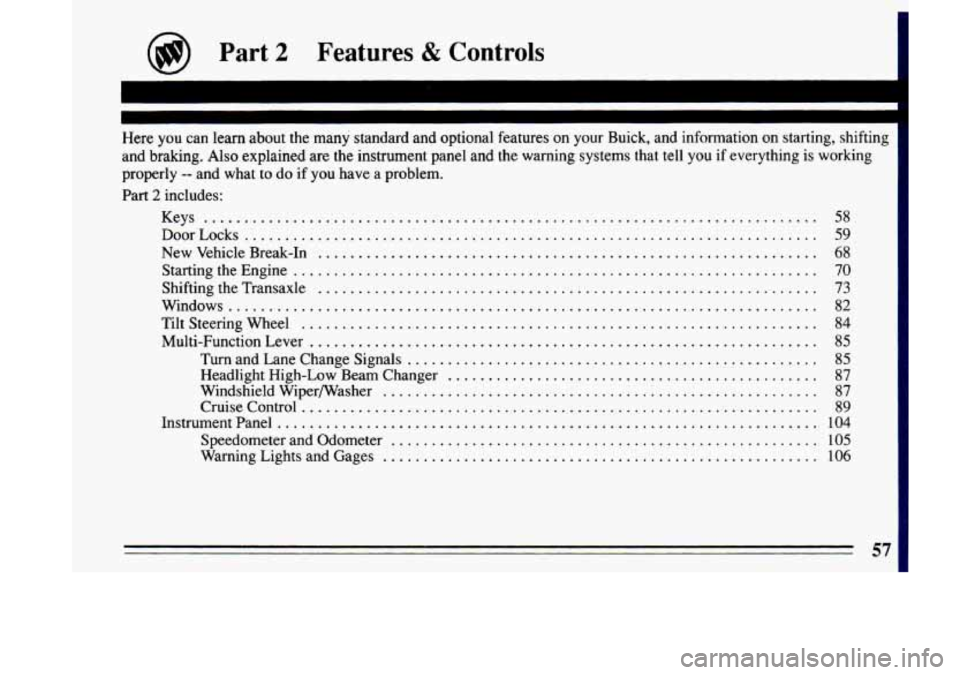

@ Part 2 Features & Controls I
I
L-
Here you can learn about the many standard and optional features on your Buick. and information on starting. shifting
and braking
. Also explained are the instrument panel and the warning systems that tell you if everything is working
properly
.. and what to do if you have a problem .
Part 2 includes:
Keys
........................................................................\
.... 58
DoorLocks ....................................................................... \
59
NewVehicleBreak-In .............................................................. 68
StartingtheEngine ................................................................. 70
ShiftingtheTransaxle .............................................................. 73
Windows ........................................................................\
. 82
Tilt Steering Wheel ................................................................ 84
Multi-Function Lever ............................................................... 85
TunrandLaneChangeSignals ................................................... 85
Headlight High-Low Beam Changer .............................................. 87
Windshield Wipermasher ...................................................... 87
CruiseControl ................................................................ 89
Instrumentpanel ................................................................... 104
Speedometer and Odometer ..................................................... 105
Warning Lights and Gages ...................................................... 106
57

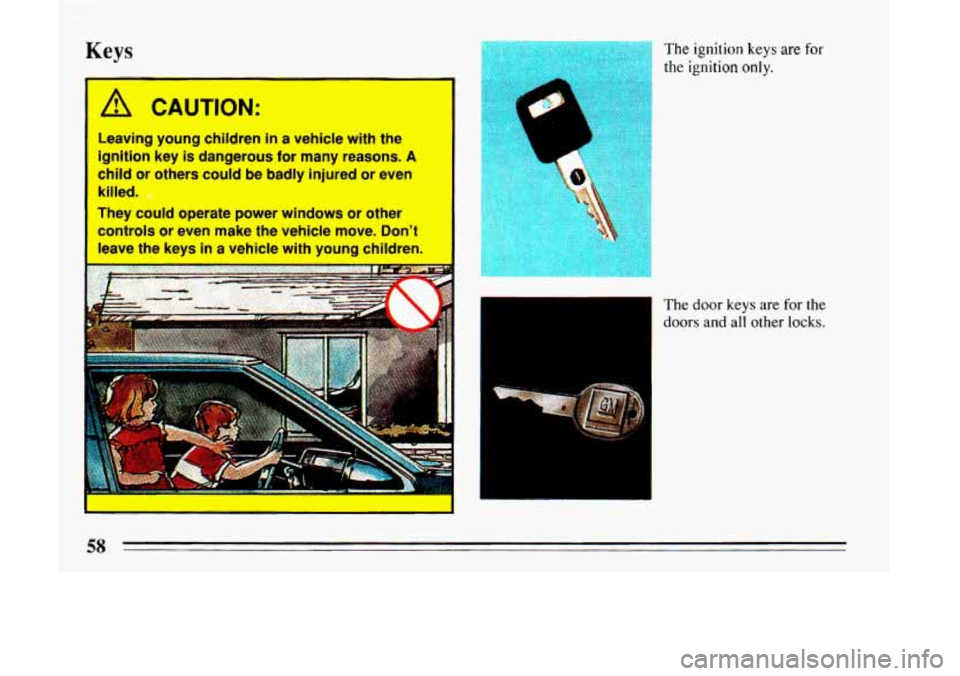

Keys
1 A. CAUTION:
Leaving young children in a vehicle with the
ignition key
is dangerous for many reasons. A
child or others could be badly injured or even
killed.
They could operate power windows or
other
‘controls or even make the vehicle move. Don’t
leave
the keys in a vehicle with young children. 1
... . ... .
ri The ignition keys are for
the ignition only.
The door keys are for the
doors and all other locks.
58

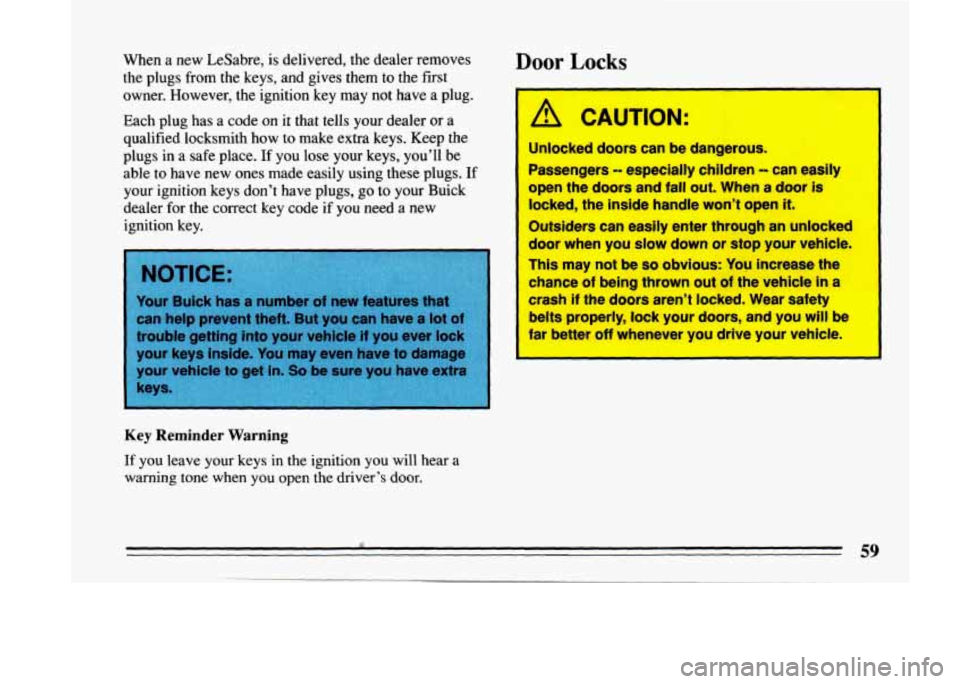

When a new LeSabre, is delivered, the dealer removes
the plugs from the keys, and gives them to the fist
owner. However, the ignition key may not have a plug.
Each plug has
a code on it that tells your dealer or a
qualified locksmith how to make extra keys. Keep the
plugs in a safe place.
If you lose your keys, you’ll be
able to have new ones made easily using these plugs.
If
your ignition keys don’t have plugs, go to your Buick
dealer
for the correct key code if you need a new
ignition key.
Key Reminder Warning
If you leave your keys in the ignition you will hear a
warning tone when
you open the driver’s door.
Door Locks
A CAUTION:
Unlocked doors can be dangerous.
Passengers
-- especially children -- can easily
open the
doors and fall out. When a door is
locked, the inside handle won’t open it.
Outsiders can easily enter through an unlocked
door when you
slow down or stop your vehicle.
This may not be
so obvious: You increase the
chance
of being thrown out of the vehicle in a
crash if the
doors aren’t locked. Wear safety
belts properly,
lock your doors, and you will be
far better
off whenever you drive your vehicle.
& 59

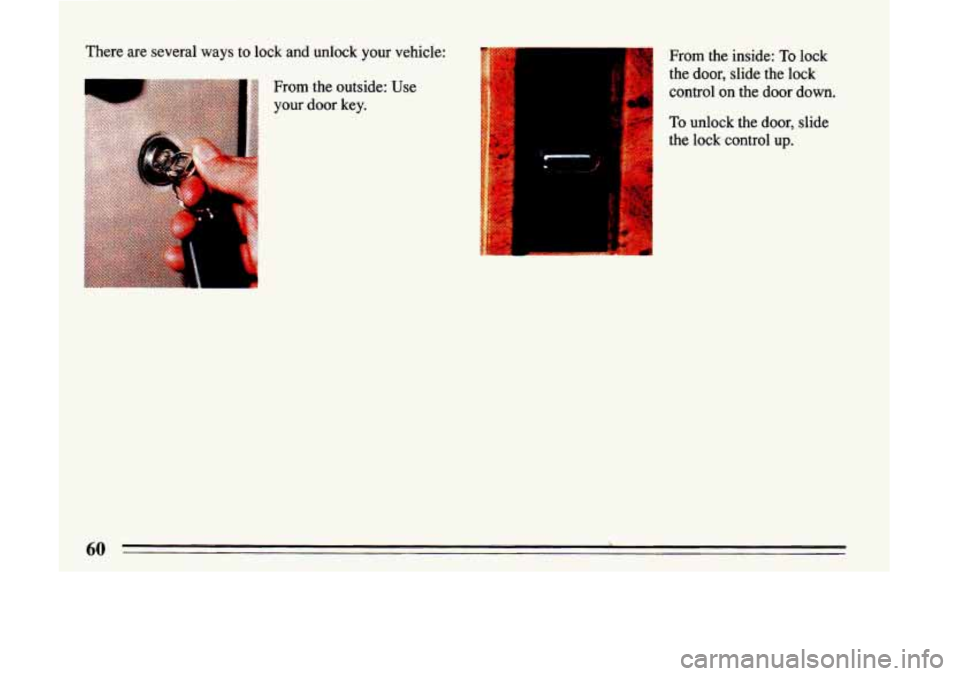

There are several ways to lock and unlock your vehicle:
From the outside: your
door key. Use I
*. ...
t f
From the inside:
To lock
the door, slide the lock
control on the door down.
To unlock the door, slide
the lock control
up.

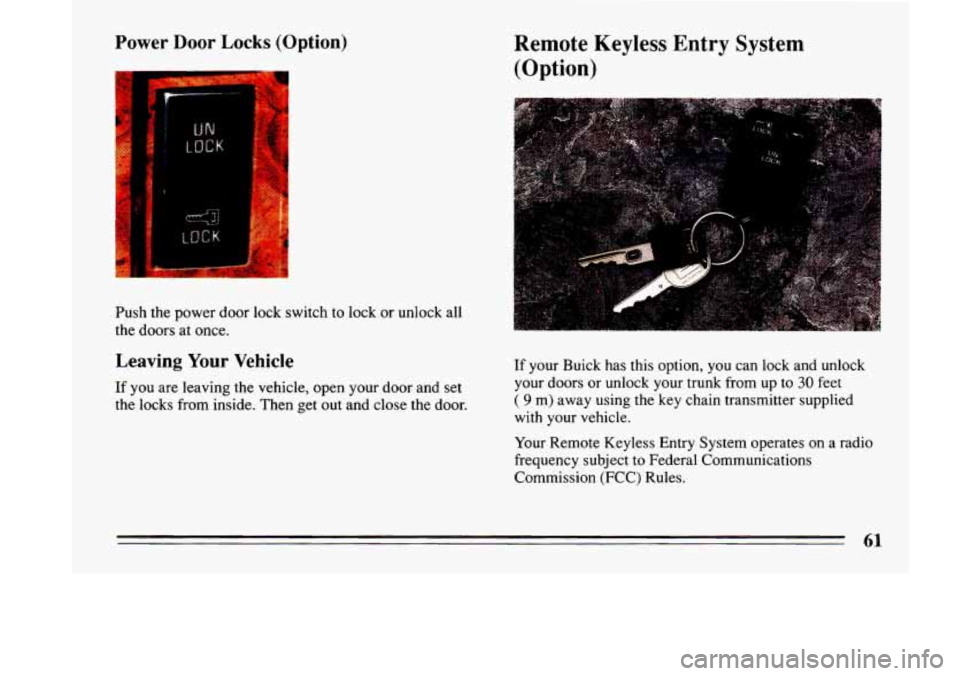

Power Door Locks (Option)
Push the power door lock switch to lock or unlock all
the doors at once.
Leaving Your Vehicle
If you are leaving the vehicle, open your door and set
the locks from inside. Then get out and close the door.
Remote Keyless Entry System
(Option)
If your Buick has this option, you can lock and unlock
your
doors or unlock your trunk from up to 30 feet
( 9 m) away using the key chain transmitter supplied
with your vehicle.
Your Remote Keyless Entry System operates on a radio
frequency subject
to Federal Communications
Commission (FCC) Rules.
61

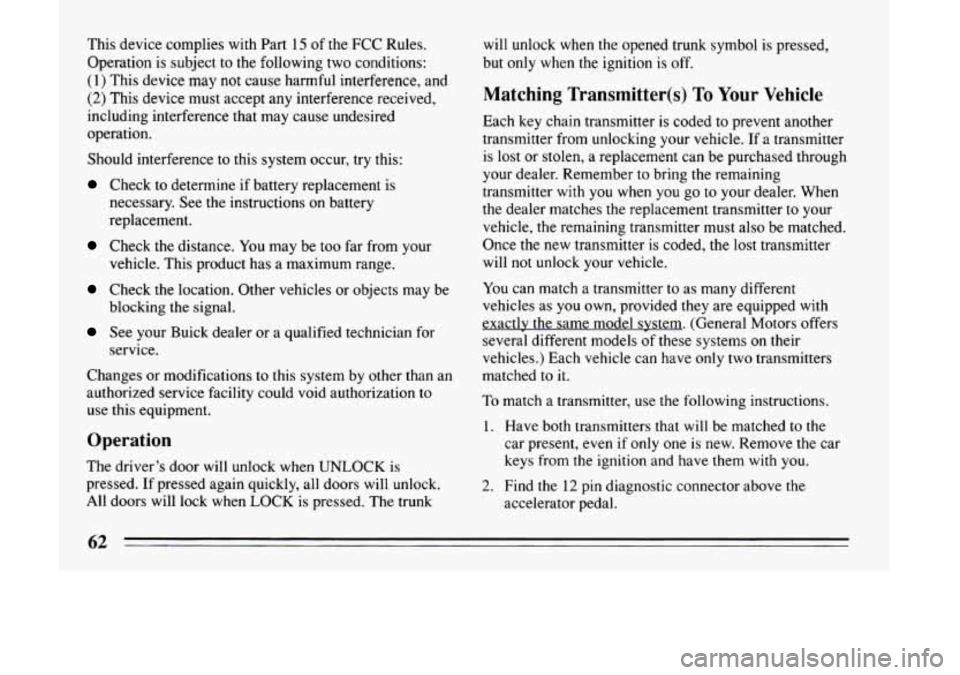

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
Should interference to this system occur, try this:
Check to determine if battery replacement is
necessary. See the instructions on battery
replacement.
Check the distance. You may be too far from your
vehicle. This product has a maximum range.
Check the location. Other vehicles or objects may be
blocking the signal.
See your Buick dealer or a qualified technician for
Changes
or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.
service.
Operation
The
driver’s door will unlock when UNLOCK is
pressed.
If pressed again quickly, all doors will unlock.
All doors will lock when LOCK is pressed. The trunk will unlock when the opened trunk symbol
is pressed,
but only when the ignition is
off.
Matching Transmitter(s) To Your Vehicle
Each key chain transmitter is coded to prevent another
transmitter from unlocking your vehicle. If
a transmitter
is lost or stolen, a replacement can be purchased through
your dealer. Remember
to bring the remaining
transmitter with
you when you go to your dealer. When
the dealer matches the replacement transmitter to your
vehicle,
the remaining transmitter must also be matched.
Once the new transmitter
is coded, the lost transmitter
will not unlock your vehicle.
You can match a transmitter
to as many different
vehicles as you own, provided they are equipped with
exactly
the same model system. (General Motors offers
several different models of these systems on their
vehicles.) Each vehicle can have only two transmitters
matched to
it.
To match a transmitter, use the following instructions,
1. Have both transmitters that will be matched to the
car present, even if only one is new. Remove the car
keys from
the ignition and have them with you.
2. Find the 12 pin diagnostic connector above the
accelerator pedal.
62
