To program up to three devices:
1. From inside the vehicle, press the two outside
buttons at the same time for one to two seconds,
and immediately release them.2. Locate in the garage, the garage door opener
receiver (motor-head unit). Locate the “Learn”
or “Smart” button. It can usually be found where the
hanging antenna wire is attached to the motor-head
unit and may be a colored button. Press this
button. After you press this button, you will have
30 seconds to complete the following steps.
3. Immediately return to your vehicle. Press and hold
the Universal Home Remote button that you would
like to use to control the garage door until the
garage door moves. The indicator light, above the
selected button, should slowly blink. You may
need to hold the button from ve to 20 seconds.
4. Immediately, within one second, release the button
when the garage door moves. The indicator light
will blink rapidly until programming is complete.
5. Press and release the same button again. The
garage door should move, conrming that
programming is successful and complete.
To program another Rolling Code device such as an
additional garage door opener, a security device,
or home automation device, repeat Steps 1 through 5,
choosing a different function button in Step 3 than
what you used for the garage door opener.
If these instructions do not work, you probably have a
Fixed Code garage door opener. Follow the
Programming instructions that follow for a Fixed Code
garage door opener.
2-51

Programming Universal Home
Remote — Fixed Code
If you have questions or need help programming the
Universal Home Remote System, call 1-866-572-2728 or
go to www.learcar2u.com.
Most garage door openers sold before 1996 are Fixed
Code units.
Programming a garage door opener involves
time-sensitive actions, so read the entire procedure
before you begin. If you do not follow these actions, the
device will time out and you will have to repeat the
procedure.To program up to three devices:
1. To verify if you have a Fixed Code garage door
opener, remove the battery cover on your hand
held transmitter supplied by the manufacturer
of your garage door opener motor. If you see a row
of dip switches similar to the graphic above, you
have a Fixed Code garage door opener. If you
do not see a row of dip switches, return to
the previous section for Programming Universal
Home Remote – Rolling Code.
Your hand held transmitter may have between eight
to 12 dip switches depending on the brand of
transmitter.
2-52

Your garage door opener receiver (motor head unit)
may also have a row of dip switches that can be
used when programming the Universal Home
Remote. If the total number of switches on the motor
head and hand held transmitter are different, or if
the dip switch settings are different, use the
dip switch settings on the motor head unit to
program your Universal Home Remote. The motor
head dip switch settings can also be used when
you do not have the original hand held transmitter.
Your panel of switches may not appear exactly as
they do in the examples above, but they should
be similar.
The switch positions on your hand-held transmitter
may be labeled, as follows:
A switch in the up position may be labeled as
“Up,” “+,” or “On.”
A switch in the down position may be labeled as
“Down,” “−,” or “Off.”
A switch in the middle position may be labeled
as “Middle,” “0,” or “Neutral.” Example of Eight Dip Switches with Two Positions
Example of Eight Dip Switches with Three Positions
2-53

2. Write down the eight to 12 switch settings from left
to right as follows:
When a switch is in the up position, write “Left.”
When a switch is in the down position, write
“Right.”
If a switch is set between the up and down
position, write “Middle.”
The switch settings that you wrote down in Step
2 will now become the button strokes you
enter into the Universal Home Remote in Step 4.
Be sure to enter the switch settings that you
wrote down in Step 2, in order from left to right,
into the Universal Home Remote, when
completing Step 4.
3. From inside your vehicle, rst rmly press all three
buttons at the same time for about three seconds.
Release the buttons to put the Universal Home
Remote into programming mode.4. The indicator lights will blink slowly. Enter each
switch setting from Step 2 into your vehicle’s
Universal Home Remote. You will have two and
one-half minutes to complete Step 4. Now
press one button on the Universal Home Remote
for each switch setting as follows:
If you wrote “Left,” press the left button in the
vehicle.
If you wrote “Right,” press the right button in the
vehicle.
If you wrote “Middle,” press the middle button in
the vehicle.
2-54

5. After entering all of the switch positions, again,
rmly press and release all three buttons at the
same time. The indicator lights will turn on.
6. Press and hold the button you would like to use to
control the garage door until the garage door
moves. The indicator light above the selected button
should slowly blink. You may need to hold the
button from ve to 55 seconds.
7. Immediately release the button when the garage
door moves. The indicator light will blink rapidly
until programming is complete.
8. Press and release the same button again. The
garage door should move, conrming that
programming is successful and complete.
To program another Fixed Code device such as an
additional garage door opener, a security device,
or home automation device, repeat Steps 1-8, choosing
a different button in Step 6 than what you used for
the garage door opener.
Using Universal Home Remote
Press and hold the appropriate button for at least half of
a second. The indicator light will come on while the
signal is being transmitted.
Reprogramming Universal Home
Remote Buttons
You can reprogram any of the three buttons by repeating
the instructions.
Erasing Universal Home Remote
Buttons
You should erase the programmed buttons when you
sell or terminate your lease.
To erase either Rolling Code or Fixed Code on the
Universal Home Remote device:
1. Press and hold the two outside buttons at the same
time for approximately 20 seconds, until the
indicator lights, located directly above the buttons,
begin to blink rapidly.
2. Once the indicator lights begin to blink, release both
buttons. The codes from all buttons will be erased.
For help or information on the Universal Home Remote
System, call the customer assistance phone number
underCustomer Assistance Offices on page 7-6.
2-55

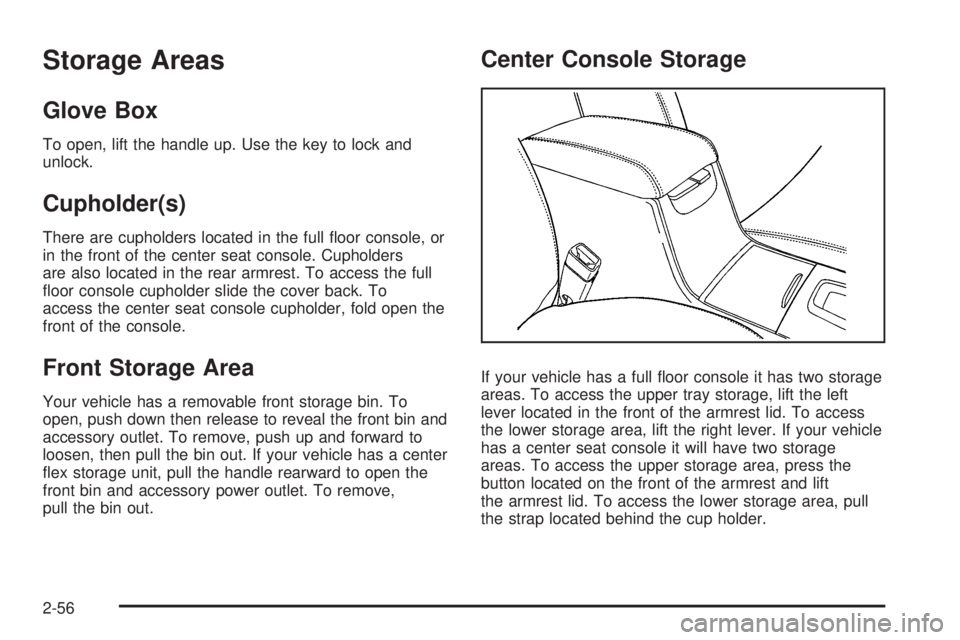

Storage Areas
Glove Box
To open, lift the handle up. Use the key to lock and
unlock.
Cupholder(s)
There are cupholders located in the full oor console, or
in the front of the center seat console. Cupholders
are also located in the rear armrest. To access the full
oor console cupholder slide the cover back. To
access the center seat console cupholder, fold open the
front of the console.
Front Storage Area
Your vehicle has a removable front storage bin. To
open, push down then release to reveal the front bin and
accessory outlet. To remove, push up and forward to
loosen, then pull the bin out. If your vehicle has a center
ex storage unit, pull the handle rearward to open the
front bin and accessory power outlet. To remove,
pull the bin out.
Center Console Storage
If your vehicle has a full oor console it has two storage
areas. To access the upper tray storage, lift the left
lever located in the front of the armrest lid. To access
the lower storage area, lift the right lever. If your vehicle
has a center seat console it will have two storage
areas. To access the upper storage area, press the
button located on the front of the armrest and lift
the armrest lid. To access the lower storage area, pull
the strap located behind the cup holder.
2-56

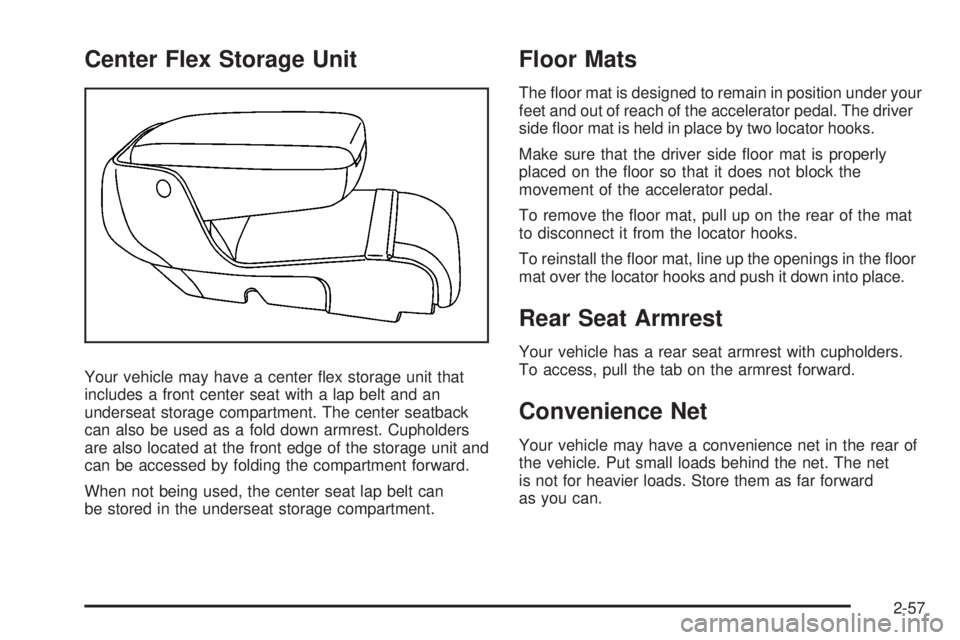

Center Flex Storage Unit
Your vehicle may have a center ex storage unit that
includes a front center seat with a lap belt and an
underseat storage compartment. The center seatback
can also be used as a fold down armrest. Cupholders
are also located at the front edge of the storage unit and
can be accessed by folding the compartment forward.
When not being used, the center seat lap belt can
be stored in the underseat storage compartment.
Floor Mats
The oor mat is designed to remain in position under your
feet and out of reach of the accelerator pedal. The driver
side oor mat is held in place by two locator hooks.
Make sure that the driver side oor mat is properly
placed on the oor so that it does not block the
movement of the accelerator pedal.
To remove the oor mat, pull up on the rear of the mat
to disconnect it from the locator hooks.
To reinstall the oor mat, line up the openings in the oor
mat over the locator hooks and push it down into place.
Rear Seat Armrest
Your vehicle has a rear seat armrest with cupholders.
To access, pull the tab on the armrest forward.
Convenience Net
Your vehicle may have a convenience net in the rear of
the vehicle. Put small loads behind the net. The net
is not for heavier loads. Store them as far forward
as you can.
2-57

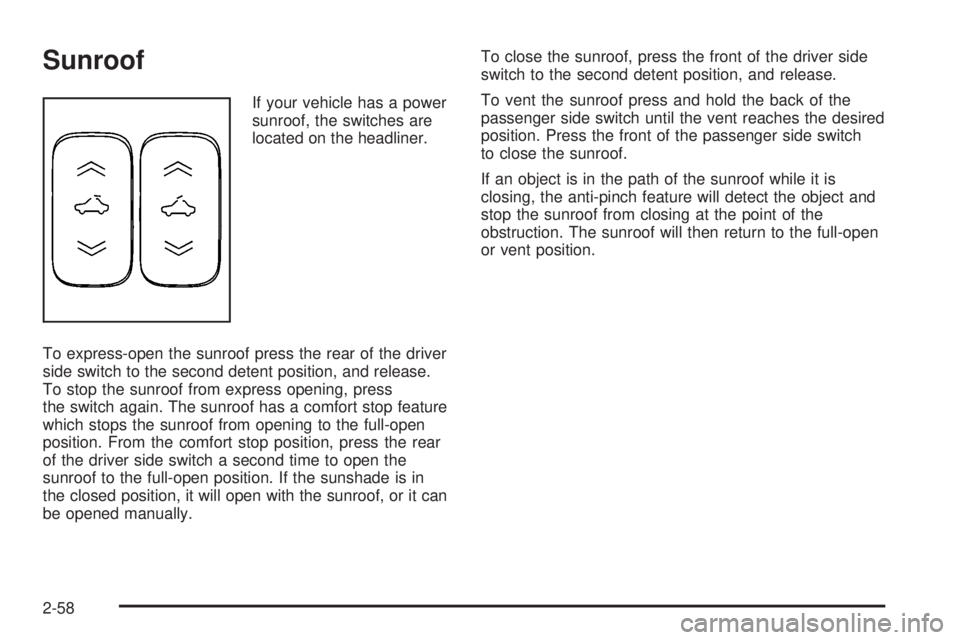

Sunroof
If your vehicle has a power
sunroof, the switches are
located on the headliner.
To express-open the sunroof press the rear of the driver
side switch to the second detent position, and release.
To stop the sunroof from express opening, press
the switch again. The sunroof has a comfort stop feature
which stops the sunroof from opening to the full-open
position. From the comfort stop position, press the rear
of the driver side switch a second time to open the
sunroof to the full-open position. If the sunshade is in
the closed position, it will open with the sunroof, or it can
be opened manually.To close the sunroof, press the front of the driver side
switch to the second detent position, and release.
To vent the sunroof press and hold the back of the
passenger side switch until the vent reaches the desired
position. Press the front of the passenger side switch
to close the sunroof.
If an object is in the path of the sunroof while it is
closing, the anti-pinch feature will detect the object and
stop the sunroof from closing at the point of the
obstruction. The sunroof will then return to the full-open
or vent position.
2-58

Instrument Panel Overview...............................3-4
Hazard Warning Flashers................................3-6
Other Warning Devices...................................3-6
Horn.............................................................3-6
Tilt Wheel.....................................................3-6
Power Tilt Wheel and Telescopic Steering
Column......................................................3-7
Heated Steering Wheel...................................3-7
Turn Signal/Multifunction Lever.........................3-8
Turn and Lane-Change Signals........................3-8
Headlamp High/Low-Beam Changer..................3-9
Flash-to-Pass.................................................3-9
Windshield Wipers..........................................3-9
Rainsense™ II Wipers...................................3-10
Windshield Washer.......................................3-11
Cruise Control..............................................3-12
Exterior Lamps.............................................3-14
Wiper Activated Headlamps............................3-15
Headlamps on Reminder................................3-16
Daytime Running Lamps (DRL).......................3-16
Fog Lamps..................................................3-17
Cornering Lamps..........................................3-17
Exterior Lighting Battery Saver........................3-17
Instrument Panel Brightness...........................3-17
Courtesy Lamps...........................................3-17Entry Lighting...............................................3-18
Delayed Entry Lighting...................................3-18
Theater Dimming..........................................3-18
Delayed Exit Lighting.....................................3-18
Perimeter Lighting.........................................3-18
Front Reading Lamps....................................3-18
Electric Power Management...........................3-19
Inadvertent Power Battery Saver.....................3-19
Battery Run-Down Protection..........................3-20
Accessory Power Outlet(s)
.............................3-20
Ashtray(s)....................................................3-21
Climate Controls............................................3-21
Climate Control System.................................3-21
Dual Automatic Climate Control System...........3-24
Outlet Adjustment.........................................3-30
Passenger Compartment Air Filter...................3-30
Warning Lights, Gages, and Indicators............3-32
Instrument Panel Cluster................................3-33
Speedometer and Odometer...........................3-34
Trip Odometer..............................................3-34
Tachometer.................................................3-34
Safety Belt Reminders...................................3-34
Airbag Readiness Light..................................3-35
Passenger Airbag Status Indicator...................3-36
Section 3 Instrument Panel
3-1

Charging System Light..................................3-38
Brake System Warning Light..........................3-39
Antilock Brake System Warning Light...............3-40
Traction Control System (TCS) Warning Light . . .3-40
StabiliTrak
®Indicator Light..............................3-41
Lane Departure Warning Light........................3-42
Engine Coolant Temperature Warning Light......3-42
Engine Coolant Temperature Gage..................3-43
Tire Pressure Light.......................................3-43
Malfunction Indicator Lamp.............................3-44
Oil Pressure Light.........................................3-46
Security Light...............................................3-47
Fog Lamp Light............................................3-47
Cruise Control Light......................................3-47
Highbeam On Light.......................................3-47
Fuel Gage...................................................3-48Driver Information Center (DIC).......................3-48
DIC Operation and Displays...........................3-49
DIC Compass..............................................3-54
DIC Warnings and Messages.........................3-56
DIC Vehicle Customization.............................3-66
Audio System(s).............................................3-75
Setting the Time...........................................3-76
Radio(s)......................................................3-78
Using an MP3..............................................3-89
XM Radio Messages.....................................3-93
Navigation/Radio System...............................3-94
Theft-Deterrent Feature..................................3-94
Audio Steering Wheel Controls.......................3-95
Radio Reception...........................................3-96
Backglass Antenna.......................................3-97
XM™ Satellite Radio Antenna System.............3-97
Section 3 Instrument Panel
3-2
