BUICK LUCERNE 2011 Owner's Manual

Black plate (15,1)Buick Lucerne Owner Manual - 2011
A.Underhood Fuse Block on page 6‑108.
B. Remote Positive (+) Battery Terminal. See Jump
Starting on page 6‑44.
C. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on
page 6‑38.
D. Engine Coolant Recovery Tank. See Cooling
System on page 6‑27.
E. Radiator Pressure Cap. See Cooling System
on
page 6‑27.
F. Power Steering Fluid Reservoir. See Power
Steering Fluid on page 6‑37. G. Engine Oil Fill Cap. See
“When to Add Engine Oil”
under Engine Oil on page 6‑18.
H. Engine Oil Dipstick. See “Checking Engine Oil”
under Engine Oil on page 6‑18.
I. Automatic Transmission Fluid Dipstick. See “Checking the Fluid Level” underAutomatic
Transmission Fluid on page 6‑24.
J. Brake Fluid Reservoir. See “Brake Fluid”under
Brakes on page 6‑39.
K. Engine Air Cleaner/Filter on page 6‑23.
6-15

Black plate (16,1)Buick Lucerne Owner Manual - 2011
When you open the hood on the 4.6L V8 engine, here is what you will see:
6-16

Black plate (17,1)Buick Lucerne Owner Manual - 2011
A.Underhood Fuse Blockon page 6‑108.
B. Remote Positive (+) Terminal. See Jump Starting
on page 6‑44.
C. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on
page 6‑38.
D. Engine Coolant Surge Tank and Pressure Cap. See Cooling System on page 6‑27.
E. Remote Negative (−) Terminal. See Jump Starting
on page 6‑44.
F. Power Steering Fluid on page 6‑37. G. Engine Oil Fill Cap. See
“When to Add Engine Oil”
under Engine Oil on page 6‑18.
H. Engine Oil Dipstick. See “Checking Engine Oil”
under Engine Oil on page 6‑18.
I. Brake Master Cylinder Reservoir. See “Brake
Fluid” under Brakes on page 6‑39.
J. Automatic Transmission Fluid Cap and Dipstick (Out of View). See Automatic Transmission Fluid
on page 6‑24.
K. Engine Air Cleaner/Filter on page 6‑23.
6-17

Black plate (18,1)Buick Lucerne Owner Manual - 2011
Engine Oil
To ensure proper engine performance and long life,
careful attention must be paid to engine oil. Following
these simple, but important steps will help protect your
investment:
.Always use engine oil approved to the proper
specification and of the proper viscosity grade. See
“Selecting the Right Engine Oil”in this section.
.Check the engine oil level regularly and maintain
the proper oil level. See“Checking Engine Oil”and
“When to Add Engine Oil” in this section.
.Change the engine oil at the appropriate time. See
Engine Oil Life System on page 6‑22.
.Always dispose of engine oil properly. See “What
to Do with Used Oil” in this section.
Checking Engine Oil
It is a good idea to check the engine oil level at each
fuel fill. In order to get an accurate reading, the vehicle
must be on level ground. The engine oil dipstick handle
is a yellow loop. See Engine Compartment Overview
on
page 6‑14for the location of the engine oil dipstick.
Obtaining an accurate oil level reading is essential: 1. If the engine has been running recently, turn off the engine and allow several minutes for the oil to
drain back into the oil pan. Checking the oil level
too soon after engine shutoff will not provide an
accurate oil level reading.
2. Pull out the dipstick and clean it with a paper towel or cloth, then push it back in all the way. Remove it
again, keeping the tip down, and check the level.
6-18

Black plate (19,1)Buick Lucerne Owner Manual - 2011
When to Add Engine Oil
3.9L V6 Engine
4.6L V8 Engine
If the oil is below the cross-hatched area at the tip of
the dipstick, add 1 L (1 qt) of the recommended oil
and then recheck the level. See “Selecting the Right
Engine Oil” in this section for an explanation of what
kind of oil to use. For engine oil crankcase capacity, see
Capacities and Specifications on page 6‑116. Notice:
Do not add too much oil. Oil levels above or
below the acceptable operating range shown on the
dipstick are harmful to the engine. If you find that
you have an oil level above the operating range, i.e.,
the engine has so much oil that the oil level gets
above the cross-hatched area that shows the proper
operating range, the engine could be damaged. You
should drain out the excess oil or limit driving of the
vehicle and seek a service professional to remove
the excess amount of oil.
See Engine Compartment
Overviewon page 6‑14for the location of the
engine oil fill cap.
Add enough oil to put the level somewhere in the proper
operating range. Push the dipstick all the way back in
when through.
6-19

Black plate (20,1)Buick Lucerne Owner Manual - 2011

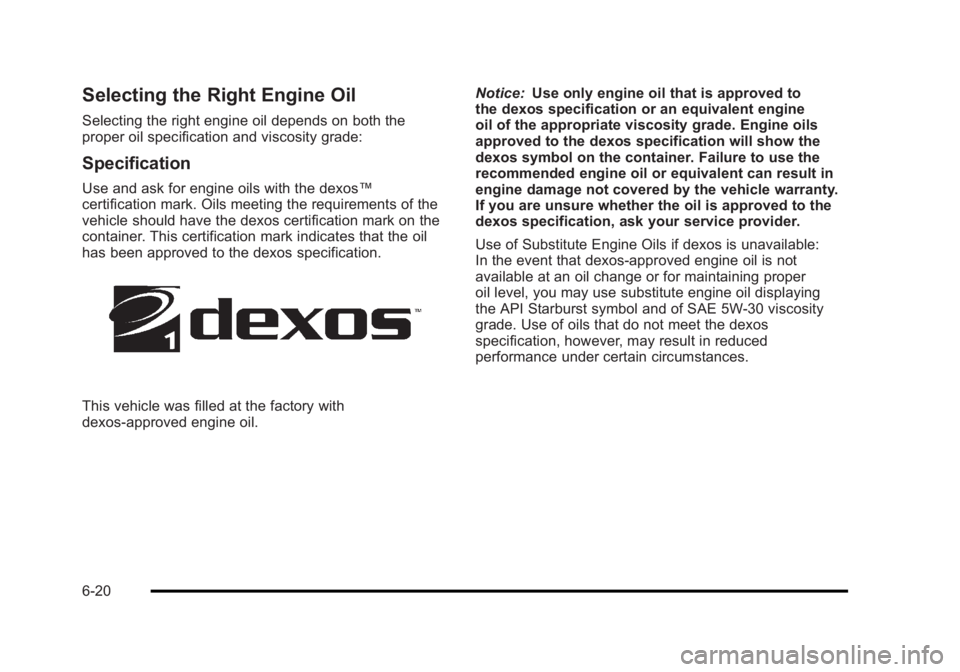

Selecting the Right Engine Oil
Selecting the right engine oil depends on both the
proper oil specification and viscosity grade:
Specification
Use and ask for engine oils with the dexos™
certification mark. Oils meeting the requirements of the
vehicle should have the dexos certification mark on the
container. This certification mark indicates that the oil
has been approved to the dexos specification.
This vehicle was filled at the factory with
dexos‐approved engine oil.Notice:
Use only engine oil that is approved to
the dexos specification or an equivalent engine
oil of the appropriate viscosity grade. Engine oils
approved to the dexos specification will show the
dexos symbol on the container. Failure to use the
recommended engine oil or equivalent can result in
engine damage not covered by the vehicle warranty.
If you are unsure whether the oil is approved to the
dexos specification, ask your service provider.
Use of Substitute Engine Oils if dexos is unavailable:
In the event that dexos‐approved engine oil is not
available at an oil change or for maintaining proper
oil level, you may use substitute engine oil displaying
the API Starburst symbol and of SAE 5W-30 viscosity
grade. Use of oils that do not meet the dexos
specification, however, may result in reduced
performance under certain circumstances.
6-20

Black plate (21,1)Buick Lucerne Owner Manual - 2011
Viscosity Grade
SAE 5W-30 is the best viscosity grade for the vehicle.
Do not use other viscosity oils such as SAE 10W‐30,
10W‐40, or 20W-50.
Cold Temperature Operation: In an area of extreme
cold, where the temperature falls below−29°C
(−20°F), an SAE 0W-30 oil should be used. An oil
of this viscosity grade will provide easier cold starting
for the engine at extremely low temperatures. When
selecting an oil of the appropriate viscosity grade, be sure to always select an oil that meets the required
specification, dexos. See
“Specification”earlier in this
section for more information.
Engine Oil Additives/Engine Oil Flushes
Do not add anything to the oil. The recommended oils
with the dexos specification and displaying the dexos
certification mark are all that is needed for good
performance and engine protection.
Engine oil system flushes are not recommended and
could cause engine damage not covered by the vehicle
warranty.
What to Do with Used Oil
Used engine oil contains certain elements that can be
unhealthy for your skin and could even cause cancer.
Do not let used oil stay on your skin for very long. Clean
your skin and nails with soap and water, or a good hand
cleaner. Wash or properly dispose of clothing or rags
containing used engine oil. See the manufacturer's
warnings about the use and disposal of oil products.
Used oil can be a threat to the environment. If you
change your own oil, be sure to drain all the oil from
the filter before disposal. Never dispose of oil by putting
it in the trash or pouring it on the ground, into sewers,
or into streams or bodies of water. Recycle it by taking it
to a place that collects used oil.
6-21

Black plate (22,1)Buick Lucerne Owner Manual - 2011
Engine Oil Life System
When to Change Engine Oil
This vehicle has a computer system that indicates when
to change the engine oil and filter. This is based on
engine revolutions and engine temperature, and not on
mileage. Based on driving conditions, the mileage at
which an oil change is indicated can vary considerably.
For the oil life system to work properly, the system must
be reset every time the oil is changed.
When the system has calculated that oil life has been
diminished, it indicates that an oil change is necessary.
A CHANGE ENGINE OIL SOON message comes on.
SeeDIC Warnings and Messages
on page 4‑49.
Change the oil as soon as possible within the next
600 miles (1 000 km). It is possible that, if driving under
the best conditions, the oil life system might indicate
that an oil change is not necessary for up to a year. The
engine oil and filter must be changed at least once a
year and, at this time, the system must be reset. Your
dealer has trained service people who will perform this
work and reset the system. It is also important to check
the oil regularly over the course of an oil drain interval
and keep it at the proper level. If the system is ever reset accidentally, the oil must be
changed at 3,000 miles (5 000 km) since the last oil
change. Remember to reset the oil life system
whenever the oil is changed.
How to Reset the Engine Oil Life
System
Reset the system whenever the engine oil is changed
so that the system can calculate the next engine oil
change. Always reset the engine oil life to 100% after
every oil change. It will not reset itself. To reset the
system:
1. Display the OIL LIFE REMAINING on the DIC.
2. Press and hold the SET/RESET button on the DIC for more than five seconds. The oil life will change
to 100%.
If the CHANGE ENGINE OIL SOON message comes
back on when the vehicle is started, the engine oil life
system has not been reset. Repeat the procedure.
6-22

Black plate (23,1)Buick Lucerne Owner Manual - 2011
Engine Air Cleaner/Filter
SeeEngine Compartment Overviewon page 6‑14for
the location of the engine air cleaner/filter.
When to Inspect the Engine Air
Cleaner/Filter
Inspect the air cleaner/filter at the scheduled
maintenance intervals and replace it at the first oil
change after each 50,000 mile (80 000 km) interval.
See Scheduled Maintenance
on page 7‑3for more
information. If you are driving in dusty/dirty conditions,
inspect the filter at each engine oil change.
How to Inspect the Engine Air
Cleaner/Filter
To inspect the air cleaner/filter, remove the filter from
the vehicle and lightly shake the filter to release loose
dust and dirt. If the filter remains covered with dirt, a
new filter is required. To inspect or replace the filter:1. Remove the two screws on the top of the engine
air cleaner/filter cover.
2. Lift up the outboard side of the cover at an angle while pulling toward you. This is necessary due to
the two hinges located on the inboard side of the
cover.
3. Remove the engine air cleaner/filter and any loose debris that may be found in the air cleaner base.
4. Inspect or replace the air filter element.
6-23

Black plate (24,1)Buick Lucerne Owner Manual - 2011
To reinstall the cover:1. Align the two hinges located on the inboard side of the cover.
2. Push the cover slightly down and towards the engine to engage the tabs in the hinges and align
the two screws.
3. Tighten the two screws on the top of the engine air cleaner/filter cover.
{WARNING:
Operating the engine with the air cleaner/filter off
can cause you or others to be burned. The air
cleaner not only cleans the air; it helps to stop
flames if the engine backfires. Use caution when
working on the engine and do not drive with the
air cleaner/filter off.
Notice: If the air cleaner/filter is off, dirt can easily
get into the engine, which could damage it. Always
have the air cleaner/filter in place when you are
driving.
Automatic Transmission Fluid
When to Check and Change Automatic
Transmission Fluid
A good time to check the automatic transmission fluid
level is when the engine oil is changed.
Change the fluid and filter at the intervals listed in
Scheduled Maintenance
on page 7‑3and be sure
to use the transmission fluid listed in Recommended
Fluids and Lubricants on page 7‑8.
How to Check Automatic Transmission
Fluid (3.9L Engine)
Because this operation can be a little difficult, you
may choose to have this done at the dealer service
department.
If you do it yourself, be sure to follow all the instructions
here, or you could get a false reading on the dipstick.
Notice: Too much or too little fluid can damage
the transmission. Too much can mean that some
of the fluid could come out and fall on hot engine
parts or exhaust system parts, starting a fire. Too
little fluid could cause the transmission to overheat.
Be sure to get an accurate reading if checking the
transmission fluid.
6-24
