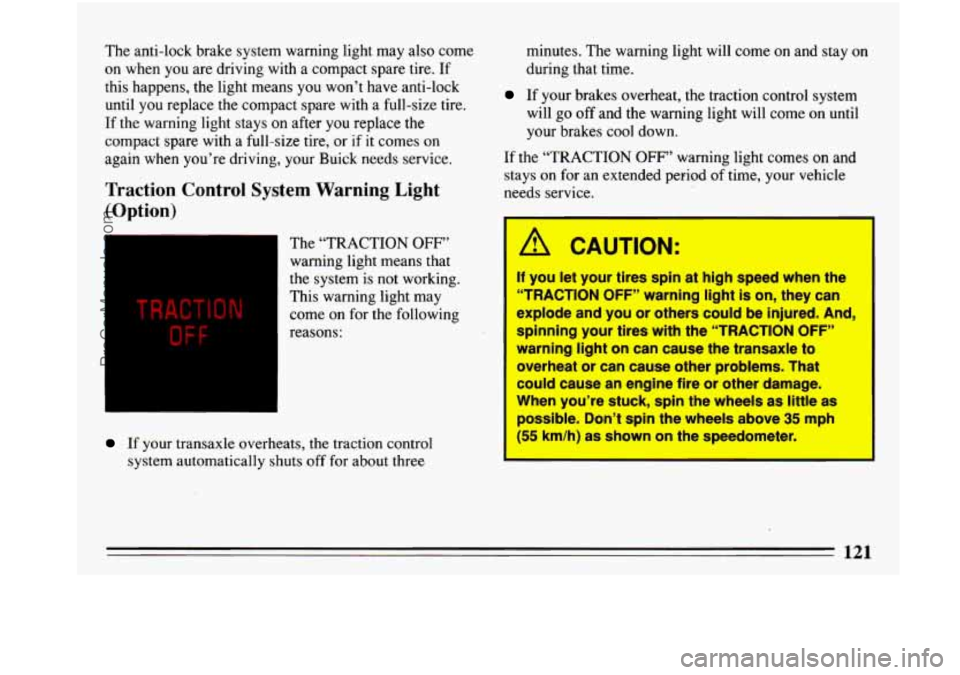

The anti-lock brake system warning light may also come
on when you are driving with a compact spare tire. If
this happens, the light means you won’t have anti-lock
until you replace the compact spare with a full-size tire.
If the warning light stays on after you replace the
compact spare
with a full-size tire, or if it comes on
again when
you’re driving, your Buick needs service.
Traction Control System Warning Light
(Option)
I The “TRACTION OFF”
warning light means that
the system is not working.
This warning light may
come on for the following
reasons:
If your transaxle overheats, the traction control
system automatically shuts off for about three minutes.
The warning light will come on and stay on
during that time.
If your brakes overheat, the traction control system
will
go off and the warning light will come on until
your brakes cool down.
If the “TRACTION OFF” warning light comes on and
stays on
for an extended period of time, your vehicle
needs service.
A CAUTION:
1 If you let your tires spin at high speed when the
“TRACTION
OFF” warning light is on, they can
explode and you or others could be injured. And,
spinning your tires with the “TRACTION
OFF”
warning light on can cause the transaxle to
overheat or can cause other problems. That
could cause an engine fire or other damage.
When you’re stuck, spin the wheels as little as
possible. Don’t spin the wheels above
35 mph
(55 km/h) as shown on the speedometer.
I
121
ProCarManuals.com

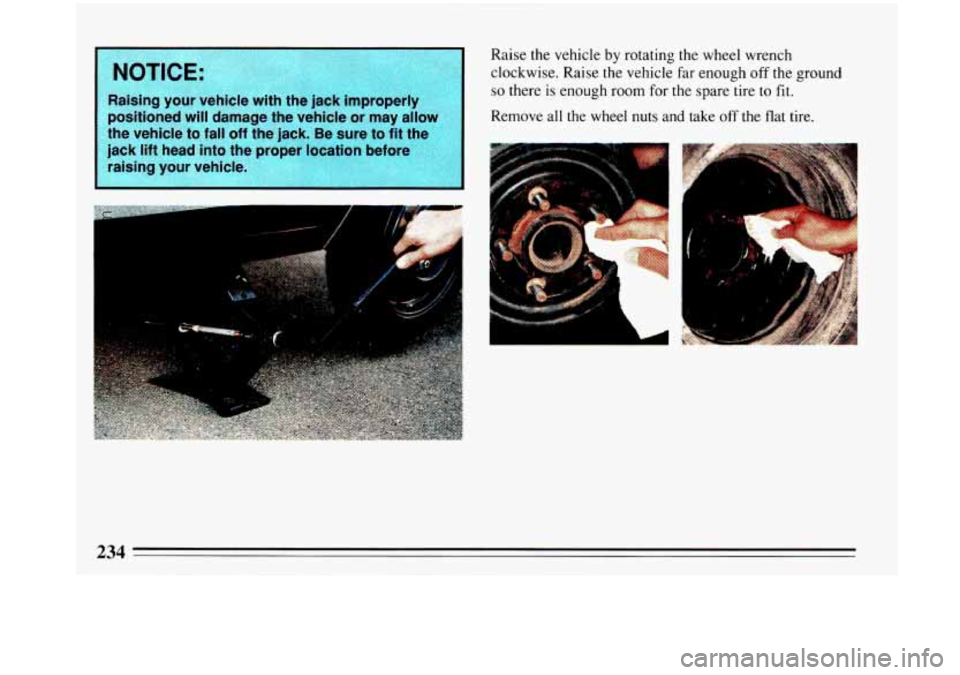

Raise the vehicle by rotating the wheel wrencn
clockwise. Raise the vehicle far enough
off the ground
so there is enough room for the spare tire to fit. Raising your vehicle with the jack improperly ~~
Remove all the wheel nuts and take off the flat tire.
ProCarManuals.com

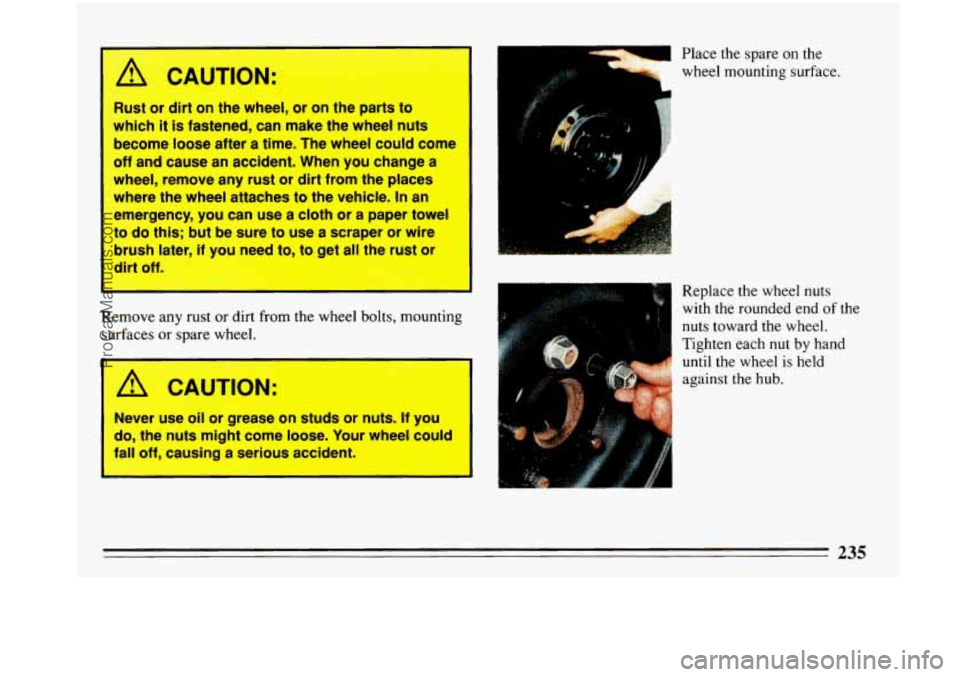

A CAUTION:
Rust or dirt on the wheel, or on the parts to
which
it is fastened, can make the wheel nuts
become loose after a time. The wheel could come
off and cause an accident. When you change a
wheel, remove any rust or dirt from the places
where the wheel attaches to the vehicle.
In an
emergency, you can use a cloth or a paper towel
to do
this; but be sure to use a scraper or wire
brush later,
if you need to, to get all the rust or
dirt
off.
kemove any rust or dirt from the wheel bolts, mounting
urfaces or spare wheel.
CAUTION:
Never use oil or grease on studs or nuts. If you
do, the nuts might come loose. Your wheel could
.
fall off, causing a serious accident. &:aF,;--..& ..*
I
ryr 2:. 74
&
Place the spare on the ~ .*. .. wheel mounting surface.
Replace the wheel nuts
with the rounded end
of the
nuts toward the wheel.
Tighten each nut
by hand
until the wheel
is held
lgainst the hub.
ProCarManuals.com

Don’t try to put a wheel cover on your compact spare
tire.
It won’t fit. Store the wheel cover in the trunk until
you have the
flat tire repaired or replaced.
I NOTICE:
Now put all the equipment back in the trunk.
WHEEL WRENCH
A CAU I ION:
Storing a jack, a tire or other equilpment in the
passenger compartment of the vehicle could
cause injury. In a sudden stop or collision, loose
equipment cowtd strike someone. Store all these
in the proper
place.
Compact Spare Tire
Although the compact spare was fully inflated when
your vehicle was new, it can lose air after a time. Check
the inflation pressure regularly. It should be
60 psi (420
kPa). The compact spare is made to go up to 3,000 miles
(5000 km), so you can finish your trip and have your
full-size tire repaired
or replaced where you want. Of
course, it’s best to replace your spare with a full-size tire
as soon as you can. Your spare will last longer and be in
good shape
in case you need it again.
Your anti-lock brake system warning light may come on
when
you are driving with a compact spare. See
“Anti-Lock Brake System Warning Light’’ in the Index.
237
ProCarManuals.com

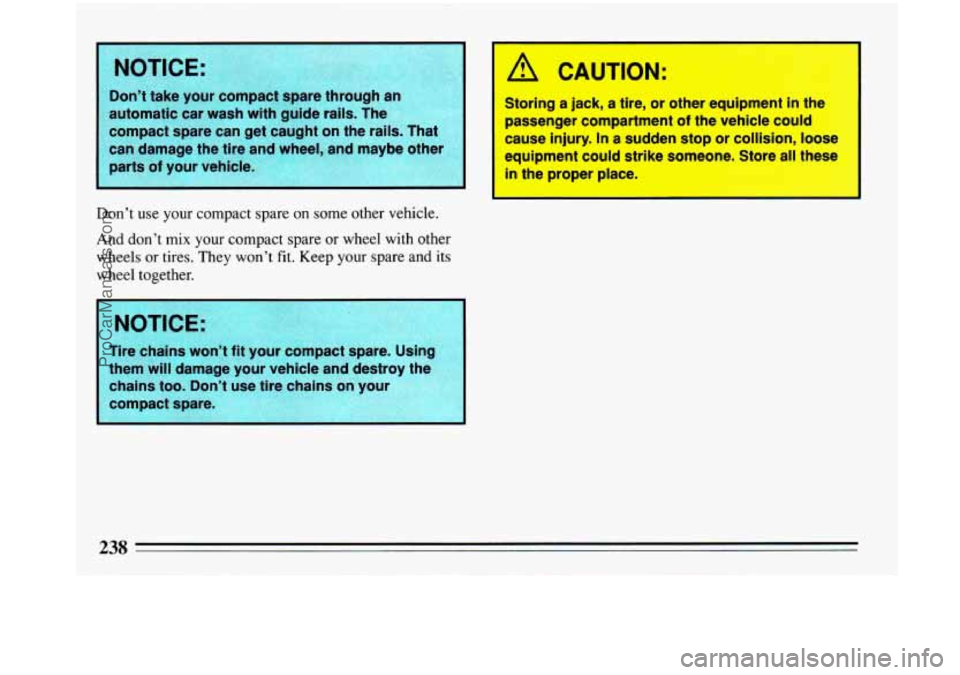

Don't take your compact spare through an
automatic car wash with guide rails. The
compact spare can get caught on the rails. That
can damage the tire and wheel, and maybe other
Don't use your compact spare on some other vehicle.
And don't
mix your compact spare or wheel with other
wheels or tires. They won't
fit. Keep your spare and its
wheel together.
Tire chains won't fit your compact
them will damage your vehicle and destroy
the
chains too. Don't use,.,,tjce: , , .,,b :" 'ix., chains on you
compact spare. ,., (,:, ,.,4'#i ,, . .Ai v*: ,, j '2
L
/d CAUTION:
Storing a jack, a tire, or other equipment in the
passenger compartment of the vehicle could
cause injury. In a sudden stop or collision,
loose
equipment could strike someone. Store all thesc
in the proper place.
238
ProCarManuals.com

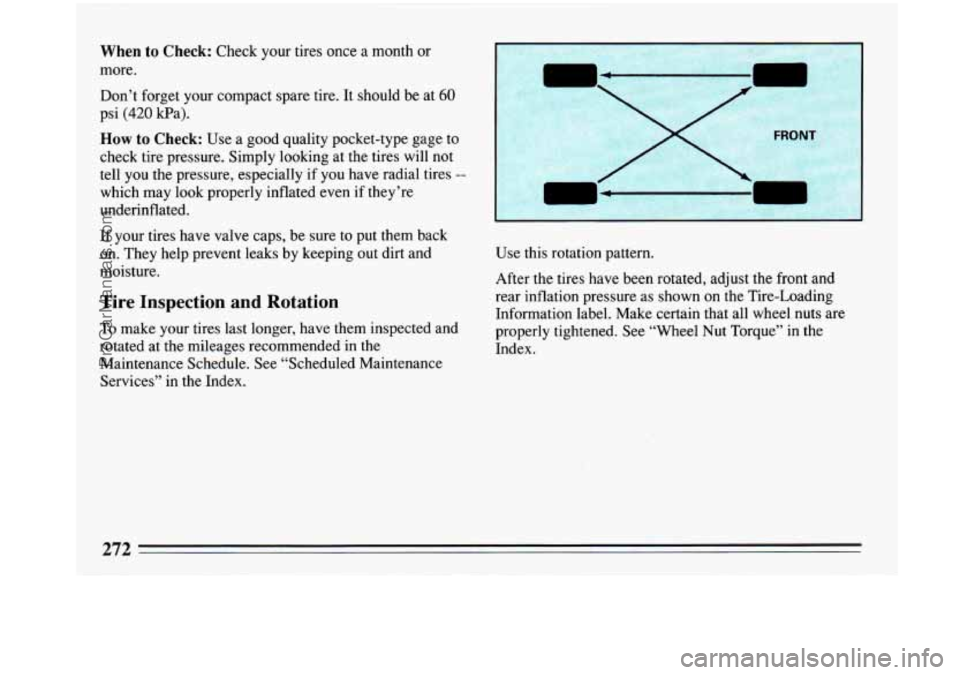

When to Check: Check your tires once a month or
more.
Don’t forget your compact spare tire. It should be at
60
psi (420 Ha).
How to Check: Use a good quality pocket-type gage to
check tire pressure. Simply looking
at the tires will not
tell you the pressure, especially
if you have radial tires --
which may look properly inflated even if they’re
underinflated.
i
If your tires have valve caps, be sure to put them back
on. They help prevent leaks by keeping out dirt and
moisture.
Tire Inspection and Rotation
To make your tires last longer, have them inspected and
rotated at the mileages recommended
in the
Maintenance Schedule. See “Scheduled Maintenance Services” in the Index. Use
this rotation
pattern.
After the tires have been rotated, adjust the front and
rear inflation pressure as shown on the Tire-Loading
Information label. Make certain that all wheel nuts are
properly tightened. See “Wheel Nut Torque”
in the
Index.
ProCarManuals.com

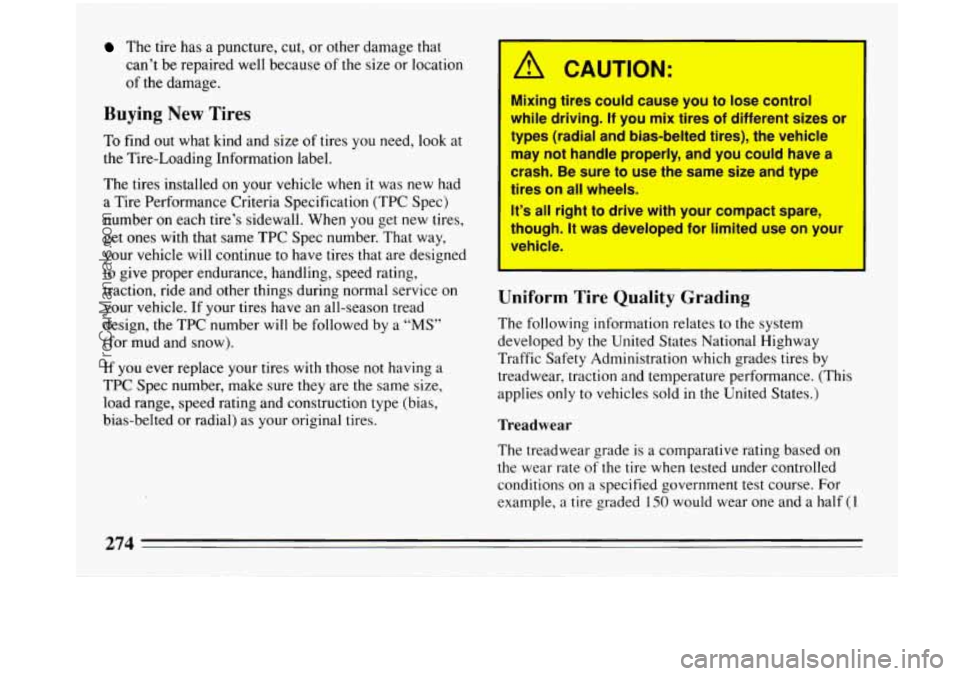

The tire has a puncture, cut, or other damage that
can’t be repaired well because
of the size or location
of the damage.
Buying New Tires
To find out what kind and size of tires you need, look at
the Tire-Loading Information label.
The tires installed
on your vehicle when it was new had
a Tire Performance Criteria Specification (TPC Spec)
number on each tire’s sidewall. When you get
new tires,
get ones with that same TPC Spec number. That way,
your vehicle will continue to have tires that are designed
to give proper endurance, handling, speed rating,
traction, ride and other things during normal service on
your vehicle.
If your tires have an all-season tread
design, the TPC number will be followed by a
“MS”
(for mud and snow).
If you ever replace your tires with those not having a
TPC Spec number, make sure
they are the same size,
load range, speed rating and construction type (bias,
bias-belted or radial) as your original tires.
. CAUTION:
Xing tires could cause you to lose control
hile driving. If you mix tires ob different sizes or
types (radial and bias-betted tires;), the vehicle
may not handle properly, and you coutd have a
crash.
Be sure to use the same size and type
tires on all wheels.
It’s all right to drive
with your compact spare,
bbugh. It was developed for limited use on your
Uniform Tire Quality Grading
The following information relates to the system
developed by the United States National Highway
Traffic Safety Administration which grades tires by
treadwear, traction and temperature performance. (This
applies only to vehicles sold
in the United States.)
Treadwear
The treadwear grade is a comparative rating based on
the wear rate of the tire when tested under controlled
conditions on a specified government test course. For
example, a tire graded
150 would wear one and a half (1
ProCarManuals.com

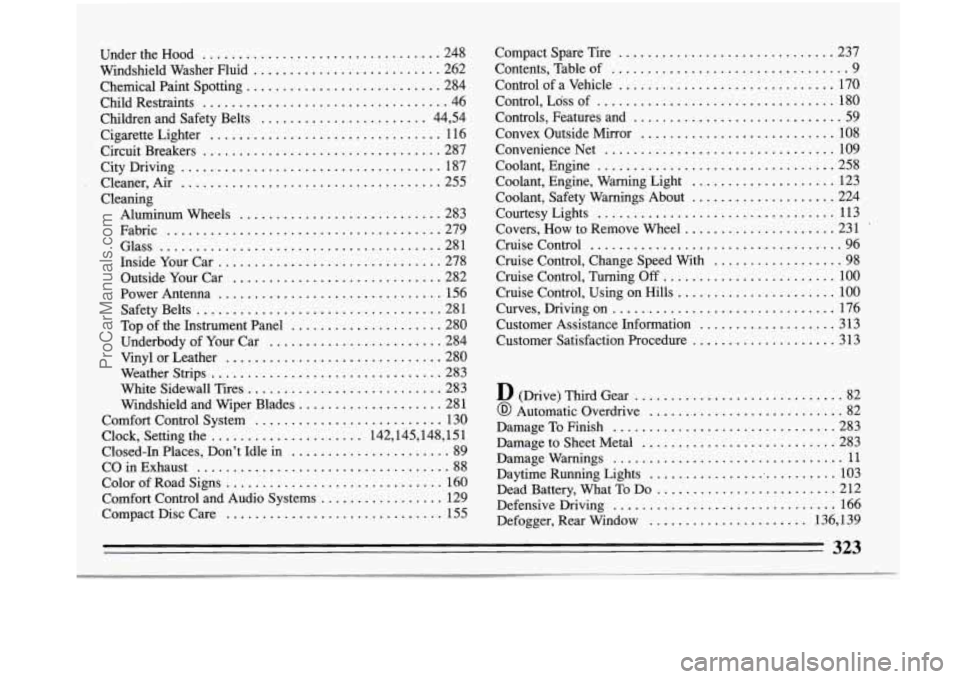

Under the Hood ............. ................... 248
Windshield Washer Fluid
.......................... 262
Chemical Paint Spotting
........................... 284
Child Restraints
.................................. 46
Children and Safety Belts
....................... 4434
Cigarette Lighter
................................ 1 16
Circuit Breakers
................................. 287
CityDriving
.................................... 187
Cleaner, Air
.................................... 255
Cleaning Aluminum Wheels
............................ 283
Fabric
...................................... 279
Glass
....................................... 281
Inside Your Car
............................... 278
Outside
Your Car ............................. 282
Power Antenna
............................... 156
Safety Belts
.................................. 281
Top of the Instrument Panel
..................... 280
Underbody
of Your Car ........................ 284
vinyl or Leather
.............................. 280
Weather
Strips ............................... -283
White Sidewall Tires
........................... 283
Windshield and Wiper Blades
.................... 281
Comfort Control System
.......................... 130
Clock, Setting the
..................... 142,145,148, 151
Closed-In Places, Don’t Idle in
...................... 89
COinExhaust
................................... 88
Color of Road Signs .............................. 160
Comfort Control and Audio Systems
................. 129
Compact Disc Care
.............................. 155 Compact Spare
Tire
.............................. 237
Contents. Table of
................................. 9
Contra1 of a Vehicle
.............................. 170
Control. Loss of ................................. 180
Controls. Features and
............................. 59
Convex Outside Mirror ........................... 108
Convenience Net
................................ 109
Coolant. Engine
................................. 258
Coolant. Engine. Warning Light
.................... 123
Coolant. Safety Warnings About
.................... 224
Courtesy Lights
................................. 113
Covers. How to Remove Wheel
..................... 231
Cruise Control
.................................. -96
Cruise Control. Change Speed With
.................. 98
Cruise Control. Turning
Off ........................ 100
Cruise Control. Using on Hills
...................... 100
Curves. Driving on
............................... 176
Customer Assistance Information
................... 313
Customer Satisfaction Procedure
.................... 313
D (Drive) Third Gear ............................. 82
@ Automatic Overdrive ........................... 82
Damage To Finish
............................... 283
Damage to Sheet Metal
........................... 283
Daytime Running Lights
........................... 103
Dead Battery. What To Do
......................... 212
Defensive Driving
............................... 166
Defogger. Rear Window
...................... 136. 139
Damagewarnings
................................ 11
323
ProCarManuals.com

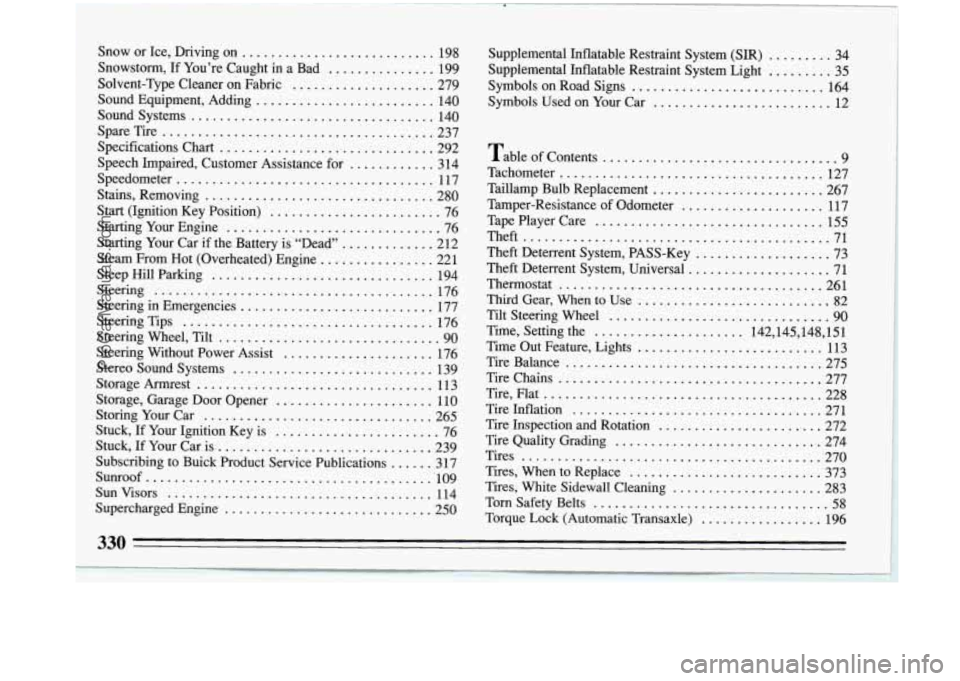

Snow or Ice. Driving on ........................... 198
Snowstorm.
If You’re Caught in a Bad ............... 199
Solvent-Type Cleaner on Fabric
.................... 279
Sound Equipment. Adding
......................... 140
Sound Systems
.................................. 140
SpareTire
...................................... 237
Specifications Chart
.............................. 292
Speech Impaired, Customer Assistance for
............ 314
Speedometer
.................................... 117
Stains, Removing
................................ 280
Start (Ignition Key Position)
........................ 76
Starting Your Engine
.............................. 76
Starting Your Car if the Battery is “Dead”
............. 212
Steam From Hot (Overheated) Engine
................ 221
Steep Hill Parking
............................... 194
Steering in Emergencies
........................... 177
Steering Tips
................................... 176
Steering Wheel, Tilt
............................... 90
Steering Without Power Assist
..................... 176
Stereo Sound Systems
............................ 139
Storage Armrest
................................. 113
Storage,
. Garage Door Opener ...................... 11 0
Storing Your Car ................................ 265
Stuck, If Your Ignition Key is
....................... 76
Stuck,
If Your Car is ............................... 239
Steering
....................................... 176
Subscribing to Buick Product Service Publications
...... 317
Sunroof
........................................ ‘109
SunVisors
..................................... 114
Supercharged Engine
............................. 250 Supplemental
Inflatable Restraint System (SIR)
......... 34
Supplemental Inflatable Restraint System Light
......... 35
Symbols on Road Signs
........................... 164
Symbols Used on Your Car
......................... 12
Table of Contents
................................. 9
Tachometer
..................................... 127
Taillamp Bulb Replacement
........................ 267
Tamper-Resistance
of Odometer .................... 117
Tape Player Care
................................ 155
Theft Deterrent System, PASS-Key
................... 73
Theft Deterrent System, Universal
.................... 71
Third Gear, When
to Use ............................ 82
Tilt Steering Wheel
............................... 90
Time, Setting the
..................... 142,145,148, 151
Time Out Feature, Lights
.......................... 113
Tire, Flat
....................................... 228
Tire Inflation
................................... 271
Tire Inspection and Rotation
....................... 272
Tire Quality Grading
............................. 274
Tires, When to Replace
........................... 373
Tires, White Sidewall Cleaning
..................... 283
Torn Safety Belts
................................. 58
Torque Lock (Automatic Transaxle) ................. 196
Theft
........................................... 71
Thermostat
..................................... 261
.................................... Tire Balance 275
Tirechains
..................................... 277
Tires
.......................................... 270
330
ProCarManuals.com
