BUICK RANDEZVOUS 2004 Owner's Manual

Manual Compass Calibration
If the compass appears erratic and the calibration
symbol does not appear, you must manually put the
compass into the calibration mode. To get into this
mode, do the following:
1. Turn the ignition on and cycle the DIC to the
compass/temperature mode.
2. Press and hold the SET button for longer than
three seconds.ZONE # PRESS & HOLD SET TO CHANGE:This
display mode will be displayed when you are manually
calibrating the system. The current zone number for
compass variance will be displayed in place of the
# symbol. Use the SET button to select the zone number
from the graphic shown to select the current area of
the country that you are driving in.
PRESS SET TO CALIBRATE COMPASS:After
selecting your zone, press the MODE button and this
will be displayed on the DIC. Press the SET button and
complete three 360 degree turns in an area free from
large metal objects.
The following two messages will toggle in the display
until you calibrate the compass:
DRIVE VEHICLE IN CIRCLE
CALIBRATING COMPASS
When calibration is complete, the display will return to
its normal mode.
3-61

DIC Controls and Displays
When the ignition is turned to ON or START, the DIC
will display the following:
BUICK:BUICK will be displayed for three seconds.
DRIVER #:This message will be displayed for another
three seconds after BUICK appears in the display.
This display lets the driver know which driver’s remote
keyless entry transmitter is being used and the
driver’s customization features.
The DIC controls are
located to the left of the
steering column on
the instrument panel.
The DIC will be in the last mode displayed when the
engine was turned off. To select a different mode, press
MODE. The display will cycle through its options at
each press of MODE.MODE:This button lets you cycle through the options
on the display.
SET:This button is used to select and set the options
to your preference.
The DIC will always display the compass reading and
the outside temperature. If the temperature is below
38°F (3°C), the temperature reading will toggle between
displaying the temperature and the word ICE for two
minutes.
AVG ECONOMY (Average Economy):Average fuel
economy is viewed as a long term approximation of your
overall driving conditions. To learn the average fuel
economy from a new starting point, press and hold the
SET button while the average fuel economy is
displayed on the DIC. The average fuel economy will
set to zero.
INST ECONOMY (Instant Economy):Instant fuel
economy varies with your driving conditions, such as
acceleration, braking and the grade of the road
being traveled.
FUEL RANGE:The fuel range is an estimated distance
that your vehicle can travel on the remaining fuel.
The fuel economy used to calculate the range is based
on your driving history since the last reset of the
average speed.
3-62

FUEL USED:The fuel used display will show you how
much fuel has been used since the last time it was
reset. To reset the fuel used to zero, press and hold the
SET button while the fuel used is displayed on the
DIC and until the display goes to zero.
AVG SPEED (Average Speed):The average speed
display will show your average speed from when
you rst started your vehicle. To reset the average
speed, press and hold the SET button while the average
speed is displayed on the DIC and until the speed
resets to your current speed.
OIL LIFE LEFT HOLD SET TO RESET:This message
displays the current percentage of the GM Oil Life
System. Be careful not to reset this display other than
when the oil has been changed. See “How to Reset the
System” underEngine Oil on page 5-14for more
information.TIRE PRESSURE:The check tire pressure system can
alert you to a large change in the pressure of one
tire. You must begin driving before the system will detect
a low tire pressure. SeeCheck Tire Pressure System
on page 5-65.
USE SET TO SELECT ENGLISH METRIC:You can
use this display to select English or metric. Press
the SET button to toggle between English or metric. The
DIC, the odometer, the trip odometer and head-up
display will change. A Canadian odometer and
trip odometer will remain in metric units only.
OFF:No driver information will be displayed in this
mode. If the DIC is left in this mode for more than three
seconds, the display will turn off. Press the MODE
button to start the DIC.
3-63

DIC Vehicle Personalization
The DIC is used to program the choices of two drivers.
The drivers are recognized as DRIVER 1 or DRIVER 2 in
the DIC display. You will let the DIC know which driver
you are by using your remote keyless entry transmitter.
Each remote keyless entry transmitter was
pre-programmed to belong to DRIVER 1 or DRIVER 2.
Each transmitter may be programmed differently for each
driver’s preferences.
After you press the LOCK button on your transmitter
and the ignition key is in ON, the DIC will display
the identied driver number. The vehicle will also recall
the vehicle customization features that were last
programmed to correspond to your transmitter.
If you unlock your vehicle using your key instead of your
transmitter, the DIC will not change drivers and your
vehicle will recall the information from the last
transmitter used.
Entering Programming Mode
To program features, your vehicle must be in the
programming mode. Do the following:
1. Turn the ignition key to ON with the vehicle
in PARK (P).2. Press and release the MODE button, scrolling
through the DIC messages, until
PERSONALIZATION PRESS SET TO BEGIN is
displayed.
3. Press the SET button and TO SELECT DRIVER
PRESS REMOTE LOCK will appear. Press the
LOCK button on the remote keyless entry.
This identies which remote keyless entry
transmitter is being programmed by displaying
PERSONALIZATION FOR DRIVER 1 or DRIVER 2.
4. The program mode message will appear in the
message center as an indication that your vehicle
is ready to begin programming.
5. Follow the instructions given by the DIC.United States
Canada
3-64

Headlamp Exit Delay
This feature allows you to customize the headlamps and
parking lamps. This feature can be programmed to
one of the following modes:
OFF:The headlamps and parking lamps will not turn
on at the same instant that the ignition is turned to OFF.
15:The headlamps and parking lamps will stay on
for 15 seconds when the ignition is turned to OFF.
30:The headlamps and parking lamps will stay on for
30 seconds when the ignition is turned to OFF.
60:The headlamps and parking lamps will stay on for
60 seconds when the ignition is turned to OFF.
Your vehicle was originally programmed to 30 second
mode. The mode may have been changed since
then. To determine the current mode, or to change the
mode, do the following:
1. Follow the instructions for “Entering Programming
Mode” listed previously.
2. Press the MODE button until HEADLAMP EXIT
DELAY appears in the DIC.
3. Press the SET button until the arrow is before the
mode you prefer.The mode you selected is now set. You can either exit
programming mode by following the instructions later in
this section or program the next feature available on your
vehicle.
Interior Lighting Delay
The interior lighting delay feature can be programmed to
one of the following modes:
OFF:This feature will not illuminate the interior of your
vehicle when all of the doors are closed.
ON:This feature will continue to illuminate the interior
lamps for 25 seconds after all doors have been
closed so that you can nd your ignition and buckle
your safety belt at night.
Interior lighting delay will not occur while the ignition is
in ON. After 25 seconds, the interior lamps will fade
out. The lamps will fade out before the 25 seconds if one
of the following occurs:
The ignition is turned to ON
All doors are locked using the remote keyless entry
transmitter
There is no occupant activity detected for an
illumination period of 25 seconds
3-65

Your vehicle was originally programmed to ON. The
mode may have been changed since then. To determine
the current mode, or to change the mode, do the
following:
1. Follow the instructions for “Entering Programming
Mode” listed previously.
2. Press the MODE button until INTERIOR LIGHTING
DELAY appears on the DIC.
3. Press the SET button until the arrow is before ON
or OFF.
The mode you selected is now set. You can either exit
programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
Interior Lighting On
The interior lighting on feature can be programmed to
one of the following modes:
KEY OUT:The interior lamps will come on for about
25 seconds whenever you remove the key from
the ignition.DOOR:The interior lamps will come on for about
25 seconds when any door is opened.
Interior lighting on will not occur while the ignition is in
ON. After 25 seconds, the interior lamps will fade
out. The lamps will fade out before the 25 seconds if
one of the following occurs:
The ignition is turned to ON
LOCK is pressed on the remote keyless entry
transmitter
There is no occupant activity detected for an
illumination period of 25 seconds
Your vehicle was originally programmed to DOOR. The
mode may have been changed since then. To determine
the current mode, or to change the mode, do the
following:
1. Follow the instructions for “Entering Programming
Mode” listed previously.
2. Press the MODE button until INTERIOR LIGHTING
ON appears on the DIC.
3. Press the SET button until the arrow is before KEY
OUT or DOOR.
The mode you selected is now set. You can either exit
programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
3-66

Auto Door Lock/Unlock
The doors will automatically lock when the vehicle is
shifted out of PARK (P). For automatic unlocking,
you can program your vehicle to one of the following
modes:
OFF:When the shift lever is put in PARK (P), your
doors will not unlock automatically.
DRIVER:When the shift lever is put in PARK (P), only
your driver’s door will unlock.
ALL:When the shift lever is put in PARK (P), all doors
will unlock.
Your vehicle was originally programmed to ALL. The
mode may have been changed since then. To determine
the current mode, or to change the mode, do the
following:
1. Follow the instructions for “Entering Programming
Mode” listed previously.
2. Make sure that the AUTO DOOR LOCK feature is
programmed to ON.
3. Press the MODE button until AUTO DOOR
UNLOCK appears on the DIC.
4. Press the SET button until the arrow is before OFF,
DRIVER or ALL.If the auto door unlock feature has been programmed to
DRIVER or ALL, the automatic door unlock feature
can also be programmed to one of the following modes:
PARK:Unlock when the shift lever is put in PARK (P).
KEY OUT:Unlock when the ignition key is removed.
Your vehicle was originally programmed to PARK. The
mode may have been changed since then. To
determine the current mode, or to change the mode, do
the following:
1. Follow the instructions for “Entering Programming
Mode” listed previously.
2. Follow the instructions for programming AUTO
DOOR UNLOCK to DRIVER or ALL listed
previously.
3. Press the MODE button until AUTO DOOR
UNLOCK/PARK KEYOUT appears on the DIC.
4. Press the SET button until the arrow is before
PARK or KEY OUT.
The mode you selected is now set. You can either exit
programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
3-67

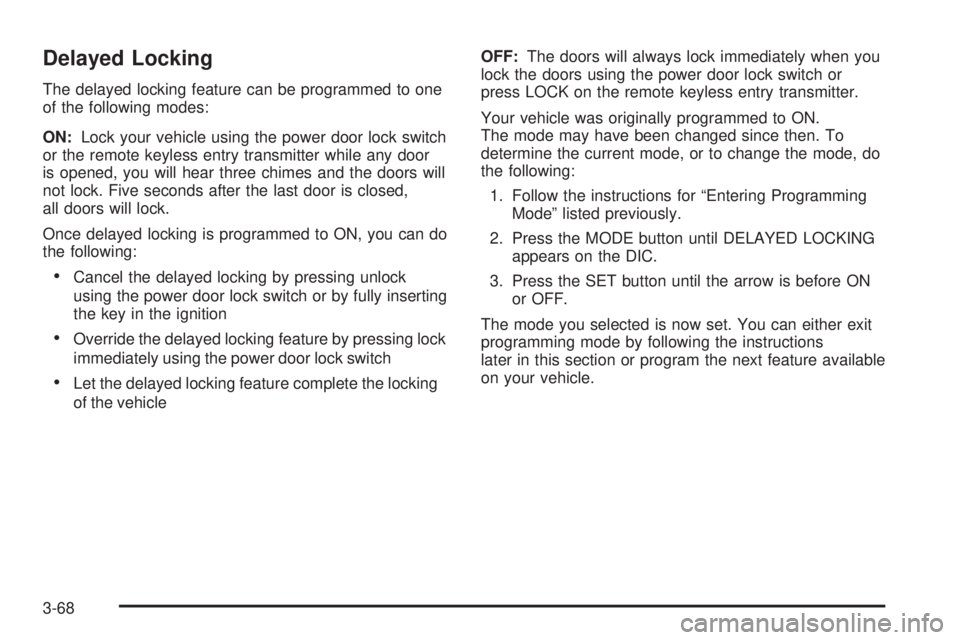

Delayed Locking
The delayed locking feature can be programmed to one
of the following modes:
ON:Lock your vehicle using the power door lock switch
or the remote keyless entry transmitter while any door
is opened, you will hear three chimes and the doors will
not lock. Five seconds after the last door is closed,
all doors will lock.
Once delayed locking is programmed to ON, you can do
the following:
Cancel the delayed locking by pressing unlock
using the power door lock switch or by fully inserting
the key in the ignition
Override the delayed locking feature by pressing lock
immediately using the power door lock switch
Let the delayed locking feature complete the locking
of the vehicleOFF:The doors will always lock immediately when you
lock the doors using the power door lock switch or
press LOCK on the remote keyless entry transmitter.
Your vehicle was originally programmed to ON.
The mode may have been changed since then. To
determine the current mode, or to change the mode, do
the following:
1. Follow the instructions for “Entering Programming
Mode” listed previously.
2. Press the MODE button until DELAYED LOCKING
appears on the DIC.
3. Press the SET button until the arrow is before ON
or OFF.
The mode you selected is now set. You can either exit
programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
3-68

Remote Door Unlock
The remote door unlock feature can be programmed to
one of the following modes:
DRIVER/ALL:With the rst press of UNLOCK on the
remote keyless entry transmitter, the driver’s door
will unlock, and with the second press of UNLOCK,
within ve seconds of the rst press, all passenger’s
doors will unlock.
ALL:All doors will unlock with every press of UNLOCK
on the remote keyless entry transmitter.
Your vehicle was originally programmed to ALL. The
mode may have been changed since then. To determine
the current mode, or to change the mode, do the
following:
1. Follow the instructions for “Entering Programming
Mode” listed previously.
2. Press the MODE button until REMOTE DOOR
UNLOCK appears on the DIC.
3. Press the SET button until the arrow is before
DRIVER/ALL or ALL.
The mode you selected is now set. You can either exit
programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
Unlock Feedback
The unlock feedback feature can be programmed to one
of the following modes:
LIGHTS:This mode does the following:
During the day, when the ignition is in OFF and
UNLOCK on the remote keyless entry transmitter
is pressed, the headlamps and parking lamps
will ash.
During the night, when the ignition is in OFF, the
headlamps and parking lamps will be activated
for 30 seconds when UNLOCK is pressed on the
remote keyless entry transmitter. If you would like to
change the amount of time the lamps stay on,
change the headlamp exit delay feature.
OFF:The headlamps and parking lamps will not ash
when UNLOCK is pressed on the remote keyless
entry transmitter.
Your vehicle was originally programmed to LIGHTS.
The mode may have been changed since then.
To determine the current mode, or to change the mode,
do the following:
1. Follow the instructions for “Entering Programming
Mode” listed previously.
3-69

2. Follow the instructions for programming HEADLAMP
EXIT DELAY earlier in this section, to make sure
which mode it is programmed to.
3. Press the SET button until UNLOCK FEEDBACK
appears on the DIC.
4. Press the MODE button until the arrow is before
LIGHTS or OFF.
5. Press the SET button once you have determined
which mode you prefer.
The mode you selected is now set. You can either exit
programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
Lock Feedback
The lock feedback feature can be programmed to one
of the following modes:
OFF:When LOCK is pressed on the remote keyless
entry transmitter, the headlamps and parking lamps will
not ash and the horn will not sound.
LIGHTS:When LOCK is pressed on the remote
keyless entry transmitter, the headlamps and parking
lamps will ash briey.LIGHTS and HORN:When LOCK is pressed a second
time on the remote keyless entry transmitter within
ve seconds, the headlamps and parking lamps
will ash briey and the horn will sound.
Your vehicle was originally programmed to LIGHTS and
HORN. The mode may have been changed since
then. To determine the current mode, or to change the
mode, do the following:
1. Follow the instructions for “Entering Programming
Mode” listed previously.
2. Press the MODE button until LOCK FEEDBACK
appears on the DIC.
3. Press the SET button until the arrow is before OFF,
LIGHTS or LIGHTS and HORN.
The mode you selected is now set. You can either exit
programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
3-70
