BUICK RANDEZVOUS 2007 Owners Manual

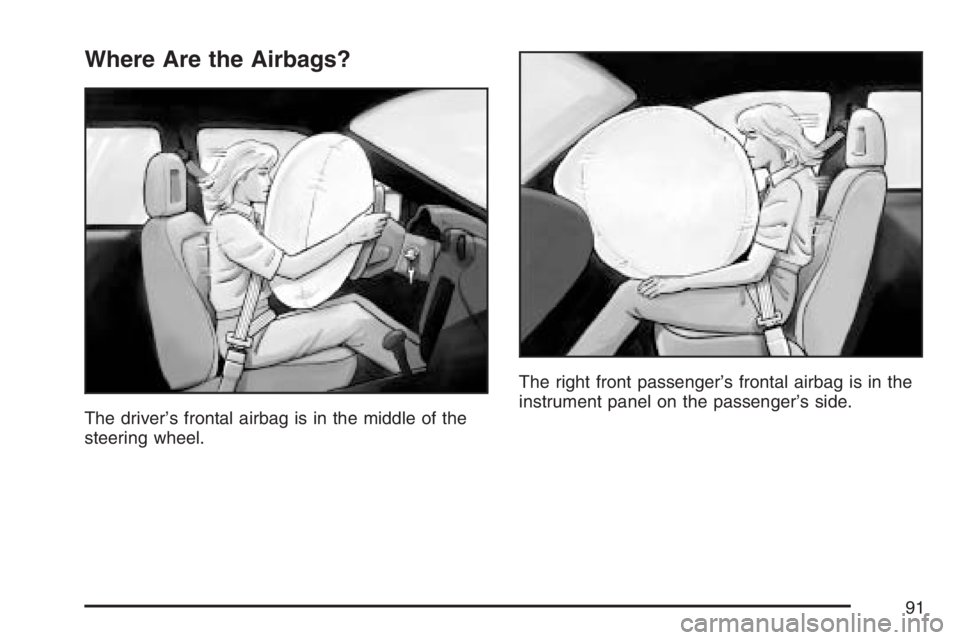

Where Are the Airbags?
The driver’s frontal airbag is in the middle of the
steering wheel.The right front passenger’s frontal airbag is in the
instrument panel on the passenger’s side.
91

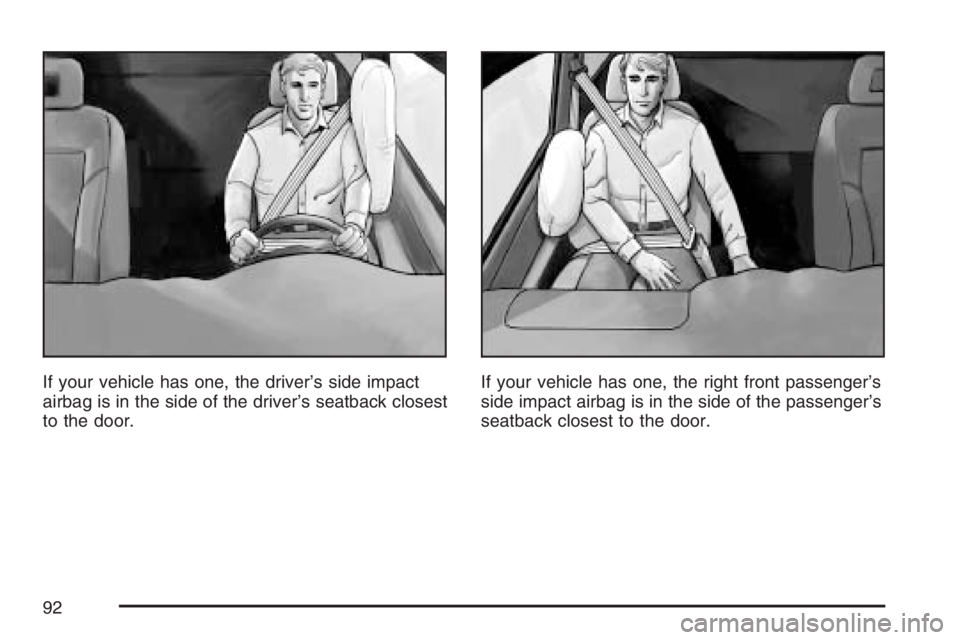

If your vehicle has one, the driver’s side impact
airbag is in the side of the driver’s seatback closest
to the door.If your vehicle has one, the right front passenger’s
side impact airbag is in the side of the passenger’s
seatback closest to the door.
92

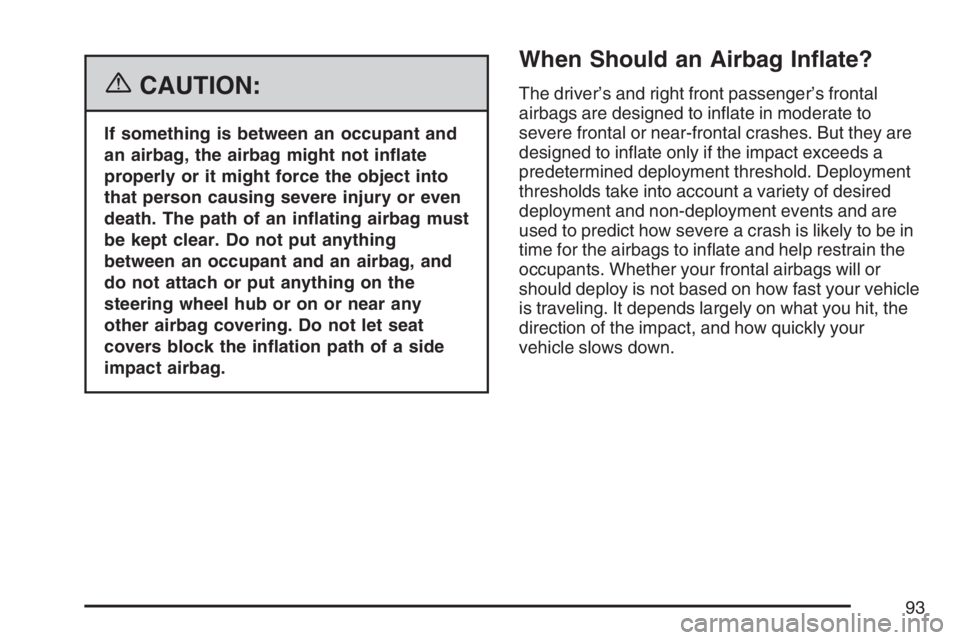

{CAUTION:
If something is between an occupant and
an airbag, the airbag might not inate
properly or it might force the object into
that person causing severe injury or even
death. The path of an inating airbag must
be kept clear. Do not put anything
between an occupant and an airbag, and
do not attach or put anything on the
steering wheel hub or on or near any
other airbag covering. Do not let seat
covers block the ination path of a side
impact airbag.
When Should an Airbag Inate?
The driver’s and right front passenger’s frontal
airbags are designed to inate in moderate to
severe frontal or near-frontal crashes. But they are
designed to inate only if the impact exceeds a
predetermined deployment threshold. Deployment
thresholds take into account a variety of desired
deployment and non-deployment events and are
used to predict how severe a crash is likely to be in
time for the airbags to inate and help restrain the
occupants. Whether your frontal airbags will or
should deploy is not based on how fast your vehicle
is traveling. It depends largely on what you hit, the
direction of the impact, and how quickly your
vehicle slows down.
93

In addition, your vehicle has “dual stage” frontal
airbags, which adjust the restraint according
to crash severity. Your vehicle has electronic
frontal sensors which help the sensing system
distinguish between a moderate and a more
severe frontal impact. For moderate frontal
impacts, these airbags inate at a level less than
full deployment. For more severe frontal
impacts, full deployment occurs. If the front of your
vehicle goes straight into a wall that does not
move or deform, the threshold level for the
reduced deployment is about 12 to 20 mph
(19 to 33 km/h), and the threshold level for a full
deployment is about 21 to 25 mph (34 to 40 km/h).
The threshold level can vary, however, with
specic vehicle design, so that it can be somewhat
above or below this range.Frontal airbags may inate at different crash
speeds. For example:
If the vehicle hits a stationary object, the
airbags could inate at a different crash speed
than if the vehicle hits a moving object.
If the vehicle hits an object that deforms, the
airbags could inate at a different crash
speed than if the vehicle hits an object that
does not deform.
If the vehicle hits a narrow object (like a pole),
the airbags could inate at a different crash
speed than if the vehicle hits a wide object
(like a wall).
If the vehicle goes into an object at an angle,
the airbags could inate at a different crash
speed than if the vehicle goes straight into the
object.
Frontal airbags (driver and right front passenger)
are not intended to inate during vehicle
rollovers, rear impacts, or in many side impacts.
94

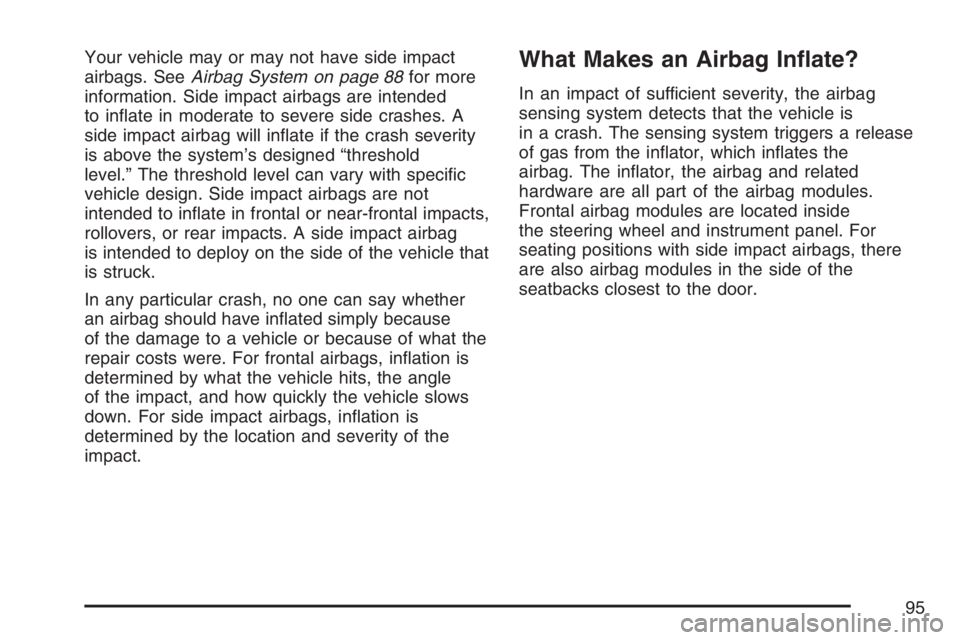

Your vehicle may or may not have side impact
airbags. SeeAirbag System on page 88for more
information. Side impact airbags are intended
to inate in moderate to severe side crashes. A
side impact airbag will inate if the crash severity
is above the system’s designed “threshold
level.” The threshold level can vary with specic
vehicle design. Side impact airbags are not
intended to inate in frontal or near-frontal impacts,
rollovers, or rear impacts. A side impact airbag
is intended to deploy on the side of the vehicle that
is struck.
In any particular crash, no one can say whether
an airbag should have inated simply because
of the damage to a vehicle or because of what the
repair costs were. For frontal airbags, ination is
determined by what the vehicle hits, the angle
of the impact, and how quickly the vehicle slows
down. For side impact airbags, ination is
determined by the location and severity of the
impact.What Makes an Airbag Inate?
In an impact of sufficient severity, the airbag
sensing system detects that the vehicle is
in a crash. The sensing system triggers a release
of gas from the inator, which inates the
airbag. The inator, the airbag and related
hardware are all part of the airbag modules.
Frontal airbag modules are located inside
the steering wheel and instrument panel. For
seating positions with side impact airbags, there
are also airbag modules in the side of the
seatbacks closest to the door.
95

How Does an Airbag Restrain?
In moderate to severe frontal or near frontal
collisions, even belted occupants can contact the
steering wheel or the instrument panel. In
moderate to severe side collisions, even belted
occupants can contact the inside of the vehicle.
Airbags supplement the protection provided
by safety belts. Airbags distribute the force of the
impact more evenly over the occupant’s upper
body, stopping the occupant more gradually. But
the frontal airbags would not help you in many
types of collisions, including rollovers, rear
impacts, and many side impacts, primarily because
an occupant’s motion is not toward the airbag.
Side impact airbags would not help you in many
types of collisions, including many frontal or
near frontal collisions, rollovers, and rear impacts.
Airbags should never be regarded as anything
more than a supplement to safety belts, and then
only in moderate to severe frontal or near-frontal
collisions for the driver’s and right front
passenger’s frontal airbags, and only in moderate
to severe side collisions for vehicles with side
impact airbags.
What Will You See After an Airbag
Inates?
After an airbag inates, it quickly deates, so
quickly that some people may not even realize the
airbag inated. Some components of the airbag
module — the steering wheel hub for the driver’s
frontal airbag, the instrument panel for the
right front passenger’s frontal airbag, and for
seating positions with side impact airbags, the side
of the seatback closest to the door — may be
hot for a short time. The parts of the airbag that
come into contact with you may be warm, but
not too hot to touch. There may be some smoke
and dust coming from the vents in the deated
airbags. Airbag ination does not prevent the driver
from seeing out of the windshield or being able
to steer the vehicle, nor does it prevent people
from leaving the vehicle.
96

{CAUTION:
When an airbag inates, there may be
dust in the air. This dust could cause
breathing problems for people with a
history of asthma or other breathing
trouble. To avoid this, everyone in the
vehicle should get out as soon as it is
safe to do so. If you have breathing
problems but cannot get out of the vehicle
after an airbag inates, then get fresh air
by opening a window or a door. If you
experience breathing problems following
an airbag deployment, you should seek
medical attention.
Your vehicle has a feature that may automatically
unlock the doors, turn the interior lamps on
when the airbags inate and turn on the hazard
warning ashers. You can lock the doors, turn the
interior lamps off, and turn the hazard warning
ashers on by using the controls for those
features.In many crashes severe enough to inate an
airbag, windshields are broken by vehicle
deformation. Additional windshield breakage may
also occur from the right front passenger
airbag.
Airbags are designed to inate only once.
After they inate, you will need some new
parts for your airbag system. If you do not get
them, the airbag system will not be there to
help protect you in another crash. A new
system will include airbag modules and
possibly other parts. The service manual for
your vehicle covers the need to replace
other parts.
Your vehicle has a crash sensing and
diagnostic module which records information
after a crash. SeeVehicle Data Collection and
Event Data Recorders on page 503.
Let only qualied technicians work on your
airbag system. Improper service can mean
that an airbag system will not work properly.
See your dealer for service.
97

Passenger Sensing System
Your vehicle has a passenger sensing system.
The passenger airbag status indicator in the
rearview mirror will be visible when you turn your
ignition key to ON or START.The words ON and OFF or the symbol for on and
off, will be visible during the system check.
When the system check is complete, either the
word ON or the word OFF, or the symbol for on or
the symbol for off will be visible. SeePassenger
Airbag Status Indicator on page 217.
The passenger sensing system will turn off the
right front passenger’s frontal airbag under certain
conditions. The driver’s airbags are not part of
the passenger sensing system.
The passenger sensing system works with
sensors that are part of the right front passenger’s
seat and safety belt. The sensors are designed
to detect the presence of a properly-seated
occupant and determine if the passenger’s frontal
airbag should be enabled (may inate) or not.
Accident statistics show that children are safer if
they are restrained in the rear rather than the front
seat. General Motors recommends that child
restraints be secured in a rear seat, including an
infant riding in a rear-facing infant seat, a child
riding in a forward-facing child seat and an older
child riding in a booster seat.
United States
Canada
98

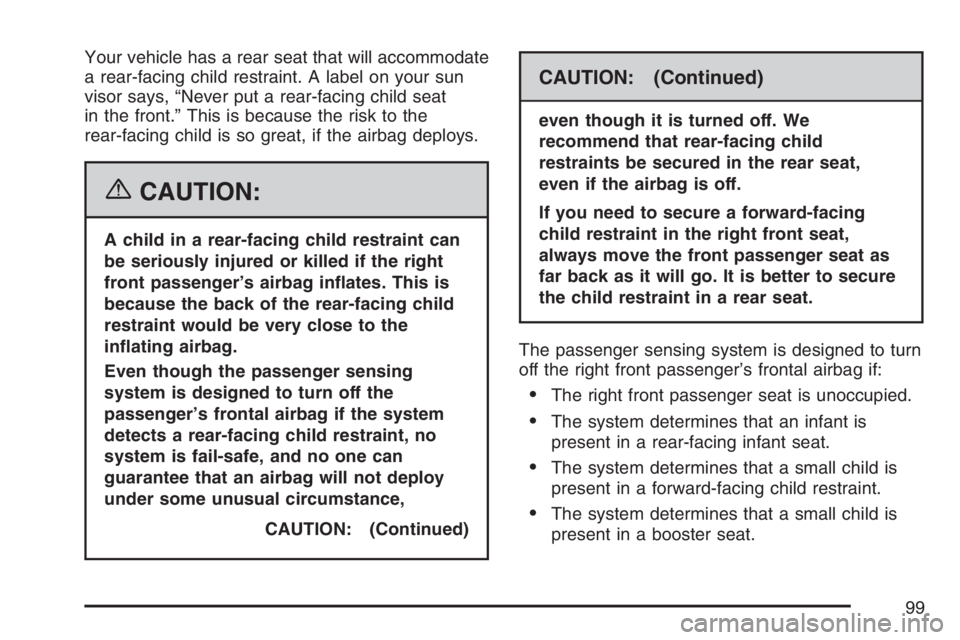

Your vehicle has a rear seat that will accommodate
a rear-facing child restraint. A label on your sun
visor says, “Never put a rear-facing child seat
in the front.” This is because the risk to the
rear-facing child is so great, if the airbag deploys.
{CAUTION:
A child in a rear-facing child restraint can
be seriously injured or killed if the right
front passenger’s airbag inates. This is
because the back of the rear-facing child
restraint would be very close to the
inating airbag.
Even though the passenger sensing
system is designed to turn off the
passenger’s frontal airbag if the system
detects a rear-facing child restraint, no
system is fail-safe, and no one can
guarantee that an airbag will not deploy
under some unusual circumstance,
CAUTION: (Continued)
CAUTION: (Continued)
even though it is turned off. We
recommend that rear-facing child
restraints be secured in the rear seat,
even if the airbag is off.
If you need to secure a forward-facing
child restraint in the right front seat,
always move the front passenger seat as
far back as it will go. It is better to secure
the child restraint in a rear seat.
The passenger sensing system is designed to turn
off the right front passenger’s frontal airbag if:
The right front passenger seat is unoccupied.
The system determines that an infant is
present in a rear-facing infant seat.
The system determines that a small child is
present in a forward-facing child restraint.
The system determines that a small child is
present in a booster seat.
99

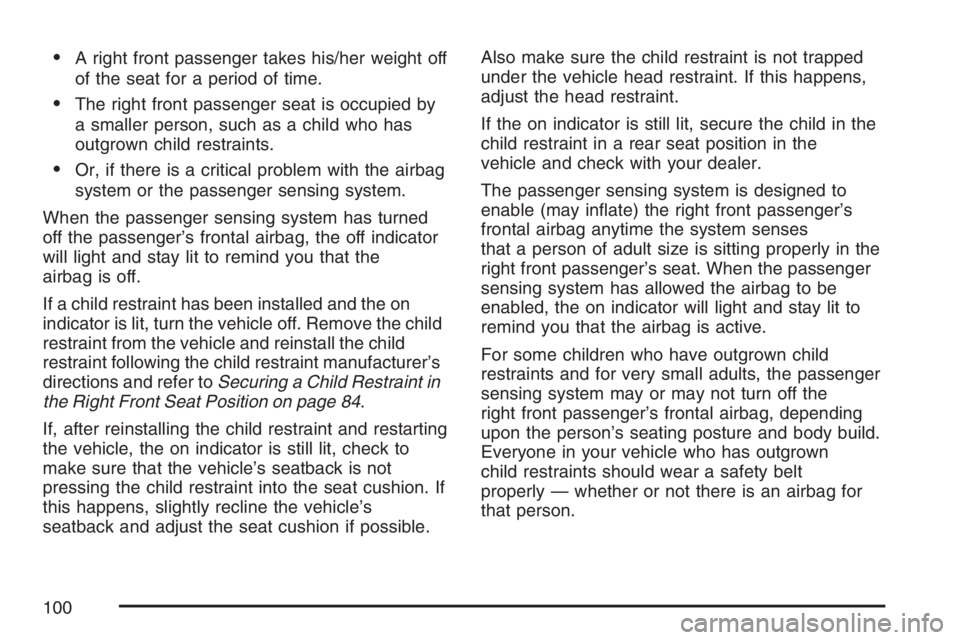

A right front passenger takes his/her weight off
of the seat for a period of time.
The right front passenger seat is occupied by
a smaller person, such as a child who has
outgrown child restraints.
Or, if there is a critical problem with the airbag
system or the passenger sensing system.
When the passenger sensing system has turned
off the passenger’s frontal airbag, the off indicator
will light and stay lit to remind you that the
airbag is off.
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove the child
restraint from the vehicle and reinstall the child
restraint following the child restraint manufacturer’s
directions and refer toSecuring a Child Restraint in
the Right Front Seat Position on page 84.
If, after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to
make sure that the vehicle’s seatback is not
pressing the child restraint into the seat cushion. If
this happens, slightly recline the vehicle’s
seatback and adjust the seat cushion if possible.Also make sure the child restraint is not trapped
under the vehicle head restraint. If this happens,
adjust the head restraint.
If the on indicator is still lit, secure the child in the
child restraint in a rear seat position in the
vehicle and check with your dealer.
The passenger sensing system is designed to
enable (may inate) the right front passenger’s
frontal airbag anytime the system senses
that a person of adult size is sitting properly in the
right front passenger’s seat. When the passenger
sensing system has allowed the airbag to be
enabled, the on indicator will light and stay lit to
remind you that the airbag is active.
For some children who have outgrown child
restraints and for very small adults, the passenger
sensing system may or may not turn off the
right front passenger’s frontal airbag, depending
upon the person’s seating posture and body build.
Everyone in your vehicle who has outgrown
child restraints should wear a safety belt
properly — whether or not there is an airbag for
that person.
100
