turn signal BUICK RANDEZVOUS 2007 Owner's Manual

5. After entering the switch settings, press and
release all three buttons at the same time.
The indicator lights will turn on.
6. Press and hold the button you would like to
use to control the garage door until the
garage door moves. The indicator light above
the selected button should slowly blink.
You may need to hold the button from ve to
55 seconds.
7. Immediately release the button when the
garage door moves. The indicator light will
blink rapidly until programming is complete.
8. Press and release the button again. The
garage door should move, conrming that
programming is successful and complete.
To program another device such as an additional
garage door opener, a security device, or
home lighting, repeat Steps 1 through 8, choosing
a different function button in Step 7 than what
you used for the garage door opener.Programming Universal Home
Remote — Rolling Code
Rolling code garage door openers are used for
garage doors produced after 1996 and are
code protected. Rolling code means the coded
signal is changed every time your remote control
garage door opener is used.
Programming a rolling code garage door opener
involves time-sensitive actions, so read the
entire procedure before you begin. If you do not
follow these actions, the device will time out
and you will have to repeat the procedure.
Follow these steps to program up to three channels:
1. Press the two outside buttons at the same
time for one to two seconds, and immediately
release them.
152

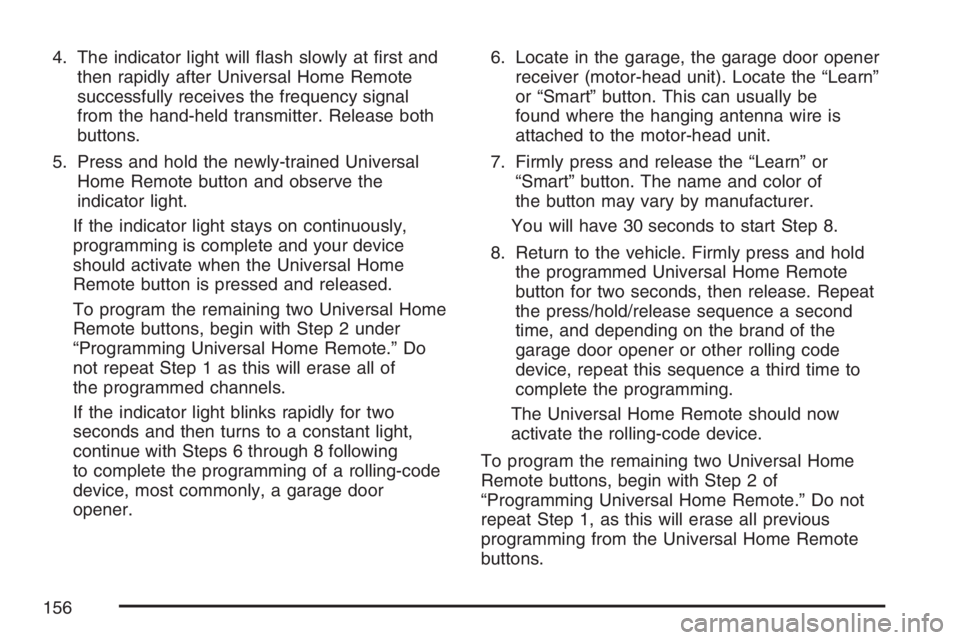

4. The indicator light will ash slowly at rst and
then rapidly after Universal Home Remote
successfully receives the frequency signal
from the hand-held transmitter. Release both
buttons.
5. Press and hold the newly-trained Universal
Home Remote button and observe the
indicator light.
If the indicator light stays on continuously,
programming is complete and your device
should activate when the Universal Home
Remote button is pressed and released.
To program the remaining two Universal Home
Remote buttons, begin with Step 2 under
“Programming Universal Home Remote.” Do
not repeat Step 1 as this will erase all of
the programmed channels.
If the indicator light blinks rapidly for two
seconds and then turns to a constant light,
continue with Steps 6 through 8 following
to complete the programming of a rolling-code
device, most commonly, a garage door
opener.6. Locate in the garage, the garage door opener
receiver (motor-head unit). Locate the “Learn”
or “Smart” button. This can usually be
found where the hanging antenna wire is
attached to the motor-head unit.
7. Firmly press and release the “Learn” or
“Smart” button. The name and color of
the button may vary by manufacturer.
You will have 30 seconds to start Step 8.
8. Return to the vehicle. Firmly press and hold
the programmed Universal Home Remote
button for two seconds, then release. Repeat
the press/hold/release sequence a second
time, and depending on the brand of the
garage door opener or other rolling code
device, repeat this sequence a third time to
complete the programming.
The Universal Home Remote should now
activate the rolling-code device.
To program the remaining two Universal Home
Remote buttons, begin with Step 2 of
“Programming Universal Home Remote.” Do not
repeat Step 1, as this will erase all previous
programming from the Universal Home Remote
buttons.
156

Instrument Panel Overview........................ 174
Hazard Warning Flashers.......................... 176
Other Warning Devices............................. 176
Horn.......................................................... 176
Tilt Wheel.................................................. 177
Turn Signal/Multifunction Lever.................. 177
Turn and Lane-Change Signals................. 178
Headlamp High/Low-Beam Changer.......... 179
Flash-to-Pass............................................ 179
Windshield Wipers..................................... 179
Windshield Washer.................................... 180
Rear Window Wiper/Washer...................... 180
Cruise Control........................................... 181
Exterior Lamps.......................................... 185
Daytime Running Lamps (DRL)................. 186
Automatic Headlamp System..................... 187
Fog Lamps................................................ 187
Interior Lamps........................................... 188
Instrument Panel Brightness...................... 188
Interior Lamps Control............................... 188
Headlamp Exit Delay................................. 189
Entry Lighting............................................ 189
Delayed Lighting........................................ 190
Exit Lighting.............................................. 190
Perimeter Lighting..................................... 191Front Reading Lamps................................ 191
Rear Reading Lamps................................ 191
Cargo Lamp.............................................. 192
Battery Run-Down Protection..................... 192
Instrument Panel Switchbank..................... 192
Head-Up Display (HUD)............................ 193
Ultrasonic Rear Parking Assist (URPA)...... 196
Accessory Power Outlet(s)........................ 199
Ashtray(s) and Cigarette Lighter................ 200
Climate Controls......................................... 200
Climate Control System............................. 200
Dual Climate Control System..................... 203
Dual Automatic Climate Control System.... 206
Outlet Adjustment...................................... 210
Warning Lights, Gages, and Indicators..... 211
Instrument Panel Cluster........................... 212
Speedometer and Odometer...................... 213
Trip Odometer........................................... 213
Tachometer............................................... 214
Safety Belt Reminder Light........................ 215
Airbag Readiness Light............................. 215
Passenger Airbag Status Indicator............. 217
Brake System Warning Light..................... 219
Anti-Lock Brake System Warning Light...... 220
Section 3 Instrument Panel
171

The main components of the instrument panel are the following:
A. Exterior/Interior Lamps Control. SeeExterior
Lamps on page 185andInterior Lamps
on page 188.
B. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 177.
C. Hazard Warning Flasher Button. SeeHazard
Warning Flashers on page 176.
D. Instrument Panel Cluster. SeeInstrument
Panel Cluster on page 212.
E. Shift Lever. SeeAutomatic Transaxle Operation
on page 132.
F. Instrument Panel Outlets. SeeOutlet
Adjustment on page 210.
G. Audio System. SeeAudio System(s) on
page 250.
H. Audio Steering Wheel Controls. SeeAudio
Steering Wheel Controls on page 296.
I. Head-Up Display Switch and Driver Information
Center (DIC) Controls (If Equipped). See
Head-Up Display (HUD) on page 193andDIC
Controls and Displays on page 236.J. Hood Release. SeeHood Release on
page 363.
K. Ignition Switch. SeeIgnition Positions on
page 128.
L. Climate Controls. SeeClimate Control System
on page 200,Dual Climate Control System
on page 203orDual Automatic Climate Control
System on page 206.
M. Instrument Panel Switchbank. SeeInstrument
Panel Switchbank on page 192.
N. Front Armrest Storage. SeeFront Armrest
Storage Area on page 160.
O. Ashtray/Cigarette Lighter/Accessory Power
Outlet/Cell Phone Storage/Cupholders.
SeeAshtray(s) and Cigarette Lighter on
page 200,Accessory Power Outlet(s) on
page 199,Cell Phone Storage Area on
page 159,Floor Console Storage Area on
page 160andCupholder(s) on page 158.
P. Floor Console Fuse Block. SeeFloor Console
Fuse Block on page 463.
Q. Glove Box. SeeGlove Box on page 158.
175

Hazard Warning Flashers
The hazard warning ashers warn others. They
also let police know you have a problem.
Your front and rear turn signal lamps will ash on
and off.
The hazard warning
asher button is located
on top of the steering
column.
The hazard warning ashers work no matter what
ignition position the key is in, and even if the
key is not in the ignition.Press the button to make the front and rear turn
signal lamps ash on and off. Press the button
again to turn the ashers off.
When the hazard warning ashers are on, your
turn signals will not work.
Other Warning Devices
If you carry reective triangles, you can set them up
at the side of the road about 300 feet (100 m)
behind your vehicle.
Horn
Press near or on the horn symbols on your
steering wheel pad to sound the horn.
176

Tilt Wheel
A tilt wheel lets you adjust the steering wheel
before you drive. You can raise the steering wheel
to the highest level to give your legs more room
when you enter and exit the vehicle.
The lever that lets you tilt the steering wheel is
located on the left side of the steering column.
To tilt the wheel, hold
the wheel and pull the
lever. Then move
the wheel to a
comfortable position and
release the lever to
lock the wheel in place.
Turn Signal/Multifunction Lever
The lever on the left side of the steering column
includes the following:
GTurn and Lane-Change Signals. See
Turn and Lane-Change Signals on page 178.
53Headlamp High/Low-Beam Changer.
SeeHeadlamp High/Low-Beam Changer on
page 179.
Flash-to-Pass. SeeFlash-to-Pass on
page 179.
WIPERNWindshield Wipers. See
Windshield Wipers on page 179.
177

LPUSH Windshield Washer. See
Windshield Washer on page 180.
CRUISEICruise Control. SeeCruise
Control on page 181.
Turn and Lane-Change Signals
The turn signal has two upward (for right) and two
downward (for left) positions. These positions
allow you to signal a turn or a lane change.
To signal a turn, move the lever all the way up or
down. When the turn is nished, the lever will
return automatically.
An arrow on the
instrument panel cluster
and the HUD display
will ash in the direction
of the turn or lane
change.
To signal a lane change, just raise or lower the
lever until the arrow starts to ash. Hold it
there until you complete your lane change. The
lever will return by itself when you release it.As you signal a turn or a lane change, if the arrow
ashes faster than normal, a signal bulb may
be burned out and other drivers will not see your
turn signal.
If a bulb is burned out, replace it to help avoid an
accident. If the arrows do not go on at all when
you signal a turn, check for burned-out bulbs and
check the fuse. SeeFuses and Circuit Breakers
on page 463.
If you have a trailer towing option with added
wiring for the trailer lamps, the signal indicator will
ash at a normal rate even if a turn signal bulb
is burned out. Check the front and rear turn signal
lamps regularly to make sure they are working.
Turn Signal On Chime
If either turn signal is left on for more than 3/4 mile
(1.2 km), a chime will sound to let the driver
know to turn it off.
If you need to leave the signal on for more than
3/4 mile (1.2 km), turn off the signal and then turn it
back on.
178

Headlamp High/Low-Beam Changer
To change the headlamps from low to high,
push the turn signal lever away from you, then
release it. To change the headlamps from high to
low, pull the lever toward you.
When the high beams
are on, this light on the
instrument panel
cluster and the HUD
display, if the vehicle
has this, will also be on.
Flash-to-Pass
When the headlamps are off, pull the lever toward
you to momentarily turn on the high beams.
This will signal that you are going to pass. When
you release the lever, they will turn off.
Windshield Wipers
WIPERN:Turn the band marked WIPER to
control the windshield wipers.MIST:For a single wiping cycle, turn the band to
MIST. Hold it there until the wipers start, then let go.
The wipers will stop after one cycle. If you want
more cycles, hold the band on MIST longer.
Delay:For delayed wiping cycles, you can set the
wiper speed for a long or short delay between
wipes. This can be very useful in light rain or snow.
Turn the band to choose the delay time. The
closer to LO, the shorter the delay time.
LO:For steady wiping cycles at low speed, turn
the band away from you to the LO position.
HI:For high-speed wiping, turn the band away
from you to the HI position.
OFF:To stop the wipers, turn the band to OFF.
Remember that damaged wiper blades may
prevent you from seeing well enough to drive
safely. To avoid damage, carefully clear ice and
snow from the wiper blades before using them. If
they are frozen to the windshield, carefully
loosen or thaw them. If your blades do become
damaged, get new blades or blade inserts.
Heavy snow or ice can overload your wipers. A
circuit breaker will stop them until the motor cools.
Clear away snow or ice to prevent an overload.
179

The cruise controls are
located on the end of
the turn signal/
multifunction lever.
ON:Move the switch to this position to turn the
cruise control system on.
R/A:Move the switch to this position to resume a
set speed or to accelerate.
SET:Press this button, located at the end of the
lever, to set a speed.
OFF:This position turns the cruise control system
off and cancels memory of a set speed.
{CAUTION:
Cruise control can be dangerous where
you cannot drive safely at a steady speed.
So, do not use your cruise control on
winding roads or in heavy traffic.
Cruise control can be dangerous on
slippery roads. On such roads, fast
changes in tire traction can cause
excessive wheel slip, and you could lose
control. Do not use cruise control on
slippery roads.
If your vehicle is in cruise control when the
traction control system begins to limit wheel spin,
the cruise control will automatically disengage.
SeeTraction Control System (TCS) on page 310.
When road conditions allow you to safely use
it again, you may turn the cruise control back on.
182

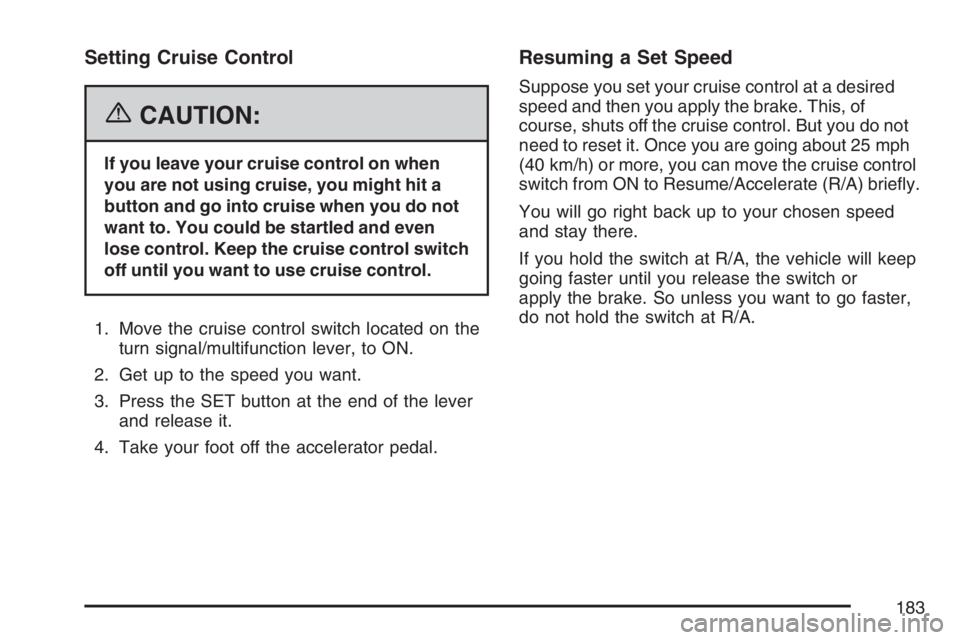

Setting Cruise Control
{CAUTION:
If you leave your cruise control on when
you are not using cruise, you might hit a
button and go into cruise when you do not
want to. You could be startled and even
lose control. Keep the cruise control switch
off until you want to use cruise control.
1. Move the cruise control switch located on the
turn signal/multifunction lever, to ON.
2. Get up to the speed you want.
3. Press the SET button at the end of the lever
and release it.
4. Take your foot off the accelerator pedal.
Resuming a Set Speed
Suppose you set your cruise control at a desired
speed and then you apply the brake. This, of
course, shuts off the cruise control. But you do not
need to reset it. Once you are going about 25 mph
(40 km/h) or more, you can move the cruise control
switch from ON to Resume/Accelerate (R/A) briey.
You will go right back up to your chosen speed
and stay there.
If you hold the switch at R/A, the vehicle will keep
going faster until you release the switch or
apply the brake. So unless you want to go faster,
do not hold the switch at R/A.
183
