BUICK REGAL 1999 Owners Manual

yellowblue
2-51
To access the cupholders, press on the top of the
cupholder door, located just behind the console shift
lever. Two cupholders will pop into an upright position.
Rear Seat Pass-Through (If Equipped)
If your vehicle has this feature, you may access your trunk
by pulling down the center back seat cushion
-- this gives
you access to the pass
-through door. The door can only be
unlocked using your door key. Once this door is unlocked,
you will then have access to the trunk area.
To access the rear cupholders, once again, pull down on
the strap located toward the top of your center back
seat cushion. You will then have access to the dual
oversized cupholders.
ProCarManuals.com

yellowblue
2-52 Trunk Convenience Net (If Equipped)
Your vehicle may have a convenience net. You'll see it
on the back wall of the trunk.
Put small loads, like grocery bags, behind the net. It can
help keep them from falling over during sharp turns or
quick starts and stops.
The net isn't for larger, heavier loads. Store those in the
trunk as far forward as you can.
You can unhook the net so that it will lie flat when
you're not using it.
Ashtrays and Lighter
The center front ashtray is located just below the
instrument panel's comfort controls at the front of the
console, behind the front compartment storage door. To
remove the ashtray, open the storage door. Then open
the small black door, lift up on the ashtray and pull
it out.
The rear ashtray is located within a small door at the
rear of the console. Push on the right side of the door.
The ashtray will then rotate to the right for usage. You
can only access the ashtray by pushing on the door's
right side. To remove the ashtray, push down on the
snuffer located in the middle of the ashtray and lift
it out.
NOTICE:
Don't put papers and other things that burn into
your ashtrays. If you do, cigarettes or other
smoking materials could set them on fire,
causing damage.
To use the lighter, just push it in all the way and let go.
When it's ready, it will pop back by itself.
NOTICE:
Don't hold a cigarette lighter in with your hand
while it is heating. If you do, it won't be able to
back away from the heating element when it's
ready. That can make it overheat, damaging the
lighter and the heating element.
ProCarManuals.com

yellowblue
2-53
Sun Visors
To block out glare, you can swing down the visors. You
can also move them from side to side. The visors also
have extenders that you can pull out for added coverage.
Visor Vanity Mirrors
Open the cover to expose the vanity mirror.
If your vehicle has the optional lighted vanity mirrors,
the lamps come on when you open the cover.
Accessory Power Receptacle
Your vehicle is equipped with a 12-volt outlet. It is
located on the console's passenger's side, near the floor.
Open the cover to use the outlet. This feature can be
used to add aftermarket electrical equipment to
your vehicle.
ProCarManuals.com

yellowblue
2-54

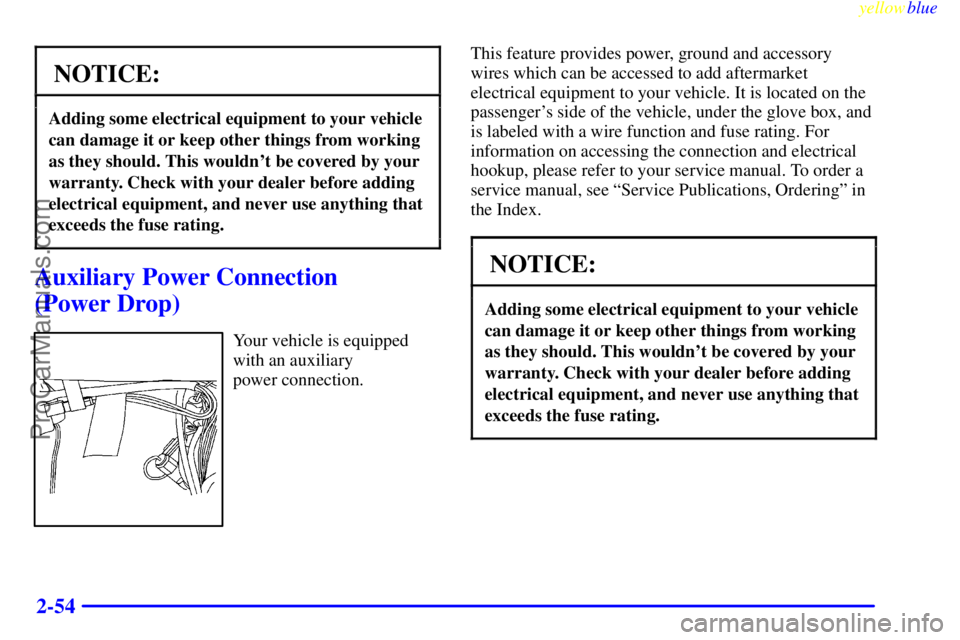

NOTICE:
Adding some electrical equipment to your vehicle
can damage it or keep other things from working
as they should. This wouldn't be covered by your
warranty. Check with your dealer before adding
electrical equipment, and never use anything that
exceeds the fuse rating.
Auxiliary Power Connection
(Power Drop)
Your vehicle is equipped
with an auxiliary
power connection.This feature provides power, ground and accessory
wires which can be accessed to add aftermarket
electrical equipment to your vehicle. It is located on the
passenger's side of the vehicle, under the glove box, and
is labeled with a wire function and fuse rating. For
information on accessing the connection and electrical
hookup, please refer to your service manual. To order a
service manual, see ªService Publications, Orderingº in
the Index.
NOTICE:
Adding some electrical equipment to your vehicle
can damage it or keep other things from working
as they should. This wouldn't be covered by your
warranty. Check with your dealer before adding
electrical equipment, and never use anything that
exceeds the fuse rating.
ProCarManuals.com

yellowblue
2-55

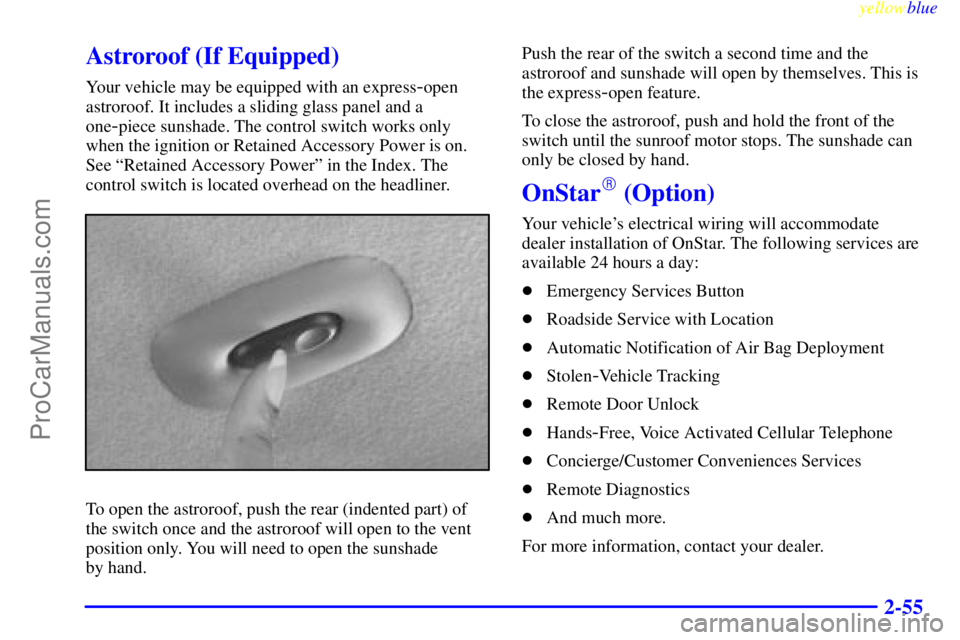

Astroroof (If Equipped)
Your vehicle may be equipped with an express-open
astroroof. It includes a sliding glass panel and a
one
-piece sunshade. The control switch works only
when the ignition or Retained Accessory Power is on.
See ªRetained Accessory Powerº in the Index. The
control switch is located overhead on the headliner.
To open the astroroof, push the rear (indented part) of
the switch once and the astroroof will open to the vent
position only. You will need to open the sunshade
by hand.Push the rear of the switch a second time and the
astroroof and sunshade will open by themselves. This is
the express
-open feature.
To close the astroroof, push and hold the front of the
switch until the sunroof motor stops. The sunshade can
only be closed by hand.
OnStar (Option)
Your vehicle's electrical wiring will accommodate
dealer installation of OnStar. The following services are
available 24 hours a day:

Emergency Services Button

Roadside Service with Location

Automatic Notification of Air Bag Deployment

Stolen
-Vehicle Tracking

Remote Door Unlock

Hands
-Free, Voice Activated Cellular Telephone

Concierge/Customer Conveniences Services

Remote Diagnostics

And much more.
For more information, contact your dealer.
ProCarManuals.com

yellowblue
2-56
The Instrument Panel -- Your Information System
A. Lamp Controls
B. Instrument Cluster
C. VentsD. Glove Box
E. Audio System
F. Climate Controls
ProCarManuals.com

yellowblue
2-57
Instrument Panel Cluster
Standard Cluster: United States Version Shown, Canadian Similar
Your instrument cluster is designed to let you know at a glance how your vehicle is running. You'll know how fast
you're going, about how much fuel is in your tank and many other things you need to drive safely and economically.
ProCarManuals.com

yellowblue
2-58
Optional Cluster: United States Version Shown, Canadian Similar
ProCarManuals.com

yellowblue
2-59 Speedometer and Odometer
Your speedometer lets you see your speed in both miles
per hour (mph) and kilometers per hour (km/h). Your
odometer shows how far your vehicle has been driven in
either miles (used in the United States) or in kilometers
(used in Canada).
Your vehicle has a tamper
-resistant odometer. If you see
ERROR, you'll know someone has probably tampered
with it and the numbers may not be accurate.
You may wonder what happens if your vehicle needs a
new odometer installed. If the new one can be set to the
mileage total of the old odometer, then that will be done.
But if it can't, then it will be set at zero and a label must
be put on the driver's door to show the old mileage
reading when the new odometer was installed.
Trip Odometer
Your trip odometer tells how far you have driven since
you last reset it. To set it to zero, press the button on the
right side of the instrument cluster.
Your trip/select reset switch will go back and forth
between the odometer and the trip odometer if the button
is pressed and released within 1.5 seconds. If the button is
pressed and held for longer than 1.5 seconds while in the
trip odometer mode, it will be reset to zero. If the button ispressed and held for longer than 1.5 seconds while in the
odometer mode, it will have no effect.
Tachometer
The tachometer displays the
engine speed in thousands
of revolutions per minute
(rpm). (Optional cluster
tachometer shown.)
NOTICE:
Do not operate the engine with the tachometer in
the red area, or engine damage may occur.
ProCarManuals.com

yellowblue
2-60
Warning Lights, Gages and Indicators
This part describes the warning lights and gages that
may be on your vehicle. The pictures will help you
locate them.
Warning lights and gages can signal that something is
wrong before it becomes serious enough to cause an
expensive repair or replacement. Paying attention to
your warning lights and gages could also save you or
others from injury.
Warning lights come on when there may be or is a
problem with one of your vehicle's functions. As you
will see in the details on the next few pages, some
warning lights come on briefly when you start the
engine just to let you know they're working. If you are
familiar with this section, you should not be alarmed
when this happens.
Gages can indicate when there may be or is a problem
with one of your vehicle's functions. Often gages and
warning lights work together to let you know when
there's a problem with your vehicle.When one of the warning lights comes on and stays on
when you are driving, or when one of the gages shows
there may be a problem, check the section that tells you
what to do about it. Please follow this manual's advice.
Waiting to do repairs can be costly
-- and even
dangerous. So please get to know your warning lights
and gages. They're a big help.
Your vehicle may also have a driver information system
that works along with the warning lights and gages. See
ªDriver Information Systemº in the Index.
Safety Belt Reminder Light
When the key is turned to RUN or START, a chime will
come on for about eight seconds to remind people to
fasten their safety belts, unless the driver's safety belt is
already buckled.
The safety belt light will
also come on and stay on
for about 20 seconds,
then it will flash for about
55 seconds. If the driver's
belt is already buckled,
neither the chime nor the
light will come on.
ProCarManuals.com
