BUICK REGAL 2004 Owner's Manual

This feature can be turned on and off by doing the
followihg:
1. Turn the ignition key to RUN.
2. Close all the doors.
3. Press and hold the LOCK position on the power
door lock switch while turning the exterior lamps
control on and off two times.
4. Release the LOCK position on the power door lock
switch. These operations must be carried out in a
time period of less than 10 seconds, followed
by a delay period of no more than 10 seconds.
5. Then, press and hold the unlock position on the
power door switch while turning the exterior
lamps control on and then off two times. Release
the unlock position on the power door lock
switch. These steps must be carried out in a time
period of less than 10 seconds.
After releasing the unlock position on the power door
lock switch, a single chime will be heard if the delayed
headlamp illumination function has been turned off.
Two chimes will be heard if the feature has been turned
on. Disconnecting the vehicle’s battery for up to a
year will not change the programmed operation for this
feature.Fog Lamps
Press the fog lamps button
located below the exterior
lamps control on the
left side of the steering
column to turn the
fog lamps on or off.
A light in the fog lamps button comes on indicating that
the fog lamps are on. The parking lamps or low-beam
headlamps must be on for the fog lamps to work. While
the high-beam headlamps are on, the fog lamps are off.
Cornering Lamps
The cornering lamps are designed to come on to
provide additional light when a turn signal lamp is
activated.
3-13

Interior Lamps
Instrument Panel Brightness
The instrument panel lights can be brightened or
dimmed by turning the exterior lamp knob. Turning the
knob all the way clockwise turns on the courtesy
lamps.
Courtesy Lamps
When any door is opened, several courtesy lamps come
on to make it easier to enter and exit the vehicle.
These lamps can also be turned on by turning the
exterior lamps control clockwise to MAX.
Entry Lighting
The courtesy lamps will come on and stay on for a set
time whenever the UNLOCK button on the remote
keyless entry transmitter is pressed.
The lamps will stay on while a door is opened and then
turn off automatically about 25 seconds after it is
closed. If the UNLOCK button is pressed and a door is
not opened, the lamps will turn off after about
40 seconds.Entry lighting includes a feature called theater dimming.
With theater dimming, the lamps do not turn off at
the end of the delay time. Instead, they slowly dim after
the delay time and then turn off.
The courtesy lamps turn off when the ignition key is
turned to RUN or START. They will come on again when
a door is opened.
Delayed Entry Lighting
Delayed entry lighting lights the vehicle’s interior for a
period of time after all the doors have been closed.
The ignition must be off for delayed entry lighting
to work. After all the doors have been closed, the
delayed entry lighting feature will continue to work until
one of the following occurs:
The ignition is in RUN.
The doors are locked.
Twenty ve seconds has elapsed.
If during the illumination period a door is opened, the
timed illumination period will be canceled and the interior
lamps will remain on.
3-14

Delayed Exit Lighting
This feature illuminates the interior for a period of time
after the ignition key is removed from the ignition.
When the ignition key is removed, interior illumination
will activate and remain on until one of the following
occurs:
The ignition is in RUN.
The power door locks are activated.
Twenty ve seconds has elapsed.
If during the illumination period a door is opened, the
timed illumination period will be canceled and the interior
lamps will remain on.
Perimeter Lighting
Perimeter lighting provides a period of exterior vehicle
lighting. Perimeter lighting activates when the doors
are closed, the ignition is in OFF and the security
feedback feature is activated in Mode 3 or 4. See
“Security Feedback” underRemote Keyless Entry
System Operation on page 2-4for more information.
The vehicle headlamps and back-up lamps are
then activated for a period of 25 seconds or until the
ignition switch is turned to RUN.Perimeter lighting can be turned on or off when the
driver performs the following sequence with the engine
off and the doors closed:
1. Turn the ignition to RUN.
2. Close all the doors.
3. Apply the brake.
4. Press and hold the LOCK position on the power
door lock switch while pressing and releasing the
remote alarm button on the remote keyless
entry transmitter.
This activates the customization mode. While in the
customization mode, the number of chimes
corresponding to the current mode will sound. One
chime means the feature is turned off. Two chimes
mean that the perimeter lighting feature is turned on.
Each additional press of the power door lock switch will
advance to the next mode. Release the LOCK position
on the power door lock switch to set the mode.
Disconnecting the vehicle’s battery for up to a year will
not change the programmed operation for this feature.
Reading Lamps
The reading lamps are located on the underside of the
rearview mirror. Press the button next to each lamp
to turn it on and off.
3-15

Dome Lamp
The dome lamp will come on when you open a door.
Battery Rundown Protection
This helps prevent the vehicle’s battery from draining in
case the interior courtesy lamps, reading lamps,
trunk lamp, underhood lamp, glove box lamps, or sun
visor vanity lamps, if equipped, are accidently left on. If
any of these lamps are left on while the ignition is in
OFF, they will automatically turn off after 20 minutes.
The lamps will not come back on again until one of the
following occurs:
The ignition is turned on.
The exterior lamps control is turned off, then on.
A door is opened.
If the vehicle has less than 15 miles (25 km) on the
odometer, the battery saver will turn off the lamps after
only three minutes.
Accessory Power Outlets
With accessory power outlets you can power electrical
equipment such as a cellular telephone or CB radio.
The vehicle is equipped with a 12-volt outlet. It is located
on the console, near the oor on the passenger’s
side. Open the cover to use the outlet. Be sure to close
the cover when the outlet is not in use.Notice:Adding any electrical equipment to your
vehicle may damage it or keep other components
from working as they should. The repairs would not
be covered by your warranty. Check with your dealer
before adding electrical equipment.
Certain power accessory plugs may not be compatible
to the power accessory outlet and could result in
blown vehicle or adapter fuses. If you experience a
problem, see your dealer.
Notice:Improper use of the power outlet can cause
damage not covered by your warranty. Do not
hang any type of accessory or accessory bracket
from the plug because the power outlets are
designed for accessory power plugs only.
Notice:Leaving electrical equipment on for
extended periods will drain the battery. Always turn
off electrical equipment when not in use and do
not plug in equipment that exceeds the maximum
amperage rating.
When adding electrical equipment, be sure to follow the
proper installation instructions included with the
equipment.
3-16

Ashtrays and Cigarette Lighter
The center front ashtray is located below the instrument
panel comfort controls.
To remove the ashtray, open the storage door. Then
open the ashtray lid, lift up and pull it out.
Notice:Holding a cigarette lighter in while it is
heating will not allow the lighter to back away from
the heating element when it is hot. Damage from
overheating may occur to the lighter or heating
element, or a fuse could be blown. Do not hold a
cigarette lighter in while it is heating.
Push the lighter to use it. When the heating element is
hot, the lighter will pop back out by itself.
Notice:If you put papers or other ammable items
in the ashtray, hot cigarettes or other smoking
materials could ignite them and possibly damage
your vehicle. Never put ammable items in the
ashtray.
Climate Controls
Dual Climate Control System
The vehicle may have this climate control system. The
heating, cooling, and ventilation for the vehicle can
be controlled with it.
Manual Operation
To change the current mode, select one of the following
settings on the right knob.
MAX (Maximum Air-Conditioning):This mode
recirculates much of the air inside the vehicle and sends it
through the instrument panel outlets. The air-conditioning
compressor will run automatically in this setting unless
the outside temperature is below 40°F (4°C).
3-17

VENT (Ventilation):This mode brings in outside air
and directs it through the instrument panel outlets.
BI-LEV (Bi-Level):This mode directs approximately
half of the air to the instrument panel outlets, and then
directs most of the remaining air to the oor outlets.
Some air may be directed toward the windshield.
HTR (Heater):This mode directs most of the air to the
oor outlets, with some air directed to the outboard
outlets, for the side windows, and some air directed to
the windshield.
BLEND:This mode directs half of the air to go to the
oor outlets and half to the defroster and side window
outlets. The air-conditioning compressor will run
automatically in this setting unless the outside
temperature is below 40°F (4°C).
The right knob can also be used for the defrost mode.
Information on defrosting and defogging can be
found later in this section.
9FAN:The left knob controls the fan speed.
OFF:Turn the knob all the way counterclockwise to
turn off the fan.
LO (Low Fan Speed):This setting creates the lowest
fan speed.HI (High Fan Speed):This setting creates the highest
fan speed.
DRIVER (Driver’s Side Temperature):The lever on
the left adjusts the air temperature for the driver’s
side outlets. Slide the lever up to raise the temperature
and down to lower the temperature.
PASSENGER (Passenger’s Side Temperature):The
lever on the right adjusts the air temperature for the
passenger’s side outlets. Slide the lever up to raise the
temperature and down to lower the temperature.
"(Air Conditioning):Press this button to turn the
air-conditioning on and off. An indicator light above the
button will come on when the air conditioning is on.
During daylight hours the interior lighting control might
need adjustment to the highest setting in order for the
indicator light to be seen. The system will cool and
dehumidify the air inside the vehicle when the A/C
indicator light is on.
On very hot days, open the windows long enough to let
hot, inside air escape. This reduces the time for the
vehicle to cool down.
For a quick cool-down on a very hot day, use MAX with
the temperature levers all the way in the blue area. If this
setting is used for long periods of time, the air in the
vehicle may become too dry.
For normal cooling on hot days, use VENT with the
temperature levers in the blue area. The system will bring
in outside air and cool it.
3-18

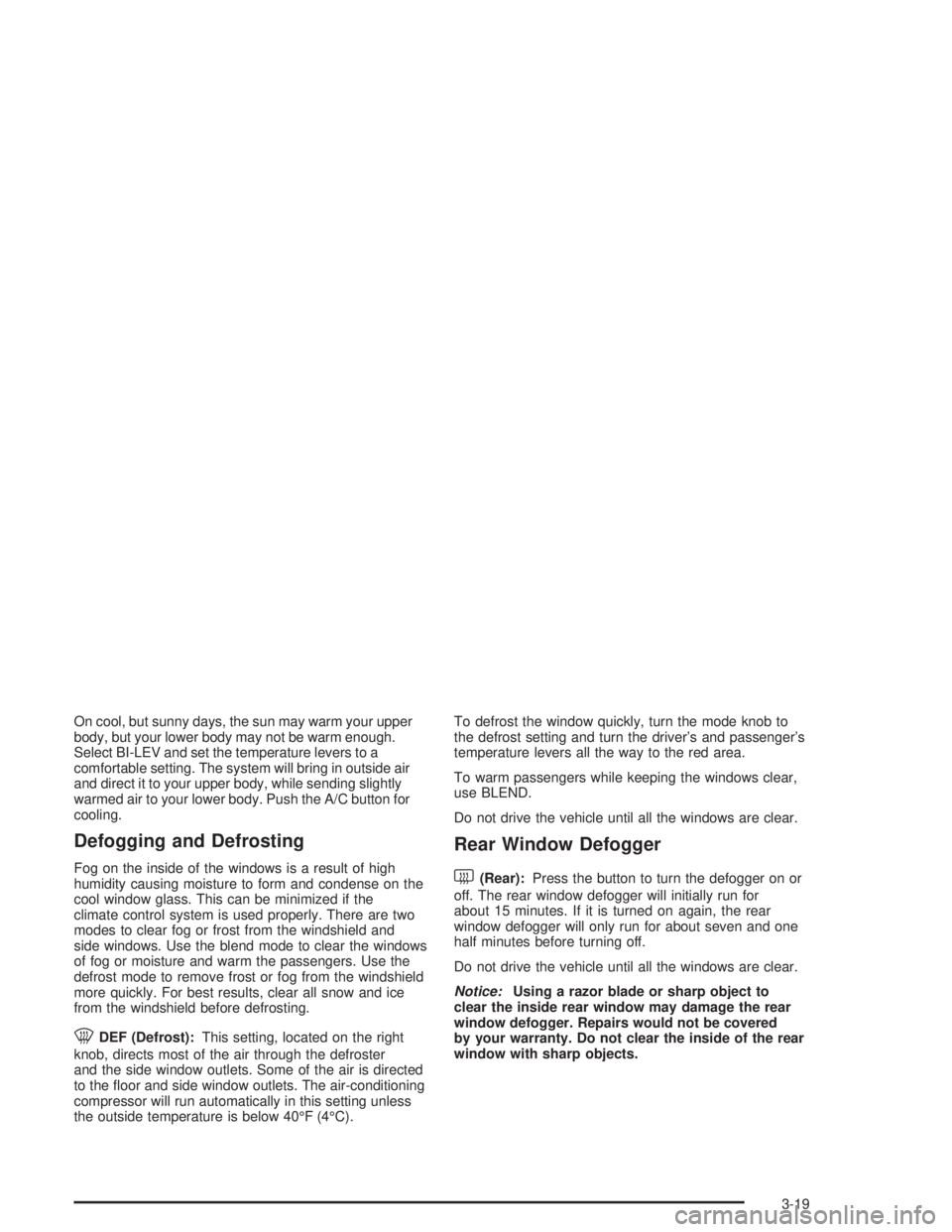

On cool, but sunny days, the sun may warm your upper
body, but your lower body may not be warm enough.
Select BI-LEV and set the temperature levers to a
comfortable setting. The system will bring in outside air
and direct it to your upper body, while sending slightly
warmed air to your lower body. Push the A/C button for
cooling.
Defogging and Defrosting
Fog on the inside of the windows is a result of high
humidity causing moisture to form and condense on the
cool window glass. This can be minimized if the
climate control system is used properly. There are two
modes to clear fog or frost from the windshield and
side windows. Use the blend mode to clear the windows
of fog or moisture and warm the passengers. Use the
defrost mode to remove frost or fog from the windshield
more quickly. For best results, clear all snow and ice
from the windshield before defrosting.
0DEF (Defrost):This setting, located on the right
knob, directs most of the air through the defroster
and the side window outlets. Some of the air is directed
to the oor and side window outlets. The air-conditioning
compressor will run automatically in this setting unless
the outside temperature is below 40°F (4°C).To defrost the window quickly, turn the mode knob to
the defrost setting and turn the driver’s and passenger’s
temperature levers all the way to the red area.
To warm passengers while keeping the windows clear,
use BLEND.
Do not drive the vehicle until all the windows are clear.
Rear Window Defogger
<
(Rear):Press the button to turn the defogger on or
off. The rear window defogger will initially run for
about 15 minutes. If it is turned on again, the rear
window defogger will only run for about seven and one
half minutes before turning off.
Do not drive the vehicle until all the windows are clear.
Notice:Using a razor blade or sharp object to
clear the inside rear window may damage the rear
window defogger. Repairs would not be covered
by your warranty. Do not clear the inside of the rear
window with sharp objects.
3-19

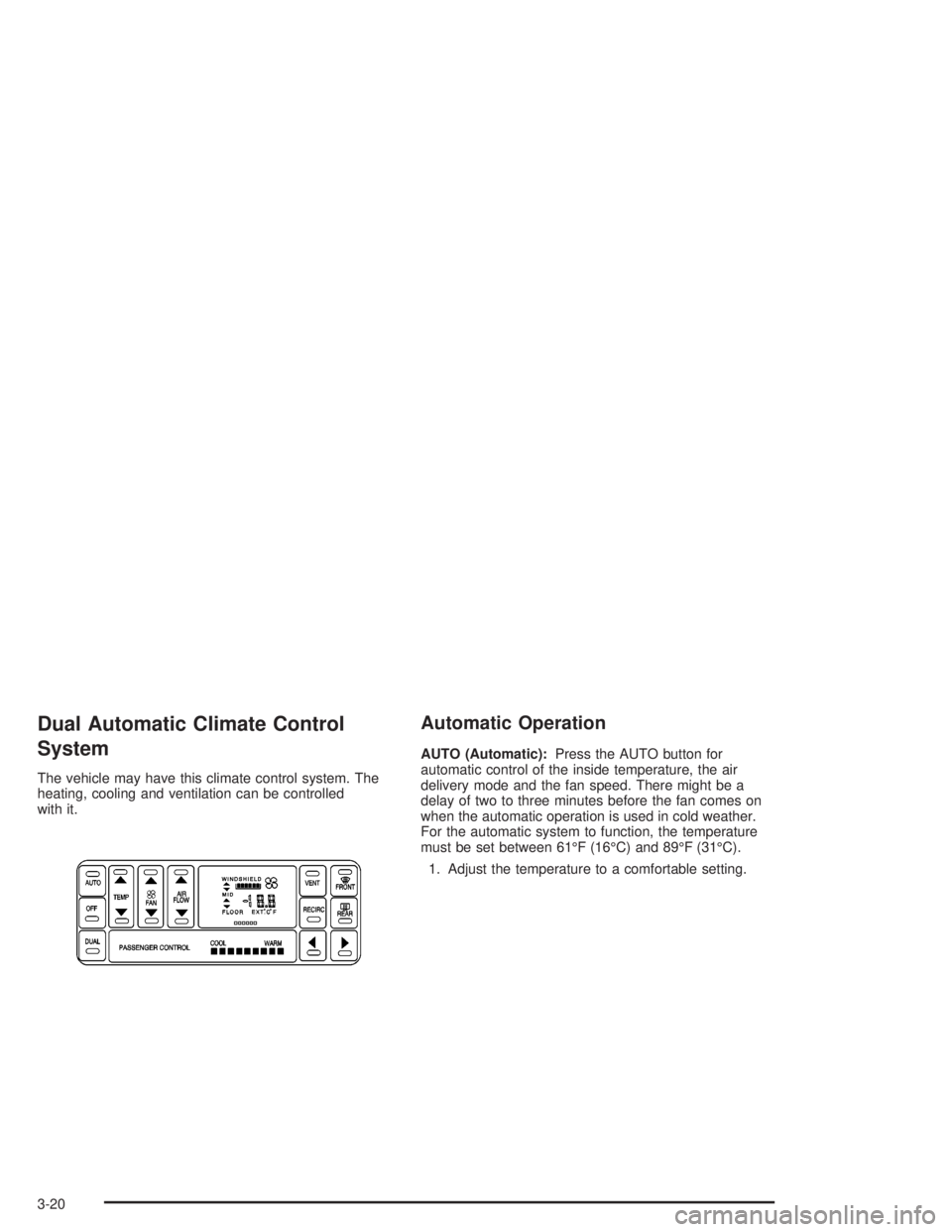

Dual Automatic Climate Control
System
The vehicle may have this climate control system. The
heating, cooling and ventilation can be controlled
with it.
Automatic Operation
AUTO (Automatic):Press the AUTO button for
automatic control of the inside temperature, the air
delivery mode and the fan speed. There might be a
delay of two to three minutes before the fan comes on
when the automatic operation is used in cold weather.
For the automatic system to function, the temperature
must be set between 61°F (16°C) and 89°F (31°C).
1. Adjust the temperature to a comfortable setting.
3-20

2. Press the AUTO button.
Choosing the coldest or warmest temperature
setting will not cause the system to heat or cool any
faster.
If the system is set at the warmest temperature
setting, 90°F (32°C), hot air will be directed to the
oor, the fan will increase to the highest speed, and
the system will remain in manual mode at that
temperature. The system will not return to automatic
until the temperature setting is lowered.
If the system is set at the coldest temperature
setting, 60°F (15°C), cold interior air will be
recirculated through the air panel outlets, and the
fan will increase to the highest speed. The
system will not return to automatic until the
temperature is raised.
In cold weather, the system will start at reduced fan
speeds to avoid blowing cold air into the vehicle
until warmer air is available. The system will
start out blowing air at the oor but may change
modes automatically as the vehicle warms up
to maintain the chosen temperature setting. The
length of time needed for warm up will depend on
the outside temperature and the length of time
that has elapsed since the vehicle was last driven.3. Wait for the system to regulate. This may take from
10 to 30 minutes. Then, adjust the temperature, if
necessary.
Do not cover the solar sensor located in the center
of the instrument panel, near the windshield. For
more information on the solar sensor, see
“Solar Sensor” later in this section.
Manual Operation
During daylight hours, the instrument panel brightness
control might need to be adjusted to the highest setting,
in order to see the indicator lights for the various
climate control settings.
OFF:Pressing the OFF button cancels automatic
operation and places the system in manual mode. Press
the AUTO button to return to automatic operation.
TEMP (Temperature):To manually adjust the
temperature inside the vehicle, press the up arrow on
the TEMP control to raise the temperature and press the
down arrow to lower the temperature. The display will
show the selection for a few seconds, and then the
outside temperature will be displayed.
When the DUAL light indicator is on, this means the
TEMP control has set the temperature for the driver.
When the DUAL light indicator light is not on, this means
the TEMP control has set the temperature for the
entire cabin.
3-21

9FAN:Press the up arrow on the FAN control to
increase fan speed and the down arrow to decrease fan
speed. Pressing the arrows cancels the automatic
operation and places the system in manual mode. Press
the AUTO button to return to automatic operation. If
the airow seems low when the fan is at the highest
setting, the passenger compartment air lter, if
equipped, may need to be replaced. For more
information seePassenger Compartment Air Filter on
page 3-25andScheduled Maintenance on page 6-4.
AIR FLOW:This control has several settings to control
the direction of airow when the system is not in AUTO.
To access the various modes available, continue to press
the AIR FLOW up or down arrows until the desired mode,
listed below, appears in the display.
WINDSHIELD/FLOOR:This setting directs some of the
air to the oor outlets and some to the defroster and
side window outlets. The air-conditioning compressor will
run automatically in this setting unless the outside
temperature is below 40°F (4°C).
MID/FLOOR:This mode directs airow through both
the oor and the instrument panel outlets. A small
amount of air is directed to the windshield and the side
window outlets.
MID (Instrument Panel):This mode directs air through
the instrument panel outlets.FLOOR:This setting sends most of the air through the
outlets near the oor. The rest comes out of the
defroster and side window outlets.
VENT:Press this button to turn the air-conditioning
compressor on or off. The indicator light on the VENT
mode is lit when the compressor is turned off. The
interior brightness control might have to be adjusted to
the highest setting during the day in order to see
the indicator lamp.
VENT does not operate in the FRONT defrost mode.
RECIRC (Recirculation):Press this button to turn this
mode on or off. RECIRC limits the amount of outside
air coming into the vehicle and recirculates most of the
air inside your vehicle. It can be use to prevent
outside air and odors from entering the vehicle or to
quickly heat or cool the air inside the vehicle. When this
button is pressed an indicator light will come on. The
interior brightness control might have to be adjusted to
the highest setting during the day in order to see the
indicator lamp.
This setting is not permitted in FRONT defrost mode
and is only permitted in WINDSHIELD/FLOOR mode if
the compressor is turned on.
On hot days, open the windows to let hot air inside
escape; then close them. This helps to reduce the time
it takes for the vehicle to cool down. It also helps the
system to operate more efficiently.
3-22
