6. Push the lamp assembly backinto position until the release tab
locks into place.

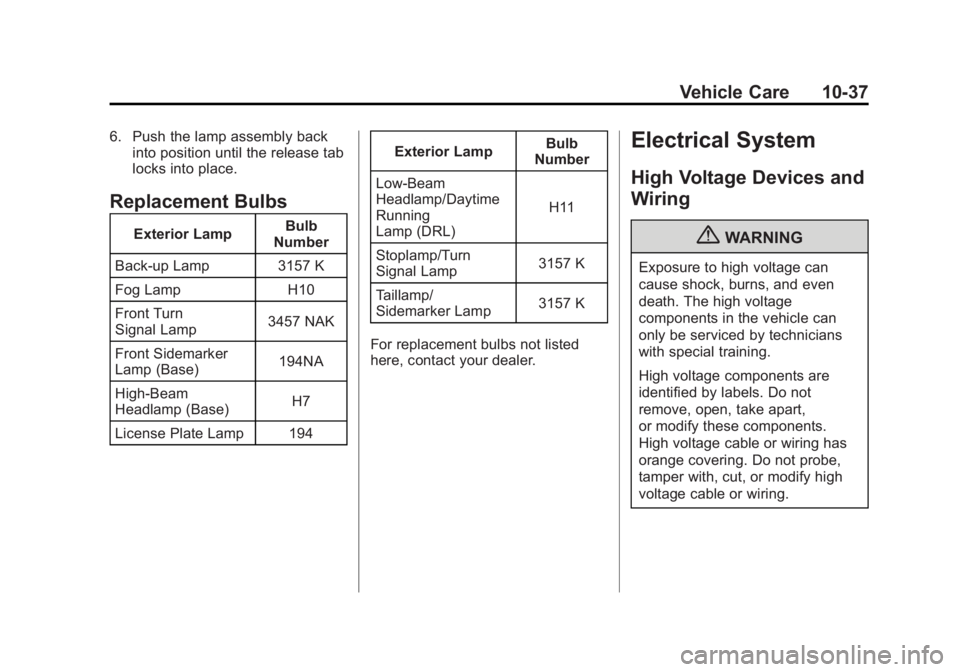

Replacement Bulbs
Exterior Lamp Bulb
Number
Back-up Lamp 3157 K
Fog Lamp H10
Front Turn
Signal Lamp 3457 NAK
Front Sidemarker
Lamp (Base) 194NA
High‐Beam
Headlamp (Base) H7
License Plate Lamp 194 Exterior Lamp
Bulb
Number
Low‐Beam
Headlamp/Daytime
Running
Lamp (DRL) H11
Stoplamp/Turn
Signal Lamp 3157 K
Taillamp/
Sidemarker Lamp 3157 K
For replacement bulbs not listed
here, contact your dealer.
Electrical System
High Voltage Devices and
Wiring
{WARNING
Exposure to high voltage can
cause shock, burns, and even
death. The high voltage
components in the vehicle can
only be serviced by technicians
with special training.
High voltage components are
identified by labels. Do not
remove, open, take apart,
or modify these components.
High voltage cable or wiring has
orange covering. Do not probe,
tamper with, cut, or modify high
voltage cable or wiring.

Black plate (38,1)Buick Regal Owner Manual - 2012

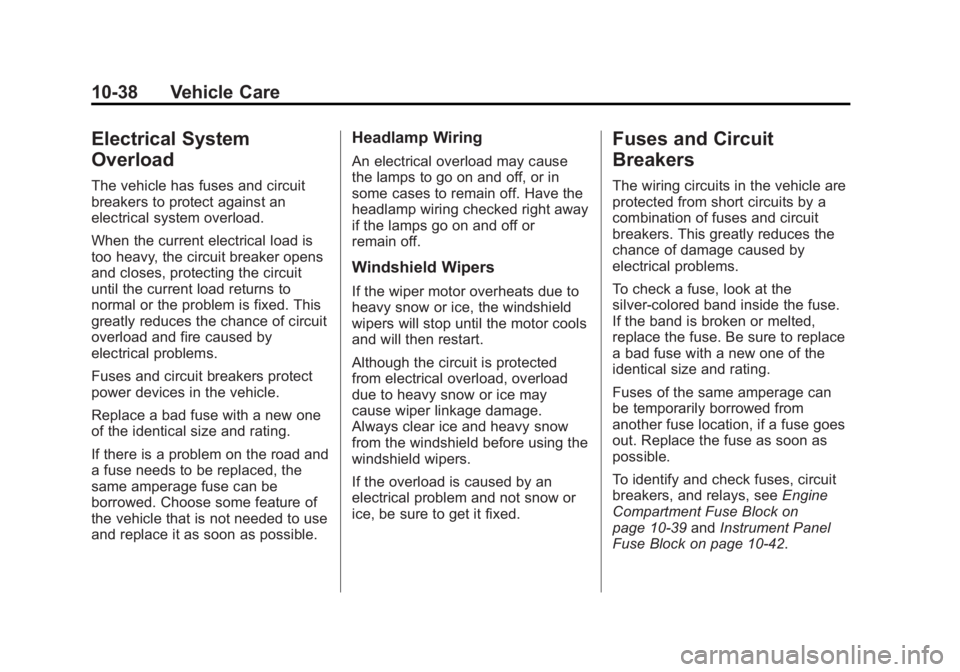

10-38 Vehicle Care
Electrical System
Overload
The vehicle has fuses and circuit
breakers to protect against an
electrical system overload.
When the current electrical load is
too heavy, the circuit breaker opens
and closes, protecting the circuit
until the current load returns to
normal or the problem is fixed. This
greatly reduces the chance of circuit
overload and fire caused by
electrical problems.
Fuses and circuit breakers protect
power devices in the vehicle.
Replace a bad fuse with a new one
of the identical size and rating.
If there is a problem on the road and
a fuse needs to be replaced, the
same amperage fuse can be
borrowed. Choose some feature of
the vehicle that is not needed to use
and replace it as soon as possible.
Headlamp Wiring
An electrical overload may cause
the lamps to go on and off, or in
some cases to remain off. Have the
headlamp wiring checked right away
if the lamps go on and off or
remain off.
Windshield Wipers
If the wiper motor overheats due to
heavy snow or ice, the windshield
wipers will stop until the motor cools
and will then restart.
Although the circuit is protected
from electrical overload, overload
due to heavy snow or ice may
cause wiper linkage damage.
Always clear ice and heavy snow
from the windshield before using the
windshield wipers.
If the overload is caused by an
electrical problem and not snow or
ice, be sure to get it fixed.
Fuses and Circuit
Breakers
The wiring circuits in the vehicle are
protected from short circuits by a
combination of fuses and circuit
breakers. This greatly reduces the
chance of damage caused by
electrical problems.
To check a fuse, look at the
silver-colored band inside the fuse.
If the band is broken or melted,
replace the fuse. Be sure to replace
a bad fuse with a new one of the
identical size and rating.
Fuses of the same amperage can
be temporarily borrowed from
another fuse location, if a fuse goes
out. Replace the fuse as soon as
possible.
To identify and check fuses, circuit
breakers, and relays, seeEngine
Compartment Fuse Block on
page 10‑39 andInstrument Panel
Fuse Block on page 10‑42.

Black plate (39,1)Buick Regal Owner Manual - 2012
Vehicle Care 10-39

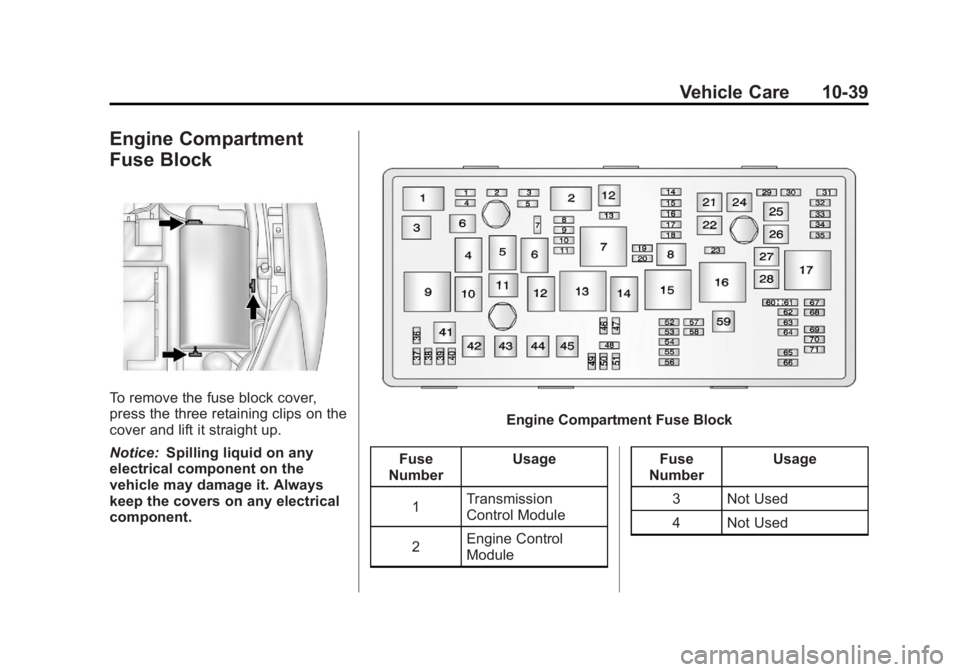

Engine Compartment
Fuse Block
To remove the fuse block cover,
press the three retaining clips on the
cover and lift it straight up.
Notice:Spilling liquid on any
electrical component on the
vehicle may damage it. Always
keep the covers on any electrical
component.
Engine Compartment Fuse Block
Fuse
Number Usage
1 Transmission
Control Module
2 Engine Control
Module Fuse
Number Usage
3 Not Used
4 Not Used

Black plate (40,1)Buick Regal Owner Manual - 2012

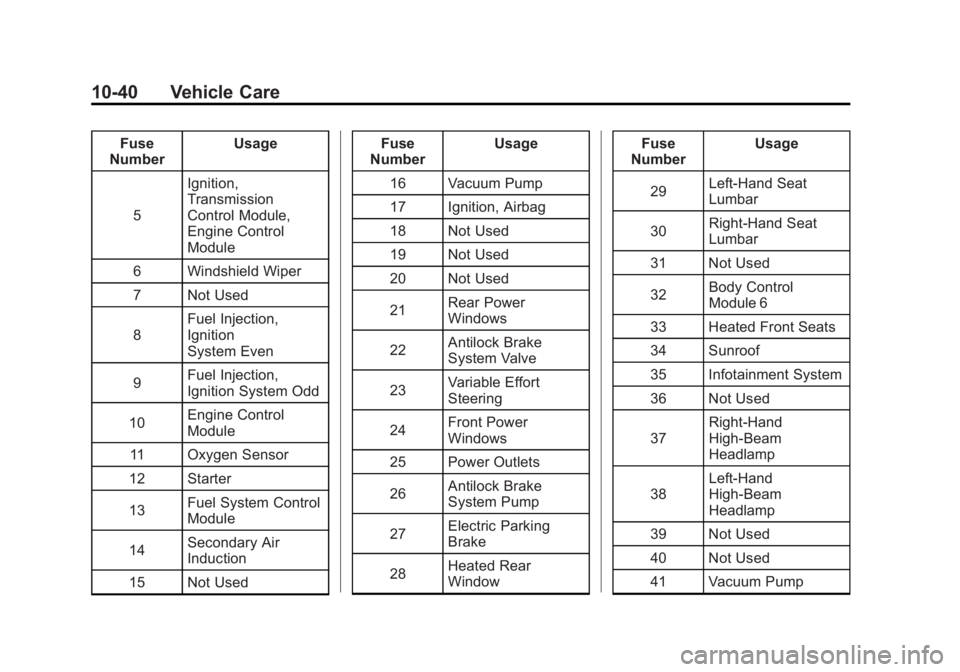

10-40 Vehicle Care
Fuse
Number Usage
5 Ignition,
Transmission
Control Module,
Engine Control
Module
6 Windshield Wiper
7 Not Used
8 Fuel Injection,
Ignition
System Even
9 Fuel Injection,
Ignition System Odd
10 Engine Control
Module
11 Oxygen Sensor
12 Starter
13 Fuel System Control
Module
14 Secondary Air
Induction
15 Not Used Fuse
Number Usage
16 Vacuum Pump
17 Ignition, Airbag
18 Not Used
19 Not Used
20 Not Used
21 Rear Power
Windows
22 Antilock Brake
System Valve
23 Variable Effort
Steering
24 Front Power
Windows
25 Power Outlets
26 Antilock Brake
System Pump
27 Electric Parking
Brake
28 Heated Rear
Window Fuse
Number Usage
29 Left‐Hand Seat
Lumbar
30 Right‐Hand Seat
Lumbar
31 Not Used
32 Body Control
Module 6
33 Heated Front Seats
34 Sunroof
35 Infotainment System
36 Not Used
37 Right‐Hand
High‐Beam
Headlamp
38 Left‐Hand
High‐Beam
Headlamp
39 Not Used
40 Not Used
41 Vacuum Pump

Black plate (41,1)Buick Regal Owner Manual - 2012

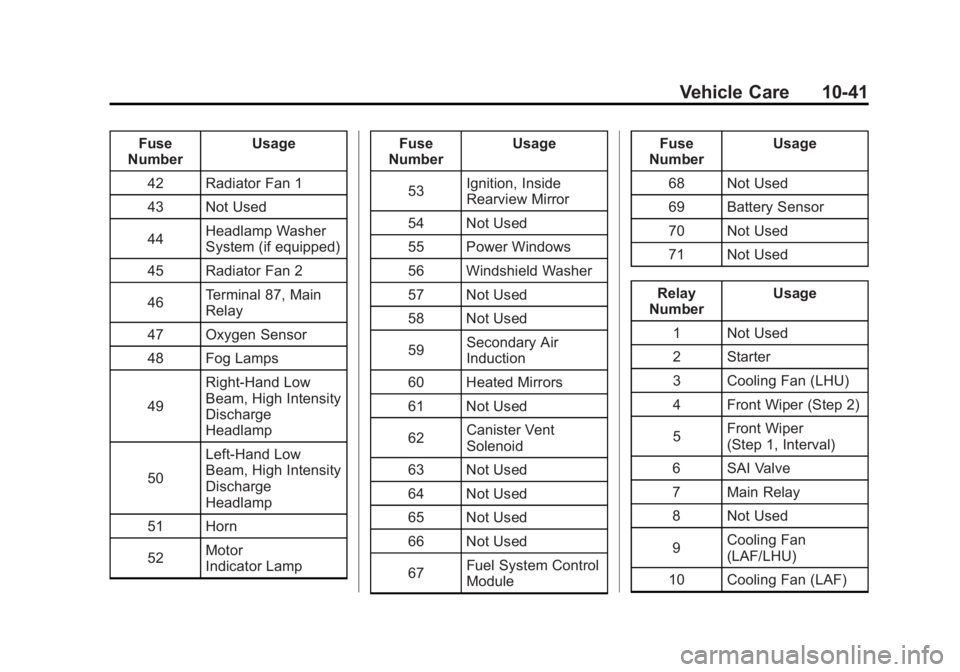

Vehicle Care 10-41
Fuse
Number Usage
42 Radiator Fan 1
43 Not Used
44 Headlamp Washer
System (if equipped)
45 Radiator Fan 2
46 Terminal 87, Main
Relay
47 Oxygen Sensor
48 Fog Lamps
49 Right‐Hand Low
Beam, High Intensity
Discharge
Headlamp
50 Left‐Hand Low
Beam, High Intensity
Discharge
Headlamp
51 Horn
52 Motor
Indicator Lamp Fuse
Number Usage
53 Ignition, Inside
Rearview Mirror
54 Not Used
55 Power Windows
56 Windshield Washer
57 Not Used
58 Not Used
59 Secondary Air
Induction
60 Heated Mirrors
61 Not Used
62 Canister Vent
Solenoid
63 Not Used
64 Not Used
65 Not Used
66 Not Used
67 Fuel System Control
Module Fuse
Number Usage
68 Not Used
69 Battery Sensor
70 Not Used
71 Not Used
Relay
Number Usage
1 Not Used
2 Starter
3 Cooling Fan (LHU)
4 Front Wiper (Step 2)
5 Front Wiper
(Step 1, Interval)
6 SAI Valve
7 Main Relay
8 Not Used
9 Cooling Fan
(LAF/LHU)
10 Cooling Fan (LAF)

Black plate (42,1)Buick Regal Owner Manual - 2012
10-42 Vehicle Care
Relay
Number Usage
11 Not Used
12 Cooling Fan (LHU)
13 Cooling Fan
(LAF/LHU)
14 High Intensity
Discharge Lamps
15 Ignition
16 Secondary
AIR Pump
17 Window/Mirror

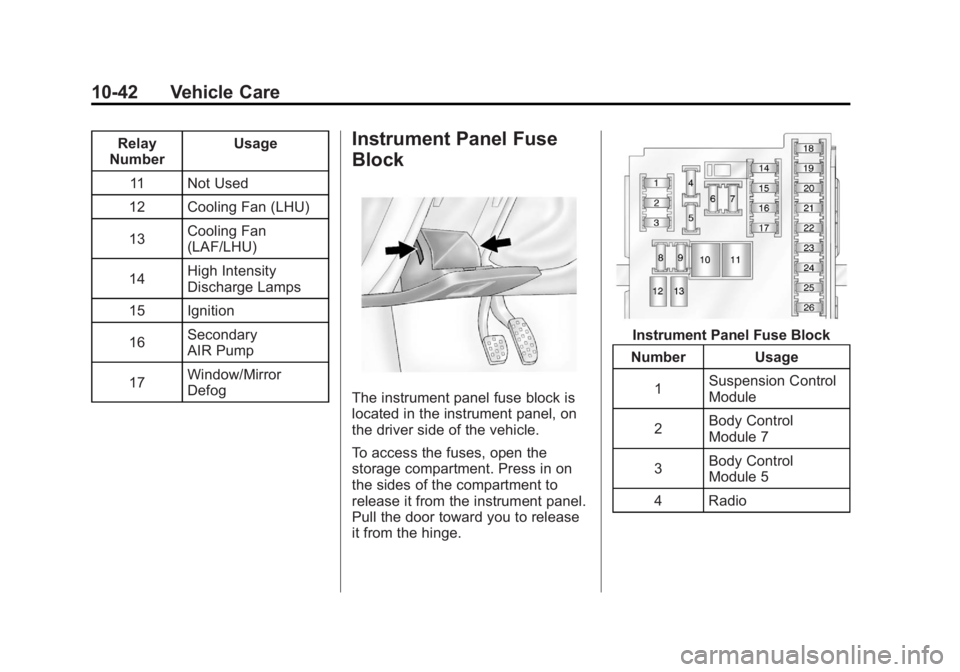

DefogInstrument Panel Fuse
Block
The instrument panel fuse block is
located in the instrument panel, on
the driver side of the vehicle.
To access the fuses, open the
storage compartment. Press in on
the sides of the compartment to
release it from the instrument panel.
Pull the door toward you to release
it from the hinge.
Instrument Panel Fuse Block
Number Usage
1 Suspension Control
Module
2 Body Control
Module 7
3 Body Control
Module 5
4 Radio

Black plate (43,1)Buick Regal Owner Manual - 2012

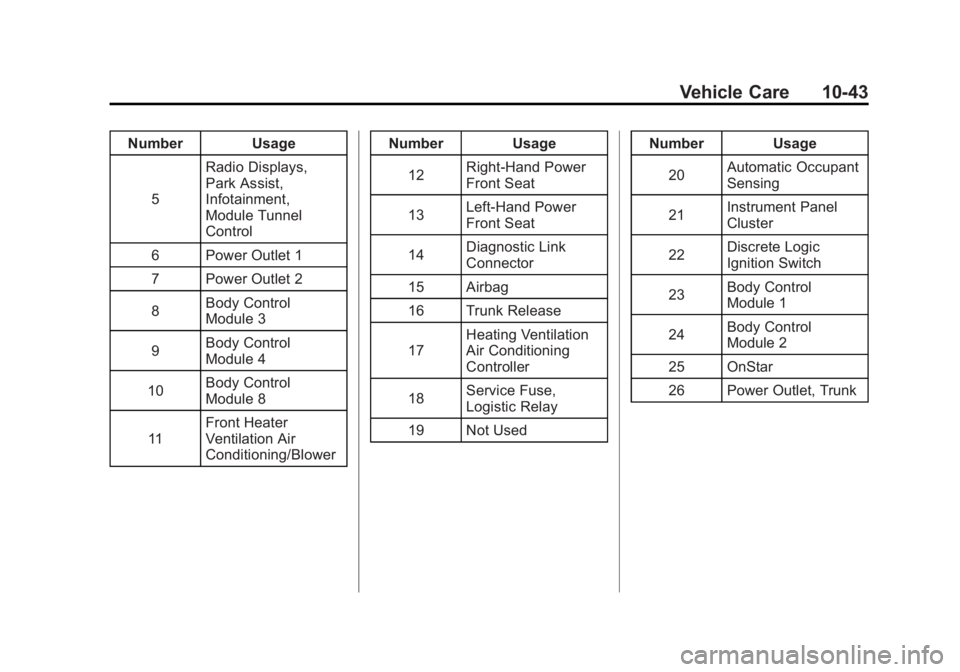

Vehicle Care 10-43
Number Usage5 Radio Displays,
Park Assist,
Infotainment,
Module Tunnel
Control
6 Power Outlet 1
7 Power Outlet 2
8 Body Control
Module 3
9 Body Control
Module 4
10 Body Control
Module 8
11 Front Heater
Ventilation Air
Conditioning/Blower Number Usage
12 Right‐Hand Power
Front Seat
13 Left‐Hand Power
Front Seat
14 Diagnostic Link
Connector
15 Airbag
16 Trunk Release
17 Heating Ventilation
Air Conditioning
Controller
18 Service Fuse,
Logistic Relay
19 Not Used Number Usage
20 Automatic Occupant
Sensing
21 Instrument Panel
Cluster
22 Discrete Logic
Ignition Switch
23 Body Control
Module 1
24 Body Control
Module 2
25 OnStar
26 Power Outlet, Trunk

Black plate (44,1)Buick Regal Owner Manual - 2012
10-44 Vehicle Care

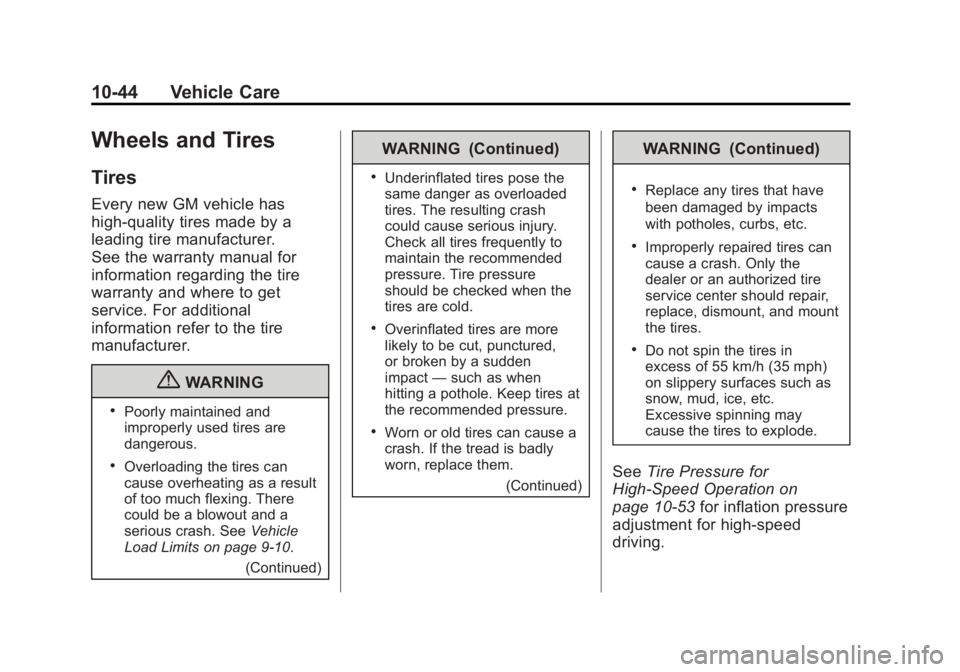

Wheels and Tires
Tires
Every new GM vehicle has
high-quality tires made by a
leading tire manufacturer.
See the warranty manual for
information regarding the tire
warranty and where to get
service. For additional
information refer to the tire
manufacturer.
{WARNING
.Poorly maintained and
improperly used tires are
dangerous.
.Overloading the tires can
cause overheating as a result
of too much flexing. There
could be a blowout and a
serious crash. SeeVehicle
Load Limits on page 9‑10.
(Continued)
WARNING (Continued)
.Underinflated tires pose the
same danger as overloaded
tires. The resulting crash
could cause serious injury.
Check all tires frequently to
maintain the recommended
pressure. Tire pressure
should be checked when the
tires are cold.
.Overinflated tires are more
likely to be cut, punctured,
or broken by a sudden
impact—such as when
hitting a pothole. Keep tires at
the recommended pressure.
.Worn or old tires can cause a
crash. If the tread is badly
worn, replace them.
(Continued)
WARNING (Continued)
.Replace any tires that have
been damaged by impacts
with potholes, curbs, etc.
.Improperly repaired tires can
cause a crash. Only the
dealer or an authorized tire
service center should repair,
replace, dismount, and mount
the tires.
.Do not spin the tires in
excess of 55 km/h (35 mph)
on slippery surfaces such as
snow, mud, ice, etc.
Excessive spinning may
cause the tires to explode.
SeeTire Pressure for
High-Speed Operation on
page 10‑53 for inflation pressure
adjustment for high-speed
driving.

Black plate (45,1)Buick Regal Owner Manual - 2012
Vehicle Care 10-45

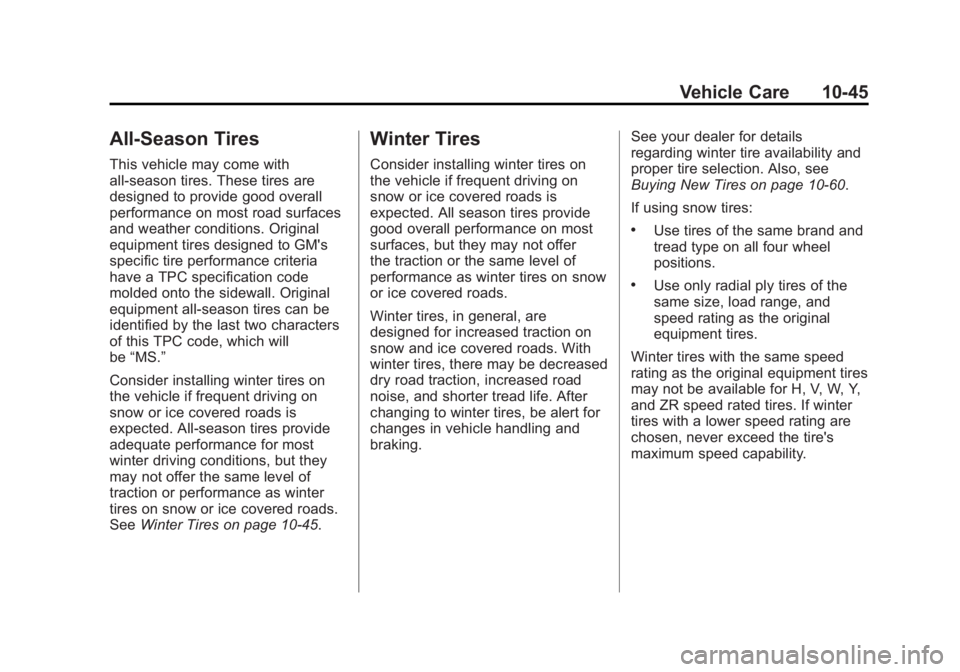

All-Season Tires
This vehicle may come with
all-season tires. These tires are
designed to provide good overall
performance on most road surfaces
and weather conditions. Original
equipment tires designed to GM's
specific tire performance criteria
have a TPC specification code
molded onto the sidewall. Original
equipment all-season tires can be
identified by the last two characters
of this TPC code, which will
be“MS.”
Consider installing winter tires on
the vehicle if frequent driving on
snow or ice covered roads is
expected. All-season tires provide
adequate performance for most
winter driving conditions, but they
may not offer the same level of
traction or performance as winter
tires on snow or ice covered roads.
See Winter Tires on page 10‑45.
Winter Tires
Consider installing winter tires on
the vehicle if frequent driving on
snow or ice covered roads is
expected. All season tires provide
good overall performance on most
surfaces, but they may not offer
the traction or the same level of
performance as winter tires on snow
or ice covered roads.
Winter tires, in general, are
designed for increased traction on
snow and ice covered roads. With
winter tires, there may be decreased
dry road traction, increased road
noise, and shorter tread life. After
changing to winter tires, be alert for
changes in vehicle handling and
braking. See your dealer for details
regarding winter tire availability and
proper tire selection. Also, see
Buying New Tires on page 10‑60.
If using snow tires:
.Use tires of the same brand and
tread type on all four wheel
positions.
.Use only radial ply tires of the
same size, load range, and
speed rating as the original
equipment tires.
Winter tires with the same speed
rating as the original equipment tires
may not be available for H, V, W, Y,
and ZR speed rated tires. If winter
tires with a lower speed rating are
chosen, never exceed the tire's
maximum speed capability.

Black plate (46,1)Buick Regal Owner Manual - 2012
10-46 Vehicle Care

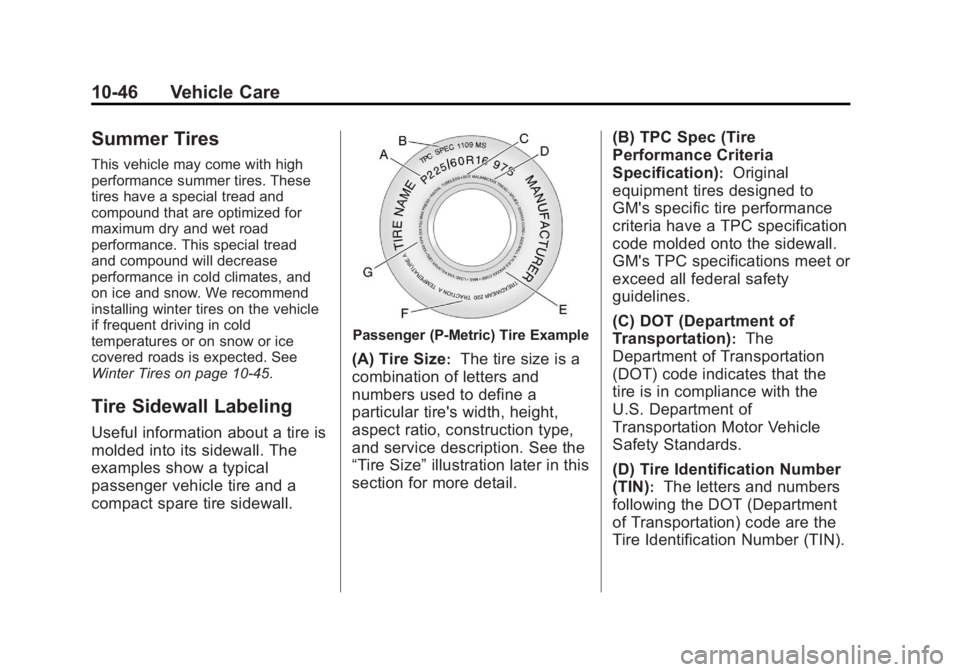

Summer Tires
This vehicle may come with high
performance summer tires. These
tires have a special tread and
compound that are optimized for
maximum dry and wet road
performance. This special tread
and compound will decrease
performance in cold climates, and
on ice and snow. We recommend
installing winter tires on the vehicle
if frequent driving in cold
temperatures or on snow or ice
covered roads is expected. See
Winter Tires on page 10‑45.
Tire Sidewall Labeling
Useful information about a tire is
molded into its sidewall. The
examples show a typical
passenger vehicle tire and a
compact spare tire sidewall.
Passenger (P‐Metric) Tire Example
(A) Tire Size:The tire size is a
combination of letters and
numbers used to define a
particular tire's width, height,
aspect ratio, construction type,
and service description. See the
“Tire Size” illustration later in this
section for more detail. (B) TPC Spec (Tire
Performance Criteria
Specification)
:Original
equipment tires designed to
GM's specific tire performance
criteria have a TPC specification
code molded onto the sidewall.
GM's TPC specifications meet or
exceed all federal safety
guidelines.
(C) DOT (Department of
Transportation)
:The
Department of Transportation
(DOT) code indicates that the
tire is in compliance with the
U.S. Department of
Transportation Motor Vehicle
Safety Standards.
(D) Tire Identification Number
(TIN)
:The letters and numbers
following the DOT (Department
of Transportation) code are the
Tire Identification Number (TIN).
