In Brief 1-5
When the engine starts, the parking
lamps will turn on and remain on as
long as the engine is running. The
doors will be locked and the climate
control system may come on.
The engine will continue to run for
10 minutes. Repeat the steps for a
10-minute time extension. Remote
start can be extended only once.
Canceling a Remote Start
To cancel a remote start, do one of
the following:
.Aim the RKE transmitter at the
vehicle and press and hold
/
until the parking lamps turn off.
.Turn on the hazard warning
flashers.
.Turn the vehicle on and then off.
See Remote Vehicle Start on
page 2‑8.
Door Locks
To lock or unlock the door, use the
Remote Keyless Entry (RKE)
transmitter or the key from outside
the vehicle, and the door lock knob
or switch from inside the vehicle.
From inside the vehicle, pull the
door handle once to unlock it and a
second time to open it. See Door
Locks on page 2‑10.
Power Door Locks
K: Press to unlock the doors.
Q:Press to lock the doors.
See Vehicle Personalization on
page 5‑34.
Trunk Release
To open the trunk, pressVon the
Remote Keyless Entry (RKE)
transmitter or press the touch pad
under the vehicle emblem.
See Trunk on page 2‑11 for
additional information.

Black plate (6,1)Buick Regal Owner Manual - 2013 - crc - 11/5/12
1-6 In Brief

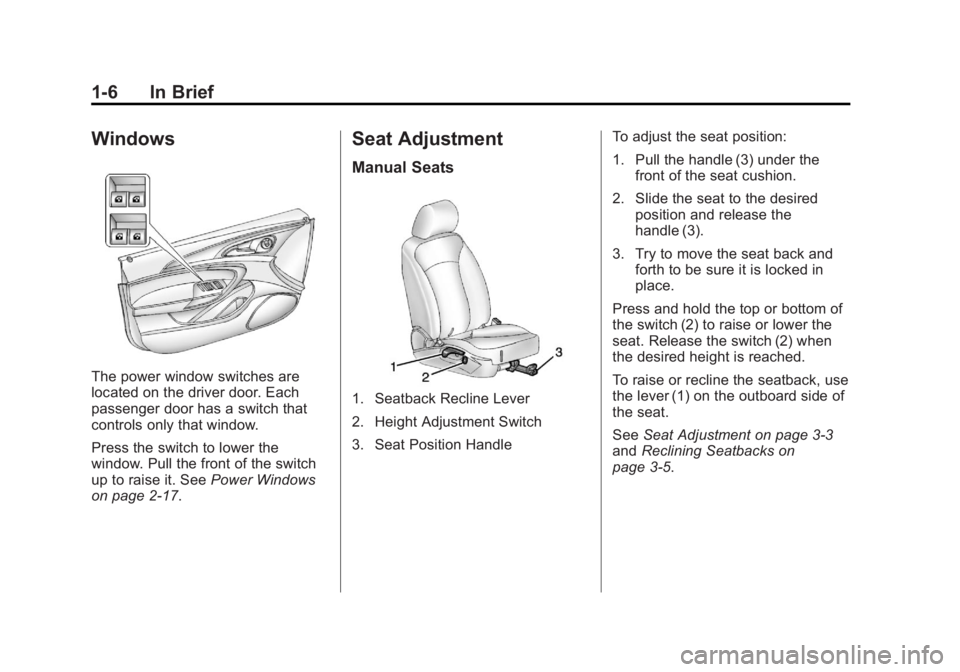

Windows
The power window switches are
located on the driver door. Each
passenger door has a switch that
controls only that window.
Press the switch to lower the
window. Pull the front of the switch
up to raise it. SeePower Windows
on page 2‑17.
Seat Adjustment
Manual Seats
1. Seatback Recline Lever
2. Height Adjustment Switch
3. Seat Position Handle To adjust the seat position:
1. Pull the handle (3) under the
front of the seat cushion.
2. Slide the seat to the desired position and release the
handle (3).
3. Try to move the seat back and forth to be sure it is locked in
place.
Press and hold the top or bottom of
the switch (2) to raise or lower the
seat. Release the switch (2) when
the desired height is reached.
To raise or recline the seatback, use
the lever (1) on the outboard side of
the seat.
See Seat Adjustment on page 3‑3
and Reclining Seatbacks on
page 3‑5.

Black plate (7,1)Buick Regal Owner Manual - 2013 - crc - 11/5/12
In Brief 1-7

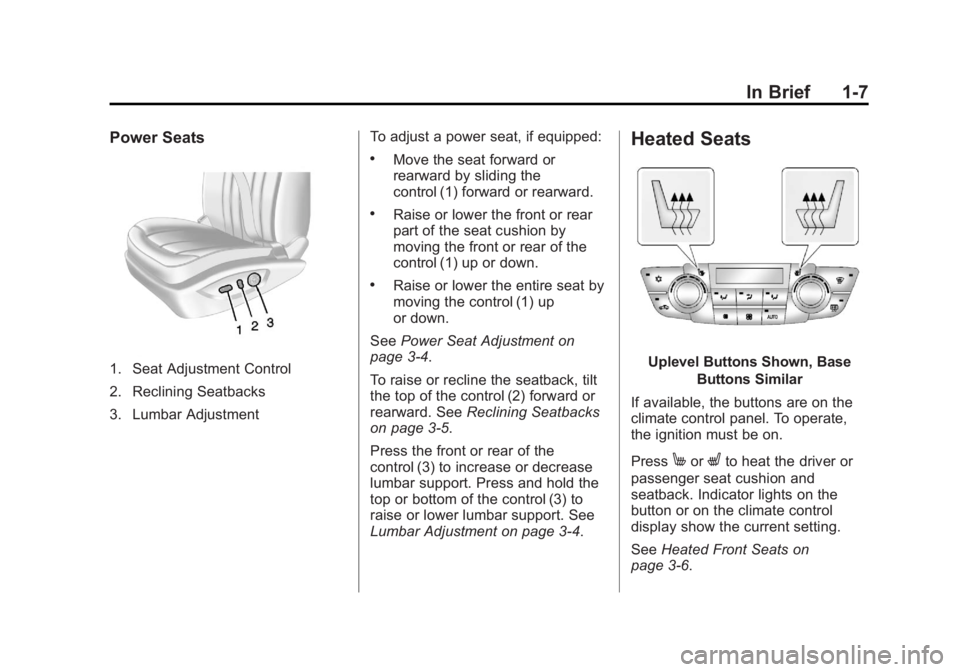

Power Seats
1. Seat Adjustment Control
2. Reclining Seatbacks
3. Lumbar AdjustmentTo adjust a power seat, if equipped:
.Move the seat forward or
rearward by sliding the
control (1) forward or rearward.
.Raise or lower the front or rear
part of the seat cushion by
moving the front or rear of the
control (1) up or down.
.Raise or lower the entire seat by
moving the control (1) up
or down.
See Power Seat Adjustment on
page 3‑4.
To raise or recline the seatback, tilt
the top of the control (2) forward or
rearward. See Reclining Seatbacks
on page 3‑5.
Press the front or rear of the
control (3) to increase or decrease
lumbar support. Press and hold the
top or bottom of the control (3) to
raise or lower lumbar support. See
Lumbar Adjustment on page 3‑4.
Heated Seats
Uplevel Buttons Shown, Base
Buttons Similar
If available, the buttons are on the
climate control panel. To operate,
the ignition must be on.
Press
MorLto heat the driver or
passenger seat cushion and
seatback. Indicator lights on the
button or on the climate control
display show the current setting.
See Heated Front Seats on
page 3‑6.

Black plate (8,1)Buick Regal Owner Manual - 2013 - crc - 11/5/12
1-8 In Brief

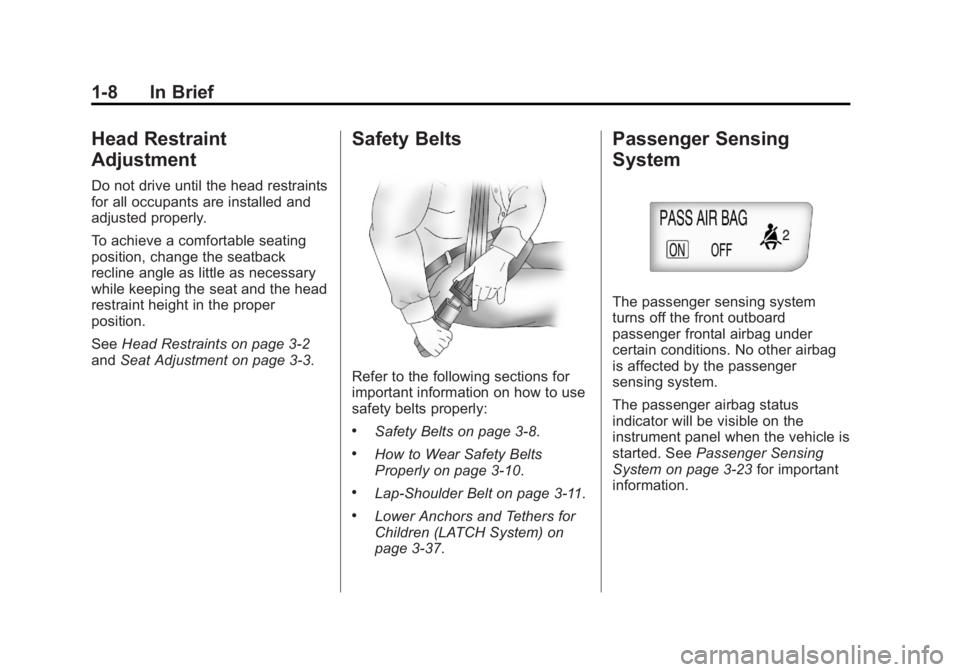

Head Restraint
Adjustment
Do not drive until the head restraints
for all occupants are installed and
adjusted properly.
To achieve a comfortable seating
position, change the seatback
recline angle as little as necessary
while keeping the seat and the head
restraint height in the proper
position.
SeeHead Restraints on page 3‑2
and Seat Adjustment on page 3‑3.
Safety Belts
Refer to the following sections for
important information on how to use
safety belts properly:
.Safety Belts on page 3‑8.
.How to Wear Safety Belts
Properly on page 3‑10.
.Lap-Shoulder Belt on page 3‑11.
.Lower Anchors and Tethers for
Children (LATCH System) on
page 3‑37.
Passenger Sensing
System
The passenger sensing system
turns off the front outboard
passenger frontal airbag under
certain conditions. No other airbag
is affected by the passenger
sensing system.
The passenger airbag status
indicator will be visible on the
instrument panel when the vehicle is
started. See Passenger Sensing
System on page 3‑23 for important
information.

Black plate (9,1)Buick Regal Owner Manual - 2013 - crc - 11/5/12
In Brief 1-9

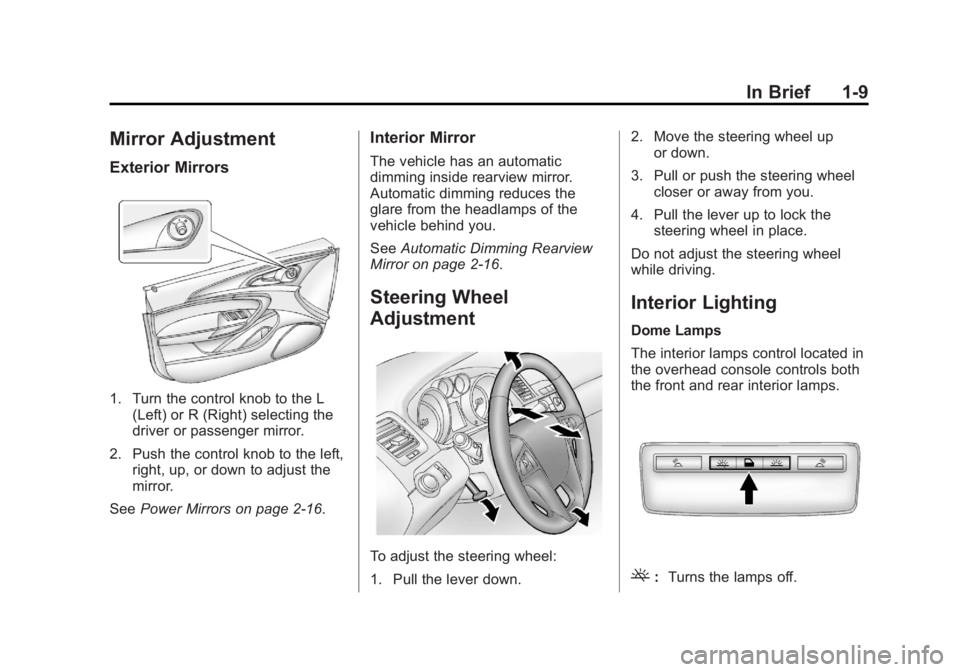

Mirror Adjustment
Exterior Mirrors
1. Turn the control knob to the L(Left) or R (Right) selecting the
driver or passenger mirror.
2. Push the control knob to the left, right, up, or down to adjust the
mirror.
See Power Mirrors on page 2‑16.
Interior Mirror
The vehicle has an automatic
dimming inside rearview mirror.
Automatic dimming reduces the
glare from the headlamps of the
vehicle behind you.
SeeAutomatic Dimming Rearview
Mirror on page 2‑16.
Steering Wheel
Adjustment
To adjust the steering wheel:
1. Pull the lever down. 2. Move the steering wheel up
or down.
3. Pull or push the steering wheel closer or away from you.
4. Pull the lever up to lock the steering wheel in place.
Do not adjust the steering wheel
while driving.
Interior Lighting
Dome Lamps
The interior lamps control located in
the overhead console controls both
the front and rear interior lamps.
(: Turns the lamps off.

Black plate (10,1)Buick Regal Owner Manual - 2013 - crc - 11/5/12
1-10 In Brief

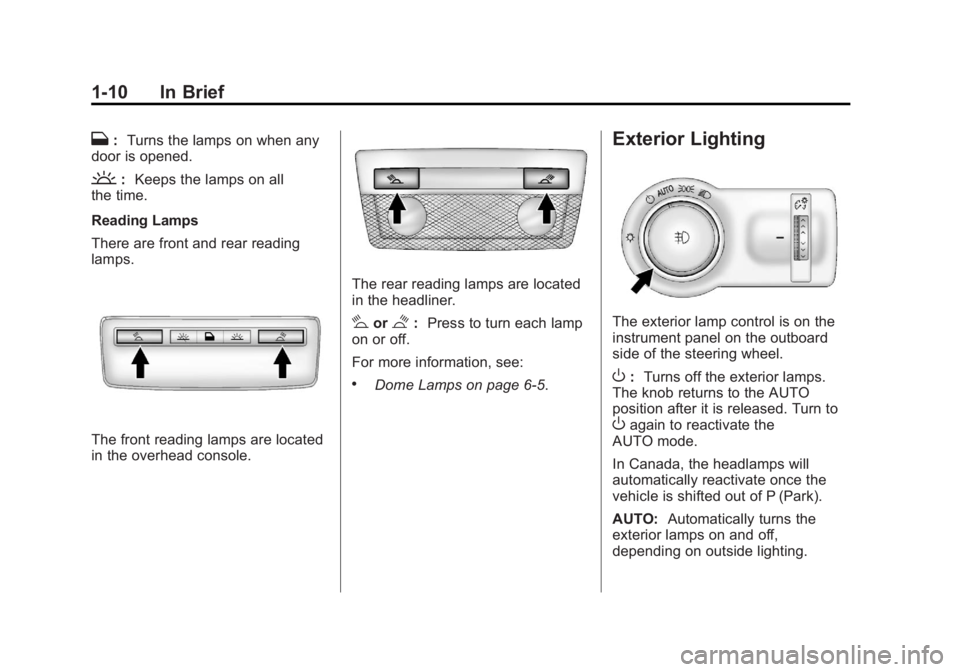

H:Turns the lamps on when any
door is opened.
': Keeps the lamps on all
the time.
Reading Lamps
There are front and rear reading
lamps.
The front reading lamps are located
in the overhead console.
The rear reading lamps are located
in the headliner.
#or$: Press to turn each lamp
on or off.
For more information, see:
.Dome Lamps on page 6‑5.
Exterior Lighting
The exterior lamp control is on the
instrument panel on the outboard
side of the steering wheel.
O: Turns off the exterior lamps.
The knob returns to the AUTO
position after it is released. Turn to
Oagain to reactivate the
AUTO mode.
In Canada, the headlamps will
automatically reactivate once the
vehicle is shifted out of P (Park).
AUTO: Automatically turns the
exterior lamps on and off,
depending on outside lighting.

Black plate (11,1)Buick Regal Owner Manual - 2013 - crc - 11/5/12
In Brief 1-11

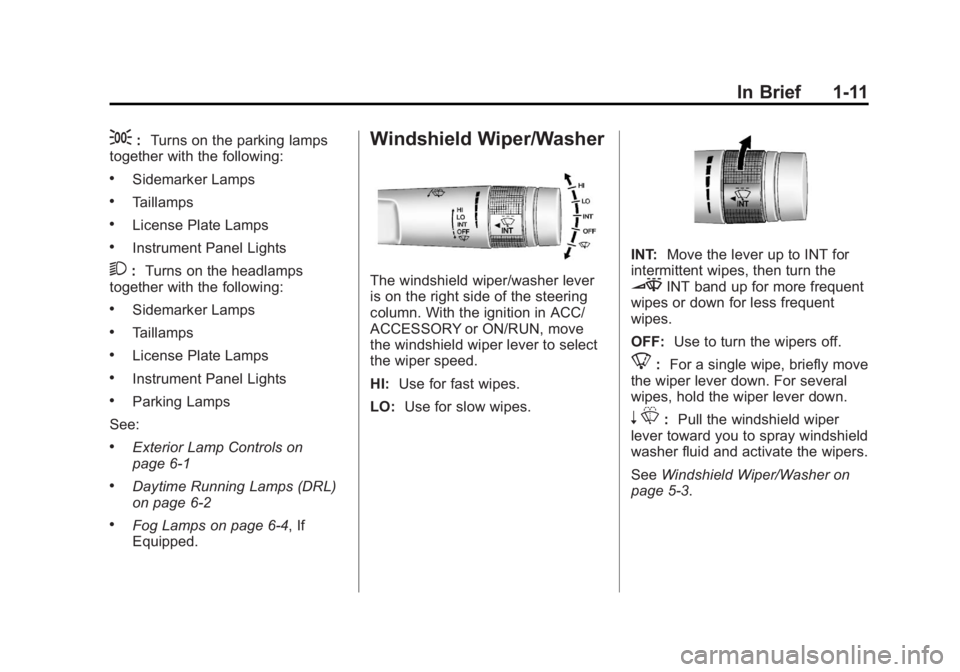

;:Turns on the parking lamps
together with the following:
.Sidemarker Lamps
.Taillamps
.License Plate Lamps
.Instrument Panel Lights
2: Turns on the headlamps
together with the following:
.Sidemarker Lamps
.Taillamps
.License Plate Lamps
.Instrument Panel Lights
.Parking Lamps
See:
.Exterior Lamp Controls on
page 6‑1
.Daytime Running Lamps (DRL)
on page 6‑2
.Fog Lamps on page 6‑4, If
Equipped.
Windshield Wiper/Washer
The windshield wiper/washer lever
is on the right side of the steering
column. With the ignition in ACC/
ACCESSORY or ON/RUN, move
the windshield wiper lever to select
the wiper speed.
HI: Use for fast wipes.
LO: Use for slow wipes.
INT: Move the lever up to INT for
intermittent wipes, then turn the
3INT band up for more frequent
wipes or down for less frequent
wipes.
OFF: Use to turn the wipers off.
8:For a single wipe, briefly move
the wiper lever down. For several
wipes, hold the wiper lever down.
n L: Pull the windshield wiper
lever toward you to spray windshield
washer fluid and activate the wipers.
See Windshield Wiper/Washer on
page 5‑3.

Black plate (12,1)Buick Regal Owner Manual - 2013 - crc - 11/5/12
1-12 In Brief

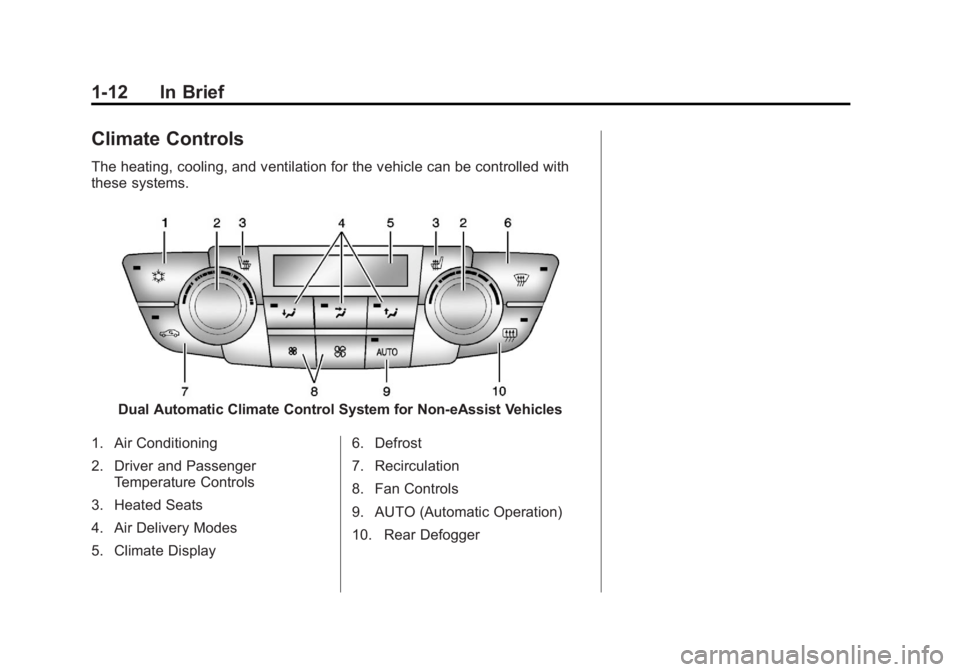

Climate Controls
The heating, cooling, and ventilation for the vehicle can be controlled with
these systems.
Dual Automatic Climate Control System for Non-eAssist Vehicles
1. Air Conditioning
2. Driver and Passenger Temperature Controls
3. Heated Seats
4. Air Delivery Modes
5. Climate Display 6. Defrost
7. Recirculation
8. Fan Controls
9. AUTO (Automatic Operation)
10. Rear Defogger

Black plate (13,1)Buick Regal Owner Manual - 2013 - crc - 11/5/12
In Brief 1-13
Dual Automatic Climate Control System for eAssist Vehicles
1. Eco/Comfort Air Conditioning
2. Driver and Passenger Temperature Controls
3. Heated Seats
4. Air Delivery Modes
5. Climate Display
6. Defrost 7. Recirculation
8. Fan Controls
9. AUTO (Automatic Operation)
10. Rear Defogger
See
Dual Automatic Climate Control
System on page 8‑1.
Transmission
Automatic Transmission
P: Park
R: Reverse
N: Neutral
D: Drive

Black plate (14,1)Buick Regal Owner Manual - 2013 - crc - 11/5/12
1-14 In Brief

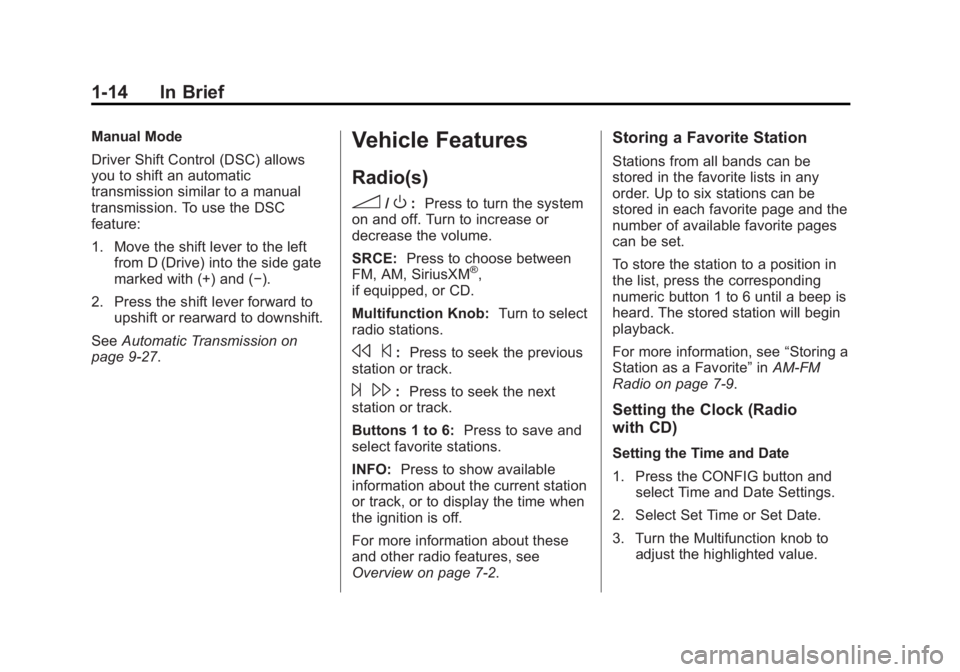

Manual Mode
Driver Shift Control (DSC) allows
you to shift an automatic
transmission similar to a manual
transmission. To use the DSC
feature:
1. Move the shift lever to the leftfrom D (Drive) into the side gate
marked with (+) and (−).
2. Press the shift lever forward to upshift or rearward to downshift.
See Automatic Transmission on
page 9‑27.Vehicle Features
Radio(s)
3
/O: Press to turn the system
on and off. Turn to increase or
decrease the volume.
SRCE: Press to choose between
FM, AM, SiriusXM
®,
if equipped, or CD.
Multifunction Knob: Turn to select
radio stations.
s ©:Press to seek the previous
station or track.
¨ \:Press to seek the next
station or track.
Buttons 1 to 6: Press to save and
select favorite stations.
INFO: Press to show available
information about the current station
or track, or to display the time when
the ignition is off.
For more information about these
and other radio features, see
Overview on page 7‑2.
Storing a Favorite Station
Stations from all bands can be
stored in the favorite lists in any
order. Up to six stations can be
stored in each favorite page and the
number of available favorite pages
can be set.
To store the station to a position in
the list, press the corresponding
numeric button 1 to 6 until a beep is
heard. The stored station will begin
playback.
For more information, see “Storing a
Station as a Favorite” inAM-FM
Radio on page 7‑9.
Setting the Clock (Radio
with CD)
Setting the Time and Date
1. Press the CONFIG button and select Time and Date Settings.
2. Select Set Time or Set Date.
3. Turn the Multifunction knob to adjust the highlighted value.
