BUICK TERRAZA 2007 User Guide
Manufacturer: BUICK, Model Year: 2007, Model line: TERRAZA, Model: BUICK TERRAZA 2007Pages: 562, PDF Size: 2.96 MB
Page 11 of 562

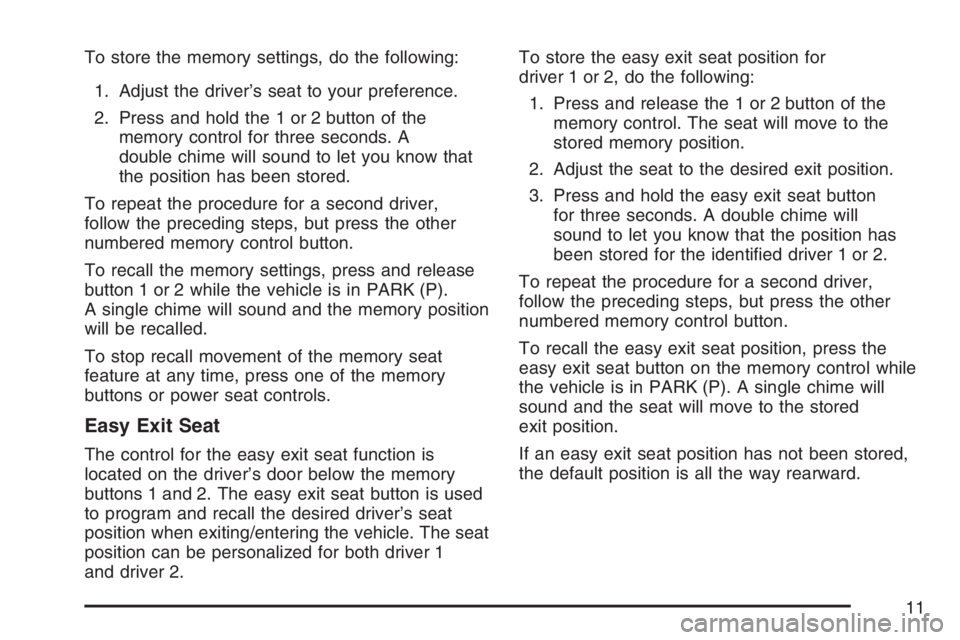

To store the memory settings, do the following:
1. Adjust the driver’s seat to your preference.
2. Press and hold the 1 or 2 button of the
memory control for three seconds. A
double chime will sound to let you know that
the position has been stored.
To repeat the procedure for a second driver,
follow the preceding steps, but press the other
numbered memory control button.
To recall the memory settings, press and release
button 1 or 2 while the vehicle is in PARK (P).
A single chime will sound and the memory position
will be recalled.
To stop recall movement of the memory seat
feature at any time, press one of the memory
buttons or power seat controls.
Easy Exit Seat
The control for the easy exit seat function is
located on the driver’s door below the memory
buttons 1 and 2. The easy exit seat button is used
to program and recall the desired driver’s seat
position when exiting/entering the vehicle. The seat
position can be personalized for both driver 1
and driver 2.To store the easy exit seat position for
driver 1 or 2, do the following:
1. Press and release the 1 or 2 button of the
memory control. The seat will move to the
stored memory position.
2. Adjust the seat to the desired exit position.
3. Press and hold the easy exit seat button
for three seconds. A double chime will
sound to let you know that the position has
been stored for the identi ed driver 1 or 2.
To repeat the procedure for a second driver,
follow the preceding steps, but press the other
numbered memory control button.
To recall the easy exit seat position, press the
easy exit seat button on the memory control while
the vehicle is in PARK (P). A single chime will
sound and the seat will move to the stored
exit position.
If an easy exit seat position has not been stored,
the default position is all the way rearward.
11
Page 12 of 562
Reclining Seatbacks
Manual Reclining Seatbacks
{CAUTION:
You can lose control of the vehicle if you
try to adjust a manual driver’s seat while
the vehicle is moving. The sudden
movement could startle and confuse you,
or make you push a pedal when you do
not want to. Adjust the driver’s seat only
when the vehicle is not moving.
{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on the
seatback to be sure it is locked.
If your seats have manual reclining seatbacks, the
lever used to operate them is located on the
outboard side of the seat(s).
12
Page 13 of 562
To recline the seatback, do the following:
1. Lift the recline lever.
2. Move the seatback to the desired position,
then release the lever to lock the seatback
in place.
3. Push and pull on the seatback to make sure it
is locked.To return the seatback to an upright position, do
the following:
1. Lift the lever fully without applying pressure to
the seatback and the seatback will return to
the upright position.
2. Push and pull on the seatback to make sure it
is locked.
13
Page 14 of 562
Power Reclining Seatbacks
If your seats have
power reclining
seatbacks, use the
vertical power
seat control located on
the outboard side of
the seat(s).
To recline the seatback, press the control
toward the rear of the vehicle.
To raise the seatback, press the control
toward the front of the vehicle.
14
Page 15 of 562
{CAUTION:
Sitting in a reclined position when your
vehicle is in motion can be dangerous.
Even if you buckle up, your safety belts
cannot do their job when you are reclined
like this.
The shoulder belt cannot do its job
because it will not be against your body.
Instead, it will be in front of you. In a crash,
you could go into it, receiving neck or other
injuries.
The lap belt cannot do its job either. In a
crash, the belt could go up over your
abdomen. The belt forces would be there,
not at your pelvic bones. This could cause
serious internal injuries.
For proper protection when the vehicle is
in motion, have the seatback upright. Then
sit well back in the seat and wear your
safety belt properly.
Do not have a seatback reclined if your vehicle is
moving.
Head Restraints
Adjust the head restraint so that the top of the
restraint is at the same height as the top of
the occupant’s head. This position reduces the
chance of a neck injury in a crash.
The height of the head restraints can be adjusted
on the rst and second row seats. Pull the
head restraint up or push it down to adjust it.
The head restraints on the third row seat cannot
be adjusted.
15
Page 16 of 562

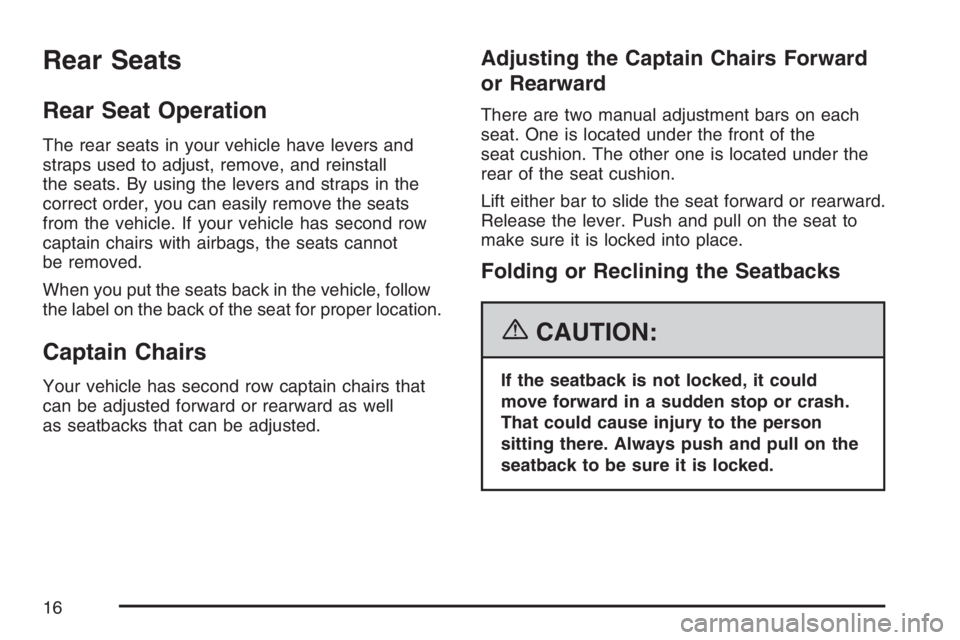

Rear Seats
Rear Seat Operation
The rear seats in your vehicle have levers and
straps used to adjust, remove, and reinstall
the seats. By using the levers and straps in the
correct order, you can easily remove the seats
from the vehicle. If your vehicle has second row
captain chairs with airbags, the seats cannot
be removed.
When you put the seats back in the vehicle, follow
the label on the back of the seat for proper location.
Captain Chairs
Your vehicle has second row captain chairs that
can be adjusted forward or rearward as well
as seatbacks that can be adjusted.
Adjusting the Captain Chairs Forward
or Rearward
There are two manual adjustment bars on each
seat. One is located under the front of the
seat cushion. The other one is located under the
rear of the seat cushion.
Lift either bar to slide the seat forward or rearward.
Release the lever. Push and pull on the seat to
make sure it is locked into place.
Folding or Reclining the Seatbacks
{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on the
seatback to be sure it is locked.
16
Page 17 of 562
To recline the seatback, lift up on the recliner
lever located on the outboard side of the seat, then
move the seatback to the desired position.To raise the seatback, lift up on the recliner lever
without applying pressure to the seatback.
Push and pull on the seatback to make sure it is
locked in place.
Notice:Folding a rear seat with the safety
belts still fastened may cause damage to the
seat or the safety belts. Always unbuckle
the safety belts and return them to their normal
stowed position before folding a rear seat.
To fold the seatback forward, lift up fully on the
recliner lever. Push the seatback forward until
it is at.
The armrests can be lowered or raised for easier
entry or exit of the vehicle.
17
Page 18 of 562
Removing a Captain Chair
(without a Side Impact Airbag)
If your vehicle has captain chairs with side impact
airbags, the seats cannot be removed.
To remove a captain chair, do the following:
1. Pull the nylon strap behind the seat to release
the rear hooks from the oor pins.2. The seat can then be lifted off the front oor
pins and removed from the vehicle.
18
Page 19 of 562

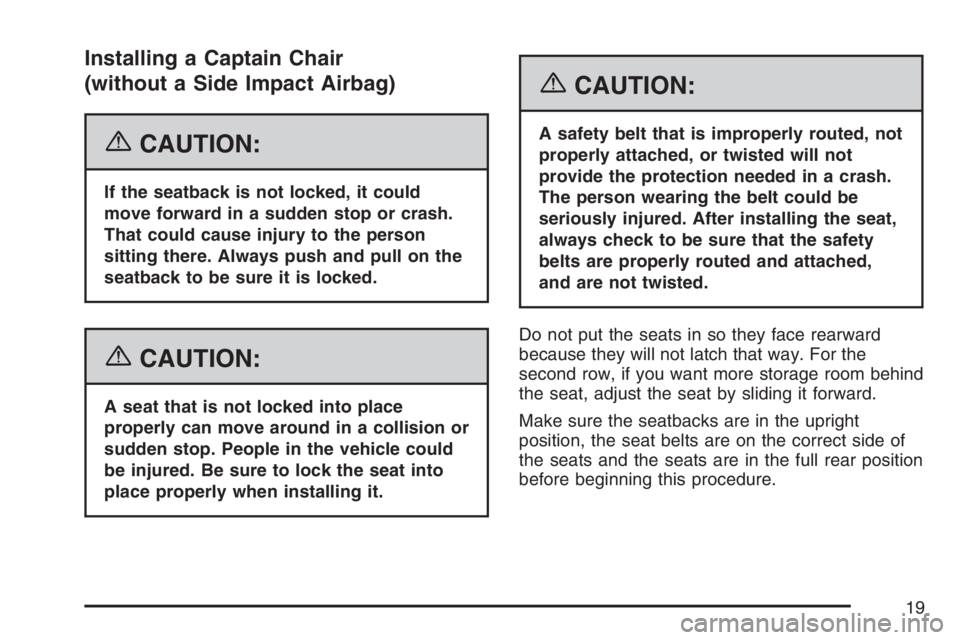

Installing a Captain Chair
(without a Side Impact Airbag)
{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on the
seatback to be sure it is locked.
{CAUTION:
A seat that is not locked into place
properly can move around in a collision or
sudden stop. People in the vehicle could
be injured. Be sure to lock the seat into
place properly when installing it.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not
provide the protection needed in a crash.
The person wearing the belt could be
seriously injured. After installing the seat,
always check to be sure that the safety
belts are properly routed and attached,
and are not twisted.
Do not put the seats in so they face rearward
because they will not latch that way. For the
second row, if you want more storage room behind
the seat, adjust the seat by sliding it forward.
Make sure the seatbacks are in the upright
position, the seat belts are on the correct side of
the seats and the seats are in the full rear position
before beginning this procedure.
19
