Page 21 of 562
Third Row Seat
Your vehicle may have a third row seat. It is a full
bench seat and may come with the convenience
center. SeeConvenience Center on page 164
for more information. The third row seat can be
removed and replaced, or with the seatback
folded, it will lie at with the convenience center.
Folding the Seatback(s)
Notice:Folding a rear seat with the safety
belts still fastened may cause damage to the
seat or the safety belts. Always unbuckle
the safety belts and return them to their normal
stowed position before folding a rear seat.To fold down either side of the 50/50 split bench
seat, lift the lever located on the back of the seat
you want to fold, and push the seatback down.
21
Page 22 of 562
Returning the Seatback to an Upright
Position
{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on the
seatback to be sure it is locked.
To raise the seatback, do the following:
1. Move the second row seat completely forward
by using the manual adjustment bar under
either the front or rear of the seat cushion.
2. Open the liftgate.3. From the rear of the vehicle, locate the
pullstrap attached to the lever on the back of
the seat and pull it to raise the seat.
4. Push and pull on the seatback to make sure
that it is locked into place.
22
Page 23 of 562
Removing the Third Row Seat
1. Remove the convenience center, if equipped.
SeeConvenience Center on page 164for
more information.
2. Make sure all items are off the seat.
Notice:Folding a rear seat with the safety
belts still fastened may cause damage to the
seat or the safety belts. Always unbuckle
the safety belts and return them to their normal
stowed position before folding a rear seat.
3. Put the seatback in its folded position before
removing the seat. See “Folding the
Seatback(s)” earlier in this section.
4. From behind the seat, squeeze the release
handle until the pin indicators are fully out.
This indicates that the rear latches are
released from the oor. For ease of removing
the seat, squeeze the handle with the palm
of your hand up.
5. Lift the seat slightly from the oor to ensure
the latches are clear of the oor pins.
6. Pull the seat rearward and out of the vehicle.
The release handle can be used to carry
the seat.
23
Page 24 of 562
Installing the Third Row Seat
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not
provide the protection needed in a crash.
The person wearing the belt could be
seriously injured. After installing the seat,
always check to be sure that the safety
belts are properly routed and attached,
and are not twisted.
Do not put the third row seat in so it faces
rearward because it will not latch that way. The
seat needs to be installed before the convenience
center. SeeConvenience Center on page 164
for more information.
Notice:Folding a rear seat with the safety
belts still fastened may cause damage to the
seat or the safety belts. Always unbuckle
the safety belts and return them to their normal
stowed position before folding a rear seat.For ease of installing the seat, put the seat in the
folded position before beginning this procedure.
1. From the rear of the vehicle, place the
front hooks of the seat onto the front oor pins
in the third row. To do this, the seat will
need to be angled approximately 8-10 inches
(20-25 cm) from the oor so the front
hooks clear the rear oor pins and rear oor
cups. Use the release handle to guide the seat
into place.
If the front hooks are not attached correctly,
the rear latches will not attach to the rear set of
oor pins.
2. Firmly push the rear latches into the rear oor
pins by pushing down on the rear of the seat.
24
Page 25 of 562

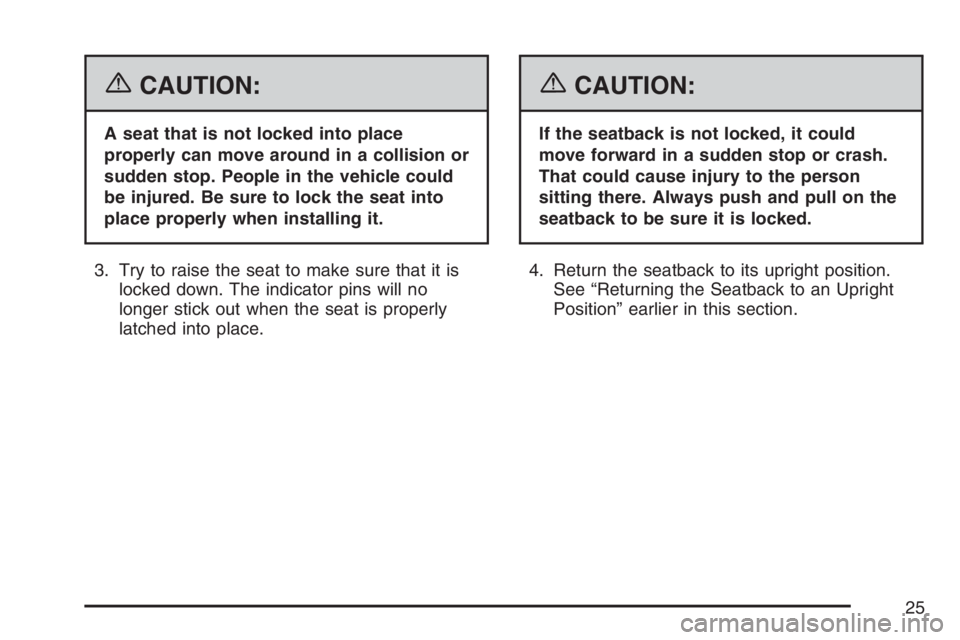

{CAUTION:
A seat that is not locked into place
properly can move around in a collision or
sudden stop. People in the vehicle could
be injured. Be sure to lock the seat into
place properly when installing it.
3. Try to raise the seat to make sure that it is
locked down. The indicator pins will no
longer stick out when the seat is properly
latched into place.
{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on the
seatback to be sure it is locked.
4. Return the seatback to its upright position.
See “Returning the Seatback to an Upright
Position” earlier in this section.
25
Page 26 of 562

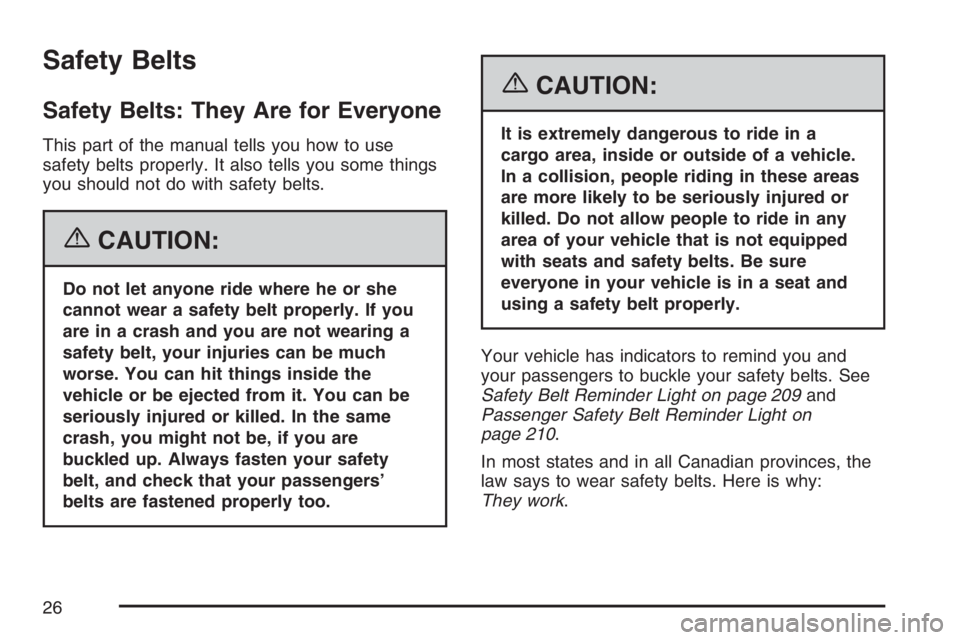

Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use
safety belts properly. It also tells you some things
you should not do with safety belts.
{CAUTION:
Do not let anyone ride where he or she
cannot wear a safety belt properly. If you
are in a crash and you are not wearing a
safety belt, your injuries can be much
worse. You can hit things inside the
vehicle or be ejected from it. You can be
seriously injured or killed. In the same
crash, you might not be, if you are
buckled up. Always fasten your safety
belt, and check that your passengers’
belts are fastened properly too.
{CAUTION:
It is extremely dangerous to ride in a
cargo area, inside or outside of a vehicle.
In a collision, people riding in these areas
are more likely to be seriously injured or
killed. Do not allow people to ride in any
area of your vehicle that is not equipped
with seats and safety belts. Be sure
everyone in your vehicle is in a seat and
using a safety belt properly.
Your vehicle has indicators to remind you and
your passengers to buckle your safety belts. See
Safety Belt Reminder Light on page 209and
Passenger Safety Belt Reminder Light on
page 210.
In most states and in all Canadian provinces, the
law says to wear safety belts. Here is why:
They work.
26
Page 27 of 562

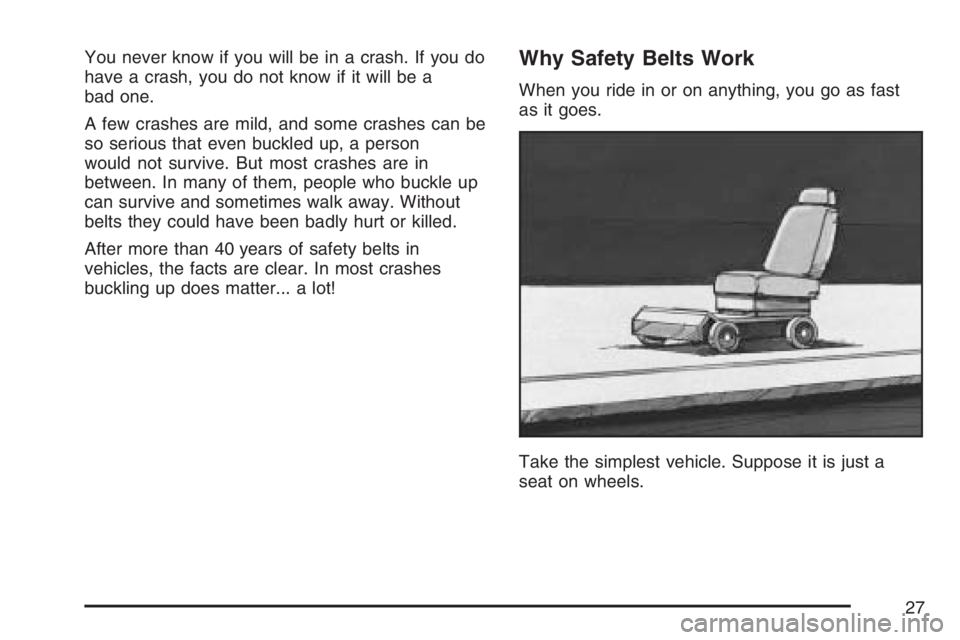

You never know if you will be in a crash. If you do
have a crash, you do not know if it will be a
bad one.
A few crashes are mild, and some crashes can be
so serious that even buckled up, a person
would not survive. But most crashes are in
between. In many of them, people who buckle up
can survive and sometimes walk away. Without
belts they could have been badly hurt or killed.
After more than 40 years of safety belts in
vehicles, the facts are clear. In most crashes
buckling up does matter... a lot!Why Safety Belts Work
When you ride in or on anything, you go as fast
as it goes.
Take the simplest vehicle. Suppose it is just a
seat on wheels.
27
Page 28 of 562
Put someone on it. Get it up to speed. Then stop the vehicle. The
rider does not stop.
28
Page 29 of 562

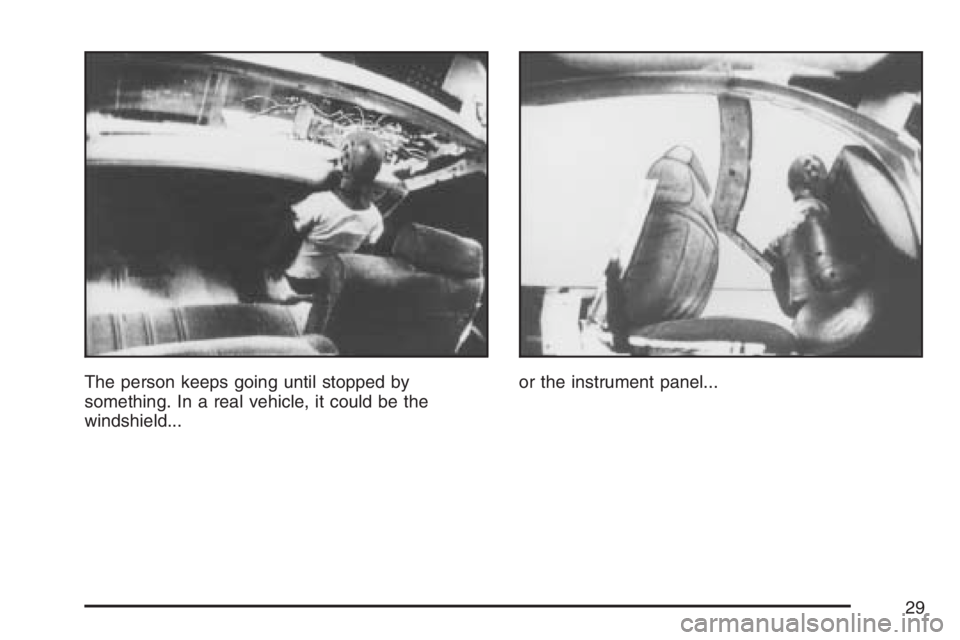

The person keeps going until stopped by
something. In a real vehicle, it could be the
windshield...or the instrument panel...
29
Page 30 of 562
or the safety belts!
With safety belts, you slow down as the vehicle
does. You get more time to stop. You stop
over more distance, and your strongest bones
take the forces. That is why safety belts
make such good sense.
Questions and Answers About
Safety Belts
Q:Will I be trapped in the vehicle after an
accident if I am wearing a safety belt?
A:Youcouldbe — whether you are wearing a
safety belt or not. But you can unbuckle a
safety belt, even if you are upside down. And
your chance of being conscious during and
after an accident, so youcanunbuckle and get
out, ismuchgreater if you are belted.
Q:If my vehicle has airbags, why should I
have to wear safety belts?
A:Airbags are in many vehicles today and will be
in most of them in the future. But they are
supplemental systems only; so they workwith
safety belts — not instead of them. Every
airbag system ever offered for sale has
required the use of safety belts. Even if you
are in a vehicle that has airbags, you still have
to buckle up to get the most protection. That
is true not only in frontal collisions, but
especially in side and other collisions.
30
