320 Vehicle Care
Caution (Continued)
the appearance and feel of
leather or soft trim, and are not
recommended.
Do not use cleaners that increase
gloss, especially on the instrument
panel. Reflected glare can decrease
visibility through the windshield
under certain conditions.
Caution
Use of air fresheners may cause
permanent damage to plastics
and painted surfaces. If an air
freshener comes in contact with
any plastic or painted surface in
the vehicle, blot immediately and
clean with a soft cloth dampened
with a mild soap solution.
Damage caused by air fresheners
would not be covered by the
vehicle warranty.
Cargo Cover and
Convenience Net
Wash with warm water and mild
detergent. Do not use chlorine
bleach. Rinse with cold water, and
then dry completely.
Care of Safety Belts
Keep belts clean and dry.
{Warning
Do not bleach or dye safety belt
webbing. It may severely weaken
the webbing. In a crash, they
might not be able to provide
adequate protection. Clean and
rinse safety belt webbing only
with mild soap and lukewarm
water. Allow the webbing to dry.
Floor Mats
{Warning
If a floor mat is the wrong size or
is not properly installed, it can
interfere with the pedals.
Interference with the pedals can
cause unintended acceleration
and/or increased stopping
distance which can cause a crash
and injury. Make sure the floor
mat does not interfere with the
pedals.
Use the following guidelines for
proper floor mat usage.
. The original equipment floor
mats were designed for your
vehicle. If the floor mats need
replacing, it is recommended
that GM certified floor mats be
purchased. Non-GM floor mats
may not fit properly and may
interfere with the pedals. Always
check that the floor mats do not
interfere with the pedals.
Page 322 of 348
Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
Vehicle Care 321
.Do not use a floor mat if the
vehicle is not equipped with a
floor mat retainer on the driver
side floor.
. Use the floor mat with the
correct side up. Do not turn
it over.
. Do not place anything on top of
the driver side floor mat.
. Use only a single floor mat on
the driver side.
. Do not place one floor mat on
top of another.
The floor mats are held in place by
button-type retainers.Removing and Replacing the
Floor Mats
1. Pull up on the rear of the floor mat to unlock the retainers and
remove.
2. Reinstall by lining up the floor mat retainer openings over the
carpet retainers and snap into
position.
3. Make sure the floor mat is properly secured in place.
Verify the floor mat does not
interfere with the pedals.
Page 323 of 348
Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
322 Service and Maintenance
Service and
Maintenance
General Information
General Information . . . . . . . . . . 322
Maintenance Schedule
Maintenance Schedule . . . . . . . 323

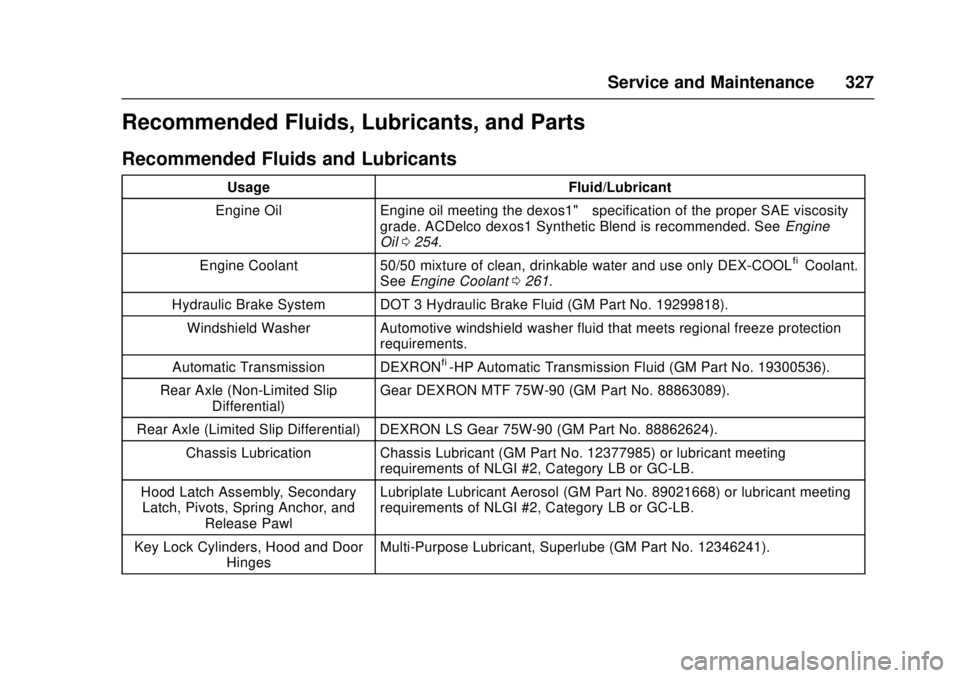

Recommended Fluids,
Lubricants, and Parts
Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . 327

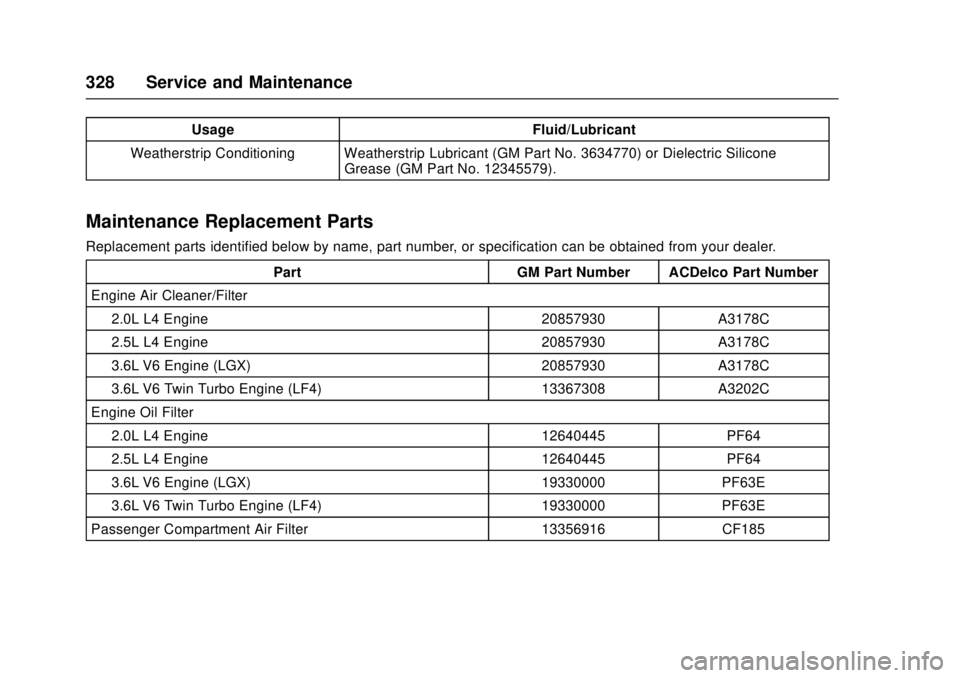

Maintenance Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . 328
Maintenance Records
Maintenance Records . . . . . . . . 330
General Information
Caution
Maintenance intervals, checks,
inspections, recommended fluids,
and lubricants are necessary to
keep this vehicle in good working
condition. Damage caused by
failure to follow scheduled
maintenance might not be
covered by the vehicle warranty.
As the vehicle owner, you are
responsible for the scheduled
maintenance in this section. We
recommend having your dealer
perform these services. Proper
vehicle maintenance helps to keep
the vehicle in good working
condition, improves fuel economy,
and reduces vehicle emissions for
better air quality.
Because of all the different ways
people use vehicles, maintenance
needs vary. The vehicle might need
more frequent checks and services.
Please read the information under Scheduled Maintenance. To keep
the vehicle in good condition, see
your dealer.
The maintenance schedule is for
vehicles that:
.
Carry passengers and cargo
within recommended limits on
the Tire and Loading Information
label. See Vehicle Load
Limits 0187.
. Are driven on reasonable road
surfaces within legal driving
limits.
. Use the recommended fuel. See
Fuel 0234.
{Warning
Performing maintenance work can
be dangerous. Some jobs can
cause serious injury. Perform
maintenance work only if you
have the required know-how and
the proper tools and equipment.
If in doubt, see your dealer to
have a qualified technician do the
work. See Doing Your Own
Service Work 0246.
Page 324 of 348
Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
Service and Maintenance 323
At your dealer, you can be certain
that you will receive the highest
level of service available. Your
dealer has specially trained service
technicians, uses genuine
replacement parts, as well as,
up-to-date tools and equipment to
ensure fast and accurate
diagnostics.
The proper replacement parts,
fluids, and lubricants to use are
listed inRecommended Fluids and
Lubricants 0327 andMaintenance
Replacement Parts 0328. We
recommend the use of genuine
parts from your dealer.
Rotation of New Tires
Tire rotation is not recommended if
the vehicle has different size tires
on the front and rear wheels. If tire
rotation is recommended for the
vehicle, to maintain ride, handling,
and performance of the vehicle, it is
important that the first rotation
service for new tires be performed.
Tires should be rotated every
service. See Tire Rotation 0292.Maintenance
Schedule
When the Change Engine Oil
Soon Message Displays
Change engine oil and filter. See
Engine Oil 0254. An Emission
Control Service.
When the CHANGE ENGINE OIL
SOON message displays, service is
required for the vehicle as soon as
possible, within the next 1 000 km/
600 miles. If driving under the best
conditions, the engine oil life system
may not indicate the need for
vehicle service for up to a year. The
engine oil and filter must be
changed at least once a year and
the oil life system must be reset.
Your dealer has trained service
technicians who will perform this
work and reset the system. If the
engine oil life system is reset
accidentally, service the vehicle
within 5 000 km/3,000 miles since
the last service. Reset the oil life
system whenever the oil is changed.
See Engine Oil Life System 0256.
Every Engine Oil Change
.
Change engine oil and filter.
Reset oil life system. See
Engine Oil 0254 and Engine Oil
Life System 0256. An Emission
Control Service.
. Engine coolant level check. See
Engine Coolant 0261.
. Engine cooling system
inspection. Visual inspection of
hoses, pipes, fittings, and
clamps and replacement,
if needed.
. Windshield washer fluid level
check. See Washer Fluid 0266.
. Windshield wiper blade
inspection for wear, cracking,
or contamination and windshield
and wiper blade cleaning,
if contaminated. See Exterior
Care 0313. Worn or damaged
wiper blade replacement. See
Wiper Blade
Replacement 0271.
. Tire inflation pressures check.
See Tire Pressure 0286.
Page 325 of 348
Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
324 Service and Maintenance
.Tire wear inspection. See Tire
Inspection 0292.
. Rotate tires if necessary. See
Tire Rotation 0292.
. Fluids visual leak check (or
every 12 months, whichever
occurs first). A leak in any
system must be repaired and the
fluid level checked.
. Engine air cleaner filter
inspection. See Engine Air
Cleaner/Filter 0258.
. Brake system inspection (or
every 12 months, whichever
occurs first). See Exterior
Care 0313.
. Steering and suspension
inspection. Visual inspection for
damaged, loose, or missing
parts or signs of wear.
. Body hinges and latches, key
lock cylinders, folding seat
hardware, and sunroof (if
equipped) lubrication. See
Recommended Fluids and
Lubricants 0327. More frequent
lubrication may be required
when the vehicle is exposed to a corrosive environment. Applying
silicone grease on weatherstrips
with a clean cloth makes them
last longer, seal better, and not
stick or squeak.
. Restraint system component
check. See Safety System
Check 069.
. Fuel system inspection for
damage or leaks.
. Exhaust system and nearby heat
shields inspection for loose or
damaged components.
Additional Required Services
Every Service
.Rotate tires. Tires should be
rotated every service. See Tire
Rotation 0292.
At Each Fuel Stop
. Engine oil level check. See
Engine Oil 0254.
. Engine coolant level check. See
Engine Coolant 0261.
. Windshield washer fluid level
check. See Washer Fluid 0266. Once a Month
.
Tire inflation check. See Tire
Pressure 0286.
. Tire wear inspection. See Tire
Inspection 0292.
. Sunroof track and seal
inspection, if equipped. See
Sunroof 048.
Once a Year
. See Starter Switch Check 0270.
. See Automatic Transmission
Shift Lock Control Function
Check 0270.
. See Park Brake and P (Park)
Mechanism Check 0270.
. Accelerator pedal check for
damage, high effort, or binding.
Replace if needed.
. Underbody flushing service.
. Hood/Trunk Support Gas Strut
Service: Visually inspect gas
strut, if equipped, for signs of
wear, cracks, or other damage.
Check the hold open ability of
the gas strut. Contact your
dealer if service is required.
Page 326 of 348
Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
Service and Maintenance 325
.Engine air cleaner filter
replacement or every 20 000 km/
12,500 Miles. See Engine Air
Cleaner/Filter 0258. If driving in
dusty conditions, inspect the
filter at each oil change or more
often as needed.
Every 40 000 km/25,000 Miles
. Passenger compartment air filter
replacement (or every
24 months, whichever occurs
first). More frequent replacement
may be needed if you drive in
areas with heavy traffic, areas
with poor air quality, or areas
with high dust levels.
Replacement may also be
needed if you notice reduced air
flow, windows fogging up,
or odors. Your dealer can help
you determine when it is the
right time to replace the filter.
Every 72 000 km/45,000 Miles
. Replace brake fluid (or every
three years, whichever occurs
first).
. Rear axle fluid (If equipped with
limited slip). Every 80 000 km/50,000 Miles
.
Evaporative control system
inspection. Check all fuel and
vapor lines and hoses for proper
hook-up, routing, and condition.
Every 100 000 km/60,000 Miles
(2.0L Turbo and 3.6L Twin Turbo
Engines)
. Spark plug replacement and
spark plug wire inspection. An
Emission Control Service.
Every 160 000 km/100,000 Miles
(2.5L and 3.6L Engines)
. Spark plug replacement and
spark plug wire inspection. An
Emission Control Service.
Every 240 000 km/150,000 Miles
. Engine cooling system drain and
refill (or every five years,
whichever occurs first). See
Cooling System (Engine) 0259
or Cooling System (Intercooler)
0 261. An Emission Control
Service. .
Engine drive belts inspection for
fraying, excessive cracks,
or obvious damage (or every
10 years, whichever occurs
first). Replace, if needed.
Severe Conditions Requiring
More Frequent Maintenance*
.Public service, military,
or commercial use vehicles to
include the following:
‐Ambulances, police cars and
emergency rescue vehicles.
‐ Civilian vehicles such as light
duty pick-up trucks, SUVs and
passenger cars that are used
in military applications.
‐ Recovery vehicles such as
tow trucks and flatbed single
vehicle carriers or any vehicle
that is consistently used in
towing trailers or other loads.
‐ High use commercial vehicles
such as courier delivery
vehicles, private security patrol
vehicles or any vehicles that
operate on a 24 hour basis.
Page 327 of 348
Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
326 Service and Maintenance
‐Any vehicle consistently
operated in a high sand or
dust environment such as
those used on oil pipelines
and similar applications.
. Vehicles that are regularly used
for short trips of 6 kilometers
or less
If your vehicle has an Oil Life
Indicator, the indicator will show
you when to change the oil and
filter. Under severe conditions
the indicator may come on
before 10 000 km/6,000 mi. The
indicator won't detect dust in the
oil, so if you drive in a dusty
area you may have to change
the oil and filter sooner than
every 10 000 km/6,000 mi.
Note: All vehicles with
rear-wheel drive —change
driveline axle oil every
30 000 km/19,000 mi if vehicle is
used for towing purposes.
* Footnote: Under extreme
driving conditions listed above, it
may be necessary to replace
your spark plugs at more
frequent intervals. For further assistance in determining the
most suitable service
maintenance intervals for your
vehicle, please contact your
authorized GM Dealer.
Additional Required
Services
—Severe Service
Every 72 000 km/45,000 mi
.
Change automatic transmission
fluid and filter.
. Rear axle fluid (If equipped with
limited slip).
Page 328 of 348
Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
Service and Maintenance 327
Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
UsageFluid/Lubricant
Engine Oil Engine oil meeting the dexos1™ specification of the proper SAE viscosity
grade. ACDelco dexos1 Synthetic Blend is recommended. See Engine
Oil 0254.
Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL
®Coolant.
See Engine Coolant 0261.
Hydraulic Brake System DOT 3 Hydraulic Brake Fluid (GM Part No. 19299818). Windshield Washer Automotive windshield washer fluid that meets regional freeze protection requirements.
Automatic Transmission DEXRON
®-HP Automatic Transmission Fluid (GM Part No. 19300536).
Rear Axle (Non-Limited Slip Differential) Gear DEXRON MTF 75W-90 (GM Part No. 88863089).
Rear Axle (Limited Slip Differential) DEXRON LS Gear 75W-90 (GM Part No. 88862624). Chassis Lubrication Chassis Lubricant (GM Part No. 12377985) or lubricant meeting requirements of NLGI #2, Category LB or GC-LB.
Hood Latch Assembly, Secondary Latch, Pivots, Spring Anchor, and Release Pawl Lubriplate Lubricant Aerosol (GM Part No. 89021668) or lubricant meeting
requirements of NLGI #2, Category LB or GC-LB.
Key Lock Cylinders, Hood and Door Hinges Multi-Purpose Lubricant, Superlube (GM Part No. 12346241).
Page 329 of 348
Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
328 Service and Maintenance
UsageFluid/Lubricant
Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. 3634770) or Dielectric Silicone Grease (GM Part No. 12345579).
Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.
Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter
2.0L L4 Engine 20857930 A3178C
2.5L L4 Engine 20857930 A3178C
3.6L V6 Engine (LGX) 20857930 A3178C
3.6L V6 Twin Turbo Engine (LF4) 13367308 A3202C
Engine Oil Filter 2.0L L4 Engine 12640445 PF64
2.5L L4 Engine 12640445 PF64
3.6L V6 Engine (LGX) 19330000 PF63E
3.6L V6 Twin Turbo Engine (LF4) 19330000 PF63E
Passenger Compartment Air Filter 13356916 CF185
Page 330 of 348
Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
Service and Maintenance 329

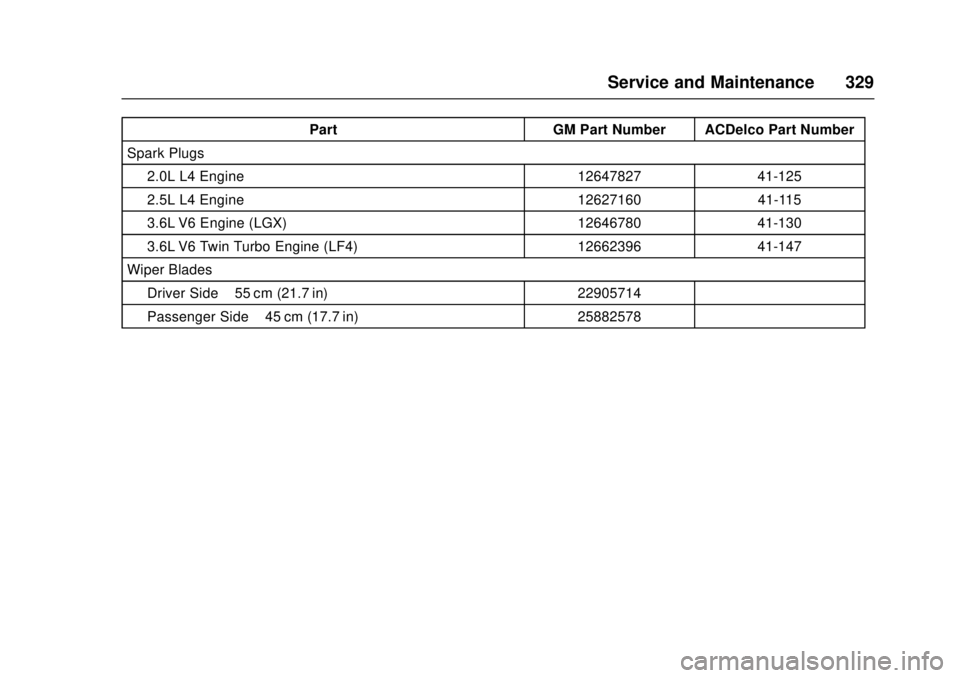

PartGM Part Number ACDelco Part Number
Spark Plugs 2.0L L4 Engine 1264782741-125
2.5L L4 Engine 1262716041-115
3.6L V6 Engine (LGX) 1264678041-130
3.6L V6 Twin Turbo Engine (LF4) 1266239641-147
Wiper Blades Driver Side –55 cm (21.7 in) 22905714—
Passenger Side –45 cm (17.7 in) 25882578—
