CADILLAC ATS 2016 1.G Owners Manual
Manufacturer: CADILLAC, Model Year: 2016, Model line: ATS, Model: CADILLAC ATS 2016 1.GPages: 348, PDF Size: 3.38 MB
Page 331 of 348
Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
330 Service and Maintenance

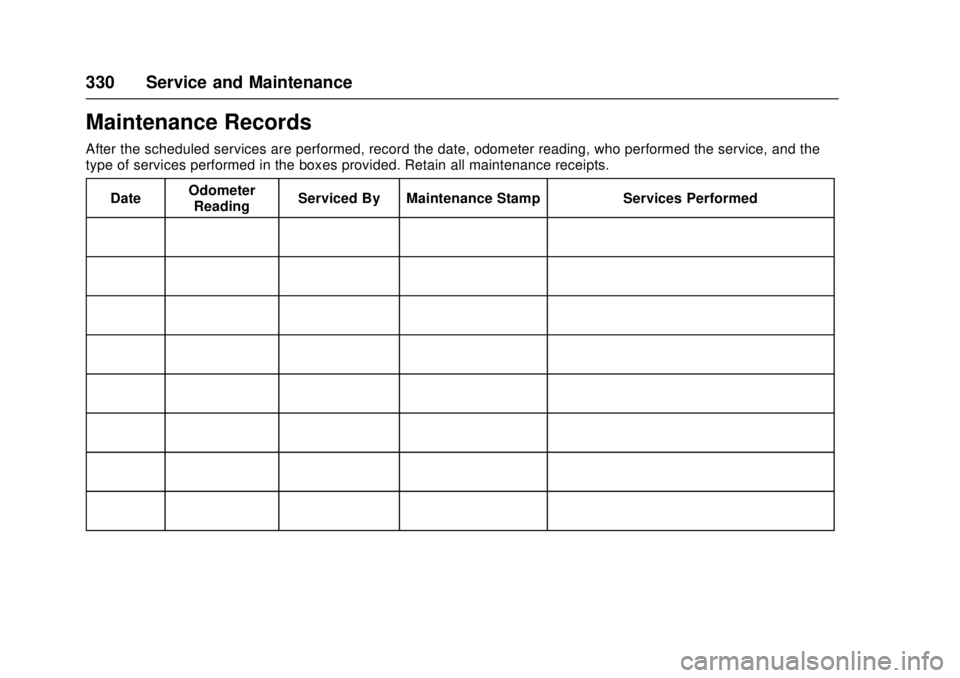

Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. Retain all maintenance receipts.Date Odometer
Reading Serviced By Maintenance Stamp Services Performed
Page 332 of 348
Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
Technical Data 331
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . . 331
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . . 331
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . . 332
Engine Drive Belt Routing . . . . 335
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the left side of the vehicle. It can be
seen through the windshield from
outside. The VIN also appears on
the Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN is
the engine code. This code
identifies the vehicle's engine,
specifications, and replacement
parts. See “Engine Specifications”
under Capacities and Specifications
0 332 for the vehicle's engine code.
Service Parts
Identification Label
This label, on the load floor under
the spare tire cover in the trunk, has
the following information:
.
Vehicle Identification
Number (VIN).
. Model designation.
. Paint information.
. Production options and special
equipment.
Do not remove this label from the
vehicle.
Page 333 of 348
Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
332 Technical Data
Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions. SeeRecommended Fluids and
Lubricants 0327 for more information.
Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the refrigerant label under thehood. See your dealer for more information.
Cooling System –Engine
2.0L L4 Engine 7.6 L 8.0 qt
2.5L L4 Engine 8.3 L 8.8 qt
3.6L V6 Engine 10.2 L 10.8 qt
Engine Oil with Filter
2.0L L4 Engine 4.7 L5.0 qt
2.5L L4 Engine 4.7 L5.0 qt
3.6L V6 Engine RWD (with oil cooler) 5.7 L6.0 qt
3.6L V6 Twin Turbo Engine 6.6 L7.0 qt
Fuel Tank 62.5 L16.5 gal
Wheel Nut Torque –ATS 140Y 100 lb ft
Page 334 of 348
Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
Technical Data 333
ApplicationCapacities
Metric English
Wheel Nut Torque –ATS-V (Blue Tint Nut) 150 Y110 lb ft
Wheel Nut Torque –ATS-V (Silver Tint Nut) 190 Y140 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.
Engine Specifications
Engine VIN Code Horsepower TorqueSpark Plug Gap
2.0L L4 Engine X203 kW@ 5600 rpm
(272 hp@ 5600 rpm) 400
Y@ 3800 rpm
(295 lb ft @
3800 rpm) 0.75–0.90 mm (0.030–
0.035 in)
2.5L L4 Engine A151 kW@ 6300 rpm
(202 hp@ 6300 rpm) 258
Y@ 4400 rpm
(190 lb ft @ 4400 rpm) 0.95–1.10 mm (0.037–
0.043 in)
3.6L V6 Engine 3239 kW@ 6800 rpm
(321 hp@ 6800 rpm) 372
Y@ 4800 rpm
(274 lb ft @ 4800 rpm) 0.80–0.90 mm (0.031–
0.035 in)
3.6L V6 Twin Turbo
Engine Y
339 kW@ 5750 rpm
(455 hp@ 5750 rpm) 603
Y@ 3500 rpm
(445 lb ft @ 3500 rpm) 0.75–0.90 mm (0.030–
0.035 in)
Page 335 of 348
Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
334 Technical Data
Vehicle Top Speed
Vehicle Top SpeedMetricEnglish
2.5L L4 Engine 240 km/h149 mph
3.6L V6 Engine 240 km/h149 mph
3.6L V6 Twin Turbo Engine 304 km/h189 mph
Page 336 of 348
Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
Technical Data 335
Engine Drive Belt Routing
2.0 and 2.5L L4 Engines
3.6L V6 Engine
3.6L V6 Twin Turbo Engine
Page 337 of 348
Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15

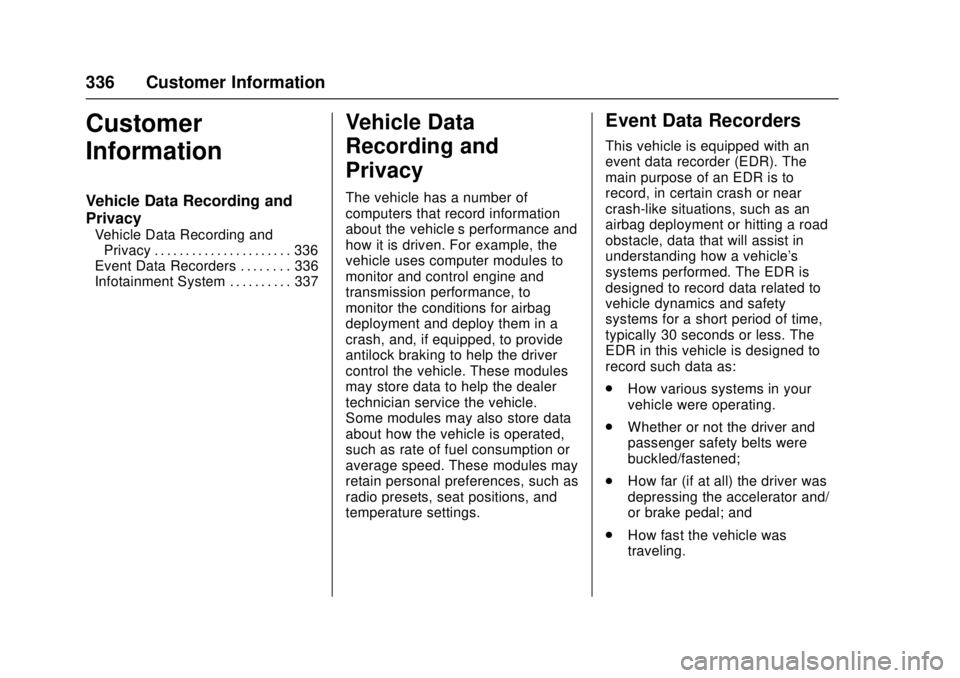

336 Customer Information
Customer
Information
Vehicle Data Recording and
Privacy
Vehicle Data Recording andPrivacy . . . . . . . . . . . . . . . . . . . . . . 336
Event Data Recorders . . . . . . . . 336
Infotainment System . . . . . . . . . . 337
Vehicle Data
Recording and
Privacy
The vehicle has a number of
computers that record information
about the vehicle’s performance and
how it is driven. For example, the
vehicle uses computer modules to
monitor and control engine and
transmission performance, to
monitor the conditions for airbag
deployment and deploy them in a
crash, and, if equipped, to provide
antilock braking to help the driver
control the vehicle. These modules
may store data to help the dealer
technician service the vehicle.
Some modules may also store data
about how the vehicle is operated,
such as rate of fuel consumption or
average speed. These modules may
retain personal preferences, such as
radio presets, seat positions, and
temperature settings.
Event Data Recorders
This vehicle is equipped with an
event data recorder (EDR). The
main purpose of an EDR is to
record, in certain crash or near
crash-like situations, such as an
airbag deployment or hitting a road
obstacle, data that will assist in
understanding how a vehicle's
systems performed. The EDR is
designed to record data related to
vehicle dynamics and safety
systems for a short period of time,
typically 30 seconds or less. The
EDR in this vehicle is designed to
record such data as:
. How various systems in your
vehicle were operating.
. Whether or not the driver and
passenger safety belts were
buckled/fastened;
. How far (if at all) the driver was
depressing the accelerator and/
or brake pedal; and
. How fast the vehicle was
traveling.
Page 338 of 348
Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
Customer Information 337
These data can help provide a
better understanding of the
circumstances in which crashes and
injuries occur.
Note
EDR data are recorded by your
vehicle only if a non-trivial crash
situation occurs. No data are
recorded by the EDR under normal
driving conditions and no personal
data (e.g., name, gender, age, and
crash location) are recorded.
However, other parties, such as law
enforcement, could combine the
EDR data with the type of
personally identifying data routinely
acquired during a crash
investigation.
To read data recorded by an EDR,
special equipment is required, and
access to the vehicle or the EDR is
needed. In addition to the vehicle
manufacturer, other parties, such as
law enforcement, that have the
special equipment, can read the
information if they have access to
the vehicle or the EDR.GM will not access these data or
share it with others except: with the
consent of the vehicle owner or,
if the vehicle is leased, with the
consent of the lessee; in response
to an official request of police or
similar government office; as part of
GM's defense of litigation; or, as
required by law. Data that GM
collects or receives may also be
used for GM research needs or may
be made available to others for
research purposes, where a need is
shown and the data is not tied to a
specific vehicle or vehicle owner.
Infotainment System
If the vehicle is equipped with a
navigation system as part of the
infotainment system, use of the
system may result in the storage of
destinations, addresses, telephone
numbers, and other trip information.
See the infotainment manual for
information on stored data and for
deletion instructions.
Page 339 of 348
Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
338 Index
IndexA
Accessories andModifications . . . . . . . . . . . . . . . . . . 245
Accessory Power . . . . . . . . . . . . . . . 195
Adaptive Cruise Control . . . . . . . . 214
Adaptive Forward Lighting (AFL) . . . . . . . . . . . . . . . . . 154
Adaptive Forward Lighting (AFL) Light . . . . . . . . . . . . . . . . . . . . 125
Add-On Electrical Equipment . . . 243
Adjustments
Lumbar, Front Seats . . . . . . . . . . . . 56
Thigh Support . . . . . . . . . . . . . . . . . . 56
Air Cleaner/Filter, Engine . . . . . . . 258
Air Filter, Passenger
Compartment . . . . . . . . . . . . . . . . . 174
Air Vents . . . . . . . . . . . . . . . . . . . . . . . 173
Airbag System Check . . . . . . . . . . . . . . . . . . . . . . . . . . 82
How Does an Airbag
Restrain? . . . . . . . . . . . . . . . . . . . . . 75
Passenger Sensing System . . . . 76
What Makes an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 75
What Will You See after an Airbag Inflates? . . . . . . . . . . . . . . . 75
When Should an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 73 Airbag System (cont'd)
Where Are the Airbags? . . . . . . . . 72
Airbags Adding Equipment to the
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . 81
Passenger Status Indicator . . . .117
Readiness Light . . . . . . . . . . . . . . .116
Servicing Airbag-Equipped Vehicles . . . . . . . . . . . . . . . . . . . . . . . 81
System Check . . . . . . . . . . . . . . . . . . 70
Alarm Vehicle Security . . . . . . . . . . . . . . . . 41
Alert Lane Change . . . . . . . . . . . . . . . . . 230
Side Blind Zone (SBZA) . . . . . . 230
All-Season Tires . . . . . . . . . . . . . . . . 284
Antilock Brake System (ABS) . . . 201 Warning Light . . . . . . . . . . . . . . . . . 121
Appearance Care Exterior . . . . . . . . . . . . . . . . . . . . . . . 313
Interior . . . . . . . . . . . . . . . . . . . . . . . . 317
Armrest Storage . . . . . . . . . . . . . . . . 101
Assistance Systems for Driving . . . . . . . . . . . . . . . . . . . . . . . . 226
Assistance Systems for Parking and Backing . . . . . . . . . . 222
Automatic Door Locks . . . . . . . . . . . . . . . . . . . . . 37
Page 340 of 348
Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
Index 339
Automatic (cont'd)Headlamp System . . . . . . . . . . . . 153
Transmission . . . . . . . . . . . . . . . . . 198
Transmission Fluid . . . . . . . . . . . 257
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . 200
Shift Lock Control FunctionCheck . . . . . . . . . . . . . . . . . . . . . . . 270
B
Battery . . . . . . . . . . . . . . . . . . . . . . . . . 268Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 157
Jump Starting . . . . . . . . . . . . . . . . . 307
Power Protection . . . . . . . . . . . . . 157
Voltage and Charging
Messages . . . . . . . . . . . . . . . . . . . 132
Blade Replacement, Wiper . . . . . 271
Brake System Warning Light . . . . . . . . 120
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 266 Antilock . . . . . . . . . . . . . . . . . . . . . . . 201
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 204
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 267
Parking . . . . . . . . . . . . . . . . . . 202, 203
System Messages . . . . . . . . . . . . 132
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 177
Break-In, New Vehicle . . . . . . . . . . 190
Bulb Replacement . . . . . . . . . . . . . . 274 Bulb Replacement (cont'd)
Back-up Lamps . . . . . . . . . . . . . . . 273
Halogen Bulbs . . . . . . . . . . . . . . . . 272
Headlamp Aiming . . . . . . . . . . . . . 272
Headlamps . . . . . . . . . . . . . . . . . . . 272
High Intensity Discharge
(HID) Lighting . . . . . . . . . . . . . . . 272
License Plate Lamps . . . . . . . . . 273
Buying New Tires . . . . . . . . . . . . . . . 294C
Capacities and
Specifications . . . . . . . . . . . . . . . . . 332
Carbon Fiber . . . . . . . . . . . . . . . . . . . 191
Carbon Monoxide
Engine Exhaust . . . . . . . . . . . . . . . 197
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Winter Driving . . . . . . . . . . . . . . . . 185
Cargo
Tie-Downs . . . . . . . . . . . . . . . . . . . . 102
Caution, Danger, and Warning . . . . 2
Chains, Tire . . . . . . . . . . . . . . . . . . . . 298
Charging Wireless . . . . . . . . . . . . . . . . . . . . . . 109
Charging System Light . . . . . . . . . 117
Check Malfunction IndicatorEngine Light . . . . . . . . . . . . . . . . .118 Child Restraints
Infants and Young Children . . . . . 84
Lower Anchors and Tethers
for Children . . . . . . . . . . . . . . . . . . . 89
Older Children . . . . . . . . . . . . . . . . . . 83
Securing . . . . . . . . . . . . . . . . . . . . 95, 96
Systems . . . . . . . . . . . . . . . . . . . . . . . . 86
Circuit Breakers . . . . . . . . . . . . . . . . 275
Cleaning Exterior Care . . . . . . . . . . . . . . . . . 313
Interior Care . . . . . . . . . . . . . . . . . . 317
Climate Control Systems Dual Automatic . . . . . . . . . . 164, 168
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Cluster, Instrument . . . . . . . . . . . . . 111
Compartments Storage . . . . . . . . . . . . . . . . . . . . . . . 100
Competitive Driving Mode . . . . . . 208
Compressor Kit, Tire Sealant . . . 300
Control Traction and Electronic
Stability . . . . . . . . . . . . . . . . . . . . . 205
Control of a Vehicle . . . . . . . . . . . . . 177
Convex Mirrors . . . . . . . . . . . . . . . . . . 43
Coolant Engine . . . . . . . . . . . . . . . . . . . . . . . . 261
Engine Temperature Gauge . . .115
