lights CADILLAC CT4 2023 Owner's Manual

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/10/22
350 Driving and Operating
LCA Detection Zones
1. SBZA Detection Zone
2. LCA Detection Zone
The LCA sensor covers a zone
of approximately one lane over
from both sides of the vehicle,
or 3.5 m (11 ft). The height of
the zone is approximately
between 0.5 m (1.5 ft) and 2 m
(6 ft) off the ground. The Side
Blind Zone Alert (SBZA)
warning area starts at
approximately the middle of
the vehicle and goes back 5 m
(16 ft). Drivers are also warned
of vehicles rapidly
approaching from up to 70 m
(230 ft) behind the vehicle.
How the System Works
The LCA symbol lights up in
the outside mirrors when the
system detects a moving
vehicle in the next lane over
that is in the side blind zone or
rapidly approaching that zone
from behind. A lit LCA symbol
indicates it may be unsafe to
change lanes. Before making a
lane change, check the LCA
display, check mirrors, glance
over your shoulder, and use
the turn signals.
Left Outside
Mirror DisplayRight Outside
Mirror Display
When the vehicle is started,
both outside mirror LCA
displays will briefly come on to
indicate the system is
operating. When the vehicle is
in a forward gear, the left or
right outside mirror display will light up if a moving vehicle is
detected in the next lane over
in that blind zone or rapidly
approaching that zone. If the
turn signal is activated in the
same direction as a detected
vehicle, this display will flash
as an extra warning not to
change lanes.
LCA can be disabled. When
you disable LCA, Side Blind
Zone Alert is also disabled. To
view available settings from
the infotainment screen, touch
Settings > Vehicle > Collision/
Detection Systems. If LCA is
disabled by the driver, the LCA
mirror displays will not light up.
When the System Does
Not Seem to Work
Properly
The LCA system requires
some driving for the system to
calibrate to maximum
performance. This calibration
may occur more quickly if the
vehicle is driving on a straight

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Vehicle Care 449
4. Turn the ignition off. Turnoff all lights and
accessories in both
vehicles, except the hazard
warning flashers if needed.
{Warning
An electric fan can start up
even when the engine is not
running and can injure you.
Keep hands, clothing, and
tools away from any
underhood electric fan.
{Warning
Using a match near a
battery can cause battery
gas to explode. People have
been hurt doing this, and
some have been blinded.
Use a flashlight if you need
more light.
Battery fluid contains acid
that can burn you. Do not
get it on you. If you
accidentally get it in your
(Continued)
Warning (Continued)
eyes or on your skin, flush
the place with water and get
medical help immediately.
{Warning
Fans or other moving engine
parts can injure you badly.
Keep your hands away from
moving parts once the
engine is running.
5. Connect one end of the red positive (+) cable to the
remote positive (+)
terminal on the discharged
battery.
6. Connect the other end of the red positive (+) cable to
the positive (+) terminal of
the good battery.
7. Connect one end of the black negative (–) cable to
the negative (–) terminal of
the good battery. Do not let the other end
touch anything until the
next step. The other end of
the negative (–) cable does
not go to the dead battery.
It goes to a heavy,
unpainted metal
engine part.
8. Connect the other end of the black negative (–) cable
to the negative (–)
grounding point for the
discharged battery.
9. Start the engine in the vehicle with the good
battery and run the engine
at idle speed for at least
four minutes.
10. Try to start the vehicle that had the dead battery.
If it will not start after a
few tries, it probably needs
service.
Jumper Cable Removal
Reverse the sequence exactly
when removing the jumper
cables.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Service and Maintenance 473
Exterior Lights
.Visual inspection
Windshield and Wipers
.Visual inspection
Battery
.Battery visual inspection
.Battery test results
.Battery cables and
connections
Systems, Fluids, and
Visible Leak Inspection
.Engine oil
.Transmission
.Drive axle
.Transfer case
.Engine cooling system
.Power steering, if equipped
.Fuel system
.Windshield washer fluid
Tire Inspection
.Tire pressure, tread depth,
and wear
.Rotation, if applicable
.Alignment check, optional
.Reset tire pressure monitor
.Check tire sealant expiration
date, if equipped
.Check spare tire, if equipped
Brakes
.Check brake system
Visible and Functional
Inspections
.Seat belt components
.Exhaust system
.Accelerator pedal
.Passenger compartment air
filter, if equipped
.Engine air filter
.Hoses
.Belts
.Shocks and struts
.Steering components
.Axle boots or driveshaft and
u-joints
.Compartment lift struts,
if equipped
.Floor mats secured, no
interference with pedals
.Horn
.Ignition lock, if equipped
.Starter switch
.Evaporative control system
Lubricate
.Chassis components
Special Application
Services
.Severe Commercial Use
Vehicles Only: Lubricate
chassis components every
oil change.
.Have underbody flushing
service performed. See
"Underbody Maintenance" in
Exterior Care 0455.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/10/22

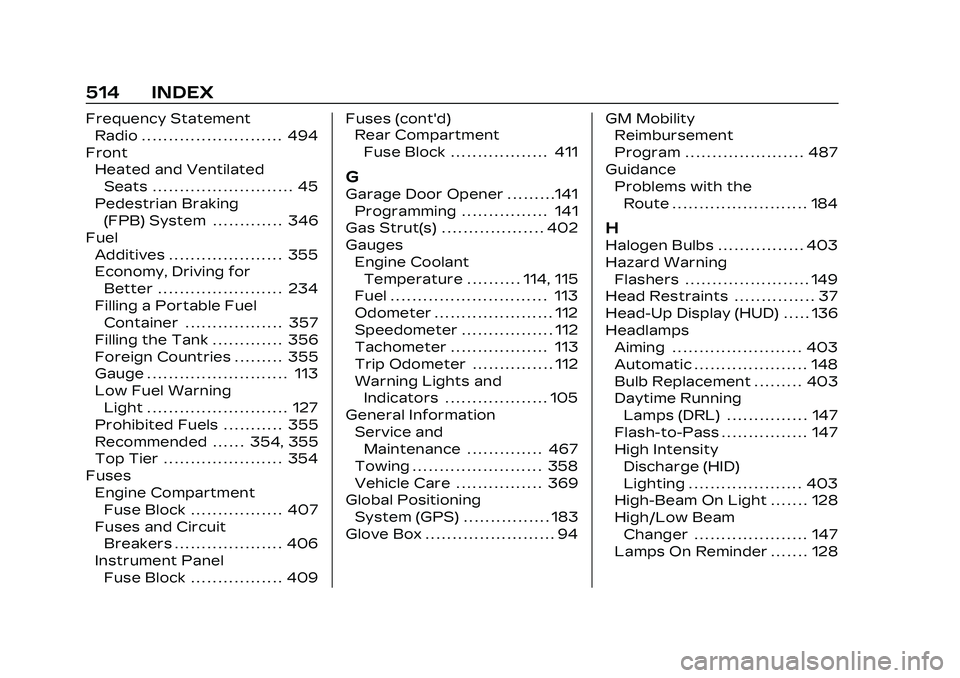

514 INDEX
Frequency StatementRadio . . . . . . . . . . . . . . . . . . . . . . . . . . 494
Front Heated and VentilatedSeats . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Pedestrian Braking (FPB) System . . . . . . . . . . . . . 346
Fuel Additives . . . . . . . . . . . . . . . . . . . . . 355
Economy, Driving forBetter . . . . . . . . . . . . . . . . . . . . . . . 234
Filling a Portable Fuel Container . . . . . . . . . . . . . . . . . . 357
Filling the Tank . . . . . . . . . . . . . 356
Foreign Countries . . . . . . . . . 355
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Low Fuel Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Prohibited Fuels . . . . . . . . . . . 355
Recommended . . . . . . 354, 355
Top Tier . . . . . . . . . . . . . . . . . . . . . . 354
Fuses Engine CompartmentFuse Block . . . . . . . . . . . . . . . . . 407
Fuses and Circuit
Breakers . . . . . . . . . . . . . . . . . . . . 406
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . 409 Fuses (cont'd)
Rear Compartment
Fuse Block . . . . . . . . . . . . . . . . . . 411
G
Garage Door Opener . . . . . . . . .141Programming . . . . . . . . . . . . . . . . 141
Gas Strut(s) . . . . . . . . . . . . . . . . . . . 402
Gauges
Engine CoolantTemperature . . . . . . . . . . 114, 115
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Odometer . . . . . . . . . . . . . . . . . . . . . . 112
Speedometer . . . . . . . . . . . . . . . . . 112
Tachometer . . . . . . . . . . . . . . . . . . 113
Trip Odometer . . . . . . . . . . . . . . . 112
Warning Lights and
Indicators . . . . . . . . . . . . . . . . . . . 105
General Information Service andMaintenance . . . . . . . . . . . . . . 467
Towing . . . . . . . . . . . . . . . . . . . . . . . . 358
Vehicle Care . . . . . . . . . . . . . . . . 369
Global Positioning System (GPS) . . . . . . . . . . . . . . . . 183
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . 94 GM Mobility
Reimbursement
Program . . . . . . . . . . . . . . . . . . . . . . 487
Guidance Problems with theRoute . . . . . . . . . . . . . . . . . . . . . . . . . 184
H
Halogen Bulbs . . . . . . . . . . . . . . . . 403
Hazard WarningFlashers . . . . . . . . . . . . . . . . . . . . . . . 149
Head Restraints . . . . . . . . . . . . . . . 37
Head-Up Display (HUD) . . . . . 136
Headlamps
Aiming . . . . . . . . . . . . . . . . . . . . . . . . 403
Automatic . . . . . . . . . . . . . . . . . . . . . 148
Bulb Replacement . . . . . . . . . 403
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . 147
Flash-to-Pass . . . . . . . . . . . . . . . . 147
High Intensity Discharge (HID)
Lighting . . . . . . . . . . . . . . . . . . . . . 403
High-Beam On Light . . . . . . . 128
High/Low Beam Changer . . . . . . . . . . . . . . . . . . . . . 147
Lamps On Reminder . . . . . . . 128

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/10/22
INDEX 515
HeatedMirrors . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Steering Wheel . . . . . . . . . . . . . . 98
Ventilated Front Seats . . . . 45
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . 266
Heating . . . . . . . . . . . . . . . . . . . . . . . . . 225
High-Beam On Light . . . . . . . . . 128
High-Speed Operation . . . . . 423
Hill and Mountain Roads . . . . . . . . . . . . . . . . . . . . . . . . . 252
Hill Start Assist (HSA) . . . . . . 289
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 371
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
How to Wear Seat Belts Properly . . . . . . . . . . . . . . . . . . . . . . . . . 51
HVAC . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Hydraulic Clutch . . . . . . . . . . . . . 383
I
If the System Needs Service . . . . . . . . . . . . . . . . . . . . . . . . . 184
Ignition Positions . . . . . . . . . . . . . 261
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 27
Indicator Pedestrian Ahead . . . . . . . . . . 123
Vehicle Ahead . . . . . . . . . . . . . . . 123 Indicators
Warning Lights and
Gauges . . . . . . . . . . . . . . . . . . . . . . . 105
Infants and Young Children, Restraints . . . . . . . . . 74
Information Publication Ordering . . . . . 494
Infotainment Using the System . . . . . . . . . . 158
Infotainment System . . . . . . . 498
Inspection Multi-Point Vehicle . . . . . . . . . 472
Instrument Cluster . . . . 106, 108
Instrument Panel Overview . . . . . . . . . . . . . . . . . . . . . . . . . 5
Interior Rearview Mirrors . . . . 31
Introduction . . . . . . . . . . . . . . . . . 2, 155
J
Jump Starting - North
America . . . . . . . . . . . . . . . . . . . . . 447
K
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Remote Operation . . . . . . . . . . . . 9
L
Labeling, Tire Sidewall . . . . . . 417
LampsCornering . . . . . . . . . . . . . . . . . . . . . 149
Courtesy . . . . . . . . . . . . . . . . . . . . . . 150
Daytime Running (DRL) . . . 147
Dome . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Exterior Controls . . . . . . . . . . . 145
Exterior Lamps OffReminder . . . . . . . . . . . . . . . . . . . . 147
Exterior Lighting Battery Saver . . . . . . . . . . . . . . 153
Flash-to-Pass . . . . . . . . . . . . . . . . 147
Front Turn Signal . . . . . . . . . . 404
High/Low Beam Changer . . . . . . . . . . . . . . . . . . . . . 147
Malfunction Indicator (Check Engine) . . . . . . . . . . . . . 118
On Reminder . . . . . . . . . . . . . . . . . 128
Reading . . . . . . . . . . . . . . . . . . . . . . . 150
Lane Change Alert (LCA) . . . . . . . 349
Keep Assist (LKA) . . . . . . . . . . 351
Keep Assist Light . . . . . . . . . . 122
Lap-Shoulder Belt . . . . . . . . . . . . . 54
LATCH System Replacing Parts after aCrash . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/10/22
516 INDEX
LATCH, Lower Anchorsand Tethers for
Children . . . . . . . . . . . . . . . . . . . . . . . . . 80
LED Lighting . . . . . . . . . . . . . . . . . . 403
Lighting Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Illumination Control . . . . . . . . 150
LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . 403
Lights Airbag Readiness . . . . . . . . . . . 116
Antilock Brake System
(ABS) Warning . . . . . . . . . . . . . . 121
Automatic Emergency Braking (AEB)
Disabled . . . . . . . . . . . . . . . . . . . . . 123
Automatic Vehicle Hold . . . . . . . . . . . . . . . . 122
Brake System Warning . . . . . . . . . . . . . . . . . . . . . 120
Charging System . . . . . . . . . . . . 117
Check Engine
(Malfunction
Indicator) . . . . . . . . . . . . . . . . . . . . 118
Cruise Control Light . . . . . . . 128
Door Ajar . . . . . . . . . . . . . . . . . . . . . . 129
Driver Mode Control . . . . . . . 125
Electric Parking Brake . . . . . 121 Lights (cont'd)
Engine Coolant
Temperature
Warning . . . . . . . . . . . . . . . . . . . . . 124
Engine Oil Pressure . . . . . . . . 127
Gauges and Indicators . . . . 105
High-Beam On . . . . . . . . . . . . . . . 128
Lane Keep Assist . . . . . . . . . . . 122
Low Fuel Warning . . . . . . . . . . 127
Performance Shifting . . . . . 122
Seat Belt Reminders . . . . . . 115
Security . . . . . . . . . . . . . . . . . . . . . . . 128
Service Electric Parking Brake . . . . . . . . . . . . . . . 121
StabiliTrak OFF . . . . . . . . . . . . . 124
Tire Pressure . . . . . . . . . . . . . . . . 126
Traction Control System
(TCS)/StabiliTrak . . . . . . . . . . 124
Traction Off . . . . . . . . . . . . . . . . . . 123
Limited-Slip Differential . . . . 301
Locks
Automatic Door . . . . . . . . . . . . . . . 21
Delayed Locking . . . . . . . . . . . . . 20
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Lockout Protection . . . . . . . . . . 21
Power Door . . . . . . . . . . . . . . . . . . . 20
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Loss of Control . . . . . . . . . . . . . . .237
Low Fuel Warning Light . . . . 127
Low-Profile Tires . . . . . . . . . . . . . 416
Lower Anchors and
Tethers for Children
(LATCH System) . . . . . . . . . . . . . 80
Lumbar Adjustment . . . . . . . . . . 40
Front Seats . . . . . . . . . . . . . . . . . . . 40
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . . 477
Maintenance Schedule . . . . 469 Recommended Fluidsand Lubricants . . . . . . . . . . . 474
Malfunction Indicator Lamp . . . . . . . . . . . . . . .118
Manual Mode . . . . . . . . . . . . . . . . . . . . 280, 281
Transmission . . . . . . . . . . . . . . . 283
Transmission Fluid . . . . . . . . 382
Map Data Updates . . . . . . . . . . . 184
Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Massage Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Matching
Active Rev . . . . . . . . . . . . . . . . . . . 285

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/10/22
522 INDEX
V
VehicleAhead Indicator . . . . . . . . . . . . . 123
Alarm System . . . . . . . . . . . . . . . . . 24
Automatic Hold . . . . . . . . . . . . 289
Automatic Hold Light . . . . . 122
Canadian Owners . . . . . . . . . . . . . 2
Control . . . . . . . . . . . . . . . . . . . . . . . 235
Data Recording andPrivacy . . . . . . . . . . . . . . . . . . . . . . 496
Identification Number (VIN) . . . . . . . . . . . . . . 478
Load Limits . . . . . . . . . . . . . . . . . . 255
Messages . . . . . . . . . . . . . . . . . . . . . 140
Positioning . . . . . . . . . . . . . . . . . . . 183
Remote Start . . . . . . . . . . . . . . . . . . 16
Security . . . . . . . . . . . . . . . . . . . . . . . . 24
Speed Messages . . . . . . . . . . . 141
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Vehicle Care Storing the TireSealant and
Compressor Kit . . . . . . . . . . . 446
Tire Pressure . . . . . . . . . . . . . . . 422
Ventilation, Air . . . . . . . . . . . . . . . . 230
Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Voice Recognition . . . . . . . . . . . . 185
W
Warning Brake System Light . . . . . . . . 120
Caution and Danger . . . . . . . . . . 3
Hazard Flashers . . . . . . . . . . . . 149
Lights, Gauges, andIndicators . . . . . . . . . . . . . . . . . . . 105
Washer Fluid . . . . . . . . . . . . . . . . . . 393
Wheels Alignment and Tire
Balance . . . . . . . . . . . . . . . . . . . . . 435
Different Size . . . . . . . . . . . . . . . 433
Replacement . . . . . . . . . . . . . . . . 436
When It Is Time for New
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . 431
Where to Put the Restraint . . . . . . . . . . . . . . . . . . . . . . . 79
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Windshield Replacement . . . . . . . . . . . . . . . . . 401
Wiper/Washer . . . . . . . . . . . . . . . . 99
Winter Driving . . . . . . . . . . . . . . . . . . . . . . . . 253
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . 414
Wiper Blade Replacement . . . . . . . . 401
Wireless Charging . . . . . . . . . . . 102
