CADILLAC CT4 2023 Owners Manual

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/10/22
350 Driving and Operating
LCA Detection Zones
1. SBZA Detection Zone
2. LCA Detection Zone
The LCA sensor covers a zone
of approximately one lane over
from both sides of the vehicle,
or 3.5 m (11 ft). The height of
the zone is approximately
between 0.5 m (1.5 ft) and 2 m
(6 ft) off the ground. The Side
Blind Zone Alert (SBZA)
warning area starts at
approximately the middle of
the vehicle and goes back 5 m
(16 ft). Drivers are also warned
of vehicles rapidly
approaching from up to 70 m
(230 ft) behind the vehicle.
How the System Works
The LCA symbol lights up in
the outside mirrors when the
system detects a moving
vehicle in the next lane over
that is in the side blind zone or
rapidly approaching that zone
from behind. A lit LCA symbol
indicates it may be unsafe to
change lanes. Before making a
lane change, check the LCA
display, check mirrors, glance
over your shoulder, and use
the turn signals.
Left Outside
Mirror DisplayRight Outside
Mirror Display
When the vehicle is started,
both outside mirror LCA
displays will briefly come on to
indicate the system is
operating. When the vehicle is
in a forward gear, the left or
right outside mirror display will light up if a moving vehicle is
detected in the next lane over
in that blind zone or rapidly
approaching that zone. If the
turn signal is activated in the
same direction as a detected
vehicle, this display will flash
as an extra warning not to
change lanes.
LCA can be disabled. When
you disable LCA, Side Blind
Zone Alert is also disabled. To
view available settings from
the infotainment screen, touch
Settings > Vehicle > Collision/
Detection Systems. If LCA is
disabled by the driver, the LCA
mirror displays will not light up.
When the System Does
Not Seem to Work
Properly
The LCA system requires
some driving for the system to
calibrate to maximum
performance. This calibration
may occur more quickly if the
vehicle is driving on a straight

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/10/22
Driving and Operating 351
highway road with traffic and
roadside objects (e.g.,
guardrails, barriers).
LCA displays may not come on
when passing a vehicle quickly,
for a stopped vehicle, or when
towing a trailer. The LCA
detection zones that extend
back from the side of the
vehicle do not move further
back when a trailer is towed.
Use caution while changing
lanes when towing a trailer.
LCA may alert to objects
attached to the vehicle, such
as a trailer, bicycle, or object
extending out to either side of
the vehicle. Attached objects
may also interfere with the
detection of vehicles. This is
normal system operation; the
vehicle does not need service.
LCA may not always alert the
driver to vehicles in the next
lane over, especially in wet
conditions or when driving on
sharp curves. The system
does not need to be serviced.
The system may light up dueto guardrails, signs, trees,
shrubs, and other non-moving
objects. This is normal system
operation; the vehicle does not
need service.
LCA may not operate when
the LCA sensors in the left or
right corners of the rear
bumper are covered with mud,
dirt, snow, ice, or slush, or in
heavy rainstorms. For cleaning
instructions, see "Washing the
Vehicle" under Exterior Care
0
455. If the DIC still displays
the system unavailable
message after cleaning both
sides of the vehicle toward the
rear corners of the vehicle,
see your dealer.
If the LCA displays do not light
up when moving vehicles are
in the side blind zone or are
rapidly approaching this zone
and the system is clean, the
system may need service.
Take the vehicle to your
dealer.Lane Keep
Assist (LKA)
If equipped, LKA may help
avoid crashes due to
unintentional lane departures.
This system uses a camera to
detect lane markings. LKA may
be ready to assist at speeds
between 60 km/h (37 mph) and
180 km/h (112 mph). On some
vehicles, the system will
instead operate above
50 km/h (31 mph). LKA may
assist by gently turning the
steering wheel if the vehicle
approaches a detected lane
marking. It may also provide a
Lane Departure Warning
(LDW) alert if the vehicle
unintentionally crosses a
detected lane marking. This
system is not intended to keep
the vehicle centered in the
lane. LKA will not assist or
alert if the turn signal is active
in the direction of lane
departure, or if it detects that
you are accelerating, braking,
or actively steering. LKA can

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/10/22
352 Driving and Operating
be overridden by turning the
steering wheel. If the system
detects you are steering
intentionally across a lane
marker, the LDW will not be
given. Do not expect the LDW
to occur when you are
intentionally crossing a lane
marker.
{Warning
The LKA system does not
continuously steer the
vehicle. It may not keep the
vehicle in the lane or give a
Lane Departure Warning
(LDW) alert, even if a lane
marking is detected.
The LKA and LDW systems
may not:
.Provide an alert or enough
steering assist to avoid a
lane departure or crash.
.Detect lane markings
under poor weather or
visibility conditions. This
can occur if the windshield(Continued)
Warning (Continued)
or headlamps are blocked
by dirt, snow, or ice; if they
are not in proper
condition; or if the sun
shines directly into the
camera.
.Detect road edges.
.Detect lanes on winding or
hilly roads.
If LKA only detects lane
markings on one side of the
road, it will only assist or
provide an LDW alert when
approaching the lane on the
side where it has detected a
lane marking. Even with LKA
and LDW, you must steer
the vehicle. Always keep
your attention on the road
and maintain proper vehicle
position within the lane,
or vehicle damage, injury,
or death could occur. Always
keep the windshield,
headlamps, and camera (Continued)
Warning (Continued)
sensors clean and in good
repair. Do not use LKA in
bad weather conditions or
on roads with unclear lane
markings, such as
construction zones.
{Warning
Using LKA on slippery roads
could cause loss of control
of the vehicle and a crash.
Turn the system off.
{Warning
LKA will not alert the driver
if a towed trailer crosses
into an adjacent lane of
travel. Serious injury or
property damage may occur
if the trailer moves into
another lane. Always
monitor the trailer position(Continued)

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/10/22
Driving and Operating 353
Warning (Continued)
while towing to make sure it
is within the same lane as
the tow vehicle.
How the System Works
LKA uses a camera sensor
installed on the windshield
ahead of the rearview mirror
to detect lane markings. It may
provide brief steering assist if
it detects an unintended lane
departure. It may further
provide an audible alert or the
driver seat may pulse
indicating that a lane marking
has been crossed. The system
does not provide a Lane
Departure Warning (LDW)
when intentionally steering
across a lane marker.
To turn LKA on and off, press
Aon the center stack.
If equipped, the indicator light
on the button comes on when
LKA is on and turns off when
LKA is disabled. In some vehicles, a long press of over
three seconds is required to
turn LKA off.
When on,
Ais white,
if equipped, indicating that the
system is not ready to assist.
Ais green if LKA is ready to
assist. LKA may assist by
gently turning the steering
wheel if the vehicle
approaches a detected lane
marking.
Ais amber when
assisting. It may also provide a
Lane Departure Warning
(LDW) alert by flashing
A
amber if the vehicle crosses a
detected lane marking.
Additionally, there may be
three beeps, or the driver seat
may pulse three times, on the
right or left, depending on the
lane departure direction.
Take Steering
The LKA system does not
continuously steer the vehicle.
If LKA does not detect active
driver steering, an alert and
chime may be provided. Steer the vehicle to dismiss. LKA
may become temporarily
unavailable after repeated
take steering alerts.
When the System Does
Not Seem to Work
Properly
The system performance may
be affected by:
.Close vehicles ahead.
.Sudden lighting changes,
such as when driving
through tunnels.
.Banked roads.
.Roads with poor lane
markings, such as two-lane
roads.
If the LKA system is not
functioning properly when lane
markings are clearly visible,
cleaning the windshield
may help.
A camera blocked message
may display if the camera is
blocked. Some driver
assistance systems may have
reduced performance or not

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/10/22
354 Driving and Operating
work at all. An LKA or LDW
unavailable message may
display if the systems are
temporarily unavailable. This
message could be due to a
blocked camera. The LKA
system does not need service.
Clean the outside of the
windshield behind the
rearview mirror.
LKA assistance and/or LDW
alerts may occur due to tar
marks, shadows, cracks in the
road, temporary or
construction lane markings,
or other road imperfections.
This is normal system
operation; the vehicle does not
need service. Turn LKA off if
these conditions continue.Fuel
Top Tier Fuel
GM recommends the use of
TOP TIER Detergent Gasoline
to keep the engine clean,
reduce engine deposits, and
maintain optimal vehicle
performance. Look for the
TOP TIER Logo or see
www.toptiergas.com for a list
of TOP TIER Detergent
Gasoline marketers and
applicable countries.
Recommended Fuel
(LSY 2.0L L4 Turbo
Engine)
Premium unleaded gasoline
meeting ASTM specification
D4814 with a posted octane
rating (R+M)/2 of 91 or greater
is recommended. If unavailable,
unleaded gasoline with a
posted octane rating of
87 may be used, but will result
in reduced performance and
driveability. If heavy knocking
is heard when using gasoline
rated at 91 or greater, the
engine needs service.
Do not use any fuel labeled
E85 or FlexFuel. Do not use
gasoline with ethanol levels
greater than 15% by volume.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/10/22
Driving and Operating 355
Recommended Fuel
(L3B 2.7L L4 Turbo
and LF4 3.6L V6 Twin
Turbo Engines)
Premium unleaded gasoline
meeting ASTM specification
D4814 with a posted octane
rating (R+M)/2 of 91 or greater
is required. The use of the
correct fuel is an important
part of the proper
maintenance of the vehicle
and a condition of the vehicle
warranty. If heavy knocking is
heard when using gasoline
rated at 91 or greater, the
engine needs service.
Do not use any fuel labeled
E85 or FlexFuel. Do not use
gasoline with ethanol levels
greater than 15% by volume.
Prohibited Fuels
Caution
Do not use fuels with any of
the following conditions;
doing so may damage the
vehicle and void its
warranty:
.For vehicles that are not
FlexFuel, fuel labeled
greater than 15% ethanol
by volume, such as
mid-level ethanol blends
(16–50% ethanol), E85,
or FlexFuel.
.Fuel with any amount of
methanol, methylal,
ferrocene, and aniline.
These fuels can corrode
metal fuel system parts or
damage plastic and rubber
parts.
.Fuel containing metals
such as
methylcyclopentadienyl
manganese tricarbonyl(Continued)
Caution (Continued)
(MMT), which can damage
the emissions control
system and spark plugs.
.Fuel with a posted octane
rating of less than the
recommended fuel. Using
this fuel will lower fuel
economy and
performance, and may
decrease the life of the
emissions catalyst.
Fuels in Foreign
Countries
The U.S., Canada, and Mexico
post fuel octane ratings in
anti-knock index (AKI). For fuel
not to use in a foreign country,
see Prohibited Fuels 0355.
Fuel Additives
TOP TIER Detergent Gasoline
is highly recommended for use
with your vehicle. If your
country does not have TOP
TIER Detergent Gasoline, add
ACDelco Fuel System

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/10/22

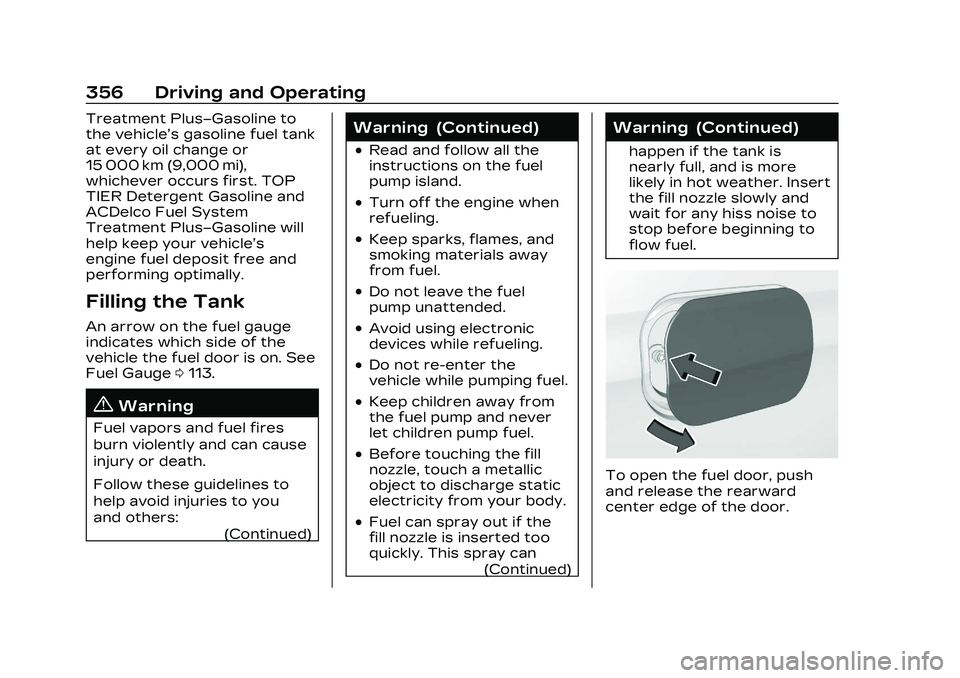

356 Driving and Operating
Treatment Plus−Gasoline to
the vehicle’s gasoline fuel tank
at every oil change or
15 000 km (9,000 mi),
whichever occurs first. TOP
TIER Detergent Gasoline and
ACDelco Fuel System
Treatment Plus−Gasoline will
help keep your vehicle’s
engine fuel deposit free and
performing optimally.
Filling the Tank
An arrow on the fuel gauge
indicates which side of the
vehicle the fuel door is on. See
Fuel Gauge0113.
{Warning
Fuel vapors and fuel fires
burn violently and can cause
injury or death.
Follow these guidelines to
help avoid injuries to you
and others:
(Continued)
Warning (Continued)
.Read and follow all the
instructions on the fuel
pump island.
.Turn off the engine when
refueling.
.Keep sparks, flames, and
smoking materials away
from fuel.
.Do not leave the fuel
pump unattended.
.Avoid using electronic
devices while refueling.
.Do not re-enter the
vehicle while pumping fuel.
.Keep children away from
the fuel pump and never
let children pump fuel.
.Before touching the fill
nozzle, touch a metallic
object to discharge static
electricity from your body.
.Fuel can spray out if the
fill nozzle is inserted too
quickly. This spray can(Continued)
Warning (Continued)
happen if the tank is
nearly full, and is more
likely in hot weather. Insert
the fill nozzle slowly and
wait for any hiss noise to
stop before beginning to
flow fuel.
To open the fuel door, push
and release the rearward
center edge of the door.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/10/22
Driving and Operating 357
The capless refueling system
does not have a fuel cap. Fully
insert and latch the fill nozzle,
begin fueling.
{Warning
Overfilling the fuel tank by
more than three clicks of a
standard fill nozzle may
cause:
.Vehicle performance
issues, including engine
stalling and damage to the
fuel system.
.Fuel spills.
.Under certain conditions,
fuel fires.
Be careful not to spill fuel.
Wait five seconds after you
have finished pumping before
removing the fill nozzle. Clean
fuel from painted surfaces as
soon as possible. See Exterior
Care 0455. Push the fuel door
closed until it latches.
{Warning
If a fire starts while you are
refueling, do not remove the
fill nozzle. Shut off the flow
of fuel by shutting off the
pump or by notifying the
station attendant. Leave the
area immediately.
Filling the Tank with a
Portable Fuel Container
If the vehicle runs out of fuel
and must be filled from a
portable fuel container:
1. Locate the capless funnel adapter.
2. Insert and latch the funnel into the capless fuel
system.
{Warning
Attempting to refuel from a
portable fuel container
without using the funnel
adapter may cause fuel
spillage and damage the
capless fuel system. This
could cause a fire. You or
others could be badly
burned and the vehicle could
be damaged.
3. Remove and clean the funnel adapter and return
it to the storage location.
Filling a Portable Fuel
Container
{Warning
Never fill a portable fuel
container while it is in the
vehicle. Static electricity
discharge from the
container can ignite the fuel
vapor. You or others could
(Continued)

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/10/22
358 Driving and Operating
Warning (Continued)
be badly burned and the
vehicle could be damaged.
To help avoid injury to you
and others:
.Dispense fuel only into
approved containers.
.Do not fill a container
while it is inside a vehicle,
in a vehicle's trunk, in a
pickup bed, or on any
surface other than the
ground.
.Bring the fill nozzle in
contact with the inside of
the fill opening before
operating the nozzle.
Maintain contact until
filling is complete.
.Keep sparks, flames, and
smoking materials away
from fuel.
.Avoid using electronic
devices while
pumping fuel.
Trailer Towing
General Towing
Information
Only use towing equipment
that has been designed for the
vehicle. Contact your dealer or
trailering dealer for assistance
with preparing the vehicle to
tow a trailer. Read the entire
section before towing a trailer.
To tow a disabled vehicle, see
Transporting a Disabled
Vehicle (Electronic Shifter)
0450 or
Transporting a Disabled
Vehicle (Mechanical Shifter)
0 452. To tow the vehicle
behind another vehicle such as
a motor home, see
Recreational Vehicle Towing
0 454.
When towing with the 2.0L L4
engine, only use unleaded
gasoline with an octane rating
of 89 or higher. Using gasoline
with a lower octane rating while towing may damage the
engine and may not be
covered by the vehicle
warranty. See Recommended
Fuel (LSY 2.0L L4 Turbo
Engine)
0354 or
Recommended Fuel (L3B 2.7L
L4 Turbo and LF4 3.6L V6
Twin Turbo Engines) 0355.
Driving
Characteristics and
Towing Tips
{Warning
You can lose control when
towing a trailer if the correct
equipment is not used or the
vehicle is not driven
properly. For example, if the
trailer is too heavy or the
trailer brakes are
inadequate for the load, the
vehicle may not stop as
expected. You and others
could be seriously injured.
The vehicle may also be
(Continued)

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/10/22
Driving and Operating 359
Warning (Continued)
damaged, and the repairs
would not be covered by the
vehicle warranty. Pull a
trailer only if all the steps in
this section have been
followed. Ask your dealer for
advice and information
about towing a trailer with
the vehicle.
Driving with a Trailer
Trailering is different than just
driving the vehicle by itself.
Trailering means changes in
handling, acceleration, braking,
durability, and fuel economy.
Successful, safe trailering
takes correct equipment, and
it has to be used properly.
The following information has
many time-tested, important
trailering tips and safety rules.
Many of these are important
for your safety and that of
your passengers. Read this
section carefully before pulling
a trailer.When towing a trailer:
.Become familiar with, and
follow all state and local laws
that apply to trailer towing.
These requirements vary
from state to state.
.State laws may require the
use of extended side view
mirrors. If your visibility is
limited or restricted while
towing, install extended side
view mirrors on your vehicle,
even if not required.
.Do not tow a trailer during
the first 800 km (500 mi) of
vehicle use to prevent
damage to the engine, axle,
or other parts.
.Perform the first oil change
before heavy towing.
.Do not drive over 800 km/h
(50 mph) and do not make
starts at full throttle during
the first 800 km (500 mi) of
trailer towing.
.Tow in D (Drive). If the
transmission downshifts too
often, a lower gear may be
selected using Manual Mode.
See Manual Mode
(Electronic Shifter)
0281 or
Manual Mode (Mechanical
Shifter) 0280.
If equipped, the following
driver assistance features
should be turned off when
towing a trailer:
.Adaptive Cruise
Control (ACC)
.Super Cruise Control
.Park Assist
.Automatic Parking
Assist (APA)
.Reverse Automatic
Braking (RAB)
