CADILLAC CT4 2023 Owners Manual

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
370 Vehicle Care
California Perchlorate
Materials
Requirements
Certain types of automotive
applications, such as airbag
initiators, seat belt
pretensioners, and lithium
batteries contained in
electronic keys, may contain
perchlorate materials.
Perchlorate Material–special
handling may apply. See
www.dtsc.ca.gov/
hazardouswaste/perchlorate.
Accessories and
Modifications
Adding non-dealer accessories
or making modifications to the
vehicle can affect vehicle
performance and safety,
including such things as
airbags, braking, stability, ride
and handling, emissions
systems, aerodynamics,
durability, Driver Assistance
Systems, and electronic
systems like antilock brakes, traction control, and stability
control. These accessories or
modifications could even
cause malfunction or damage
not covered by the vehicle
warranty.
Damage to suspension
components caused by
modifying vehicle height
outside of factory settings will
not be covered by the vehicle
warranty.
Damage to vehicle
components resulting from
modifications or the
installation or use of non-GM
certified parts, including
control module or software
modifications, is not covered
under the terms of the vehicle
warranty and may affect
remaining warranty coverage
for affected parts.
GM Accessories are designed
to complement and function
with other systems on the
vehicle. See your dealer to
accessorize the vehicle using
genuine GM Accessories
installed by a dealer
technician.
Also, see Adding Equipment to
the Airbag-Equipped Vehicle
0
70.
Vehicle Checks
Doing Your Own
Service Work
{Warning
It can be dangerous to work
on your vehicle if you do not
have the proper knowledge,
service manual, tools,
or parts. Always follow
owner’s manual procedures
and consult the service
manual for your vehicle
before doing any
service work.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Vehicle Care 371
If doing some of your own
service work, use the proper
service manual. It tells you
much more about how to
service the vehicle than this
manual can. To order the
proper service manual, see
Publication Ordering
Information0494.
This vehicle has an airbag
system. Before attempting to
do your own service work, see
Servicing the Airbag-Equipped
Vehicle 070.
If equipped with remote
vehicle start, open the hood
before performing any service
work to prevent remote
starting the vehicle
accidentally. See Remote
Vehicle Start 016.
Keep a record with all parts
receipts and list the mileage
and the date of any service
work performed. See
Maintenance Records 0477.Caution
Even small amounts of
contamination can cause
damage to vehicle systems.
Do not allow contaminants
to contact the fluids,
reservoir caps, or dipsticks.
Hood
{Warning
For vehicles with auto
engine stop/start, turn the
vehicle off before opening
the hood. If the vehicle is on,
the engine will start when
the hood is opened. You or
others could be injured.
{Warning
Components under the hood
can get hot from running the
engine. To help avoid the
risk of burning unprotected
skin, never touch these
(Continued)
Warning (Continued)
components until they have
cooled, and always use a
glove or towel to avoid
direct skin contact.
Clear any snow from the hood
before opening.
To open the hood:
1. Pull the hood release lever with the
isymbol. It is
on the lower left side of
the instrument panel.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
372 Vehicle Care
2. Go to the front of thevehicle and locate the
secondary release lever
under the front center of
the hood. Push the
secondary hood release
lever to the right to
release.
3. After you have partially lifted the hood, the gas
strut system will
automatically lift the hood
and hold it in the fully open
position. To close the hood:
1. Before closing the hood, be sure all filler caps are on
properly, and all tools are
removed.
2. Pull the hood down until the strut system is no
longer holding up the hood.
3. Lower the hood 20 cm (8 in) above the vehicle.
Allow the hood to fall.
Check to make sure the
hood is latched completely.
Repeat this process with
additional force if
necessary.
{Warning
Do not drive the vehicle if
the hood is not latched
completely. The hood could
open fully, block your vision,
and cause a crash. You or
others could be injured.
Always close the hood
completely before driving. The Driver Information Center
(DIC) will display a message if
the hood is not fully closed.
Stop and turn off the vehicle,
check the hood for
obstructions, and close the
hood again. Check to see if the
message still appears on
the DIC.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Vehicle Care 373
Engine Compartment Overview
2.0L L4 Engine

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
374 Vehicle Care
1. Windshield Washer FluidReservoir. See Washer
Fluid 0393.
2. Engine Coolant Surge Tank and Pressure Cap. See
Cooling System 0386.
3. Engine Air Cleaner/Filter 0384.
4. Engine Cooling Fan (Out of View). See Cooling System
0386.
5. Engine Oil Fill Cap. See Engine Oil 0378.
6. Engine Oil Dipstick. See Engine Oil 0378.
7. Remote Positive (+) Battery Terminal. See
Jump Starting - North
America 0447.
8. Brake Fluid Reservoir. See Brake Fluid 0398.
9. Remote Negative (-) Battery Terminal. See
Jump Starting - North
America 0447.
10. Engine Compartment Fuse Block 0407.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Vehicle Care 375
2.7L L4 Engine

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
376 Vehicle Care
1. Windshield Washer FluidReservoir. See Washer
Fluid 0393.
2. Engine Coolant Surge Tank and Pressure Cap. See
Cooling System 0386.
3. Engine Air Cleaner/Filter 0384.
4. Engine Cooling Fan (Out of View). See Cooling System
0386.
5. Engine Oil Fill Cap. See Engine Oil 0378.
6. Cooling System Air Bleeder Cap. See Cooling
System 0386.
7. Engine Oil Dipstick. See Engine Oil 0378.
8. Remote Positive (+) Battery Terminal. See
Jump Starting - North
America 0447.
9. Brake Fluid Reservoir. See Brake Fluid 0398.
10. Remote Negative (-) Battery Terminal. See
Jump Starting - North
America 0447. 11. Engine Compartment Fuse
Block. See Engine
Compartment Fuse Block
0407.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Vehicle Care 377

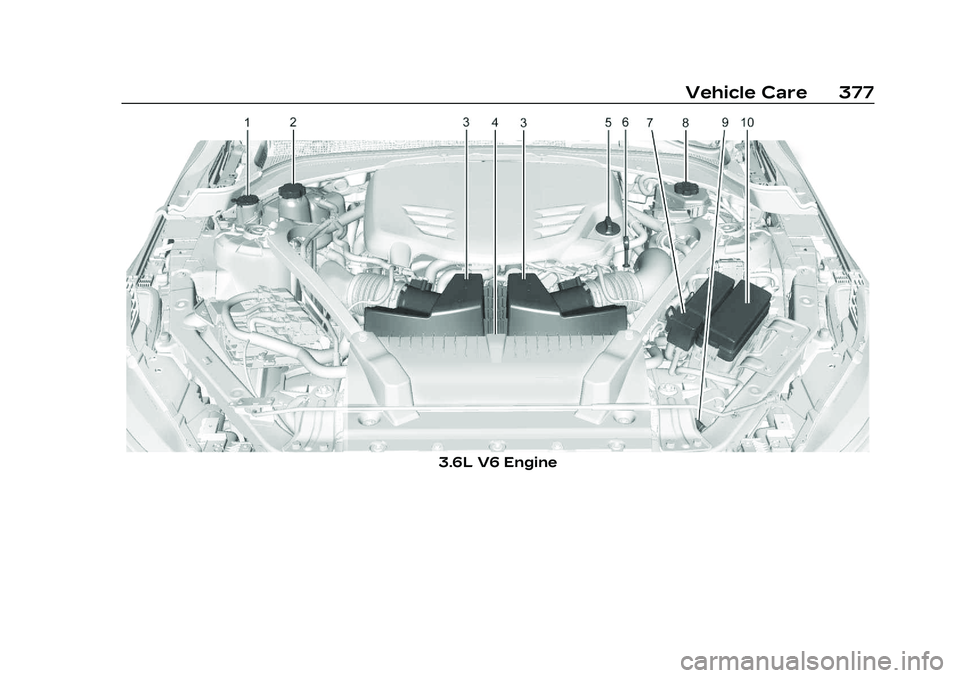

3.6L V6 Engine

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
378 Vehicle Care
1. Windshield Washer FluidReservoir. See Washer
Fluid 0393.
2. Engine Coolant Surge Tank and Pressure Cap. See
Cooling System 0386.
3. Engine Air Cleaner/Filter 0384.
4. Engine Cooling Fan (Out of View). See Cooling System
0386.
5. Engine Oil Fill Cap. See Engine Oil 0378.
6. Engine Oil Dipstick. See Engine Oil 0378.
7. Remote Positive (+) Battery Terminal. See
Jump Starting - North
America 0447.
8. Brake/Clutch Fluid Reservoir. See Brake Fluid
0398.
9. Remote Negative (-) Battery Terminal. See
Jump Starting - North
America 0447. 10. Engine Compartment Fuse
Block. See Engine
Compartment Fuse Block
0407.
Engine Oil
To ensure proper engine
performance and long life,
careful attention must be paid
to engine oil. Following these
simple, but important steps
will help protect your
investment:
.Use engine oil approved to
the proper specification and
of the proper viscosity
grade. See “Selecting the
Right Engine Oil” in this
section.
.Check the engine oil level
regularly and maintain the
proper oil level. See
“Checking Engine Oil” and
“When to Add Engine Oil” in
this section.
.Change the engine oil at the
appropriate time. See Engine
Oil Life System 0381.
.Always dispose of engine oil
properly. See “What to Do
with Used Oil” in this section.
Checking Engine Oil
Check the engine oil level
regularly, every 650 km
(400 mi), especially prior to a
long trip. The engine oil
dipstick handle is a loop. See
Engine Compartment
Overview0373 for the
location.
{Warning
The engine oil dipstick
handle may be hot; it could
burn you. Use a towel or
glove to touch the dipstick
handle.
If a low oil Driver Information
Center (DIC) message displays,
check the oil level.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Vehicle Care 379
Follow these guidelines:
.To get an accurate reading,
park the vehicle on level
ground. Check the engine oil
level after the engine has
been off for at least two
hours. Checking the engine
oil level on steep grades or
too soon after engine
shutoff can result in
incorrect readings. Accuracy
improves when checking a
cold engine prior to starting.
Remove the dipstick and
check the level.
.If unable to wait two hours,
the engine must be off for at
least 15 minutes if the
engine is warm, or at least
30 minutes if the engine is
not warm. Pull out the
dipstick, wipe it with a clean
paper towel or cloth, then
push it back in all the way.
Remove it again, keeping the
tip down, and check the
level.
When to Add Engine Oil
2.0L and 2.7L L4 Engines
3.6L V6 Engine
If the oil is below the
cross-hatched area at the tip
of the dipstick and the engine
has been off for at least
15 minutes, add 1 L (1 qt) of the
recommended oil and then
recheck the level. See
“Selecting the Right Engine
Oil” later in this section for an
explanation of what kind of oil to use. For engine oil
crankcase capacity, see
Capacities and Specifications
0
480.
Caution
Do not add too much oil. Oil
levels above or below the
acceptable operating range
shown on the dipstick are
harmful to the engine. If the
oil level is above the
operating range (i.e., the
engine has so much oil that
the oil level gets above the
cross-hatched area that
shows the proper operating
range), the engine could be
damaged. Drain the excess
oil or limit driving of the
vehicle, and seek a service
professional to remove the
excess oil.
See Engine Compartment
Overview 0373 for the
location of the engine oil
fill cap.
