30 Keys, Doors, and Windows
not be automatically unfolded
by the Remote Mirror Folding
feature.
If equipped with power folding
mirrors, and the mirrors have
not been folded with the
power folding mirror switch
and the vehicle is in P (Park),
they may be automatically
folded/unfolded as follows:1. If doors are locked by pressing
Hon the remote
key, the mirrors will fold.
If doors are unlocked by
pressing
Ion the remote
key, the mirrors will unfold.
See Remote Key Operation
0 9.
2. If doors are locked by pressing the door handle
button, the mirrors will
fold. If doors are unlocked
by pressing the door
handle button, the mirrors
will unfold. See “Keyless
Unlocking/Locking from
the Driver Door” in Remote
Key Operation 09. 3. If passive locking is
enabled and doors are
locked by that feature, the
mirrors will fold. See
“Passive Locking” in
Remote Key Operation 09.
Heated Mirrors
K:The rear window defogger
also heats the outside mirrors.
See Dual Automatic Climate
Control System 0225.
Automatic Dimming
Mirror
If the vehicle has the
automatic dimming mirror, the
driver outside mirror
automatically adjusts for the
glare of headlamps
behind you.
Do not spray glass cleaner or
chrome cleaner directly onto
the mirror. Only use a soft
towel dampened with water.
Reverse Tilt Mirrors
If equipped with reverse tilt
mirrors and memory seats, the
passenger and/or driver
mirror tilts to a preselected
position when the vehicle is in
R (Reverse). This allows the
curb to be seen when parallel
parking.
The mirror(s) may move from
their tilted position when:
.The vehicle is shifted out of
R (Reverse), or remains in
R (Reverse) for about
30 seconds.
.The vehicle is turned off.
.The vehicle is driven in
R (Reverse) above a set
speed.
To view available settings
from the infotainment screen,
touch Settings > Vehicle >
Comfort and Convenience.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Keys, Doors, and Windows 31
Interior Mirrors
Interior Rearview
Mirrors
Adjust the rearview mirror for
a clear view of the area behind
the vehicle.
Do not spray glass cleaner
directly on the mirror. Use a
soft towel dampened with
water.
Manual Rearview
Mirror
If equipped, push the tab
forward for daytime use and
pull it rearward for nighttime
use to avoid glare of the
headlamps from behind.
Automatic Dimming
Rearview Mirror
If equipped, automatic
dimming reduces the glare of
headlamps from behind. The
dimming feature comes on
when the vehicle is started.
Windows{
Warning
Never leave a child, a
helpless adult, or a pet alone
in a vehicle, especially with
the windows closed in warm
or hot weather. They can be
overcome by the extreme
heat and suffer permanent
injuries or even death from
heat stroke.
The vehicle aerodynamics are
designed to improve fuel
economy performance. This may result in a pulsing sound
when either rear window is
down and the front windows
are up. To reduce the sound,
open either a front window or
the sunroof, if equipped.
Power Windows
{Warning
Children could be seriously
injured or killed if caught in
the path of a closing
window. Never leave the
remote key in a vehicle with
children. When there are
children in the rear seat, use
the window lockout switch
to prevent operation of the
windows. See Keys
08.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
32 Keys, Doors, and Windows
Power windows work when
the ignition is on, in accessory
mode, or when Retained
Accessory Power (RAP) is
active. See Retained
Accessory Power (RAP)0267.
Using the window switch,
press to open or pull to close
the window.
The windows may be
temporarily disabled if they
are used repeatedly within a
short time.
Window Lockout
With Folding Mirrors,
Without Folding Mirrors Similar
This feature stops the rear
passenger window switches
from working.
.Press{ 2to engage the
rear window lockout feature.
The indicator light is on
when engaged.
The rear door safety locks
will also engage.
.Press{ 2again to
disengage. The rear door safety locks
will also disengage.
Window Express
Movement
All windows can be opened
without holding the window
switch. Press the switch down
fully and quickly release to
express open the window.
If equipped, pull the window
switch up fully and release to
express close the window.
Briefly press or pull the
window switch in the same
direction to stop that
window’s express movement.
Window Automatic
Reversal System
The express-close feature will
reverse window movement if it
comes in contact with an
object. Extreme cold or ice
could cause the window to
auto-reverse. The window will
operate normally after the
object or condition is removed.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Keys, Doors, and Windows 33
Programming the Power
Windows
Programming may be
necessary if the vehicle
battery has been
disconnected or discharged.
If the window is unable to
express-up, program each
express-close window:1. Close all doors.
2. Turn the ignition on or to accessory mode.
3. Partially open the window to be programmed. Then
close it and continue to pull
the switch briefly after the
window has fully closed.
4. Open the window and continue to press the
switch briefly after the
window has fully opened.
Remote Window
Operation
If enabled through vehicle
settings, this feature allows all
side windows to be opened
remotely. To open, double
press and hold
Kon the
remote key.
If equipped, all windows can
also be closed using the
remote key. To close, double
press and hold
Qon the
remote key.
To view available settings for
this feature, touch the
Settings icon on the
infotainment home page.
Select “Vehicle” to display the
list of available options and
select “Remote Lock, Unlock,
Start”.
Sun Visors
Pull the sun visor down to
block glare. Detach the sun
visor from the center mount to
pivot to the side window and,
if equipped, extend along
the rod.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22

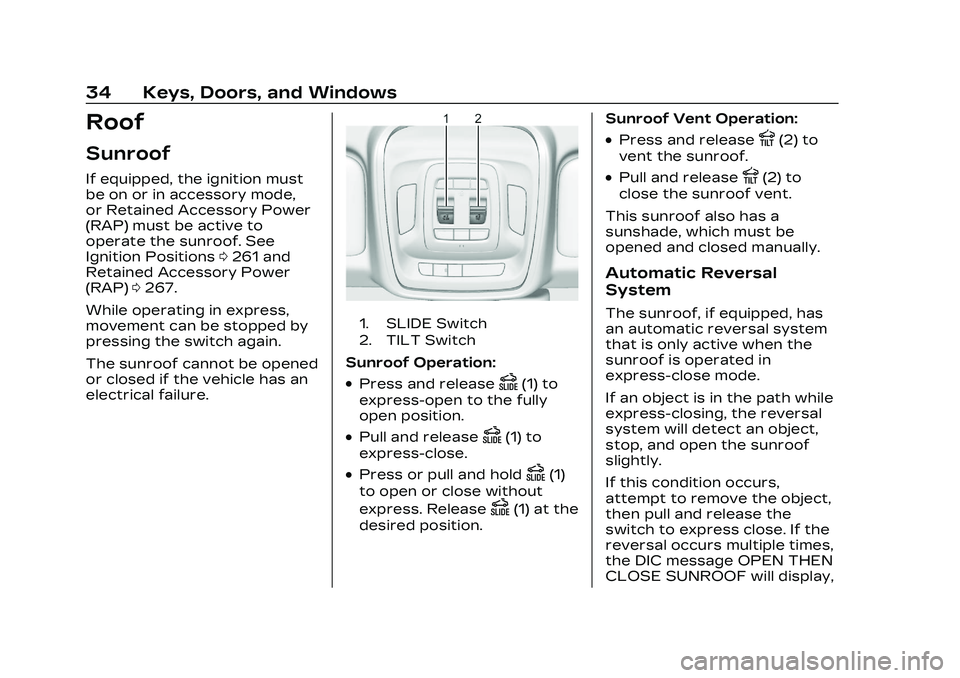

34 Keys, Doors, and Windows
Roof
Sunroof
If equipped, the ignition must
be on or in accessory mode,
or Retained Accessory Power
(RAP) must be active to
operate the sunroof. See
Ignition Positions0261 and
Retained Accessory Power
(RAP) 0267.
While operating in express,
movement can be stopped by
pressing the switch again.
The sunroof cannot be opened
or closed if the vehicle has an
electrical failure.
1. SLIDE Switch
2. TILT Switch
Sunroof Operation:
.Press and releaseD(1) to
express-open to the fully
open position.
.Pull and releaseD(1) to
express-close.
.Press or pull and holdD(1)
to open or close without
express. Release
D(1) at the
desired position. Sunroof Vent Operation:
.Press and releaseE(2) to
vent the sunroof.
.Pull and releaseE(2) to
close the sunroof vent.
This sunroof also has a
sunshade, which must be
opened and closed manually.
Automatic Reversal
System
The sunroof, if equipped, has
an automatic reversal system
that is only active when the
sunroof is operated in
express-close mode.
If an object is in the path while
express-closing, the reversal
system will detect an object,
stop, and open the sunroof
slightly.
If this condition occurs,
attempt to remove the object,
then pull and release the
switch to express close. If the
reversal occurs multiple times,
the DIC message OPEN THEN
CLOSE SUNROOF will display,

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Keys, Doors, and Windows 35
and express is disabled. To
operate sunroof while express
is disabled, the switch must be
either pressed or pulled
and held.
Dirt and debris may collect on
the sunroof seal or in the
track. This could cause an
issue with sunroof operation
or noise. It could also plug the
water drainage system.Periodically open the sunroof
and remove any obstacles or
loose debris. Wipe the sunroof
seal and roof sealing area
using a clean cloth, mild soap,
and water. Do not remove
grease from the sunroof.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
36 Seats and Restraints
Seats and
Restraints
Head Restraints
Head Restraints . . . . . . . . . . . . . 37
Front Seats
Power Seat Adjustment . . . 38
Thigh SupportAdjustment . . . . . . . . . . . . . . . . . . 39
Reclining Seatbacks . . . . . . . . 39
Lumbar Adjustment . . . . . . . . 40
Massage . . . . . . . . . . . . . . . . . . . . . . . . 41
Memory Seats . . . . . . . . . . . . . . . . 41
Heated and Ventilated Front Seats . . . . . . . . . . . . . . . . . 45
Rear Seats
Rear Seats . . . . . . . . . . . . . . . . . . . . 47
Seat Belts
Seat Belts . . . . . . . . . . . . . . . . . . . . . 49
Buckle To Drive . . . . . . . . . . . . . . 50
How to Wear Seat BeltsProperly . . . . . . . . . . . . . . . . . . . . . . . 51
Lap-Shoulder Belt . . . . . . . . . . 54
Seat Belt Use During Pregnancy . . . . . . . . . . . . . . . . . . . 57
Seat Belt Extender . . . . . . . . . 57
Safety System Check . . . . . . 57 Seat Belt Care . . . . . . . . . . . . . . . 58
Replacing Seat Belt
System Parts after a
Crash . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Airbag System
Airbag System . . . . . . . . . . . . . . . 59
Where Are the Airbags? . . . 61
When Should an AirbagInflate? . . . . . . . . . . . . . . . . . . . . . . . 62
What Makes an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . . . 63
How Does an Airbag Restrain? . . . . . . . . . . . . . . . . . . . . 64
What Will You See after an Airbag Inflates? . . . . . . . . 64
Passenger Sensing
System . . . . . . . . . . . . . . . . . . . . . . . 66
Servicing the Airbag-Equipped
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . 70
Adding Equipment to the Airbag-Equipped
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . 70
Airbag System Check . . . . . . . 71
Replacing Airbag System Parts after a Crash . . . . . . . 72
Child Restraints
Older Children . . . . . . . . . . . . . . . . 72
Infants and YoungChildren . . . . . . . . . . . . . . . . . . . . . . . 74
Child Restraint Systems . . . 77
Where to Put the Restraint . . . . . . . . . . . . . . . . . . . . . 79
Lower Anchors and Tethers for Children
(LATCH System) . . . . . . . . . . . 80
Replacing LATCH System Parts After a Crash . . . . . . . 87
Securing Child Restraints (With the Seat Belt in the
Rear Seat) . . . . . . . . . . . . . . . . . . . 88
Securing Child Restraints (With the Seat Belt in the
Front Seat) . . . . . . . . . . . . . . . . . . 90

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Seats and Restraints 37
Head Restraints{
Warning
With head restraints that
are not installed and
adjusted properly, there is a
greater chance that
occupants will suffer a neck/
spinal injury in a crash. Do
not drive until the head
restraints for all occupants
are installed and adjusted
properly.
If equipped with base seats,
adjust the head restraint so
that the top of the restraint is
at the same height as the top
of the occupant's head. This
position reduces the chance of
a neck injury in a crash.
Front Seats
If equipped, the vehicle's front
seats have adjustable head
restraints in the outboard
seating positions.
The height of the head
restraint can be adjusted. To raise or lower the head
restraint, press the button
located on the side of the
head restraint, and pull up or
push the head restraint down
and release the button. Pull
and push on the head restraint
after the button is released to
make sure that it is locked in
place.
The front seat outboard head
restraints are not removable.
Rear Seats
The vehicle's rear seat has
adjustable head restraints in
the outboard seating
positions.
The height of the head
restraint can be adjusted. Pull
the head restraint up to raise
it. Try to move the head
restraint to make sure that it
is locked in place.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
38 Seats and Restraints
To lower the head restraint,
press the button, located on
the top of the seatback, and
push the head restraint down.
Try to move the head restraint
after the button is released to
make sure that it is locked in
place.
Rear outboard head restraints
are not removable.
The rear seat outboard head
restraints are not intended to
be removed. If removal is
required see your dealer for
assistance with removal.
Front Seats
Power Seat
Adjustment
{Warning
You can lose control of the
vehicle if you try to adjust a
driver seat while the vehicle
is moving. Adjust the driver
seat only when the vehicle is
not moving.
{Warning
The power seats will work
with the ignition off. Children
could operate the power
seats and be injured. Never
leave children alone in the
vehicle.
To adjust the seat:
.Move the seat forward or
rearward by sliding the
control forward or rearward.
.Raise or lower the seat by
moving the rear of the
control up or down.
.If equipped, raise or lower
the front part of the seat
cushion by moving the front
of the control up or down.
For vehicles not equipped with
front cushion tilt, the front
part of the control will raise
and lower the seat.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Seats and Restraints 39
If the vehicle is not in P (Park),
seat travel may be limited.
Release and press the seat
switch again to continue
movement.
If something has blocked the
seat during movement, the
movement may stop. Remove
the obstruction and try the
adjustment again. If movement
is still not available, see your
dealer.
To adjust the seatback, see
Reclining Seatbacks039.
To adjust the lumbar support,
see Lumbar Adjustment 040.
Some vehicles are equipped
with a Safety Alert Seat. This
feature activates a vibrating
pulse alert in the driver seat to
help the driver avoid crashes.Thigh Support
Adjustment
If equipped, pull up on the
lever. Then pull or push on the
support to lengthen or
shorten. Release the lever to
lock in place.
Reclining Seatbacks
{Warning
Sitting in a reclined position
when the vehicle is in motion
can be dangerous. Even
when buckled up, the seat
belts cannot do their job.
The shoulder belt will not be
against your body. Instead, it
will be in front of you. In a
crash, you could go into it,
receiving neck or other
injuries.
The lap belt could go up
over your abdomen. The belt
forces would be there, not
at your pelvic bones. This
could cause serious internal
injuries.
For proper protection when
the vehicle is in motion, have
the seatback upright. Then
sit well back in the seat and
wear the seat belt properly.
