CADILLAC CT4 2023 Owners Manual

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22

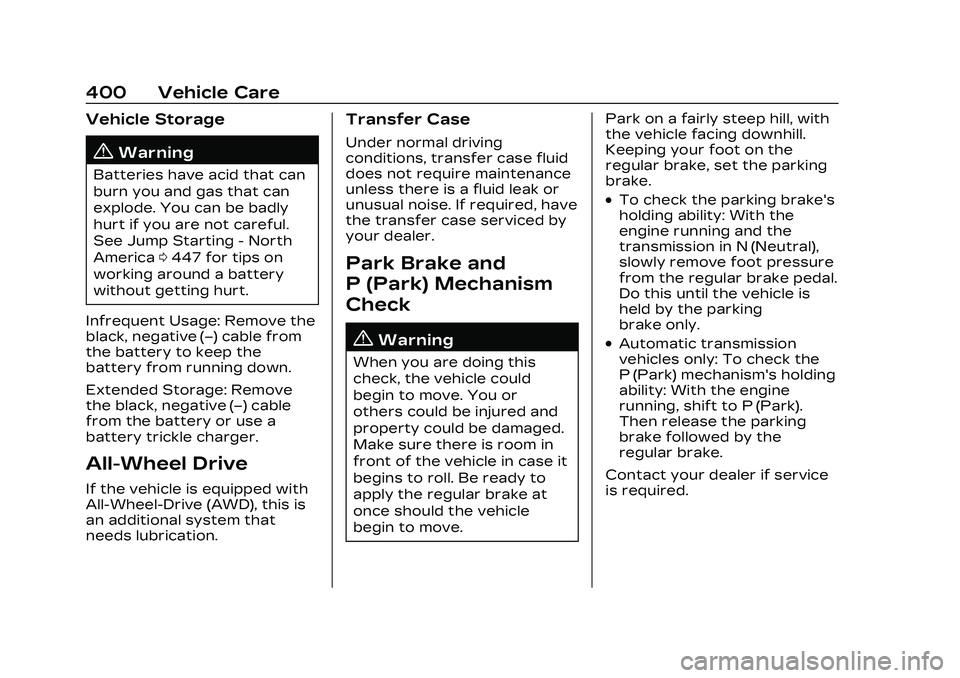

400 Vehicle Care
Vehicle Storage
{Warning
Batteries have acid that can
burn you and gas that can
explode. You can be badly
hurt if you are not careful.
See Jump Starting - North
America0447 for tips on
working around a battery
without getting hurt.
Infrequent Usage: Remove the
black, negative (−) cable from
the battery to keep the
battery from running down.
Extended Storage: Remove
the black, negative (−) cable
from the battery or use a
battery trickle charger.
All-Wheel Drive
If the vehicle is equipped with
All-Wheel-Drive (AWD), this is
an additional system that
needs lubrication.
Transfer Case
Under normal driving
conditions, transfer case fluid
does not require maintenance
unless there is a fluid leak or
unusual noise. If required, have
the transfer case serviced by
your dealer.
Park Brake and
P (Park) Mechanism
Check
{Warning
When you are doing this
check, the vehicle could
begin to move. You or
others could be injured and
property could be damaged.
Make sure there is room in
front of the vehicle in case it
begins to roll. Be ready to
apply the regular brake at
once should the vehicle
begin to move. Park on a fairly steep hill, with
the vehicle facing downhill.
Keeping your foot on the
regular brake, set the parking
brake.
.To check the parking brake's
holding ability: With the
engine running and the
transmission in N (Neutral),
slowly remove foot pressure
from the regular brake pedal.
Do this until the vehicle is
held by the parking
brake only.
.Automatic transmission
vehicles only: To check the
P (Park) mechanism's holding
ability: With the engine
running, shift to P (Park).
Then release the parking
brake followed by the
regular brake.
Contact your dealer if service
is required.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Vehicle Care 401
Wiper Blade
Replacement
Windshield wiper blades
should be inspected for wear
and cracking. See
Maintenance Schedule0469.
Replacement blades come in
different types and are
removed in different ways. For
proper type and length, see
Maintenance Replacement
Parts 0475.
Caution
Allowing the wiper arm to
touch the windshield when
no wiper blade is installed
could damage the
windshield. Any damage that
occurs would not be
covered by the vehicle
warranty. Do not allow the
wiper arm to touch the
windshield.
To replace the windshield
wiper blade: 1. Pull the windshield wiper
assembly away from the
windshield.2. Lift up on the latch in themiddle of the wiper blade
where the wiper arm
attaches.
3. With the latch open, pull the wiper blade down
toward the windshield far
enough to release it from
the J-hooked end of the
wiper arm.
4. Remove the wiper blade.
5. Reverse Steps 1–3 for wiper blade replacement.
Windshield
Replacement
HUD System
The windshield is part of the
HUD system. If the windshield
needs to be replaced, be sure
to get one that is designed for
HUD or the HUD image may
look out of focus.
Driver Assistance
Systems
If the windshield needs to be
replaced and the vehicle is
equipped with a front camera
sensor for the Driver
Assistance Systems, a GM
replacement windshield is
recommended. The
replacement windshield must
be installed according to GM
specifications for proper
alignment. If it is not, these
systems may not work
properly, they may display
messages, or they may not

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
402 Vehicle Care
work at all. See your dealer for
proper windshield
replacement.
Acoustic Windshield
The vehicle is equipped with
an acoustic windshield. If the
windshield needs to be
replaced be sure to get an
acoustic windshield so you will
continue to have the benefits
an acoustic windshield can
provide.
Gas Strut(s)
Your vehicle may be equipped
with gas strut(s) to provide
assistance in lifting and
holding open the hood/trunk/
liftgate system in full open
position.
{Warning
If the gas struts that hold
open the hood, trunk, and/or
liftgate fail, you or others
could be seriously injured.
Take the vehicle to your(Continued)
Warning (Continued)
dealer for service
immediately. Visually inspect
the gas struts for signs of
wear, cracks, or other
damage periodically. Check
to make sure the hood/
trunk/liftgate is held open
with enough force. If struts
are failing to hold the hood/
trunk/liftgate, do not
operate. Have the vehicle
serviced.
Caution
Do not apply tape or hang
any objects from gas struts.
Also do not push down or
pull on gas struts. This may
cause damage to the
vehicle.
See Maintenance Schedule
0 469.
Hood
Trunk

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Vehicle Care 403
Liftgate
Headlamp Aiming
Front Headlamp
Aiming
Headlamp aim has been preset
and should need no further
adjustment.
If the vehicle is damaged in a
crash, the headlamp aim may
be affected. If adjustment to
the headlamps is necessary,
see your dealer.
Bulb Replacement
For the proper type of
replacement bulbs, or any bulb
changing procedure not listed
in this section, contact your
dealer.
Caution
Do not replace incandescent
bulbs with aftermarket LED
replacement bulbs. This can
cause damage to the vehicle
electrical system.
Halogen Bulbs
{Warning
Halogen bulbs have
pressurized gas inside and
can burst if you drop or
scratch the bulb. You or
others could be injured. Be
sure to read and follow the
instructions on the bulb
package.
High Intensity
Discharge (HID)
Lighting
{Warning
The High Intensity Discharge
(HID) lighting system
operates at a very high
voltage. If you try to service
any of the system
components, you could be
seriously injured. Have your
dealer or a qualified
technician service them.
After an HID headlamp bulb
has been replaced, the beam
might be a slightly different
shade than it was originally.
This is normal.
LED Lighting
This vehicle has several LED
lamps. For replacement of any
LED lighting assembly, contact
your dealer.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
404 Vehicle Care
Front Turn Signal
Lamps
Uplevel
See your dealer for turn signal
replacement.
Base level
To replace one of these lamps:1. Open the hood.
2. If your vehicle is equipped with a beauty cover,
remove the beauty cover
to get access to the bulb.
3. Turn the bulb socketcounterclockwise to
remove it from the
headlamp assembly.
4. Unplug the electrical connector from the bulb by
releasing the clip on the
connector.
5. Replace the bulb and reverse Steps 1–4 to
reinstall.
Electrical System
Electrical System
Overload
The vehicle has fuses and
circuit breakers to protect
against an electrical system
overload.
When the current electrical
load is too heavy, the circuit
breaker opens and closes,
protecting the circuit until the
current load returns to normal
or the problem is fixed. This greatly reduces the chance of
circuit overload and fire
caused by electrical problems.
Fuses and circuit breakers
protect power devices in the
vehicle.
If there is a problem on the
road and a fuse needs to be
replaced, the same amperage
fuse can be borrowed. Choose
some feature of the vehicle
that is not needed to use and
replace it as soon as possible.
To check a fuse, look at the
band inside the fuse. If the
band is broken or melted,
replace the fuse. Be sure to
replace a bad fuse with a fuse
of the identical size and rating.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Vehicle Care 405
Replacing a Blown Fuse
1. Turn off the ignition.
2. Locate the fuse puller inthe engine compartment
fuse block.
3. Use the fuse puller toremove the fuse from the
top or side, as shown
above.
4. If the fuse must be replaced immediately,
borrow a replacement fuse
with the same amperage
from the fuse block.
Choose a vehicle feature
that is not needed to
safely operate the vehicle.
Repeat Steps 2-3.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
406 Vehicle Care
5. Insert the replacementfuse into the empty slot of
the blown fuse.
At the next opportunity, see
your dealer to replace the
blown fuse.
Headlamp Wiring
An electrical overload may
cause the lamps to go on and
off, or in some cases to remain
off. Have the headlamp wiring
checked right away if the
lamps go on and off or
remain off.
Windshield Wipers
If the wiper motor overheats
due to heavy snow or ice, the
windshield wipers will stop.
Wiper function is available
immediately after the wiper
switch is set to off, and back
to on. To protect the wiper motor
from overheating, the wipers
may slow down when the
windshield is dry for a long
period of time. If a period of
dry operation, or little
moisture, exceeds 10 minutes,
the wipers may switch to
intermittent operation, and
remain there. When moisture
is again detected on the
windshield, wiper operation
will return to the operator
selected speed.
Although the circuit is
protected from electrical
overload, overload due to
heavy snow or ice may cause
wiper linkage damage. Always
clear ice and heavy snow from
the windshield before using
the windshield wipers.
If the overload is caused by an
electrical problem and not
snow or ice, be sure to get it
fixed.
Fuses and Circuit
Breakers
The wiring circuits in the
vehicle are protected from
short circuits by a combination
of fuses and circuit breakers.
This greatly reduces the
chance of damage caused by
electrical problems.
{Danger
Fuses and circuit breakers
are marked with
their ampere rating. Do not
exceed the
specified amperage rating
when replacing fuses and
circuit breakers. Use of an
oversized fuse or circuit
breaker can result in a
vehicle fire. You and others
could be seriously injured or
killed.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Vehicle Care 407
{Warning
Installation or use of fuses
that do not meet GM’s
original fuse specifications is
dangerous. The fuses could
fail, and result in a fire. You
or others could be injured or
killed, and the vehicle could
be damaged.
See Accessories and
Modifications 0370 and
General Information 0369.
To check or replace a blown
fuse, see Electrical System
Overload 0404.
Engine Compartment
Fuse Block
The engine compartment fuse
block is on the driver side of
the engine compartment.
Lift the fuse block cover to
access the fuses. The vehicle may not be
equipped with all of the fuses
and relays shown.
Caution
Spilling liquid on any
electrical component on the
vehicle may damage it.
Always keep the covers on
any electrical component.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
408 Vehicle Care
Fuses Usage
1 Long Range RadarFront Sensor
2 Park/Daytime Running Lamps
3 Exterior Lighting Module 4
4 Exterior Lighting Module 7
5 Headlamp Level
6 –
Fuses Usage
7 Electronic Brake
Control Module
8 Washer Pump
9 –
10 –
11 –
12 Horn
13 Front Wiper
Fuses Usage
14 Exterior Lighting Module 6
15 Exterior Lighting Module 1
16 Exterior Lighting Module 5
17 Exterior Lighting Module 3
18 Aero Shutter
19 –
20 –
21 Virtual Key System/ Power Sounder
Module
22 Engine Control Module Battery
23 Transmission Control Module
24 Active Engine Mount
25 –
26 Engine Control Module
27 Injectors/Ignition 2
28 Charged Air Cooler/ Not Used
29 Transmission Aux Oil Pump/Transmission
Reverse Lock Out

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Vehicle Care 409
Fuses Usage
30 Injectors/Ignition 131 Emissions 1
32 Emissions 2
33 Starter Solenoid
34 –
35 –
36 Starter Pinion/ Not Used
37 AC Clutch
38 –
39 –
40 –
41 –
42 Water Pump/ Not Used
43 –
44 –
Relays Usage
47–
48 Front Wiper Speed/ Not Used
49 Front Wiper Control 51 –
Relays Usage
52 Engine Control
Module
53 Starter Solenoid
54 Starter Pinion/ Not Used
55 –
57 AC Clutch
58 –
Instrument Panel
Fuse Block
The instrument panel fuse
block is in the end of the driver
side of the instrument panel.
To access the fuses, remove
the end panel by gently prying
with a plastic tool near each
clip, beginning at the point
shown.
To install the end cover, insert
the tabs on the back of the
cover into the slots in the
instrument panel at the points
shown. Align the clips with the
slots in the instrument panel,
and press the cover into place.
The vehicle may not be
equipped with all of the fuses
and relays shown.
