CADILLAC CT4 2023 Owners Manual

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
410 Vehicle Care
Fuses Usage
1–
2 Heating, Ventilation, and Air Conditioning
Blower
3 –
4 –
5 Theft Deterrent/ Universal Garage Door
Opener/Overhead
Console/Rain Sensor
6 –
Fuses Usage
7 Air Quality Ionizer
8 Heated Steering Wheel
9 –
10 Electronic Steering Column Lock 1
11 –
12 –
13 –
Fuses Usage
14–
15 –
16 –
17 –
18 Display/Infotainment/ USB/Multi-function
Control Module
19 Sensing and Diagnostic Module/
Automatic Occupant
Sensing/Data Link
Connection/Wireless
Charging Module/
Virtual Key Module
20 Power Steering Column Module/
Electronic Steering
Column Lock 2
21 Driver Monitor System/Performance
Data Recorder
22 –
23 –
24 –
25 USB
26 –
27 –
28 –

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Vehicle Care 411
Fuses Usage
29–
30 –
31 Headlamp Level
32 –
33 Body Ignition/IP Ignition
34 Exhaust Valve
35 Transmission Control Module Ignition/
Engine Control Module
Ignition/Shift Ignition/
Brake Ignition
36 Shift Module 37 Body Control Module 1/Electronic
Park Brake Switch
38 Center Stack Module
39 Steering Wheel Controls
40 Body Control Module 2
41 Body Control Module 3
42 Body Control Module 4
Circuit
Breakers Usage
CB1 Auxiliary Power
Outlet 1
CB2 Auxiliary Power Outlet 2
Relays Usage
1 Run After Park/Accessory
2 Run Crank
3 –
4 –
5 –
Rear Compartment
Fuse Block
The rear compartment fuse
block is behind a cover on the
driver side of the rear
compartment.
The vehicle may not be
equipped with all of the fuses,
relays, and features shown.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
412 Vehicle Care
Fuses Usage
1 Remote FunctionActuator
2 –
Fuses Usage
3 Driver Heated Seat
4 Fuel Tank Zone
Module
5 –
6 –
7 –
8 –
9 –
10 Motor Seat Belt Passenger
11 Canister Vent Solenoid
12 Sunroof
13 –
14 –
15 Passenger Heated Seat
16 –
17 Electronic Suspension Control
18 –
19 Motor Seat Belt Driver
20 Rear Defog 21 DC to DC Transformer 2
Fuses Usage
22 Driver Power
Window/Door Handle
Switch
23 External Object Calculating Module/
Front Camera
Module/High
Definition Localization
Module/Short Range
Radar
24 Passenger Power Window/Door Handle
Switch
25 –
26 Amplifier (V-Series Blackwing)
27 Rear Drive Control Module
28 –
29 –
30 –
31 DC to DC Transformer 1
32 Transfer Case Electronic Control
33 Central Gateway Module/Side Blind
Zone Alert
34 Video Processing Module

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Vehicle Care 413
Fuses Usage
35 Hands Free ClosureRelease
36 Exterior Lighting Module 2
37 Passenger Memory Seat Module
38 –
39 Right Front/Right Rear Window
40 –
41 –
42 Amplifier
43 Park Assist Module
44 Driver Memory Seat Module
45 OnStar
46 –
47 –
48 –
49 –
50 Driver Seat 51 Left Front/Left Rear Window
52 Passenger Seat
Relays Usage
53 –
54 –
55 Run
Wheels and Tires
Tires
Every new GM vehicle has
high-quality tires made by a
leading tire manufacturer.
See the warranty manual
for information regarding
the tire warranty and
where to get service. For
additional information refer
to the tire manufacturer.
{Warning
.Poorly maintained and
improperly used tires
are dangerous.
.Overloading the tires
can cause overheating
as a result of too much
(Continued)
Warning (Continued) flexing. There could be
a blowout and a serious
crash. See Vehicle Load
Limits 0255.
.Underinflated tires
pose the same danger
as overloaded tires. The
resulting crash could
cause serious injury.
Check all tires
frequently to maintain
the recommended
pressure. Tire pressure
should be checked
when the tires are cold.
.Overinflated tires are
more likely to be cut,
punctured, or broken by
a sudden impact —such
as when hitting a
pothole. Keep tires at
the recommended
pressure.
(Continued)

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
414 Vehicle Care
Warning (Continued)
.Worn or old tires can
cause a crash. If the
tread is badly worn,
replace them.
.Replace any tires that
have been damaged by
impacts with potholes,
curbs, etc.
.Improperly repaired
tires can cause a crash.
Only your dealer or an
authorized tire service
center should repair,
replace, dismount, and
mount the tires.
.Do not spin the tires in
excess of 56 km/h
(35 mph) on slippery
surfaces such as snow,
mud, ice, etc. Excessive
spinning may cause the
tires to explode.See Tire Pressure for
High-Speed Operation
0
423 for inflation pressure
adjustment for high-speed
driving.
All-Season Tires
This vehicle may come with
all-season tires. These tires
are designed to provide good
overall performance on most
road surfaces and weather
conditions. Original equipment
tires designed to GM's specific
tire performance criteria have
a TPC specification code
molded onto the sidewall.
Original equipment all-season
tires can be identified by the
last two characters of this
TPC code, which will be “MS.”
Consider installing winter tires
on the vehicle if frequent
driving on snow or ice-covered
roads is expected. All-season
tires provide adequate
performance for most winter
driving conditions, but they
may not offer the same level of traction or performance as
winter tires on snow or
ice-covered roads. See Winter
Tires
0414.
Winter Tires
This vehicle was not originally
equipped with winter tires.
Winter tires are designed for
increased traction on snow
and ice-covered roads.
Consider installing winter tires
on the vehicle if frequent
driving on ice or snow covered
roads is expected. See your
dealer for details regarding
winter tire availability and
proper tire selection. Also, see
Buying New Tires 0432.
With winter tires, there may
be decreased dry road
traction, increased road noise,
and shorter tread life. After
changing to winter tires, be
alert for changes in vehicle
handling and braking.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Vehicle Care 415

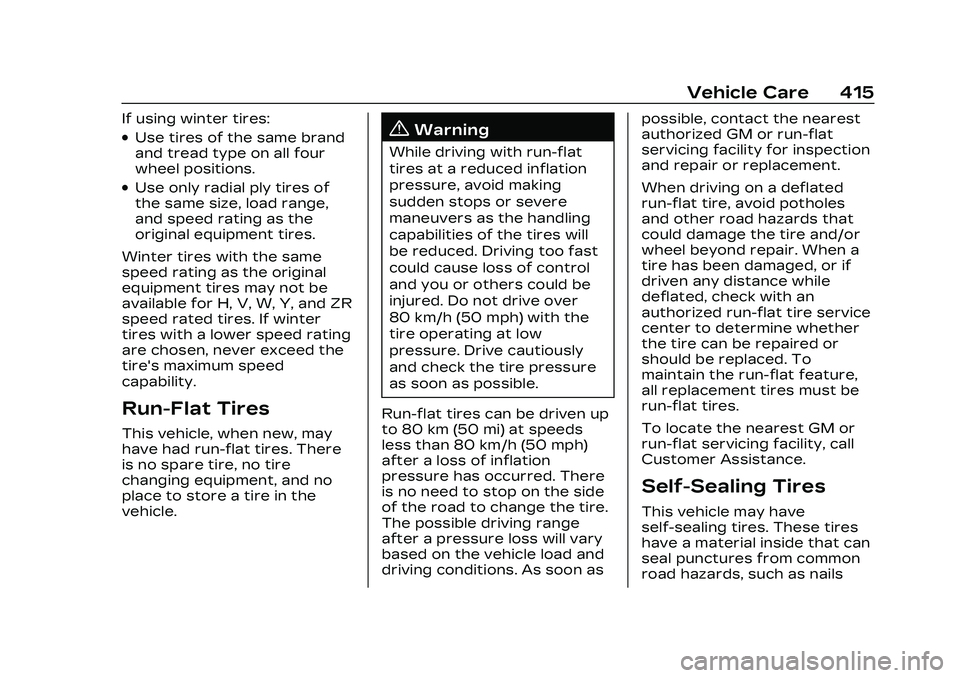

If using winter tires:
.Use tires of the same brand
and tread type on all four
wheel positions.
.Use only radial ply tires of
the same size, load range,
and speed rating as the
original equipment tires.
Winter tires with the same
speed rating as the original
equipment tires may not be
available for H, V, W, Y, and ZR
speed rated tires. If winter
tires with a lower speed rating
are chosen, never exceed the
tire's maximum speed
capability.
Run-Flat Tires
This vehicle, when new, may
have had run-flat tires. There
is no spare tire, no tire
changing equipment, and no
place to store a tire in the
vehicle.
{Warning
While driving with run-flat
tires at a reduced inflation
pressure, avoid making
sudden stops or severe
maneuvers as the handling
capabilities of the tires will
be reduced. Driving too fast
could cause loss of control
and you or others could be
injured. Do not drive over
80 km/h (50 mph) with the
tire operating at low
pressure. Drive cautiously
and check the tire pressure
as soon as possible.
Run-flat tires can be driven up
to 80 km (50 mi) at speeds
less than 80 km/h (50 mph)
after a loss of inflation
pressure has occurred. There
is no need to stop on the side
of the road to change the tire.
The possible driving range
after a pressure loss will vary
based on the vehicle load and
driving conditions. As soon as possible, contact the nearest
authorized GM or run-flat
servicing facility for inspection
and repair or replacement.
When driving on a deflated
run-flat tire, avoid potholes
and other road hazards that
could damage the tire and/or
wheel beyond repair. When a
tire has been damaged, or if
driven any distance while
deflated, check with an
authorized run-flat tire service
center to determine whether
the tire can be repaired or
should be replaced. To
maintain the run-flat feature,
all replacement tires must be
run-flat tires.
To locate the nearest GM or
run-flat servicing facility, call
Customer Assistance.
Self-Sealing Tires
This vehicle may have
self-sealing tires. These tires
have a material inside that can
seal punctures from common
road hazards, such as nails

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
416 Vehicle Care
and screws, in the tread area.
The tire may lose air pressure
if the sidewall is damaged or
the tread puncture is too
large. If the Tire Pressure
Monitor System indicates the
tire pressure is low, inspect
the tire for damage and inflate
it to the recommended
pressure. If the tire is unable
to maintain the recommended
pressure, contact the nearest
authorized GM servicing
facility immediately for
inspection and repair or
replacement. To locate the
nearest GM servicing facility,
call GM Customer Assistance.
Caution
Do not drive on a deflated
self-sealing tire as this could
damage the tire. Make sure
the tire is inflated to the
recommended pressure or
have it immediately repaired
or replaced.When tire replacement is
needed replace with a
self-sealing tire, because the
vehicle does not come with a
spare tire or tire changing
equipment.
Low-Profile Tires
If the vehicle has
225/45R17 91V,
235/40R18 91V,
235/40R18 XL 95Y,
or 235/35R19 XL 91V,
255/35ZR18 (94Y),
or 275/35ZR18 (99Y) size
tires, they are classified as
low-profile tires.
Caution
Low-profile tires are more
susceptible to damage from
road hazards or curb impact
than standard profile tires.
Tire and/or wheel assembly
damage can occur when
coming into contact with
road hazards like potholes, (Continued)
Caution (Continued)
or sharp edged objects,
or when sliding into a curb.
The warranty does not
cover this type of damage.
Keep tires set to the correct
inflation pressure and when
possible, avoid contact with
curbs, potholes, and other
road hazards.
Summer Tires
High Performance Summer
Tires
This vehicle may come with
235/40R18 XL 95Y,
255/35ZR18 (94Y),
or 275/35ZR18 (99Y) high
performance summer tires.
These tires have a special
tread and compound that are
optimized for maximum dry
and wet road performance.
This special tread and
compound will have decreased
performance in cold climates,
and on ice and snow. It is
recommended that winter

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Vehicle Care 417
tires be installed on the
vehicle if frequent driving at
temperatures below
approximately 5 °C (40 °F) or
on ice or snow covered roads
is expected. See Winter Tires
0414.
Caution
High performance summer
tires have rubber
compounds that lose
flexibility and may develop
surface cracks in the tread
area at temperatures below
−7 °C (20 °F). Always store
high performance summer
tires indoors and at
temperatures above −7 °C
(20 °F) when not in use. If the
tires have been subjected to
−7 °C (20 °F) or less, let them
warm up in a heated space
to at least 5 °C (40 °F) for
24 hours or more before
being installed or driving a
vehicle on which they are
installed. Do not apply heat
(Continued)
Caution (Continued)
or blow heated air directly
on the tires. Always inspect
tires before use. See Tire
Inspection0429.
Tire Sidewall Labeling
Useful information about a
tire is molded into its
sidewall. The example
shows a typical passenger
tire sidewall.
Passenger Tire Example
(1) Tire Size:The tire size
is a combination of letters
and numbers used to
define a particular tire's
width, height, aspect ratio,
construction type, and
service description. See the
“Tire Size” illustration later
in this section.
(2) TPC Spec (Tire
Performance Criteria
Specification)
:Original
equipment tires designed
to GM's specific tire
performance criteria have a
TPC specification code
molded onto the sidewall.
GM's TPC specifications
meet or exceed all federal
safety guidelines.
(3) DOT (Department of
Transportation)
:The
Department of
Transportation (DOT) code
indicates that the tire is in
compliance with the U.S.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
418 Vehicle Care
Department of
Transportation Motor
Vehicle Safety Standards.
DOT Tire Date of
Manufacture
:The last
four digits of the TIN
indicate the tire
manufactured date. The
first two digits represent
the week and the last two
digits, the year. For
example, the third week of
the year 2020 would have
a 4-digit DOT date of 0320.
Week 01 is the first full
week (Sunday through
Saturday) of each year.
(4) Tire Identification
Number (TIN)
:The letters
and numbers following the
DOT code are the Tire
Identification Number (TIN).
The TIN shows the
manufacturer and plant
code, tire size, and date the
tire was manufactured. The TIN is molded onto both
sides of the tire, although
only one side may have the
date of manufacture.
(5) Tire Ply Material
:The
type of cord and number of
plies in the sidewall and
under the tread.
(6) Uniform Tire Quality
Grading (UTQG)
:Tire
manufacturers are required
to grade tires based on
three performance factors:
treadwear, traction, and
temperature resistance.
For more information, see
Uniform Tire Quality
Grading 0434.
(7) Maximum Cold
Inflation Load Limit
:
Maximum load that can be
carried and the maximum
pressure needed to
support that load.
Tire Designations
Tire Size
The example shows a
typical passenger vehicle
tire size.
Passenger (P-Metric) Tire
(1) Passenger (P-Metric)
Tire
:The United States
version of a metric tire
sizing system. The letter
"P" as the first character in
the tire size means a
passenger vehicle tire
engineered to standards
set by the U.S. Tire and Rim
Association.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
Vehicle Care 419
(2) Tire Width:The 3-digit
number indicates the tire
section width in millimeters
from sidewall to sidewall.
(3) Aspect Ratio
:A 2-digit
number that indicates the
tire height-to-width
measurements. For
example, if the tire size
aspect ratio is 75, as
shown in item (3) of the
illustration, it would mean
that the tire's sidewall is
75 percent as high as it
is wide.
(4) Construction Code
:A
letter code is used to
indicate the type of ply
construction in the tire. The
letter "R" means radial ply
construction; the letter "D"
means diagonal or bias ply
construction.
(5) Rim Diameter
:
Diameter of the wheel in
inches. (6) Service Description
:
These characters
represent the load index
and speed rating of the
tire. The load index
represents the load
carrying capacity a tire is
certified to carry. The
speed rating is the
maximum speed a tire is
certified to carry a load.
Tire Terminology and
Definitions
Air Pressure:The amount
of air inside the tire
pressing outward on each
square inch of the tire. Air
pressure is expressed
in kPa (kilopascal) or psi
(pounds per square inch).
Aspect Ratio
:The
relationship of a tire's
height to its width. Belt
:A rubber coated layer
of cords that is located
between the plies and the
tread. Cords may be made
from steel or other
reinforcing materials.
Bead
:The tire bead
contains steel wires
wrapped by steel cords
that hold the tire onto
the rim.
Bias Ply Tire
:A pneumatic
tire in which the plies are
laid at alternate angles less
than 90 degrees to the
centerline of the tread.
Cold Tire Pressure
:The
amount of air pressure in a
tire, measured in kPa
(kilopascal) or psi (pounds
per square inch) before a
tire has built up heat from
driving. See Tire Pressure
0 422.
