360 Driving and Operating
.Once the SD card is full, the
oldest files will be
overwritten. Saved files will
not be overwritten.
To Delete Data : Remove the
SD card from the vehicle and
insert into a PC to manually
delete the file.
Video player unavailable can
occur if:
.No SD card is present.
.An empty SD card is present.
.The video files are the
wrong format.
.The video files are corrupt.
.The SD card is full.
.There is a system error.
Other files should not be
stored on the same SD card as
the surround vision recorder
files. Storing other files on the
same card may increase
recording start up and
playback time or result in a
loss of data. An error message
may be displayed if no surround vision recorded
video file is available for
playback.
Fuel
Top Tier Fuel
GM recommends the use of
TOP TIER Detergent Gasoline
to keep the engine clean,
reduce engine deposits, and
maintain optimal vehicle
performance. Look for the
TOP TIER Logo or see
www.toptiergas.com for a list
of TOP TIER Detergent
Gasoline marketers and
applicable countries.
Recommended Fuel
(LSY 2.0L L4 Engine)
Premium unleaded gasoline
meeting ASTM specification
D4814 with a posted octane
rating (R+M)/2 of 91 or greater
is recommended. If unavailable,
unleaded gasoline with a
posted octane rating of
87 may be used, but will result

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/10/22
Driving and Operating 361
in reduced performance and
driveability. If heavy knocking
is heard when using gasoline
rated at 91 or greater, the
engine needs service.
Do not use any fuel labeled
E85 or FlexFuel. Do not use
gasoline with ethanol levels
greater than 15% by volume.
Recommended Fuel
(LGY 3.0L V6 and
LT4 6.2L V8 Engines)
Premium unleaded gasoline
meeting ASTM specification
D4814 with a posted octane
rating (R+M)/2 of 91 or greater
is required. The use of the
correct fuel is an important
part of the proper
maintenance of the vehicle
and a condition of the vehiclewarranty. If heavy knocking is
heard when using gasoline
rated at 91 or greater, the
engine needs service.
Do not use any fuel labeled
E85 or FlexFuel. Do not use
gasoline with ethanol levels
greater than 15% by volume.
Prohibited Fuels
Caution
Do not use fuels with any of
the following conditions;
doing so may damage the
vehicle and void its
warranty:
.For vehicles that are not
FlexFuel, fuel labeled
greater than 15% ethanol
by volume, such as
mid-level ethanol blends
(16–50% ethanol), E85,
or FlexFuel.
.Fuel with any amount of
methanol, methylal,
ferrocene, and aniline.
These fuels can corrode
(Continued)
Caution (Continued)
metal fuel system parts or
damage plastic and rubber
parts.
.Fuel containing metals
such as
methylcyclopentadienyl
manganese tricarbonyl
(MMT), which can damage
the emissions control
system and spark plugs.
.Fuel with a posted octane
rating of less than the
recommended fuel. Using
this fuel will lower fuel
economy and
performance, and may
decrease the life of the
emissions catalyst.
Fuels in Foreign
Countries
The U.S., Canada, and Mexico
post fuel octane ratings in
anti-knock index (AKI). For fuel
not to use in a foreign country,
see Prohibited Fuels 0361.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/10/22
362 Driving and Operating
Fuel Additives
TOP TIER Detergent Gasoline
is highly recommended for use
with your vehicle. If your
country does not have TOP
TIER Detergent Gasoline, add
ACDelco Fuel System
Treatment Plus−Gasoline to
the vehicle’s gasoline fuel tank
at every oil change or
15 000 km (9,000 mi),
whichever occurs first. TOP
TIER Detergent Gasoline and
ACDelco Fuel System
Treatment Plus−Gasoline will
help keep your vehicle’s
engine fuel deposit free and
performing optimally.
Filling the Tank
An arrow on the fuel gauge
indicates which side of the
vehicle the fuel door is on. See
Fuel Gauge0120.
{Warning
Fuel vapors and fuel fires
burn violently and can cause
injury or death.
Follow these guidelines to
help avoid injuries to you
and others:
.Read and follow all the
instructions on the fuel
pump island.
.Turn off the engine when
refueling.
.Keep sparks, flames, and
smoking materials away
from fuel.
.Do not leave the fuel
pump unattended.
.Avoid using electronic
devices while refueling.
.Do not re-enter the
vehicle while pumping fuel.
.Keep children away from
the fuel pump and never
let children pump fuel.
(Continued)
Warning (Continued)
.Before touching the fill
nozzle, touch a metallic
object to discharge static
electricity from your body.
.Fuel can spray out if the
fill nozzle is inserted too
quickly. This spray can
happen if the tank is
nearly full, and is more
likely in hot weather. Insert
the fill nozzle slowly and
wait for any hiss noise to
stop before beginning to
flow fuel.
If equipped, the fuel door
unlocks when the vehicle
doors are unlocked. See
Remote Key Operation 09.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/10/22
Driving and Operating 363
To open the fuel door, push
and release the rearward
center edge of the door.
The capless refueling system
does not have a fuel cap. Fully
insert and latch the fill nozzle,
begin fueling.
{Warning
Overfilling the fuel tank by
more than three clicks of a
standard fill nozzle may
cause:(Continued)
Warning (Continued)
.Vehicle performance
issues, including engine
stalling and damage to the
fuel system.
.Fuel spills.
.Under certain conditions,
fuel fires.
Be careful not to spill fuel.
Wait five seconds after you
have finished pumping before
removing the fill nozzle. Clean
fuel from painted surfaces as
soon as possible. See Exterior
Care 0457. Push the fuel door
closed until it latches.
{Warning
If a fire starts while you are
refueling, do not remove the
fill nozzle. Shut off the flow
of fuel by shutting off the
pump or by notifying the
station attendant. Leave the
area immediately. Filling the Tank with a
Portable Fuel Container
If the vehicle runs out of fuel
and must be filled from a
portable fuel container:
1. Locate the capless funnel
adapter.
2. Insert and latch the funnel into the capless fuel
system.
{Warning
Attempting to refuel from a
portable fuel container
without using the funnel
adapter may cause fuel
spillage and damage the
capless fuel system. This
could cause a fire. You or
(Continued)

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/10/22
364 Driving and Operating
Warning (Continued)
others could be badly
burned and the vehicle could
be damaged.
3. Remove and clean the funnel adapter and return
it to the storage location.
Filling a Portable Fuel
Container
{Warning
Never fill a portable fuel
container while it is in the
vehicle. Static electricity
discharge from the
container can ignite the fuel
vapor. You or others could
be badly burned and the
vehicle could be damaged.
To help avoid injury to you
and others:
.Dispense fuel only into
approved containers.
(Continued)
Warning (Continued)
.Do not fill a container
while it is inside a vehicle,
in a vehicle's trunk, in a
pickup bed, or on any
surface other than the
ground.
.Bring the fill nozzle in
contact with the inside of
the fill opening before
operating the nozzle.
Maintain contact until
filling is complete.
.Keep sparks, flames, and
smoking materials away
from fuel.
.Avoid using electronic
devices while
pumping fuel.
Trailer Towing
General Towing
Information
Only use towing equipment
that has been designed for the
vehicle. Contact your dealer or trailering dealer for assistance
with preparing the vehicle to
tow a trailer. Read the entire
section before towing a trailer.
To tow a disabled vehicle, see
Transporting a Disabled
Vehicle
0455. To tow the
vehicle behind another vehicle
such as a motor home, see
Recreational Vehicle Towing
0 457.
When towing with the 2.0L L4
engine, only use unleaded
gasoline with an octane rating
of 89 or higher. Using gasoline
with a lower octane rating
while towing may damage the
engine and may not be
covered by the vehicle
warranty. See Recommended
Fuel (LSY 2.0L L4 Engine)
0 360 or
Recommended Fuel (LGY 3.0L
V6 and LT4 6.2L V8 Engines)
0 361.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/10/22
Driving and Operating 365
Driving
Characteristics and
Towing Tips
{Warning
You can lose control when
towing a trailer if the correct
equipment is not used or the
vehicle is not driven
properly. For example, if the
trailer is too heavy or the
trailer brakes are
inadequate for the load, the
vehicle may not stop as
expected. You and others
could be seriously injured.
The vehicle may also be
damaged, and the repairs
would not be covered by the
vehicle warranty. Pull a
trailer only if all the steps in
this section have been
followed. Ask your dealer for
advice and information
about towing a trailer with
the vehicle.
Driving with a Trailer
Trailering is different than just
driving the vehicle by itself.
Trailering means changes in
handling, acceleration, braking,
durability, and fuel economy.
Successful, safe trailering
takes correct equipment, and
it has to be used properly.
The following information has
many time-tested, important
trailering tips and safety rules.
Many of these are important
for your safety and that of
your passengers. Read this
section carefully before pulling
a trailer.
When towing a trailer:
.Become familiar with, and
follow all state and local laws
that apply to trailer towing.
These requirements vary
from state to state.
.State laws may require the
use of extended side view
mirrors. If your visibility is
limited or restricted whiletowing, install extended side
view mirrors on your vehicle,
even if not required.
.Do not tow a trailer during
the first 800 km (500 mi) of
vehicle use to prevent
damage to the engine, axle,
or other parts.
.Perform the first oil change
before heavy towing.
.Do not drive over 800 km/h
(50 mph) and do not make
starts at full throttle during
the first 800 km (500 mi) of
trailer towing.
.Tow in D (Drive). If the
transmission downshifts too
often, a lower gear may be
selected using Manual Mode.
See Manual Mode
0282.
If equipped, the following
driver assistance features
should be turned off when
towing a trailer:
.Adaptive Cruise
Control (ACC)
.Super Cruise Control
.Park Assist

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/10/22
366 Driving and Operating
.Automatic Parking
Assist (APA)
.Reverse Automatic
Braking (RAB)
If equipped, the following
driver assistance features
should be turned to alert or
off when towing a trailer:
.Automatic Emergency
Braking (AEB)
.Intelligent Brake Assist (IBA)
.Front Pedestrian
Braking (FPB)
If equipped with Lane Change
Alert (LCA), the LCA detection
zones that extend back from
the side of the vehicle do not
move further back when a
trailer is towed. Use caution
while changing lanes when
towing a trailer.
If equipped with Rear Cross
Traffic Alert (RCTA), use
caution while backing up when
towing a trailer, as the RCTA
detection zones that extend out from the back of the
vehicle do not move further
back when a trailer is towed.
{Warning
To prevent serious injury or
death from carbon monoxide
(CO), when towing a trailer:
.Do not drive with the
liftgate, trunk/hatch,
or rear-most
window open.
.Fully open the air outlets
on or under the
instrument panel.
.Adjust the climate control
system to a setting that
brings in only outside air.
See
“Climate Control
Systems” in the Index.
For more information about
carbon monoxide, see
Engine Exhaust 0276.
Towing a trailer requires
experience. The combination
of the vehicle and trailer is
longer and not as responsive as the vehicle itself. Become
familiar with handling and
braking by driving on a level
road surface before driving on
public roads.
The trailer structure, the tires,
and the brakes must be all be
rated to carry the intended
cargo. Inadequate trailer
equipment can cause the
combination to operate in an
unexpected or unsafe manner.
Before driving, inspect all
trailer hitch parts and
attachments, safety chains,
electrical connectors, lamps,
tires, and mirrors. See Towing
Equipment
0371. If the trailer
has electric brakes, start the
combination moving and then
manually apply the trailer
brake controller to check the
trailer brakes work. During the
trip, occasionally check that
the cargo and trailer are
secure and that the lamps and
any trailer brakes are working.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/10/22
Driving and Operating 367
Towing with a Stability
Control System
When towing, the stability
control system might be
heard. The system reacts to
vehicle movement caused by
the trailer, which mainly occurs
during cornering. This is
normal when towing heavier
trailers.
Following Distance
Stay at least twice as far
behind the vehicle ahead as
you would when driving
without a trailer. This can help
to avoid heavy braking and
sudden turns.
Passing
More passing distance is
needed when towing a trailer.
The combination of the vehicle
and trailer will not accelerate
as quickly and is much longer
than the vehicle alone. It is
necessary to go much farther
beyond the passed vehiclebefore returning to the lane.
Pass on level roadways. Avoid
passing on hills if possible.
Backing Up
Hold the bottom of the
steering wheel with one hand.
To move the trailer to the left,
move that hand to the left. To
move the trailer to the right,
move that hand to the right.
Always back up slowly and,
if possible, have someone
guide you.
Making Turns
Caution
Turn more slowly and make
wider arcs when towing a
trailer to prevent damage to
your vehicle. Making very
sharp turns could cause the
trailer to contact the vehicle.
Make wider turns than normal
when towing, so trailer will not
go over soft shoulders, over
curbs, or strike road signs,
trees, or other objects. Always signal turns well in advance.
Do not steer or brake
suddenly.
Driving on Grades
Reduce speed and shift to a
lower gear before starting
down a long or steep downhill
grade. If the transmission is
not shifted down, the brakes
may overheat and result in
reduced braking efficiency.
Vehicles can tow in D (Drive).
Shift the transmission to a
lower gear if the transmission
shifts too often under heavy
loads and/or hilly conditions.
When towing at higher
altitudes, engine coolant will
boil at a lower temperature
than at lower altitudes. If the
engine is turned off
immediately after towing at
high altitude on steep uphill
grades, the vehicle could show
signs similar to engine
overheating. To avoid this, let
the engine run, preferably on
level ground, with the

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/10/22

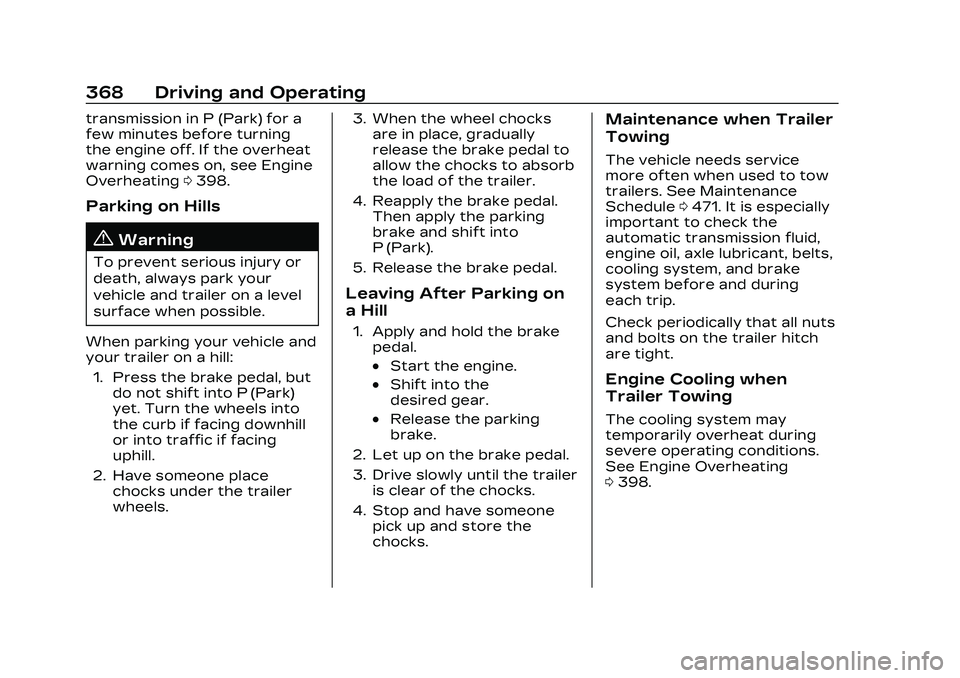

368 Driving and Operating
transmission in P (Park) for a
few minutes before turning
the engine off. If the overheat
warning comes on, see Engine
Overheating0398.
Parking on Hills
{Warning
To prevent serious injury or
death, always park your
vehicle and trailer on a level
surface when possible.
When parking your vehicle and
your trailer on a hill: 1. Press the brake pedal, but do not shift into P (Park)
yet. Turn the wheels into
the curb if facing downhill
or into traffic if facing
uphill.
2. Have someone place chocks under the trailer
wheels. 3. When the wheel chocks
are in place, gradually
release the brake pedal to
allow the chocks to absorb
the load of the trailer.
4. Reapply the brake pedal. Then apply the parking
brake and shift into
P (Park).
5. Release the brake pedal.
Leaving After Parking on
a Hill
1. Apply and hold the brake pedal.
.Start the engine.
.Shift into the
desired gear.
.Release the parking
brake.
2. Let up on the brake pedal.
3. Drive slowly until the trailer is clear of the chocks.
4. Stop and have someone pick up and store the
chocks.
Maintenance when Trailer
Towing
The vehicle needs service
more often when used to tow
trailers. See Maintenance
Schedule 0471. It is especially
important to check the
automatic transmission fluid,
engine oil, axle lubricant, belts,
cooling system, and brake
system before and during
each trip.
Check periodically that all nuts
and bolts on the trailer hitch
are tight.
Engine Cooling when
Trailer Towing
The cooling system may
temporarily overheat during
severe operating conditions.
See Engine Overheating
0 398.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/10/22
Driving and Operating 369
Trailer Towing (LSY
2.0L L4 and LGY 3.0L
V6 Engines Only)
Caution
Towing a trailer improperly
can damage the vehicle and
result in costly repairs not
covered by the vehicle
warranty. To tow a trailer
correctly, follow the
directions in this section and
see your dealer for
important information about
towing a trailer with the
vehicle.
Never tow a trailer with a
V-Series or V-Series
Blackwing. These models are
not designed or intended to
tow a trailer.
Trailer Weight
{Warning
Never exceed the towing
capacity for your vehicle.
Safe trailering requires
monitoring the weight, speed,
altitude, road grades, outside
temperature, dimensions of
the front of the trailer, and
how frequently the vehicle is
used to tow a trailer.
Before towing a trailer, always
separately weigh:
.the total weight on the
vehicle's tires.
.the trailer.
.the trailer tongue.
{Warning
You and others could be
seriously injured or killed if
the trailer is too heavy or
the trailer brakes are
inadequate for the load. The
vehicle may be damaged, (Continued)
Warning (Continued)
and the repairs would not be
covered by the vehicle
warranty.
Only tow a trailer if all the
steps in this section have
been followed. Ask your
dealer for advice and
information about towing a
trailer.
Gross Vehicle Weight
Rating (GVWR)
For information about the
vehicle's maximum load
capacity, see Vehicle Load
Limits0261. When calculating
the GVWR with a trailer
attached, the trailer tongue
weight must be included as
part of the weight the vehicle
is carrying.
