CADILLAC CT6 2017 1.G User Guide

Cadillac CT6 Owner Manual (GMNA-Localizing-MidEast-10293390) - 2017 -
CRC - 6/21/16
10 IN BRIEF
Trunk
To open the trunk:
.Press
|.
. Press
Xtwice quickly on the
Remote Keyless Entry (RKE)
transmitter.
. Press the touch pad on the rear of
the trunk above the license plate
after unlocking all doors.
If equipped, these will also open the
power trunk. See Trunk039.
Windows
The power windows only operate with
the ignition in ACC/ACCESSORY or
ON/RUN, or when Retained Accessory
Power (RAP) is active. See Retained
Accessory Power (RAP) 0198.
Press the switch to lower the window.
Pull the switch up to raise it.
See Power Windows 049.
Seat Adjustment
Power Seats
Platinum Seat Shown, Base and
Uplevel Seats Similar
To adjust the seat:
. Move the seat forward or rearward
by sliding the control forward or
rearward.
. Raise or lower the front part of the
seat cushion by moving the front
of the control up or down.
. Raise or lower the seat by moving
the rear of the control up or down.
See Power Seat Adjustment 058.

Cadillac CT6 Owner Manual (GMNA-Localizing-MidEast-10293390) - 2017 -
CRC - 6/21/16
IN BRIEF 11
Uplevel Seat Adjustment
If equipped, the ignition must be on
to use all uplevel seat features.
Platinum Seat Shown, Uplevel SeatSimilar
1. Feature Select
2. Up
3. Forward
4. Down
5. Rearward
.Press Feature Select (1) to display
seat adjustments on the
infotainment display. Press and
release or hold to scroll through
features. .
Press Up (2) to make upward
adjustments of the selected
feature.
. Press Forward (3) to make forward
adjustments of the selected
feature.
. Press Down (4) to make downward
adjustments of the selected
feature.
. Press Rearward (5) to make
rearward adjustments of the
selected feature.
Reclining Seatbacks
Platinum Seat Shown, Base and
Uplevel Seats Similar To adjust the seatback:
.
Tilt the top of the control
rearward to recline.
. Tilt the top of the control forward
to raise.
See Reclining Seatbacks 060.
Base Lumbar Adjustment
Base Seat
To adjust lumbar support, if equipped:
. Press Forward (2) to move lumbar
support forward.
. Press Rearward (1) to move
lumbar support rearward.

Cadillac CT6 Owner Manual (GMNA-Localizing-MidEast-10293390) - 2017 -
CRC - 6/21/16
12 IN BRIEF
Massage
Platinum Driver Seat Shown,Passenger Seat Similar
If equipped, the ignition must be on
to use the massage feature.
To activate and adjust the massage
feature: 1. Toggle the center selection control (2) to view available
seating adjustment options on
the infotainment display.
2. Select massage feature.
3. Press the control up (3) or down (5) to select the
massage type. 4. Press the control forward (4) or
rearward (6) to change the
intensity.
5. Press the massage control button (1) to recall the last
massage type and intensity.
See Massage 064.
Memory Features
Platinum Driver Seat Shown,
Passenger Seat Similar
If equipped, the SET, 1, 2, and
B
(Exit) buttons on the driver door and
front passenger door are used to
manually store and recall memory
settings for the driver and passenger seats. The driver memory buttons also
store outside mirror positions, power
tilt and telescoping steering column
positions, and massage settings (if
equipped).
When Auto Memory Recall is enabled
in the personalization menu, positions
previously stored to the driver
memory buttons 1 or 2 are recalled
when the ignition is changed from
OFF to ON/RUN/START or ACC/
ACCESSORY.
When Easy Exit Options is enabled in
the personalization menu, the
positions previously stored to the
driver memory
B(Exit) button are
recalled when the ignition is changed
to OFF and the driver door is opened
within a short time.
See Memory Seats 061 and Vehicle
Personalization 0152.

Cadillac CT6 Owner Manual (GMNA-Localizing-MidEast-10293390) - 2017 -
CRC - 6/21/16
IN BRIEF 13
Second Row Seats
If equipped, the armrest may have
seat adjustment controls.
1. Seatback Display and LumbarAdjustment Control
2. Power Seat Adjustment
3. Power Seat Adjustment
4. Massage
See Rear Seats 064.
Easy Exit
If equipped, pressSto return the seat
to the full rearward and full front of
seat tilt down position. The seat will
also move to this position when the
rear door is opened.
Heated and Ventilated Rear
Seats
{Warning
If you cannot feel temperature
change or pain to the skin, the seat
heater may cause burns. See the
Warning under Heated and
Ventilated Front Seats 062.
If equipped, the buttons are on the
rear passenger doors.

Cadillac CT6 Owner Manual (GMNA-Localizing-MidEast-10293390) - 2017 -
CRC - 6/21/16
14 IN BRIEF
With the ignition in ON/RUN, pressM
orLto heat the left or right outboard
seat cushion.
With the ignition in ON/RUN, press
C
or{to ventilate the left or right
outboard seat.
See Heated and Ventilated Rear
Seats 066.
Heated and Ventilated
Seats
If equipped, the buttons are near the
climate controls on the center stack.
To operate, the ignition must be in
ON/RUN.
Press
Jorzto heat the driver or
passenger seat cushion and seatback.
Press
Ior+to heat the driver or
passenger seatback only.
Press
Cor{to ventilate the driver
or passenger seat.
Press the button once for the highest
setting. With each press of the button,
the seat will change to the next lower
setting, and then to the off setting.
The indicator lights above the buttons
indicate three for the highest setting
and one for the lowest. If the front
heated seats are on high, the level
may automatically be lowered after
approximately 30 minutes.
See Heated and Ventilated Front
Seats 062.
Head Restraint Adjustment
Do not drive until the head restraints
for all occupants are installed and
adjusted properly. To achieve a comfortable seating
position, change the seatback recline
angle as little as necessary while
keeping the seat and the head
restraint height in the proper position.
See
Head Restraints 056 and Power
Seat Adjustment 058.
Safety Belts
Refer to the following sections for
important information on how to use
safety belts properly:
.
Safety Belts 067.
. How to Wear Safety Belts
Properly 068.

Cadillac CT6 Owner Manual (GMNA-Localizing-MidEast-10293390) - 2017 -
CRC - 6/21/16
IN BRIEF 15
.Lap-Shoulder Belt 069.
. Lower Anchors and Tethers for
Children (LATCH System) 091.
Passenger Sensing System
The passenger sensing system turns
off the front outboard passenger
frontal airbag and knee airbag under
certain conditions. No other airbag is
affected by the passenger sensing
system. See Passenger Sensing
System 079.
The passenger airbag status indicator
will light on the overhead console
when the vehicle is started. See
Passenger Airbag Status
Indicator 0126.
Mirror Adjustment
Exterior Mirror
1. Move the selector switch to L
(Left) or R (Right) to choose the
driver or passenger mirror.
2. Press one of the four arrows to move the mirror.
3. Move the selector switch to
)to
deselect the mirror.
The vehicle has manual folding
mirrors or, if equipped, power folding
mirrors. See Power Mirrors 046.
Interior Mirror
Adjustment
Adjust the rearview mirror for a clear
view of the area behind your vehicle.
Automatic Dimming Rearview Mirror
Automatic dimming reduces the glare
of headlamps from behind. The
dimming feature comes on when the
vehicle is started.
Rear Camera Mirror
If equipped, this automatic dimming
rearview mirror provides a wide angle
camera view of the area behind the
vehicle. For ease of use, adjust the
mirror for a clear view of the area
behind the vehicle while the display is
off. See Rear Camera Mirror 047.

Cadillac CT6 Owner Manual (GMNA-Localizing-MidEast-10293390) - 2017 -
CRC - 6/21/16
16 IN BRIEF

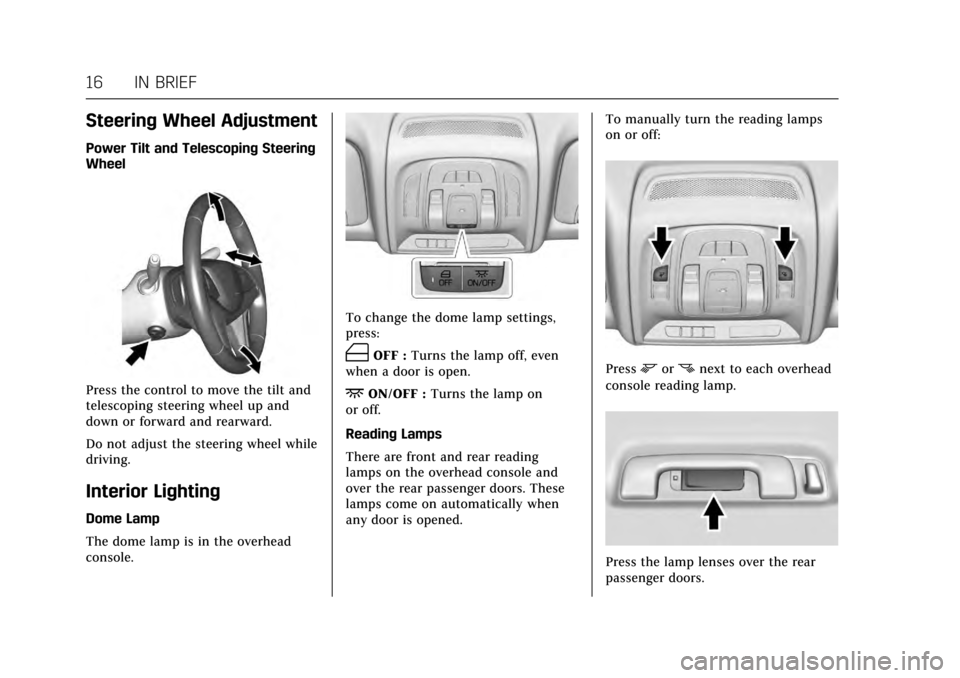

Steering Wheel Adjustment
Power Tilt and Telescoping Steering
Wheel
Press the control to move the tilt and
telescoping steering wheel up and
down or forward and rearward.
Do not adjust the steering wheel while
driving.
Interior Lighting
Dome Lamp
The dome lamp is in the overhead
console.
To change the dome lamp settings,
press:
(OFF :Turns the lamp off, even
when a door is open.
+ON/OFF : Turns the lamp on
or off.
Reading Lamps
There are front and rear reading
lamps on the overhead console and
over the rear passenger doors. These
lamps come on automatically when
any door is opened. To manually turn the reading lamps
on or off:
Pressmornnext to each overhead
console reading lamp.
Press the lamp lenses over the rear
passenger doors.

Cadillac CT6 Owner Manual (GMNA-Localizing-MidEast-10293390) - 2017 -
CRC - 6/21/16
IN BRIEF 17
For more information on interior
lighting, seeInstrument Panel
Illumination Control 0167.
Exterior Lighting
The exterior lamp control is on the
turn signal lever.
Turn the control to the following
positions:
O:Turns off the exterior lamps. The
knob returns to the AUTO position
after it is released. Turn to
Oagain to
reactivate the AUTO mode.
AUTO : Automatically turns the
exterior lamps on and off, depending
on outside lighting.
;: Turns on the parking lamps
including all lamps, except the
headlamps.
5: Turns on the headlamps together
with the parking lamps and
instrument panel lights.
See:
. Exterior Lamp Controls 0163.
. Turn and Lane-Change
Signals 0166.
Windshield Wiper/Washer
With the ignition in ACC/ACCESSORY
or ON/RUN, move the lever up or
down to select the wiper speed.
HI : Use for fast wipes.
LO : Use for slow wipes.
AUTO : Use this setting for
intermittent wipes when Rainsense ™
is disabled, or for Rainsense wipes
when it is enabled. For intermittent
wipes, move the lever up to AUTO,
then turn the band on the wiper lever
up for more frequent wipes or down
for less frequent wipes.
If Rainsense is enabled in vehicle
personalization, move the lever up to
AUTO, then turn the band on the
wiper lever to adjust the sensitivity to
moisture.
. Turn the band up for more
sensitivity to moisture.
. Turn the band down for less
sensitivity to moisture.

Cadillac CT6 Owner Manual (GMNA-Localizing-MidEast-10293390) - 2017 -
CRC - 6/21/16
18 IN BRIEF
.Move the windshield wiper lever
out of the AUTO position to
deactivate Rainsense.
To enable or disable this feature, see
“Rainsense Wipers” underVehicle
Personalization 0152.
OFF : Use to turn the wipers off.
1X : For a single wipe, briefly move
the lever down. For several wipes, hold
the lever down.
f: Pull the lever toward you to
spray windshield washer fluid and
activate the wipers.
See Windshield Wiper/Washer 0109.
Climate Controls
The climate control buttons and the touch screen are used to adjust the heating,
cooling, and ventilation.
Dual and Quad Zone Climate Control Buttons
1. Driver and Passenger Temperature Controls
2. Fan Control
3. Driver and Passenger Heated and Ventilated Seats (If Equipped)
4. Rear Window Defogger 5. Defrost
6. OFF (Fan)
7. Recirculation
8. AUTO (Automatic Operation)

Cadillac CT6 Owner Manual (GMNA-Localizing-MidEast-10293390) - 2017 -
CRC - 6/21/16
IN BRIEF 19
Climate Touch Screen Controls
1. Outside Temperature Display
2. Driver and Passenger Temperature Controls
3. Fan Control
4. A/C (Air Conditioning)
5. Climate Control Selection (Application Tray Button)
6. SYNC (Synchronized Temperature)
7. Driver and Passenger Air Delivery Mode Controls
8. Defog 9. Ionizer Status Indicator (If
Equipped)
See Automatic Climate Control System
(Quad Zone) 0171 orAutomatic
Climate Control System (Dual
Zone) 0178.
Transmission
Tap Shift
Vehicles equipped with Tap Shift
allow shifting an automatic
transmission similar to a manual
transmission. Tap Shift can be
enabled through the shift lever or the
Tap Shift controls on the back of the
steering wheel. See Manual
Mode 0203.
Vehicle Features
Infotainment System
See the infotainment manual for
information on the radio, audio
players, rear seat infotainment, phone,
navigation system, and voice or
speech recognition. It also includes
information on settings.
Steering Wheel Controls
The infotainment system can be
operated by using the steering wheel
controls. See "Steering Wheel
Controls" in the infotainment manual.
