oil reset CADILLAC CTS 2007 1.G Owners Manual

Vehicle Information Menu
To access this menu, press the up or down arrow
on the INFO switch located to the right of the
display.
The following items are available when the ignition
is in ON. These items will not be available when
the ignition is in ACCESSORY. The tire pressure
menu items are only available if your vehicle
has the Tire Pressure Monitor (TPM) system:
OUTSIDE TEMP
MI TRIP A (KM TRIP A)*
MI TRIP B (KM TRIP B)*
MILES RANGE (KM RANGE)
MPG AVG (L/100 KM AVG)*
MPG INST (L/100 KM INST)
GAL FUEL USED (L FUEL USED)*
AVG MPH (AVG KM/H)*
TIMER*
BATTERY VOLTS
ENGINE OIL LIFE*
TRANS FLUID LIFE* (Automatic
Transmission Only)
PSI LF TIRE (KPA LF TIRE)
PSI RF TIRE (KPA RF TIRE)
PSI RR TIRE (KPA RR TIRE)
PSI LR TIRE (KPA LR TIRE)
BLANK LINE
*These items can be reset. Each one must be
reset individually. For a detailed description of the
menu items and how to reset them, see “Vehicle
Information Menu Item Descriptions” later in
this section.
You can view any of these items at any time, but
only one item can be displayed at a time.
224

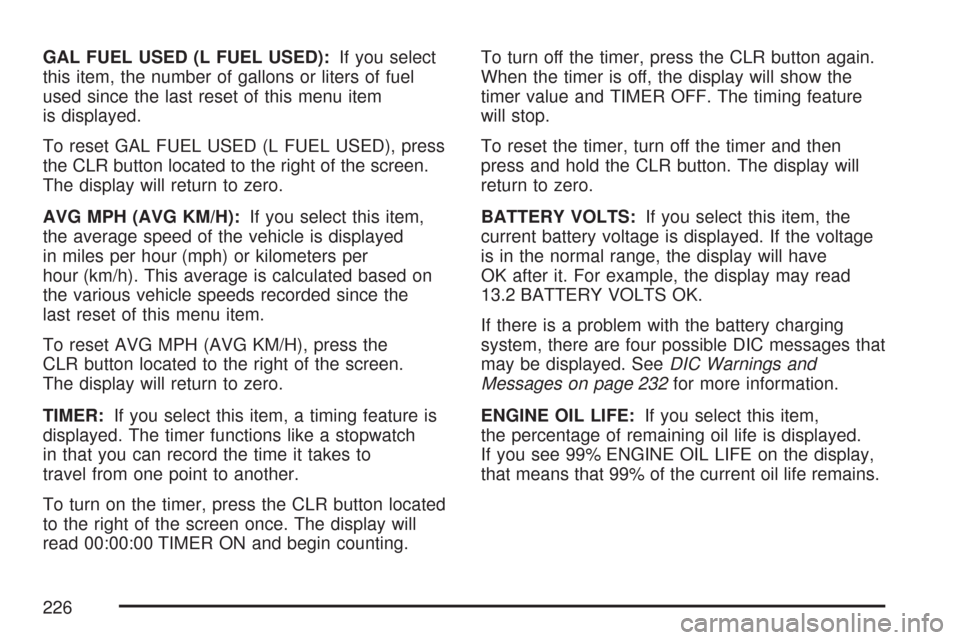

GAL FUEL USED (L FUEL USED):If you select
this item, the number of gallons or liters of fuel
used since the last reset of this menu item
is displayed.
To reset GAL FUEL USED (L FUEL USED), press
the CLR button located to the right of the screen.
The display will return to zero.
AVG MPH (AVG KM/H):If you select this item,
the average speed of the vehicle is displayed
in miles per hour (mph) or kilometers per
hour (km/h). This average is calculated based on
the various vehicle speeds recorded since the
last reset of this menu item.
To reset AVG MPH (AVG KM/H), press the
CLR button located to the right of the screen.
The display will return to zero.
TIMER:If you select this item, a timing feature is
displayed. The timer functions like a stopwatch
in that you can record the time it takes to
travel from one point to another.
To turn on the timer, press the CLR button located
to the right of the screen once. The display will
read 00:00:00 TIMER ON and begin counting.To turn off the timer, press the CLR button again.
When the timer is off, the display will show the
timer value and TIMER OFF. The timing feature
will stop.
To reset the timer, turn off the timer and then
press and hold the CLR button. The display will
return to zero.
BATTERY VOLTS:If you select this item, the
current battery voltage is displayed. If the voltage
is in the normal range, the display will have
OK after it. For example, the display may read
13.2 BATTERY VOLTS OK.
If there is a problem with the battery charging
system, there are four possible DIC messages that
may be displayed. SeeDIC Warnings and
Messages on page 232for more information.
ENGINE OIL LIFE:If you select this item,
the percentage of remaining oil life is displayed.
If you see 99% ENGINE OIL LIFE on the display,
that means that 99% of the current oil life remains.
226

When the oil life is depleted, the Change Engine
Oil message will appear on the display. See
your dealer for service. In addition to the engine
oil life system monitoring the oil life, additional
maintenance is recommended in the Maintenance
Schedule in this manual. SeeScheduled
Maintenance on page 462andEngine Oil on
page 346for more information.
When you reset the Change Engine Oil message
by clearing it from the display, you still must reset
the engine oil life system separately. For more
information on resetting the engine oil life system,
see “How to Reset the Engine Oil Life System
and the Oil Life Indicator” underEngine Oil
Life System on page 349. If you clear the Change
Engine Oil message from the display, it will not
re-appear.
TRANS FLUID LIFE (Automatic Transmission):
If you select this item, the percentage of
remaining transmission uid life is displayed.
If you see 99% TRANS FLUID LIFE on the display,
that means that 99% of the current transmission
uid life remains.When the transmission uid life is depleted, the
Change Trans Fluid message will appear on
the display. You should change the transmission
uid as soon as possible. Be sure to keep a written
record of the mileage and date of the uid
change so you will have it for future reference.
SeeScheduled Maintenance on page 462
andRecommended Fluids and Lubricants on
page 473for more information.
When you reset the Change Trans Fluid message
by clearing it from the display, you still must
reset the transmission uid life monitor separately.
For more information on resetting the transmission
uid life monitor, seeAutomatic Transmission
Fluid on page 353.
LF TIRE:If you select this item, the driver’s side
front tire pressure will be displayed. If the tire
pressure is low, LOW will be displayed with this
item. The pressure can be displayed in pounds per
square inch (PSI) or kilopascals (KPA). To change
the units, seeDIC Main Menu on page 228
DIC Main Menu.
227

Change Engine Oil
This message indicates that the life of the engine
oil has expired and it should be changed and
that your vehicle is due for service. See your
dealer. SeeEngine Oil on page 346and
Scheduled Maintenance on page 462for more
information.
When you reset the Change Engine Oil message
by clearing it from the display, you still must
reset the engine oil life system separately. For
more information on resetting the engine oil
life system, seeEngine Oil Life System on
page 349. If you clear this message from the
display, it will not re-appear.
Change Trans (Transmission) Fluid
(Automatic Transmission)
This message indicates that the life of the
transmission uid has expired and it should be
changed. SeeScheduled Maintenance on
page 462andRecommended Fluids and
Lubricants on page 473for the proper uid and
change intervals.When you reset the Change Trans Fluid message
by clearing it from the display, you still must
reset the transmission uid life monitor separately.
For more information on resetting the transmission
uid life monitor, seeAutomatic Transmission
Fluid on page 353.
Check Brake Fluid
This message will display if the ignition is in ON to
inform the driver that the brake uid level is low.
Have the brake system serviced by your dealer as
soon as possible. SeeBrake System Warning
Light on page 205andBrakes on page 371
for more information.
Check Gas Cap
When this message appears on the display, the
gas cap has not been fully tightened. You
should recheck the gas cap to ensure that it is on
and tightened properly. See “If the Light Is On
Steady” underMalfunction Indicator Lamp
on page 209for more information.
235

The CD player can play the smaller 3 inch (8 cm)
single CDs with an adapter ring. Full-size CDs
and the smaller CDs are loaded in the same
manner.
If playing a CD-R, the sound quality may be
reduced due to CD-R quality, the method of
recording, the quality of the music that has been
recorded, and the way the CD-R has been
handled. There may be an increase in skipping,
difficulty in nding tracks, and/or difficulty in loading
and ejecting. If these problems occur, check the
bottom surface of the CD. If the surface of the CD
is damaged, such as cracked, broken, or
scratched, the CD will not play properly. If the
surface of the CD is soiled, seeCare of Your CDs
on page 283for more information.
If there is no apparent damage, try a known
good CD.
Do not add any label to a CD, it could get caught
in the CD player. If a CD is recorded on a
personal computer and a description label is
needed, try labeling the top of the recorded CD
with a marking pen.Notice:If a label is added to a CD, or more
than one CD is inserted into the slot at a time,
or an attempt is made to play scratched or
damaged CDs, the CD player could be
damaged. While using the CD player, use only
CDs in good condition without any label,
load one CD at a time, and keep the CD player
and the loading slot free of foreign materials,
liquids, and debris.
If an error appears on the display, see
“CD Messages” later in this section.
When a CD is inserted the CD functions appear
on the display above the rm keys, in place of the
preset stations (if programmed).
F1 PREV (Previous):Press this rm key to go to
the previous track. Press and hold this rm key
to reverse quickly within a track. Release the rm
key to play the passage. The elapsed time of
the track appears on the display.
F2 NEXT:Press this rm key to go to the next
track. Press and hold this rm key to advance
quickly within a track. Release the rm key to play
the passage. The elapsed time of the track
appears on the display.
271

Your vehicle’s engine is lled at the factory
with a Mobil 1®synthetic oil, which meets all
requirements for your vehicle.
Substitute Engine Oil: When adding oil to maintain
engine oil level, oil meeting GM Standard
GM4718M may not be available. You can add
substitute oil designated SAE 5W-30 with
the starburst symbol at all temperatures. Substitute
oil not meeting GM Standard GM4718M should
not be used for an oil change.
Engine Oil Additives
Do not add anything to the oil. The recommended
oils with the starburst symbol that meet GM
standards are all you need for good performance
and engine protection.
Engine Oil Life System
When to Change Engine Oil
Your vehicle has a computer system that lets you
know when to change the engine oil and lter.
This is based on engine revolutions and engine
temperature, and not on mileage. Based on driving
conditions, the mileage at which an oil changewill be indicated can vary considerably. For the oil
life system to work properly, you must reset the
system every time the oil is changed.
When the system has calculated that oil life has
been diminished, it will indicate that an oil change is
necessary. A change engine oil message in the
Driver Information Center (DIC) will come on.
Change your oil as soon as possible within the next
600 miles (1 000 km). It is possible that, if you are
driving under the best conditions, the oil life system
may not indicate that an oil change is necessary for
over a year. However, your engine oil and lter
must be changed at least once a year and at this
time the system must be reset. Your dealer has
GM-trained service people who will perform this
work using genuine GM parts and reset the system.
It is also important to check your oil regularly and
keep it at the proper level.
If the system is ever reset accidentally, you must
change your oil at 3,000 miles (5 000 km)
since your last oil change. Remember to reset the
oil life system whenever the oil is changed.
349

How to Reset the Engine Oil Life
System and the Oil Life Indicator
The Engine Oil Life System calculates when to
change your engine oil and lter based on vehicle
use. Anytime your oil is changed, reset the system
so it can calculate when the next oil change is
required. If a situation occurs where you change
your oil prior to a change engine oil message in the
DIC being turned on, reset the system.
After the oil has been changed, the change engine
oil message and the oil life indicator must be
reset. To reset the message and indicator, use one
of the following procedures:
Base Audio System
Press the CLR button located to the right of the
DIC display to acknowledge the change engine oil
message. This will clear the message from the
display and reset it.To reset the oil life indicator, use the following
steps:
1. Press the up or down arrow on the INFO
button located to the right of the DIC
display to access the DIC menu.
2. Once XXX% ENGINE OIL LIFE menu item is
highlighted, press and hold the CLR button.
The percentage will return to 100, and
the oil life indicator will be reset. Repeat the
steps if the percentage does not return to 100.
3. Turn the key to OFF.
If the change engine oil message comes back on
when you start your vehicle, the engine oil life
system has not reset. Repeat the procedure.Navigation System
If you have the navigation system, see “Vehicle
Customization” in the Navigation System Manual
for how to reset the oil life indicator.
350

When you go to your GM Goodwrench®dealer for
your service needs, you will know that GM-trained
and supported service technicians will perform
the work using genuine GM parts.
If you want to purchase service information,
seeService Publications Ordering Information
on page 501.
Owner Checks and Services on page 469tells you
what should be checked, when to check it, and
what you can easily do to help keep your vehicle in
good condition.
The proper replacement parts, uids, and
lubricants to use are listed inRecommended
Fluids and Lubricants on page 473andNormal
Maintenance Replacement Parts on page 475.
When your vehicle is serviced, make sure these
are used. All parts should be replaced and all
necessary repairs done before you or anyone else
drives the vehicle. We recommend the use of
genuine GM parts.Scheduled Maintenance
When the Change Engine Oil message in the
Driver Information Center (DIC) comes on,
it means that service is required for your vehicle.
Have your vehicle serviced as soon as possible
within the next 600 miles (1 000 km). It is possible
that, if you are driving under the best conditions,
the engine oil life system may not indicate
that vehicle service is necessary for over a year.
However, your engine oil and lter must be
changed at least once a year and at this time the
system must be reset. Your GM Goodwrench
®
dealer has GM-trained service technicians who will
perform this work using genuine GM parts and
reset the system.
If the engine oil life system is ever reset
accidentally, you must service your vehicle within
3,000 miles (5 000 km) since your last service.
Remember to reset the oil life system whenever
the oil is changed. SeeEngine Oil Life System on
page 349for information on the Engine Oil Life
System and resetting the system.
462

When the Change Engine Oil message appears,
certain services, checks, and inspections are
required. Required services are described in the
following for “MaintenanceI” and “MaintenanceII.”
Generally, it is recommended that your rst
service be MaintenanceI, your second service
be MaintenanceII, and that you alternate
MaintenanceIand MaintenanceIIthereafter.
However, in some cases, MaintenanceIImay be
required more often.MaintenanceI— Use MaintenanceIif the
change engine oil message comes on within
10 months since the vehicle was purchased or
MaintenanceIIwas performed.
MaintenanceII— Use MaintenanceIIif the
previous service performed was MaintenanceI.
Always use MaintenanceIIwhenever the message
comes on 10 months or more since the last
service or if the message has not come on at all
for one year.
Scheduled Maintenance
Service MaintenanceIMaintenanceII
Change engine oil and lter. SeeEngine Oil on page 346. Reset oil life system.
SeeEngine Oil Life System on page 349.An Emission Control Service.••
Visually check for any leaks or damage.See footnote (k).••
Inspect engine air cleaner lter. If necessary, replace lter. SeeEngine Air
Cleaner/Filter on page 351.See footnote (n).•
Rotate tires and check ination pressures and wear. SeeTire Inspection and
Rotation on page 409and “Tire Wear Inspection” inAt Least Once a Month on
page 470.••
463
