Page 363 of 490
Replacement Bulbs
Exterior Lamp Bulb Number
Fog Lamp (Uplevel Only) H11LL
License Plate Lamp W5WLL
For replacement bulbs not listed here, contact your
dealer/retailer.
Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected for wear
or cracking. SeeOwner Checks and Services on
page 6-10.
It is a good idea to clean or replace the wiper blade
assembly on a regular basis or when worn. For proper
windshield wiper blade length and type, seeMaintenance
Replacement Parts on page 6-16.
To replace the wiper blade assembly:
1. Turn the ignition to ON/RUN with the engine off.
2. Turn on the windshield wipers and turn them
off again when the wipers are in the out-wipe
position. The driver side blade will be straight up
and down on the windshield.3. Pull the windshield wiper assembly away from the
windshield.
4. Lift up the wiper blade assembly cap.
5. Pull the wiper blade assembly down far enough to
release it from the J-hooked end of the wiper arm.
Slide the assembly away from the arm.
Allowing the wiper blade arm to touch the windshield
when no wiper blade is installed could damage
the windshield. Any damage that occurs would not
be covered by your warranty. Do not allow the
wiper blade arm to touch the windshield.
6. Replace the blade with a new one.
5-57
Page 368 of 490
The compact spare tire is for emergency use when
a regular road tire has lost air and gone at. If your
vehicle has a compact spare tire, seeCompact
Spare Tire on page 5-111andIf a Tire Goes Flat
on page 5-82.
(B) Tire Ply Material
:The type of cord and
number of plies in the sidewall and under the tread.
(C) Tire Identi cation Number (TIN)
:The letters
and numbers following the DOT (Department of
Transportation) code is the Tire Identi cation
Number (TIN). The TIN shows the manufacturer
and plant code, tire size, and date the tire was
manufactured. The TIN is molded onto both sides
of the tire, although only one side may have the
date of manufacture.
(D) Maximum Cold In ation Load Limit
:Maximum load that can be carried and the
maximum pressure needed to support that load.
(E) Tire In ation
:The temporary use tire or
compact spare tire should be in ated to 60 psi
(420 kPa). For more information on tire pressure
and in ation seeInflation - Tire Pressure on
page 5-66.(F) Tire Size
:A combination of letters and
numbers de ne a tire’s width, height, aspect
ratio, construction type, and service description.
The letter T as the rst character in the tire
size means the tire is for temporary use only.
(G) TPC Spec (Tire Performance Criteria
Speci cation)
:Original equipment tires designed
to GM’s speci c tire performance criteria have a
TPC speci cation code molded onto the sidewall.
GM’s TPC speci cations meet or exceed all federal
safety guidelines.
Tire Size
The following illustration shows an example of a
typical passenger vehicle tire size.
(A) Passenger (P-Metric) Tire
:The United States
version of a metric tire sizing system. The letter P
as the rst character in the tire size means a
passenger vehicle tire engineered to standards
set by the U.S. Tire and Rim Association.
5-62
Page 379 of 490
TPMS Sensor Matching Process
Each TPMS sensor has a unique identi cation code.
Any time you replace one or more of the TPMS sensors
or rotate your vehicle’s tires, the identi cation codes
need to be matched to the new tire/wheel position.
The sensors are matched to the tire/wheel positions
in the following order: driver side front tire, passenger
side front tire, passenger side rear tire, and driver
side rear tire using a TPMS diagnostic tool. See your
dealer/retailer for service.
The TPMS sensors can also be matched to each
tire/wheel position by increasing or decreasing the tire’s
air pressure. If increasing the tire’s air pressure, do not
exceed the maximum in ation pressure indicated on the
tire’s sidewall. To decrease the tire’s air-pressure use the
pointed end of the valve cap, a pencil-style air pressure
gage, or a key.
You have two minutes to match the rst tire/wheel
position, and ve minutes overall, to match all four
tire/wheel positions. If it takes longer than two minutes,
to match the rst tire and wheel, or more than
ve minutes to match all four tire and wheel positions,
the matching process stops and you need to start over.The TPMS matching process is outlined below:
1. Set the parking brake.
2. Turn the ignition switch to ON/RUN with the
engine off.
3. Press the Remote Keyless Entry (RKE) transmitter’s
lock and unlock buttons at the same time for
approximately ve seconds. The horn sounds twice
to signal the receiver is in relearn mode and Tire
Learning Active message displays on the DIC
screen.
4. Start with the driver side front tire.
5. Remove the valve cap from the valve stem.
Activate the TPMS sensor by increasing or
decreasing the tire’s air pressure for 10 seconds,
or until a horn chirp sounds. The horn chirp, which
can take up to 30 seconds to sound, con rms
that the TPMS sensor identi cation code has
been matched to this tire position.
6. Proceed to the passenger side front tire, and repeat
the procedure in Step 5.
7. Proceed to the passenger side rear tire, and repeat
the procedure in Step 5.
8. Proceed to the driver side rear tire, and repeat the
procedure in Step 5.
5-73
Page 389 of 490
If a tire goes at, and your vehicle has a compact
spare tire, seeChanging a Flat Tire on page 5-102.
This information shows you how to use your vehicle’s
tire changing equipment and how to change a at
tire safely.
{CAUTION:
Lifting a vehicle and getting under it to do
maintenance or repairs is dangerous without
the appropriate safety equipment and training.
The jack provided with your vehicle is
designed only for changing a at tire. If it is
used for anything else, you or others could be
badly injured or killed if the vehicle slips off
the jack. Use the jack provided with your
vehicle only for changing a at tire.
Tire Sealant and Compressor Kit
If your vehicle has a factory installed tire sealant and
compressor kit, there is no spare tire, no tire changing
equipment and no place to store a tire.
If a tire goes at, avoid further tire and wheel damage
by driving slowly to a level place and stopping.
1. Turn on the hazard warning ashers. SeeHazard
Warning Flashers on page 3-6.
2. Park your vehicle. If your vehicle has an automatic
transmission, set the parking brake rmly and put
the shift lever in PARK (P). SeeShifting Into Park
(Automatic Transmission) on page 2-45. If your
vehicle has a manual transmission, move the
shift lever to REVERSE (R) and set the parking
brake rmly. SeeParking the Vehicle (Manual
Transmission) on page 2-47for additional
information.
3. Turn off the engine.
4. Inspect the at tire.
5-83
Page 393 of 490
{CAUTION:
Idling the engine in a closed-in place or with
the climate control system off can cause
deadly carbon monoxide (CO). SeeEngine
Exhaust on page 2-48.
7. Start the vehicle. SeeStarting the Engine on
page 2-35for more information. The vehicle must
be running while using the air compressor.
{CAUTION:
Overin ation could cause the tire to rupture,
and you or others could be injured. Be sure to
read the in ator instructions, and in ate the
tire to its recommended pressure. Do not
exceed 36 psi (248 kPa).
8. Turn the selector switch (A) counterclockwise to the
sealant and air position.9. Push the On/Off button (B).
The sealant and compressor kit will inject sealant
and air into the tire. Sealant may leak from the
puncture until the vehicle is driven and the hole
has sealed.
The pressure gage (C) will initially show a high
pressure while the compressor pushes the sealant
into the tire. Once the sealant is completely
dispersed into the tire, the pressure will quickly drop
and start to rise again as the tire in ates with air.
10. In ate the tire to the recommended in ation
pressure, found on the Tire and Loading Information
label located on the vehicle’s center pillar (B-pillar)
below the vehicle’s door latch, using the air pressure
gage on the top of the unit.
The pressure gage reads high while the compressor
is running. Turn the compressor off to get an
accurate pressure reading.
Notice:If the recommended pressure cannot be
reached after approximately 25 minutes, the vehicle
should not be driven farther. The tire is too severely
damaged and the tire sealant and compressor kit
cannot in ate the tire. Remove the air compressor
plug from the accessory power outlet and unscrew
the in ating hose from the tire valve. SeeRoadside
Service on page 7-7.
11. Turn the compressor off by pushing the On/Off
button (B).
5-87

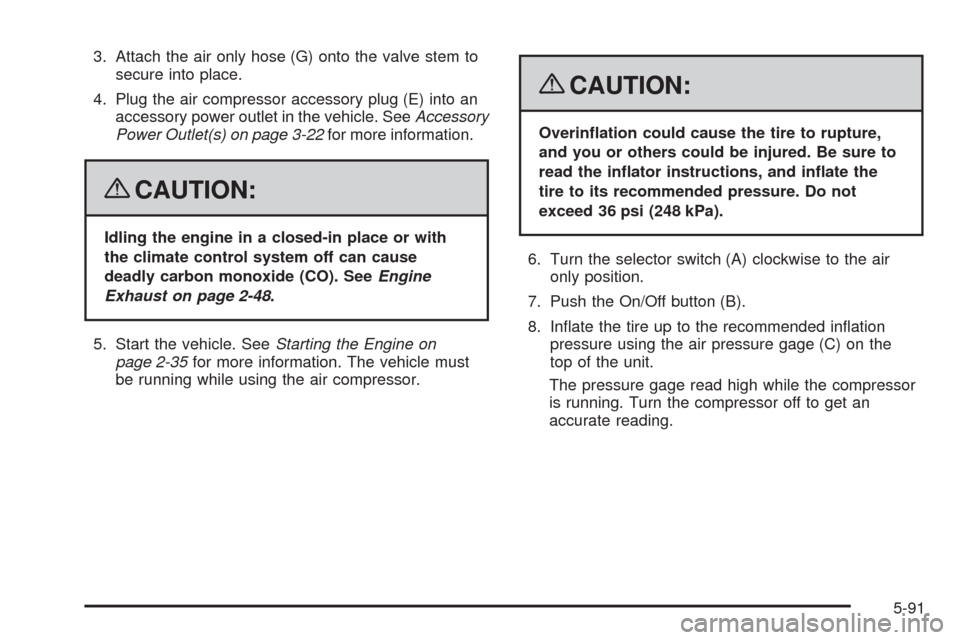

Page 397 of 490
3. Attach the air only hose (G) onto the valve stem to
secure into place.
4. Plug the air compressor accessory plug (E) into an
accessory power outlet in the vehicle. SeeAccessory
Power Outlet(s) on page 3-22for more information.
{CAUTION:
Idling the engine in a closed-in place or with
the climate control system off can cause
deadly carbon monoxide (CO). SeeEngine
Exhaust on page 2-48.
5. Start the vehicle. SeeStarting the Engine on
page 2-35for more information. The vehicle must
be running while using the air compressor.
{CAUTION:
Overin ation could cause the tire to rupture,
and you or others could be injured. Be sure to
read the in ator instructions, and in ate the
tire to its recommended pressure. Do not
exceed 36 psi (248 kPa).
6. Turn the selector switch (A) clockwise to the air
only position.
7. Push the On/Off button (B).
8. In ate the tire up to the recommended in ation
pressure using the air pressure gage (C) on the
top of the unit.
The pressure gage read high while the compressor
is running. Turn the compressor off to get an
accurate reading.
5-91
Page 402 of 490
7. Plug the air compressor accessory plug (C) into an
accessory power outlet in the vehicle. SeeAccessory
Power Outlet(s) on page 3-22for more information.
Do not slam door or close window on the
compressor accessory plug cord.
{CAUTION:
Idling the engine in a closed-in place or with
the climate control system off can cause
deadly carbon monoxide (CO). SeeEngine
Exhaust on page 2-48.
8. Start the vehicle. SeeStarting the Engine on
page 2-35for more information. The vehicle must
be running while using the air compressor.
{CAUTION:
Overin ation could cause the tire to rupture,
and you or others could be injured. Be sure to
read the in ator instructions, and in ate the
tire to its recommended pressure. Do not
exceed 36 psi (248 kPa).
9. Push the On/Off switch to the I (on) position.
The tire sealant and compressor kit will inject
sealant and air into the tire.
The pressure gage (E) will initially show a high
pressure while the compressor pushes the sealant
into the tire. Once the sealant is completely
dispersed into the tire, the pressure will quickly drop
and start to rise again as the tire in ates with air only.
5-96
Page 405 of 490
Using the Air Compressor without
Sealant to In ate an Underin ated Tire
(Not Punctured)
To use the air compressor to in ate a tire with air only
and not sealant:
1. Unlock the air only (F) from the sealant canister (B)
by pulling up on the lever.
2. Pull the air only hose (F) from the sealant
canister (B).3. Remove the tire valve stem cap by turning it
counterclockwise.
4. Push the air only hose (F) onto the tire valve stem
and push the lever down to secure in place.
5. Remove the air compressor accessory plug (C)
from the unit.
6. Plug the air compressor accessory plug (C) into an
accessory power outlet in the vehicle. SeeAccessory
Power Outlet(s) on page 3-22for more information.
Do not slam the door or close the window on the
compressor accessory plug cord.
{CAUTION:
Idling the engine in a closed-in place or with
the climate control system off can cause
deadly carbon monoxide (CO). SeeEngine
Exhaust on page 2-48.
7. Start the vehicle. SeeStarting the Engine on
page 2-35for more information. The vehicle must
be running while using the air compressor.
5-99
Page 408 of 490
To install a new sealant canister:
1. Align the sealant lling hose with the slot in the air
compressor.
2. Push the sealant canister down and turn it
clockwise.
3. Wrap the sealant lling hose around the air
compressor channel to stow it in its original location.
4. Push the air only hose onto the sealant canister inlet
and push the lever down.
Changing a Flat Tire
If a tire goes at, avoid further tire and wheel damage
by driving slowly to a level place. Turn on your vehicle’s
hazard warning ashers. SeeHazard Warning Flashers
on page 3-6for more information.
{CAUTION:
Changing a tire can be dangerous. The vehicle
can slip off the jack and roll over or fall on you
or other people. You and they could be badly
injured or even killed. Find a level place to
change your tire. To help prevent the vehicle
from moving:
1. Set the parking brake rmly.
2. Put the shift lever in P (Park).
3. Turn off the engine and do not restart
while the vehicle is raised.
4. Do not allow passengers to remain in the
vehicle.
CAUTION: (Continued)
5-102
Page 427 of 490
Vehicle Identi cation
Vehicle Identi cation Number (VIN)
This is the legal identi er for your vehicle. It appears on
a plate in the front corner of the instrument panel, on
the driver side. It can be seen through the windshield
from outside the vehicle. The VIN also appears on
the Vehicle Certi cation and Service Parts labels and
the certi cates of title and registration.
Engine Identi cation
The eighth character in the VIN is the engine code. This
code helps identify the vehicle’s engine, speci cations,
and replacement parts. See “Engine Speci cations”
underCapacities and Specifications on page 5-129for
your vehicle’s engine code.
Service Parts Identi cation Label
This label is on the spare tire cover. It is very helpful if
you ever need to order parts. The label has the
following information:
Vehicle Identi cation Number (VIN)
Model designation
Paint information
Production options and special equipment
Do not remove this label from the vehicle.
5-121
