fuse CADILLAC CTS 2008 2.G User Guide

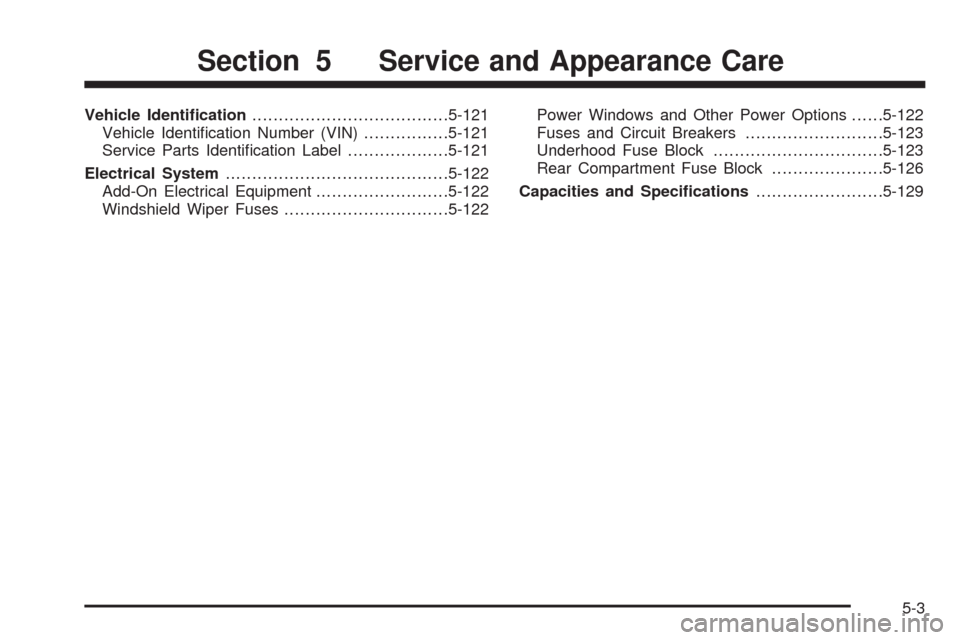

Vehicle Identication.....................................5-121
Vehicle Identication Number (VIN)................5-121
Service Parts Identication Label...................5-121
Electrical System..........................................5-122
Add-On Electrical Equipment.........................5-122
Windshield Wiper Fuses...............................5-122Power Windows and Other Power Options......5-122
Fuses and Circuit Breakers..........................5-123
Underhood Fuse Block................................5-123
Rear Compartment Fuse Block.....................5-126
Capacities and Specications........................5-129
Section 5 Service and Appearance Care
5-3

California Proposition 65 Warning
Most motor vehicles, including this one, contain and/or
emit chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm.
Engine exhaust, many parts and systems (including
some inside the vehicle), many uids, and some
component wear by-products contain and/or emit
these chemicals.
California Perchlorate Materials
Requirements
Certain types of automotive applications, such as airbag
initiators, seat belt pretensioners, and lithium batteries
contained in remote keyless entry transmitters, may
contain perchlorate materials. Special handling
may be necessary. For additional information,
see www.dtsc.ca.gov/hazardouswaste/perchlorate.
Doing Your Own Service Work
{CAUTION:
You can be injured and your vehicle could be
damaged if you try to do service work on a
vehicle without knowing enough about it.
Be sure you have sufficient knowledge,
experience, the proper replacement parts,
and tools before you attempt any vehicle
maintenance task.
Be sure to use the proper nuts, bolts,
and other fasteners. English and metric
fasteners can be easily confused. If you
use the wrong fasteners, parts can later
break or fall off. You could be hurt.
If you want to do some of your own service work,
you should use the proper service manual. It tells you
much more about how to service your vehicle than
this manual can. To order the proper service manual,
seeService Publications Ordering Information on
page 7-17.
5-5

A. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on page 5-40.
B. Underhood Fuse Block. SeeUnderhood Fuse Block
on page 5-123.
C. Remote Positive (+) Terminal. SeeJump Starting on
page 5-45.
D. Remote Negative (+) Terminal. SeeJump Starting
on page 5-45.
E. Passenger Compartment Air Filter. SeePassenger
Compartment Air Filter on page 3-29.
F. Engine Cooling Fan. SeeCooling System on
page 5-34.
G. Power Steering Fluid Reservoir (Under Engine
Cover). SeePower Steering Fluid on page 5-39.H. Engine Oil Fill Cap. See “When to Add Engine Oil”
underEngine Oil on page 5-16.
I. Engine Oil Dipstick (Out of View). See “Checking
Engine Oil” underEngine Oil on page 5-16.
J. Hydraulic Clutch Reservoir (If Equipped)
(Not Shown). See “When to Check and What
to Use” underHydraulic Clutch on page 5-27.
K. Brake Master Cylinder Reservoir (Out of View).
See “Brake Fluid” underBrakes on page 5-41.
L. Engine Coolant Surge Tank and Pressure Cap.
SeeCoolant Surge Tank Pressure Cap on page 5-31
andCooling System on page 5-34.
M. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 5-21.
5-15

Battery
Your vehicle has a maintenance free battery. It is
located in the trunk, behind the trim panel, on the
passenger side of the vehicle. When it is time for a
new battery, see your dealer/retailer for one that has
the replacement number shown on the original battery’s
label.
Warning:Battery posts, terminals, and related
accessories contain lead and lead compounds,
chemicals known to the State of California to cause
cancer and reproductive harm. Wash hands after
handling.
After a power loss, such as disconnecting the battery or
removing the maxi fuses in the power distribution fuse
block, the following steps must be performed to calibrate
the electronic throttle control. If this is not done, the
engine will not run properly.
1. Turn the ignition to ON/RUN. Do not start the
engine.
2. Leave the ignition in ON/RUN for at least
three minutes so that the electronic throttle
control will cycle and re-learn its home position.
3. Turn the ignition to LOCK/OFF.
4. Start and run the engine for at least 30 seconds.
Vehicle Storage
{CAUTION:
Batteries have acid that can burn you and gas
that can explode. You can be badly hurt if you
are not careful. SeeJump Starting on page 5-45
for tips on working around a battery without
getting hurt.
Infrequent Usage: If you drive your vehicle infrequently,
remove the black, negative (−) cable from the battery.
This will help keep the battery from running down.
Extended Storage: For extended storage of your vehicle,
remove the black, negative (−) cable from the battery
or use a battery trickle charger. This will help maintain
the charge of the battery over an extended period
of time.
5-44

Electrical System
Add-On Electrical Equipment
Notice:Do not add anything electrical to your
vehicle unless you check with your dealer/retailer
rst. Some electrical equipment can damage
your vehicle and the damage would not be covered
by your warranty. Some add-on electrical equipment
can keep other components from working as they
should.
Add-on equipment can drain your vehicle’s battery, even
if your vehicle is not operating.
Your vehicle has an airbag system. Before attempting to
add anything electrical to your vehicle, seeServicing
Your Airbag-Equipped Vehicle on page 1-70.
Windshield Wiper Fuses
The windshield wiper motor is protected by an internal
circuit breaker. If the wiper motor overheats due to
heavy snow, the wipers will stop until the motor cools
and will then restart.
Power Windows and Other Power
Options
Circuit breakers in the fuse block protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is xed or
goes away.
5-122

Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses and circuit
breakers. This greatly reduces the chance of res
caused by electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical
size and rating.
If you ever have a problem on the road and don’t have
a spare fuse, you can borrow one that has the same
amperage. Just pick some feature of your vehicle
that you can get along without — like the radio or
cigarette lighter — and use its fuse, if it is the correct
amperage. Replace it as soon as you can.
Underhood Fuse Block
The underhood fuse
block is located on the
passenger side of
the engine compartment.
Lift the fuse block cover to access the fuses.
Notice:Spilling liquid on any electrical components
on your vehicle may damage it. Always keep the
covers on any electrical component.
5-123

Fuses Usage
A/C CLTCH Air Conditioning Clutch
ABS Antilock Braking System (ABS)
AFS Adaptive Forward Lighting System
AIRBAG IGN Airbag SwitchFuses Usage
AWD All-Wheel Drive
BCM 1 Body Control Module 1
BCM 2 Body Control Module 2
BCM 3 Body Control Module 3
5-124

Fuses Usage
BCM 4 Body Control Module 4
BCM 5 Body Control Module 5
BCM 6 Body Control Module 6
BCM 7 Body Control Module 7
DISPLY Display
DRL RT Right Daytime Running Lamp (DRL)
DRL/ENG
PUMPDaytime Running Lamps
ECM Engine Control Module (ECM)
ECM/TCM IGNECM, Transmission Control
Module (TCM), Instrument Panel
Cluster (IPC), PASS-Key III+ Module
EMIS 1 Emission 1
EMIS 2 Emission 2
EVEN COILS Even Coils
FRT FOG Front Fog Lamps
HDM WASH Headlamp Driver Module Washer
HORN Horn
LO BEAM DRL Low-Beam DRL
LT HI BEAM Left High-Beam Headlamp
LT LO BEAM Left Low-Beam HeadlampFuses Usage
LT LO BEAM Left Low-Beam Headlamp
LTR Cigarette Lighter
MISC IGN Ignition
NAV MTR Navigation Motor
ODD COILS Odd Coils
PED PROT Not Used
PWR MODINGPassKey Module, Body Control
Module
RT HI BEAM Right High-Beam Headlamp
RT LO BEAM Right Low-Beam Headlamp
RT LO BEAM Right Low-Beam Headlamp
SPARE Spare
SPARE Spare
STR/WHL/
ILLUMSteering Wheel Illumination
TCM BATTTransmission Control Module
Battery
TRANS
OIL RLYTransmission Oil Relay
WPR Windshield Wiper
WSW PUMP Windshield Washer Pump
5-125

J-Case Fuses Usage
ABS MTR ABS Motor
BLWR Blower
BRK VAC
PUMPBrake Vacuum Pump
FAN 1 Cooling Fan 1
FAN 2 Cooling Fan 2
REAR DEFOG Rear Defogger
SPARE Spare
SPARE Spare
SPARE Spare
STRTR Starter
TRANS PUMP Transmission Pump
WSW/HTR Windshield Washer Heater
Relays Usage
A/C CMPRSR
CLTCHAir Conditioning Compressor Clutch
DRL (W/O HID)
LO BEAM (HID)Daytime Running Lamps
(without High Intensity Discharge),
Low-Beam Headlamps
(High Intensity Discharge)
ENG PUMP Engine Pump
FAN S/P Cooling Fan Series/Parallel
Relays Usage
FAN 1 Cooling Fan 1
FAN 2 Cooling Fan 2
HEAD LAMP
WASHHeadlamp Washer
HI BEAM High-Beam Headlamp
HORN Horn
IGN 1 Ignition 1
LO BEAM
(W/O HID)
LT DRL (HID)Low-Beam (without High Intensity
Discharge), Left Daytime Running
Lamp (High Intensity Discharge)
PWR/TRN Powertrain
REAR DEFOG Rear Defogger
SPARE Spare
STRTR Starter
WPR Windshield Wiper
WPR HI Windshield Wiper High Speed
WSW PUMP Windshield Washer Pump
Rear Compartment Fuse Block
The rear compartment fuse block is located on top of
the battery, on the right side of the trunk. The battery
access door must be removed to access the fuse block.
5-126

Relays Usage
RT/POS/LP Right Position Lamp
SPARE Spare
STOP/LP Stoplamp
TRUNK/RELSE Trunk Release
UNLCK Unlock
Fuses Usage
AIRBAG Airbag System
AMP Amplier
AUX/OUTLET Auxiliary Power Outlet
CNSTR/VENT Canister Vent
DR/LCK Door Lock
ECM Engine Control Module (ECM)
FUEL/PUMP Fuel Pump
LT/POS/LP Left Position Lamp
LT/REAR/
WNDWLeft Rear Window
MSM Memory Seat Module
Fuses Usage
ONSTAR OnStar®System
PDM Passenger Door Module
RDO Audio System
RDO/SPKR Audio Speakers
REAR/FOG Not Used
REAR/WNDW Rear Window
RKE/
PASS-KEY/
MDLRemote Keyless Entry System,
Pass-Key Theft Deterrent Feature
Module
RT/POS/LP Right Position Lamp
RT/POS/LP Right Position Lamp
RVC/SNSR Regulated Voltage Control Sensor
S/ROOF Sunroof
SPARE Spare
SPARE Spare
STOP/LP Stoplamp
THEFT/UGDOTheft Deterrent System, Universal
Home Remote System
TRUNK/RELSE Trunk Release
5-128
