14. Replace the tire valve stem cap.
15. Replace the sealant/air hose (F), and the power
plug (H) back in their original location.
16. If the at tire was
able to inate to the
recommended ination
pressure, remove
the maximum speed
label from the sealant
canister (E) and
place it in a highly
visible location.
The label is a reminder not to exceed 55 mph
(90 km/h) until the damaged tire is repaired
or replaced.
17. Return the equipment to its original storage location
in the vehicle.
18. Immediately drive the vehicle 5 miles (8 km) to
distribute the sealant in the tire.19. Stop at a safe location and check the tire pressure.
Refer to Steps 1 through 11 under “Using the Tire
Sealant and Compressor Kit without Sealant to
Inate a Tire (Not Punctured).”
If the tire pressure has fallen more than 10 psi
(68 kPa) below the recommended ination pressure,
stop driving the vehicle. The tire is too severely
damaged and the tire sealant cannot seal the tire.
SeeRoadside Service on page 7-7.
If the tire pressure has not dropped more than
10 psi (68 kPa) from the recommended ination
pressure, inate the tire to the recommended
ination pressure.
20. Wipe off any sealant from the wheel, tire, and
vehicle.
21. Dispose of the used sealant canister (E) and
sealant/air hose (F) assembly at a local
dealer/retailer or in accordance with local state
codes and practices.
22. Replace it with a new canister available from your
dealer/retailer.
23. After temporarily sealing a tire using the tire sealant
and compressor kit, take the vehicle to an authorized
dealer/retailer within a 100 miles (161 km) of driving
to have the tire repaired or replaced.
5-91

Using the Tire Sealant and Compressor
Kit without Sealant to Inate a Tire
(Not Punctured)
To use the air compressor to inate a tire with air only
and not sealant:
Always do a safety check rst. SeeIf a Tire Goes Flat
on page 5-85.
1. Remove the tire sealant and compressor kit from its
storage location. SeeTire Sealant and Compressor
Kit Storage on page 5-95.
2. Unwrap the air only hose (G) and the power
plug (H).
5-92

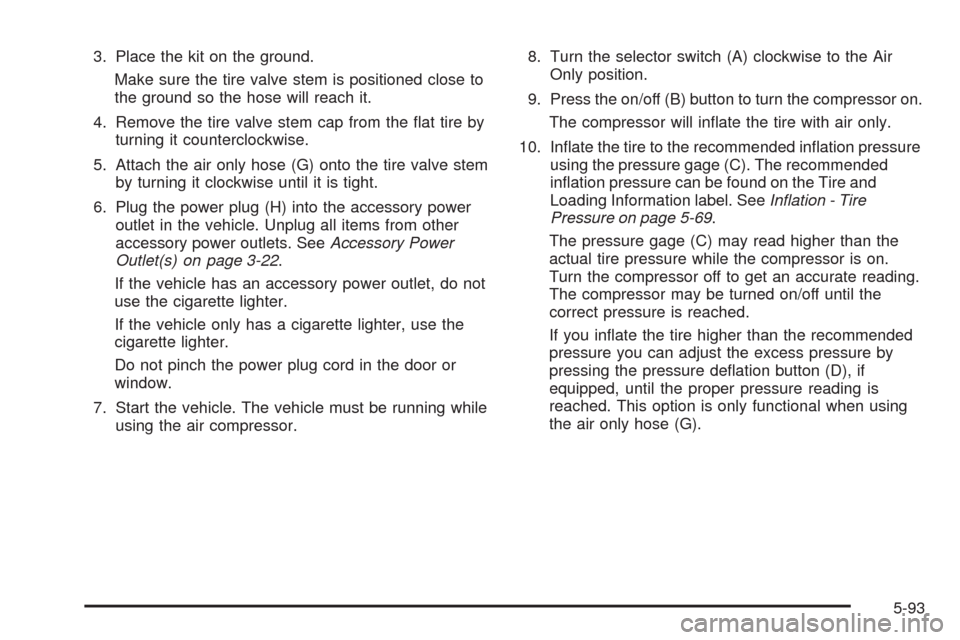

3. Place the kit on the ground.
Make sure the tire valve stem is positioned close to
the ground so the hose will reach it.
4. Remove the tire valve stem cap from the at tire by
turning it counterclockwise.
5. Attach the air only hose (G) onto the tire valve stem
by turning it clockwise until it is tight.
6. Plug the power plug (H) into the accessory power
outlet in the vehicle. Unplug all items from other
accessory power outlets. SeeAccessory Power
Outlet(s) on page 3-22.
If the vehicle has an accessory power outlet, do not
use the cigarette lighter.
If the vehicle only has a cigarette lighter, use the
cigarette lighter.
Do not pinch the power plug cord in the door or
window.
7. Start the vehicle. The vehicle must be running while
using the air compressor.8. Turn the selector switch (A) clockwise to the Air
Only position.
9. Press the on/off (B) button to turn the compressor on.
The compressor will inate the tire with air only.
10. Inate the tire to the recommended ination pressure
using the pressure gage (C). The recommended
ination pressure can be found on the Tire and
Loading Information label. SeeInflation - Tire
Pressure on page 5-69.
The pressure gage (C) may read higher than the
actual tire pressure while the compressor is on.
Turn the compressor off to get an accurate reading.
The compressor may be turned on/off until the
correct pressure is reached.
If you inate the tire higher than the recommended
pressure you can adjust the excess pressure by
pressing the pressure deation button (D), if
equipped, until the proper pressure reading is
reached. This option is only functional when using
the air only hose (G).
5-93

11. Press the on/off button (B) to turn the tire sealant
and compressor kit off.
Be careful while handling the tire sealant and
compressor kit as it could be warm after usage.
12. Unplug the power plug (H) from the accessory
power outlet in the vehicle.
13. Disconnect the air only hose (G) from the tire valve
stem, by turning it counterclockwise, and replace
the tire valve stem cap.
14. Replace the air only hose (G) and the power plug (H)
and cord back in its original location.
15. Place the equipment in the original storage location
in the vehicle.
The tire sealant and compressor kit has an accessory
adapter located in a compartment on the bottom of
its housing that may be used to inate air mattresses,
balls, etc.
5-94

Removal and Installation of the Sealant
Canister
To remove the sealant canister:
1. Unwrap the sealant hose.
2. Press the canister release button.
3. Pull up and remove the canister.
4. Replace with a new canister which is available from
your dealer/retailer.
5. Push the new canister into place.
Tire Sealant and Compressor Kit
Storage
The tire sealant and compressor kit is located in
the trunk.
Tire Sealant and Compressor Kit without
Pressure Deation Button
A. Tire Sealant and Compressor Kit
B. Foam Container
C. Wing Nut
1. Open the trunk. SeeTrunk on page 2-19.
2. Locate the tire sealant and compressor kit (A) in the
center of the cargo area.
3. Remove the wing nut (C) that holds the tire sealant
and compressor kit (A) in place.
4. Remove the tire sealant and compressor kit (A)
from the foam container (B).
5-95

Tire Sealant and Compressor Kit with
Pressure Deation Button
1. Open the trunk. SeeTrunk on page 2-19.
2. Remove the retainer that holds the tire sealant and
compressor kit in place.
3. Remove the tire sealant and compressor kit from
the foam container.
To store the tire sealant and compressor kit, reverse
the steps.
Changing a Flat Tire
If a tire goes at, avoid further tire and wheel damage by
driving slowly to a level place. Turn on the hazard
warning ashers. SeeHazard Warning Flashers on
page 3-6.
{CAUTION:
Changing a tire can be dangerous. The vehicle
can slip off the jack and roll over or fall on you or
other people. You and they could be badly injured
or even killed. Find a level place to change your
tire. To help prevent the vehicle from moving:
1. Set the parking brake rmly.
2. Put the shift lever in P (Park).
CAUTION: (Continued)
5-96

CAUTION: (Continued)
3. Turn off the engine and do not restart while
the vehicle is raised.
4. Do not allow passengers to remain in the
vehicle.
To be even more certain the vehicle will not move,
you should put blocks at the front and rear of the
tire farthest away from the one being changed.
That would be the tire, on the other side, at the
opposite end of the vehicle.
When the vehicle has a at tire (B), use the following
example as a guide to assist you in the placement
of wheel blocks (A).A. Wheel Block
B. Flat Tire
The following information explains how to use the jack
and change a tire.
5-97

Removing the Spare Tire and Tools
A. Wing Nut
B. Spare Tire
C. JackD. Wheel Wrench
E. Extension
F. Strap
The equipment you will need is in the trunk.To gain access to the spare tire and jacking equipment,
do the following:
1. Remove the spare tire cover.
2. Remove the stow rod cap by pulling it straight up
off of the rod.
3. Turn the wing nut (A) on the compact spare tire (B)
counterclockwise to remove it.
4. Remove the spare tire and place it next to the
at tire.
5. The tools you will be using next include the jack (C),
wheel wrench (D), and extension (E).
5-98

Removing the Flat Tire and
Installing the Spare Tire
1. Do a safety check before proceeding. SeeChanging
a Flat Tire on page 5-96for more information.
2. Loosen the wheel nuts, but do not remove them
yet, using the wheel wrench. Turn the handle
about 180 degrees, then return the handle back to
the starting position. This avoids taking the
wrench off the lug nut for each turn.3. Find the jacking location using the diagram above
and corresponding V-shaped locating notches
located in the plastic molding.
5-99

4. Insert the hooked end of the extension handle
through the jack and the at end through the
wheel wrench.
{CAUTION:
Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack, you
could be badly injured or killed. Never get under a
vehicle when it is supported only by a jack.
{CAUTION:
Lifting a vehicle and getting under it to do
maintenance or repairs is dangerous without the
appropriate safety equipment and training. If a jack
is provided with the vehicle, it is designed only for
changing a at tire. If it is used for anything else,
you or others could be badly injured or killed if the
vehicle slips off the jack. If a jack is provided with
the vehicle, only use it for changing a at tire.
