Page 367 of 496
Black plate (49,1)Cadillac CTS/CTS-V Owner Manual - 2011
Vehicle Care 10-49
J-CaseFuses Usage
6 Cooling Fan 2
7 Cooling Fan 1
8 Starter
9 Not Used
10 Antilock Brake
System Motor
13 Not Used
14 Electric Parking
Brake
15 Not Used
16 Not Used
17 Blower Motor
18 Rear Window
Defogger
37 Magnetic Ride/
Suspension Control Relays Usage
1 Cooling Fan 2
2 Cooling Fan 1
3 Starter
4 Rear Window
Defogger
5 Instrument Panel
Auxiliary Power
Outlet
12 Horn
20 Headlamp Washer
(HID Only)
21 Cooling Fan (Series/
Parallel)
32 Air Conditioning
Compressor Clutch
39 Windshield
Washer Pump Relays Usage
42 Right Daytime
Running Lamp
44 Left Daytime
Running Lamp (HID)
45 Front Fog Lamps
(HID Only)
48 High‐Beam
Headlamps
49 Low‐Beam
Headlamps (HID)
53 Not Used
63 Main Ignition
66 Windshield Wipers
67 Powertrain
68 Windshield Wipers
High Speed
Page 368 of 496
Black plate (50,1)Cadillac CTS/CTS-V Owner Manual - 2011
10-50 Vehicle Care
Engine Compartment
Fuse Block (CTS Wagon)
The underhood fuse block is located
on the passenger side of the engine
compartment.
Lift the fuse block cover to access
the fuses.
Notice:Spilling liquid on any
electrical components on the
vehicle may damage it. Always
keep the covers on any electrical
component.
Mini‐Fuses Usage
11 Not Used
19 Antilock Braking
System (ABS)
22 Display
23 Not Used
24 Body Control
Module 1 Mini‐Fuses Usage
25 Automatic Forward
Lighting System
(HID Only)
26 Body Control
Module 5
27 Body Control
Module 4
Page 369 of 496
Black plate (51,1)Cadillac CTS/CTS-V Owner Manual - 2011
Vehicle Care 10-51
Mini‐Fuses Usage28 Navigation Motor
29 All-Wheel Drive
30 Transmission
Control Module
Battery
31 Horn
33 Left Low‐Beam
Headlamp
(Domestic
Non‐HID Only)
34 Pedestrian
Protection System
(Export Only)
35 Body Control
Module 3
36 Body Control
Module 2
38 Headlamp Washer
(HID Only) Mini‐Fuses Usage
40 Right Low‐Beam
Headlamp
(Domestic Non‐
HID Only)
41 Air Conditioning
Compressor Clutch
43 Low‐Beam Daytime
Running Lamps
(non‐HID), Left
Daytime Running
Lamps (HID), Left
Trailer Turn Signal
(Export Only)
46 Left High‐Beam
Headlamp
47 Right High‐Beam
Headlamp
50 Right Daytime
Running Lamp
51 Airbag System
Ignition Switch Mini‐Fuses Usage
52 Engine Control
Module Ignition,
Transmission
Control Module
Ignition
54 Power Moding
(Immobilizer
Module, Ignition
Switch)
55 Not Used
56 Windshield Wipers
57 Right Low‐Beam
(HID Only)
58 Daytime Running
Lamps (non‐HID),
Left Low‐Beam
(HID Only)
59 Right Daytime
Running Lamp (HID
Only), Right Trailer
Turn Signal
(Export Only)
Page 370 of 496
Black plate (52,1)Cadillac CTS/CTS-V Owner Manual - 2011
10-52 Vehicle Care
Mini‐Fuses Usage60 Instrument Panel
Auxiliary Power
Outlet
61 Air Quality Sensor,
Inside Rear View
Mirror, Rear
Camera
62 Ignition
64 Steering Wheel
Illumination
65 Front Fog Lamps
(HID Only)
69 Body Control
Module 6, Body
Control Module 7
70 Emissions 1
71 Even Ignition Coils
72 Engine Control
Module Mini‐Fuses Usage
73 Emissions 2
74 Odd Ignition Coils
75 Transmission
Output Speed
Sensor, Brake
Vacuum Relay
76 Spare
77 Spare
78 Spare
79 Spare
80 Spare
81 Spare
J-Case Fuses Usage
6 Cooling Fan 2
7 Cooling Fan 1
8 Starter J-Case
Fuses Usage
9 Brake
Vacuum Pump
10 Antilock Brake
System Motor
13 Not Used
14 Electric Parking
Brake
15 Not Used
16 Not Used
17 Blower Motor
18 Transmission
Control Module
Battery
37 Trailer (Export Only)
Page 372 of 496
Black plate (54,1)Cadillac CTS/CTS-V Owner Manual - 2011
10-54 Vehicle Care

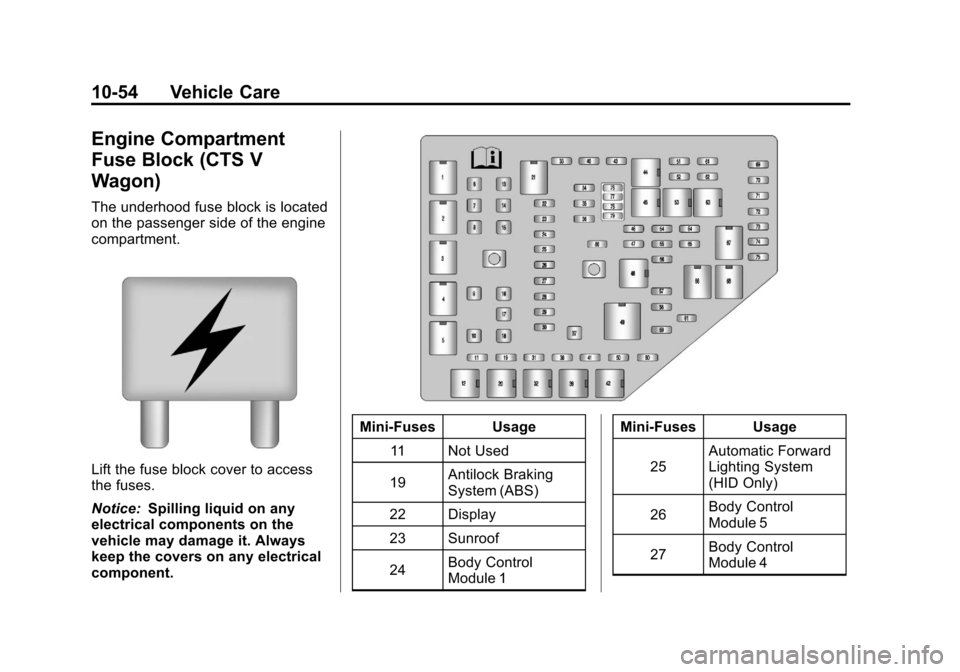

Engine Compartment
Fuse Block (CTS V
Wagon)
The underhood fuse block is located
on the passenger side of the engine
compartment.
Lift the fuse block cover to access
the fuses.
Notice:Spilling liquid on any
electrical components on the
vehicle may damage it. Always
keep the covers on any electrical
component.
Mini‐Fuses Usage
11 Not Used
19 Antilock Braking
System (ABS)
22 Display
23 Sunroof
24 Body Control
Module 1 Mini‐Fuses Usage
25 Automatic Forward
Lighting System
(HID Only)
26 Body Control
Module 5
27 Body Control
Module 4
Page 373 of 496
Black plate (55,1)Cadillac CTS/CTS-V Owner Manual - 2011
Vehicle Care 10-55
Mini‐Fuses Usage28 Navigation Motor
29 Not Used
30 Transmission
Control Module
Battery
31 Horn
33 Not Used
34 Pedestrian
Protection System
(Export Only)
35 Body Control
Module 3
36 Body Control
Module 2
38 Headlamp Washer
(HID Only) Mini‐Fuses Usage
40 Not Used
41 Air Conditioning
Compressor Clutch
43 Left Daytime
Running
Lamp (HID)
46 Left High‐Beam
Headlamp
47 Right High‐Beam
Headlamp
50 Right Daytime
Running Lamp
51 Airbag System
Ignition Switch
52 Engine Control
Module Ignition,
Transmission
Control Module
Ignition Mini‐Fuses Usage
54 Power Moding
(Immobilizer
Module, Ignition
Switch)
55 Intercooler Pump
56 Windshield Wipers
57 Right Low‐Beam
(HID Only)
58 Left Low‐Beam
(HID Only)
59 Right Daytime
Running Lamp
(HID Only)
60 Instrument Panel
Auxiliary Power
Outlet
61 Air Quality Sensor,
Inside Rear View
Mirror, Rear
Camera
Page 374 of 496
Black plate (56,1)Cadillac CTS/CTS-V Owner Manual - 2011
10-56 Vehicle Care

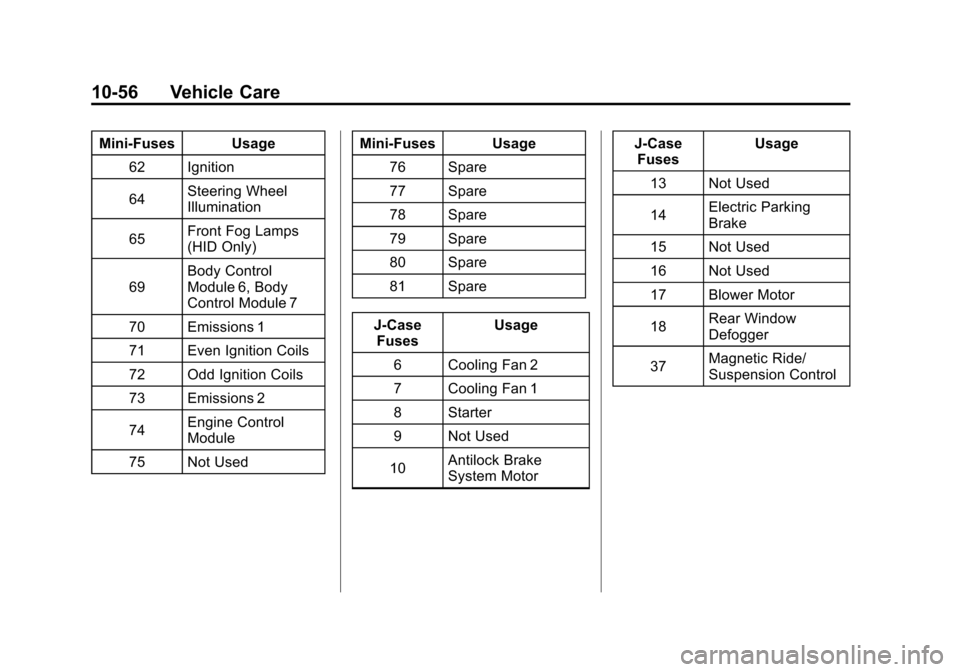

Mini‐Fuses Usage62 Ignition
64 Steering Wheel
Illumination
65 Front Fog Lamps
(HID Only)
69 Body Control
Module 6, Body
Control Module 7
70 Emissions 1
71 Even Ignition Coils
72 Odd Ignition Coils
73 Emissions 2
74 Engine Control
Module
75 Not Used Mini‐Fuses Usage
76 Spare
77 Spare
78 Spare
79 Spare
80 Spare
81 Spare
J-Case Fuses Usage
6 Cooling Fan 2
7 Cooling Fan 1
8 Starter
9 Not Used
10 Antilock Brake
System Motor J-Case
Fuses Usage
13 Not Used
14 Electric Parking
Brake
15 Not Used
16 Not Used
17 Blower Motor
18 Rear Window
Defogger
37 Magnetic Ride/
Suspension Control
Page 376 of 496
Black plate (58,1)Cadillac CTS/CTS-V Owner Manual - 2011
10-58 Vehicle Care
Rear Compartment Fuse
Block (CTS Coupe and
Sedan)
The rear compartment fuse block is
located on top of the battery, on the
right side of the trunk. The battery
access door must be removed to
access the fuse block.
RelaysUsage
5 Stop Lamps
(Export Only)
6 Door Lock
7 Door Unlock
8 Fuel Door Unlock
(Export Only) Relays
Usage
9 Right Position Lamp
(Export Only)
10 Console/Auxiliary
Power Outlet
11 Trunk Release
12 Side Marker Lamps
13 Left Position Lamps
Page 377 of 496
Black plate (59,1)Cadillac CTS/CTS-V Owner Manual - 2011
Vehicle Care 10-59

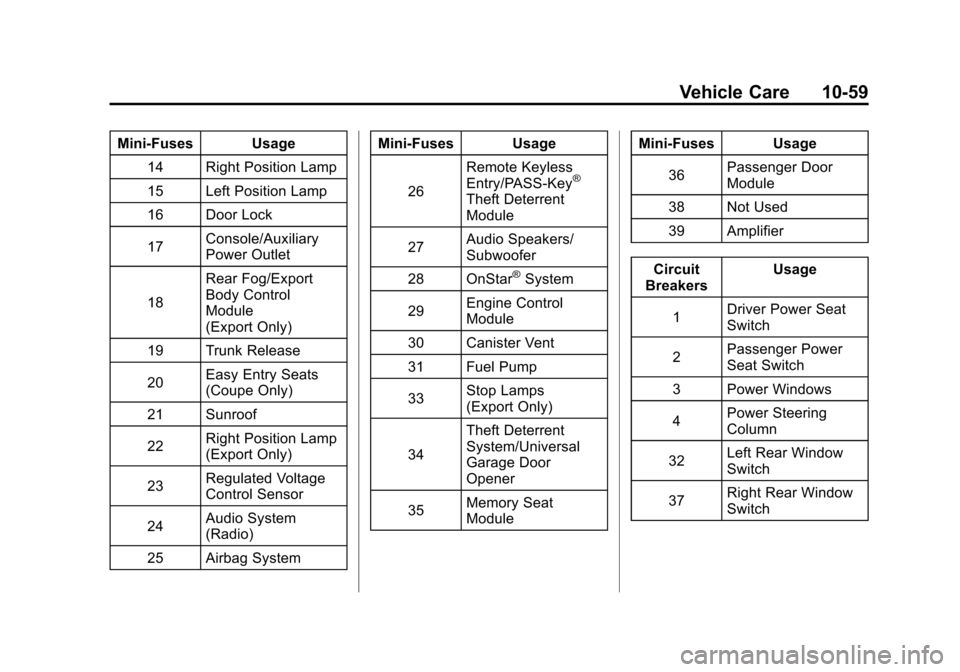

Mini‐Fuses Usage14 Right Position Lamp
15 Left Position Lamp
16 Door Lock
17 Console/Auxiliary
Power Outlet
18 Rear Fog/Export
Body Control
Module
(Export Only)
19 Trunk Release
20 Easy Entry Seats
(Coupe Only)
21 Sunroof
22 Right Position Lamp
(Export Only)
23 Regulated Voltage
Control Sensor
24 Audio System
(Radio)
25 Airbag System Mini‐Fuses Usage
26 Remote Keyless
Entry/PASS‐Key
®
Theft Deterrent
Module
27 Audio Speakers/
Subwoofer
28 OnStar
®System
29 Engine Control
Module
30 Canister Vent
31 Fuel Pump
33 Stop Lamps
(Export Only)
34 Theft Deterrent
System/Universal
Garage Door
Opener
35 Memory Seat
Module Mini‐Fuses Usage
36 Passenger Door
Module
38 Not Used
39 Amplifier
Circuit
Breakers Usage
1 Driver Power Seat
Switch
2 Passenger Power
Seat Switch
3 Power Windows
4 Power Steering
Column
32 Left Rear Window
Switch
37 Right Rear Window
Switch
Page 378 of 496
Black plate (60,1)Cadillac CTS/CTS-V Owner Manual - 2011
10-60 Vehicle Care
Rear Compartment Fuse
Block (CTS-V Coupe and
Sedan)
The rear compartment fuse block is
located on top of the battery, on the
right side of the trunk. The battery
access door must be removed to
access the fuse block.
RelaysUsage
5 Stop Lamps
(Export Only)
6 Door Lock
7 Door Unlock
8 Fuel Door Unlock
(Export Only) Relays
Usage
9 Right Position Lamp
(Export Only)
10 Console/Auxiliary
Power Outlet
11 Trunk Release
12 Side Marker Lamps
13 Left Position Lamps
