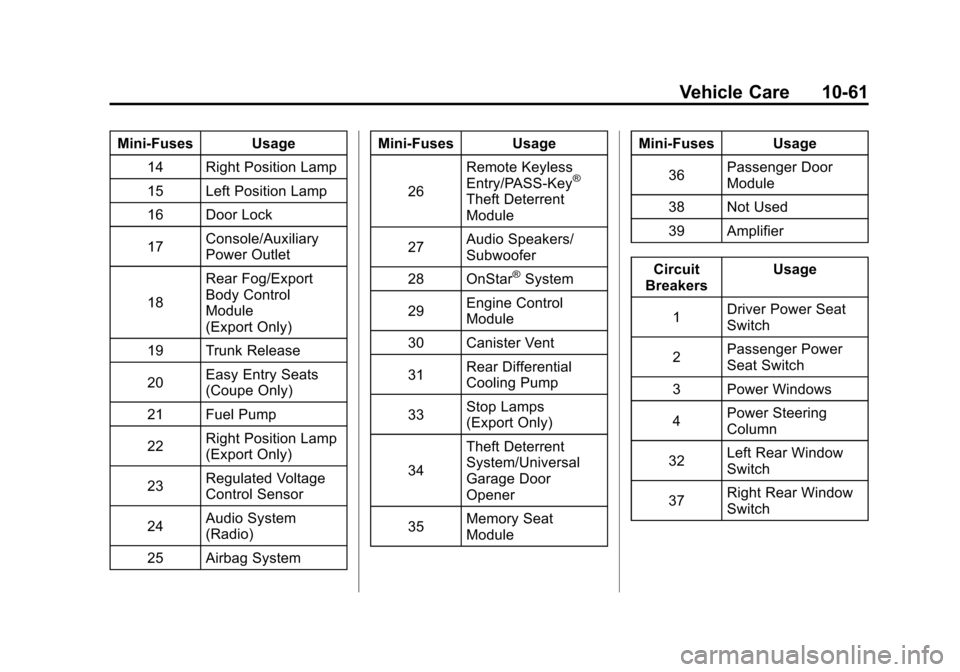

Mini‐Fuses Usage14 Right Position Lamp
15 Left Position Lamp
16 Door Lock
17 Console/Auxiliary
Power Outlet
18 Rear Fog/Export
Body Control
Module
(Export Only)
19 Trunk Release
20 Easy Entry Seats
(Coupe Only)
21 Fuel Pump
22 Right Position Lamp
(Export Only)
23 Regulated Voltage
Control Sensor
24 Audio System
(Radio)
25 Airbag System Mini‐Fuses Usage
26 Remote Keyless
Entry/PASS‐Key
®
Theft Deterrent
Module
27 Audio Speakers/
Subwoofer
28 OnStar
®System
29 Engine Control
Module
30 Canister Vent
31 Rear Differential
Cooling Pump
33 Stop Lamps
(Export Only)
34 Theft Deterrent
System/Universal
Garage Door
Opener
35 Memory Seat
Module Mini‐Fuses Usage
36 Passenger Door
Module
38 Not Used
39 Amplifier
Circuit
Breakers Usage
1 Driver Power Seat
Switch
2 Passenger Power
Seat Switch
3 Power Windows
4 Power Steering
Column
32 Left Rear Window
Switch
37 Right Rear Window
Switch

Black plate (62,1)Cadillac CTS/CTS-V Owner Manual - 2011
10-62 Vehicle Care
Rear Compartment Fuse
Block (CTS Wagon)
The rear compartment fuse block is
located on the passenger side of the
vehicle, behind the trim panel in the
rear compartment.
RelaysUsage
5 Stop Lamps
(Export Only)
6 Door Lock
7 Door Unlock
8 Fuel Door Unlock
(Export Only) Relays
Usage
9 Right Position Lamp
(Export Only)
10 Console/Auxiliary
Power Outlet
11 Not Used
12 Side Marker Lamps
13 Left Position Lamps

Black plate (63,1)Cadillac CTS/CTS-V Owner Manual - 2011
Vehicle Care 10-63
Mini‐Fuses Usage14 Right Position Lamp
15 Left Position Lamp
16 Door Lock
17 Console/Auxiliary
Power Outlet
18 Rear Fog/Export
Body Control
Module
(Export Only)
19 Rear Windshield
Wiper/Washer
20 Windshield
Washer Pump
21 Sunroof
22 Right Position Lamp
(Export Only)
23 Regulated Voltage
Control Sensor
24 Audio System
(Radio)
25 Airbag System Mini‐Fuses Usage
26 Remote Keyless
Entry/PASS‐Key
®
Theft Deterrent
Module
27 Audio Speakers/
Subwoofer
28 OnStar
®System
29 Engine Control
Module
30 Canister Vent
31 Fuel Pump
33 Stop Lamps
(Export Only)
34 Theft Deterrent
System/Universal
Garage Door
Opener
35 Memory Seat
Module
36 Passenger Door
Module Mini‐Fuses Usage
38 Rear Auxiliary
Power Outlet
39 Amplifier
Circuit
Breakers Usage
1 Driver Power Seat
Switch
2 Passenger Power
Seat Switch
3 Power Windows
4 Power Steering
Column
32 Left Rear Window
Switch
37 Right Rear Window
Switch

Black plate (64,1)Cadillac CTS/CTS-V Owner Manual - 2011
10-64 Vehicle Care
Rear Compartment Fuse
Block (CTS-V Wagon)
The rear compartment fuse block is
located on the passenger side of the
vehicle, behind the trim panel in the
rear compartment.
RelaysUsage
5 Stop Lamps
(Export Only)
6 Door Lock
7 Door Unlock
8 Fuel Door Unlock
(Export Only) Relays
Usage
9 Right Position Lamp
(Export Only)
10 Console/Auxiliary
Power Outlet
11 Not Used
12 Side Marker Lamps
13 Left Position Lamps

Black plate (65,1)Cadillac CTS/CTS-V Owner Manual - 2011
Vehicle Care 10-65
Mini‐Fuses Usage14 Right Position Lamp
15 Left Position Lamp
16 Door Lock
17 Console/Auxiliary
Power Outlet
18 Rear Fog/Export
Body Control
Module
(Export Only)
19 Rear Windshield
Wiper/Washer
20 Windshield
Washer Pump
21 Fuel Pump
22 Right Position Lamp
(Export Only)
23 Regulated Voltage
Control Sensor
24 Audio System
(Radio)
25 Airbag System Mini‐Fuses Usage
26 Remote Keyless
Entry/PASS‐Key
®
Theft Deterrent
Module
27 Audio Speakers/
Subwoofer
28 OnStar
®System
29 Engine Control
Module
30 Canister Vent
31 Rear Differential
Cooling Pump
33 Stop Lamps
(Export Only)
34 Theft Deterrent
System/Universal
Garage Door
Opener
35 Memory Seat
Module
36 Passenger Door
Module Mini‐Fuses Usage
38 Rear Auxiliary
Power Outlet
39 Amplifier
Circuit
Breakers Usage
1 Driver Power Seat
Switch
2 Passenger Power
Seat Switch
3 Power Windows
4 Power Steering
Column
32 Left Rear Window
Switch
37 Right Rear Window
Switch
