Page 5 of 496
Black plate (5,1)Cadillac CTS/CTS-V Owner Manual - 2011
Introduction v
Symbols
The vehicle has components and
labels that use symbols instead of
text. Symbols are shown along with
the text describing the operation or
information relating to a specific
component, control, message,
gauge, or indicator.
M:This symbol is shown when
you need to see your owner manual
for additional instructions or
information.
*: This symbol is shown when
you need to see a service manual
for additional instructions or
information. Vehicle Symbol Chart
Here are some additional symbols
that may be found on the vehicle
and what they mean. For more
information on the symbol, refer to
the Index.
9:
Airbag Readiness Light
#:Air Conditioning
!:Antilock Brake System (ABS)
g:Audio Steering Wheel Controls
or OnStar®
$: Brake System Warning Light
":Charging System
I:Cruise Control
B: Engine Coolant Temperature
O:Exterior Lamps
#:Fog Lamps
.: Fuel Gauge
+:Fuses
3: Headlamp High/Low-Beam
Changer
(: Heated Steering Wheel
j:LATCH System Child
Restraints
*: Malfunction Indicator Lamp
::Oil Pressure
}:Power
/:Remote Vehicle Start
>:Safety Belt Reminders
7:Tire Pressure Monitor
F:Traction Control
M:Windshield Washer Fluid
Page 71 of 496
Black plate (3,1)Cadillac CTS/CTS-V Owner Manual - 2011
Seats and Restraints 3-3
Active Head Restraints
The vehicle has an active head
restraint system in the front seating
positions. These automatically tilt
forward to reduce the risk of neck
injury if the vehicle is hit from
behind.
Front Seats
Seat Adjustment
{WARNING
You can lose control of the
vehicle if you try to adjust a
manual driver seat while the
vehicle is moving. The sudden
movement could startle and
confuse you, or make you push a
pedal when you do not want to.
Adjust the driver seat only when
the vehicle is not moving.To move a manual seat forward or
rearward:
1. Lift the bar to unlock the seat.
2. Slide the seat to the desired
position and release the bar.
Try to move the seat with your body
to be sure the seat is locked in
place.
Page 76 of 496
Black plate (8,1)Cadillac CTS/CTS-V Owner Manual - 2011
3-8 Seats and Restraints
Side Bolster
On vehicles with this feature:
.Press the top or bottom of
control (A) to increase or
decrease support in seat
cushion bolsters.
.Press the top or bottom of the
control (C) to increase or
decrease support in the
seatback bolsters.
Thigh Support
Adjustment
On vehicles with this feature, adjust
the manual leg extension by
reaching under it, in the pocketed
area. Press the release button and
pull or push to lengthen or shorten
it. Release the button to lock it in
place.
Reclining Seatbacks
Manual Reclining Seatbacks
{WARNING
You can lose control of the
vehicle if you try to adjust a
manual driver seat while the
vehicle is moving. The sudden
movement could startle and
confuse you, or make you push a
pedal when you do not want to.
Adjust the driver seat only when
the vehicle is not moving.
Page 149 of 496
Black plate (9,1)Cadillac CTS/CTS-V Owner Manual - 2011
Instruments and Controls 5-9
Power Outlets
Accessory power outlets can be
used to plug in electrical equipment,
such as a cell phone, MP3
player, etc.
There are three accessory power
outlets. The power outlets located
below the climate control system,
inside the center console storage
bin, and on the rear of the center
console are powered while the
vehicle is in ON/RUN/START or
ACC/ACCESSORY mode, or until
the driver door is opened with
10 minutes of turning off the vehicle.
On the CTS Wagon there is an
additional accessory power outlet
located near the rear cargo net that
is powered at all times.
Remove the cover to access and
replace when not in use.
Notice:Leaving electrical
equipment plugged in for an
extended period of time while the
vehicle is off will drain the
battery. Always unplug electrical equipment when not in use and
do not plug in equipment that
exceeds the maximum 20 ampere
rating.
Certain electrical accessories may
not be compatible with the
accessory power outlet and could
overload vehicle or adapter fuses.
If a problem is experienced, see
your dealer.
When adding electrical equipment,
be sure to follow the proper
installation instructions included with
the equipment. See
Add-On
Electrical Equipment on page 9‑58.
Notice: Hanging heavy
equipment from the power outlet
can cause damage not covered
by the vehicle warranty. The
power outlets are designed for
accessory power plugs only, such
as cell phone charge cords.
Cigarette Lighter
The vehicle may have a cigarette
lighter. To use the lighter, push it in
all the way and let go. When it is
ready, it will pop back out by itself.
Notice: Holding a cigarette lighter
in while it is heating does not let
the lighter back away from the
heating element when it is hot.
Damage from overheating can
occur to the lighter or heating
element, or a fuse could be
blown. Do not hold a cigarette
lighter in while it is heating.
Page 202 of 496
Black plate (4,1)Cadillac CTS/CTS-V Owner Manual - 2011
6-4 Lighting
Adaptive Forward
Lighting (AFL)
The Adaptive Forward Lighting
System (AFL) pivots the headlamps
horizontally to provide greater road
illumination while turning. To enable
AFL, set the exterior lamp switch on
the multifunction lever to the AUTO
position. Moving the switch out of
the AUTO position will deactivate
the system. AFL will operate when
the vehicle speed is greater than
3 km/h (2 mph). AFL will not operate
when the transmission is in
R (Reverse). AFL is not immediately
operable after starting the vehicle;
driving a short distance is required
to calibrate the AFL. SeeExterior
Lamp Controls on page 6‑1.
Hazard Warning Flashers
|
Hazard Warning Flasher:
Press this button located on the
instrument panel near the audio
system, to make the front and rear
turn signal lamps flash on and off.
This warns others that you are
having trouble. Press again to turn
the flashers off.
Turn and Lane-Change
Signals
An arrow on the instrument panel
cluster flashes in the direction of the
turn or lane change.
Move the lever all the way up or
down to signal a turn. Raise or lower the lever until the
arrow starts to flash to signal a lane
change. Hold it briefly until the lane
change is complete. The arrow will
automatically flash three times.
The lever returns to its starting
position when it is released.
If after signaling a turn or lane
change the arrow flashes rapidly or
does not come on, a signal bulb
may be burned out.
Have the bulbs replaced. If the bulb
is not burned out, check the fuse.
See
Fuses and Circuit Breakers
on
page 10‑42.
Turn Signal On Chime
If the turn signal is left on for about
1.6 km (1 mile), a warning chime will
sound and the TURN SIGNAL ON
message will appear on the Driver
Information Center (DIC) display.
See “Turn Signal On” underDriver
Information Center (DIC)
on
page 5‑27for more information.
Page 319 of 496
Black plate (1,1)Cadillac CTS/CTS-V Owner Manual - 2011
Vehicle Care 10-1
Vehicle Care
General Information
General Information . . . . . . . . . . 10-3
California Proposition65 Warning . . . . . . . . . . . . . . . . . 10-3
California Perchlorate Materials Requirements . . . . 10-3

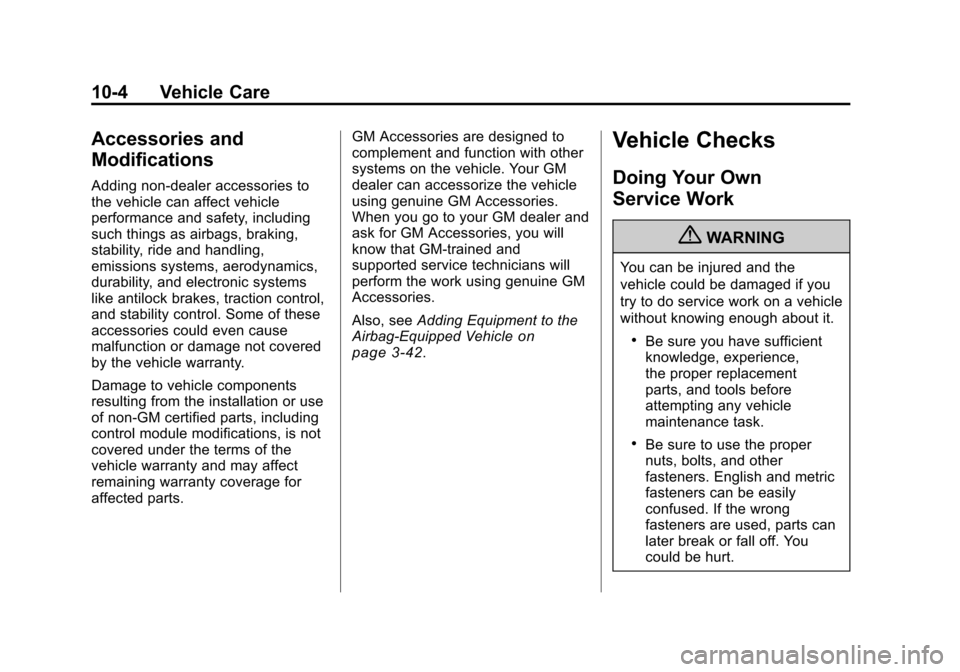

Accessories and Modifications . . . . . . . . . . . . . . . 10-4
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . 10-4
Hood . . . . . . . . . . . . . . . . . . . . . . . . 10-5
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . 10-6
Engine Cover . . . . . . . . . . . . . . . 10-10
Engine Oil . . . . . . . . . . . . . . . . . . 10-11
Engine Oil Life System . . . . . 10-14
Automatic Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . 10-15
Manual Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . 10-15 Hydraulic Clutch . . . . . . . . . . . . 10-15
Engine Air Cleaner/Filter . . . . 10-16
Cooling System . . . . . . . . . . . . 10-19
Engine Coolant . . . . . . . . . . . . . 10-19
Engine Overheating . . . . . . . . 10-24
Overheated Engine
Protection
Operating Mode . . . . . . . . . . . 10-25
Power Steering Fluid . . . . . . . 10-26
Washer Fluid . . . . . . . . . . . . . . . 10-26
Brakes . . . . . . . . . . . . . . . . . . . . . 10-27
Brake Fluid . . . . . . . . . . . . . . . . . 10-28
Battery . . . . . . . . . . . . . . . . . . . . . 10-30
All-Wheel Drive . . . . . . . . . . . . . 10-31
Rear Axle . . . . . . . . . . . . . . . . . . 10-31
Starter Switch Check . . . . . . . 10-32
Automatic Transmission Shift Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . 10-33
Ignition Transmission Lock Check . . . . . . . . . . . . . . . . . . . . . 10-33
Park Brake and P (Park) Mechanism Check . . . . . . . . 10-33
Wiper Blade Replacement . . . . . . . . . . . . . . 10-34
Headlamp Aiming
Headlamp Aiming . . . . . . . . . . 10-35
Bulb Replacement
Bulb Replacement . . . . . . . . . . 10-38
Halogen Bulbs . . . . . . . . . . . . . . 10-38
High Intensity Discharge(HID) Lighting . . . . . . . . . . . . . 10-38
Fog Lamps . . . . . . . . . . . . . . . . . 10-38
License Plate Lamp (Coupe
and Sedan) . . . . . . . . . . . . . . . 10-39
License Plate Lamp (Wagon) . . . . . . . . . . . . . . . . . . 10-39
Replacement Bulbs . . . . . . . . . 10-40
Electrical System
Electrical System Overload . . . . . . . . . . . . . . . . . . 10-40
Fuses and Circuit Breakers . . . . . . . . . . . . . . . . . . 10-42
Engine Compartment Fuse
Block (CTS Coupe and
Sedan) . . . . . . . . . . . . . . . . . . . . 10-42
Engine Compartment Fuse Block (CTS V Coupe and
Sedan) . . . . . . . . . . . . . . . . . . . . 10-46
Engine Compartment Fuse Block (CTS Wagon) . . . . . . . 10-50
Engine Compartment Fuse Block (CTS V Wagon) . . . . . 10-54
Page 320 of 496
Black plate (2,1)Cadillac CTS/CTS-V Owner Manual - 2011
10-2 Vehicle Care
Rear Compartment FuseBlock (CTS Coupe and
Sedan) . . . . . . . . . . . . . . . . . . . . 10-58
Rear Compartment Fuse Block (CTS-V Coupe and
Sedan) . . . . . . . . . . . . . . . . . . . . 10-60
Rear Compartment Fuse Block (CTS Wagon) . . . . . . . 10-62
Rear Compartment Fuse Block (CTS-V Wagon) . . . . . 10-64
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . 10-66
Winter Tires . . . . . . . . . . . . . . . . 10-67
Low-Profile Tires . . . . . . . . . . . 10-67
Tire Sidewall Labeling . . . . . . 10-68
Tire Designations . . . . . . . . . . . 10-70
Tire Terminology andDefinitions . . . . . . . . . . . . . . . . 10-71
Tire Pressure . . . . . . . . . . . . . . . 10-74
Tire Pressure for High-Speed Operation . . . . . . . . . . . . . . . . . 10-75
Tire Pressure Monitor System . . . . . . . . . . . . . . . . . . . 10-76
Tire Pressure Monitor Operation . . . . . . . . . . . . . . . . . 10-77
Tire Inspection . . . . . . . . . . . . . . 10-80
Tire Rotation . . . . . . . . . . . . . . . 10-81 When It Is Time for New
Tires . . . . . . . . . . . . . . . . . . . . . . 10-82
Buying New Tires . . . . . . . . . . . 10-83
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . 10-85
Uniform Tire Quality Grading . . . . . . . . . . . . . . . . . . . 10-85
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . 10-87
Wheel Replacement . . . . . . . . 10-88
Tire Chains . . . . . . . . . . . . . . . . . 10-89
If a Tire Goes Flat . . . . . . . . . . 10-90
Tire Sealant and Compressor Kit . . . . . . . . . . . 10-92
Storing the Tire Sealant and Compressor Kit
(Wagon) . . . . . . . . . . . . . . . . . 10-101
Storing the Tire Sealant and Compressor Kit
(Coupe) . . . . . . . . . . . . . . . . . . 10-101
Storing the Tire Sealant and Compressor Kit
(Sedan) . . . . . . . . . . . . . . . . . . 10-102
Tire Changing . . . . . . . . . . . . . 10-102
Compact Spare Tire . . . . . . . 10-111
Jump Starting
Jump Starting . . . . . . . . . . . . . 10-112
Towing
Towing the Vehicle . . . . . . . . 10-117
Recreational Vehicle Towing . . . . . . . . . . . . . . . . . . . 10-117
Appearance Care
Exterior Care . . . . . . . . . . . . . . 10-120
Interior Care . . . . . . . . . . . . . . . 10-124
Floor Mats . . . . . . . . . . . . . . . . 10-127
Page 322 of 496
Black plate (4,1)Cadillac CTS/CTS-V Owner Manual - 2011
10-4 Vehicle Care
Accessories and
Modifications
Adding non‐dealer accessories to
the vehicle can affect vehicle
performance and safety, including
such things as airbags, braking,
stability, ride and handling,
emissions systems, aerodynamics,
durability, and electronic systems
like antilock brakes, traction control,
and stability control. Some of these
accessories could even cause
malfunction or damage not covered
by the vehicle warranty.
Damage to vehicle components
resulting from the installation or use
of non‐GM certified parts, including
control module modifications, is not
covered under the terms of the
vehicle warranty and may affect
remaining warranty coverage for
affected parts.GM Accessories are designed to
complement and function with other
systems on the vehicle. Your GM
dealer can accessorize the vehicle
using genuine GM Accessories.
When you go to your GM dealer and
ask for GM Accessories, you will
know that GM-trained and
supported service technicians will
perform the work using genuine GM
Accessories.
Also, see
Adding Equipment to the
Airbag-Equipped Vehicle
on
page 3‑42.
Vehicle Checks
Doing Your Own
Service Work
{WARNING
You can be injured and the
vehicle could be damaged if you
try to do service work on a vehicle
without knowing enough about it.
.Be sure you have sufficient
knowledge, experience,
the proper replacement
parts, and tools before
attempting any vehicle
maintenance task.
.Be sure to use the proper
nuts, bolts, and other
fasteners. English and metric
fasteners can be easily
confused. If the wrong
fasteners are used, parts can
later break or fall off. You
could be hurt.
Page 325 of 496
Black plate (7,1)Cadillac CTS/CTS-V Owner Manual - 2011
Vehicle Care 10-7
A. Windshield Washer FluidReservoir. See Washer Fluidon
page 10‑26.
B. Engine Compartment Fuse
Block (CTS Coupe and Sedan)
on page 10‑42orEngine
Compartment Fuse Block (CTS
V Coupe and Sedan)
on
page 10‑46or Engine
Compartment Fuse Block (CTS
Wagon)
on page 10‑50or
Engine Compartment Fuse
Block (CTS V Wagon)
on
page 10‑54.
C. Remote Positive (+) Terminal. See Jump Starting
on
page 10‑112. D. Remote Negative (−) Terminal.
See Jump Starting
on
page 10‑112.
E. Passenger Compartment Air Filter. See Passenger
Compartment Air Filter
on
page 8‑6.
F. Engine Cooling Fan (Out of View). See Cooling System
on
page 10‑19.
G. Power Steering Fluid Reservoir (Under Engine Cover). See
Power Steering Fluid
on
page 10‑26.
H. Engine Oil Fill Cap. See Engine
Oil on page 10‑11. I. Engine Oil Dipstick (Out of
View). See Engine Oil
on
page 10‑11.
J. Hydraulic Clutch Reservoir (If Equipped) (Not Shown). See
Hydraulic Clutch on page 10‑15.
K. Brake Master Cylinder Reservoir (Out of View). See
Brakes on page 10‑27.
L. Engine Coolant Surge Tank and Pressure Cap. See Engine
Coolant on page 10‑19.
M. Engine Air Cleaner/Filter
on
page 10‑16.
Page 327 of 496
Black plate (9,1)Cadillac CTS/CTS-V Owner Manual - 2011
Vehicle Care 10-9
A. Windshield Washer FluidReservoir. See Washer Fluidon
page 10‑26.
B. Engine Compartment Fuse
Block (CTS Coupe and Sedan)
on page 10‑42orEngine
Compartment Fuse Block (CTS
V Coupe and Sedan)
on
page 10‑46or Engine
Compartment Fuse Block (CTS
Wagon)
on page 10‑50or
Engine Compartment Fuse
Block (CTS V Wagon)
on
page 10‑54.
C. Remote Positive (+) Terminal. See Jump Starting
on
page 10‑112. D. Remote Negative (−) Terminal.
See Jump Starting
on
page 10‑112.
E. Engine Oil Fill Cap (Out of View). See Engine Oil
on
page 10‑11.
F. Engine Oil Dipstick. See Engine
Oil on page 10‑11.
G. Passenger Compartment Air Filter. See Passenger
Compartment Air Filter
on
page 8‑6.
H. Intercooler System Pressure Cap. See Cooling System
on
page 10‑19.
I. Engine Cooling Fans (Out of View). See Cooling System
on
page 10‑19. J. Hydraulic Clutch Reservoir
(If Equipped) (Not Shown). See
Hydraulic Clutch on page 10‑15.
K. Brake Master Cylinder Reservoir. See Brakes
on
page 10‑27.
L. Engine Coolant Surge Tank and Pressure Cap. See Engine
Coolant on page 10‑19.
M. Power Steering Fluid Reservoir (Under Engine Cover). See
Power Steering Fluid
on
page 10‑26.
N. Engine Air Cleaner/Filter
on
page 10‑16.
