Black plate (1,1)Cadillac CTS/CTS-V Owner Manual - 2011
Technical Data 12-1
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . 12-1
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . 12-1
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . 12-2
Engine Drive Belt Routing . . . 12-4
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the left side of the vehicle. It can be
seen through the windshield from
outside. The VIN also appears on
the Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN is
the engine code. This code
identifies the vehicle's engine,
specifications, and replacement
parts. See “Engine Specifications”
under Capacities and Specifications
on page 12‑2for the vehicle's
engine code.
Service Parts
Identification Label
This label, on the spare tire cover,
has the following information:
.Vehicle Identification
Number (VIN)
.Model designation
.Paint information
.Production options and special
equipment
Do not remove this label from the
vehicle.

Black plate (2,1)Cadillac CTS/CTS-V Owner Manual - 2011
12-2 Technical Data
Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions. SeeRecommended Fluids and
Lubricantson page 11‑7for more information.
Application Capacities
Metric English
Air Conditioning Refrigerant R134a For the air conditioning system refrigerant charge
amount, see the refrigerant label located under the hood. See your dealer for more information.
Cooling System —Engine
3.0L V6 Engine 10.3 L 10.9 qt
3.6L V6 Engine 10.3 L 10.9 qt
6.2L V8 Engine 11.8 L 12.5 qt
Cooling System —Intercooler, 6.2L V8 Engine 2.3 L 2.4 qt
Engine Oil with Filter 3.0L V6 Engine 5.7 L 6.0 qt
3.6L V6 Engine 5.7 L 6.0 qt
6.2L V8 Engine 5.7 L 6.0 qt

Black plate (4,1)Cadillac CTS/CTS-V Owner Manual - 2011
12-4 Technical Data

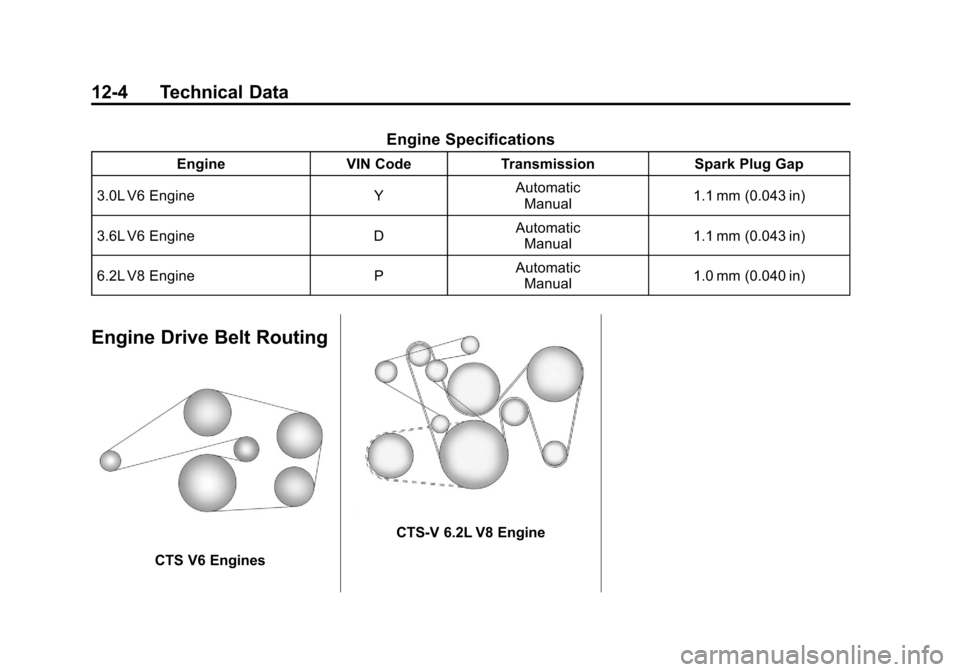

Engine Specifications
EngineVIN CodeTransmission Spark Plug Gap
3.0L V6 Engine YAutomatic
Manual 1.1 mm (0.043 in)
3.6L V6 Engine DAutomatic
Manual 1.1 mm (0.043 in)
6.2L V8 Engine PAutomatic
Manual 1.0 mm (0.040 in)
Engine Drive Belt Routing
CTS V6 Engines
CTS-V 6.2L V8 Engine
